USER MANUAL YOYO 0+ BabyZen

Abstract black geometric shapes on white background, no text or symbols present

Line drawing of a stroller with a separate side view showing the same body and frame (no text or symbols)

IMPORTANT: READ CAREFULLY AND KEEP THESE INSTRUCTION FOR FUTURE REFERENCE. FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THIS MANUAL MAY AFFECT YOUR CHILD'S SAFETY.

WARNING

• WARNING: The YOYO+/YOYO ^2 0+ stroller is suitable for children from birth and up to a maximum weight of 9 kg.
• WARNING: Never leave the child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.

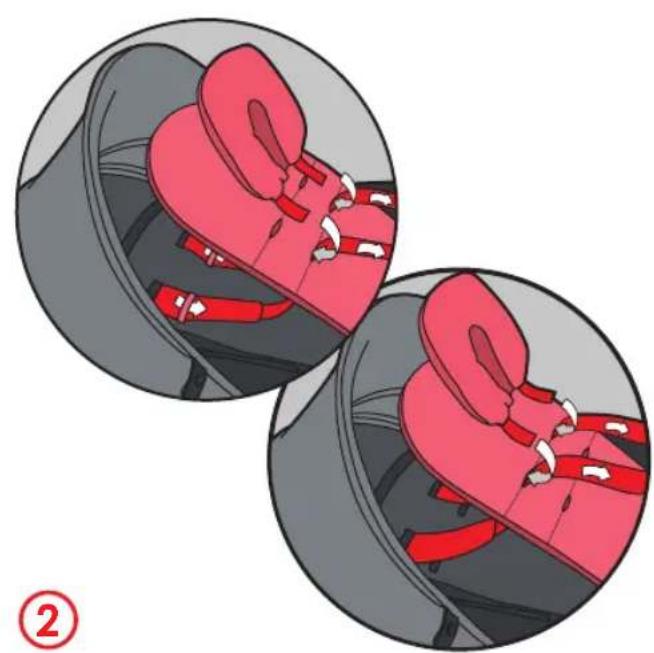

• WARNING: Check that the attachment devices of the reversible backrest and newborn nest are correctly engaged before use.
• WARNING: Always use the restraint system.

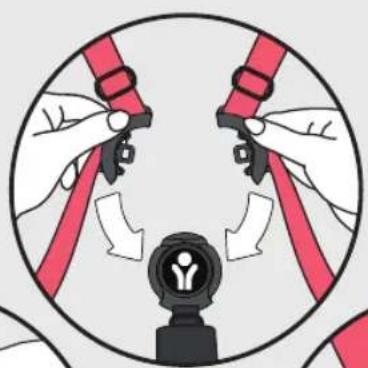

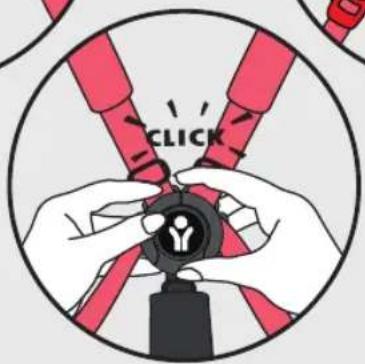

• WARNING: Always use the crotch strap of the harness in combination with the waist and shoulder belt.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
• WARNING: Do not let the child play with this product.
• WARNING: This product is not suitable for running or skating.
• The maximum authorized load for the shopping basket is 5 kg.
• The maximum authorized load for the mesh pocket is 0.5 kg.
• This stroller is suitable for transporting only one child at a time.
• Do not use any accessories other than those approved or provided by BABYZEN™.
• Do not use any spare parts other than those provided by BABYZEN ^TM .
• Hanging items or loads to the handlebar and/or on the back of the backrest and/or on the sides of the stroller, might impair its stability.

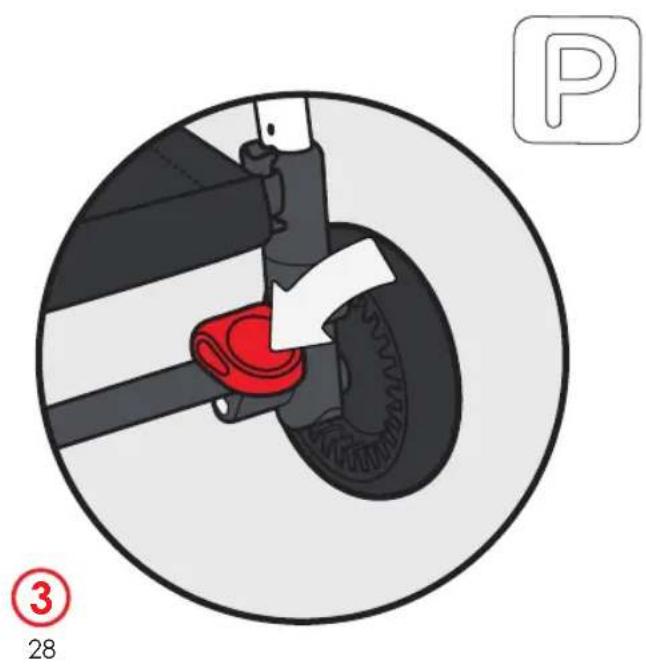

• Engage the parking brake when placing or removing the child.
• When folded, make sure the stroller is stored in a place where it does not risk to fall over a child.

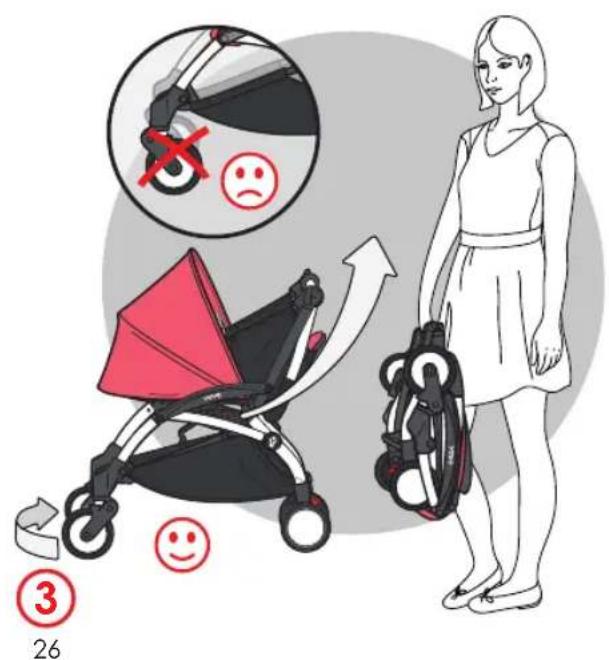

• Before ascending or descending escalators or stairs, remove child from seat and fold the stroller.

en

• Keep the stroller away from open fire, heaters and other sources of strong heat.
• It is recommended to maintain and clean moving parts periodically in order to check correct functioning.
• Periodically make sure that locking mechanisms function properly and that they did not suffer any damage, e.g following a shock.
• When the stroller is used with a car seat, this vehicle does not replace a basket or a bed. If your child needs to sleep, they should be put in a cot or bed.
• YOYO ^2 stroller frame can be used with listed car seat with proper adaptor in website: babyzen.com
• The YOYO+ 0+ stroller has been approved in accordance with EN1888: 2012.
• The YOYO ^2 0+ stroller has been approved in accordance with EN1888-1: 2018.
• The YOYO+ 0+ stroller has been approved in accordance with GB14748-2006
• YOYO+ 0+ stroller mode: Item Number: 10101 & 10105 / 10101 & 10107 / 10101 & 10110 Age: 0 - 6 months Carrying Weight: Maximum weight 9 kg.
  • The YOYO ^2 0+ stroller has been approved in accordance with GB14748-2006
• YOYO ^2 0+ stroller mode: Item Number: 10109 & 10105 / 10109 & 10107 / 10109 & 10110 Age: 0 - 6 months Carrying Weight: Maximum weight 9 kg.

en

CARE AND MAINTENANCE

When cleaning the stroller frame, use a non-toxic, non-abrasive cleaner. Mix a solution of water with a small amount of a mild, non-toxic detergent. Apply to the stroller frame with a damp cloth. Never use strong detergents or solvents.

The fabric parts may be machine washed (maximum temperature 30^ C). Never use strong detergents or bleach.

If you need to put your stroller in storage for any period of time, do not store in a damp or hot environment. Allow air flow around the stroller and do not stack anything on it.

In case of rain, use the rain cover (sold separately). Let the stroller dry before folding it and storing it.

WARRANTY AND AFTER SALES SERVICE

As a manufacturer, BABYZEN ^™ guarantees that with normal use, the products work without any problem for a period of two years from the date of purchase, in accordance with instructions and technical specifications of the product. The labels affixed on the products with serial numbers shall not be removed, in any case. If the label of the product is removed, the warranty is no longer valid.

Warranty coverage

The manufacturer's warranty applies to all the Products of the brand BABYZEN™. For the strollers, it covers:

• All manufacturing defects on the chassis, frame and wheels.
• All the textiles pieces and harness of the BABYZEN ^TM strollers.

The BABYZEN™ warranty is limited to replacement or repair of the defective parts, free of charge. If the repair is covered by the manufacturer's warranty, BABYZEN™ will bear the transportation costs and risk to and from the authorized retailer from

whom the purchaser bought the product.

Any part, replaced or repaired Product will be covered during the remaining time of the original product's warranty. Under the warranty, BABYZEN™ cannot be responsible for defects in products that have not been purchased from authorized retailers (list of authorized retailers on www.babyzen.com website).

The manufacturer's warranty will not apply in the following cases:

• In case of modifications or repairs of the Product without the prior written permission of BABYZEN™.
• If the defects come from negligence or an accident and/or use or maintenance not in accordance with instructions in the user guide.
• If the Serial number of the product is damaged or removed.
• If the damages are caused by an abnormal wear of the Product.
• In case of incorrect mounting or installation of parts from other manufacturers non-compatible with the Product.
• In case of accidental or unintentional damage, misuse or neglect.
• In case of improper storage or maintenance of the Product.
• In case of defect, damage or wear on the handlebar or textiles, resulting from normal daily use of the Product.
  • In case of holes or tears on the tires.
• In case of damage caused by repairs carried out by unauthorized persons, or improper disassembly of the Product.

Warranty claims

The manufacturer's warranty is not transferable in any case and can only be used by the first owner of the Product. BABYZEN™ has guarantee obligations only if the client can present proof of purchase mentioning the date of purchase. In case of claiming the manufacturer's warranty, the customer must report any defect to the Authorized retailer, who is the first contact in this case. Any defect must be reported by the customer to the Authorized retailer within twenty days of its discovery.

cn

Blank gray image with no visible content, text, or symbols

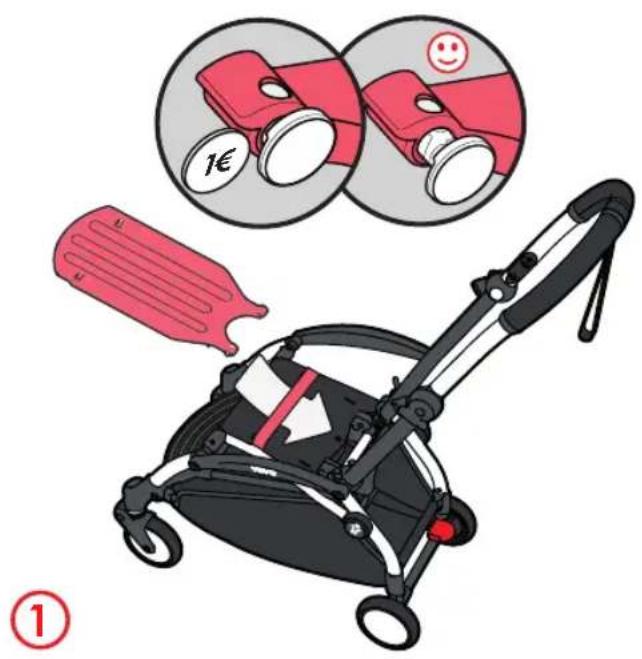

1€ ①

Two circular diagrams showing a red and black car seatbelt mechanism, with no visible text or symbols.

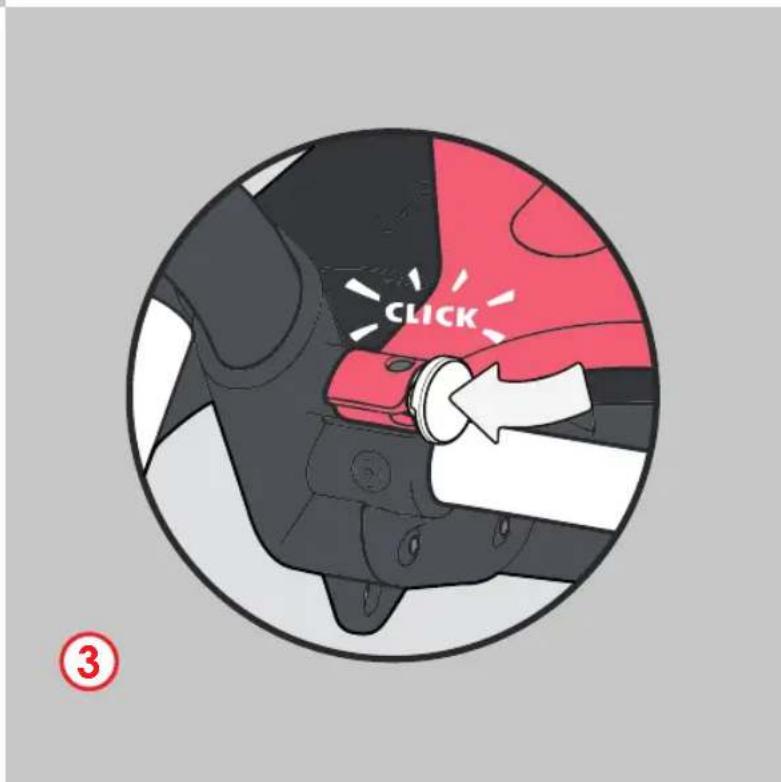

CLICK ③

Illustration of a pink fabric hat with a black base and rope, showing a curved arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a pink canopy and black body, no text or symbols present

Illustration of a red and black baby stroller inside a circular frame, showing internal components (no text or symbols)

Diagram illustrating car seatbelt buckle adjustment, showing red and black buttons with a white arrow indicating rotation.

Illustration showing three steps of a sewing machine: cutting, holding, and adjusting a red tool with a smiley face.

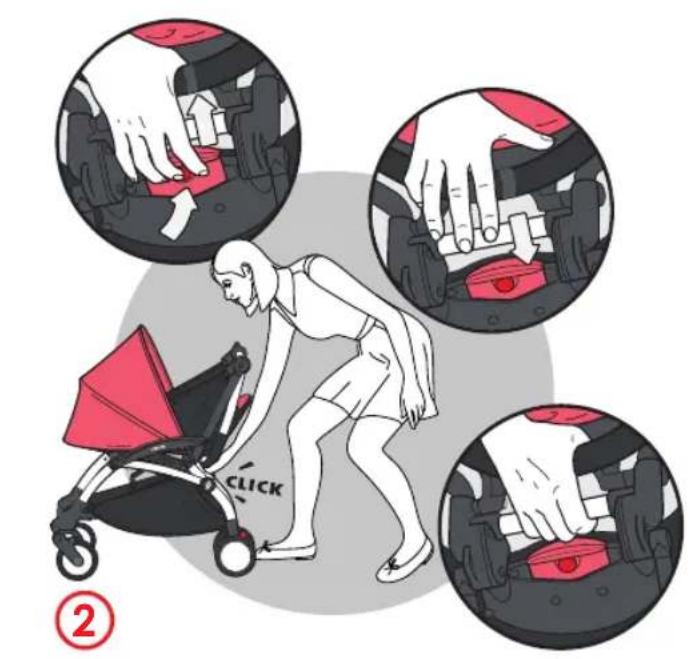

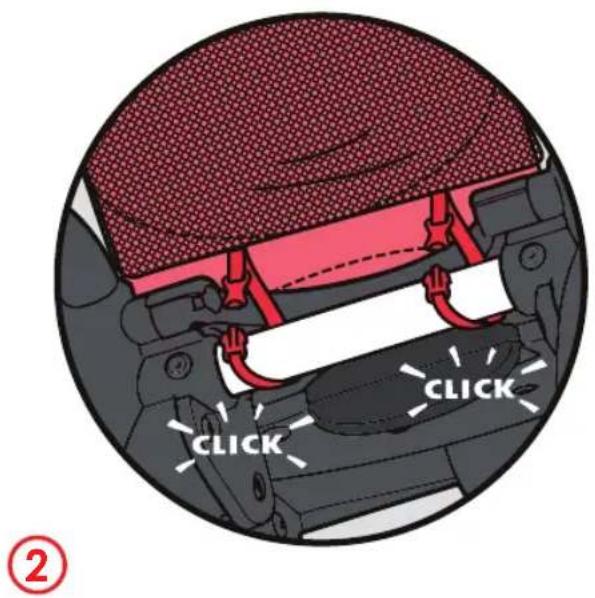

CLICK CLICK ②

Two circular diagrams showing a red object being lifted by a Voyo frame, with no text or symbols present.

Two circular diagrams showing a red and black object being lifted by a white arrow, labeled with number 4 (no text or symbols on the objects themselves)

Illustration of a baby stroller with red tray and black body, no text or symbols present

Illustration of two pink athletic shoes inside a gray helmet, showing interior and exterior views (no text or symbols)

Circular diagram showing four hands holding car seats with directional arrows indicating movement or force (no text or symbols)

Illustration of hands adjusting red safety belt clips around a vehicle head (no text or symbols)

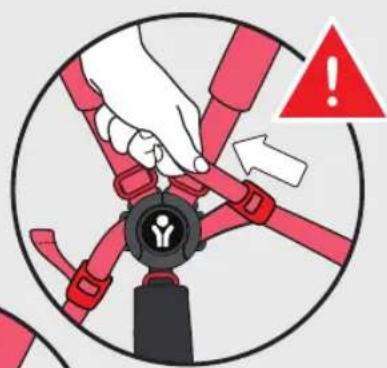

Diagram showing a hand adjusting a red bicycle seatbelt with warning symbol and arrow indicating leftward movement

3

Illustration of hands using a red safety belt to adjust a black tool, with an arrow indicating direction (no text or symbols)

CLICK

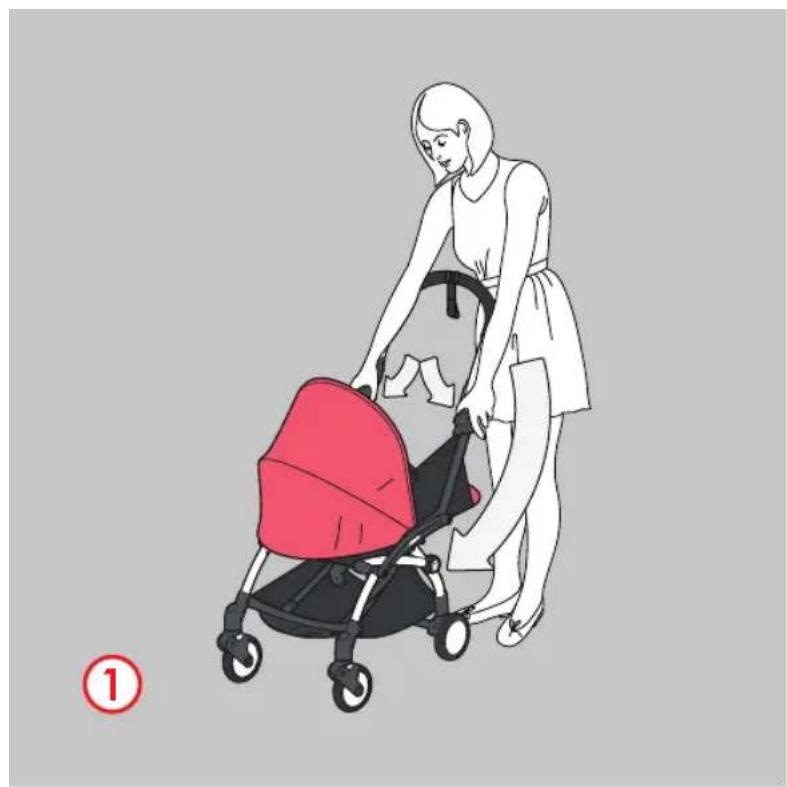

Illustration of a woman pushing a red and black stroller (no text or symbols)

CLICK ②

③ 26

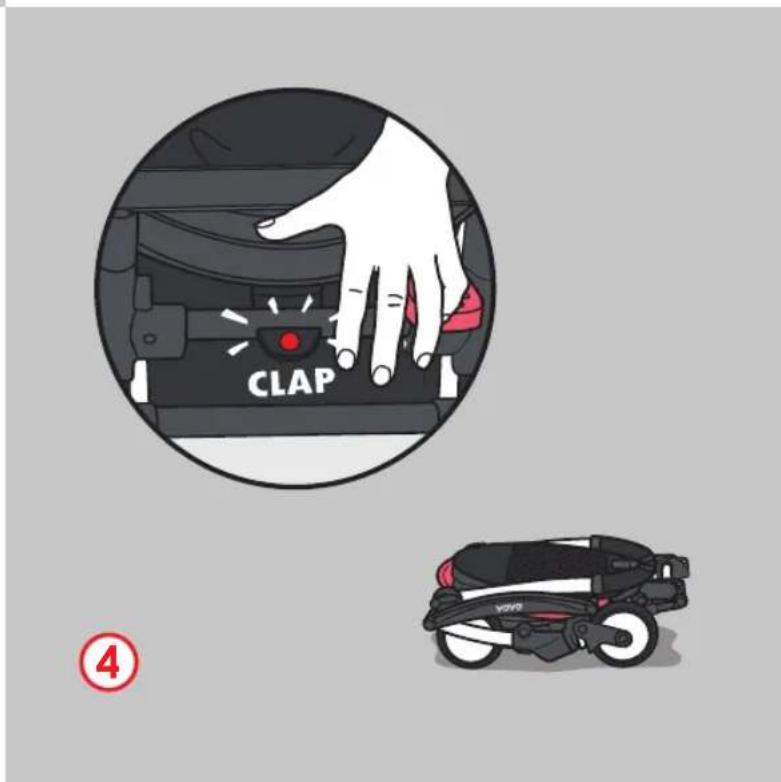

CLAP ④

Illustration showing a person using a seatbelt to adjust the seatbelt, with warning symbols and numbered instructions.

Illustration of a hand pressing down a car seatbelt with a red button, no text or symbols present

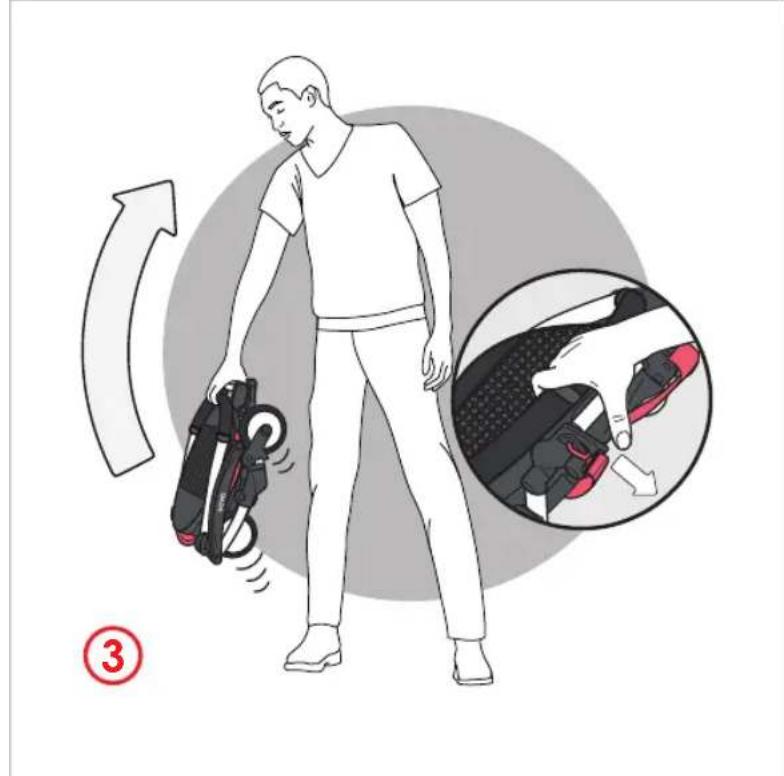

Illustration showing a person carrying a scooter with motion arrows and a close-up of the seat being lifted, labeled with number ③.

Illustration of a person pushing a baby stroller with a red canopy, no text or symbols present

Illustration of a baby stroller with a red and gray body, no text or symbols present

Illustration of a red car seat with a hand adjusting the seat area, showing motion arrows (no text or symbols)

P ③ 28

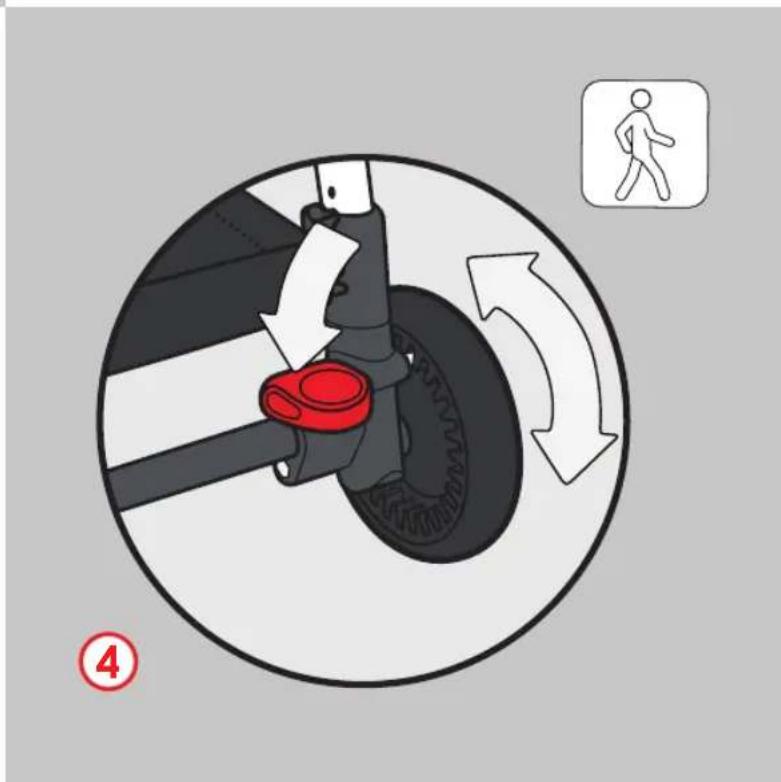

Diagram illustrating vehicle wheel brake system with directional arrows and a pedestrian icon, labeled with number 4.

Illustration of a VGG robotic device with attached red safety belt and cable, no text or symbols present

Two circular diagrams showing car seatbelt buckle adjustment, one with red straps and the other with a black seatbelt (no text or symbols)

Illustration of a stroller with two views showing internal components (no text or symbols)

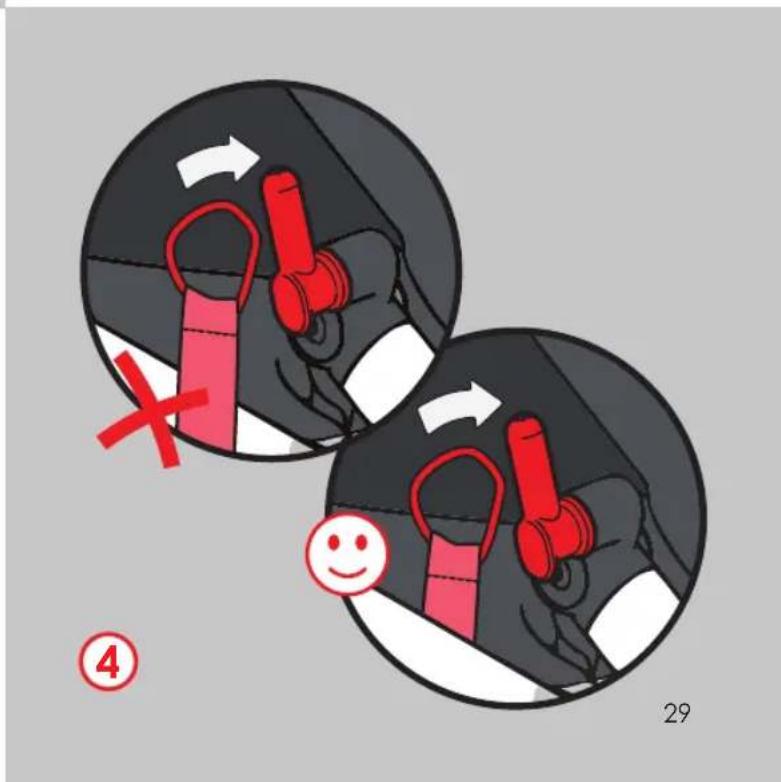

Diagram illustrating a car safety scenario with red warning signs and a smiley face, labeled with numbers 4 and 29.

Diagram illustrating the use of a baby stroller with labeled parts and adjustment arrows indicating rotation and size.

BABYZEN YOYO

Line drawing of a person walking with a backpack (no text or symbols)

www.babyzen.com

babyzenstrollers

Babyzen

French design / Made in China

BABYZEN

2355 route des Pinchinats

13100 Aix-en-Provence - France

[e-mail]

10110_03APR03
