Product type	Foldable stroller
Brand	BabyZen
Model	YOYO connect
Recommended age	From birth to 4 years (depending on seat/carrycot version)
Maximum child weight	22 kg
Maximum basket load	5 kg
Maximum canopy pocket/net load	0.5 kg
Materials	Aluminum frame, synthetic textiles
Folding	Compact, with safety latch
Restraint system	5-point harness with holding strap and crotch strap
Brake	Parking brake operated by foot
Canopy	With integrated pocket, extendable
Frame cleaning	Damp cloth with mild non-toxic detergent
Textile cleaning	Machine wash at 30°C, no bleach
Warranty	2 years against manufacturing defects
Compatible accessories	YOYO carrycot, rain cover, and other BABYZEN approved accessories
Origin	French design, made in China

Frequently Asked Questions - YOYO connect BabyZen

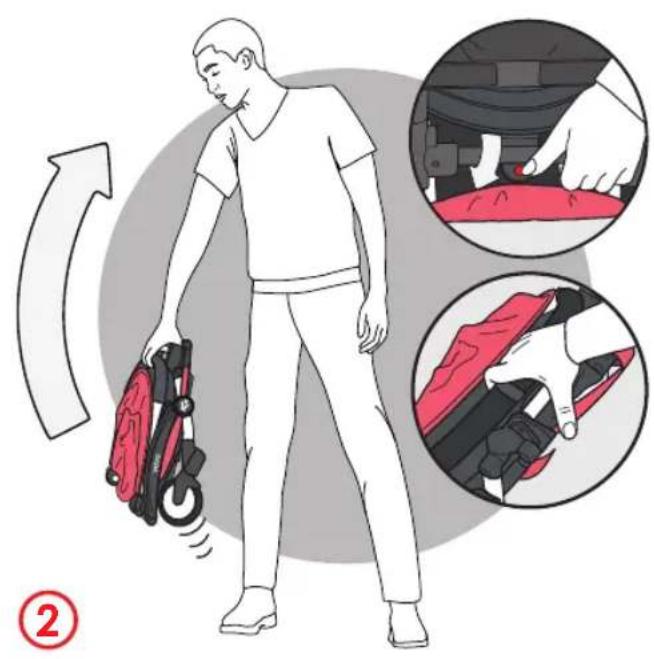

How to fold and unfold the YOYO Connect stroller?

Folding and unfolding are done by operating the locking mechanisms. Refer to the manual for precise steps. Ensure the child is out of reach and the brake is engaged.

What is the maximum weight the stroller can support?

The stroller can carry a child up to 22 kg (approximately 4 years). The basket supports up to 5 kg and the canopy pockets 0.5 kg.

How to clean the stroller?

The frame can be cleaned with a damp cloth and mild non-toxic detergent. The textile parts are machine washable at 30°C without bleach. Do not use solvents.

Can I use the stroller in the rain?

It is recommended to use a rain cover (sold separately). In case of rain, let the frame dry before folding and storing.

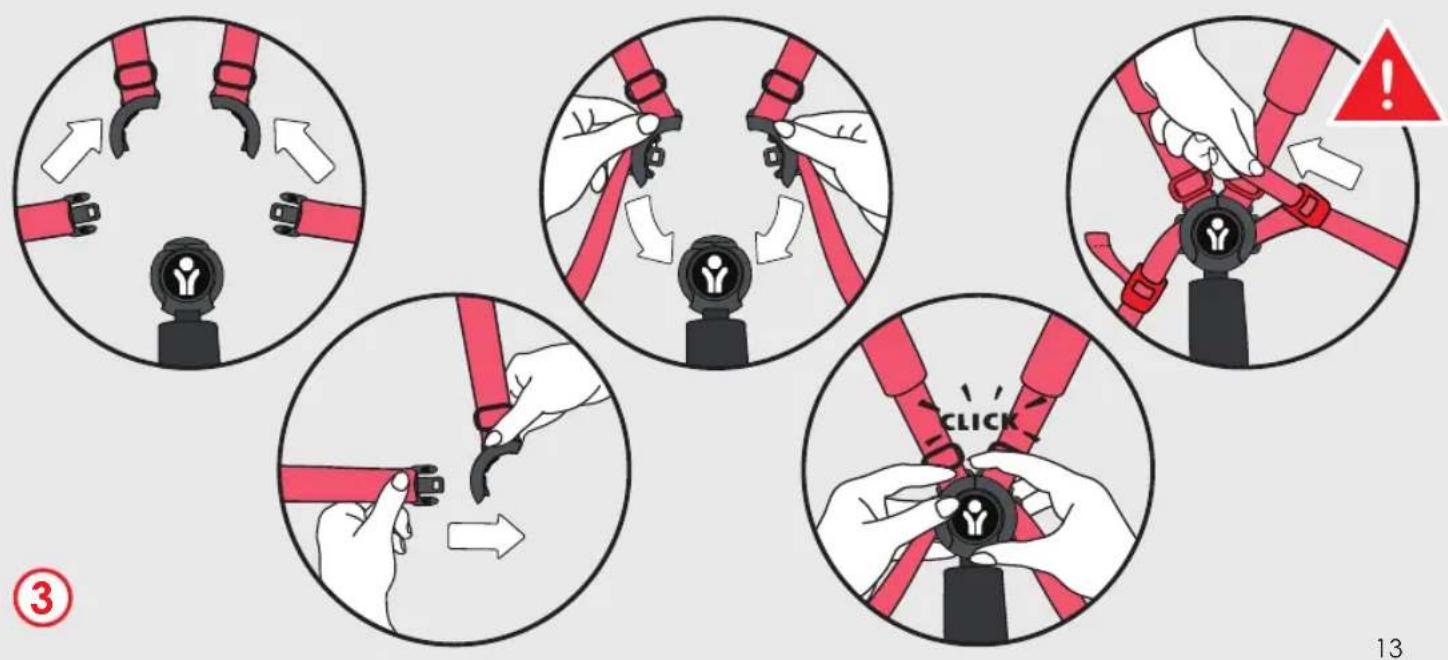

How to properly install the safety harness?

The 5-point harness must always be fastened and adjusted to the child. Never use the crotch strap without the holding strap. Regularly check that the system is properly engaged.

What to do if an accessory is defective or lost?

Only use accessories approved by BABYZEN. Contact an authorized dealer for spare parts. Any non-approved part may affect safety.

Is the stroller suitable for jogging or rollerblading?

No, the YOYO Connect is not recommended for jogging or rollerblading. It is designed for flat or slightly inclined surfaces.

How does the warranty work?

BABYZEN offers a 2-year warranty against manufacturing defects for the original owner. Keep the proof of purchase. The warranty does not cover normal wear, accidental damage, or unauthorized repairs.

Can I carry a child under 6 months?

Yes, with the suitable YOYO carrycot (up to 9 kg). The YOYO Connect 6+ seat is for children from 6 months to 4 years. Never use the seat for a child under 6 months.

How to store the stroller when not in use?

Store it folded in a dry place away from heat and moisture. Ensure the safety latch is locked and it cannot fall on a child.

USER MANUAL YOYO connect BabyZen

Abstract black geometric shapes on white background, no text or symbols present

Line drawing of a child's bicycle with wheels and a separate bracket (no text or symbols)

guide d'utilisation

user guide

YOYO connect

Français 2

English 6

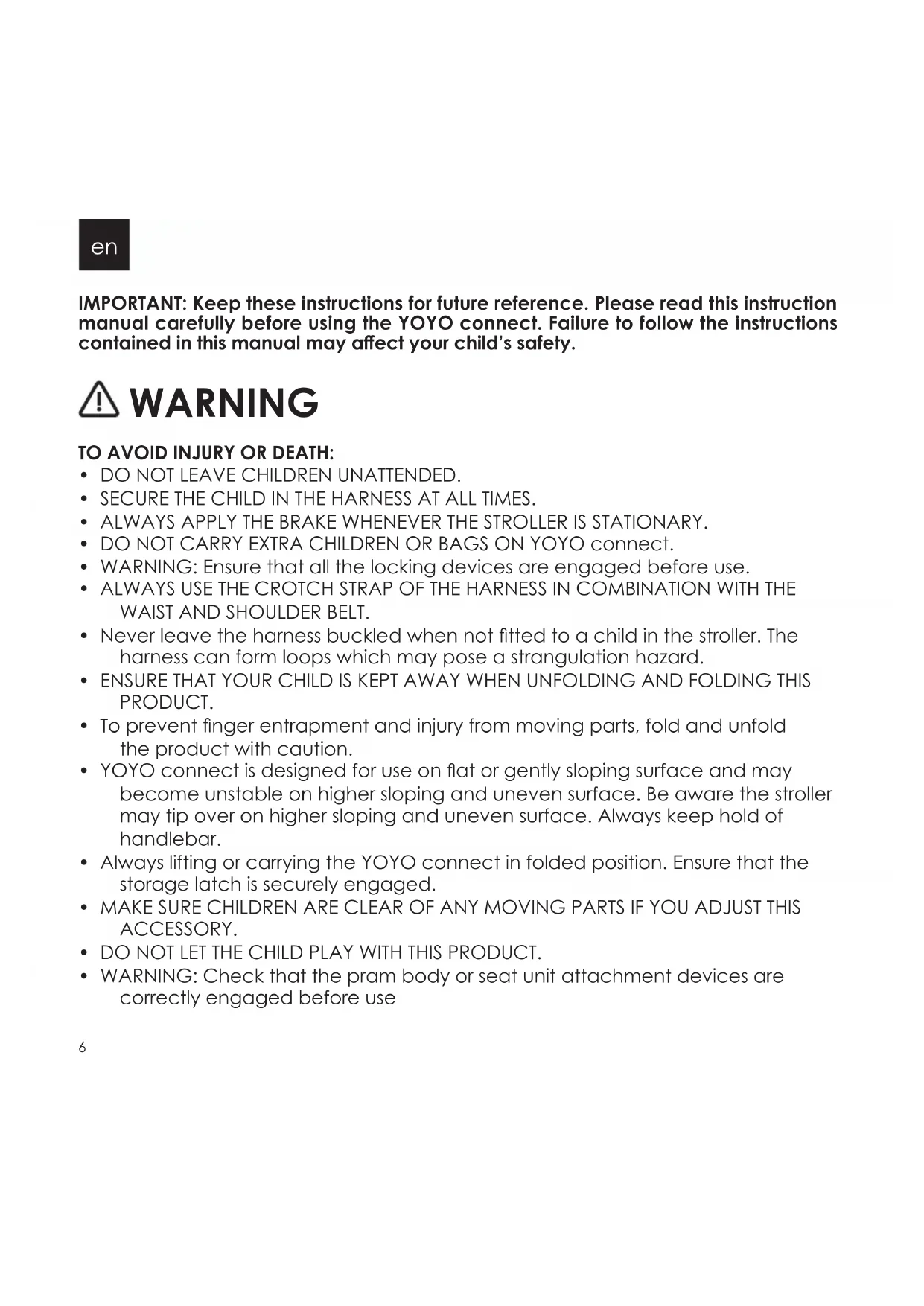

IMPORTANT: Keep these instructions for future reference. Please read this instruction manual carefully before using the YOYO connect. Failure to follow the instructions contained in this manual may affect your child's safety.

WARNING

TO AVOID INJURY OR DEATH:

• DO NOT LEAVE CHILDREN UNATTENDED.

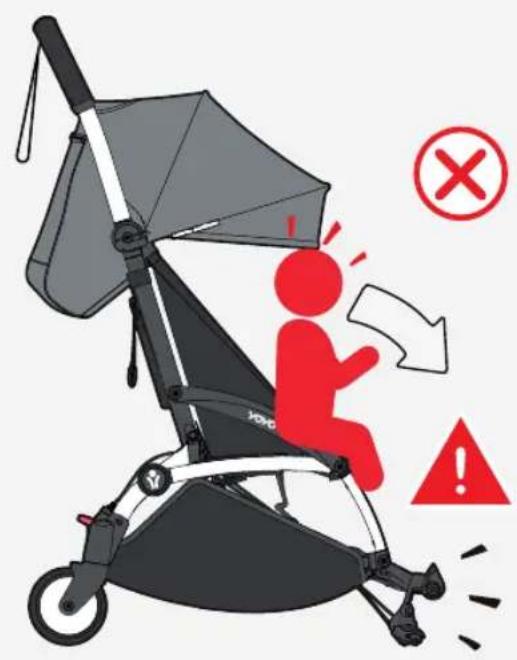

• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.

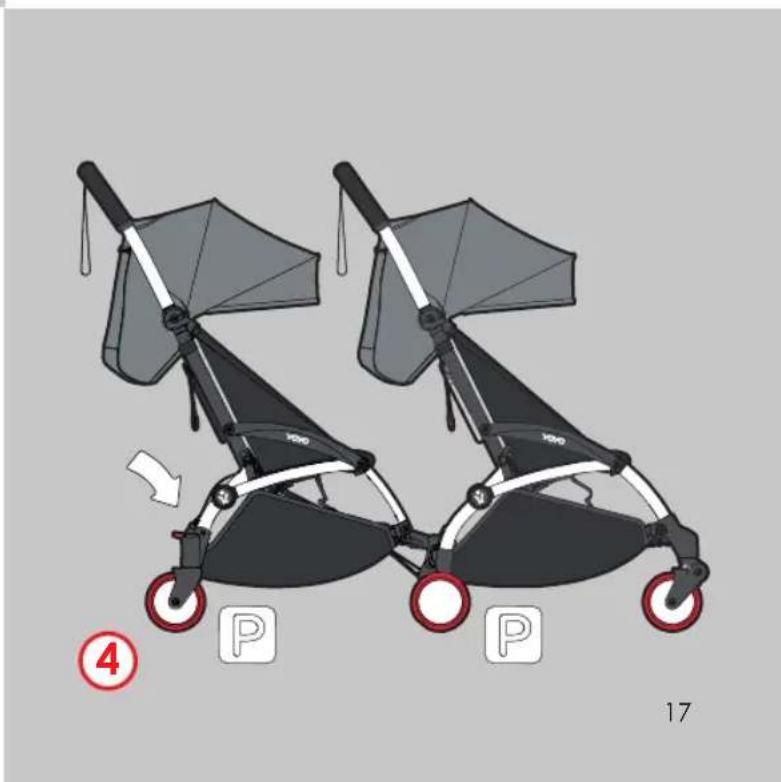

• ALWAYS APPLY THE BRAKE WHENEVER THE STROLLER IS STATIONARY.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON YOYO connect.
- WARNING: Ensure that all the locking devices are engaged before use.
- ALWAYS USE THE CROTCH STRAP OF THE HARNESS IN COMBINATION WITH THE WAIST AND SHOULDER BELT.
- Never leave the harness buckled when not fitted to a child in the stroller. The harness can form loops which may pose a strangulation hazard.

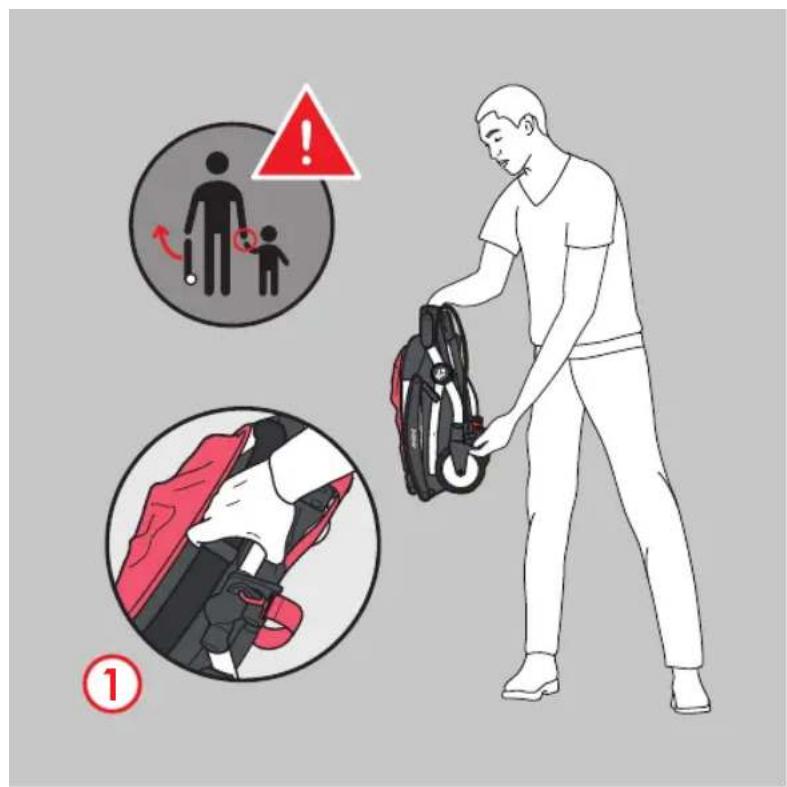

- ENSURE THAT YOUR CHILD IS KEPT AWAY WHEN UNFOLDING AND FOLDING THIS PRODUCT.
- To prevent finger entrapment and injury from moving parts, fold and unfold the product with caution.
- YOYO connect is designed for use on flat or gently sloping surface and may become unstable on higher sloping and uneven surface. Be aware the stroller may tip over on higher sloping and uneven surface. Always keep hold of handlebar.

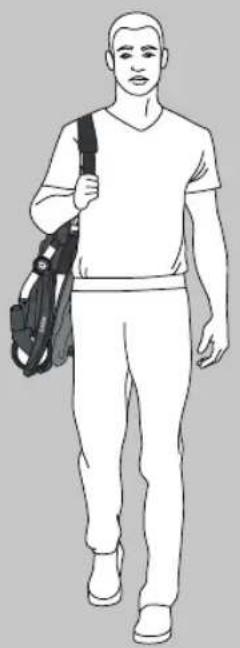

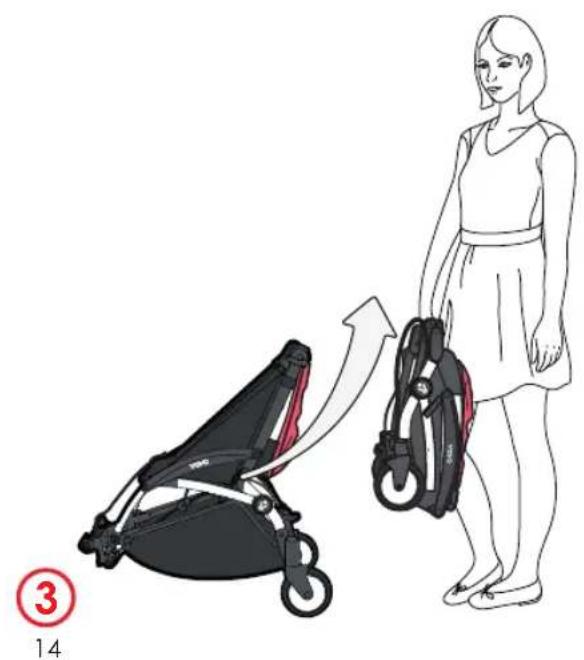

- Always lifting or carrying the YOYO connect in folded position. Ensure that the storage latch is securely engaged.
- MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THIS ACCESSORY.
• DO NOT LET THE CHILD PLAY WITH THIS PRODUCT.

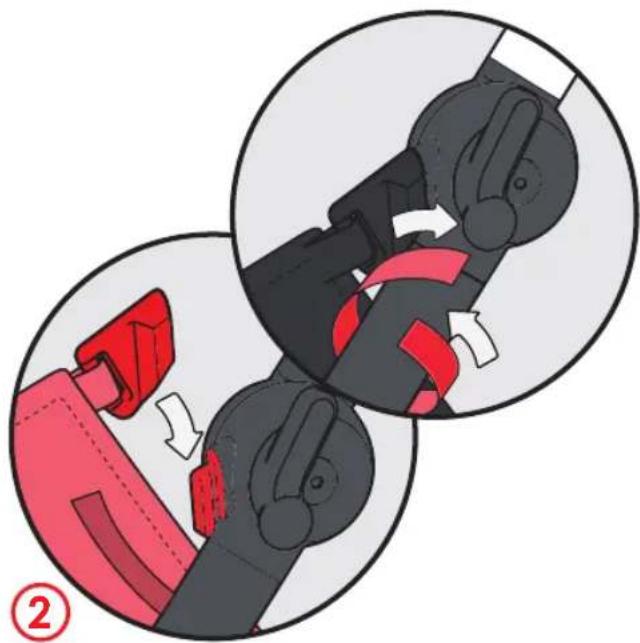

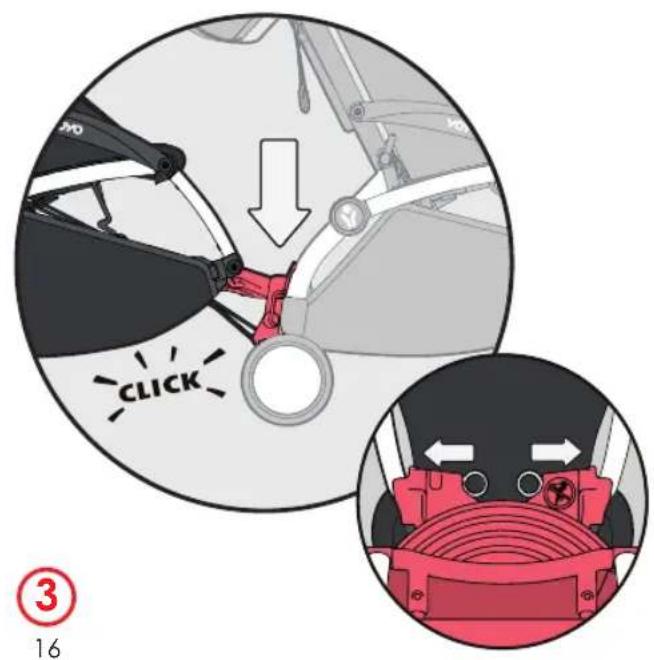

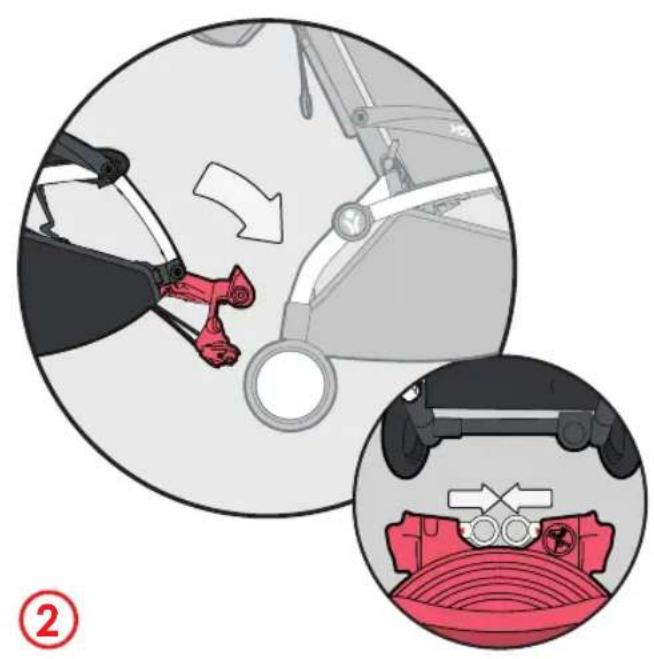

- WARNING: Check that the pram body or seat unit attachment devices are correctly engaged before use

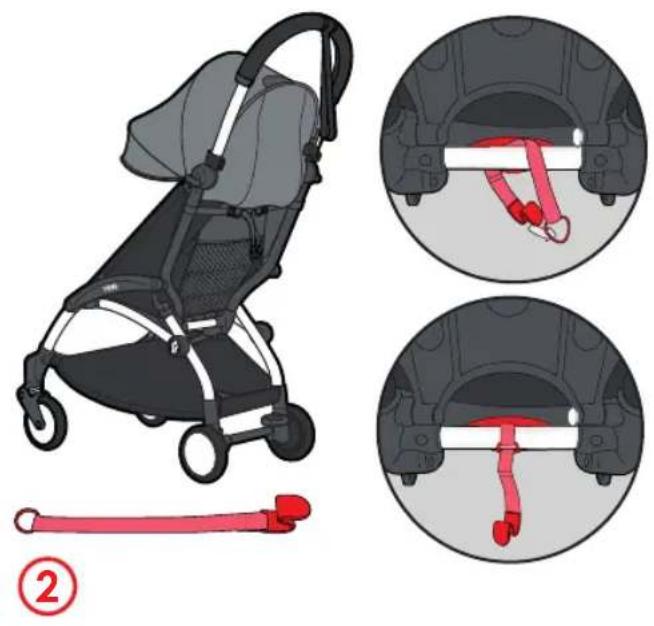

• WARNING: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY.

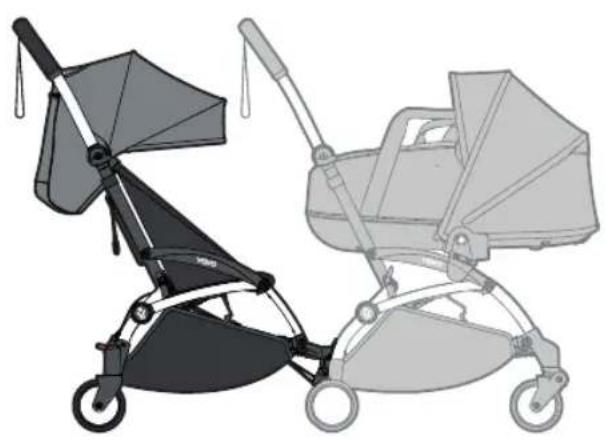

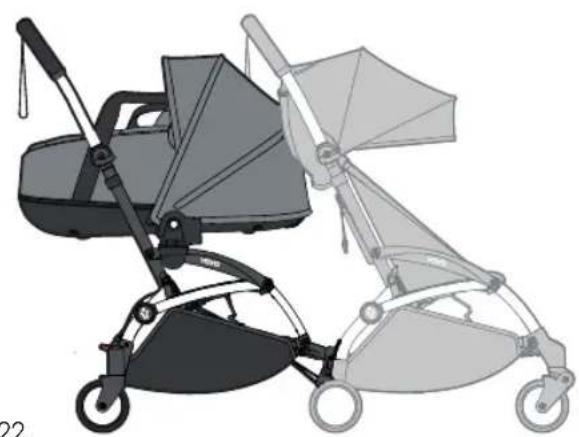

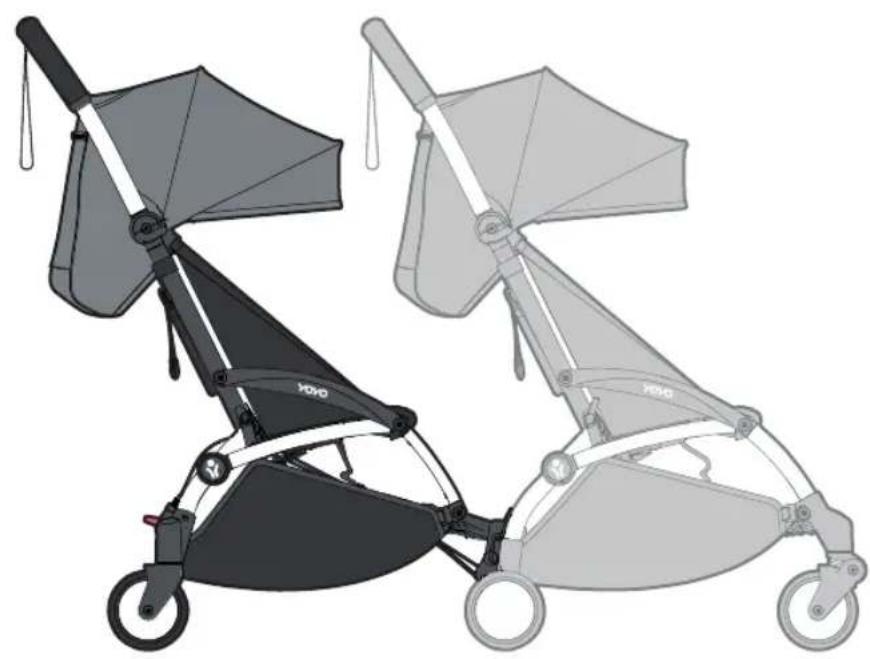

• WARNING: YOYO connect 6+ is only suitable for the YOYO+/YOYO ^2 stroller and is indented for children from 6 months and up to 4 years old or maximum weight of 22 kg. This seat unit is not suitable for children under 6 months.

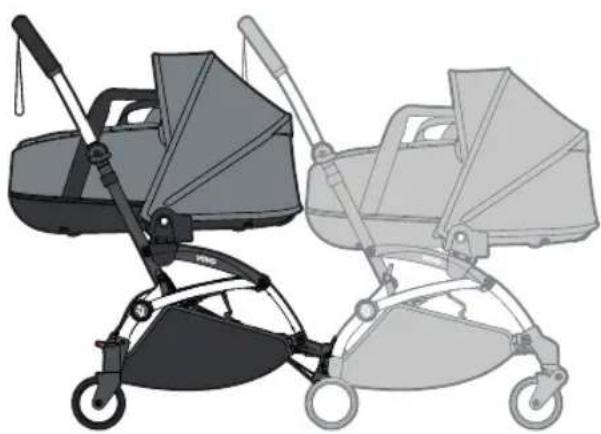

• WARNING: YOYO connect with YOYO bassinet is only suitable for the YOYO+/YOYO ^2 stroller and is indented for children from birth and up to a maximum weight of 9 kg.
  • NOT RECOMMENDED FOR A CHILD UNDER 6 MONTHS OLD.
• WARNING: This product is not suitable for running or skating.
• WARNING: Never leave your child unattended.
• WARNING: Always use the restraint system.
• WARNING: USE THE HARNESS AT ALL TIMES.
• The maximum authorized load for the shopping basket is 5 kg.
• The maximum authorized load for both the 6+ canopy pocket and the mesh pocket are 0.5 kg.
• YOYO connect is suitable for transporting only one child at a time.
• Do not use any accessories other than those approved or provided by BABYZEN™.
• Do not use any spare parts other than those provided by BABYZEN™.
• Hanging items or loads to the handlebar and/or on the back of the backrest and/or on the sides of the stroller, might impair its stability.

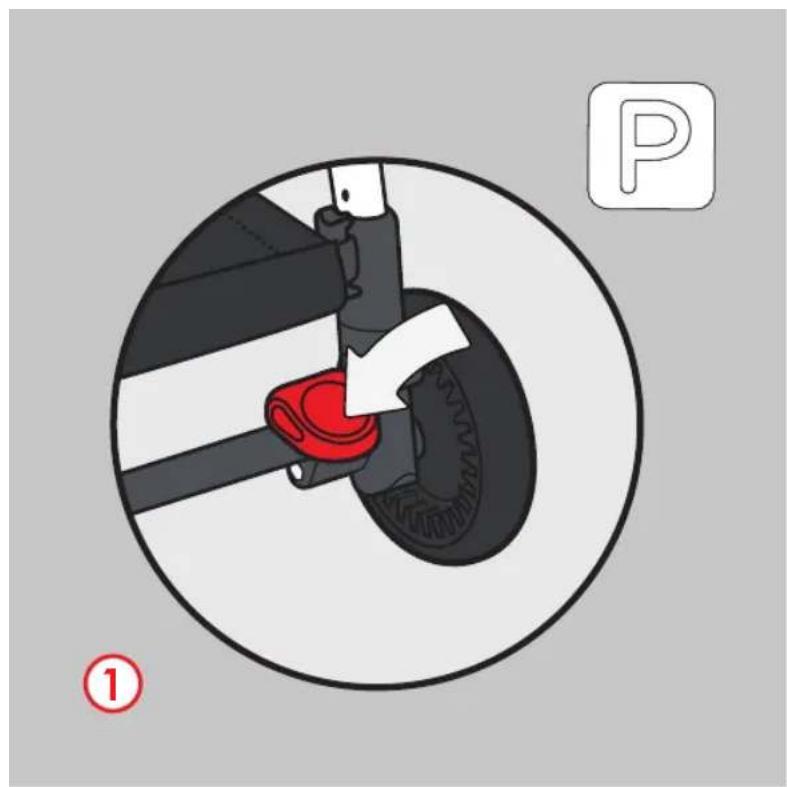

• Engage the parking brake when placing or removing the child.
• When folded, make sure YOYO connect is stored in a place where it does not risk to fall over a child.
• Keep YOYO connect away from open fire, heaters and other sources of strong heat.
• It is recommended to maintain and clean moving parts periodically in order to check correct functioning.
• Periodically make sure that locking mechanisms function properly and that they did not suffer any damage, e.g following a shock.

en

CARE AND MAINTENANCE

When cleaning frame, use a non-toxic, non-abrasive cleaner. Mix a solution of water with a small amount of a mild, non-toxic detergent. Apply to frame a damp cloth. Never use strong detergents or solvents.

The fabric parts may be machine washed (maximum temperature 30^ C). Never use strong detergents or bleach.

If you need to put your frame in storage for any period of time, do not store in a damp or hot environment. Allow air flow around product and do not stack anything on it.

In case of rain, use the rain cover (sold separately). Let the frame dry before folding it and storing it.

WARRANTY AND AFTER SALES SERVICE

As a manufacturer, BABYZEN™ guarantees that with normal use, the products work without any problem for a period of two years from the date of purchase, in accordance with instructions and technical specifications of the product. The labels affixed on the products with Serial Numbers shall not be removed, in any case. If the label of the product is removed, the warranty is no longer valid.

Warranty coverage

The manufacturer's warranty applies to all the products of the brand BABYZEN™. For YOYO connect, it covers:

• All manufacturing defects on the chassis, frame and wheels.
• All the textiles pieces and harness of the BABYZEN ^TM YOYO connect.

The BABYZEN™ warranty is limited to replacement or repair of the defective parts, free of charge. If the repair is covered by the manufacturer's warranty, BABYZEN™ will bear the transportation costs and risk to and from the authorized retailer from

whom the purchaser bought the product.

Any replaced product or part, or any repaired product, will be covered during the remaining time of the original product's warranty. Under the warranty, BABYZEN™ cannot be responsible for defects in products that have not been purchased from authorized retailers (list of authorized retailers on www.babyzen.com website).

The manufacturer's warranty will not apply in the following cases:

• In case of modifications or repairs of the product without the prior written permission of BABYZEN™.
• If the defects come from negligence or an accident and/or use or maintenance not in accordance with instructions in the user guide.
• If the Serial Number of the product is damaged or removed.
• If the damages are caused by an abnormal wear of the product.
• In case of incorrect mounting or installation of parts from other manufacturers non-compatible with the product.
  • In case of accidental or unintentional damage, misuse or neglect.
• In case of improper storage or maintenance of the product.
• In case of defect, damage or wear on the handlebar or textiles, resulting from normal daily use of the product.
  • In case of holes or tears on the tires.
• In case of damage caused by repairs carried out by unauthorized persons, or improper disassembly of the product.

Warranty claims

The manufacturer's warranty is not transferable in any case and can only be used by the first owner of the product. BABYZEN™ has guarantee obligations only if the client can present proof of purchase mentioning the date of purchase. In case of claiming the manufacturer's warranty, the customer must report any defect to the Authorized retailer, who is the first contact in this case. Any defect must be reported by the customer to the Authorized retailer within twenty days of its discovery.

Blank gray image with no visible content, text, or symbols

Illustration of a baby stroller with price tags and a magnified inset showing a red device priced at $15.

Two circular diagrams showing a red and black car seat assembly with arrows indicating movement, no text or symbols present.

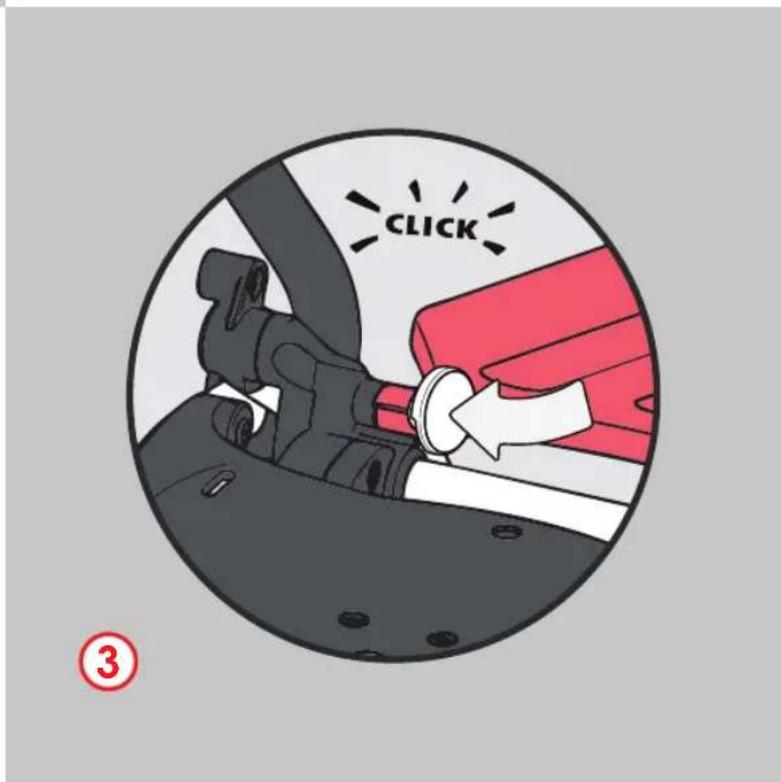

CLICK ③

Illustration of a child's mobility device with a red bag attached, showing no text or symbols on the device itself.

Illustration of a car seatbelt buckle being adjusted, showing two different states of adjustment (no text or symbols present)

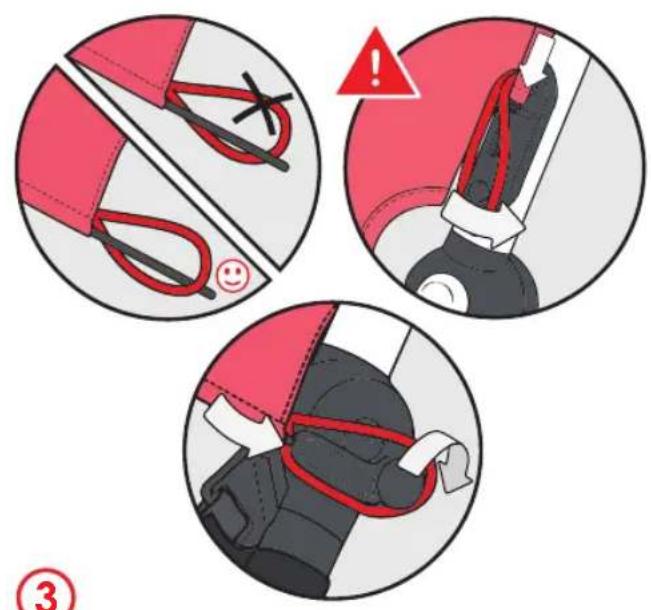

Mechanical assembly diagram showing a red warning symbol and warning triangle (no text or labels)

Circular diagram showing a red and black object with curved arrows indicating motion or movement, no text or symbols present.

Illustration of a pink fabric being sewn into a loop, with no text or symbols present.

Illustration of a baby stroller with a pink bag attached, no text or symbols present

Diagram illustrating three steps of car seatbelting: adjusting, adjusting with red straps, and adjusting back down.

Illustration showing three steps of a red umbrella cover installation, with numbered instructions and a circled number 4.

3
12

Illustration of a baby stroller with red straps and white connectors, no text or symbols present

Two circular diagrams showing airflow patterns in a car interior, with arrows indicating direction of movement (no text or symbols)

Illustration showing how to adjust a red bicycle seatbelt, with instructional labels and warning symbols.

Illustration of a woman pushing a baby stroller with red backrest, no text or symbols present

Illustration showing a person using a push-up device with three circular insets highlighting different hand positions and foot positioning.

Illustration of a woman pushing a stroller with an upward arrow, no text or symbols present

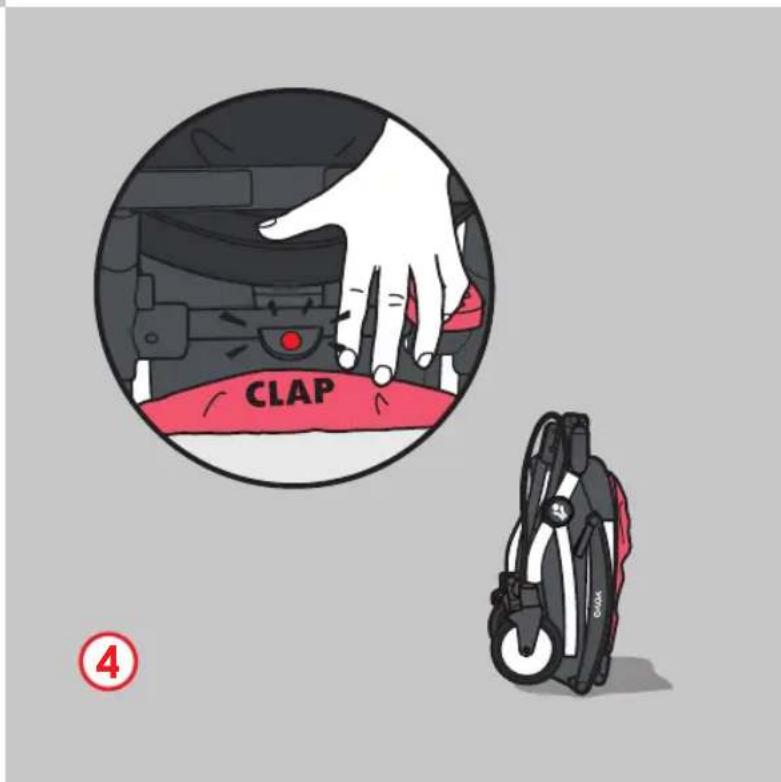

CLAP ④

Illustration showing a person using a seatbelt device to adjust the seatbelt, with warning symbols and instructions in Chinese.

Illustration showing a person carrying a red and black stroller with directional arrows, accompanied by three circular insets illustrating mechanical components.

Illustration of a person pushing a stroller with motion lines indicating speed (no text or symbols)

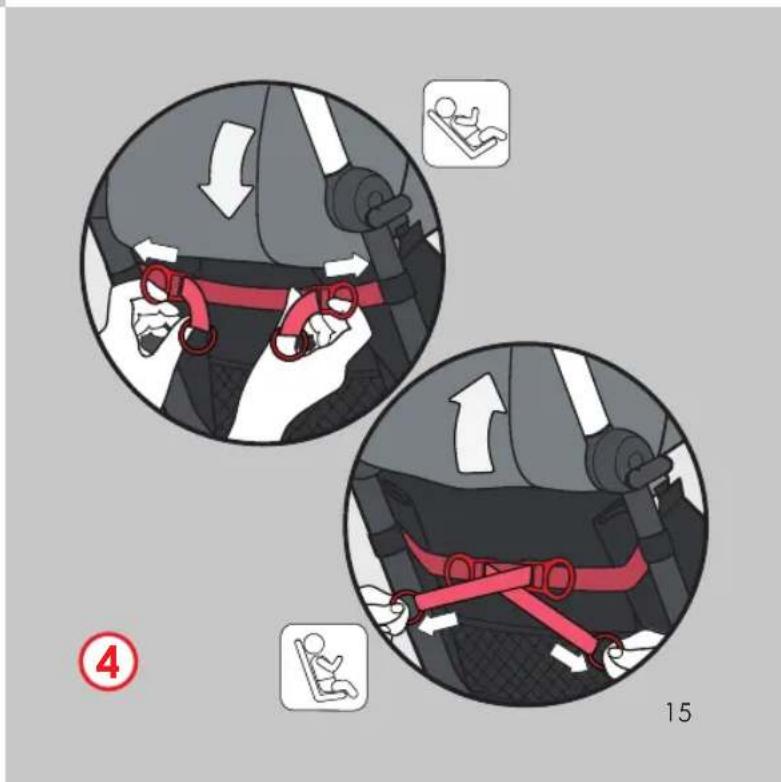

Diagram illustrating car seatbelt buckle usage with numbered instructions and safety symbols

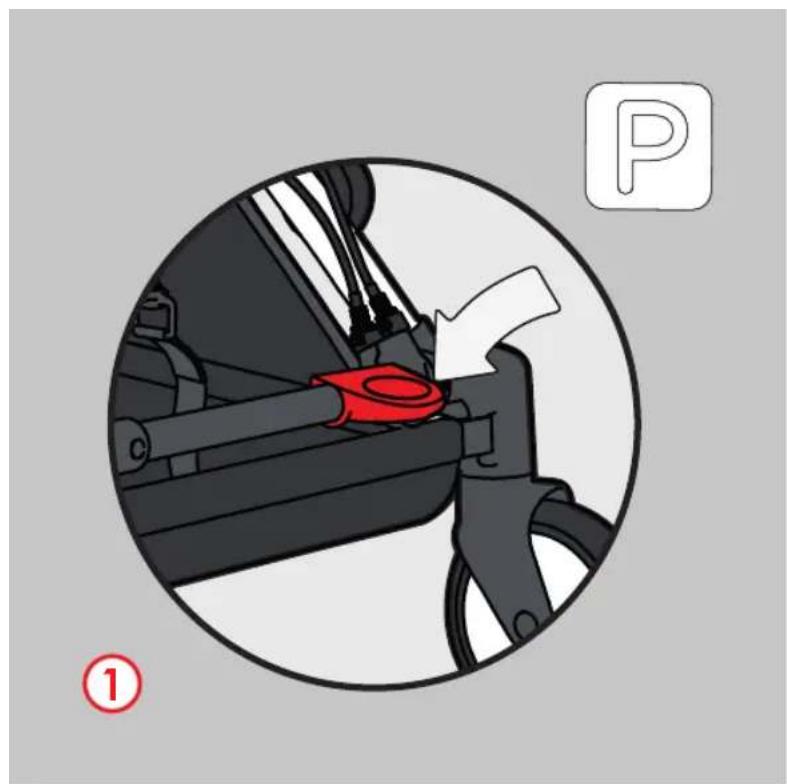

P ①

Mechanical assembly diagram showing a lever mechanism and a close-up of a car head with red components (no text or symbols)

CLICK ③ 16

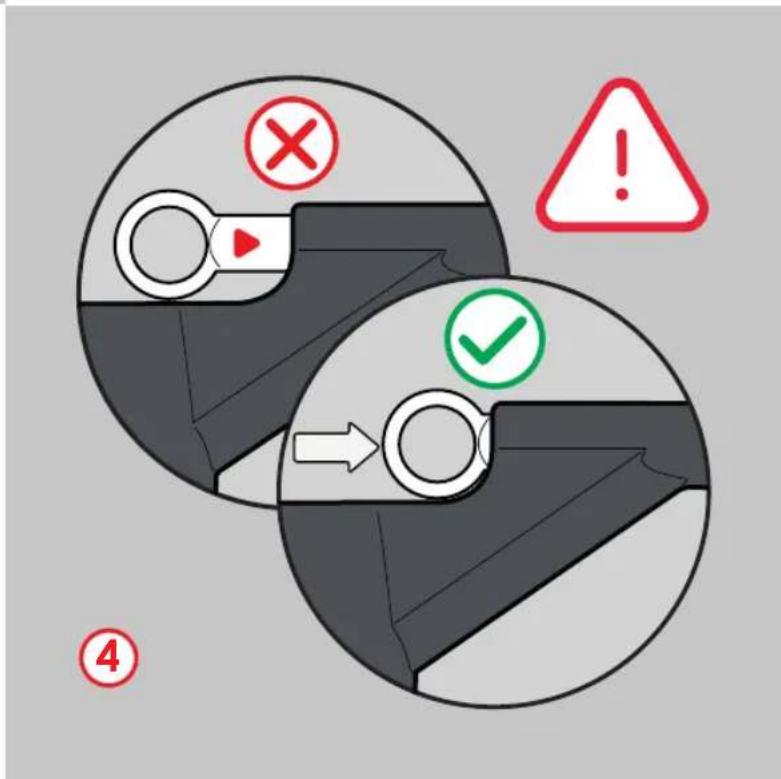

Safety warning diagram showing two circular diagrams with symbols: a red X mark and a green checkmark, and a warning triangle with an exclamation mark.

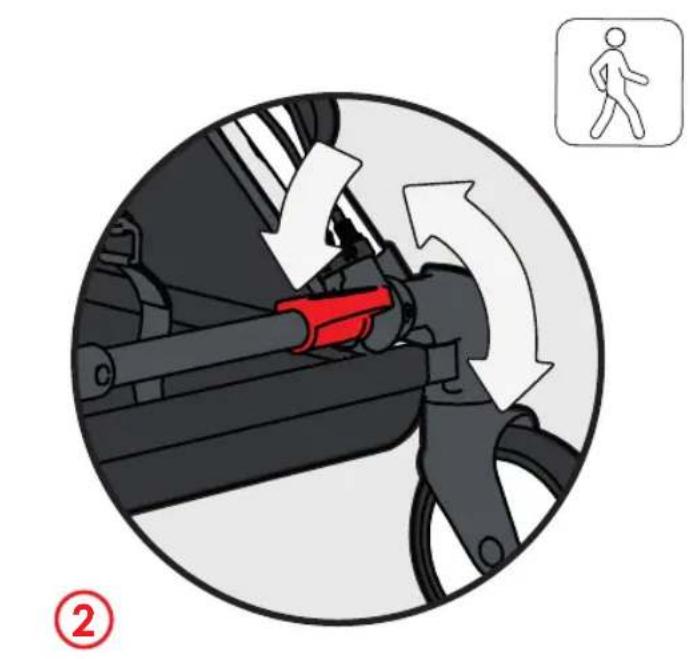

Diagram showing a car seatbelt switch mechanism with a parking icon and numbered label (1)

Diagram illustrating a mechanical device with directional arrows and a pedestrian icon, labeled with number ②.

Diagram of a mechanical device with gear and adjustment arrows, no readable text or symbols present

4 P P 17

Illustration of a child's mobility device with red and black components, no text or symbols present

Two circular diagrams showing car seatbelt buckle adjustment, one with red straps and the other with a black belt (no text or symbols)

Illustration of a stroller inside a seatbelt, showing front and side views (no text or symbols)

Diagram illustrating car safety inspection with red X and smiley face, showing gear movement and safety symbols

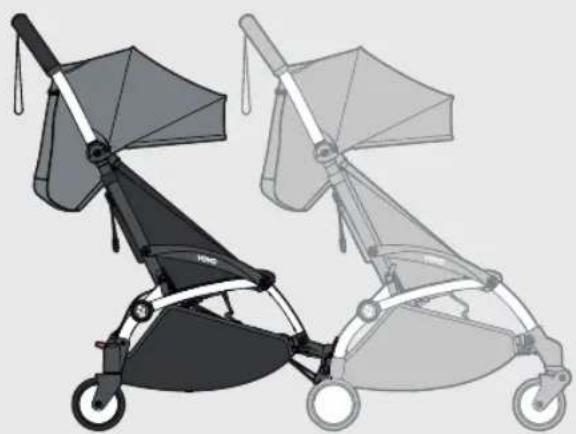

Illustration of two different types of baby strollers with canopy and wheels, shown from different angles (no text or symbols)

Safety warning illustration showing a person in a scooter with warning symbols and red exclamation marks

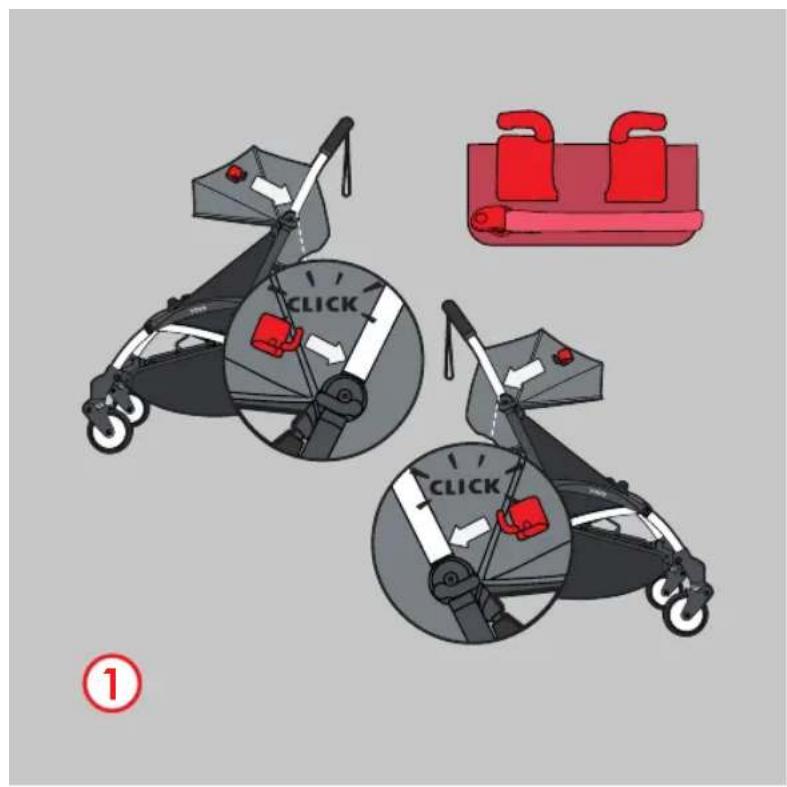

CLICK ①

Illustration of a stroller with red straps and a numbered inset showing internal components (no text or symbols)

Illustration of a stroller with hand placement and close-up of the device, labeled with step number 3 and page number 20.

Illustration of a baby stroller with black body, gray canopy, and red handle (no text or symbols)

Illustration of a children's children's seatbelt device with a red circular marking and a small inset showing a hook (no text or symbols present)

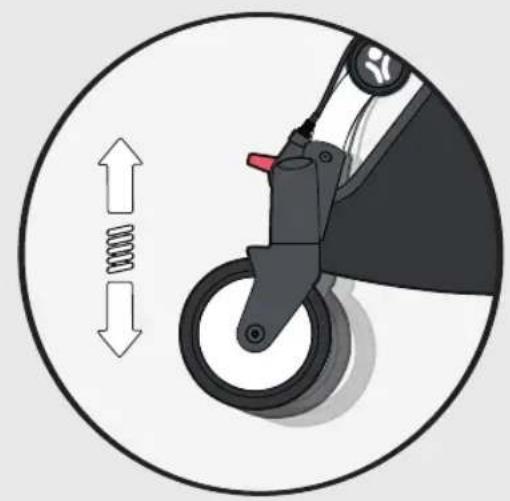

Diagram of a bicycle's wheel and suspension mechanism, showing mechanical components and motion direction (no text or symbols)

BABYZEN YOYO

Line drawing of a person walking with a backpack (no text or symbols)

Illustration of two baby strollers with different designs and seat profiles (no text or symbols)

Illustration of two baby strollers with different designs and seat covers (no text or symbols)

Illustration of two children's baby stroller models with wheels and canopy (no text or symbols)

Illustration of a two-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of two baby stroller models with different frame designs (no text or symbols)

Pure geometric lines forming a square with rounded corners (no text or symbols)

www.babyzen.com

babyzenstrollers

Babyzen

French design / Made in China

BABYZEN

2355 route des Pinchinats

13100 Aix-en-Provence - France

[e-mail]

10215_03AUR01
