Brand	Cecotec
Model	Ready Warm 9770 Ceramic Towel
Product Type	Heated Towel Rail
Power Supply	220-240 V ~ 50/60 Hz
Power	Low then high (estimated 1000-1500 W)
Heating Element	Ceramic
Temperature Range	5 °C to 40 °C
Timer	1 to 24 hours
Control Panel	Touch with screen
Remote Control	Wireless, with child safety
Fan	Yes, for hot air distribution at high power
Towel Drying Bars	4 bars (estimated quantity)
Wall Mounting	Yes, fixings included
Safety Distance	60 cm from bathtub/shower, 15 cm from ceiling and floor
Protection	Automatic shut-off at 2 °C above set temperature
Child Safety	Yes, on remote control
Dimensions (approx.)	Height ~800 mm, width ~450 mm, depth ~250 mm
Weight (approx.)	5 kg
Cleaning	Soft, damp cloth; do not immerse
Warranty	2 years
After-Sales Service	Official Cecotec After-Sales Service: [phone]

Frequently Asked Questions - Ready Warm 9770 Ceramic Towel CECOTEC

How to install the Ready Warm 9770 Ceramic Towel heated towel rail?

Drill 4 holes of 8 mm in the wall, insert the wall plugs, fix the external elements with ST4x40 screws, then fix the internal elements on the device with ST3.5x20 screws. Hang the device on the wall elements and adjust with M5x14 screws. Respect safety distances: 60 cm from the bathtub/shower, 15 cm from the ceiling and floor.

How to turn on and set the temperature?

Plug in the device and activate the connection switch at the bottom. Press the On/Off button (⏻). Use the temperature buttons (5 °C to 40 °C) on the touch panel or remote control to set the desired temperature.

How to use the timer?

Press the Timer button on the control panel or remote control to program the operating time from 1 to 24 hours. The device will automatically turn off after the selected time.

How to activate child safety?

On the remote control, press and hold the Child Safety button for 3 seconds to activate the function. Repeat the operation for 3 seconds to deactivate it. This prevents children from accidentally turning on the device.

Why does the device turn off by itself?

The device automatically turns off when the room temperature exceeds the set temperature by 2 °C. It restarts when the temperature drops 2 °C below the set point. This is normal to save energy and maintain temperature.

How to clean the towel rail?

Always unplug the device and let it cool before cleaning. Use a clean, soft, damp cloth. Do not use abrasive products and do not wet the device. Clean the ventilation openings periodically.

What safety distances must be observed?

Leave at least 60 cm between the device and the bathtub/shower, 15 cm between the ceiling and the device, and 15 cm between the floor and the device. In front of the device, allow 1 meter of free space and 50 cm on each side.

What to do if the remote control does not work?

Check that the battery is correctly inserted and not discharged. Avoid using the remote control near other infrared devices. If the problem persists, contact Cecotec after-sales service.

Can the device be used in a small room?

No, do not use it in a room smaller than 4 m² to avoid the risk of overheating. Ensure the room is well ventilated and the device is not obstructed.

How to obtain a copy of the manual?

You can download the manual for free in PDF format from notice-facile.com or request a translation by indicating your language and email address on the product page.

USER MANUAL Ready Warm 9770 Ceramic Towel CECOTEC

Ready Warm 9770 Ceramic Towel

Ready Warm 9780 Ceramic Towel

Ready Warm 9790 Ceramic Towel

Toallero Eléctrico / Electric Towel Rack

Exterior view of a modern white lattice HVAC unit with black panels and ventilation grilles (no text or symbols visible)

Manual de instrucciones Instruction manual

1. Safety instructions / 08
2. Parts and components / 44
3. Before use / 44
4. Product Assembly / 45
5. Operation / 47
6. Cleaning and maintenance / 50
7. Technical specifications / 50
8. Disposal of old electrical appliances / 51
9. Technical support service and warranty / 51

SOMMAIRE

Warning sign with steam symbol inside a triangle, commonly used for safety warnings

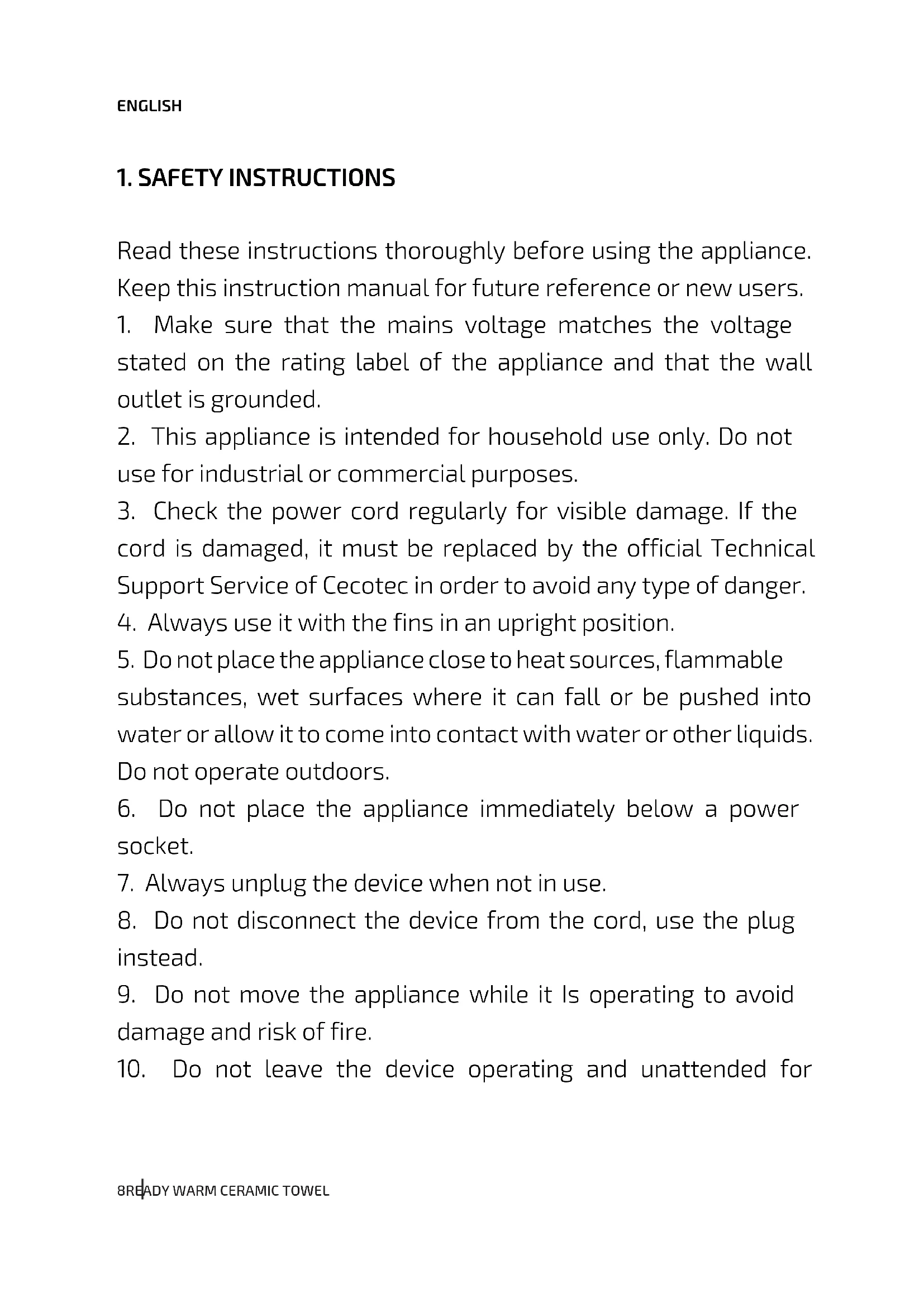

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

1. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
2. This appliance is intended for household use only. Do not use for industrial or commercial purposes.
3. Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
4. Always use it with the fins in an upright position.
5. Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.
6. Do not place the appliance immediately below a power socket.
7. Always unplug the device when not in use.
8. Do not disconnect the device from the cord, use the plug instead.
9. Do not move the appliance while it is operating to avoid damage and risk of fire.
10. Do not leave the device operating and unattended for

long periods of time. In that case, ensure it is turned off and disconnected from the power supply.

1. The device will reach high temperatures during use. Avoid touching its surface while it is operating and immediately after.
2. Do not operate the device in rooms smaller than 4 m2.
3. Do not cover the device in order to avoid overheating.
4. Keep the appliance clean. Do not allow objects to enter any ventilation or exhaust opening.
5. If the Remote Control is operated near other products which generate infrared rays, or if other remote control devices using infra-red rays are used near the unit, it may operate incorrectly.
6. Allows a safety distance of 1 m to the front and 50 cm to each side of the device. Avoid contact with furniture, cushions, bedding, paper, clothes, curtains etc.
7. Do not operate the device if it has fallen on the floor or is damaged in any way. Contact the official Technical Support Service of Cecotec for reparation.
8. Keep the packaging materials out of the reach of children, the could be dangerous.
9. The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
10. This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as

ENGLISH

they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

1. Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Warning sign depicting steam rising inside a triangle, indicating hazardous or hazardous material

Battery safety instructions (remote control)

1. When the remote control is not to be used for a long time, remove the batteries from the remote control to prevent it from leaking.
2. If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones. If you touch chemicals with your skin, wash immediately.
3. Do not use any batteries other than those specified.
4. Do not heat or disassemble batteries.
5. Never throw them in fire or water.
6. Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short circuit, leak or explode.

7. Never recharge a battery unless it is confirmed to be a rechargeable type.

8. Be sure to insert the battery with correct positive + and negative – polarities.

9. Do not dispose of battery with household waste. They must be collected in a place designed for this purpose.
10. Battery must be safely discarded.

1. INSTRUCTIONS DE SÉCURITÉ

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Warning sign depicting a flame with smoke inside a triangle

Warning sign depicting steam rising inside a triangle, indicating thermal hazard

Warning sign with steam symbol inside a triangle, indicating hazardous material

Warning symbol of a building with steam rising inside a triangle (no text)

Warning sign depicting steam rising inside a triangle, indicating hazard or thermal hazard.

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Voltaje220-240V\~

Frecuencia 50 Hz

Potencia 2000 W

MADE IN CHINA / DISEÑADO EN ESPAÑA

8. RECICLAJE DE ELECTRODOMÉSTICOS

1. Heated towel rack bars
2. Heating element
3. Control panel
4. Fan

3. BEFORE USE

• Take the product out of the box.
- Remove all packaging materials. Keep the original box.
- Make sure all the components are included and in good conditions, otherwise, contact immediately the official Technical Support Service of Cecotec.

4. PRODUCT ASSEMBLY

The control panel must be on the bottom part of the appliance.

• Safety distances:
• The distance between the bath/shower and the appliance must be, at least, 60 cm.
• The distance between the ceiling and the appliance must be, at least, 15 cm.
• The distance between the floor and the appliance must be, at least, 15 cm.

>15 cm 60 cm 60 cm >15 cm >15 cm 60 cm >15 cm

ENGLISH

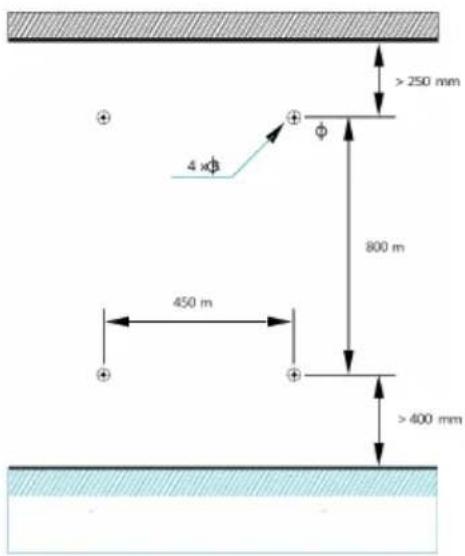

Installation:

4 x Ø 450 m 800 m > 250 mm > 400 mm

• Use a drill to make 4 8-mm holes in diameter.
• Introduce 4 studs in the holes.
• Use the ST4x40 screws to fix the outer fixing elements to the wall.

The wall

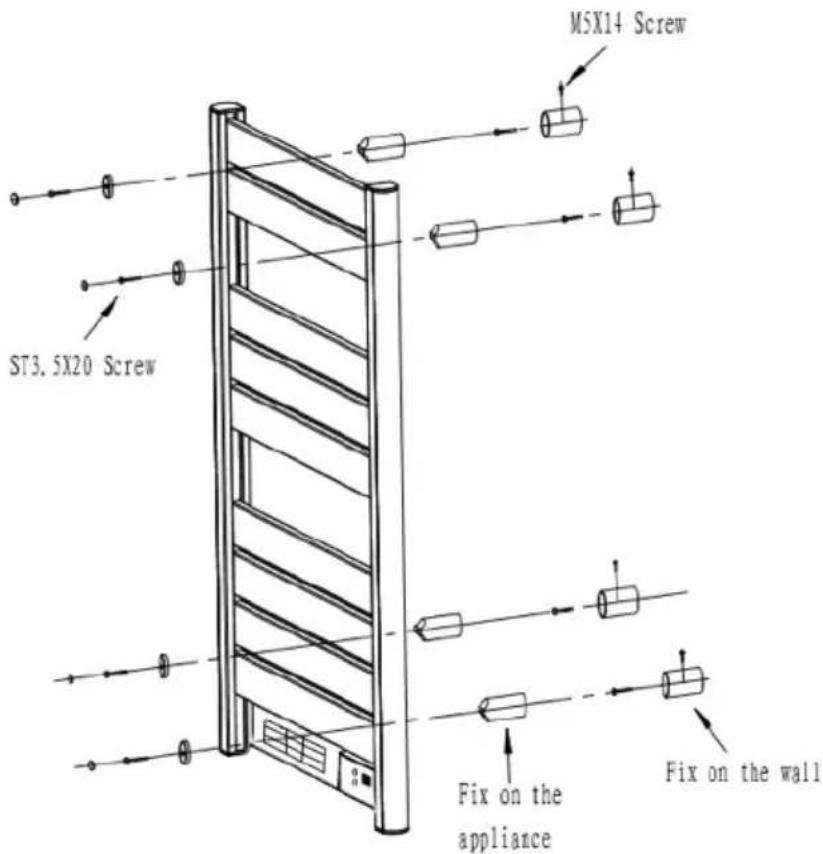

• Use the 4 ST3.5x20 screws to fix the 4 inner fixing elements and the 4 front fixing elements to the appliance.
• Fix the appliance's inner fixing elements into the wall's outer fixing elements and use the M5x14 screws to fix them at the correct distance from the wall.
• Cover the 4 front fixing element's caps.

M5X14 Screw ST3. 5X20 Screw Fix on the appliance Fix on the wall

5. OPERATION

• Place the heater on flat stable surface.
• Connect the device to a power supply and turn it on from the bottom switch. It will beep indicating is turned on.
• Press ⏻, the panel will display the room temperature. Then, use the control panel or the remote control to set power, temperature and time.

Note: The touch screen buttons and the remote control buttons correspond to the same functions.

ENGLISH

Control panel

1. Display
2. Temperature
3. Mode
4. Timer
5. On/off

3 88 2 1 4 5 cecòtec READYWARM

Remote control

1. Power
2. Mode
3. Temperature
4. Timer
5. Child lock

1 2 3 4 5 cecotec READYWARM

On/Off

When the On/off button is pressed, the On/off icon on the top part of the display lights up. The device will automatically start operating in low-power heating.

Mode

Press the mode button to switch from low-power heating ( = ) to high-power heating ( ≡ ). When high-power heating is selected, the device will produce hot air according to the temperature set.

Temperature

Press 🔒 to set the desired heating temperature. It can be set from 5 °C to 40 °C. Internal temperature is displayed every time the appliance is started up. The temperature can be set when the appliance is in stand-by or heating. When the room temperature reaches the set one, the high-power setting is deactivated and the low temperature power remains active. When room temperature is 2 degrees over the set temperature, both the high and lower temperature powers will stop operating. The device will begin operating again only when temperature decreases 2 degrees with respect to the set temperature.

Timer

Use the timer button to set the desired operating time of the appliance. It can be set from 1 to 24 hours.

Child lock

Press and hold this button on the remote control for 3 seconds to activate the child lock function, and press and hold for another 3 seconds to deactivate it. This safety system will avoid children from operating the device by accident.

6. CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply and allow it to cool down before cleaning.
• Use a soft, damp cloth to clean the product's surface.
• Clean dust from the device's surface and vents regularly.
• Clean and store the device in a safe, dry place if it is not going to be used for a long period of time.
• Do not wet the device and avoid contact with water or any other liquid.
• Avoid the use of abrasive cleaning agents or scouring pads as these could damage the product.

7. TECHNICAL SPECIFICATIONS

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Voltage 220-240 V\~

Frequency 50Hz

Power 2000 W

MADE IN CHINA / DESIGNED IN SPAIN

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

FRANÇAIS

2. PIÈCES ET COMPOSANTS

1 2 4 5 3

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Voltage220-240V\~

Fréquence 50 Hz

Puissance 2000 W

MADE IN CHINA / CONÇU EN ESPAGNE

8. RECYCLAGE DES ÉLECTROMÉNAGERS

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Voltaggio220-240V\~

Frequenza: 50 Hz

Potenza 2000 W

MADE IN CHINA / PROGETTATO IN SPAGNA

8. RICICLAGGIO DI ELETTRODOMESTICI

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Voltage: 220-240 V\~

Frequentie 50 Hz

Vermogen 2000 W

MADE IN CHINA / ONTWORPEN IN SPANJE

05353 Ready Warm 9770 Ceramic Towel

05354 Ready Warm 9780 Ceramic Towel

05355 Ready Warm 9790 Ceramic Towel

Napiecie220-240V\~

Częstotliwość 50 Hz

Moc 2000 W

MADE IN CHINA / ZAPROJEKTOWANY W HISZPANII

8. RECYKLING SPRZĘTU

9. GWARANCJA I OBSŁUGA KLIENTA

Quart de Poblet, Valencia (Spain)
