730N - Blender HAMILTON BEACH - Free user manual and instructions

Product Type	Drink Mixer
Brand	Hamilton Beach
Model	730N
Cup Capacity	355 ml (12 oz) maximum, 118 ml (4 oz) minimum
Speeds	2 speeds (low and high)
Tilting Head	Yes
Removable Mixing Rod	Yes
Materials	Cup and rod made of dishwasher-safe plastic (top rack)
Power Supply	120 V ~ 60 Hz (polarized plug)
Power	Not specified in the manual
Dimensions (approx.)	Height: approx. 30 cm, width: 12 cm
Weight (approx.)	1.2 kg
Usage	Household use only
Maintenance	Wipe base with a damp cloth; cup and rod go in dishwasher (top rack, no SANITIZE cycle)
Safety	Polarized plug; do not immerse base; turn off and unplug before cleaning
Warranty	1 year in the United States, 5 years in Canada
Replacement Parts	Available at hamiltonbeach.ca/parts
Repairability	Repair by manufacturer or qualified agent

Frequently Asked Questions - 730N HAMILTON BEACH

What is the maximum cup capacity of the Hamilton Beach 730N blender?

The cup has a maximum capacity of 355 ml (12 oz). Do not exceed this line to avoid overflow.

Can I crush ice with this blender?

No, the Hamilton Beach 730N drink mixer is not designed to crush ice.

How do I clean the Hamilton Beach 730N blender?

Unplug the appliance. Clean the base with a damp cloth. The cup and mixing rod go in the dishwasher (top rack), but do not use the SANITIZE cycle.

What speeds are available?

The control switch offers two speeds: speed 1 (low) and speed 2 (high). Always start with low speed.

Can I use fresh fruit in the blender?

Yes, but it is recommended to puree fresh fruit before adding it to the cup for better mixing.

Can the Hamilton Beach 730N blender mix hot drinks?

It is best to use cold liquids to get thick and frothy drinks. Hot liquids could damage the appliance.

How do I insert and remove the mixing rod?

To insert, push the rod into the cup until it clicks. To remove, lift the head and pull the rod downward.

What to do if the blender does not work?

Check that the appliance is plugged in and the switch is ON. If the problem persists, contact Hamilton Beach customer service. Do not attempt to repair yourself.

What is the warranty for the Hamilton Beach 730N blender?

The warranty is 1 year in the United States and 5 years in Canada, against defects in materials and workmanship. Save your purchase receipt.

Where can I buy replacement parts?

Visit hamiltonbeach.ca/parts to order replacement parts.

USER MANUAL 730N HAMILTON BEACH

For recipes, tips and product information.

hamiltonbeach.ca

Open to US customers only • Ce concours

Exterior view of a modern stainless steel stand mixer with a spherical top (no visible text or symbols)

Drink Mixer

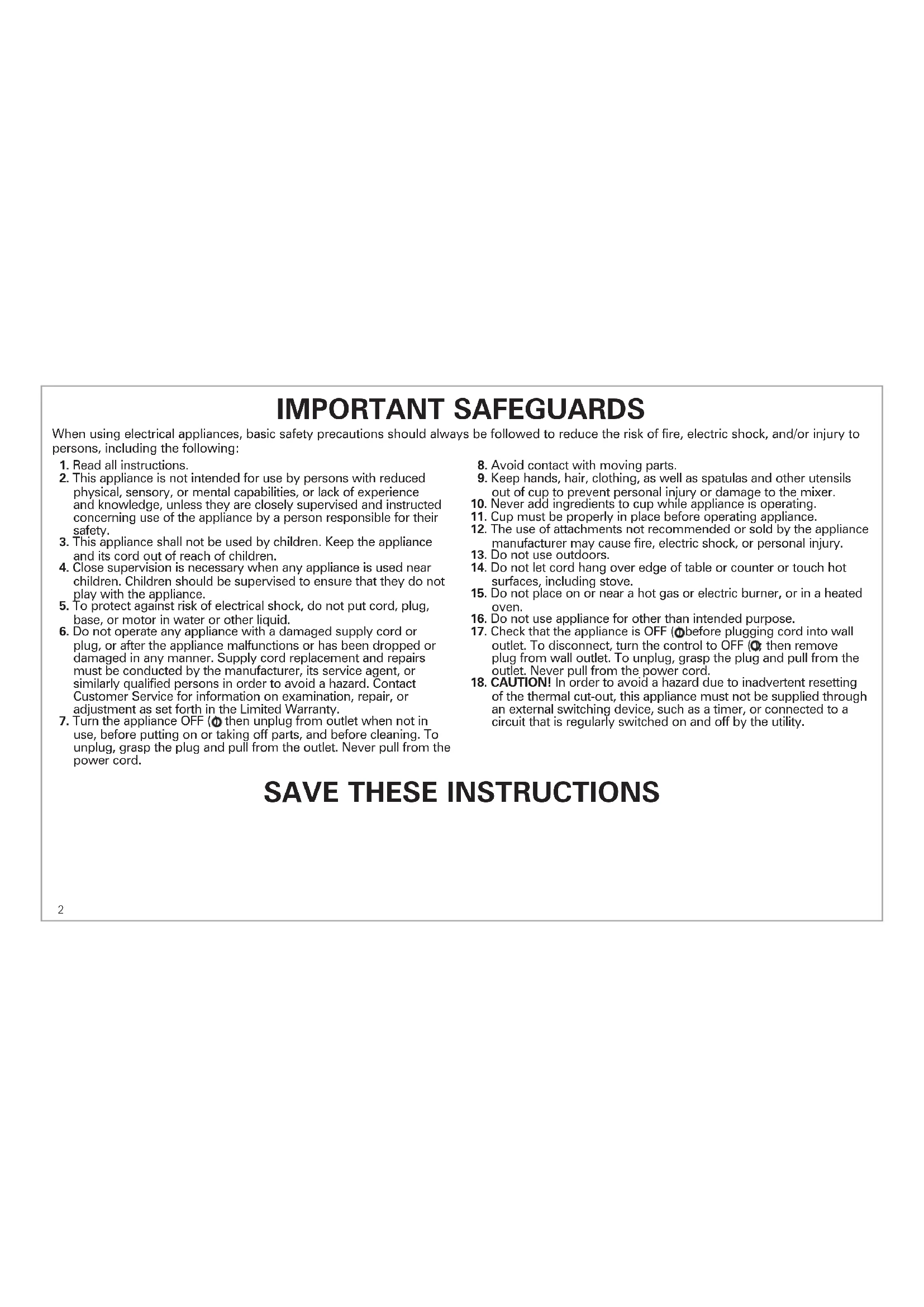

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

7. Turn the appliance OFF (⊕) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

8. Avoid contact with moving parts.

9. Keep hands, hair, clothing, as well as spatulas and other utensils out of cup to prevent personal injury or damage to the mixer.
10. Never add ingredients to cup while appliance is operating.
11. Cup must be properly in place before operating appliance.
12. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or personal injury.
13. Do not use outdoors.
14. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
15. Do not place on or near a hot gas or electric burner, or in a heated oven.
16. Do not use appliance for other than intended purpose.
17. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
18. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

Parts and Features

Before first use: Wash Cup and Mixing Shaft in hot, soapy water. Rinse and dry.

To order parts, visit:

hamiltonbeach.com

How to Use

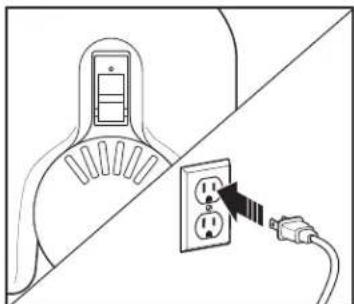

Diagram showing a plug connected to an electrical outlet with a cable (no text or symbols)

1. Make sure Drink Mixer is set to OFF (Plug into outlet. Place ingredients to be mixed in Cup and insert Mixing Shaft until it snaps into place.

Line drawing of a hand holding a container with an upward arrow, no text or symbols present

1. Place Cup onto Drink Mixer, making certain Cup's top edge is behind Cup Support and Cup bottom is on Cup Rest.

Diagram showing a device with an arrow pointing upward and a hand holding a container, both without any text or symbols.

1. Move Control Switch to desired speed to process. Start with 1 (low) speed; then increase to 2 (high) speed if desired. For hard ice cream or very thick shakes, remove Cup from Rest and Support. With Mixing Shaft still submerged in mixture, move Cup around for more thorough mixing.

Diagram showing a device with a handle and arrow indicating direction, no text or symbols present

1. When finished, turn unit to OFF (Φ and tilt Head up. Remove Cup, pour contents from Cup, and serve.

Tips

• Cup must always be filled to at least minimum 4 oz (118 mL) mark for liquids to reach Mixing Shift. Do not fill above maximum 12 oz (355 mL) mark or liquid may overflow while mixing.

• This Drink Mixer is great for mixing protein drinks. Syrups and powders should be added just before mixing to prevent sinking to bottom of Cup.

• Most drinks can be mixed in less than 2 minutes.

• If using fresh fruit, always mash or puree before adding to ingredients in Cup.
• All liquids should be as cold as possible for a thicker and more frothy drink.
• Drink Mixer is not designed to crush ice.

Care and Cleaning

1. Make sure Drink Mixer is unplugged and Control Switch is set to OFF (Q) To remove Mixing Shaft, tilt Head up and pull Mixing Shaft straight down.

⚠ WARNING Electrical Shock Hazard. Do not immerse drink mixer, cord, or plug in water or any other liquid.

1. To clean Base, wipe with damp cloth or sponge. Do not use abrasive cleansers of any kind.
2. Cup and Mixing Shaft are dishwasher-safe on top rack. DO NOT use "SANITIZE" setting when washing in dishwasher. SANITIZE cycle temperatures could damage your product.

Recipes

Always add liquid ingredients first, then remaining ingredients. Follow directions for "How to Use" on page 5, starting to mix on 1 (low) and gradually increasing speed to 2 (high).

Strawberry Banana Milkshake

Ingredients:

1/2 cup (118 mL) milk
1 banana, mashed or pureed
2 scoops (about 1 cup [237 mL]) strawberry ice cream
1 tablespoon (15 mL) strawberry syrup

Grown-Up Mocha Shake

Ingredients:

1/4 cup (59 mL) milk
1/4 cup (59 mL) coffee-flavored liqueur
2 scoops (about 1 cup [237 mL]) chocolate ice cream

Cookies and Cream Shake

Ingredients:

1/2 cup (118 mL) milk
2 scoops (about 1 cup [237 mL]) vanilla ice cream
1 tablespoon (15 mL) chocolate syrup
3 chocolate sandwich cookies, finely crushed

Peanut Butter Banana Breakfast Smoothie

Ingredients:

1 cup (237 mL) coconut milk
1/8 teaspoon (0.6 mL) vanilla extract
3 tablespoons (44 mL) smooth peanut butter
2 teaspoons (10 mL) honey or maple syrup
1 ripe banana, mashed or pureed
Pinch salt, if desired

Directions:

Place all ingredients into Cup in order listed. Mix until desired consistency.

Serves: 1–2

6

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram showing a plug connected to an electrical outlet with a cable (no text or symbols)

Line drawing of a hand holding a container with an upward arrow, no text or symbols present

Diagram showing a device with an arrow pointing upward and a hand holding a cup, both without any text or symbols.

Diagram showing a device with a handle and arrow indicating direction, no text or symbols present

Diagram showing a plug connected to an electrical outlet with a cable (no text or symbols)

Hand holding a glass container with an upward arrow, no text or symbols visible

Diagram showing a device with an arrow pointing upward and a hand holding a cup, both without any text or symbols.

Diagram showing a device with a plug inserted into a socket and a tool interacting with it, both without any text or symbols.
