59766 - Blender HAMILTON BEACH - Free user manual and instructions

Product Type	Blender
Brand	Hamilton Beach
Model	59766
Usage	Blending, mixing drinks, preparing soups and sauces
Bowl Material	Glass or shatter-resistant plastic
Bowl Capacity	1.5 liters (approx.)
Power	550 watts
Speeds	Multiple speeds + pulse function
Blades	4-prong stainless steel blades
Dimensions (L x W x H)	20 x 18 x 38 cm
Weight	2.2 kg
Power Supply	220-240 V, 50/60 Hz
Cord Length	90 cm
Pulse Function	Yes
Non-slip Feet	Yes
Safety Lock	Yes, motor locks if bowl is not properly installed
Cleaning	Bowl and lid are dishwasher safe (top rack)
Replacement Parts	Replacement bowl, gasket, blades, lid available
Warranty	2 years

Frequently Asked Questions - 59766 HAMILTON BEACH

How to use the Hamilton Beach 59766 blender?

Place ingredients in the bowl, lock the lid, plug in the appliance and select desired speed. Use the pulse function for short impulses.

What is the bowl capacity of the 59766 blender?

The bowl has a capacity of approximately 1.5 liters, ideal for making drinks for several people.

Are the bowl and lid dishwasher safe?

Yes, the bowl and lid are dishwasher safe, preferably on the top rack to avoid deformation.

How to clean the blender blades?

After use, fill the bowl with warm water and a drop of dish soap, run for a few seconds, then rinse. Never immerse the motor base in water.

Can I blend hot ingredients?

Yes, but let hot liquids cool to about 60°C before blending to avoid burns and damage to the gasket.

What to do if the blender does not start?

Check that the bowl is properly locked onto the base and the lid is firmly in place. Make sure the appliance is plugged in and the fuse has not blown.

How to avoid leaks during blending?

Ensure the lid gasket is clean and in good condition, and the lid is clicked on securely. Do not exceed the maximum capacity.

Where can I buy replacement parts for model 59766?

Replacement parts (bowl, gasket, blades, lid) are available from Hamilton Beach or authorized online retailers.

Does the Hamilton Beach 59766 blender have a warranty?

Yes, the appliance is warranted 2 years against manufacturing defects. Keep the proof of purchase.

Can you crush ice with this blender?

Yes, use the pulse function in bursts to crush ice without overloading the motor.

USER MANUAL 59766 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Product photo of a kitchen blender with a black whisk, serving a small bowl and clear cup (no text or symbols visible)

Hamilton Beach®

Stainless Steel Hand Blender Mélangeur à main en acier inoxydable Batidora de Inmersión de Acero Inoxidable

English 2

Français......8

Español 14

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. To protect against risk of electrical shock, do not put motor unit, cord, or plug in water or other liquid.
5. Avoid contact with moving parts. Keep hands, hair, clothing, and utensils away from blades and out of container during operation to prevent the possibility of severe injury to persons and/or damage to the appliance. A scraper may be used but must be used only when the unit is not running.
6. The use of attachments not recommended or sold by the appliance manufacturer for use with this model may cause fire, electric shock, or injury.
7. When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reduce spillage.
8. Blades are sharp; handle carefully.

9. Do not use over a stove or other heat source.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter.
12. Do not let cord contact hot surfaces, including the stove.
13. Do not place appliance on or near a hot gas or electric burner, or in a heated oven.
14. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
15. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
16. Be certain the cover is securely locked in place before operating the chopper accessory.
17. To reduce the risk of injury, never connect chopper S-blade and cover to motor unit without using chopping bowl.
18. Keep hands and utensils out of container to reduce the risk of injury to persons or damage to the mixer.
19. Never add to container while appliance is operating.
20. Container must be properly in place before operating appliance.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only. This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

▲ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

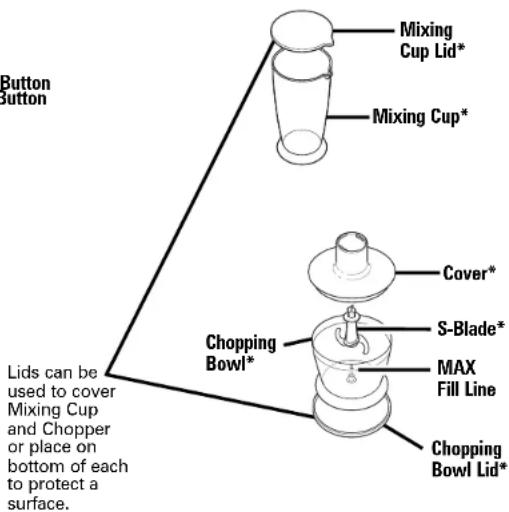

Parts and Features

BEFORE FIRST USE: Wash attachments according to instructions on page 6.

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

NOTE: The maximum power rating is based on the blade attachment. The chopper may draw significantly less power.

Blending Guide

FOOD SPEED ATTACHMENT
	LO
	TURBO
	LO
	LO
	HI
	LO
	LO
	TURBO
	TURBO

Helpful hints

• The hand blender is not designed for use over a heat source.
• This appliance is not intended to chop ice. Add ice to beverage after blending.
• To use the hand blender in a saucepan, be sure to remove the pan from the stove.
  • To puree foods, liquid is needed. Add cooking liquid, broth, juice, milk, or cream until desired consistency is reached.
• For thorough blending, move hand blender up and down in mixture until smooth.
• To achieve best blending results and to reduce splattering (especially hot foods or liquids), use deep, tall containers.
• The plastic lid of the measuring jar may be flipped upside down and placed underneath the base of the cup or chopping bowl in order to provide a more stable surface while blending.
• Do not immerse the motor unit past the top metal portion of each blending attachment.
• We recommend chopping only 5 oz. (142 g) of meat at a time in the food chopper. Meat should be cut into 2-inch (5.1-cm) pieces before processing.

How to Use the Hand Blender/Whisk Attachment

Set the variable speed level first and then press the ON/OFF PULSE button. Variable speed is for the ON/OFF PULSE button only. The TURBO PULSE button is not affected by the variable speed button.

Illustration of hands pouring liquid into a glass with a straw (no text or symbols)

Do not use frozen ingredients.

Diagram showing a mechanical assembly with a clamped component and a bowl-like structure (no text or symbols)

NOTE: Do not immerse the motor unit past the top metal portion of each blending attachment.

WARNING Cut Hazard.

Always inspect attachments before each use. Do not use cracked, bent, or damaged attachments.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

NOTE: Do not use nonfood items in this hand blender. This product is not meant for soap making.

Diagram showing a mechanical device with two parts: one divided into sections and the other inserted into a container (no text or symbols present)

How to Use the Chopper

Simple line drawing of a faucet pouring liquid into a cup (no text or symbols)

Illustration of a glass bowl with granular contents and a lid, alongside a side view of a container filled with liquid (no text or symbols)

Diagram showing a lamp emitting heat from a power outlet to a wall socket (no text or symbols present)

How to Clean the Hand Blender

Diagram showing a plug inserted into an electrical outlet with two outlets, illustrating the process (no text or symbols present)

Line drawing of two hands holding a handheld device, no text or symbols present

WARNING

Electric Shock Hazard

Never hold motor unit portion of hand blender under running water. Simply wipe clean with a damp cloth.

Diagram of a kitchen sink with pipes and fixtures, showing no text or symbols

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Illustration of hands pouring liquid into a glass with a straw (no text or symbols)

Diagram showing a mechanical assembly with a tool pressing down on a component, divided by a diagonal line (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

AVERTISSEMENT Risque de coupure.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Diagram showing a hand operating a tool to lift a container with liquid, no text or symbols present

Simple line drawing of a faucet above a cup with a downward arrow indicating flow or direction (no text or symbols)

Illustration of a glass container with granular contents and a lid, alongside a side view of a bowl filled with ice cubes (no text or symbols)

Diagram showing a lamp emitting a power plug into an electrical outlet (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two outlets, indicated by an arrow (no text or symbols present)

Line drawing of a hand holding a medical device with a clip (no text or symbols)

AVERTISSEMENT

Diagram of a kitchen sink with pipes and fixtures, showing a tool interacting with a bowl (no text or symbols present)

Garantie limitée

Line drawing of hands pouring liquid into a glass with a spoon (no text or symbols)

Diagram showing a mechanical assembly with a tool pressing down on a component, divided into two sections (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two outlets, connected to a cable (no text or symbols present)

Diagram showing a hand pouring liquid into a container with an arrow indicating direction (no text or symbols)

Simple line drawing of a faucet above a cup with a downward arrow indicating flow or direction (no text or symbols)

Illustration of a glass container with granular substance being poured into a lid, alongside a side view of a bowl filled with ice cubes (no text or symbols)

Diagram showing a lamp emitting a power plug into an electrical outlet (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two outlets, indicated by an arrow (no text or symbols present)

Line drawing of two hands holding a handheld device (no text or symbols)

ADVERTENCIA

Diagram of a kitchen sink with pipes and fixtures, showing no text or symbols

Hamilton Beach®

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon
