BP.400 - Food Processor Beper - Free user manual and instructions

USER MANUAL BP.400 Beper

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig.A Fig.B

Labeled diagram of a blender with numbered parts for identification

Technical line drawings of a mechanical device showing four sequential steps with arrows indicating motion (no text or symbols)

Cod.: BP.400

CE回×只

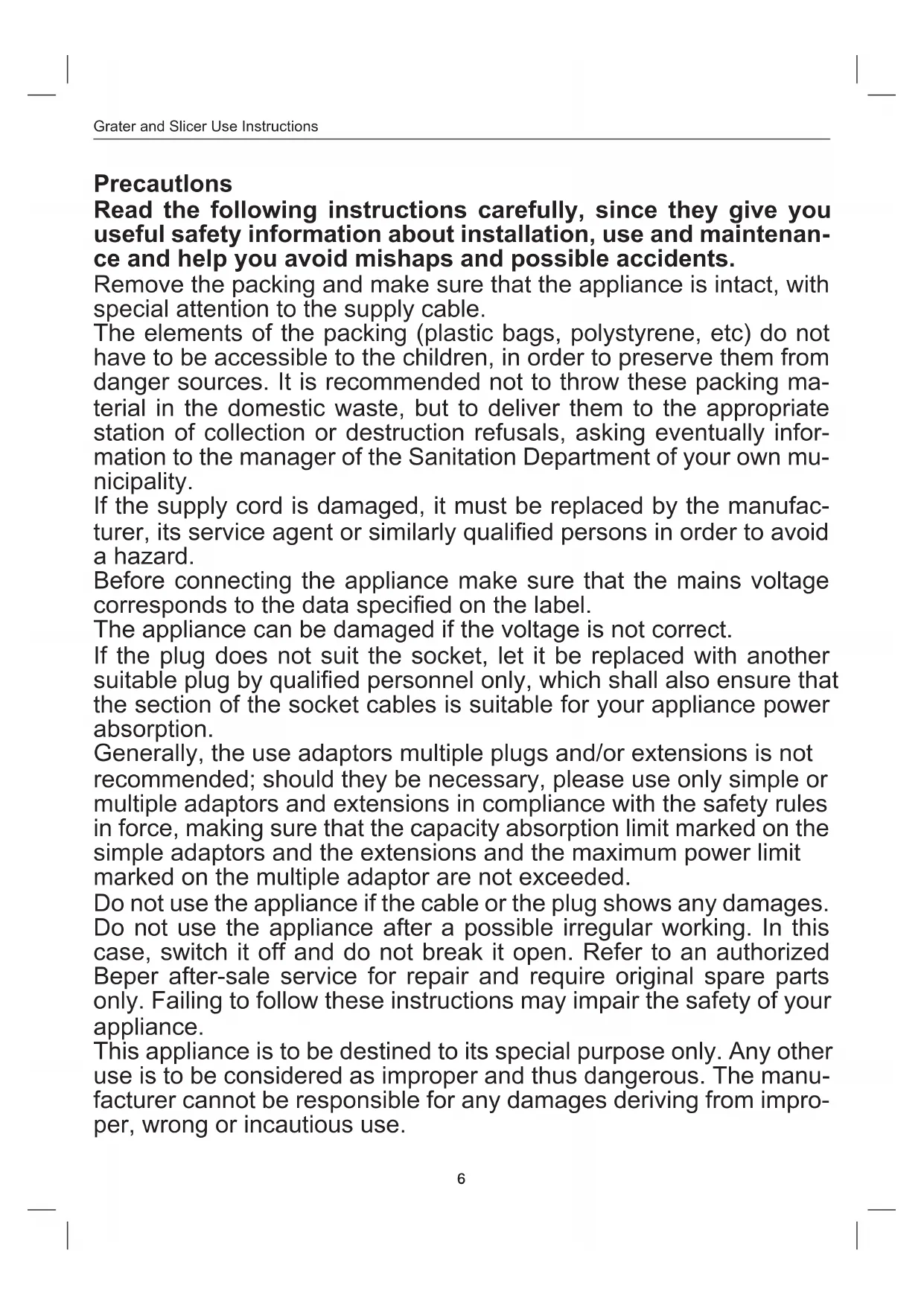

Avvertenze generali

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable.

The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources. It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

The appliance can be damaged if the voltage is not correct.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

Do not use the appliance if the cable or the plug shows any damages. Do not use the appliance after a possible irregular working. In this case, switch it off and do not break it open. Refer to an authorized Beper after-sale service for repair and require original spare parts only. Failing to follow these instructions may impair the safety of your appliance.

This appliance is to be destined to its special purpose only. Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

This appliance is for household use only.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not use the appliance near explosives, highly flammable materials, gases or burning flames.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over.

Close supervision is necessary when any appliance used by or near children.

Warnings of use

During use, place the appliance on a horizontal surface.

During use take care that power cord will not hanging on the table.

When the product is not in use and before doing any cleaning operation turn off the product and unplug the power cord from the power outlet.

Do not use the appliance for more than 5 minutes continuously.

The cones of the appliance are very sharp; be careful and handle the blade unit with care.

Never touch moving parts.

Never leave the appliance unattended while it is in use.

Do not remove the processed product from the filling tube while the blades are moving. Always wait for the blades to be completely stopped.

Do not operate the appliance when empty.

Do not remove the cones before the engine is completely stopped.

Do not put hands or other objects in the filling tube during operation.

Never immerse the motor body, plug or electric cable in water or other liquids. Use a damp cloth to clean them.

Use the product only for the purpose for which it was designed.

The product is for domestic use only.

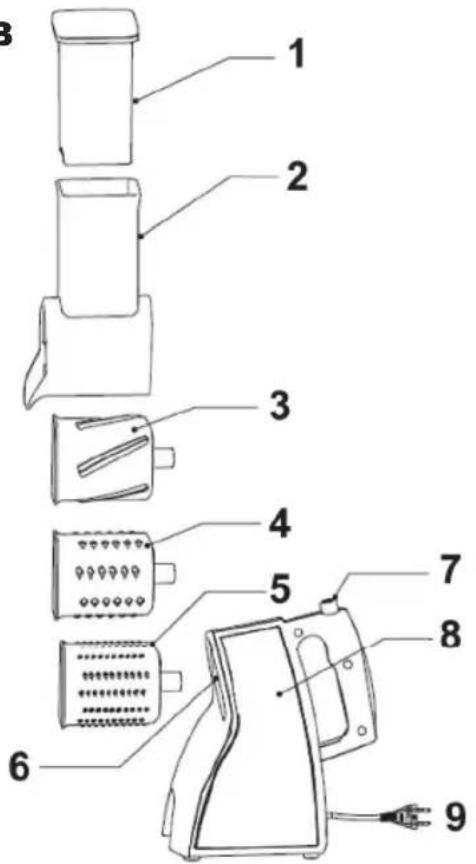

Description of the product Fig. A

1. Pusher
2. Filling tube
3. Slicing cone
4. Julienne slicing cone
5. Fine grater cone
6. Coupling for cone
7. Operation button
8. Motor housing
9. Power cord

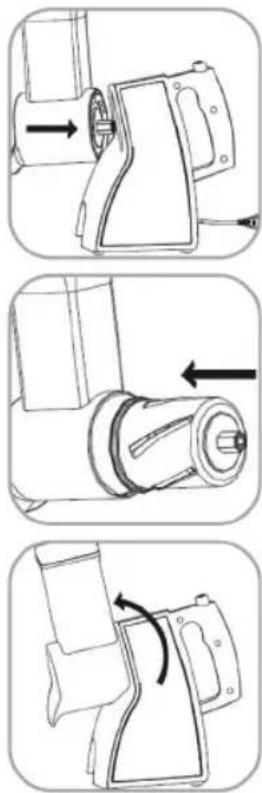

Instructions for Use Fig.B

Before the first use it is advisable to clean all the components as indicated in the paragraph “Cleaning and maintenance”.

Place the product in a vertical position on a flat and stable surface.

Select the cone to use based on the desired cut. Insert the cone into the appropriate housing, then insert the cone coupling into the coupling for cone placed on the motor housing and turn anticlockwise to lock the components so assembled.

Connect the power cord to the electrical outlet.

Insert the food through the filling tube, and push the food using the pusher.

It is recommended to cut the food into small pieces before processing.

Press the operation button and keep it pressed for the time necessary for complete processing of the food.

To change the cone, turn the filling tube clockwise, remove the cone in use and replace it with the desired one.

Make sure the product is switched off and unplugged before proceeding with this operation.

Cleaning and maintenance

It is recommended to clean the appliance immediately after use.

Disconnect the plug from the socket.

Remove the accessories from the motor housing.

Handle the cones with care because the blades are extremely sharp.

The parts that can be washed in water or in the dishwasher are the cones, the filling tube and the pusher.

Do not use grainy detergents and abrasive cloths; could damage the appliance.

The motor housing, the cable and the plug must be cleaned only with a damp cloth; do not immerse them or pass them under water.

Make sure that the appliance with all its parts will be dry before using it again and before storing the product.

Technical data

Power: 430W

Power supply: 220 -240V\~ 50/60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Contact your distributor in your country or after sales department Beper.

E-mail [e-mail] which will forward your enquiries to your distributor.

CONDITIONS DE GARANTIE

GARANTIJAS NOSACĪJUMI

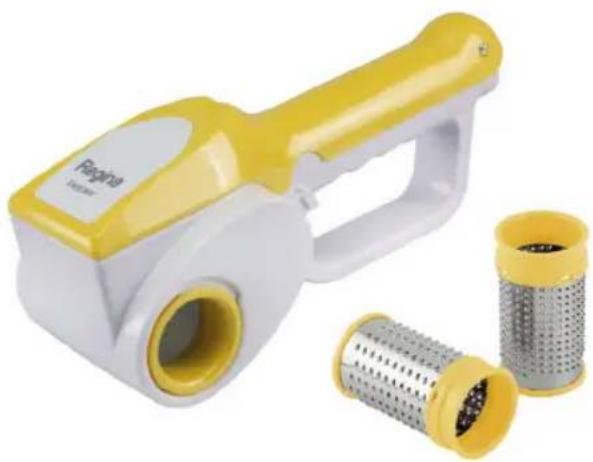

2 interchangeable steel rollers: fine grater and thick grater Ideal for cheese, nuts, chocolat and dry bread Rechargeable battery Working time up to 40 minutes Ergonomic handle for easy grip Food presser for effortless grating Charging base and adapter included
