Product type	Trash pump
Brand	Simpson
Model	SSTP71007
Maximum flow	158 GPM (598 L/min)
Inlet diameter	2 inches (5.08 cm)
Outlet diameter	2 inches (5.08 cm)
Maximum suction lift	25 feet (7.6 m)
Maximum discharge head	98 feet (29.9 m)
Maximum solid size	9/16 inch (14.3 mm)
Engine	CRX210, 208 cc
Fuel tank capacity	0.7 gallons (2.65 L)
Start type	Manual recoil start (pull start)
Fuel	Unleaded gasoline (87 octane min, E10 max)
Engine oil	Check before use, engine shipped without oil
Warranty	3 years (pump and frame)
Approximate weight	Approx. 40 kg (estimated)

Frequently Asked Questions - SSTP71007 Simpson

What type of engine oil to use and how to check the level?

Use the oil recommended in the engine guide (usually SAE 30). To check the level, place the pump on a level surface, stop the engine, remove the dipstick, wipe it, insert it without screwing, then remove it to read the level between the marks.

How to prime the pump before starting?

Remove the priming funnel cover, pour clean water until the pump is full, then replace the cover. Never run the pump dry, as this will damage the seals.

What fuels are recommended and what should be avoided?

Use fresh unleaded gasoline with a minimum octane rating of 87 and an ethanol content of at most 10% (E10). Do not use gasoline older than 30 days, nor E15, E20, or E85 blends.

How to start the engine in cold weather?

Set the switch to ON, open the fuel valve, close the choke (CHOKE position). Pull the starter rope slowly until resistance, then pull sharply. Once started, gradually open the choke to RUN.

What safety precautions are essential during use?

Use the pump only outdoors, at least 6 meters from windows. Never allow children near. Wear gloves and avoid loose clothing. Be aware of hot engine surfaces.

How to clean the inside of the pump after use (model SSTP71007)?

After pumping, run the pump with clean water to rinse. Stop the engine, disconnect the spark plug wire, remove the hoses, then remove the drain plug under the pump to drain the water. Replace the plug and reconnect the spark plug.

What to do if the engine does not start after several attempts?

Check the oil level (low-level sensor may cut ignition). Make sure the fuel valve is open and the choke is adjusted for the temperature. Consult the engine guide or contact customer service.

How to store the pump for more than two months?

Drain all fuel from the tank and carburetor. Change the engine oil. Remove the spark plug, pour 15 ml of oil into the cylinder and pull the starter rope twice. Clean the inside of the pump and store away from sunlight.

What is the maximum allowed suction lift?

The maximum suction lift is 25 feet (7.6 meters). The total discharge head must not exceed 98 feet (29.9 meters) for model SSTP71007.

Where to find an authorized service center for warranty repairs?

Contact Simpson customer service at 1-877-362-4271 or by email at [e-mail] to locate an authorized center. The 3-year warranty covers defects in materials and workmanship of the pump and frame.

USER MANUAL SSTP71007 Simpson

Models covered: SSTP71007 - 2" Semi-trash pump STP71010 - 3" Trash pump

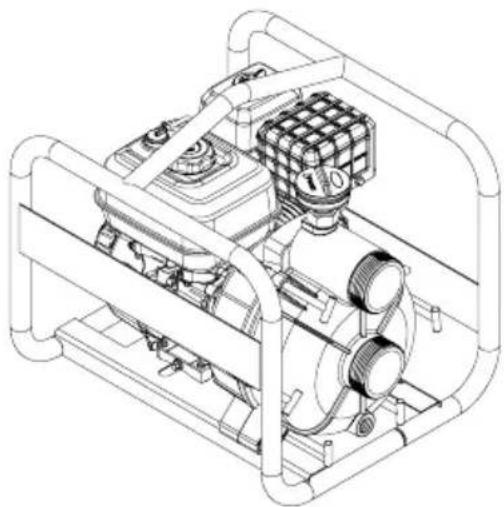

Technical line drawing of a mechanical pump or pump assembly (no text or symbols visible)

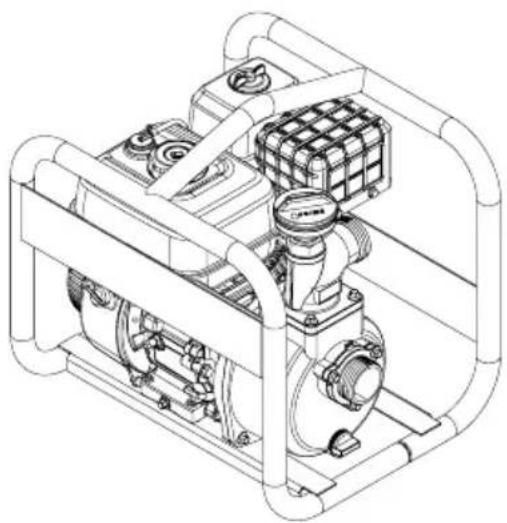

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

NOT FOR SALE IN THE STATE OF CALIFORNIA

LOOK BEFORE YOU PUMP!

READ THIS MANUAL CAREFULLY BEFORE OPERATION

Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death.

If your pump is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail]

SAVE THIS MANUAL FOR FUTURE REFERENCE

NOTE: Photographs and line drawings used in this manual are for reference only and may not represent your specific model.

THIS PAGE WAS INTENTIONALLY LEFT BLANK

SAVE THIS MANUAL FOR FUTURE USE

Keep this manual for future reference. This manual should be considered a permanent part of the product and stay with it. This manual should be available to anyone operating the product(s) it covers. This manual should remain with the product(s) it covers if sold to a new owner. If the manual becomes damaged, lost, or otherwise unusable, you may download a new copy from the product pages at www.simpsoncleaning.com or contact customer support by calling 1-877-362-4271.

Write down the model number, serial number, and purchase date of this product in the spaces provided below then keep this manual with the purchase receipt(s) for future reference.

Model Number:

Serial Number:

Purchase Date:

SAFETY INSTRUCTIONS | 4

Read this Manual Before Operating 4

Additional Instructions 4

Hazard Alert Symbols 4

DISCLAIMERS | 5

UNPACKING | 5

COMPONENT LOCATION | 6

OPERATING CHECKLIST | 8

Location | 8

High Altitude Operation 9

Operating Conditions | 9

Checking the Engine Oil 10

Checking Fuel | 12

CONNECTING HOSES | 14

Connecting Suction Hose Strainer 14

Hose Placement | 14

PRIMING THE PUMP | 15

STARTING THE ENGINE | 16

SHUTTING OFF THE ENGINE | 17

MAINTENANCE

Pump Maintenance

Exterior Pump Cleaning

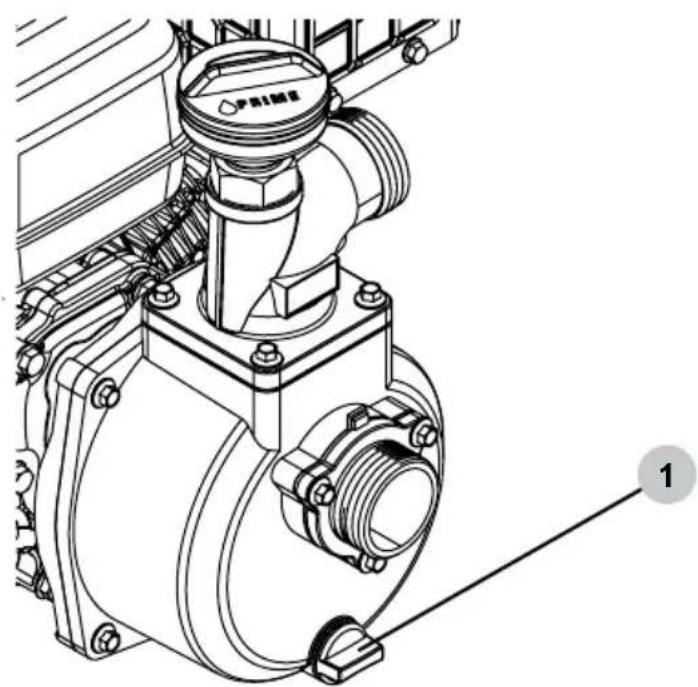

Interior Pump Cleaning - SSTP71007

Interior Pump Cleaning - STP71010

Engine Maintenance

18

18

18

19

20

21

STORAGE AND TRANSPORTATION

Storing for Two Months or Less

Storing for More Than Two Months

Transportation

21

21

22

22

SPECIFICATIONS

Model Number: SSTP71007 / Item Number: 71007

Model Number: STP71010 / Item Number: 71010

23

23

23

WARRANTY

24

READ THIS MANUAL BEFORE OPERATING

This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.

NOTE: The warnings and precautions discussed in this manual cannot cover all conditions and situations that may occur. The operator must understand awareness and caution are factors which cannot be built into this product and so must be exercised by the operator.

ADDITIONAL INSTRUCTIONS

Along with this manual, be sure to read any additional instructions provided both on and with the product, attached equipment, accessories, and the engine powering the product. Pay careful attention to all additional safety rules and instructions on proper startup, operation, and shutdown procedures. Always use any recommended protective apparel that may be needed to operate the equipment safely.

HAZARD ALERT SYMBOLS

Be sure to understand the safety symbols and definitions listed below. Each symbol contains one of four words: DANGER, WARNING, CAUTION, NOTICE, indicating different levels of hazard severity. These symbols are used throughout this manual and are followed information about a specific hazard, the consequences of the hazard, and instructions on how to avoid the hazard. Failure to heed these symbols and follow the instructions provided with them will result in property damage, injury, and/or death.

Indicates an imminently dangerous situation, which if not avoided, will result in property damage, serious injury, and/or death.

Indicates a potentially hazardous situation, which if not avoided, could result in property damage, serious injury, and/or death.

Indicates a hazardous situation, which if not avoided, could result in property damage and/or minor to moderate injury.

Indicates information considered important, but not directly hazard related.

CALIFORNIA PROPOSITION 65 WARNING

This product and the engine exhaust can expose you to chemicals which are known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information on California Proposition 65, go to www.P65Warnings.ca.gov.

POLYCYCLIC AROMATIC HYDROCARBON WARNING

The air filter element and air box assembly may contain polycyclic aromatic hydrocarbons (PAHs). Some PAHs may cause cancer. To avoid exposure to PAHs, wear gloves when performing air filter maintenance.

DISCLAIMERS

• All information in this publication was based on the latest product information available at the time of printing. The FNA Group reserves the right to update, change, and/or improve the product and this document at any time, without notice, and without incurring any obligation.
• This manual may cover more than one machine. The pictures and figures in the manual should be used for reference only. There may be differences between your product and the pictures, drawings, and diagrams in this manual.

UNPACKING

Follow the steps outlined in this section to unpack your pump. If you have any questions regarding the unpacking or assembly of your pump, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email [e-mail].

1. Place the shipping carton on a solid, flat surface.
2. Carefully cut the top of the carton open.
3. Carefully cut each corner of the carton from top to bottom.
4. Lay each side of the carton flat on the ground.
5. Remove the contents of the carton.

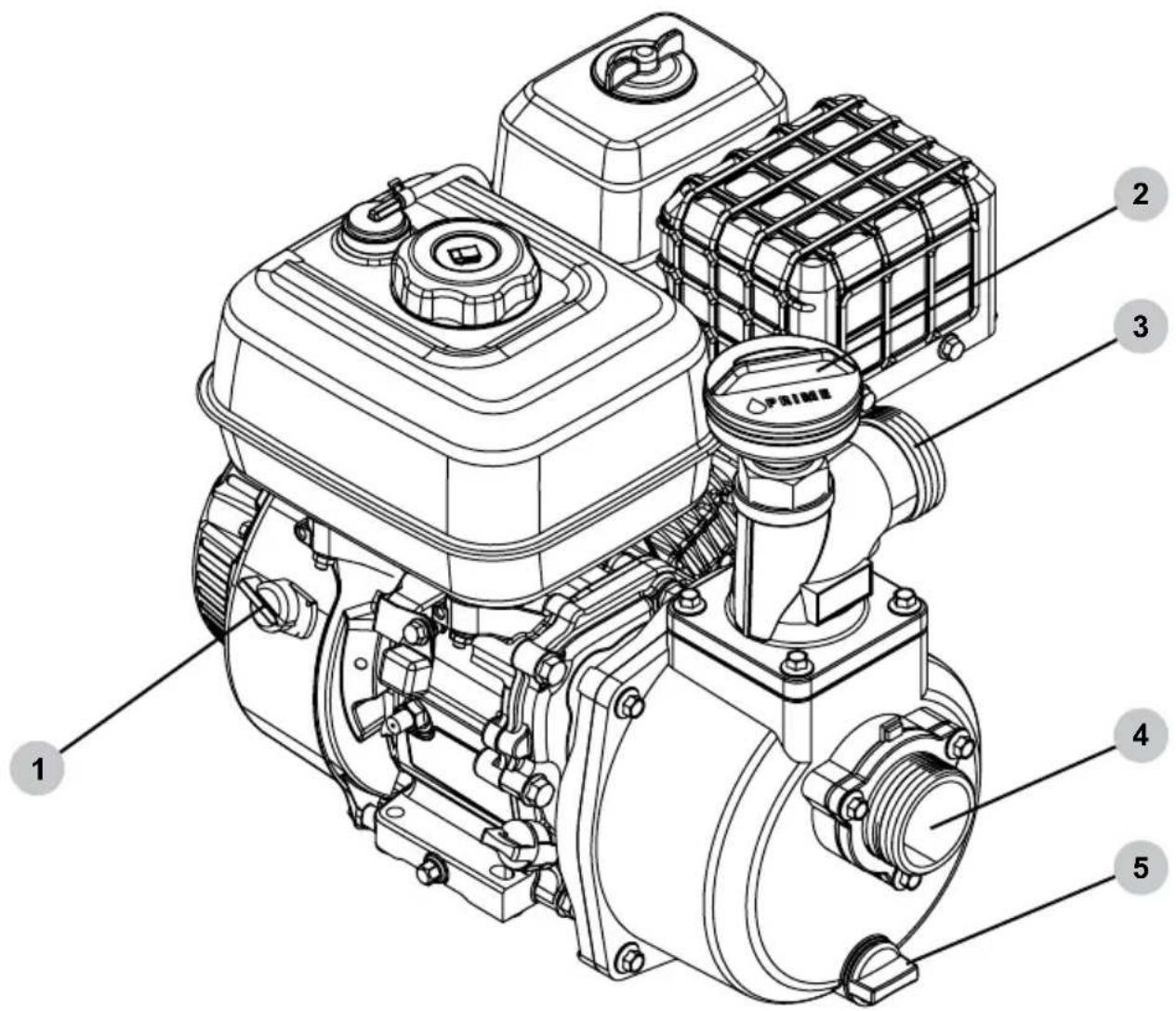

Technical diagram of a powertrain with numbered parts labeled 1 through 5

1. Engine ON/OFF switch
2. Primer funnel
3. Discharge port
4. Suction port
5. Pump drain plug

Technical diagram of a mechanical engine with numbered parts labeled for identification.

1. Spark plug
2. Engine choke
3. Engine fuel valve
4. Fuel filler cap
5. Fuel tank
6. Engine throttle lever (if applicable)
7. Engine starting recoil handle

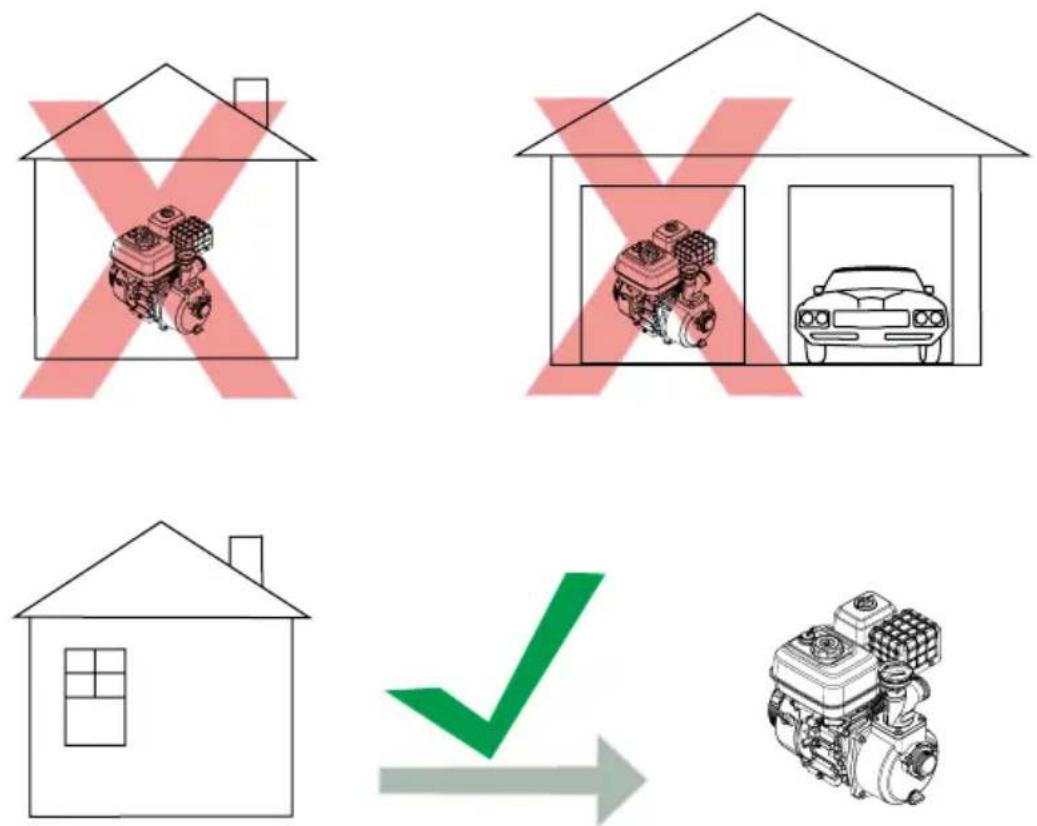

Location

Place the pump on a level surface outside in a well-ventilated area before operating. Keep all flammable materials at least five feet away from all sides of the product.

• Never use the pump inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using the pump outside to avoid breathing in engine exhaust.
• Following the manufacturer's instructions and recommendations, install battery operated carbon monoxide alarms in any occupied buildings near the running engine.
• If you experience headache, nausea, dizziness, sleepiness, or weakness while the pump is running, move to fresh air and seek medical attention immediately.

TOXIC FUMES

Engine exhaust contains carbon monoxide, an odorless, colorless, poisonous gas. Running an engine indoors will kill you in minutes. Never use this product inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using this product outside to avoid breathing in engine exhaust. Always use a carbon monoxide detector in any occupied buildings near the running engine.

High Altitude Operation

This engine will have proper engine performance and emission control when it is operated at or below an altitude of 5000 feet (1524 meters). This engine requires a high-altitude carburetor kit to ensure proper engine performance and emission control when operated at altitudes above 5000 feet (1524 meters). Operating the machine with the wrong engine configuration above 5000 feet (1524 meters) may increase its emissions, decrease fuel efficiency, and hurt performance. To obtain a high altitude carburetor kit, contact your nearest authorized service center.

NOTICE

ALTITUDE

Operating the engine with a high-altitude carburetor jet kit at an altitude below 5000 feet (1524 meters) will cause the engine to run too hot. Overheating the engine could result in serious engine damage. To avoid this hazard, make sure the correct carburetor kit is installed and the air/fuel mixture is set correctly for your altitude.

Operating Conditions

Before each use, check for loose or damaged parts, leaks, and/or any other condition that may affect proper operation. Repair or replace all damaged and/or defective parts immediately. Always keep all safety guards in place and in proper working order. For safety reasons, the manufacturer recommends all maintenance and repairs be performed by an authorized service center.

Before starting engine, remove any excessive dirt and debris from cooling vents, exhaust, and starter recoil areas. Always operate the pump on a level surface and never move or tip the pump while operating. Use the pump only for its intended purpose. If you have questions about the proper use of your pump, please contact customer support at 1-877-362-4271 or [e-mail].

UNTRAINED OPERATION

Untrained adults and children can be seriously injured or killed if allowed to incorrectly operate or play with the running pump. To avoid these hazards, be sure anyone operating the pump receives proper instructions, understands safe operation, and has read the owner's manual before operating this product. Do not let children operate the pump without parental supervision. Keep children and pets away from the pump while it is running. Always turn off the pump before leaving the area.

Failure to inspect this product before use could create a hazardous situation resulting in product damage, serious injury, and/or death. To avoid these hazards, inspect the pump before each use. Check for loose or damaged parts, signs of oil or fuel leaks, missing guards, plugged cooling vents, or any other condition that may affect proper operation. Repair or replace all damaged or defective parts and keep all safety guards in place and in proper working order before using the pump.

HOT SURFACES

A running engine produces heat. The surfaces of the engine, other related components, and engine exhaust gas get hot enough to cause mild moderate burns or ignite materials on contact. To avoid burns, do not touch engine surfaces or exhaust gases while operating and allow engine to cool completely before moving, touching, or performing any maintenance. To avoid a fire, keep all flammable materials at least five feet away from all sides of the product.

MOVING PARTS

This product has many parts that move at high speeds. Moving parts can cause crushing injuries, broken bones, severe lacerations, and/or traumatic amputations. To prevent injury, never place fingers, hands, feet, or other body parts near running engine. Never operate product with covers, shrouds, or other guards removed. Do not wear loose-fitting clothing, dangling drawstrings, or any other hanging items that could become entangled in moving parts while operating. Tie up long hair and remove jewelry before operating.

Checking the Engine Oil

HOT OIL

Hot oil can cause serious burns. To prevent getting burned when changing or checking the engine oil, wear appropriate gloves and change the oil when the engine is warm but not hot.

LOW OIL SENSOR

The low oil sensor (if equipped) will automatically stop the engine when the oil level falls below the safe limit. To avoid an unexpected shutdown, check the oil level before each use, fill to the upper limit, and always operate engine on a level surface.

NOTICE

FILL ENGINE OIL BEFORE USE

The engine is shipped from the factory without oil. Running the engine without oil will result in severe engine damage and void the warranty. To avoid causing engine damage and voiding the warranty, fill the engine with the recommended oil type before starting.

NOTICE

USE CORRECT ENGINE OIL

Oil is a major factor in the performance and service life of any engine. Using the incorrect oil may damage the engine and void the warranty. To avoid causing engine damage and voiding the warranty, check and change oil as required using the correct engine oil.

1. Check oil with the pump on a level surface and the engine off.
2. Unscrew the engine oil dipstick and pull it out, then wipe dipstick clean.
3. Place clean dipstick into filler neck but do not thread it in, leave it to rest on the filler neck.
4. Remove the dipstick from filler neck and check oil level. Oil level should be between the upper and lower oil limits on the dipstick.
5. If level is low, add the recommended oil to the crankcase until the level reaches the upper limit on the dipstick. See the engine manual for recommended oil.
6. Install the dipstick and tighten cap by threading it into the filler neck.

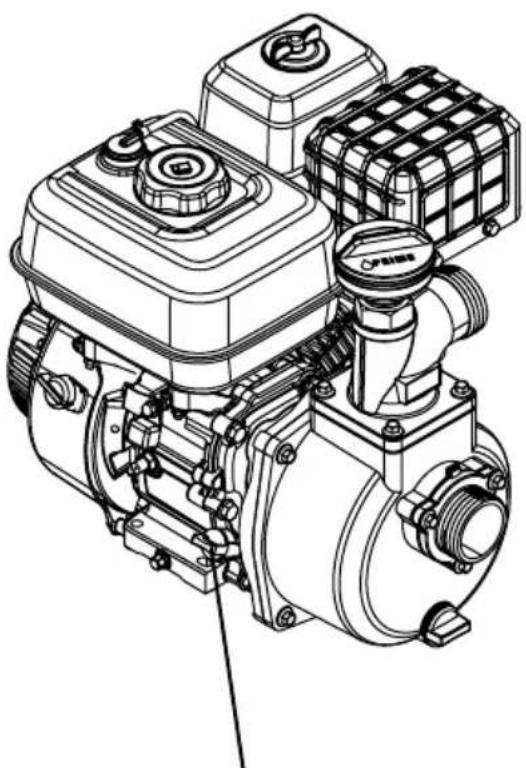

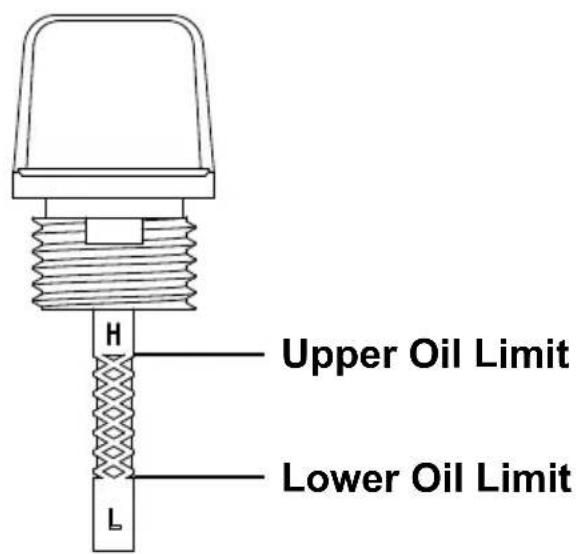

Technical line drawing of a mechanical pump assembly (no text or symbols)

Engine Oil Dipstick

Upper Oil Limit Lower Oil Limit

Checking Fuel

WARNING:

REFUELING

Gasoline is highly flammable and gasoline vapors are extremely explosive. Fire and explosions can cause severe burns and/or death. Keep gasoline away from flames, sparks, and other ignition sources. Refuel outdoors in a well-ventilated area with the engine stopped and cool. Wipe up any spilled gasoline and allow engine to dry before starting. Keep a fire extinguisher handy while refueling. Do not operate engine with leaks in the fuel system. Do not store gasoline near other flammable materials.

NOTICE

OLD GASOLINE

Old gasoline can create deposits that clog fuel systems causing hard starting and poor performance. Damage caused by old fuel is not covered by warranty. To minimize deposits, avoid old fuel related performance issues, and prevent costly repair work, do not use gasoline that is older than 30 days.

NOTICE

ALCOHOL BLENDS

Using gasoline with an alcohol blend greater than 10% (E10) will damage the engine. Damage caused by using an alcohol blend of 15% (E15), 85% (E85), or any other alcohol blend higher than 10% (E10) is not covered under warranty. To avoid engine damage caused by an alcohol blend that is too high, use gasoline with 10% (E10) alcohol or lower.

NOTICE

GASOLINE ADDITIVES

The use of fuel system cleaning additives can damage the engine and fuel systems. Damage caused by the use of fuel system cleaning additives is not covered by warranty. To avoid engine and fuel system damage, do not use any fuel system cleaning additives.

NOTICE

GASOLINE STORAGE

It is important to prevent gum deposits from forming in essential fuel system parts, such as the carburetor, fuel filter, fuel hose or tank during storage. Alcohol-blended fuels (also called gasohol, ethanol, or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic fuel and gum deposits can damage the engine's fuel system while in storage. Damage caused by the use of old, stale, or contaminated fuel are not covered under warranty.

NOTICE

DO NOT OVERFILL FUEL TANK

Overfilling the fuel tank can result in carbon canister damage (if equipped), poor engine performance, and void the warranty. To avoid these hazards, do not fill the fuel tank above the maximum level.

1. Check fuel with the engine off and the pump on a level surface.
2. Remove fuel tank cap, check fuel level, then fill fuel tank if needed. For fuel cap location see the COMPONENT LOCATIONS section of this manual.
3. Do not use gasoline that is older than 30 days. Use only clean and fresh regular unleaded gasoline with a minimum octane rating of 87. Do not mix oil with gasoline. Do not use gasoline that contains more than 10% ethyl alcohol. E15, E20, and E85 are not approved fuels and should not be used.
4. Do not fill the fuel tank above the maximum fuel level to allow room for fuel expansion. For fuel capacity see the SPECIFICATIONS section of the engine manual.
5. Replace fuel tank cap. Never run engine without fuel cap installed.

NOTE: Using a fuel stabilizer (sold separately) when storing gasoline can help prevent problems related to storing ethanol alcohol blended gasoline. Always follow the instructions provided by the fuel stabilizer manufacturer to mix and use correctly.

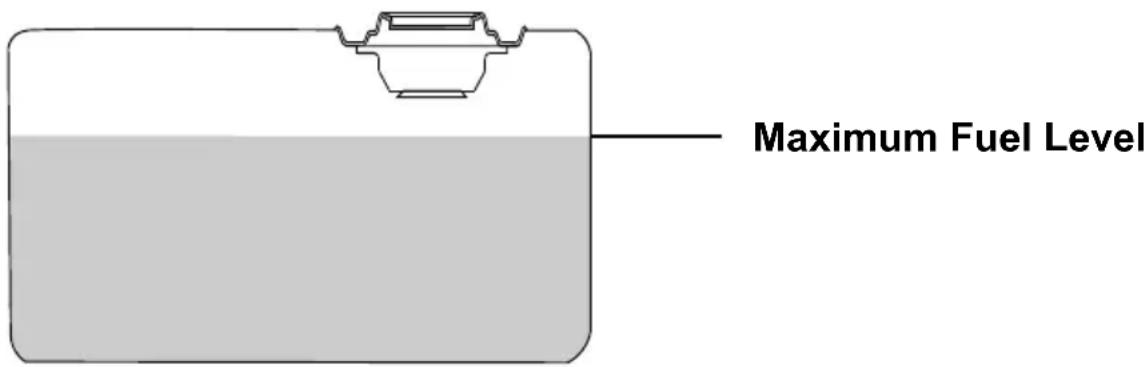

Maximum Fuel Level

The suction and discharge hoses are not included. Assemble them as per the manufacturer instructions. Make sure all connections are sealed properly. Air leaks may cause the pump to lose prime and not pump at full efficiency.

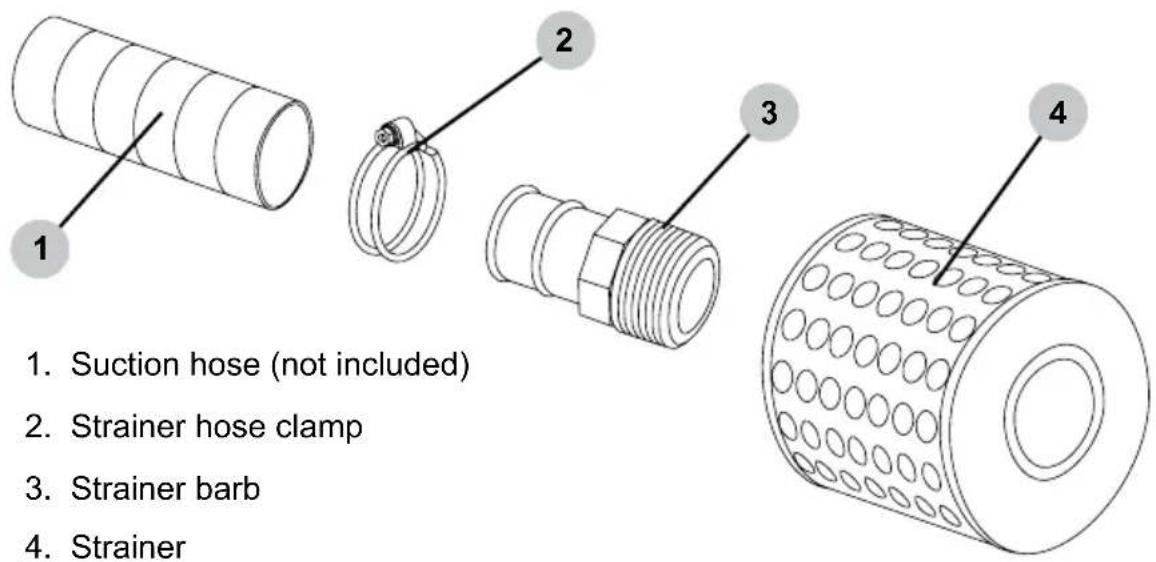

Connecting Suction Hose Strainer

1. Thread the strainer barb into the strainer.
2. Place the suction hose over the strainer barb and secure it with the strainer hose clamp.

1. Suction hose (not included) 2. Strainer hose clamp 3. Strainer barb 4. Strainer

Hose Placement

1. Place the pump on a level surface.
2. Completely immerse strainer but do not rest it on the bottom of the water source.
3. Do not exceed the maximum suction head and total head lifts as listed in the SPECIFICATIONS section of this manual; please see page 23.

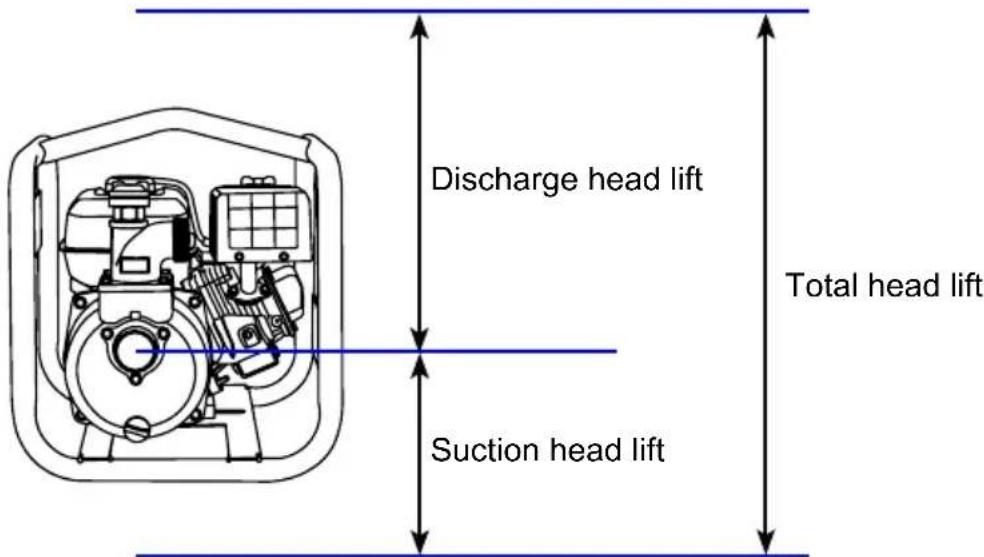

Discharge head lift Suction head lift Total head lift

NOTICE

PUMP PRIMING

This pump will not prime when dry. Running the pump dry without priming can damage the pump assembly and seals. Damage caused by running dry is not covered under the warranty. To avoid damaging the seals and pump assembly, do not run the pump without priming it beforehand.

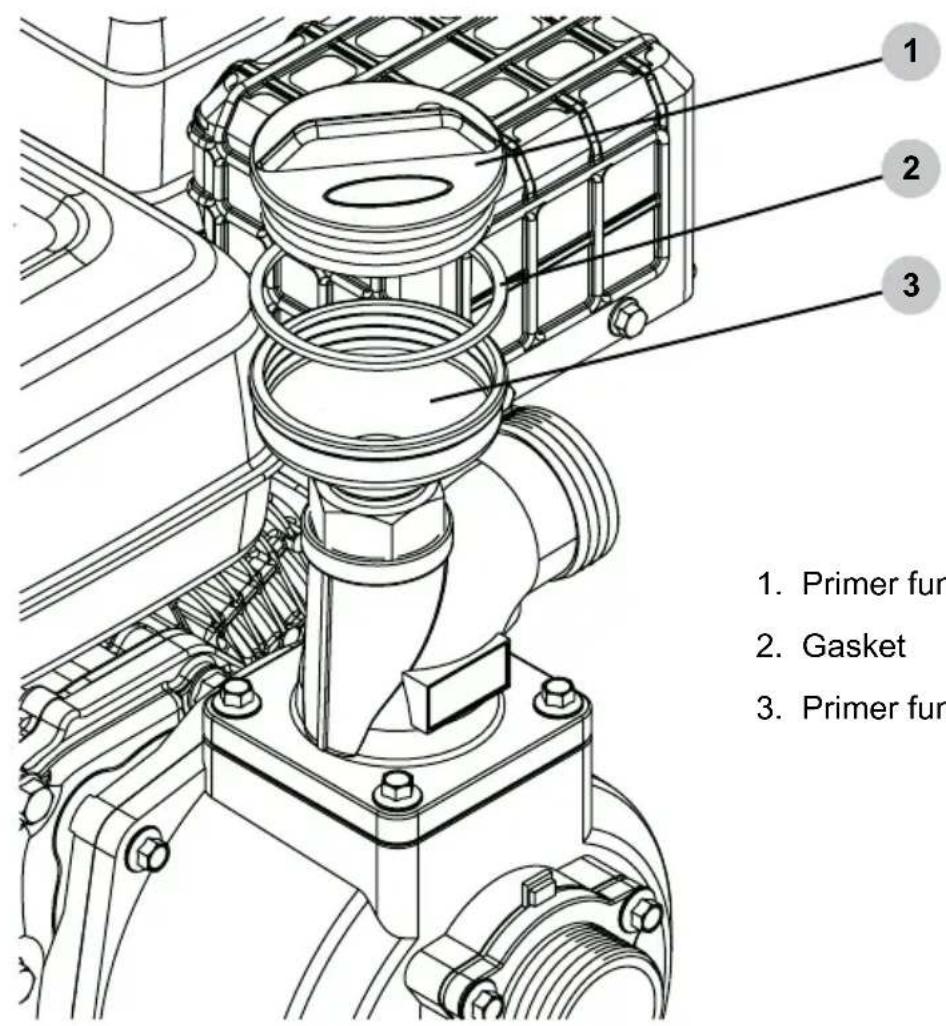

Priming the pump

1. Remove primer funnel cover.
2. Pour water into the primer funnel until the pump is full of water.
3. Thread in the primer funnel cover; finger tighten.

1. 2. 3. 1. Primer fur 2. Gasket 3. Primer fur

1. Primer funnel cover
2. Gasket
3. Primer funnel

VOLATILE LIQUIDS

Pumping volatile, flammable, or corrosive liquids could cause pump damage, fire, or explosion resulting in severe injury and/or death. To avoid these hazards, do not attempt to pump volatile, flammable, or corrosive liquids.

OPERATING CHECKLIST

Attempting to start the engine incorrectly or using the pump incorrectly can result in engine and/or pump damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner's manual before starting the engine, and follow all the guidelines for proper use of the pump.

PUMP DAMAGE

This pump will not prime when dry. Running the pump dry without priming can damage the pump assembly and seals. Damage caused by running dry is not covered under the warranty. To avoid damaging the seals and pump assembly, do not run the pump without priming it beforehand.

Starting the Engine

1. Complete the steps in the OPERATING CHECKLIST section of this manual before starting the engine. Failure to do so could cause damage to the pump or engine. If needed, refer to your Engine Owner's Manual for specific starting instructions.

The hoses should be attached, mounted within the head limits as set forth in the SPECIFICATIONS and the pump primed.

1. Turn the engine switch to the ON position.

1. Slide the fuel valve to the ON position.

1. Slide the throttle to the RUN position (if applicable).

Simple black-and-white illustration of a rabbit and a turtle on a ramp, with an arrow pointing left (no text or symbols)

1. Slide the choke to CHOKE for starting a COLD engine. Slide to RUN for a warm engine

NOTE: The starting position of the choke will vary depending on the engine temperature. If starting a cold engine, move the choke lever towards the CHOKE position. If starting a warm engine, move the choke lever towards the RUN position.

1. Pull the recoil slowly until resistance is felt, then pull rapidly to start the engine.

Symbolic illustration of a hand gripping three arrows, representing force or pressure (no text or labels)

RAPID RETRACTION

Rapid retraction (also known as kickback) of the engine recoil starter cord will pull your hand and arm towards the engine faster than you can let go of the handle resulting in sprains, broken bones, lacerations, and/or traumatic amputations. Kickback is often caused by internal engine failure, and/or improper starting techniques. To avoid kickback follow the appropriate maintenance schedule, starting instructions and have repair work done by an authorized service center.

1. Once the engine starts, slowly move the choke lever to RUN as the engine runs. If the engine falters, move the choke toward CHOKE until the engine has warmed up.

SHUTTING OFF THE ENGINE

1. Slide the throttle to the SLOW position (if applicable).
2. Turn the engine fuel valve to the OFF position.
3. Turn the ignition switch to the OFF position.
4. Allow the engine to cool completely before handling and storing the pump.

For safety reasons, the manufacturer recommends all service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To find an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362-4271 or email [e-mail].

It is the responsibility of the owner and/or operator to have all scheduled maintenance completed before operating the pump. Be sure to follow the inspection and maintenance recommendations as listed in all the manuals that came with this unit.

Pump Maintenance

MAINTENANCE

Improper engine and pump maintenance as well as failing to correct problems before operation could void the warranty and may result in property damage and injury. To prevent these hazards, follow the maintenance procedures listed in this manual and any other manual that came with this product.

Before each use, check pump for loose or damaged parts, and any other condition that may affect proper operation. Be sure all safety guards are in place and in proper working order. Inspect all air vents and cooling slots to ensure they are clean and unobstructed. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all pump service and repairs be performed by an authorized service center. To find an authorized service center near you, obtain information about how to make a warranty claim, or to make arrangements for authorized warranty repairs, please call 1-877-362-4271 or email [e-mail]

Exterior Pump Cleaning

CLEANING

Water can damage the pump engine components if allowed to enter through cooling slots or other holes. Damage caused by water intrusion is not covered under warranty. To avoid engine water damage, do not use a pressure washer, garden hose, or any other sources of running water to clean the pump engine, and never submerge the engine in any liquids.

NOTICE

CHEMICAL CLEANERS

Using chemical cleaners and/or corrosive liquids can damage the pump seals and internal components. Damage caused by chemical cleaners and corrosive liquids is not covered under warranty. To avoid these hazard, only used approved cleaning chemicals, never use bleach or corrosive liquids to clean the pump housing.

Always clean the pump with the engine off and cool. To clean the pump, first use an air compressor set at 25 PSI to clear dirt and debris from the pump surfaces, vents, and cooling slots. Next, wipe the exterior clean with a damp cloth.

Interior Pump Cleaning

Keeping your trash pump clean will allow it to perform its best and prolong the life of the pump. Do not store the trash pump without draining the pump housing. Do not allow dirt and debris to dry inside the pump housing. Clean your trash pump after each use by following the steps below.

SSTP71007

1. Once you have completed pumping, run the pump allowing it to be completely flushed out using fresh, clean water only. Turn the engine off.
2. Disconnect the spark plug lead from the spark plug being careful of hot parts.
3. Remove the suction and discharge hoses.
4. Remove the drain plug (1) at the bottom of the pump and allow all of the water to drain out.
5. Insert the drain plug and hand tighten.
6. Reconnect the spark plug lead to the spark plug.

Technical line drawing of a mechanical pump assembly with no visible text or symbols

MOVING PARTS

This product has many parts that move at high speeds. Moving parts can cause crushing injuries, broken bones, severe lacerations, and/or traumatic amputations. To prevent injury, never place fingers, hands, feet, or other body parts near running engine. Never operate product with covers, shrouds, or other guards removed. Do not wear loose-fitting clothing, dangling drawstrings, or any other hanging items that could become entangled in moving parts while operating. Tie up long hair and remove jewelry before operating.

STP71010

1. Disconnect the spark plug lead from the spark plug being careful of hot parts.

2. Remove the pump housing drain plug (1) and allow the water to drain.

3. Remove the outer pump housing cover bolts (2).

4. Remove the outer pump housing cover (3) and its rubber seal (4).

5. Remove the check valve (5).

6. Remove the impeller/volute (6).

7. Remove all dirt and debris from the components then rinse them clean with water. Do not use chemicals to clean the internal pump components as they may damage the seals.

8. Reassemble all components making sure all rubber seals are in their proper locations and do not get pinched or damaged during reassembly.

9. Reconnect the spark plug lead to the spark plug.

1 23564

Engine Maintenance

Before each use, check engine for loose or damaged parts, signs of oil or fuel leaks, and/or any other condition that may affect proper operation. Always keep all safety guards in place and in proper working order. Repair or replace all damaged or defective parts immediately.

For safety reasons, the manufacturer recommends all engine service and repairs (including emission control devices and systems) be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To find an authorized service center near you, obtain information about how to make a warranty claim, or to make arrangements for authorized warranty repairs, please call 1-877-362-4271 or email [e-mail].

For all other information on engine maintenance, refer to the engine manual.

STORAGE AND TRANSPORTATION

NOTICE

GASOLINE STORAGE

It is important to prevent gum deposits from forming in essential fuel system parts, such as the carburetor, fuel filter, fuel hose or tank during storage. Alcohol-blended fuels (also called gasohol, ethanol, or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic fuel and gum deposits can damage the engine's fuel system while in storage. Damage caused by the use of old, stale, or contaminated fuel are not covered under warranty.

NOTE: Using a fuel stabilizer (sold separately) when storing gasoline will help prevent problems related to alcohol blended fuels in outdoor power equipment engines. Always follow the instructions provided by the fuel stabilizer manufacturer to mix and use correctly.

Storing for Two Months or Less

1. Fill fuel tank per the OPERATING CHECKLIST section of this manual then add a fuel stabilizer per the manufacturer's recommendations.
2. Start the engine per the STARTING section of this manual and run it for one (1) minute to allow the stabilized fuel to circulate through the entire fuel system.
3. With the engine still running, turn the fuel valve to the OFF position and allow the engine to run until it stalls from lack of fuel.
4. Allow the engine to cool completely.
5. Drain and clean the pump per the MAINTENANCE section of this manual.
6. Store the pump in a clean, dry area out of direct sunlight.

Storing for More Than Two Months

1. Make sure the engine is completely cool.
2. Turn the fuel valve to the ON position.
3. Remove all the fuel from fuel tank, fuel lines, and carburetor by loosening the drain screw at the bottom of the carburetor, and draining fuel into an appropriate container.
4. Turn the fuel valve to the OFF position. Re-insert the drain plug; tighten.
5. Change the engine oil as explained in the engine owner's manual.
6. Remove any dirt and debris from the area around the spark plug, then use a spark plug socket or wrench to remove the spark plug.
7. Pour 15 ml of fresh oil into the engine combustion chamber, then slowly crank the engine by pulling the recoil two (2) times to distribute oil and lubricate the cylinder.
8. Install the spark plug.
9. Drain and clean the pump per the MAINTENANCE section of this manual.
10. Clean the air filter as explained in the engine owner's manual.
11. Store the pump in a clean, dry area out of direct sunlight.

Transportation

TRANSPORTATION

Leaving the pump in an enclosed space where temperatures can rise in a transport vehicle may cause fuel to vaporize and possibly explode. Fire and explosions can cause severe burns and/or death. To avoid leaking or vaporizing fuel, secure the pump in a well ventilated area out of direct sunlight and other heat sources. Do not transport the pump on rough roads unless the fuel has been drained beforehand.

1. Turn the fuel valve to the OFF position.
2. Turn the engine control switch to the OFF position.
3. To prevent fuel spillage when transporting, keep the pump upright on a level surface.
4. Secure pump with straps or tie downs to prevent tip over and damage from sliding.

NOTE: Do not operate the pump while it is on the transport vehicle.

Model Number: SSTP71007 / Item Number: 71007

Pump Specifications	Flow rate 158 GPM	598 LPM
	Inlet Diameter 2 inches	5.08 centimeters
	Outlet Diameter 2 inches	5.08 centimeters
	Suction Head Lift	25 feet 7.6 meters
	Total Head Lift 98 feet	29.9 meters
	Max. Size Solid 9/16 inch	14.3 millimeter
	Fuel Capacity 0.7 gallons	2.65 liters
Engine Specifications	Engine Model CRX210
	Displacement 208cc
	Starting Style Recbil

Model Number: STP71010 / Item Number: 71010

Pump Specifications	Flow rate 285 GPM	1079 LPM
	Inlet Diameter 3 inches	7.62 centimeters
	Outlet Diameter 3 inches	7.62 centimeters
	Suction Head Lift	25 feet 7.6 meters
	Total Head Lift 75 feet	22.9 meters
	Max. Size Solid 1.2 inches	30.5 millimeter
	Fuel Capacity 0.7 gallons	2.65 liters
Engine Specifications	Engine Model CRX210
	Displacement 208cc
	Starting Style Recbil

Warranty Terms:

The FNA Group warrants to the original purchaser this product shall be free from defects in materials and workmanship as follows. The FNA Group agrees to repair or replace, at their discretion, any defective pump or frame free of charge for three (3) years from the date of purchase. Any of the described parts of this product found by the FNA Group to be defective in material or workmanship within these warranty periods will be repaired or replaced at no charge to original purchaser by an authorized service center. This warranty coverage extends to the original purchaser only and is non-transferable. A transfer of ownership of this product will void this warranty.

An authorized service center must make all warranty repairs. Any defective product(s), including any defective part(s), covered under the above outlined warranty terms must be returned to an authorized service center along with proof of original purchase. No warranty claim can be substantiated without The FNA group. The FNA Group will not pay or reimburse any shipping and/or transportation charges for any warrantable product(s) or part(s) to be sent to an authorized service center, or back to the purchaser from the service center. All shipping and/or transportation charges are the sole responsibility of the product owner. To locate the authorized service center nearest to you, contact customer support at 1-877-362-4271 or email [e-mail].

Under these warranty terms, the FNA Group is limited to repairing or replacing defective parts and assumes no other obligation, nor does the FNA Group allow or authorize anyone else to assume them or any other obligations. Because the FNA Group's responsibility in respect to any and all warranty claims is limited to making the required repairs or replacements. No claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any product manufactured by the FNA Group.

This warranty does not cover any product manufactured by the FNA Group that has been subject to abuse, misuse, neglect, negligence, accident, the effects of corrosion or erosion, or damage caused by use that is in any way contrary to the operating instructions as specified in this manual. This warranty also does not apply to any product damaged as the result of improper maintenance, the use of parts not compatible with the product, or to any product that has been altered or modified from stock in any way.

In addition, this warranty does not extend to repairs made necessary by normal wear, routine maintenance or any related parts such as tune-ups, spark plugs, carburetor adjustments, ignition adjustments, filters, oil changes, recoil starter ropes, electric motor brushes, cotter pins, wheels, gaskets, valves, pistons or any other parts considered to be wear items.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state. This warranty applies to a product manufactured by the FNA Group that is sold in the United States and Canada.

Warranty Limitations:

The foregoing warranty is exclusive and in lieu of all other warranties whether written, oral, expressed, or implied. There are no warranties of merchantability or fitness of any product for a particular purpose. The FNA Group's only liability shall be the repair or replacement of parts as stated above. In no event shall the FNA Group be responsible for any losses or damages that are indirect, consequential, punitive, special, exemplary, or for economic loss, lost revenues, lost profits, or lost business opportunities, regardless of whether such liability is based on breach of contract, tort, strict liability, breach of warranties, failure of essential purpose or otherwise, or is a direct result of the FNA Group's own actions or inactions. Because some states do not allow limitations on how long an implied warranty lasts, the above limitation may not apply to you.

The FNA Group assumes no responsibility for incidental, consequential, or other damages including, but not limited to, expenses related to transporting the product to or from an authorized service, a mechanic's travel time, any telephone or telegram charges, the rental of a like product while the warranty service is being performed, any other travel time or expenses, loss or damage to personal property, loss of revenue, loss of use of the product, loss of time, or any other inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

If you have any questions regarding this warranty or the rights and obligations it describes, please contact customer support at 1-877-362-4271 or email [e-mail].

THIS PAGE WAS INTENTIONALLY LEFT BLANK

SIMPSON

READ THIS MANUAL CAREFULLY BEFORE OPERATION

Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Copyright © 2024, FNA-Group, All rights reserved.

SIMPSON

POMPE À POUBELLE

MANUEL D'UTILISATION ET D'ENTRETIEN

Modèles couverts :

SSTP71007 - 2" Pompe semi-poubelle

Technical line drawing of a mechanical pump or pump assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

PAS À VENDRE DANS L'ÉTAT DE CALIFORNIE

REGARDEZ AVANT DE POMPER!

LIRE ATTENTIVEMENT CE GUIDE AVANT L'UTILISATION

Technical diagram of a powertrain with numbered parts labeled 1 through 5

Technical diagram of a mechanical engine with numbered parts labeled for identification.

Technical line drawing of a mechanical engine assembly (no text or symbols)

Simple black-and-white illustration of a rabbit and a turtle on a ramp, with an arrow indicating direction (no text or symbols)

Symbol of a hand holding a screwdriver with multiple arrows indicating direction (no text or labels)

AVERTISSEMENT:

RÉTRACTION RAPIDE

Technical line drawing of a mechanical valve assembly (no text or symbols)

PIÈCES MOBILES

Technical line drawing of a mechanical pump assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

NO A LA VENTA EN EL ESTADO DE CALIFORNIA

MIRA ANTES DE BOMBEAR!

PRECAUCION:

Technical diagram of a mechanical engine with numbered parts labeled 1 through 5

Technical diagram of a mechanical engine with numbered parts labeled for identification.

Technical line drawing of a mechanical pump assembly (no text or symbols)

Simple black-and-white illustration of a rabbit and a turtle on a ramp, with an arrow pointing left (no text or symbols)

Technical line drawing of a mechanical valve assembly (no text or symbols)

PIEZAS MOVILES
