USER MANUAL UB18DH METABO

Line drawing of a handheld nightlight device with a circular head and base (no text or symbols)

Without charger and battery

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this spotlight can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the spotlight. Please keep this manual available for other users and owners before they use the spotlight. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this spotlight.

Most accidents that result from spotlight operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the spotlight and in this Instruction Manual.

NEVER use this spotlight in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

MEANINGS OF SYMBOLS

Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.
	To reduce the risk of injury, user must read instruction manual.	V---	v o l t sdirect currents
	Do not stare at operating lamp. W watts
	Keep the light and the object being illuminated at least 0.2 m apart.	ta ambient temperature

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

WARNING

To reduce the risk of fire, electric shock, Domot charge the unit outdoors.

injury:

1. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
2. Use only as described in this manual. Use only manufacturer's recommended attachments.

3. Do not use spotlight in explosive atmospheres, such as in the presence combustible liquids, gasses or dust.

4. Be careful of electrical shock.

5. When not in use or during inspection and maintenance, be sure to turn the swit on the unit, and remove the battery from it.

6. Do not cover the spotlight with cloth, cardboards or other materials when the light is on. Keep the light and the object being illuminated at least 20 cm apart. Failure to observe these warnings may result in fi re.

7. When the light is turned on, do not look directly into it, point it at people or animals, or aim it toward the eyes.

8. The lens will remain at a high temperature when lit and immediately after use, so do not touch it.

9. Do not use, leave, or store the spotlight in the rain or in humid places.

10. Do not leave the spotlight in a car or the like that tends to be exposed to be searching heat of the sun (above 122^ F ( 50^ C)). Otherwise, troubles can result.

11. Do not leave the spotlight unattended while it is turned on.

12. When placing the spotlight in a high location for use, ensure that the location is stable. Additionally, secure it in place with string, etc. to prevent it from falling.

If it falls, it may result in injury or damage.

1. Do not use the spotlight if the lens is damaged or detached.

2. Use only the charger supplied by the manufacturer to recharge.

3. Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
4. This product does not have a water-resistant o f fl a s m o l e, or
5. Do not touch the inside of the head with tweezers or other metal objects.

GENERAL SAFETY RULES

SAVE THESE INSTRUCTIONS

1) Work area safety

a) Keep work area clean.
Cluttered areas invite accidents.
b) Do not operate spotlight in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

2) Electrical safety

a) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

b) Do not expose spotlight to wet conditions.

Water entering a spotlight will increase the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when use spotlight.

4) Battery powered spotlight use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use spotlight only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

5) Service

a) Have your spotlight serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the spotlight is maintained.

b) If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

SPECIFIC SAFETY RULES

1. Do not use in locations where inflammable materials such as lacquer, paint, benzene, thinner or gasoline are present.

Explosion or fires might result.

1. Do not use near objects generating high heat.

Fires might occur if used near such locations.

1. If you notice that the unit is generating unusually high temperatures, operating poorly, or making abnormal noises, immediately stop using and shut off the power switch. Request an inspection and repair from the dealer where you purchased the unit or a metabo HPT Authorized Service Center.

2. If the unit is mistakenly dropped or strikes another object, make a thorough check of the unit for cracks, breakage or deformation, etc.

Injuries might occur if the unit has cracks, breakage or deformation.

1. Precautions during transport

2. Turn the switch off on the tool and remove the battery.

3. Carry the tool by the handle on its body.

4. When transporting it via vehicle, take appropriate steps to prevent it from falling over or being damaged.

5. NEVER use a spotlight for applications other than those specified in the instruction manual.

6. Handle spotlight correctly.

Operate the spotlight according to the instructions provided herein. Do not drop or throw the spotlight. NEVER allow the spotlight to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. Do not use the product if the tool or the battery terminals (battery mount) are deformed.

Installing the battery could cause a short circuit that could result in smoke emission or ignition.

1. Keep the tool's terminals (battery mount) free of swarf and dust.

2. Prior to use, make sure that swarf and dust have not collected in the area of the terminals.
   During use, try to avoid swarf or dust on the tool from falling on the battery.
   When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.

Doing so could cause a short circuit that could result in smoke emission or ignition.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YFSL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo rechargeable battery models of the multi volt series and the BSL18 series. Other models of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and PT in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes*		AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.

2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise aiding damaged in any way; take it to a qualified serviceman.

3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the tool. Before using the model UC18YFSL battery charger, be sure to read all instructions cautionary statements on it, the battery and in this manual.

CAUTION

USE ONLY metabo HPT BATTERY MODELS OF THE MULTI VOLT SERIES AND THE BSL18 SERIES. OTHER MODELS OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, e damaged or is completel battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.

12. NEVER expose the battery or battery charger to rain or wet conditions.

13. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
    ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if the switch is turned ON, the light may not turn on. This is not the trouble but the result of protection function.

1. When the remaining battery power runs out, the light turns off.
   In such case, charge it up immediately.
2. If the tool is overloaded, the light may turn off. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
   v e n In this case, stop using the battery and let the battery go! After that you can use it again.
   Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
6. Do not use the battery for a purpose other than those specified.
7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
8. Do not put or subject the battery to high temperatures or high pressure a microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage or foul odor are detected.
10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

○ Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
Either install the battery in the tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

● Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
- For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

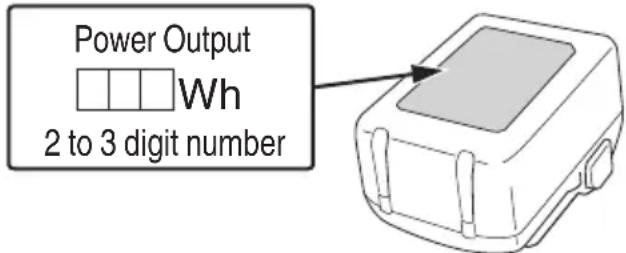

Power Output Wh 2 to 3 digit number

Fig. 1

SAVE THESE INSTRUCTIONS AND MAKE THEM AVAILABLE TO OTHER USERS AND OWNERS OF THIS SPOTLIGHT!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the spotlight.

NEVER operate, or attempt any maintenance on the spotlight unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own spotlight.

NAME OF PARTS

1. Cordless Spotlight (UB18DH)

Lens ring Head LED light (internal) Lens Switch Handle Hook Battery (sold separately)

Fig. 2

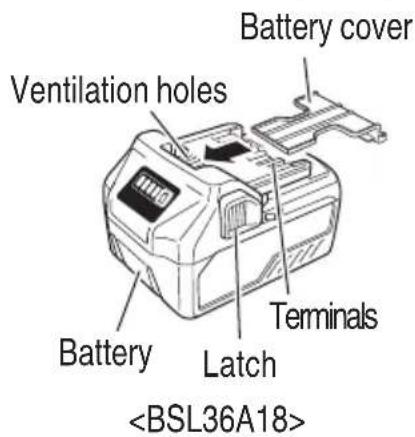

2. Battery

(optional accessories...sold separately)

Battery cover Ventilation holes Battery Latch Terminals

Fig. 3

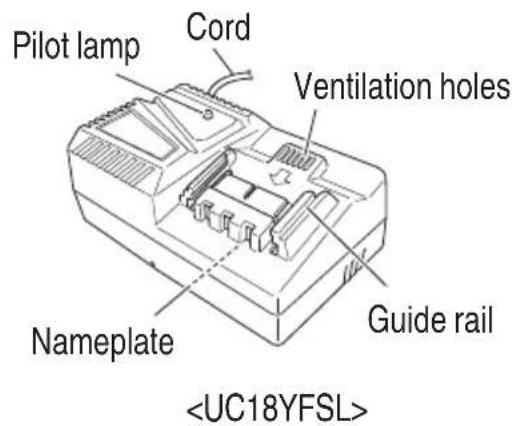

3. Battery Charger

(optional accessories...sold separately)

Pilot lamp Cord Ventilation holes Guide rail Nameplate

Fig. 4

SPECIFICATIONS

1. Cordless Spotlight

Model UB18DH
Brightness 1,050 lm*		1
LED (white) 10 W
Operating time, approx. (Using full charged battery)*2		3.0 Ah 5.0 Ah	8.0 Ah
		High Approx. 4.5 hours Approx. 8 hours Approx. 12.5 hours
		Medium Approx. 7 hours Approx. 12 hours Approx. 19 hours
		Low	Approx. 14.5 hours	Approx. 24 hours
		Strobe	Approx. 9.5 hours	Approx. 15.5 hours
Battery	Type	Li-ion battery Multi volt type, BSL18 series
	Voltage	DC 18 V
Weight (without battery)		1.8 lbs. (0.8 kg)

*1 When in wide mode and set to High
*2 The operating times shown are reference values only.

The actual time varies depending on the type and charging state of the battery, the usage conditions, etc.

1. Battery Charger

Model	UC18YFSL
Input power source	Single phase: AC 120 V 60 Hz
Charging time (At a temperature of 68°F (20°C))	BSL36A18: Approx. 75 min
Charging voltage	DC 14.4–18 V
Charging current	DC 3.5 A
Weight	1.1 lbs. (0.5 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

Illumination of work site

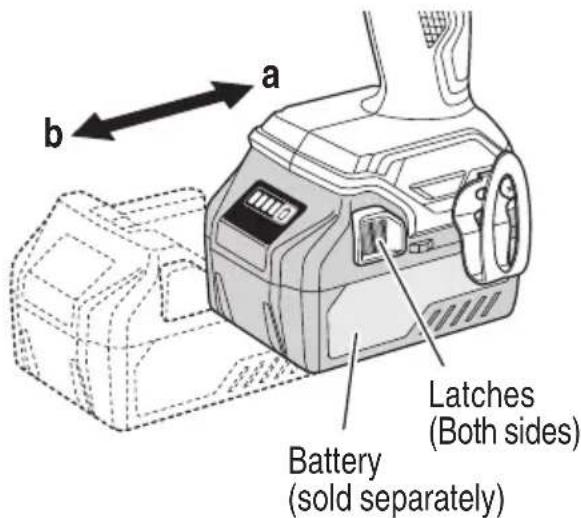

REMOVAL AND INSTALLATION METHOD OF BATTERY

- How to install the battery. Always insert it all the way until it locks in place with a little click. (Fig. 5-a).

a b Latches (Both sides) Battery (sold separately)

Fig. 5

○ How to remove the battery. While pressing the 2 latches (one on each side), slide it and pull it out. (Fig. 5-b).

NOTE

If any water or dust enters the body of the tool or the terminals of the battery, a failure may occur.

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. I repaired immediately.

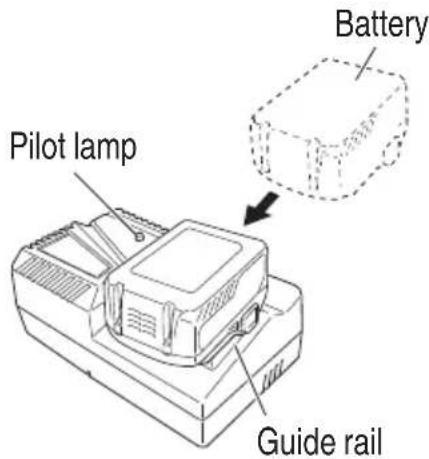

1. Insert the battery to the battery charger. Firmly Insert the battery into the battery charger as shown in Fig. 6.

Pilot lamp Guide rail Battery

Fig. 6

3. Charging

When inserting a battery in the charger, the pilot lamp will light up continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals.) (See Table 2)

(1) Lamp indication

The indications of the pilot lamp will be as shown in Table 2, according to the condition of the battery charger or the battery.

Table 2

Indications of the pilot lamp
Pilot lamp(red)	Beforecharging	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Whilecharging	Lights	Lights continuously
	Chargingcomplete	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Overheatstandby	Blinks	Lights for 1 second. Does not light for0.5 seconds. (off for 0.5 seconds)	Battery overheated.Unable to charge.(Charging will commencewhen battery cools)
	Chargingimpossible	Flickers	Lights for 0.1 seconds. Does not lightfor 0.1 seconds. (off for 0.1 seconds)	Malfunction in the batteryor the charger

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL36A18	32°F–122°F(0°C–50°C)

(3) Regarding recharging time (At 68^ F ( 20^ C))

Table 4 Charging time

Battery\Charger	UC18YFSL
BSL36A18 Approx. 75 min

NOTE

The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger. Supporting the battery charger with hand, pull out the battery from the battery charger.

NOTE

Be sure to pull out the battery from the battery charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.
When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

• When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.
• If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds).

The battery will not be recharged. In such a case, let the battery cool before charging.

- When the pilot lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

HOW TO USE

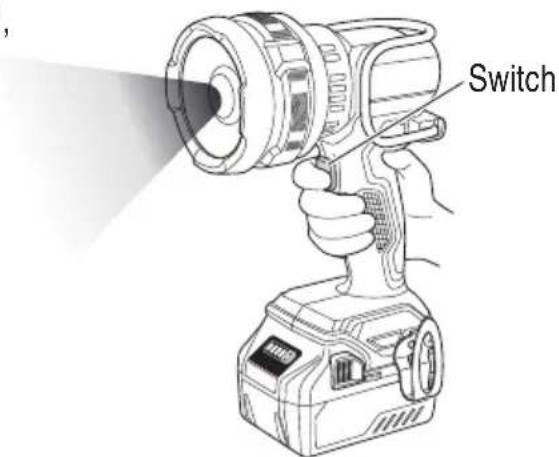

1. Turning the light on

Press the switch to turn the light on. (Fig. 7)

Switch

Fig. 7

1. Brightness (High/Medium/Low)

The brightness of the LED can be adjusted between 3 levels. Each time the switch is pressed, the LED switches between "High" → "Medium" → "Low" → "Off".

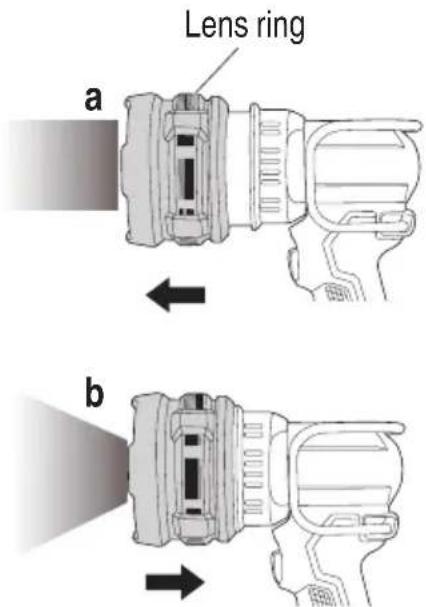

1. Changing operating mode (spot mode/wide mode)

Change the position of the lens ring to switch the operating mode.

Spot mode is a function that concentrates the light for long-distance illumination. (Fig. 8-a)

Wide mode is a function that spreads the light to broadly illuminate the surroundings. (Fig. 8-b)

Lens ring a b

Fig. 8

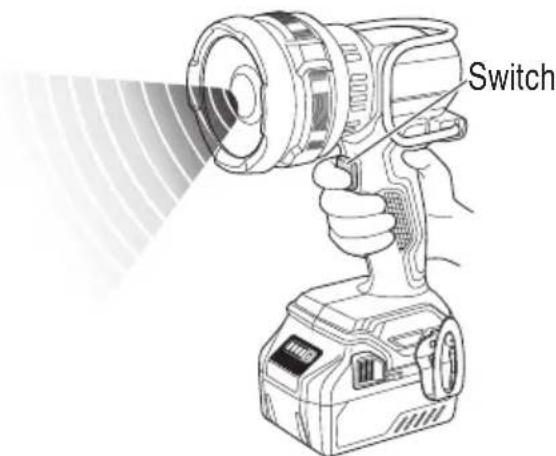

4. Strobe mode

Press and hold the switch to switch to Strobe Mode (blinking). (Fig. 9)

When in Strobe Mode, press the switch to turn off the light.

When in Strobe Mode, press and hold the switch to deactivate Strobe Mode.

Switch

Fig. 9

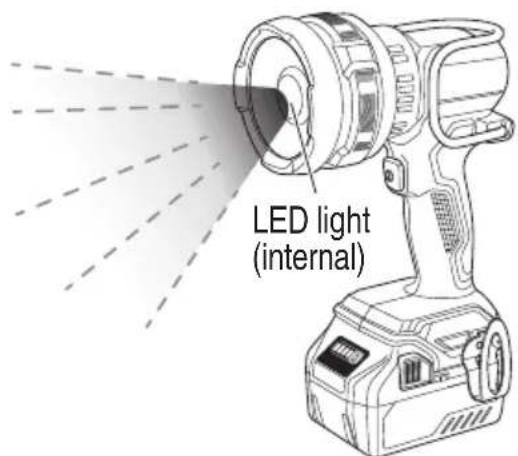

5. Low battery notification function

While the light is lit, when the remaining battery becomes low and there are 10 minutes or less of light-up time remaining, the LED light repeatedly blinks 3 times once per minute. (Fig. 10)

When in Strobe Mode, the low battery notification function does not activate.

The remaining light-up time varies depending on the brightness setting of the light and on the type and condition of the battery, so it is only an estimate.

LED light (internal)

Fig. 10

NOTE

When using a Multi-volt battery, please refer to the indicator lamp on the battery for the battery remaining power.

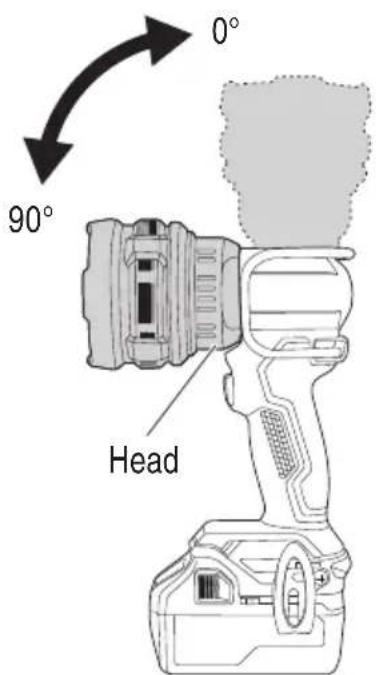

6. Changing the angle of the light

The vertical angle can be changed 90°. (Fig. 11)

CAUTION

When changing the angle of the head, be careful not to pinch your fingers between the head and handle.

90° Head 0°

Fig. 11

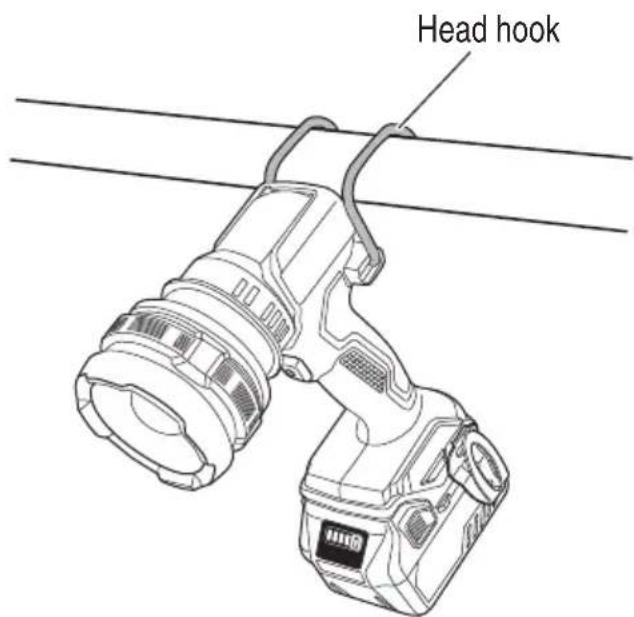

7. Hanging the spotlight for use

When using the spotlight while it is hung by a hook, hang it from a stable and sturdy object. (Fig. 12)

Head hook

Fig. 12

MAINTENANCE AND INSPECTION

WARNING

When not using the spotlight for a long time, performing maintenance on it, inspecting it, or storing it, be sure to turn OFF the switch and pull out the battery.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

WARNING

Using this spotlight with loosened screws is extremely dangerous.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

CAUTION

Remove any swarf or dust which may have collected on the terminals.

Failure to do so may result in malfunction.

1. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

1. Service and repairs

All quality spotlight will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of spotlight, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the metabo HPT cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

ACCESSORIES

WARNING

ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this spotlight. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your spotlight.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

UB18DH (NN)

Battery, Battery charger and Battery cover are not contained.

OPTIONAL ACCESSORIES.....sold separately

(1) Battery (BSL1830C / BSL1850C / BSL36A18 / BSL36B18 / BSL36C18)
(2) Battery charger (UC18YFSL / UC18YKSL / UC18YSL3)
(3) Battery cover (Code No. 329897)
(4) Carring belt (Code No. 336558)

NOTE

Specifications are subject to change without any obligaiton on the part of the metabo HPT.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Interruptor

Fig. 7

Interruptor

Fig. 9

Line drawing of a quill pen in an inkwell (no text or symbols)

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
