Product Type Griddle plate
Brand Blackstone
Model 1665
Usage Outdoor only (open air)
Power source Propane gas (16.4 oz / 0.46 kg LP bottle)
Bottle type Disposable 3.8 x 7.8 in (16.4 oz) DOT/CSA compliant
Cooking surface Carbon steel (seasoned)
Dimensions (approx.) Width 22 in (55.9 cm)
Ignition system Built-in piezo electric
Grease management Rear collection tray with patented system
Adjustable legs Yes, 4 height-adjustable legs
Warranty 90 days (parts and labor)
Customer service (435) 252-3030 or support@blackstoneproducts.com
Initial seasoning Required (linseed oil recommended)
Cleaning Metal scraper, hot water, thin layer of oil after use
Safety Do not use indoors; minimum 36 in distance from structures
Spare parts Available from manufacturer (see customer service)
Repairability Contact customer service for assistance
Certifications ANSI Z223.1/NFPA 54, CSA B149.1; US only
Included accessories Gas regulator, collection tray
Storage Dry place; disconnect bottle when not in use

Frequently Asked Questions - 1665 Blackstone

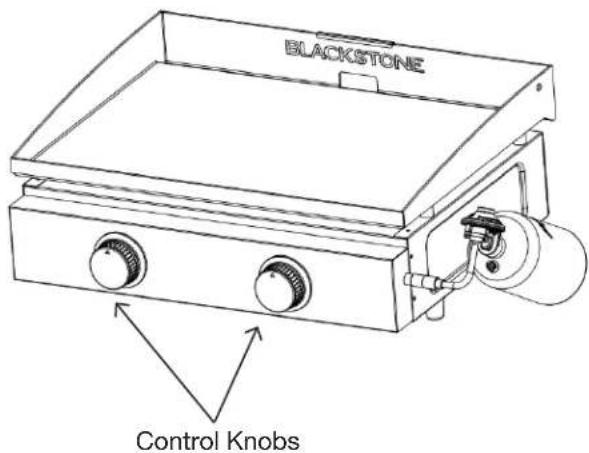

How to light the Blackstone 1665 griddle?
Press the control knob to start gas flow, then turn it to activate the piezo igniter. Adjust the temperature to desired level. If ignition does not occur within 5 seconds, turn off gas and wait 5 minutes before attempting again.
What to do if I smell gas?
Immediately shut off gas supply to the appliance. Open the lid. Extinguish any open flame. If odor persists, call your gas supplier or fire department. Do not use the appliance until the leak is identified.
How to season the griddle for the first time?
Wash the griddle with hot soapy water to remove protective oil. Apply a thin layer of linseed oil (or other) and heat on medium-high until smoking. Let cool and repeat several times until a black, non-stick surface is achieved.
Where can I use this appliance?
This appliance is designed for outdoor use only. Never use it indoors, in a garage, or under a combustible surface. Maintain at least 36 inches (91 cm) distance from walls, ceilings, and other structures.
How to clean the griddle after each use?
Scrape residue with a metal spatula or scraper. Wipe with a cloth or paper towel. For stubborn residue, pour a little water on the hot griddle and let it boil. After cleaning, apply a very thin layer of oil to protect the seasoning.
What to do if the burner does not ignite?
Check that the gas bottle is not empty. Clean the burner if blocked (use a wire or compressed air). Ensure the ignition electrode is 3-7 mm from the burner and not damaged. Perform a leak test with soapy water.
How to store the appliance?
Store the appliance in a dry place. If the gas bottle remains connected, store it outdoors in a well-ventilated area. For indoor storage, disconnect and remove the bottle, keep it outdoors. Cover the appliance to protect from dust.
What oil to use for seasoning?
Linseed oil is recommended for initial seasoning as it creates a very durable bond. You can also use other oils like canola or sunflower oil. Avoid oils with additives or salt.
How to detect a gas leak?
Prepare a solution half water, half liquid soap. Apply it around the regulator and bottle connections. If bubbles appear and grow, there is a leak. Tighten connections. If leak persists, do not use and contact customer service.
What to do in case of a grease fire?
Never pour water on a grease fire. Turn off gas supply if possible. Immediately call the fire department. Use a BC or ABC type fire extinguisher if available. Never leave the appliance unattended while cooking.

User questions about 1665 Blackstone

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Grill plate in PDF format for free! Find your manual 1665 - Blackstone and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 1665 by Blackstone.

USER MANUAL 1665 Blackstone

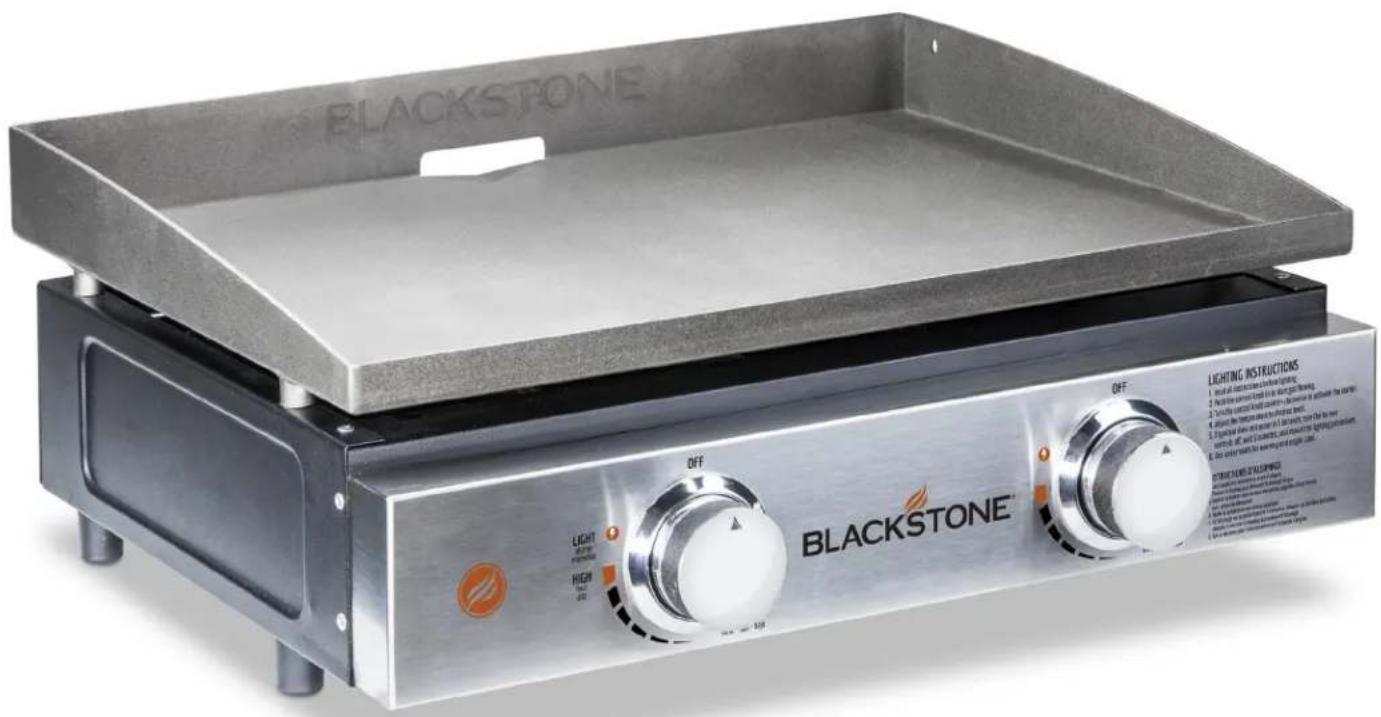

22" TABLETOP GRIDDLE

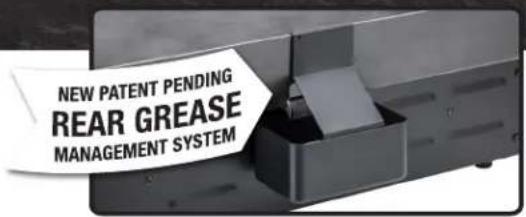

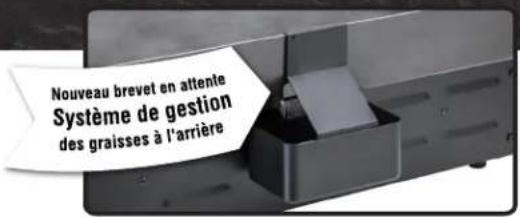

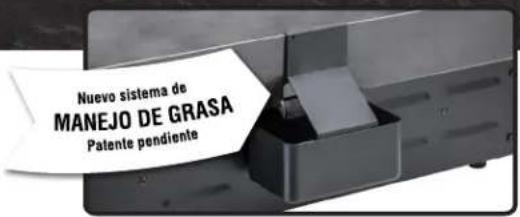

NEW PATENT PENDING REAR GREASE MANAGEMENT SYSTEM

Owner's Manual

MODEL 1665

BLACKSTONE LIGHTING INSTRUCTIONS 1. Break all electrical circuit lighting. 2. Break all current circuit light heating being. 3. Break the current circuit current to allow the power. 4. Allow the current circuit current to break down the circuit. 5. Use the current circuit to break down the circuit. 6. Use the current circuit to break down the circuit. 7. Use the current circuit to break down the circuit. 8. Use the current circuit to break down the circuit. 9. Use the current circuit to break down the circuit. 10. Use the current circuit to break down the circuit. 11. Use the current circuit to break down the circuit. 12. Use the current circuit to break down the circuit. 13. Use the current circuit to break down the circuit. 14. Use the current circuit to break down the circuit. 15. Use the current circuit to break down the circuit. 16. Use the current circuit to break down the circuit. 17. Use the current circuit to break down the circuit. 18. Use the current circuit to break down the circuit. 19. Use the current circuit to break down the circuit. 20. Use the current circuit to break down the circuit. 21. Use the current circuit to break down the circuit. 22. Use the current circuit to break down the circuit. 23. Use the current circuit to break down the circuit. 24. Use the current circuit to break down the circuit. 25. Use the current circuit to break down the circuit. 26. Use the current circuit to break down the circuit. 27. Use the current circuit to break down the circuit. 28. Use the current circuit to break down the circuit. 29. Use the current circuit to break down the circuit. 30. Use the current circuit to break down the circuit. 31. Use the current circuit to break down the circuit. 32. Use the current circuit to break down the circuit. 33. Use the current circuit to break down the circuit. 34. Use the current circuit to break down the circuit. 35. Use the current circuit to break down the circuit. 36. Use the current circuit to break down the circuit. 37. Use the current circuit to break down the circuit. 38. Use the current circuit to break down the circuit. 39. Use the current circuit to break down the circuit. 40. Use the current circuit to break down the circuit. 41. Use the current circuit to break down the circuit. 42. Use the current circuit to break down the circuit. 43. Use the current circuit to break down the circuit. 44. Use the current circuit to break down the circuit. 45. Use the current circuit to break down the circuit. 46. Use the current circuit to break down the circuit. 47. Use the current circuit to break down the circuit. 48. Use the current circuit to break down the circuit. 49. Use the current circuit to break down the circuit. 50. Use the current circuit to break down the circuit. 51. Use the current circuit to break down the circuit. 52. Use the current circuit to break down the circuit. 53. Use the current circuit to break down the circuit. 54. Use the current circuit to break down the circuit. 55. Use the current circuit to break down the circuit. 56. Use the current circuit to break down the circuit. 57. Use the current circuit to break down the circuit. 58. Use the current circuit to break down the circuit. 59. Use the current circuit to break down the circuit. 60. Use the current circuit to break down the circuit. 61. Use the current circuit to break down the circuit. 62. Use the current circuit to break down the circuit. 63. Use the current circuit to break down the circuit. 64. Use the current circuit to break down the circuit. 65. Use the current circuit to break down the circuit. 66. Use the current circuit to break down the circuit. 67. Use the current circuit to break down the circuit. 68. Use the current circuit to break down the circuit. 69. Use the current circuit to break down the circuit. 70. Use the current circuit to break down the circuit. 71. Use the current circuit to break down the circuit. 72. Use the current circuit to break down the circuit. 73. Use the current circuit to break down the circuit. 74. Use the current circuit to break down the circuit. 75. Use the current circuit to break down the circuit. 76. Use the current circuit to break down the circuit. 77. Use the current circuit to break down the circuit. 78. Use the current circuit to break down the circuit. 79. Use the current circuit to break down the circuit. 80. Use the current circuit to break down the circuit. 81. Use the current circuit to break down the circuit. 82. Use the current circuit to break down the circuit. 83. Use the current circuit to break down the circuit. 84. Use the current circuit to break down the circuit. 85. Use the current circuit to break down the circuit. 86. Use the current circuit to break down the circuit. 87. Use the current circuit to break down the circuit. 88. Use the current circuit to break down the circuit. 89. Use the current circuit to break down the circuit. 90. Use the current circuit to break down the circuit. 91. Use the current circuit to break down the circuit. 92. Use the current circuit to break down the circuit. 93. Use the current circuit to break down the circuit. 94. Use the current circuit to break down the circuit. 95. Use the current circuit to break down the circuit. 96. Use the current circuit to break down the circuit. 97. Use the current circuit to break down the circuit. 98. Use the current circuit to break down the circuit. 99. Use the current circuit to break down the circuit.

Blackstone 1665 - 22" TABLETOP GRIDDLE - 3

VIDEO ASSEMBLY

Watch an actual BLACKSTONE 22"

Griddle assembly. Use a QR Code

App and scan the QR code.

Blackstone 1665 - VIDEO ASSEMBLY - 1

WARNING

Blackstone 1665 - WARNING - 1

FOR OUTDOOR USE ONLY

Please read manual carefully before assembly Retain this manual for future reference

TABLE OF CONTENTS

PRODUCT REGISTRATION....2

FOR YOUR SAFETY....3

USE AND CARE ....5

ASSEMBLY & LIGHTING....7

CARE, MAINTENANCE, & TROUBLESHOOTING....10

GRILL WARRANTY....11

CUSTOMER SERVICE....12

GRIDDLE SEASONING ....12

PRODUCT REGISTRATION

To register your BLACKSTONE product please go to www.blackstoneproducts.com/register

Model Number: ____

Serial Number: ____

Date Purchased: ____

To Installer/Assembler:

Leave these instructions with consumer.

To Consumer:

Keep this manual for future reference.

SAFETY SYMBOLS

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

Blackstone 1665 - SAFETY SYMBOLS - 1

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Blackstone 1665 - DANGER - 1

WARNING

WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and carefully follow all of the messages.

Blackstone 1665 - WARNING - 1

CAUTION

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Blackstone 1665 - CAUTION - 1

CALIFORNIA PROPOSITION 65 WARNING

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (California law requires this warning be given to customers in the State of California.)

For more information: www.watts.com/prop65

FOR YOUR SAFETY

This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read all warnings and instructions before assembling and using the appliance. Follow all warnings and instructions when assembling and using the appliance. Failure to follow these instruction could result in fire or explosion which could cause property damage, personal injury, or death.

Blackstone 1665 - FOR YOUR SAFETY - 1

DANGER

If you smell gas:

  1. Shut off gas to the appliance.
  2. Extinguish any open flame.
  3. Open lid
  4. If odor continues, keep away from the appliance and immediately call your fire department.

Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.

Blackstone 1665 - If you smell gas: - 1

WARNING

Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

WARNING:

It is the consumer's responsibility to see that the BLACKSTONE 22" Griddle is properly assembled, installed, and maintained. Failure to follow the instructions in this manual could result in bodily injury and/or property damage.

PRECAUTIONS:

  • Do not operate BLACKSTONE 22" Griddle any closer than 36 inches from any combustible construction, including walls and ceilings. Never use indoors.
  • Do not use this appliance under overhead combustible surfaces.
  • If this regulator fails, it must be replaced with the exact model. Please call customer service for a BLACKSTONE authorized replacement part.
  • Perform a visual inspection of the gas path, from the tank connection to the element orifices for any breaks, leaks, cracks or intrusions. Begin at the tank and continue to the gas line connection. Visually inspect the knob mechanism for similar defects. Follow the gas path to the elements. Look for abnormalities or cracks on the element or orifices at the center of the grill box. Please contact customer service with any questions or concerns.

Blackstone 1665 - PRECAUTIONS: - 1

WARNING

  • This appliance shall be used only outdoors, and shall not be used in a building, garage, or any other enclosed area.
  • This appliance is not intended to be installed in or on recreational vehicles.
  • The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
  • In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire department. A Type BC or ABC fire extinguisher may, in some circumstances contain the fire.
  • Do not leave the appliance unattended. Keep children and pets away from the appliance at all times.
  • This appliance is not intended for and should never be used as a heater.
  • This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids.

Call the BLACKSTONE Griddle Information Center for help and missing parts, assembly questions, and operation problems. Before returning BLACKSTONE 22" Griddle to the store, call: USA 435.252.3030 or email us at support@blackstoneproducts.com

Blackstone 1665 - WARNING - 1

CAUTION

Some parts may contain sharp edges, especially as noted in these instructions. Wear protective gloves if necessary.

Blackstone 1665 - CAUTION - 1

CAUTION

For outdoor residential use only. Do not use for commercial cooking.

Installation Safety Precautions

  • Use BLACKSTONE 22" Griddle, as purchased.
  • BLACKSTONE 22" Griddle installation must conform with local codes, or in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.
  • BLACKSTONE 22" Griddle is not for use in or on recreational vehicles and/or boats.
  • This BLACKSTONE 22" Griddle is safety certified for use in the United States only. Do not modify for use in any other location. Modification will result in a safety hazard.
  • The pressure regulator supplied with the appliance must be used. Replacement pressure regulators must be those specified by the appliance manufacturer.
  • Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

Safety Maintenance

  • Keep appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
  • Do not obstruct the flow of combustion and ventilation air flow.
  • Keep the ventilation opening of the cylinder enclosure free and clear from debris.
  • Visually check burner flames.
  • Clean appliance, including special surfaces, with recommended cleaning agents, if necessary.
  • Check and clean burner/venturi tube for insects and insect nests. A clogged tube can lead to a fire beneath the appliance.

USE AND CARE

Safety Tips

  • When BLACKSTONE 22" Griddle is not in use, turn the BLACKSTONE 22" Griddle off.
  • Never move BLACKSTONE 22" Griddle while in operation or still hot.
  • Use long-handled barbecue utensils and oven mitts to avoid burns and splatters.
  • Keep unit at least 36" away from walls, buildings, vehicles or other structures when in use.
  • Clean BLACKSTONE 22" Griddle often, preferably after each cookout.
  • If you notice grease or other hot material dripping from BLACKSTONE 22" Griddle onto the valve or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before continuing. Perform a leak test.
  • Keep ventilation openings in cylinder enclosure free and clear of debris.
  • The regulator may make a humming or whistling noise during operation. This will not affect safety or use of BLACKSTONE 22" Griddle.
  • If you have a problem with your BLACKSTONE 22" Griddle refer to the Troubleshooting Section on page 10. If you can't resolve the problem please call customer support at 435.252.3030 or email support@blackstoneproducts.com.
  • If the regulator frosts, turn off BLACKSTONE 22" Griddle and LP bottle valve immediately. This indicates a problem with the LP bottle and it should not be used on any product. Return to supplier.

Blackstone 1665 - Safety Tips - 1

WARNING

Turn controls and gas source or tank OFF when not in use.

Blackstone 1665 - WARNING - 1

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls OFF, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

Burner Flame Check

Light burner, rotate knob from high to low. You should see a smaller flame in low position than seen on high. Always check flame prior to each use. If only low flame is seen refer to “Sudden drop or low flame” in the Troubleshooting section on page 10.

Turning the 22" Griddle Off

Turn knob to the OFF position.

Valve Check

Important: To check valve, first push in knob and release, knob should spring back. If knob does not spring back, replace valve assembly before using the 22" Griddle. Turn knob to low position then turn back to OFF position. Valve should turn smoothly.

General 22" Griddle Cleaning

  • Do not mistake brown or black accumulation of grease and smoke for paint. Do not apply a caustic griddle/ oven cleaner to painted surfaces.
  • Plastic parts: Wash with warm soapy water and wipe dry. Do not use Citrisol, abrasive cleaners, degreasers or a concentrated oven cleaner on plastic parts. Damage to and failure of parts can result.
  • Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
  • Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.

Storing Your BLACKSTONE 22" Griddle

  • Store in dry location.
  • When an LP bottle is connected to BLACKSTONE 22" Griddle, store outdoors in a well-ventilated space and out of reach of children.
  • Store BLACKSTONE 22" Griddle indoors ONLY if LP bottle is turned off and disconnected, removed from BLACKSTONE 22" Griddle and stored outdoors.
  • When removing BLACKSTONE 22" Griddle from storage, follow "Cleaning the Burner Assembly" instructions before starting griddle.

Cleaning The Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting BLACKSTONE 22" Griddle.

  1. Turn gas OFF at control knob.
  2. Detach electrode from burner.
    NOTE: Removal/Detachment method will depend on the burner configuration.
  3. Carefully lift burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you. (A) Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through burner tube several times.(B) Use a narrow bottle brush with a flexible handle (do not use a brass wire brush), run the brush through burner tube several times.(C) Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.
  4. Wire brush entire outer surface of burner to remove food residue and dirt.
  5. Clean any blocked ports with a stiff wire such as an open paper clip.
  6. Check burner for damage, due to normal wear and corrosion some holes may become enlarged. If any large cracks or holes are found replace burner.
  7. Attach electrode to burner.
  8. Carefully replace burners.
  9. Attach burners to brackets on firebox.

Food Safety

Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps:

  1. Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling raw meat and poultry.
  2. Separate: Separate raw meats and poultry from ready-to eat foods to avoid cross contamination. Use a clean platter and utensils when removing cooked foods.
  3. Cook: Cook meat and poultry thoroughly to kill bacteria. Use a thermometer to ensure proper internal food temperatures.
  4. Chill: Refrigerate prepared foods and leftovers promptly. For more information Visit the Canadian partnership for Consumer Food Safety Education - www.befoodsafe.ca

How To Tell If Meat Is Grilled Thoroughly

  • Meat and poultry cooked on a griddle or oven often browns very fast on the outside. Use a meat thermometer to ensure food has reached a safe internal temperature. Cut into food to check for visual signs of being done.
  • Whole poultry should reach 165°F/74°C. Juices should run clear and flesh should not be pink.
  • Hamburgers made of any ground meat or poultry should reach 160°F/71°C, and be brown in the middle with no pink juices. Beef, veal and lamb steaks, roasts and chops can be cooked to 145°F/63°C. All cuts of pork should reach 160°F/71°C.
  • NEVER partially grill meat or poultry and finish cooking later. Cook food completely to destroy harmful bacteria.
  • When reheating takeout foods or fully cooked meats like hot dogs, grill to 165^ / 64^ , or until steaming hot.

ASSEMBLY AND LIGHTING INSTRUCTIONS

Blackstone 1665 - ASSEMBLY AND LIGHTING INSTRUCTIONS - 1

WARNING

The manufacturer has made every effort to eliminate any sharp edges. However, you should handle all components with care to avoid accidental injury.

Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble your BLACKSTONE 22" Griddle. Please refer to the assembly diagram as necessary.

NOTICE: Make sure all the plastic protection and packaging is removed before assembling

QR code with a green play button icon in the center, likely linking to a digital content or website.

VIDEO ASSEMBLY

Watch an actual BLACKSTONE 22" Griddle assembly. Use a QR Code App and scan the QR code.

www.blackstoneproducts.com/video

PARTS LIST

  • Griddle Top
  • Main Body
    • (4) Adjustable Height Feet
  • Regulator
    • Temperature Knob

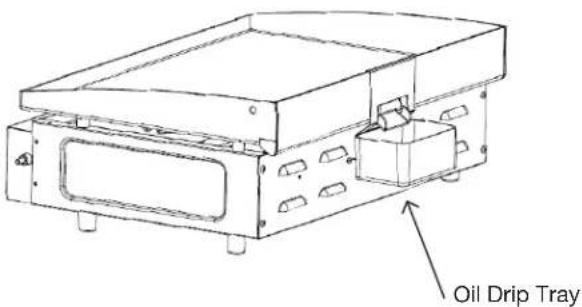

  • Oil Drip Tray

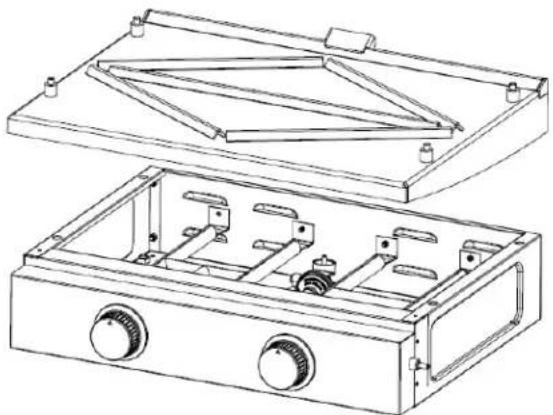

STEP 1

Remove the whole griddle body from the packaging. Then take the griddle top off of the griddle body.

Blackstone 1665 - STEP 1 - 1

natural_image Technical line drawing of a mechanical device with two internal compartments and mounting brackets (no text or symbols)

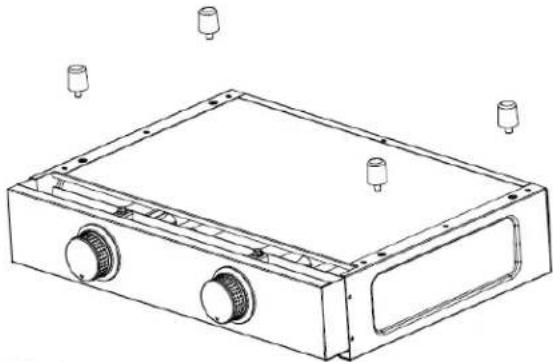

STEP 2

Place the griddle upside down on a soft surface. Attach the four adjustable height legs to the bottom of the griddle.

Blackstone 1665 - STEP 2 - 1

natural_image Technical line drawing of a rectangular electronic device with two circular ports and mounting holes (no text or symbols)

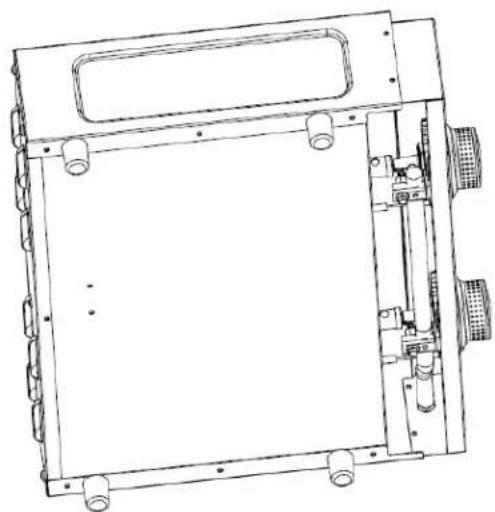

STEP 3

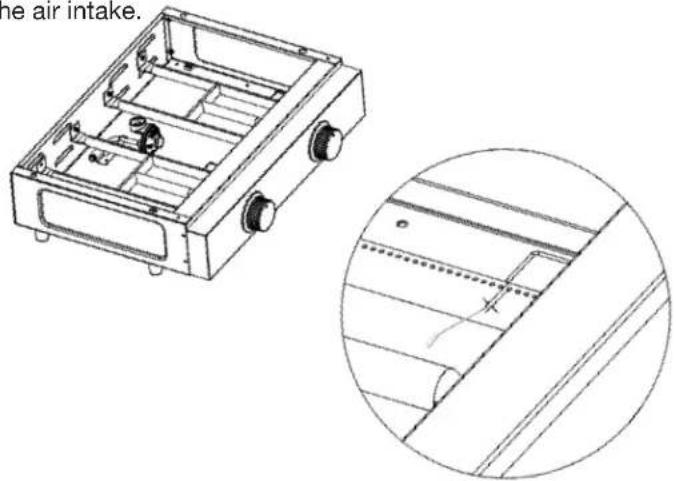

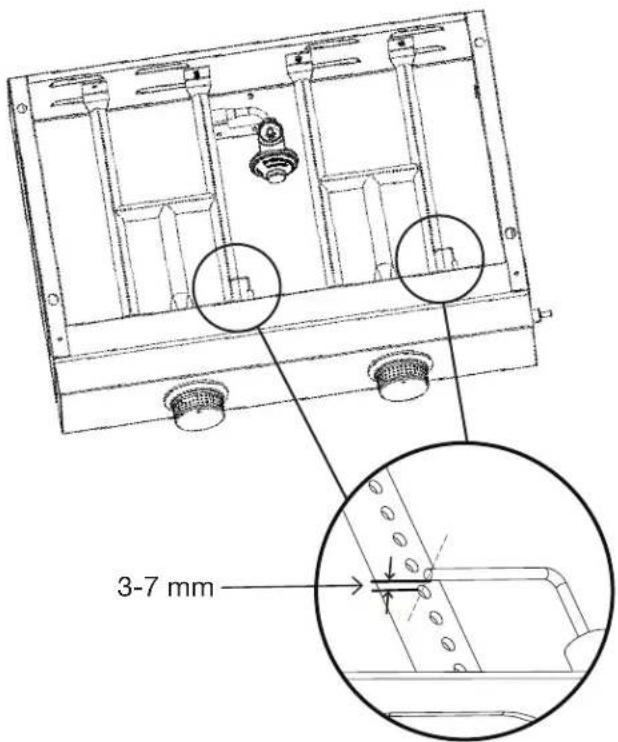

While your griddle is upside down, ensure that the fuel nozzle is housed within the burner tube opening.

Blackstone 1665 - STEP 3 - 1

natural_image Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

STEP 4

Check if the ignitor is above the air intake, and ensure there is within 3mm\~7mm distance between ignitor and the air intake.

ne air intake.

STEP 5

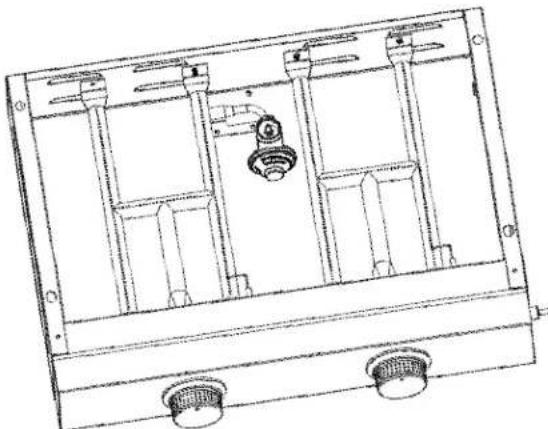

Take gas regulator off of the griddle body.

Blackstone 1665 - STEP 5 - 1

natural_image Technical line drawing of a mechanical enclosure or enclosure with internal components and mounting holes (no text or symbols)

STEP 6

Screw in the LP bottle into the gas regulator, turning the tank clockwise.

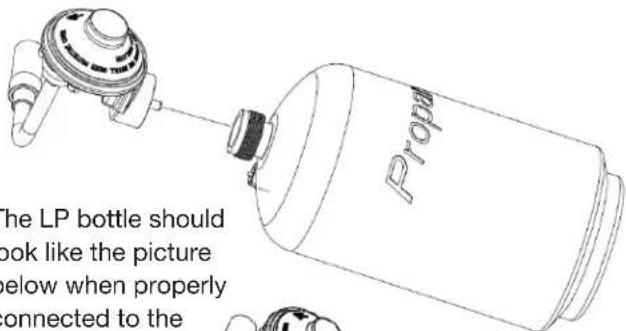

The LP bottle should look like the picture below when properly connected to the Propur

Make sure to only use

a 3.8 x 7.8inch, 16.4oz

Propane bottle. The LP bottle to be used must be constructed and marked in accordance with the specifications for LP bottles, U.S.

Department of Transportation (DOT) or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods, CAN/CSA-B339.

  1. Do not store a spare LP gas cylinder under or near this appliance;

  2. Never fill the cylinder beyond 80 percent full.

If the instructions in 1) and 2) are not followed exactly, a fire causing death or serious injury may occur.

The LP bottle must be disconnected when the griddle is not in use. Only cylinders marked "propane" may be used.

The LP bottle must be positioned for vapor withdrawal.

STEP 7

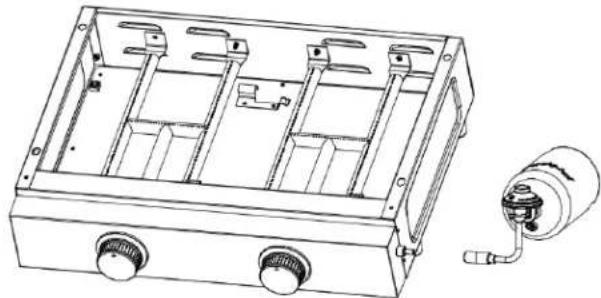

Insert the gas regulator and tank into the gas line of the griddle, then turn the collar of the gas regulator clockwise to secure it to the gas line.

Blackstone 1665 - STEP 7 - 1

natural_image Technical line drawing of a mechanical housing with two side fans and a cylindrical component attached (no text or symbols)

STEP 8

Place the griddle top on the griddle body. Make sure the four positioning pegs on the griddle top are seated into the griddle body.

Blackstone 1665 - STEP 8 - 1

natural_image Line drawing of a blackstone electronic device casing with mounting feet (no text or symbols on the body)

Blackstone 1665 - STEP 8 - 2

natural_image Line drawing of a portable stove with two control knobs and a cylindrical device attached (no text or symbols)

STEP 9

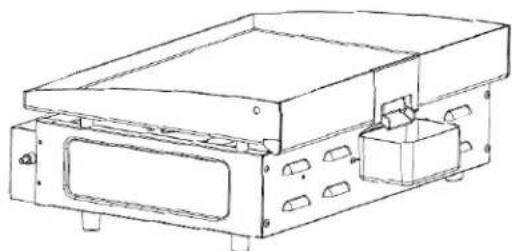

Attach the grease cup to the back of the griddle top, it should look like the picture below.

Blackstone 1665 - STEP 9 - 1

natural_image Technical line drawing of a mechanical device with mounting holes and internal compartments (no text or symbols)

STEP 10

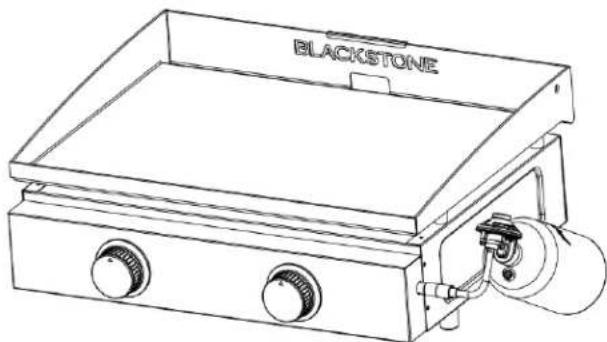

When the installation steps have been completed, your unit should look like the image below.

Blackstone 1665 - STEP 10 - 1

natural_image Line drawing of a black stone griddler with two side fans and a cylindrical housing (no text or symbols)

CUSTOMER NOTICE: To perform a leak test of your gas connections, mix a 50/50 solution of soap and water and brush around regulator and other gas connections. If growing bubbles appear, there is a leak. Re-tighten connections. If leaks cannot be stopped do not try to repair. Call for replacement parts at (435) 252-3030.

Lighting the Griddle

Do not lean over the griddle while lighting.

Read instructions before lighting.

  1. Read all instructions before lighting.
  2. Push the control knob in to start gas flowing.
  3. Turn the control knob counter-clockwise to activate the starter.
  4. Adjust the temperature to desired level.
  5. If ignition does not occur, turn gas off by turning the knob clockwise and repeat lighting instructions.

BLACKSTONE Control Knobs

Match Lighting Instructions

Do not lean over the Griddle while lighting. Make sure there are no gas leaks.

  1. Ensure the control knob is in the "OFF" position.
  2. Remove the griddle top.
  3. Light an 11" long match, then place the match on the right or left side of the burner.
  4. Push in and turn the control knob to the HIGH position. Be sure burner lights and stays lit.

3-7 mm

Ignition Needle Placement

The ignition needle should be 3-7 millimeters from the burner tube to create the proper spark. The ignition needle should not touch the burner tube.

Oil Drip Tray

Check the oil drip tray often and clean out after each use.

Oil Drip Tray

Disconnecting the LP Bottle

Make sure your griddle is off and cool. Disconnect the regulator from the gas line by unscrewing the collar, then unscrew the LP bottle from the regulator.

CARE, MAINTENANCE, & TROUBLESHOOTING

Regularly clean your BLACKSTONE 22" Griddle between uses and especially after extended periods of storage. Ensure that the BLACKSTONE 22" Griddle and its components are sufficiently cool before cleaning. Never handle hot parts with unprotected hands.

In order to extend and maintain the life and condition of your BLACKSTONE 22" Griddle, we strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months.

Fittings and Storage

Annual checking and tightening of metal fittings is recommended. Store the BLACKSTONE 22" Griddle in a cool dry place. Cover the burners with aluminum foil in order to prevent insects or other debris from collecting in the burner holes. If the BLACKSTONE 22" Griddle is to be stored indoors, the gas bottle must be disconnected and left outside. The gas bottle should always be stored outside, out of reach of children, and in a dry, well-ventilated area away from any sources of heat or ignition.

Troubleshooting

Problem Possible Cause Solution
Burner will not light using the piezoelectric ignition system.·Faulty regulator.·Have the regulator checked or replaced.
·Obstructions in the burner.·Clean burner.
·Obstructions in gas jets or gas hose.·Clean jets and gas hose.
·Electrode is damaged/faulty igniter·Change electrode and wire or change igniter.
·Empty LP bottle.·Use a new LP bottle
Burner will not light with a match.·Faulty Regulator.·Have the regulator checked or replaced.
·Obstructions in burner.·Clean Burner.
·Obstructions in gas jets or gas hose.·Clean jets and gas hose.
·Empty LP bottle.·Use a new LP bottle
Fire in burner tube has a low flame or flashback (a hissing or roaring noise may be heard)·Obstructions in burner.·Clean burner.
·Obstructions in gas jets or gas hose.·Clean jets and gas hose.
·Windy conditions.·Use grill in a more sheltered position.

WARRANTY

North Atlantic Imports LLC, 90 Day & Limited Warranty

North Atlantic Imports LLC, the manufacturer of BLACKSTONE Products, will warranty for 90 days from purchase all parts, workmanship, and finishes (against rust). It will be the manufacturer's option as to whether to repair or replace any of the above items.

If this BLACKSTONE 22" Griddle fails due to a defect in material or workmanship within 90 days from the date of purchase, call (435) 252-3030 to arrange for replacement parts.

Please retain a copy of your proof of purchase to validate your warranty. You may be requested to send in a copy of your receipt to confirm any warranty requests.

All warranties are limited to the original purchaser only. This warranty does not cover any liability on the part of North Atlantic Imports LLC, its agents or employees, for any indirect or consequential damages for breach of warranty.

The purchaser must follow the manufacturer's usage instructions. Warranty coverage is void if this product is ever used for commercial or rental purposes. Under no circumstances is the manufacturer responsible for damages from the failure to operate this product properly.

All warranty coverage excludes paint loss, discoloration or surface rusting, which are either expendable parts that can wear out from normal use within the warranty period, or are conditions that can be the result of normal use, accident or improper maintenance.

After 90 days from the date of purchase, or if a valid proof of purchase cannot be provided, you can purchase replacement parts by calling (435) 252-3030. (Part purchase price with shipping and handling to be paid by customer.)

For more detailed explanation of the warranty, read below:

North Atlantic Imports LLC warrants to the owner that the product covered by this agreement is free from defects in material and workmanship under normal use and service for which it was intended if, but only if, it has been operated in accordance with North Atlantic Imports LLC instructions exclusively for domestic use, and not for private or public club, institutional, or commercial purposes. North Atlantic Imports LLC obligation under this warranty is limited to replacing or repairing, free of charge, any part or parts that may prove, to the satisfaction in North Atlantic Imports LLC, to be defective under normal home use and service within the following stated periods of time from the date of purchase; a) for 90 days from purchase, all parts, finish, and workmanship. Should any failure to conform to this warranty become apparent during applicable warranty periods stated above, the original purchaser must notify North Atlantic Imports LLC of breach or warranty within the applicable warranty period. North Atlantic Imports LLC shall upon notice and compliance by the original purchaser with such instructions, correct such nonconformity by repair or replacement of the defective part or parts. Correction in the manner provided above shall constitute a fulfillment of all obligations of North Atlantic Imports LLC with respect to the quality of the product.

North Atlantic Imports LLC does not warrant this equipment to meet the requirement of any safety code of any state, municipality or other jurisdiction, and the original purchaser assumes all risk and liability whatsoever resulting from the use thereof, whether used in accordance with North Atlantic Imports LLC instructions or otherwise. This warranty does not cover and is intended to exclude any liability on the part of North Atlantic Imports LLC its agents, servants or employees whether under this warranty or implied by law for any indirect or consequential damages for breach on any warranty. The purchaser must establish all applicable warranty periods pursuant to this warranty by verifying the original purchase date by producing the dated sales receipt. This warranty shall not apply to this product or any other part thereof which has been subject to accident, negligence, alteration, abuse, or misuse or which has been repaired or altered without North Atlantic Imports LLC written consent, outside of North Atlantic Imports LLC factory. North Atlantic Imports LLC makes no warranty whatsoever in respect to accessories or parts not supplied with it. This warranty shall apply only within the boundaries of the United States of America. This warranty gives the original purchaser specific rights, and the original purchaser may also have other rights, which vary from state to state.

CUSTOMER SERVICE

Our Customer Service staff is here to help you!

For questions regarding your BLACKSTONE product, or if you need replacement parts, contact us at:

USA Support: 435.252.3030

support@blackstoneproducts.com

We're pleased to help you with any questions concerning replacement parts or your warranty. Our customer service staff can be reached Monday through Friday from 9:00 am to 5:00 pm Mountain Standard Time. If all operators are busy or you call after hours, you may leave a message and your call will be returned or send an email.

GRIDDLE SEASONING

QR code image with a central triangular logo, likely linking to a digital resource or webpage.

Video Instruction

Use a QR code reader on your smart phone and watch an instructional video on seasoning and maintaining you Blackstone Griddle.

www.blackstoneproducts.com/video

What is Seasoning

Seasoning is a process by which oil is baked into metal to create a stick resistant surface and protect against oxidization.

Blackstone Griddles come with a thin layer of soy oil on them to protect against rust during shipping. You can wash this off with warm soapy water prior to your initial seasoning.

What oil should I use?

Some oils are better than others for seasoning. We recommend Flax seed oil for your initial seasoning since it creates a very durable bond, however, any of the following oils can be used.

  • Flax seed oil
    • Extra Virgin Olive Oil
  • Vegetable Oil
  • Soy Oil

Initial Griddle Seasoning:

The basic idea behind your initial seasoning is to coat your griddle with oil and heat the oil above its smoke point to polymerize the oil and create a bond with the griddle top. You will end up with a black, stick resistant surface that is easy to clean.

  1. Apply small amount of oil to the surface of the griddle top and spread it around with a cloth or paper towel (use tongs or metal spatula to hold the cloth or paper towel).
  2. Turn your griddle on medium-high heat
  3. Heat the oil until it reaches its "smoke point" and let it continue to heat on the griddle top until it stops smoking. Your griddle top will start to discolor. This is good.
  4. Let your griddle cool a little. Repeat steps 1 through 3 a few times until you have a black surface on your griddle.

Cleaning and Maintaining your Griddle

To clean the griddle after each use, scrape gently with a metal spatula or scraper and wipe down the griddle surface with a cloth or paper towel. For tough food residue, pour water onto the hot griddle surface and let it boil the residue off.

After you are done using your griddle you should apply a very thin coat of oil to maintain your seasoning bond and protect it from rust. If rust or scaling (chipped seasoning) occur, rub it off with steel wool or low grain sandpaper and re-season the surface. Store your griddle in a cool, dry place.

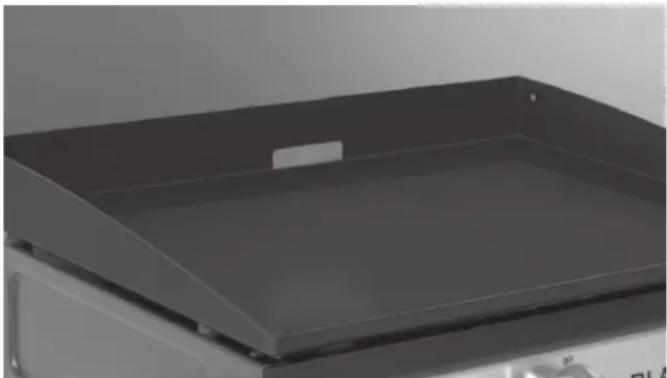

What a well seasoned Griddle should look like

Your well seasoned griddle should be shiny black and have a natural non-stick cooking surface. The more you cook with and season your griddle top, the more black, stick resistant and shiny it will become.

Blackstone 1665 - What a well seasoned Griddle should look like - 1

natural_image Exterior view of a modern office building (no signage)

STATION DE CUISSON AVEC PLAQUE DE 22"

BLACKSTONE LIGHTING INSTRUCTIONS 1. Light and comfort level lighting is used. 2. Light and comfort level lighting is used to prevent the warming. 3. Light and comfort level lighting is used to allow the comfort. 4. Light and comfort level lighting is used to ensure the comfort. 5. Light and comfort level lighting is used to ensure the comfort. 6. Light and comfort level lighting is used to ensure the comfort. 7. Light and comfort level lighting is used to ensure the comfort. 8. Light and comfort level lighting is used to ensure the comfort. 9. Light and comfort level lighting is used to ensure the comfort. 10. Light and comfort level lighting is used to ensure the comfort. 11. Light and comfort level lighting is used to ensure the comfort. 12. Light and comfort level lighting is used to ensure the comfort. 13. Light and comfort level lighting is used to ensure the comfort. 14. Light and comfort level lighting is used to ensure the comfort. 15. Light and comfort level lighting is used to ensure the comfort. 16. Light and comfort level lighting is used to ensure the comfort. 17. Light and comfort level lighting is used to ensure the comfort. 18. Light and comfort level lighting is used to ensure the comfort. 19. Light and comfort level lighting is used to ensure the comfort. 20. Light and comfort level lighting is used to ensure the comfort. 21. Light and comfort level lighting is used to ensure the comfort. 22. Light and comfort level lighting is used to ensure the comfort. 23. Light and comfort level lighting is used to ensure the comfort. 24. Light and comfort level lighting is used to ensure the comfort. 25. Light and comfort level lighting is used to ensure the comfort. 26. Light and comfort level lighting is used to ensure the comfort. 27. Light and comfort level lighting is used to ensure the comfort. 28. Light and comfort level lighting is used to ensure the comfort. 29. Light and comfort level lighting is used to ensure the comfort. 30. Light and comfort level lighting is used to ensure the comfort. 31. Light and comfort level lighting is used to ensure the comfort. 32. Light and comfort level lighting is used to ensure the comfort. 33. Light and comfort level lighting is used to ensure the comfort. 34. Light and comfort level lighting is used to ensure the comfort. 35. Light and comfort level lighting is used to ensure the comfort. 36. Light and comfort level lighting is used to ensure the comfort. 37. Light and comfort level lighting is used to ensure the comfort. 38. Light and comfort level lighting is used to ensure the comfort. 39. Light and comfort level lighting is used to ensure the comfort. 40. Light and comfort level lighting is used to ensure the comfort. 41. Light and comfort level lighting is used to ensure the comfort. 42. Light and comfort level lighting is used to ensure the comfort. 43. Light and comfort level lighting is used to ensure the comfort. 44. Light and comfort level lighting is used to ensure the comfort. 45. Light and comfort level lighting is used to ensure the comfort. 46. Light and comfort level lighting is used to ensure the comfort. 47. Light and comfort level lighting is used to ensure the comfort. 48. Light and comfort level lighting is used to ensure the comfort. 49. Light and comfort level lighting is used to ensure the comfort. 50. Light and comfort level lighting is used to ensure the comfort. 51. Light and comfort level lighting is used to ensure the comfort. 52. Light and comfort level lighting is used to ensure the comfort. 53. Light and comfort level lighting is used to ensure the comfort. 54. Light and comfort level lighting is used to ensure the comfort. 55. Light and comfort level lighting is used to ensure the comfort. 56. Light and comfort level lighting is used to ensure the comfort. 57. Light and comfort level lighting is used to ensure the comfort. 58. Light and comfort level lighting is used to ensure the comfort. 59. Light and comfort level lighting is used to ensure the comfort. 60. Light and comfort level lighting is used to ensure the comfort. 61. Light and comfort level lighting is used to ensure the comfort. 62. Light and comfort level lighting is used to ensure the comfort. 63. Light and comfort level lighting is used to ensure the comfort. 64. Light and comfort level lighting is used to ensure the comfort. 65. Light and comfort level lighting is used to ensure the comfort. 66. Light and comfort level lighting is used to ensure the comfort. 67. Light and comfort level lighting is used to ensure the comfort. 68. Light and comfort level lighting is used to ensure the comfort. 69. Light and comfort level lighting is used to ensure the comfort. 70. Light and comfort level lighting is used to ensure the comfort. 71. Light and comfort level lighting is used to ensure the comfort. 72. Light and comfort level lighting is used to ensure the comfort. 73. Light and comfort level lighting is used to ensure the comfort. 74. Light and comfort level lighting is used to ensure the comfort. 75. Light and comfort level lighting is used to ensure the comfort. 76. Light and comfort level lighting is used to ensure the comfort. 77. Light and comfort level lighting is used to ensure the comfort. 78. Light and comfort level lighting is used to ensure the comfort. 79. Light and comfort level lighting is used to ensure the comfort. 80. Light and comfort level lighting is used to ensure the comfort. 81. Light and comfort level lighting is used to ensure the comfort. 82. Light and comfort level lighting is used to ensure the comfort. 83. Light and comfort level lighting is used to ensure the comfort. 84. Light and comfort level lighting is used to ensure the comfort. 85. Light and comfort level lighting is used to ensure the comfort. 86. Light and comfort level lighting is used to ensure the comfort. 87. Light and comfort level lighting is used to ensure the comfort. 88. Light and comfort level lighting is used to ensure the comfort. 89. Light and comfort level lighting is used to ensure the comfort. 90. Light and comfort level lighting is used to ensure the comfort. 91. Light and comfort level lighting is used to ensure the comfort. 92. Light and comfort level lighting is used to ensure the comfort. 93. Light and comfort level lighting is used to ensure the comfort. 94. Light and comfort level lighting is used to ensure the comfort. 95. Light and comfort level lighting is used to ensure the comfort. 96. Light and comfort level lighting is used to ensure the comfort. 97. Light and comfort level lighting is used to ensure the comfort. 98. Light and comfort level lighting is used to ensure the comfort. 99. Light and comfort level lighting is used to ensure the comfort. 100. LIGHT AND COOKING LIGHTING INSTRUCTIONS 1) Load all components like lighting, lighting, or other lighting 2) Load all components like electrical heating, lighting, or other electrical heating 3) Load all components like circuitry, lighting, or other circuitry 4) Load all components like thermal conductivity, lighting, or other thermal conductivity 5) Load all components like temperature, lighting, or other temperature 6) Load all components like temperature, lighting, or other temperature 7) Load all components like temperature, lighting, or other temperature 8) Load all components like thermal conductivity, lighting, or other temperature 9) Load all components like thermal conductivity, lighting, or other temperature 10) Load all components like thermal conductivity, lighting, or other temperature 11) Load all components like thermal conductivity, lighting, or other temperature 12) Load all components like thermal conductivity, lighting, or other temperature 13) Load all components like thermal conductivity, lighting, or other temperature 14) Load all components like thermal conductivity, lighting, or other temperature 15) Load all components like thermal conductivity, lighting, or other temperature 16) Load all components like thermal conductivity, lighting, or other temperature 17) Load all components like thermal conductivity, lighting, or other temperature 18) Load all components like thermal conductivity, lighting, or other temperature 19) Load all components like thermal conductivity, lighting, or other temperature 20) Load all components like thermal conductivity, lighting, or other temperature 21) Load all components like thermal conductivity, lighting, or other temperature 22) Load all components like thermal conductivity, lighting, or other temperature 23) Load all components like thermal conductivity, lighting, or other temperature 24) Load all components like thermal conductivity, lighting, or other temperature 25) Load all components like thermal conductivity, lighting, or other temperature 26) Load all components like thermal conductivity, lighting, or other temperature 27) Load all components like thermal conductivity, lighting, or other temperature 28) Load all components like thermal conductivity, lighting, or other temperature 29) Load all components like thermal conductivity, lighting, or other temperature 30) Load all components like thermal conductivity, lighting, or other temperature 31) Load all components like thermal conductivity, lighting, or other temperature 32) Load all components like thermal conductivity, lighting, or other temperature 33) Load all components like thermal conductivity, lighting, or other temperature 34) Load all components like thermal conductivity, lighting, or other temperature 35) Load all components like thermal conductivity, lighting, or other temperature 36) Load all components like thermal conductivity, lighting, or other temperature 37) Load all components like thermal conductivity, lighting, or other temperature 38) Load all components like thermal conductivity, lighting, or other temperature 39) Load all components like thermal conductivity, lighting, or other temperature 40) Load all components like thermal conductivity, lighting, or other temperature 41) Load all components like thermal conductivity, lighting, or other temperature 42) Load all components like thermal conductivity, lighting, or other temperature 43) Load all components like thermal conductivity, lighting, or other temperature 44) Load all components like thermal conductivity, lighting, or other temperature 45) Load all components like thermal conductivity, lighting, or other temperature 46) Load all components like thermal conductivity, lighting, or other temperature 47) Load all components like thermal conductivity, lighting, or other temperature 48) Load all components like thermal conductivity, lighting, or other temperature 49) Load all components like thermal conductivity, lighting, or other temperature 50) Load all components like thermal conductivity, lighting, or other temperature 51) Load all components like thermal conductivity, lighting, or other temperature 52) Load all components like thermal conductivity, lighting, or other temperature 53) Load all components like thermal conductivity, lighting, or other temperature 54) Load all components like thermal conductivity, lighting, or other temperature 55) Load all components like thermal conductivity, lighting, or other temperature 56) Load all components like thermal conductivity, lighting, or other temperature 57) Load all components like thermal conductivity, lighting, or other temperature 58) Load all components like thermal conductivity, lighting, or other temperature 59) Load all components like thermal conductivity, lighting, or other temperature 60) Load all components like thermal conductivity, lighting, or other temperature 61) Load all components like thermal conductivity, lighting, or other temperature 62) Load all components like thermal conductivity, lighting, or other temperature 63) Load all components like thermal conductivity, lighting, or other temperature 64) Load all components like thermal conductivity, lighting, or other temperature 65) Load all components like thermal conductivity, lighting, or other temperature 66) Load all components like thermal conductivity, lighting, or other temperature 67) Load all components like thermal conductivity, lighting, or other temperature 68) Load all components like thermal conductivity, lighting, or other temperature 69) Load all components like thermal conductivity, lighting, or other temperature 70) Load all components like thermal conductivity, lighting, or other temperature 71) Load all components like thermal conductivity, lighting, or other temperature 72) Load all components like thermal conductivity, lighting, or other temperature 73) Load all components like thermal conductivity, lighting, or other temperature 74) Load all components like thermal conductivity, lighting, or other temperature 75) Load all components like thermal conductivity, lighting, or other temperature 76) Load all components like thermal conductivity, lighting, or other temperature 77) Load all components like thermal conductivity, lighting, or other temperature 78) Load all components like thermal conductivity, lighting, or other temperature 79) Load all components like thermal conductivity, lighting, or other temperature 80) Load all components like thermal conductivity, lighting, or other temperature 81) Load all components like thermal conductivity, lighting, or other temperature 82) Load all components like thermal conductivity, lighting, or other temperature 83) Load all components like thermal conductivity, lighting, or other temperature 84) Load all components like thermal conductivity, lighting, or other temperature 85) Load all components like thermal conductivity, lighting, 86) Load all components for electrical protection (ECP) 87) Load an electric shock wave (ECP) 88) Load an electric shock wave (ECP) 89) Load an electric shock wave (ECP) 90) Load an electric shock wave (ECP) 91) Load an electric shock wave (ECP) 92) Load an electric shock wave (ECP) 93) Load an electric shock wave (ECP) 94) Load an electric shock wave (ECP) 95) Load an electric shock wave (ECP) 96) Load an electric shock wave (ECP) 97) Load an electric shock wave (ECP) 98) Load an electric shock wave (ECP) 99) Load an electric shock wave (ECP) 100)

Blackstone 1665 - STATION DE CUISSON AVEC PLAQUE DE 22" - 2

Assemblage vidéo

www.blackstoneproducts.com/video

Blackstone 1665 - STATION DE CUISSON AVEC PLAQUE DE 22" - 3

AVERTISSEMENT

Blackstone 1665 - STATION DE CUISSON AVEC PLAQUE DE 22" - 4

USAGE EN PLEIN AIR UNIQUEMENT

ASSEMBLAGE VIDÉO

www.blackstoneproducts.com/video

LISTE DES PIÈCES

natural_image Technical line drawing of a mechanical device with two open compartments and internal components (no text or symbols)

ÉTAPE 2

natural_image Technical line drawing of a rectangular electronic device with two circular ports and mounting holes (no text or symbols)

ÉTAPE 3

natural_image Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

ÉTAPE 4

natural_image Technical line drawing of a mechanical device with internal components and a close-up inset showing a detail (no text or symbols)

ÉTAPE 5

natural_image Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

ÉTAPE 6

natural_image Technical line drawing of a rectangular industrial or laboratory device with three internal compartments and a connected piping outlet (no text or symbols)

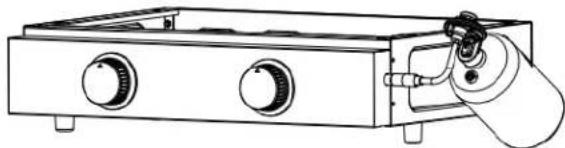

ÉTAPE 8

natural_image Line drawing of a black stone tray with wheels and a label (no text or symbols on the tray itself)

Blackstone 1665 - ÉTAPE 8 - 1

natural_image Line drawing of a portable gas stove with control knobs and a hand inserting a valve (no text or symbols)

ÉTAPE 9

natural_image Technical line drawing of a mechanical device with no visible text or symbols

ÉTAPE 10

natural_image Line drawing of a black stone grating with two side handles and a cylindrical housing (no text or symbols)

AVIS À LA CLIENTÈLE:

Fittings and Storage

North Atlantic Imports LLC, 90 Day & Limited Warranty

SERVICE AU CONSOMMATEUR

www.BlackstoneProducts.com/griddlecare

  • Flax seed oil
    • Extra Virgin Olive Oil
  • Vegetable Oil
  • Soy Oil
natural_image Exterior view of a dark metal tray or drawer with a small rectangular slot on top (no text or symbols visible)

22" PLANCHA DE MESA

BLACKSTONE LIGHTING INSTRUCTIONS 1. Break all electrical lines from lighting. 2. Hold the current line with a light-glass heating. 3. Handle the current line with a light-glass cooling system to allow the current line. 4. Allow the current line with a light-glass cooling system. 5. Play the current line with a light-glass cooling system to allow the current line. 6. Use the current line with a light-glass cooling system to allow the current line. 7. Use the current line with a light-glass cooling system to allow the current line. 8. Use the current line with a light-glass cooling system to allow the current line. 9. Use the current line with a light-glass cooling system to allow the current line. 10. Use the current line with a light-glass cooling system to allow the current line.

Blackstone 1665 - 22" PLANCHA DE MESA - 2

Video de montaje

www.blackstoneproducts.com/video

Blackstone 1665 - 22" PLANCHA DE MESA - 3

ADVERTENCIA

Blackstone 1665 - 22" PLANCHA DE MESA - 4

Sólo uso exterior.

VIDEO DE MONTAJE

www.blackstoneproducts.com/video

LISTA DE PARTES

natural_image Technical line drawing of a mechanical device with two open compartments and internal components (no text or symbols)

PASO 2

natural_image Technical line drawing of a rectangular electronic device with two circular ports and mounting holes (no text or symbols)

PASO 3

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

PASO 4

natural_image Technical line drawing of a mechanical device with internal components and a close-up inset showing a measurement detail (no text or symbols)

PASO 5

natural_image Technical line drawing of a mechanical enclosure or enclosure with internal components and mounting feet (no text or symbols)

PASO 6

natural_image Technical line drawing of a portable electrical enclosure with two side fans and a cylindrical connector (no text or symbols)

PASO 8

natural_image Technical line drawing of a blackstone gas stove with two doors and a spray bottle (no text or symbols)

PASO 9

natural_image Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

PASO 10

natural_image Line drawing of a black stone gas stove with two side fans and a cylindrical pump (no text or symbols)

AVISO AL CLIENTE:

Instrucción vídeo

www.BlackstoneProducts.com/griddlecare

  • Flax seed oil
  • Extra Virgin Olive Oil
  • Vegetable Oil
  • Soy Oil
natural_image Exterior view of a modern office building (no signage)
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Blackstone

Model : 1665

Category : Grill plate
