USER MANUAL S18SB HITACHI

INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS

SANDING DISC ASSEMBLY AND

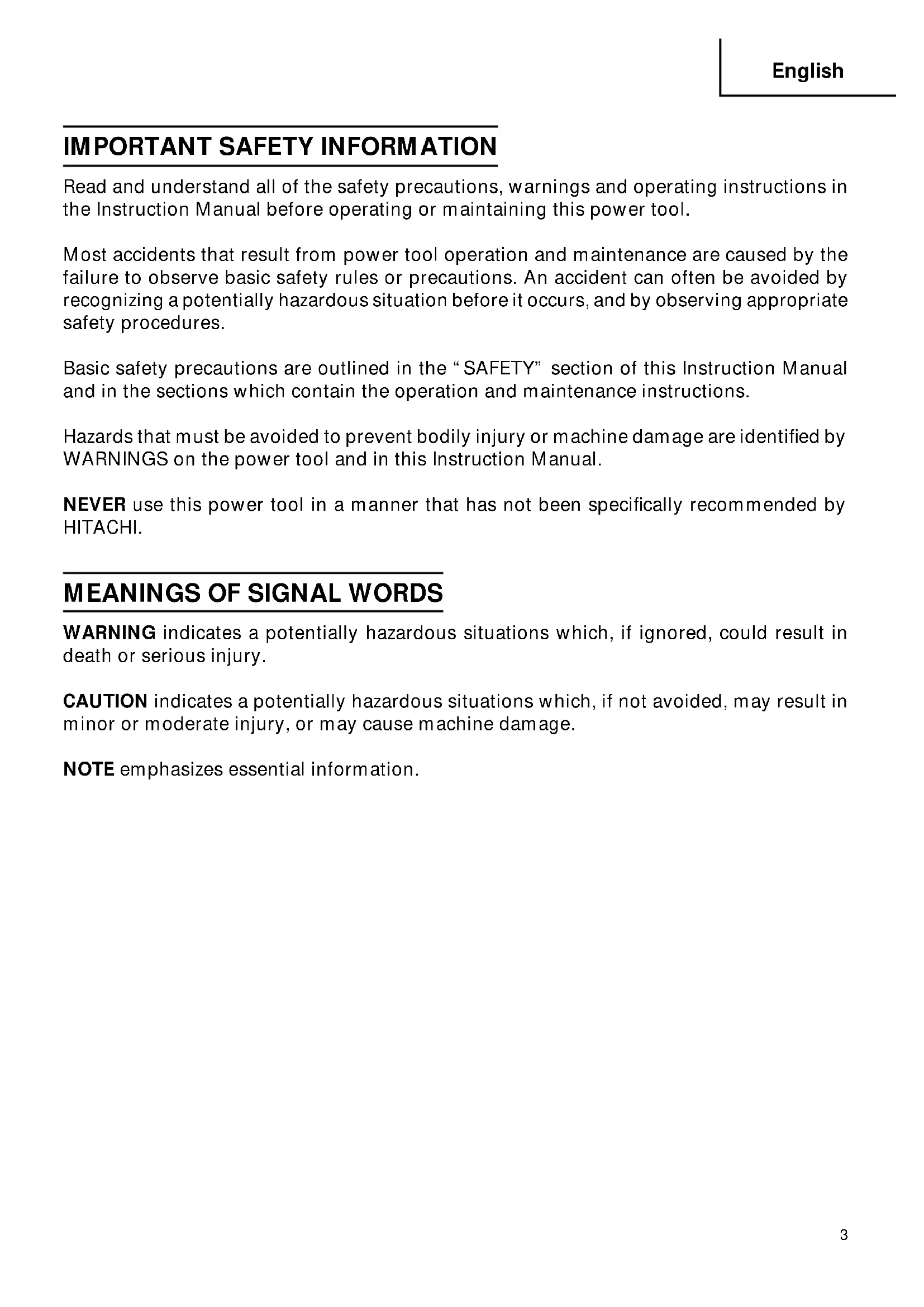

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information.English

WARNING: Read all instructions

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust of fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.English

b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power toll before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.English

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. –WARNING– To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Accessories must be rated for at least the speed recommended on the tool warning

label. Accessories running over rated speed can fly apart and cause injury.

2. Hold tools by insulated gripping surfaces when performing an operation where the

cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

3. ALWAYS wear ear protectors when using the tool for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

4. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool’s moving parts.

5. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

7. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

8. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.English

9. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

10. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

11. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

12. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.

13. Operate power tools at the rated voltage.

Operate the power tool at voltages specified on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

14. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

15. NEVER leave tool running unattended. Turn power off.

Don’t leave tool until it comes to a complete stop.

16. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

17. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

18. ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI

19. ALWAYS wear a mask or respirator to protect yourself from dust or potentially harmful

particles generated during the operation.

20. NEVER place hands or body parts near the accessories attached to the sanding disc

21. NEVER use accessories which are broken or deformed or worn away.

22. NEVER use the sanding disc in places where the sparks generated by the sanding disc

can cause explosion, such as where flammable materials or gases are present.

23. NEVER push in the lock lever while the spindle is running.

24. ALWAYS firmly grip the body handle and side handle while operating the sanding disc.English

25. ALWAYS follow the instructions contained in this manual when replacing the

26. NEVER leave the revolving tool unattended on the floor.

27. NEVER mount a depressed center wheel on this tool and attempt to use it as a disc

To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation “ means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system effective, follow these precautions: 䡬 Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed. 䡬 Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

SAVE THESE INSTRUCTIONS

OF THIS TOOL!English

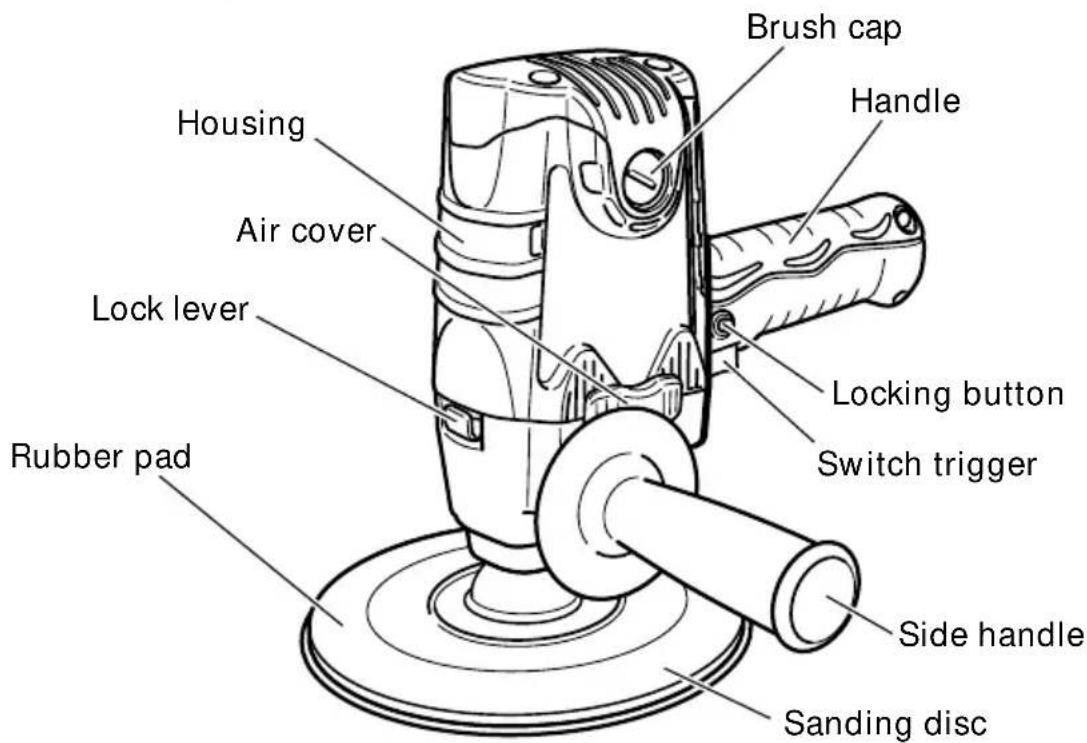

FUNCTIONAL DESCRIPTION NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

APPLICATIONS 䡬 Sanding metal surfaces. 䡬 Preliminary sanding of metal surfaces before painting, rust removal, removing old paint before repainting. 䡬 Finishing woodwork, correcting projections of timbers from joints or assemblies. 䡬 Preliminary sanding of wood surfaces before applying paint.

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

WARNING: Damaged cord must be replaced or repaired.

4. Check the receptacle.

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Check your working environment.

Ensure the following before operation; 䡬 No flammable gas, liquid, or object at worksite. 䡬 Grinding thin steel sheet may cause a high booming sound. In this case, place a rubber mat under the workpiece. 䡬 Take appropriate noise preventive measures to prevent adverse affects on the environment by electrical noise. 䡬 Clear the area of children or unauthorized personnel.

6. Check mounting of the sanding disc.

Check that sanding disc is mounted under the specified condition and is firmly clamped. For details, refer to the item “SANDING DISC ASSEMBLY AND DISASSEMBLY”.

7. Fixing the side handle.

Screw the side handle into the housing.

8. Check the lock lever.

Make sure that the lock lever is disengaged by pushing the lock lever two or three times before turning on the disc sander (Fig. 4).English

1. Hold the disc sander firmly by its body hadle and side handle (Fig. 1).

The disc sander produces a counterforce which must be controlled by firmly holding onto the disc sander.

This enables the disc sander always to be controlled with the hand gripping the machine for maximum safety during grinding operations. <Intermittent use> Switch ON: Press the switch trigger. Switch OFF: Release the switch trigger. <Continuous use> Switch ON: Press the switch trigger. The switch trigger is locked by pushing on the locking button. Switch OFF: Press and release the switch trigger.

3. Use light grinding pressure.

There is no need to press hard when grinding. Usually the disc sander’s own weight is sufficient for the surface to be ground. CAUTION: Do not press the disc sander forcibly against the surface to be ground. Heavy pressure can damage the surface being ground or damage the disc sander’s motor.

4. Use proper grinding angle.

Use the disc sander by lifting 15° to 30°, as shown in Fig. 3.

5. Adjust operation to desired finish.

For a fine finish, decrease pressure by lifting slightly. Grind slowly and at the appropriate speed. 15° – 30° Fig. 3

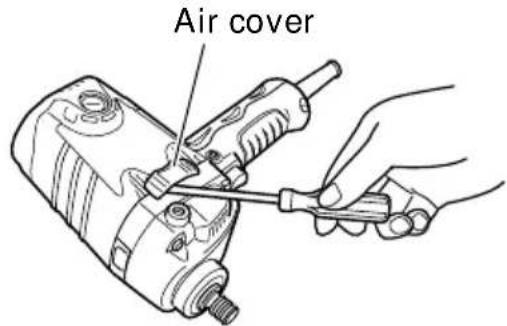

9. Installing the air cover

Install the air cover on the air vent on the side where the side handle is attached to divert the cooling air flow of the motor during operation as much as possible. Hook tab of the air cover to the air vent and push in the tab when installing. Use a screwdriver etc. to pull as shown in Fig. 2 when removing. Air cover Fig. 2English

SANDING DISC ASSEMBLY AND DISASSEMBLY

WARNING: Never attempt to assemble or disassemble the sanding disc while the

disc sander is capable of being turned “ON”. Be sure power switch is in the “OFF” position and the electrical cord has been disconnected from the receptacle.

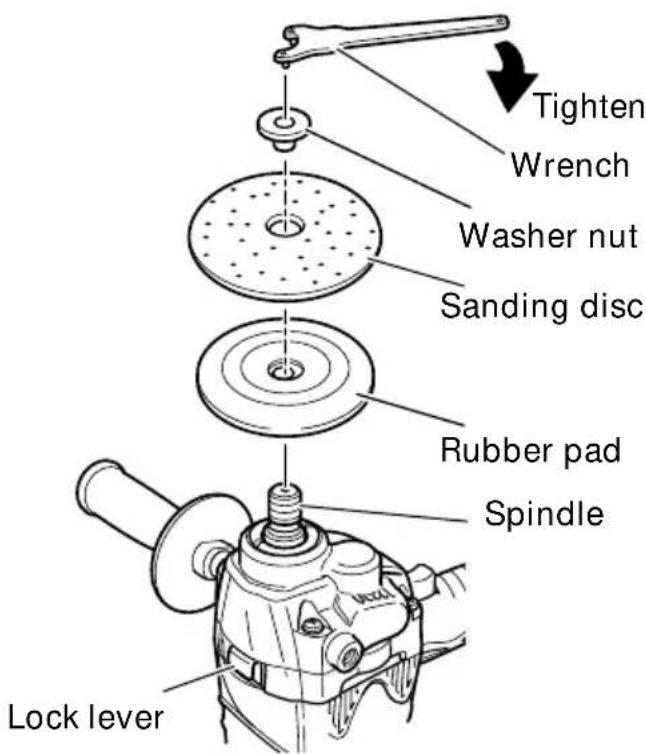

1. Assembling (Fig. 4)

(1) Turn the disc sander upsidedown so that the spindle is facing upward. (2) Attach washer nut, rubber pad and sanding disc on the spindle, in that order. (3) While pushing the lock lever with one hand, lock the spindle by turning the rubber pad slowly with the other hand. Tighten the washer nut by using the supplied wrench. CAUTION: 䢇 Tighten the washer nut securely and confirm that the rubber pad and sanding disc does not wobble. 䢇 After releasing the lock lever, check to be sure that it has returned to its normal position.

To remove the sanding disc, follow the above-mentioned procedure in reverse order. Fig. 4

6. Precaution after use

CAUTION: Do not lay the disc sander down immediately after using on a place where there are many shavings, much dirt and dust until it has completely stopped revolving. If the disc sander is laid down with the sanding disc turned downward before it has completely stopped revolving, there is a risk that the material may be damaged and the disc sander may run wild, resulting in injury. Wrench Spindle Washer nut Rubber pad Lock lever Tighten Sanding discEnglish

WARNING: Be sure to switch power OFF and disconnect the plug from the

receptacle during maintenance and inspection.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately.

WARNING: Using this disc sander with loosened screws is extremely dangerous.

2. Confirm that there is no damage in the cord and

the housing, etc. Furthermore, confirm that there is no abnormality in the activation of the switch.

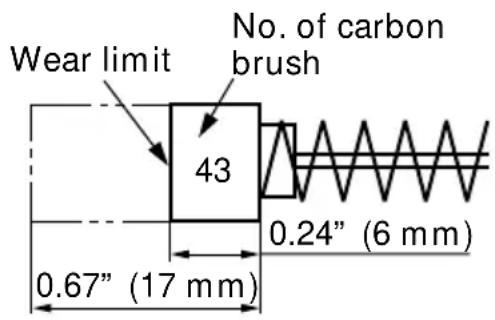

3. Inspecting the carbon brushes (Fig. 5)

The motor employs carbon brushes which are consumable parts. Replace the carbon brush with a new one when it becomes worn to its wear limit. Always keep carbon brushes clean and ensure that they slide freely within the brush holders. CAUTION: Using this disc sander with a carbon brush which is worn in excess of the wear limit will damage the motor. NOTE: Use HITACHI carbon brush No. 43 indicated in Fig. 5. 䡬 Replacing carbon brushes: Remove the brush caps (Fig. 1) with a slotted screwdriver. The carbon brushes can then be easily removed.

4. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

5. Service parts list

A: Item No. B: Code No. C: No. Used D: Remarks Fig. 5

WARNING: ALWAYS use Only authorized HITACHI replacement parts and

• accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the HITACHI. STANDARD ACCESSORIES 䡬 7” (180 mm) Sanding disc (Grain size: P50) (Code No. 314090) p. 1
• 䡬 Rubber pad (Code No. 953255) p. 1
• 䡬 Wrench (Code No. 937913Z) p. 1
• 䡬 Side handle (Code No. 937089) NOTE: Specifications are subject to change without any obligation on the part of the HITACHI. CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS: Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.15 Français p. 1

ABCD 44 938-477 2 M5 × 8 45 995-662 1 46 315-069 1 47 325-489 1 48 301-653 7 D4 × 20 49 325-490 1 501 325-491 1 502 314-090 1 180MM C-P504243WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construc- tion activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: ● Lead from lead-based paints, ● Crystalline silica from bricks and cement and other masonry products, and ● Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Code No. C99143961 Printed in Malaysia
