USER MANUAL CB18DBLP4 HITACHI

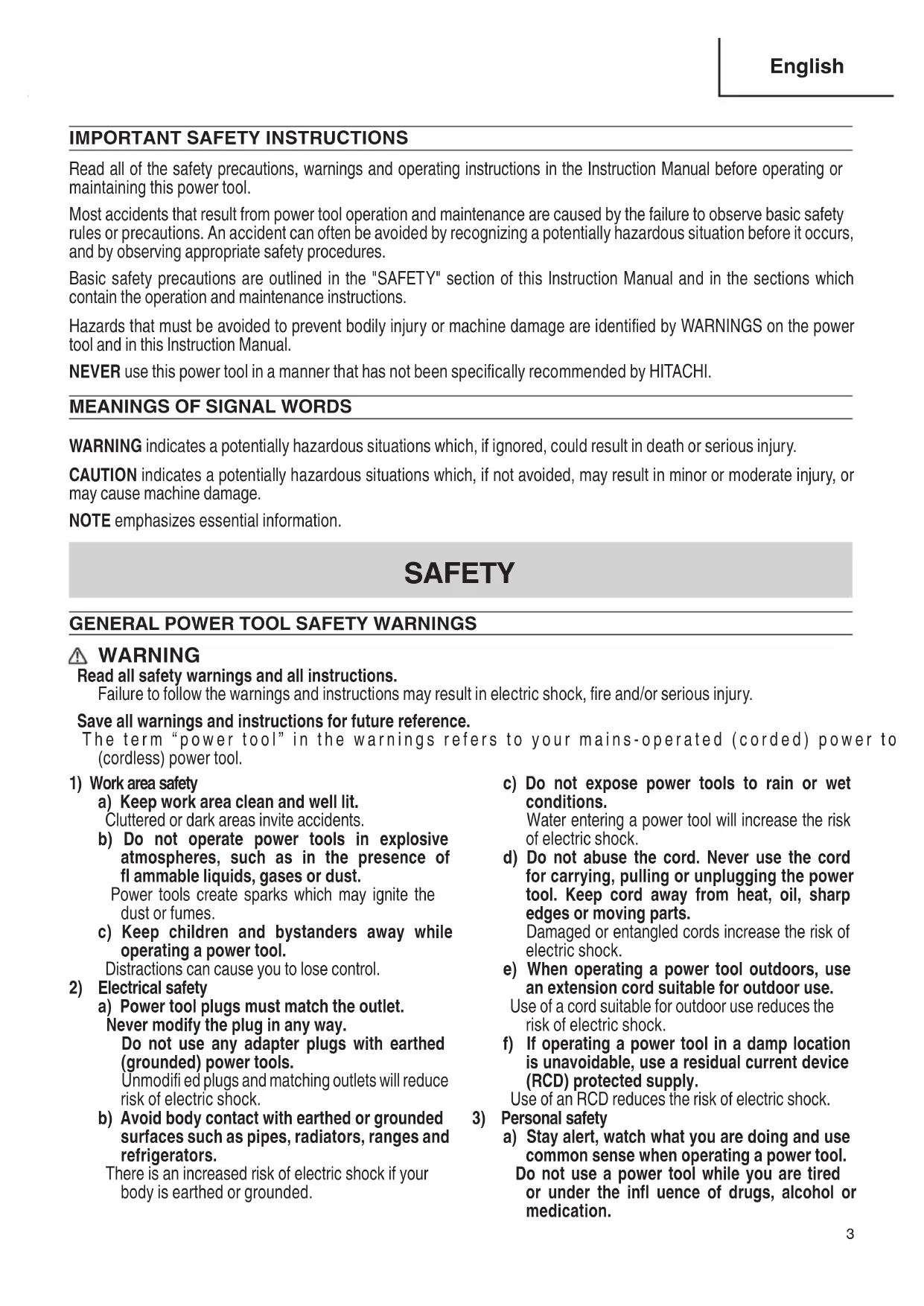

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

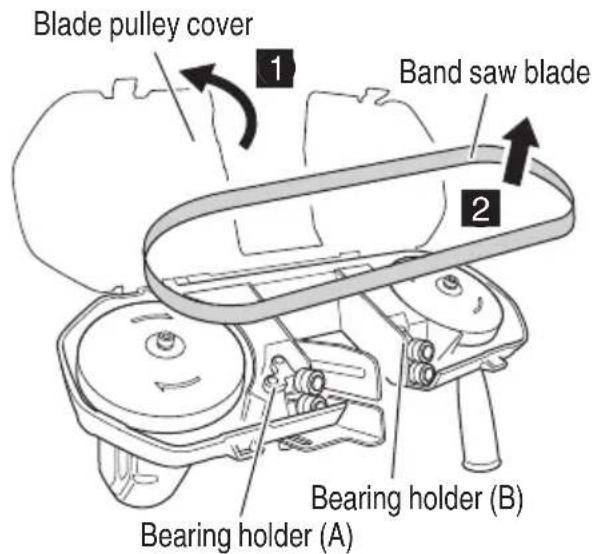

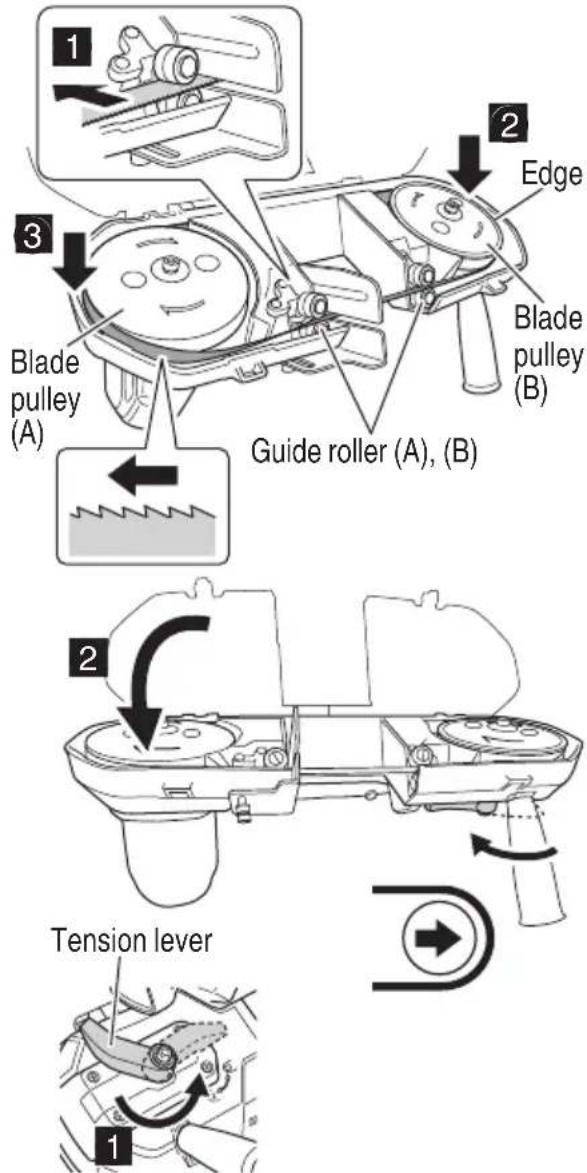

REMOVAL AND INSTALLATION METHOD

Read all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. 000BookCB18DBLUS.indb3000BookCB18DBLUS.indb3 2016/11/1716:50:002016/11/1716:50:004 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a quali fi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. –WARNING– To reduce the risk of injury, user must read instruction manual. 000BookCB18DBLUS.indb4000BookCB18DBLUS.indb4 2016/11/1716:50:002016/11/1716:50:005 English WARNING Some dust created by power cutting, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2. Securely fasten the workpiece to be cut.

If the workpiece is not securely fastened, it may shift position and cause damage to the band saw blade and/or injury.

3. ALWAYS wear ear protectors when using the tool

for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. NEVER touch the band saw blade with bare hands

5. Because the cordless band saw operates by battery

power, be aware of the fact it can begin to operate at any time.

6. When working at elevated locations, clear the area

of all other people and be aware of conditions below you.

7. NEVER touch rotating parts.

NEVER place your hands, fi ngers or other body parts near the tool’s rotating parts.

8. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use band saw for cutting tree limbs or logs.

10. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

11. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

12. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

13. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

14. Band saw blade and accessories must be

securely mounted to the tool. Prevent potential injuries to yourself or others. Band saw blade and accessories which have been mounted to the tool should be secure and tight.

15. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

16. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

17. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

18. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

19. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly. 000BookCB18DBLUS.indb5000BookCB18DBLUS.indb5 2016/11/1716:50:002016/11/1716:50:006 English

20. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

21. ALWAYS wear a mask or respirator to protect yourself

from dust or potentially harmful particles generated during operation.

22. ALWAYS fi rmly grip the handle while operating.

23. ALWAYS be careful with buried object such as an

underground wiring. Touching these active wiring or electric cable with this tool, you may receive an electric shock. Confi rm if there are any buried object such as electric cable within the wall, fl oor or ceiling where you are going to operate here after.

24. Defi nitions for symbols used on this tool

............direct current SFPM.......surface feet no ............no load speed ............Swithcing ON ............Swithcing OFF ...........Tighten band saw blade ...........Loosen band saw blade .......Direction of band saw blade rotation

ADDITIONAL SAFETY WARNINGS

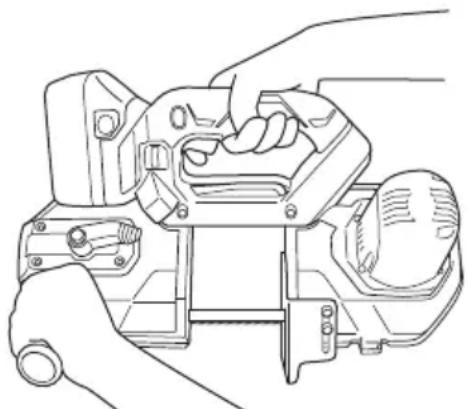

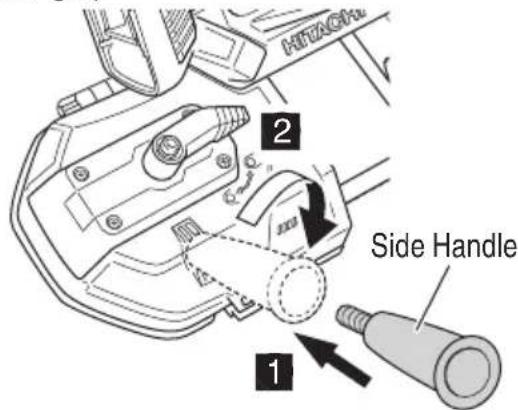

1. Always hold the tool fi rmly with both hands on handle

and side handle (Fig. 1). Do not touch the metal part. Fig. 1

2. Make sure that the area to be cut is absolutely free

of any hidden obstructions including electrical wiring, water, or gas pipes. Cutting into the aforementioned may result in electric shock or short circuit, gas leak or other hazards that can cause serious accidents or injuries.

3. Make sure to securely hold the tool during operation.

Failure to do so can result in accidents or injuries.

4. Setting up and checking the work environment.

Check if the work environment is suitable by following the precaution.

5. Dust particles such as silica or asbestos are

hazardous to your health. When working with materials containing these components, take appropriate dust-proofi ng measures.

6. Working with metal can cause sparks. Make sure

there are no fl ammable and combustible materials in the vicinity and that they are stored in a safe location.

7. Prior to operation, be sure the blade pulley cover is

closed and fastened with screws. Operating the tool with the blade pulley cover open may result in injury.

8. During operation, do not put your hands, face, or other

body parts near the rotating band saw blade or other rotating parts. Doing so may result in injury.

9. If the main unit is accidentally dropped or suff ers any

impact, carefully inspect the band saw blade, the unit, etc. to be sure there are no damages, cracks, or deformations. Injury may result if there are any damages, cracks, or deformations.

10. During operation, if the unit is not running smoothly,

or there are abnormal sounds or vibrations, promptly switch off the unit, discontinue use and contact a Hitachi Authorized Service Center for inspection and/ or repairs. Continuing use under these conditions may result in injury.

11. When using this unit continuously, the unit may

overheat, leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

12. Follow the instruction manual and make sure that

the band saw blade and accessories are properly installed. Improper installation may result in injury from parts coming loose.

13. Securely fasten the workpiece to be cut.

If the workpiece is not securely fastened, it may shift position and cause damage to the band saw blade and/or injury.

14. To avoid having the band saw blade clamped

between the cut surfaces during or immediately after cutting, set up a support stand to bear the weight of the workpiece, placing it near the section to be cut. If the band saw blade becomes clamped, it may result in injury.

15. If the section to be cut off is large, set up another

stable support stand to bear the weight of that section as well. Not using such a support may result in injury.

16. During operation, do not wear cloth work gloves or

other similar hand protection that may get caught in the unit. 000BookCB18DBLUS.indb6000BookCB18DBLUS.indb6 2016/11/1716:50:012016/11/1716:50:017 English Getting caught in the rotating section of the tool may result in injury.

17. Prior to operation, verify the safety of the surrounding

area and run the blade briefl y to make sure that there are no abnormalities in the vibrations of the unit or in the band saw blade. If there are such abnormalities, unexpected movements may occur and cause injury.

18. When working in a high location, ensure that there are

no people below. Dropping the workpiece or the cordless tool from a high location may result in an accident.

19. Do not apply any sudden impact to the workpiece with

the band saw blade. Doing so may damage the band saw blade and/or result in injury.

20. Use the product’s own weight or press gently to cut a

workpiece. Applying unnecessary force while cutting can result in detachment of or damage to the band saw blade which may cause injury.

21. Do not touch the band saw blade, the workpiece, or

shavings with bare hands immediately after cutting, as they will be hot. Doing so may result in burns.

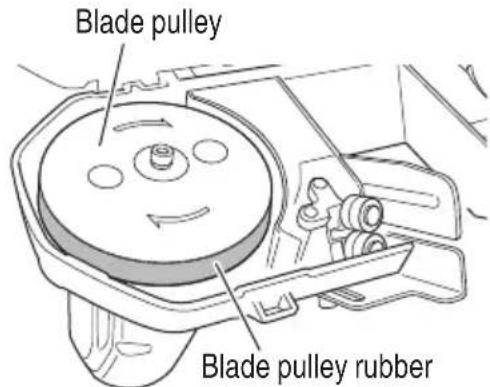

22. Remove any shavings adhering to the band saw blade

or blade pulley rubbers as well as any shavings that accumulates inside the frame. The shavings may cause the band saw blade to detach or slip, and result in injury.

23. Make sure the blade pulley cover is properly attached

before use. If the band saw blade is damaged or comes loose, it may result in injury.

24. Verify that the blade pulley cover and the band saw

blade are not in contact with each other.

25. If there is an abnormality with the blade pulley cover

and the switch lock won’t return to its original position, promptly discontinue use and contact a Hitachi Authorized Service Center for repairs.

26. Use of a band saw blade other than one authorized

by the manufacture or a band saw blade with any abnormalities may result in damage to the band saw blade and/or injury.

27. When switching the power on, verify that the band

saw blade is not in contact with the workpiece to be cut or any surrounding objects. Failure to do so may result in the main unit being dropped and/or injury.

28. In order to prevent accidents, when taking a break

from operation or after operation, be sure to switch off the power and remove the battery from the cordless tool.

29. If the band saw blade locks up while cutting, promptly

switch off the power and stop it from running. Failure to do so may result in damage to the band saw blade.

30. The motor may stop in the event the tool is overloaded.

In this should occur, release the tool’s switch and eliminate the cause of the overload.

31. Do not leave the tool running unattended on the fl oor,

table or other locations. Doing so may result in injury.

32. For cutting effi ciency, switch the mode of the

application tool according to task conditions and workpieces to be cut.

33. After use, be sure not to place the tool near chips or

sawdust before it comes to a full stop as the tool may suck in those particles.

34. After use, if the unit will not be used for a long period,

remove the band saw blade from the unit body and store the band saw blade. If the band saw blade is left installed in the unit body for a long period, the lifespan of the band saw blade will become shorter.

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions: Battery and battery charger are not included with this product

READ ALL INSTRUCTIONS

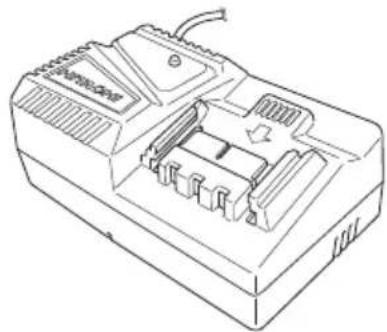

1. This manual contains important safety and operating

instructions for battery charger Model UC18YFSL.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge HITACHI rechargeable

battery type BSL18 and BSL14 series. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold by

the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

7. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: 000BookCB18DBLUS.indb7000BookCB18DBLUS.indb7 2016/11/1716:50:012016/11/1716:50:018 English b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1. Follow these instructions to avoid the risk of injury: WARNING Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is damaged or

is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger’s

air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32°F

(0°C) or above 104°F (40°C). Charging the battery at temperatures outside the range of 32°F – 104°F (0°C – 40°C) may prevent proper charging and reduce battery life.

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

11. NEVER store the battery or battery charger in places

where the temperature may reach or exceed 104°F (40°C).

12. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between charges to

avoid ove rheating the charger.

14. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use. Table 1

AC input rating Ampere* AWG size of cord Equal to or greater than but less than Length of cord, feet (meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

• If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating―for example: 1,250 watts = 10 amperes 125 volts

9. Do not operate battery charger with damaged cord or

plug-replace them immediately.

10. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

11. Do not disassemble battery charger; take it to a

qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

12. To reduce risk of electric shock, unplug charger from

receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

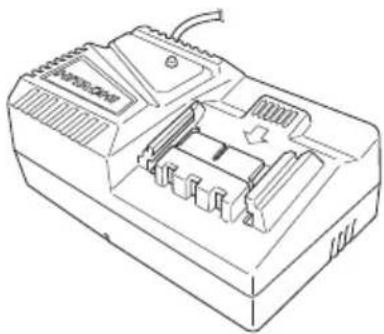

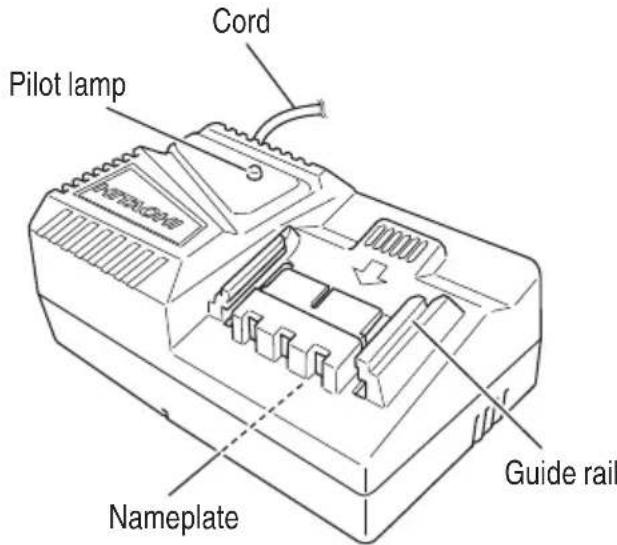

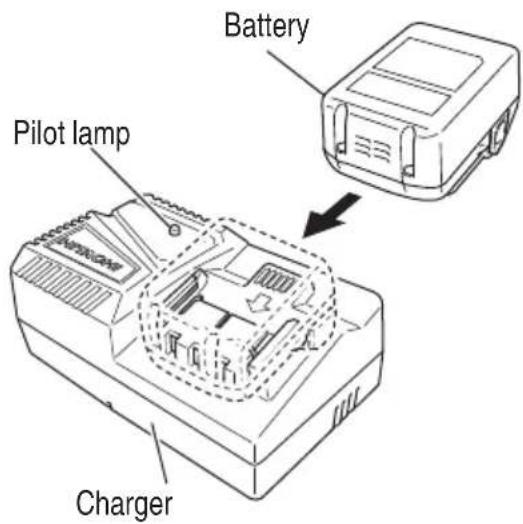

BATTERY CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YFSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION USE ONLY HITACHI BATTERY TYPE BSL1850. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY! 000BookCB18DBLUS.indb8000BookCB18DBLUS.indb8 2016/11/1716:50:012016/11/1716:50:019 English

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye- problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

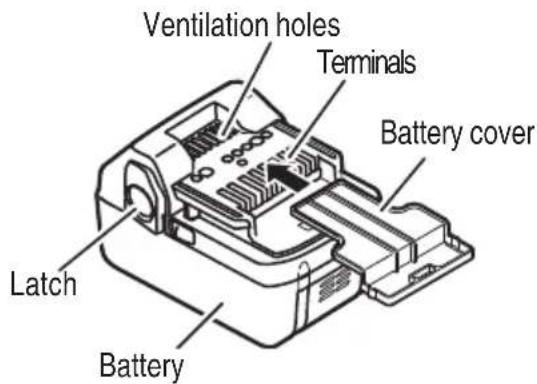

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

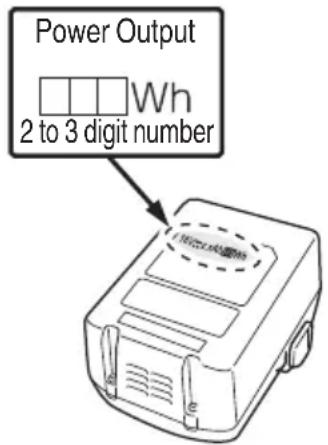

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country. Power Output 2 to 3 digit number

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL! 000BookCB18DBLUS.indb10000BookCB18DBLUS.indb10 2016/11/1716:50:012016/11/1716:50:0111 English FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

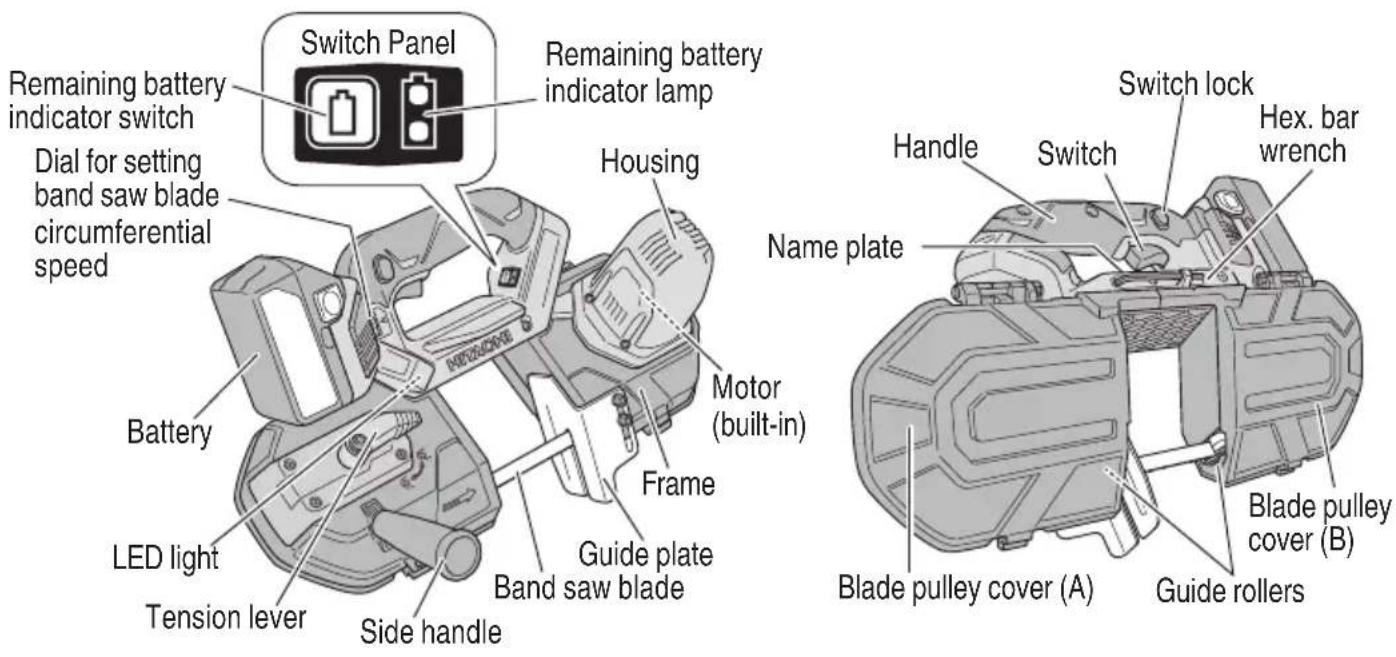

Battery and battery charger are not included with this product. Battery Name plate LED light Motor (built-in) Hex. bar wrench Remaining battery indicator switch Remaining battery indicator lamp Switch Tension lever Switch Panel Housing Side handle Band saw blade Guide plate Frame Dial for setting band saw blade circumferential speed Blade pulley cover (A) Switch lock Handle Blade pulley cover (B) Guide rollers

Model CB18DBL Voltage 18 V Type of motor Fan-cooled DC brushless motor Band Saw Blade dimensions 35 – 3/8" × 1/2" × 0.020" (900 × 12.5 × 0.5 mm) No-Load Band Saw blade speed Standard Mode (1 – 5) 260 – 640 SFPM (80 – 195 m/min) Auto Mode (A) 395 SFPM (120 m/min) Max. cutting capacity Round pipe 3 – 1/4" (83 mm) Square pipe 3 – 1/8" × 3 – 1/8" (80 mm × 80 mm) Overall length 16 – 1/4" (413 mm) Weight (with BSL1850) 7.7 lbs. (3.5 kg) NOTE Due to HITACHI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. Electronic control

Overload protection This protection feature cuts off the power to the motor in the event of overloading of motor or a conspicuous reduction in rotational speed during operation. When the overload protection feature has been activated, the motor may stop. In this case, release the tool switch and eliminate causes of overloading. After that you can use it again.

Overheat protection This protection feature cuts off the power to the motor and stops the power tool in the event of overheating of motor during operation. When the overheat protection feature has been activated, the motor may stop. In this case, release the tool switch and cool it down in a few minutes. After that you can use it again. 2 Battery Charger (UC18YFSL) Battery and battery charger are not included with this product. Pilot lamp Guide rail Nameplate Cord Fig. 3 000BookCB18DBLUS.indb12000BookCB18DBLUS.indb12 2016/11/1716:50:022016/11/1716:50:0213 English

Cutting various types of soft steel materials including conduit pipes, stainless steel pipes, lining steel pipes and steel rods

Cutting nonferrous metal materials including power and communication cables and aluminum window frames

Cutting plastic (thermoplastic material cannot be cut as the band saw blade may become wedged in the material which is prone to melting when heated by cutting friction

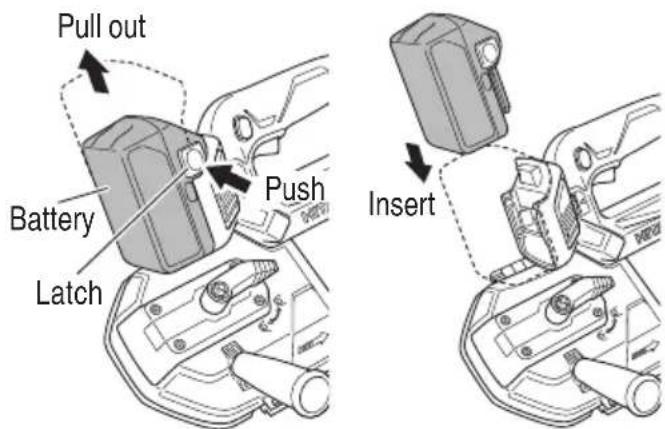

REMOVAL AND INSTALLATION METHOD

OF BATTERY Battery and battery charger are not included with this product.

Hold the handle tightly and push the battery latch to remove the battery (See Fig. 4). CAUTION Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 4). Battery Pull out Push Latch Insert Fig. 4 CHARGING METHOD Before using the power tool, charge the battery as follows. Battery and battery charger are not included with this product. NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s pilot lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 5. Battery Pilot lamp Charger Fig. 5

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2) NOTE If the pilot lamp fl ikers in red, pull out the plug from the receptacle and check if the battery is properly mounted. When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2) (1) Pilot lamp indication The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery. 000BookCB18DBLUS.indb13000BookCB18DBLUS.indb13 2016/11/1716:50:022016/11/1716:50:0214 English Table 2 Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

Overheat standby Blinks Lights for 1 second. Does not light for

0.5 seconds. (off for 0.5 seconds)

Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for

0.1 seconds. (off for 0.1 seconds)

Malfunction in the battery or the charger CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for

0.5 seconds (off for 0.5 seconds). In such a case,

fi rst let the battery cool, then start charging.

When the pilot lamp fl ikers rapidly in red (at 0.2–second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with charger is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

If the pilot lamp does not blink in red (every second) even though the charger cord is connected to the power, it indicates that the protection circuit of the charger may be activated. (2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Recharging ranges of batteries Rechargeable battery Temperatures at which the battery can be recharged BSL1850 32°F – 104°F (0°C – 40°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time (At 20°C) Charger Battery UC18YFSL BSL1850 Approx. 75 min. NOTE The charging time may vary according to temperature and power source voltage.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE After operation, pull out batteries from the charger fi rst, and then keep the batteries properly. 000BookCB18DBLUS.indb14000BookCB18DBLUS.indb14 2016/11/1716:50:022016/11/1716:50:0215 English Remove the cord or plug from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the Hitachi Authorized Service Center.

1. Preparing and checking the work environment

Make sure that the work site meets all the conditions laid forth in the precautions.

2. Installing the side handle

Be sure to install the side handle and use both hands while operating. Failure to do so may result in injury. (See Fig. 6) Side Handle

3. Checking the battery

Make sure that the battery is installed fi rmly. If it is at all loose it could come off and cause an accident.

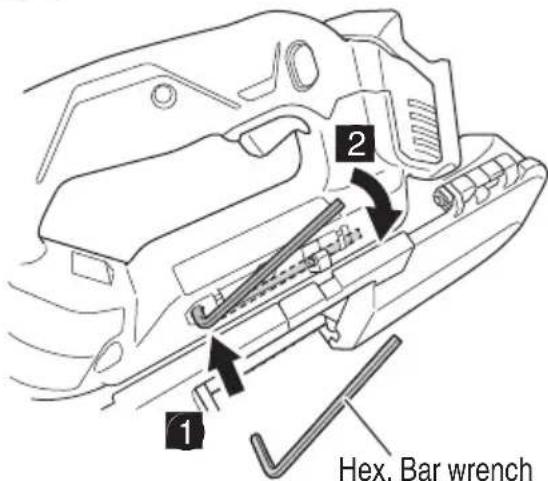

4. Hex. bar wrench storage

The included Hex. Bar wrench can be stored in the main unit. Store the tool to prevent losing it. (See Fig. 7)

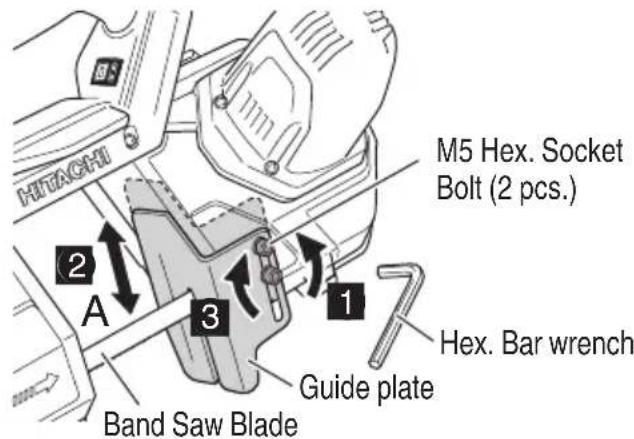

5. Guide plate protrusion adjustment

Be sure to switch power OFF and disconnect the battery from the body when adjusting protrusion of guide plate. In the ordinary operation, protrude the guide plate to the A side fully. Loosen two Hex. socket bolts with the attached Hex. bar wrench, then slide the guide plate and secure it by tightening two Hex. socket bolts fi rmly. When the guide plate strikes against the obstacles like a wall or the like at the fi nishing of a cut, slide it at the appropriate position. (See Fig. 8)

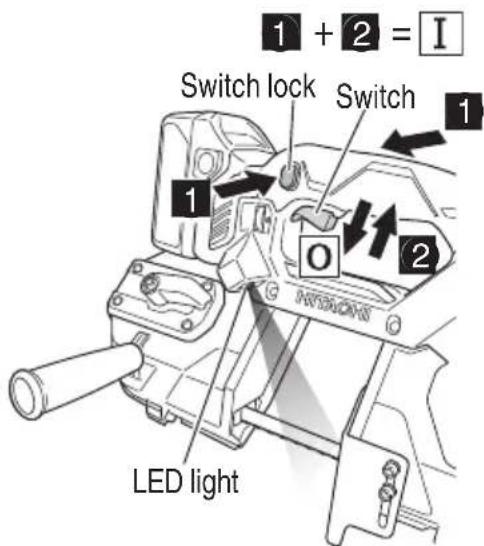

Drawing the switch while pressing the switch lock to either direction indicated by arrow will revolve the band saw blade while lighting up the LED light. After the switch is activated and remains drawn, the band saw blade will continue revolving even if the Switch Lock is released. In addition, the LED light will remain lit. When you release the switch, the revolution of the band saw blade will stop and the LED light will automatically be extinguished in approximately 15 seconds. CAUTION Do not lock directly into the light from the LED lamp. Continuous and direct exposure to the light from the LED lamp can injure your eyes. Switch Switch lock LED light

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

To save the battery power consumption, the remaining battery indicator lamp lights while pressing the remaining battery indicator switch.

Unless the power is switched on after installing the battery to the unit, remaining battery indicator lamp will not light up when the remaining battery indicator switch is pressed.

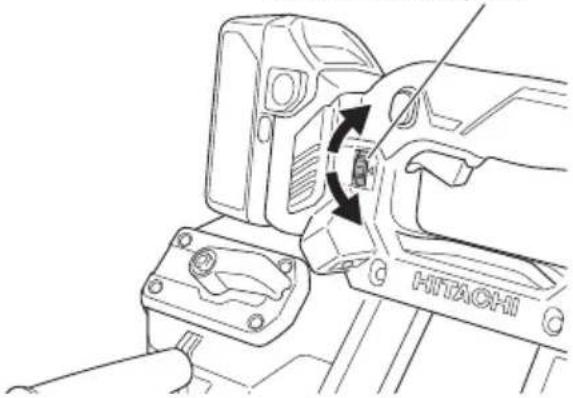

8. Adjusting operating speed (Fig. 11)

CAUTION Use the band saw blade circumferential speed setting dial to select the circumferential speed best suited for the workpiece. Using a band saw blade circumferential speed unsuited to cut a workpiece will not only negatively aff ect cutting precision, but can also cause damage to the band saw blade. This unit is equipped with an electronic control circuit that allows the circumferential speed of the band saw blade to be freely adjusted. Prior to operation, use the band saw blade circumferential speed setting dial to set a mode that suits the properties, thickness and task conditions of the workpiece being cut.

In Standard Mode, the circumferential speed or the band saw blade can be freely set from 1 to 5 on the dial. On the dial, 1 is the lowest speed and 5 is the highest speed. In Standard Mode, the circumferential speed that is set with the dial is maintained even when the load changes.

In AUTO Mode (“A” on the dial), noise can be reduced and the duration of operation can be extended by lowing the circumferential speed when there is no load. In AUTO Mode, if a load is applied during operation, the circumferential speed is automatically increased. (Equivalent of 5 on the dial) Additionally, if the load becomes lighter after cutting is completed, the circumferential speed is automatically decreased, reducing power consumption when there is no load. NOTE

Using a soft cloth, wipe off any foreign matter that has adhered to the lens of the LED light, being careful not to scratch the lens. Scratches on the LED light may reduce the brightness of the light.

When cleaning the lens of the LED light, do not wipe with gasoline, paint thinner, etc. Doing so will damage the lens.

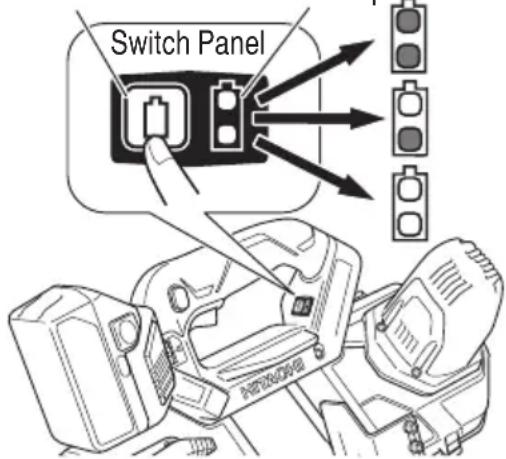

7. About remaining battery indicator

When pressing the remaining battery indicator switch, the remaining battery indicator lamp lights and the battery remaining power can be checked. (Fig. 10) When releasing your fi nger from the remaining battery indicator switch, the remaining battery indicator lamp goes off . The Table 5 shows the state of remaining battery indicator lamp and the battery remaining power. Table 5 State of lamp Battery Remaining Power The battery remaining power is enough. The battery remaining power is a half. The battery remaining power is nearly empty. Re-charge the battery soonest possible. As the remaining battery indicator shows somewhat diff erently depending on ambient temperature and battery characteristics, read it as a reference. Switch Panel Remaining battery indicator switch Remaining battery indicator lamp Fig. 10 000BookCB18DBLUS.indb16000BookCB18DBLUS.indb16 2016/11/1716:50:022016/11/1716:50:0217 English Dial for setting band saw blade circumferential speed Fig. 11 Table 6 Operating Speed Mode Dial Band saw blade circumferential speed (guideline) Uses Standard Mode 1 Low Speed 260 SFPM (80 m/min) Diffi cult-to-cut materials such as stainless steel and alloys Steel materials (Thick materials including cylindrical rods, I-beams, and steel pipe) (Thickness of 0.14" (3.5mm) or greater) Steel materials (Thin materials including steel pipe) (Thickness of under 0.14" (3.5mm)) 2 358 SFPM (109 m/min) 3 453 SFPM (138 m/min) 4 545 SFPM (166 m/min) 5 High Speed 640SFPM (195 m/min) AUTO Mode* A 395 SFPM (120 m/min) (Without load) Idle operation 640SFPM (195 m/min) (With load) Cutting operation

• Circumferential speeds may vary from those stated above depending on operating conditions. Table 7 Band saw blade selection chart (use the band saw blade indicated with a

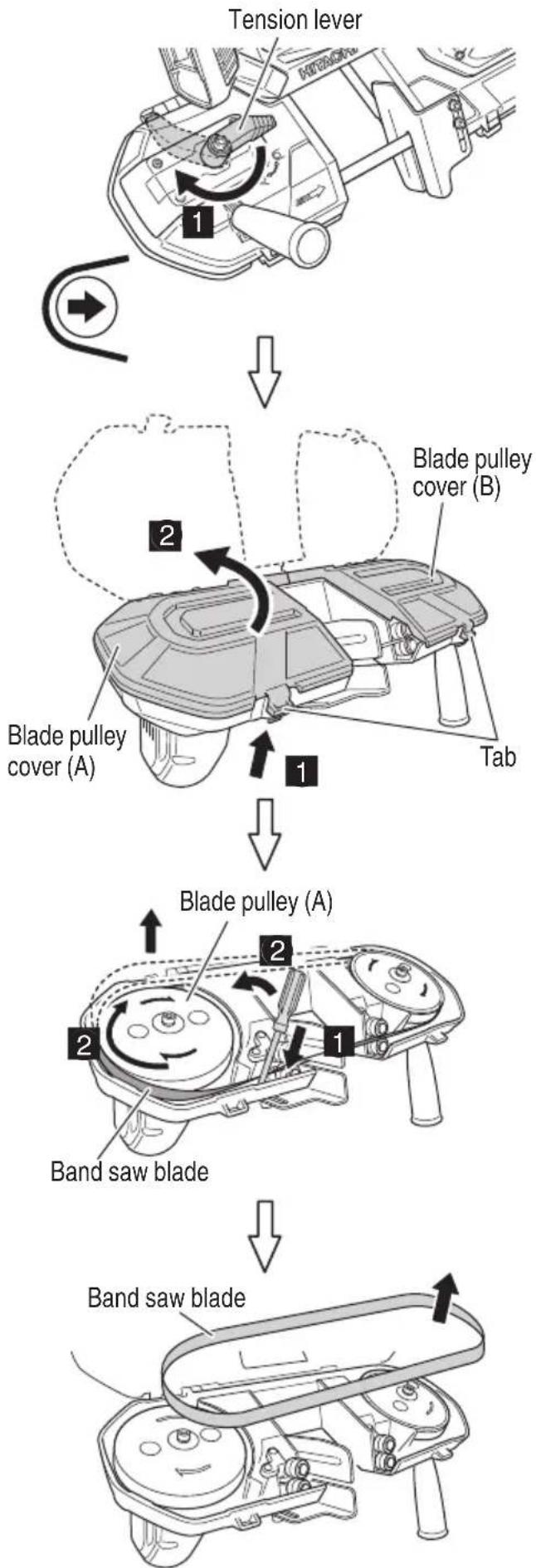

10. Replacing the band saw blade

When replacing the band saw blade, be sure to switch off the power and remove the battery from the cordless tool.

9. Band saw blade selection

Use a band saw blade appropriate to the workpiece. Using a band saw blade unsuited to cut a workpiece will not only negatively aff ect cutting precision, but can also cause damage to the band saw blade.

When selecting the number of teeth for a band saw blade, your standard choice should be a blade that exceeds the thickness of the workpiece by two or more teeth. Select a band saw blade based on the thickness of the workpiece being cut, using Table 7 as a guideline. 000BookCB18DBLUS.indb17000BookCB18DBLUS.indb17 2016/11/1716:50:022016/11/1716:50:0218 English

Use caution when changing or inspecting the band saw blade as it may sometimes spring out. CAUTION

Wear gloves when changing the band saw blade.

The band saw blade is hot immediately after operation. Remove it only after it has cooled. How to remove (Fig. 12) Loosen the tension lever in the direction indicated in the fi gure. Open the cover by pressing Blade pulley cover tabs (A) and (B). Like the fi gure on the right, insert a screwdriver between the side of the band saw blade and the frame. As you press the screwdriver against the side of the band saw blade, lean the screwdriver towards the revolving direction of the band saw blade. By slowly revolving the band saw blade, the blade will come loose from Blade pulley (A). Remove the band saw blade. Tension lever Blade pulley cover (A) Blade pulley cover (B) Tab Band saw blade Blade pulley (A) Band saw blade

Fig. 12 000BookCB18DBLUS.indb18000BookCB18DBLUS.indb18 2016/11/1716:50:022016/11/1716:50:0219 English How to install (Fig. 13) Being careful of the direction of revolution and the facing of the band saw blade (see fi gure), place the band saw blade in Guide roller (A) and (B), installing the band saw blade until it comes into contact with the Band saw blade back ball bearing support. Holding the band saw blade in place so it doesn’t come loose, seat the band saw blade in Blade pulley (B) and then (A), in this order. At this point, make sure that the blade of the band saw blade is not protruding from the edges of Blade pulley (A) and that the band saw blade is not riding on the collar portion of Blade pulley (B). Holding the band saw blade in place, turn the Tension lever in the direction for tightening and secure the band saw blade. At this point, rotate Blade pulley (A) in the revolving direction with your hands and make sure the band saw blade does not come loose. Close Blade Pulley Cover (A) and (B).

Minimize warm-up cutting with the band saw blade. Warm-up cutting shortens the lifespan of the band saw blade.

Verify that there are no nicks, cracks, or other abnormalities on the band saw blade before installing it.

Wipe off any oil or grime adhering to the band saw blade before installing it on the blade pulleys. Additionally, wipe off any shavings or grime adhering to the blade pulley rubbers. If a band saw blade that has oil or grime adhering to it is installed on the blade pulleys, the band saw blade may slip or come loose.

When installing the band saw blade, do not twist or bend its joint. Doing so may damage the band saw blade. CAUTION: on lithium-ion battery To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading. CAUTION

When switching on the tool, make sure the band saw blade is not in contact with the workpiece. Failure to do so may result in injury.

For cutting effi ciency, switch the band saw blade speed according to operating conditions and workpiece to be cut.

Do not apply any unnecessary pressure when operating the tool. Doing so may damage the band saw blade.

After use, be sure not to place the tool near chips before it comes to a full stop as the tool may suck in those particles. CUTTING OPERATION WARNING

Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

During operation, do not place your face or hands near the application tool of the unit.

Select a band saw blade (the band saw blade’s teeth/ inch) and a band saw blade operating speed that is suitable for properties and thickness of the workpiece to be cut. 000BookCB18DBLUS.indb19000BookCB18DBLUS.indb19 2016/11/1716:50:032016/11/1716:50:0320 English

When using a new band saw blade, be sure to set the band saw blade operating speed setting dial to “1” and perform 1–2 warm-up cuts with a light cutting load (while pulling slightly upward on the product) on an object with an outer diameter of 3/4" or less such as cylindrical rod (carbon steel). Failure to perform warm-up cuts may result in nicks on the blade edge and decreased cutting precision.

Do not cut thermoplastic material. It can melt from cutting friction heat which can result in the band saw blade becoming wedged in the material, causing the motor to lock up.

Do not cut hard materials such as hardened steel.

If there is a gap between the guide plate and the workpiece, the piece may erratically shift position and cause breakage to the band saw blade.

Do not apply excessive loads to the band saw blade.

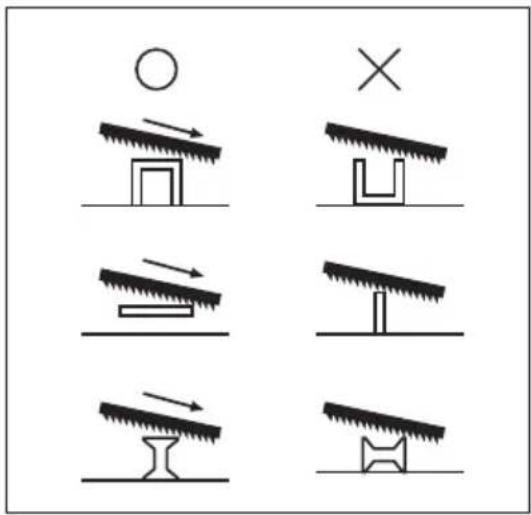

When the workpiece is thin (0.08" thick or less), cut with the piece slightly raised up.

About continuous operation This tool is equipped with a temperature protection circuit for safeguarding the motor as well as the electronic motor drive control components. If the tool is operated continuously, the temperature of the unit may rise and activate the temperature protection circuit, automatically stopping operation. If this happens, allow the machine to suffi ciently cool. Once the temperature has decreased, the tool is ready to be used again. In the event the storage battery is changed during continuous operation, allow the cordless tool to rest for about 15 minutes before resuming use. If operation is resumed soon after the battery is changed, the temperatures of the motor, switch, etc. will become high and may result in malfunction or damage.

About holding the unit and applying force Hold the tool securely with both hands. When holding the unit, make sure the band saw blade is perpendicular to the workpiece. Additionally, there is no need to push the unit with any excessive force. Be aware that applying any excessive prying or pressing force to the tool may result in the unit’s malfunction or damage. For stable cut, always keep at least two teeth in the cut. Select the proper cutting position for your workpiece by referring to the fi gure.

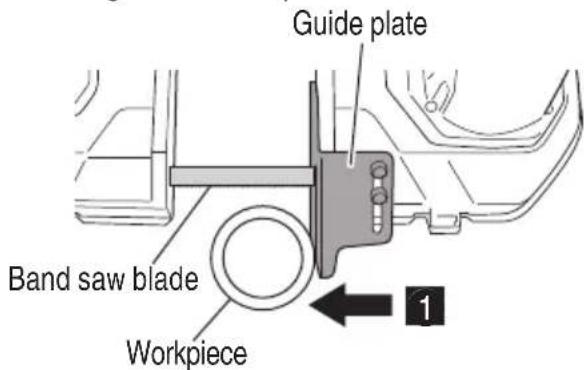

1. Press the workpiece against the guide plate (Fig. 14)

Press the workpiece against the guide plate in a position where there is no contact with the band saw blade.

2. Press the switch and cut (Fig. 14)

When the revolutions are stable, avoid any sudden impact to the band saw and gently bring the band saw to the workpiece to cut. When completing a cut, hold the tool fi rmly, so it will not fall against the workpiece. Guide plate Workpiece Band saw blade

Be sure to tunred off the switch and pull out the battery. Be sure to wear gloves when handling the band saw blade.

1. Replacing the band saw blade (Fig. 12, 13)

If the band saw blade becomes dull, it can result in overburdening the motor and the various parts of the tool as well as decrease effi ciency. Do not delay in replacing the band saw blade.

2. Blade pulley rubbers inspection (Fig. 15)

The blade pulley rubbers are installed on the outer circumferences of the blade pulleys (2 places). (Fitted type) When replacing the band saw blade, inspect the blade pulley rubbers for sagging or damage. If there is sagging or damage, request a replacement from Hitachi Authorized Service Center, as it may result in the band saw blade running unstable or coming loose. NOTE Periodically remove any shavings, etc. that has adhered to the blade pulley rubbers. Failure to do so may result in slippage of the band saw blade and/or injury. Blade pulley Blade pulley rubber Fig. 15

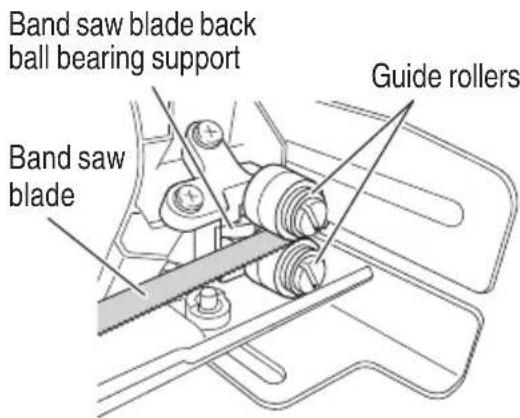

3. Inspection of band saw blade back ball bearing

supports (Fig. 16) Periodically inspect the band saw blade back ball bearing supports inside the bearing holders for wear. If the band saw blade back ball bearing supports are worn, there will be excessive force on the band saw blade that could result in damage to the band saw blade. If the band saw blade back ball bearing supports are worn, arrange for replacements from Hitachi Authorized Service Center. Band saw blade back ball bearing support Band saw blade Guide rollers Fig. 16

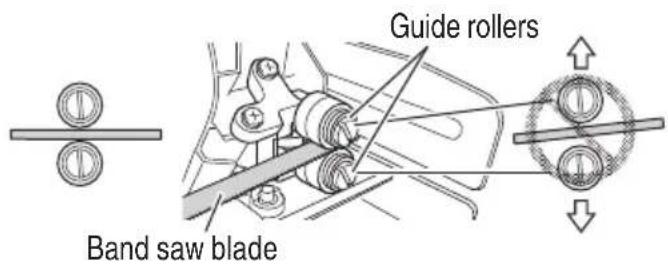

4. Inspection of band saw blade guide rollers and

adjustment of gaps (Fig. 17) After continued use of the unit, the gaps between the band saw blade guide rollers may become wider. If the gaps become wider, the band saw blade may till, resulting in reduced cutting precision. Periodically inspect whether the gaps between the band saw blade guide rollers are appropriate (bearings are lightly touching the band saw blade), and make any adjustments if necessary. Additionally, if the band saw blade guide rollers are damaged, arrange for replacements from Hitachi Authorized Service Center.

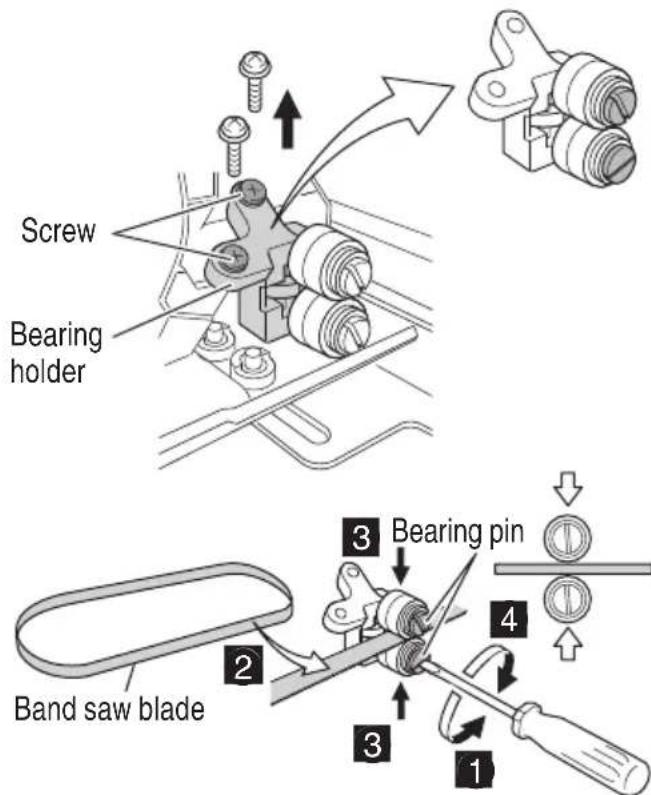

Open the blade pulley cover and remove the band saw blade. (See Fig. 12 for band saw blade removal)

Use a Phillips head screwdriver to loosen the screws and remove the bearing holders (A) and (B) from the unit.

Use a fl athead screwdriver to loosen the bearing pins. Place the band saw blade between the guide rollers and tighten the bearing pins, adjusting as necessary to make sure that the blade is lightly in contact with the supports.

Place bearing holders (A) and (B) back into the unit and install the band saw blade. (See Fig.13 for band saw blade installation) 000BookCB18DBLUS.indb21000BookCB18DBLUS.indb21 2016/11/1716:50:032016/11/1716:50:0322 English Band saw blade Guide rollers Band saw blade Blade pulley cover Bearing holder (B) Bearing holder (A) Screw Bearing holder Bearing pin Band saw blade

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION Using this power tool with loosened, screws is extremely dangerous.

6. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

8. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it´s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children. NOTE Make sure that the battery is fully charged when stored for a long period (3 months or more). The battery with smaller capacity may not be able to be charged when used, if stored for a long period. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

10. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY. 000BookCB18DBLUS.indb22000BookCB18DBLUS.indb22 2016/11/1716:50:032016/11/1716:50:0323 English

11. Service parts list

CAUTION Repair, modifi cation and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS Hitachi Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. Important notice on the batteries for the Hitachi cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). 000BookCB18DBLUS.indb23000BookCB18DBLUS.indb23 2016/11/1716:50:032016/11/1716:50:0324 English ACCESSORIES WARNING ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the HITACHI. STANDARD ACCESSORIES CB18DBL (NN)

Hex. Bar Wrench (Code No. 944458) .......................................................................1 Battery, battery charger, plastic case and battery cover are not contained. OPTIONAL ACCESSORIES (sold separately)

1. Battery 2. Battery Charger

Bi-Metal 18 TPI (3 pcs/pack) Code No. 338431 14 TPI (3 pcs/pack) Code No. 338430 NOTE Specifi cations are subject to change without any obligation on the part of the HITACHI. 000BookCB18DBLUS.indb24000BookCB18DBLUS.indb24 2016/11/1716:50:032016/11/1716:50:0325 English TROUBLE SHOOTING Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the Hitachi Authorized Service Center. Symptom Possible cause Remedy The unit does not run/is stopped The battery capacity is depleted Charge the storage battery. The unit has stopped suddenly The unit is overloaded Get rid of the cause of the large load. The storage battery is overheated Allow the storage battery to cool suffi ciently. The band saw blade has come loose There is oil or grime adhering to the band saw blade or workpiece Wipe off oil or grime that is adhering to the band saw blade or workpiece. The band saw blade is not installed correctly Install the band saw blade correctly. (See “Replacing the band saw blade”) The band saw blade is becoming bound in the workpiece A band saw blade appropriate for the workpiece is not being used Select the correct band saw blade. (See “Band saw blade selection”) A band saw blade operating speed appropriate for the workpiece is not being used Select the correct band saw blade operating speed. (See “Adjusting operating speed”) Cutting precision is poor The band saw blade is worn away Replace the band saw blade with a new one. A band saw blade appropriate for the workpiece is not being used Select the correct band saw blade. (See “Band saw blade selection”) A band saw blade operating speed appropriate for the workpiece is not being used Select the correct band saw blade operating speed. (See “Adjusting operating speed”) The band saw blade is not installed correctly Install the band saw blade correctly. (See “Replacing the band saw blade”) The gaps between the band saw blade ball bearing supports have become wide Correctly adjust the gaps. (See “Inspection of band saw blade guide rollers and adjustment of gaps”) A band saw blade that is not authorized by the manufacturer is being used Use a band saw blade that is authorized by the manufacturer. Suffi cient warm-up cuts have not been performed With the band saw blade operating speed setting dial set to “1”, perform 1 or 2 warm- up cuts with a light cutting load such as a cylindrical rod (carbon steel, etc.) with an outer diameter of 3/4" or less. 000BookCB18DBLUS.indb25000BookCB18DBLUS.indb25 2016/11/1716:50:032016/11/1716:50:0326 English Symptom Possible cause Remedy Cutting takes a long time The band saw blade is facing the wrong direction Direction of rotation Install the band saw blade correctly. (See “Replacing the band saw blade”) Direction of rotation A band saw blade appropriate for the workpiece is not being used Select the correct band saw blade. (See “Band saw blade selection”) The band saw blade operating speed is not appropriate for the workpiece Select the correct band saw blade operating speed. (See “Adjusting operating speed”) The band saw blade is worn away Replace the band saw blade. The remaining battery supply is low Charge the storage battery. There are large vibrations during cutting The band saw blade edge is chipped Replace the band saw blade. A band saw blade appropriate for the workpiece is not being used Select the correct band saw blade. (See “Band saw blade selection”) The band saw blade operating speed is not appropriate for the workpiece Select the correct band saw blade operating speed. (See “Adjusting operating speed”) The blade edge frequently becomes chipped The unit is being pressed too hard during cutting Cut using the unit’s own weight or while pressing gently. The band saw blade has impacted against the workpiece Bring the band saw blade near the workpiece slowly and gently begin cutting. The workpiece has moved during cutting Fasten the workpiece fi rmly with a vice, etc. A band saw blade appropriate for the workpiece is not being used Select the correct band saw blade. (See “Band saw blade selection”) The band saw blade operating speed is not appropriate for the workpiece Select the correct band saw blade operating speed. (See “Adjusting operating speed”) 000BookCB18DBLUS.indb26000BookCB18DBLUS.indb26 2016/11/1716:50:032016/11/1716:50:0327 Français

49 BEARING HOLDER (B) ASS'Y 1

61 BEARING HOLDER (A) ASS'Y 1

Code No. C99713061 G Printed in China Issued by Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan Distributed by PO Box 970 Braselton, GA 30517 450 Export Blvd. Unit B, Mississauga ON L5S 2A4 000BookCB18DBLUS.indb80000BookCB18DBLUS.indb80 2016/11/1716:50:122016/11/1716:50:12
