Brand	Exquisit
Model	EKC 801-5Z
Product type	Built-in hob
Power supply	230 V~ 50/60 Hz (single-phase) or 400 V~ 50/60 Hz (two-phase)
Total power	7000 W
Number of cooking zones	4
Front left cooking zone	215 mm, 2200 W
Rear left cooking zone	150 mm, 1200 W
Rear right cooking zone	190 mm, 1800 W
Front right cooking zone	190 mm, 1800 W
Glass dimensions	780 x 520 mm
Cut-out dimensions	750 x 490 mm
Minimum distance to wall	50 mm
Minimum distance to hood	760 mm
Control type	Touch controls
Special functions	Automatic cooking, control panel lock, dual concentric zone, residual heat indicator
Display	Levels 1-9, symbols H (heat), A (automatic), L (lock), E (error)
Surface material	Ceramic glass
Maintenance	Clean with water and dish soap or special ceramic glass cleaner. Avoid abrasives.
Safety	Automatic shut-off in case of forgetfulness, child lock, glass breakage detection
Protection class	Y
Energy consumption of the hob (EC_hob)	177.9 Wh/kg
Weight	Approx. 12 kg

Frequently Asked Questions - EKC 801-5Z Exquisit

What should I do if the hob or cooking zones do not turn on?

First check that the hob is properly connected to the power supply and that the protective fuse has not blown. Make sure the touch controls are clean and not covered with water, grease, or objects.

What does the symbol 'E' displayed on the hob mean?

The symbol E indicates a fault in the electronic circuit. Please contact after-sales service.

How do I lock the control panel?

To lock, turn on the hob by pressing [O] for 2 seconds, then simultaneously press the [-] and [+] keys of the front left zone. The display shows 4x [L]. To unlock, repeat the operation within 5 seconds after switching on.

How do I use the dual concentric zone?

Select the front right zone, then press [◎] to activate or deactivate the outer zone. The indicator lights up when the double zone is active.

What should I do if the symbol 'Er03' appears?

An object or liquid is covering the control keys. Clean or remove the object; the symbol disappears automatically.

What type of pots should be used on this ceramic glass hob?

Use pots with a flat and smooth base, preferably stainless steel, enameled or enameled cast iron. Avoid raw bases (non-enameled cast iron) or damaged ones that could scratch the glass.

How do I clean the ceramic glass hob?

Let the hob cool down, then clean with a damp cloth with dish soap or a special ceramic glass cleaner. Never use abrasive pads or steam cleaners.

What does the symbol 'H' on the display mean?

H means residual heat. The cooking zone is still hot. Do not touch or place sensitive objects. The symbol turns off when the zone can be safely touched.

How do I use the automatic cooking function?

Select the zone, press [+] to go up to 9, then press [+] again to activate automatic cooking (A flashes). Choose the desired level with [-]. The zone heats at full power then reduces automatically.

What should I do if the symbol 'Er21' appears?

Er21 indicates overheating of the hob. Let it cool completely, then switch it on again. If the problem persists, contact after-sales service.

USER MANUAL EKC 801-5Z Exquisit

Instructions for use and installation

Symbol of a trash bin crossed with no text or labels

MONTAGEHINWEISE

USING THE APPLIANCE 16

PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 17

PRECAUTIONS IN CASE OF APPLIANCE FAILURE....18

OTHER PROTECTIONS 18

DESCRIPTION OF THE APPLIANCE....19

TECHNICAL CHARACTERISTICS....19

CONTROL PANEL 19

USE OF THE APPLIANCE....20

DISPLAY 20

STARTING-UP AND APPLIANCE MANAGEMENT 20

BEFORE THE FIRST USE....20

SENSITIVE TOUCH....20

STARTING-UP 20

RESIDUAL HEAT INDICATION....20

AUTOMATIC COOKING 21

CONTROL PANEL LOCKING....21

DOUBLE CONCENTRIC ZONE 21

COOKING ADVICES....22

EXAMPLES OF COOKING POWER SETTING....22

MAINTENANCE AND CLEANING 22

WHAT TO DO IN CASE OF A PROBLEM....22

ENVIRONMENT PRESERVATION 23

INSTALLATION INSTRUCTIONS....24

ELECTRICAL CONNECTION 25

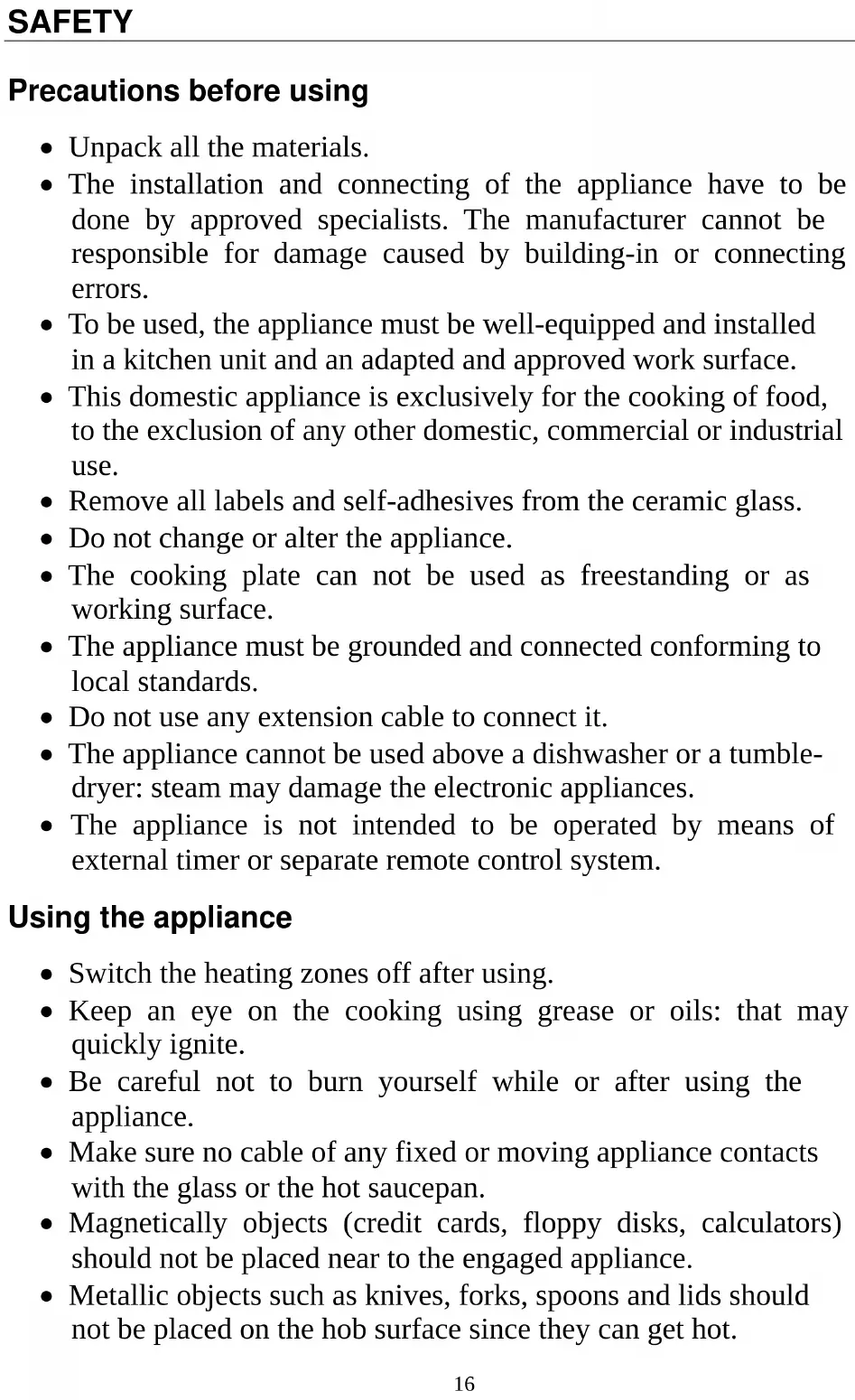

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.

- Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.

- Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

- In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

- Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

- Raw pan bottoms or damaged saucepans (not enamelled cast iron pots.) may damage the ceramic glass.

- Sand or other abrasive materials may damage ceramic glass.

- Avoid dropping objects, even little ones, on the vitroceramic.

- Do not hit the edges of the glass with saucepans.

- Make sure that the ventilation of the appliance works according to the manufacturer's instructions.

- Do not put or leave empty saucepans on the vitroceramic hobs.

- Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously

- WARNING: Danger of fire: do not store items on the cooking surface.

- Never place any hot container over the control panel.

- If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.

- Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

- If a defect is noticed, switch off the appliance and turn off the electrical supplying.

- If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.

- Repairing has to be done by specialists. Do not open the appliance by yourself.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

- Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.

- For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.

- Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical characteristics

Type	EKC801-5Z
Total power	7000 W
Energy consumption for the hob EC _hob *	177.9 Wh/kg
Front left heating zone	∅ 215 mm
Nominal power	2200 W
Standardised cookware category*	C
Energy consumption EC _cw *	172.7Wh/kg
Rear left heating zone	∅ 150 mm
Nominal power	1200 W
Standardised cookware category*	A
Energy consumption EC _cw *	173.8 Wh/kg
Rear right heating zone	∅ 190 mm
Nominal power	1800 W
Standardised cookware category*	B
Energy consumption EC _cw *	191.3 Wh/kg
Front right heating zone	∅ 190 mm
Nominal power	1800 W
Standardised cookware category*	A
Energy consumption EC _cw *	173.8 Wh/kg

* calculated according to the method of measuring performance (EN 60350-2).

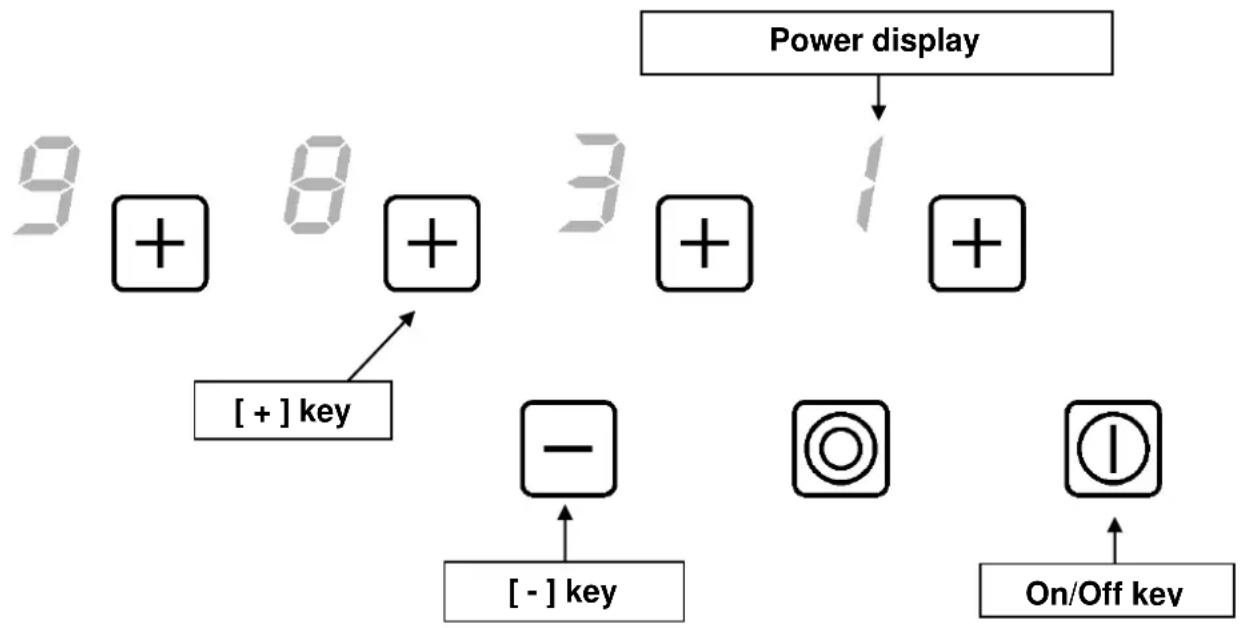

Control panel

Display

Display Designation Function

0 Zero The heating zone is activated.

1...9 Power level Selection of the cooking level.

A Heat accelerator Automatic cooking

E Error message Electronic failure.

H Residual heat The heating zone is hot.

L Locking Control panel locking.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

Starting-up

You must first switching on the hob, then the heating zone:

• Start-up/ switch off the hob:

Action	Control panel	Display
To start	Press key [ 1]	[0]
Touch the key	Press key [ 1]	Nothing or [H]

• Start-up/ switch off a heating zone:

Action	Control panel		Display
Zone selection	Press key [ + ]	[ 0 ]
Increase power	Press key [ + ]	[ 1 ] to [ 9 ]
Decrease power	Press key [ - ]	[ 9 ] to [ 1 ]
Stop	Press key [ - ]	[ 0 ] or [ H ]

If no action is made within 20 second the electronics returns in waiting position.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [H] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the pre-selected level.

• Switching on the automatic cooking:

Action	Control panel	Display
Zone selection	Press key [ + ]	[ 0 ]
Full power setting	Press key [ + ]	Pass from [ 1 ] to [ 9 ]
Automatic cooking	Re-press key [ + ]	[ 9 ] blinking with [ A ]
Power level selection	Press key [ - ]	[ 9 ] pass to [ 8 ] [ 7 ]
(for example « 7 »)		[ 7 ] blinking with [ A ]

• Switching off the automatic cooking:

Action	Control panel	Display
Zone selection	Press key [ + ]	[ 7 ] blinking with [ A ]
Power level selection	Press key [ - ]	[ 0 ]

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [①]).

• Locking:

Action	Control panel	Display
Start	Press [ ]	[0] or [H] 1
Hob locking	Press simultaneously [-] and [+] at front left	No modification
	Press key [+]	[L] on 4 displays

• Unlocking:

Action Start

Control panel Press key [ ]

Display 4 x [L] 1

In the 5 seconds after start:

Unlocking the hob and [ + ] at leftPress key [ - ]

Press simultaneously [ - ] [ 0 ] or [ H ]

Double concentric zone

• Switch off/on the extension zone:

Action	Control panel	Display
Zone selection	Press key [ + ]	[ 0 ]
Increase power	Press key [ + ]	[ 0 ] to [ 9 ]
Switch off	light is off	Touch key [ ⊙]	Extension zone
Switch on	light is on	Touch key [ ⊙]	Extension zone

Examples of cooking power setting

(the values below are indicative)

1 to 2	MeltingReheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3	SimmeringDefrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta,fresh vegetables
6 to 7	Medium cookingSimmering	Meat, lever, eggs, sausagesGoulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting, boiling water	Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-driven or pressure appliance.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up:

• The hob is badly connected on the electrical network.
  • The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
• An object is put on a key.

The control panel displays or [E]:

• Disconnect and replug the hob.
• Call the After-sales Service.

One or all cooking zone cut-off:

• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.

- The hob also has an automatic reduction of power level and breaking automatic overheating.

The automatic cooking system doesn't start-up:

• The cooking zone is still hot [H]
- The highest power level is set [9]

The control panel displays [L]:

• Refer to the chapter control panel locking page.

The control panel displays [Er03]:

- An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [ER21]:

- The hob is overheated, let it cool and then turnit on again.

The control panel displays [U400], [Er25] or [U4]:

- The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

Symbol of a trash bin crossed out by diagonal lines, representing waste or disposal (no text or labels)

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

2mm 2 3 5

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

• The cut out sizes are:

Glass-size	Cut-size
780 x 520 mm	750 x 490 mm

- Ensure that there is a distance of 50 mm between the hob and the wall or sides.

- The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.

- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.

- The mural rods of edge must be heat-resisting.

- Not to install the hob to the top of a not ventilated oven or a dishwasher.

- To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device.

- If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.

- Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.

- The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.

- The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 × 2,5 mm^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz	2 Phases + N	4 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A *

* calculated with the simultaneous factor following the standard EN 60 335-2-6

①②③④ L N 1P+N

① L1 ② L2 ③ N ④ ⊥ 2P+N

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphase 400V\~2P+N

Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Frequent loosening and screwing of the screws on the connection box risks damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum.

Ensure that the cables are correctly inserted and tightly screwed down.

4 weeks after installation, be sure to tighten again the screws in the terminal block.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

Chère cliente, cher client,

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)
