NT50GSQ9 - Stapler METABO - Free user manual and instructions

Product type	Gas finishing nailer
Brand	Metabo
Model	NT50GSQ9
Power source	Fuel cell (type 728-981) + Li-ion battery 3.6 V (EBM315)
Dimensions	270 × 281 × 85 mm (L × H × D)
Weight	1.7 kg (without battery or fuel cell)
Magazine capacity	100 nails per strip
Nailing speed	Intermittent: 2 nails/s; Continuous: 1,000 nails/h

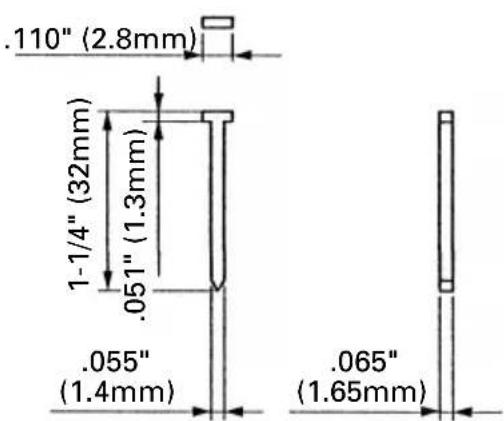

Nail type	18 GA finishing nails (refer to manual for exact dimensions)
Battery	Lithium-ion 3.6 V, 1.5 Ah (model EBM315)
Charger	Model UC3SML, input 12 V DC
Applications	Finishing nailing (doors, windows, trims, furniture, etc.)
Safety mechanism	Full sequential trigger, dry-fire prevention, automatic stop
Maintenance	Regular cleaning of magazine and feeding mechanism; lubrication with Hitachi special oil
Spare parts	Fuel cell (728-981), battery (EBM315), charger (UC3SML), nose cap, etc.
Operating temperature	0 °C to 40 °C

Frequently Asked Questions - NT50GSQ9 METABO

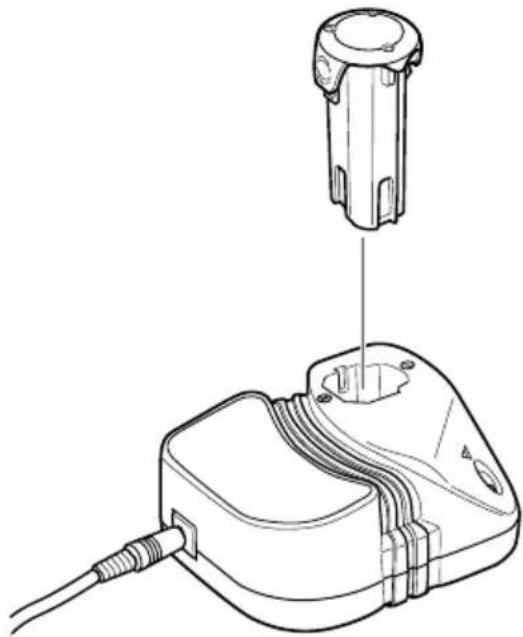

How to charge the battery of the Metabo NT50GSQ9 nailer?

Use the UC3SML charger. Plug it into a 12 V DC socket (cigarette lighter or mains adapter). Insert the EBM315 battery. Charging takes about 60 minutes. Do not charge at temperatures below 10°C or above 40°C.

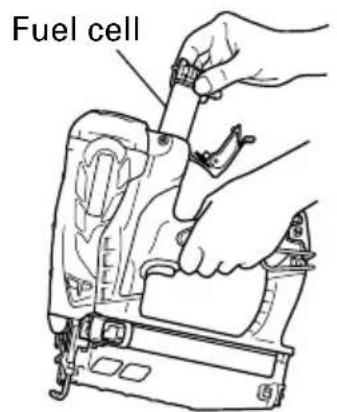

How to install the fuel cell in the nailer?

Lift the actuator, insert the fuel cell (type 728-981) aligning the base with the adapter, then lower the actuator. Make sure the metering nozzle is properly attached.

What to do if nails jam in the nailer?

Remove the fuel cell and battery. Open the guide plate after releasing the lock lever. Remove the jammed nail with a screwdriver. Close the plate. If the problem persists, contact an authorized Hitachi service center.

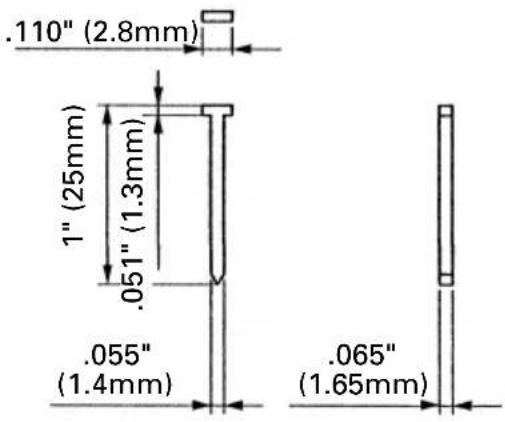

What types of nails to use with the NT50GSQ9?

Use only genuine Hitachi finishing nails, 18 gauge. The dimensions must match those indicated in the manual (e.g., length from 1 1/4" to 2 1/2"). Using non-recommended nails may damage the tool.

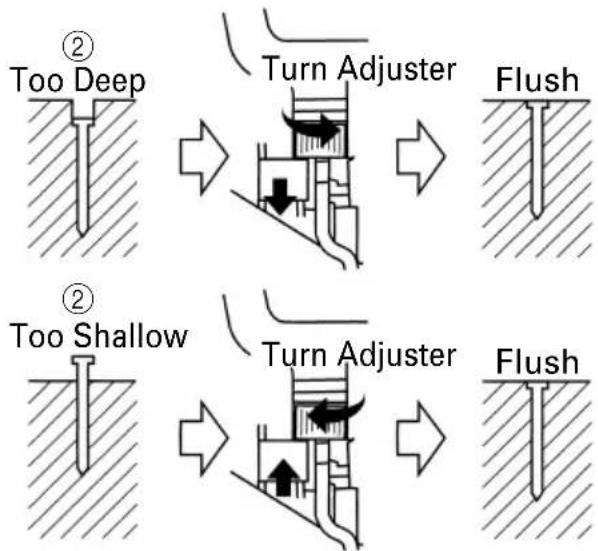

How to adjust the nailing depth?

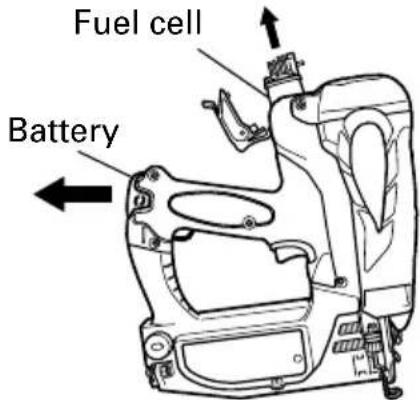

Remove the battery and fuel cell. Turn the adjuster: in the "deep" direction for deeper driving, in the "shallow" direction for less. Test and adjust by half turns. Reinsert the batteries before testing.

The nailer does not drive nails, what to check?

Check that the battery is charged (green light). Check the fuel cell (press the nozzle to test gas). Make sure the magazine has nails and the feeder is working. Clean the magazine and mechanism.

How to maintain the Metabo NT50GSQ9 nailer?

Regularly clean the magazine and feeding mechanism with compressed air. Lubricate with Hitachi special oil. Check that all screws are tight. Store the tool in a dry place, below 50°C, with batteries removed.

Can I use the nailer indoors?

Yes, but in a well-ventilated area because it produces carbon monoxide. Do not use it in enclosed spaces without ventilation. Avoid areas with flammable liquids or gases.

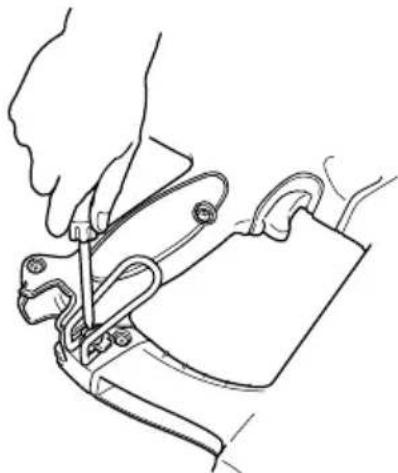

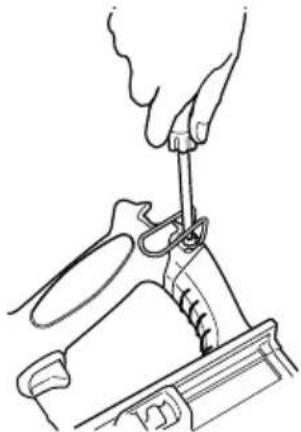

How to install the suspension hook?

Remove the screw from the desired side with a screwdriver or a coin. Remove the hook and plate, then attach them on the other side by tightening the screw well. Make sure the hook is firmly attached.

What to do if the battery indicator flashes red?

The battery is low. Recharge it with the UC3SML charger. If it does not recharge, check the charger and connections. If the problem persists, replace the battery.

USER MANUAL NT50GSQ9 METABO

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

NT65GS NT65GA NT65GB NT50GS

⚠️ DANGER

Improper use of this Nailer can result in death or serious injury!

This Manual contains important information about product safety.

Read and understand this Manual before operating the Nailer.

Never allow anyone who has not reviewed this manual.

DANGER

ADJUSTING THE NAILING DEPTH 28

USING THE HOOK 28

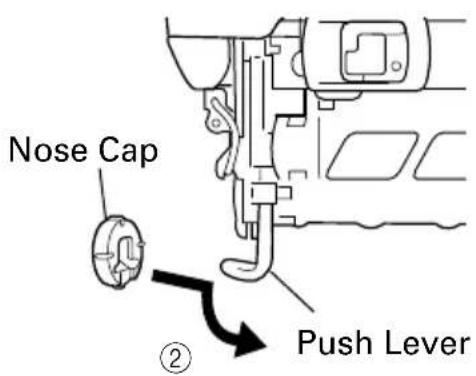

USING THE NOSE CAP 29

CLEARING A JAM 29

MAINTENANCE

MAINTENANCE AND INSPECTION 31

SERVICE AND REPAIRS 32

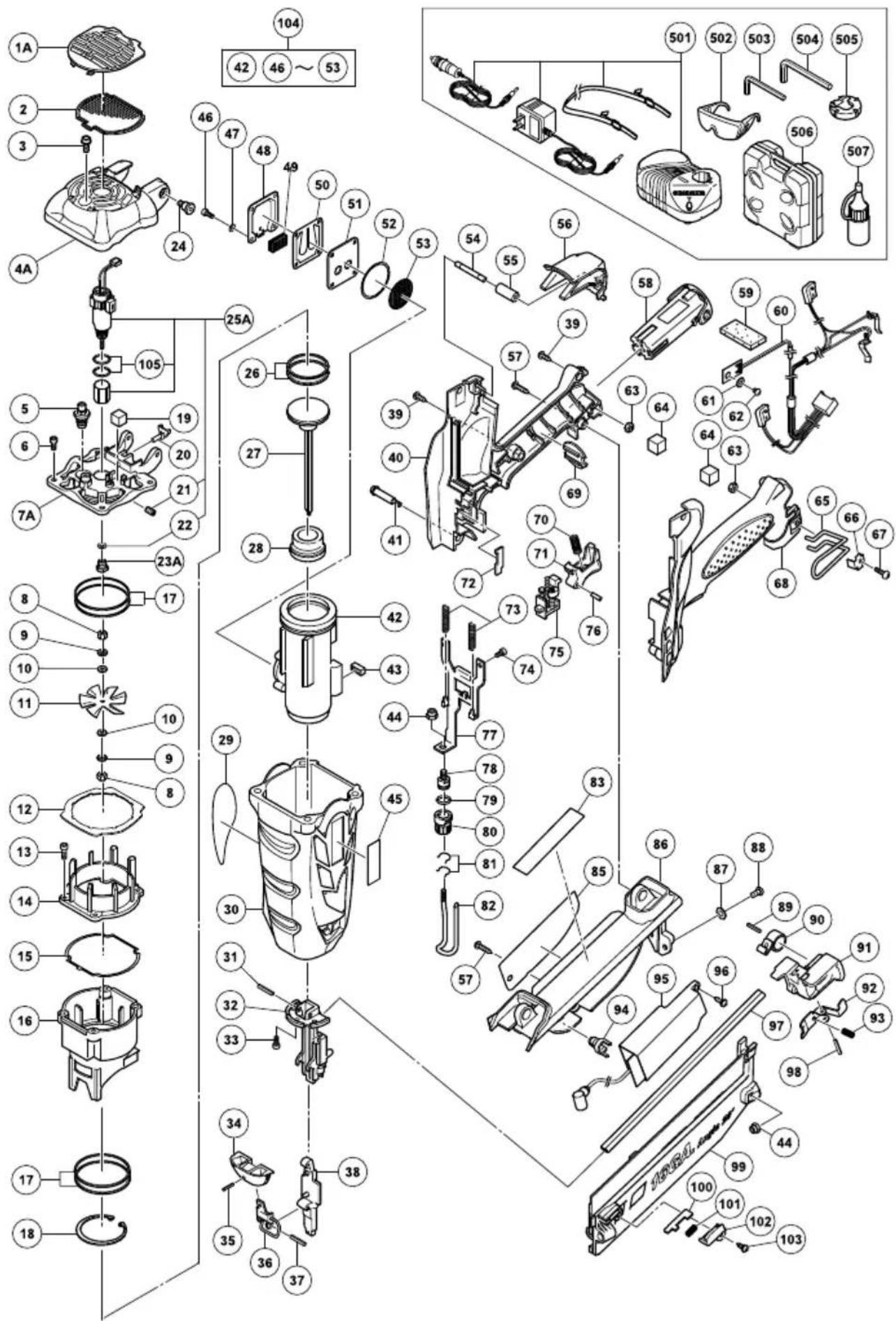

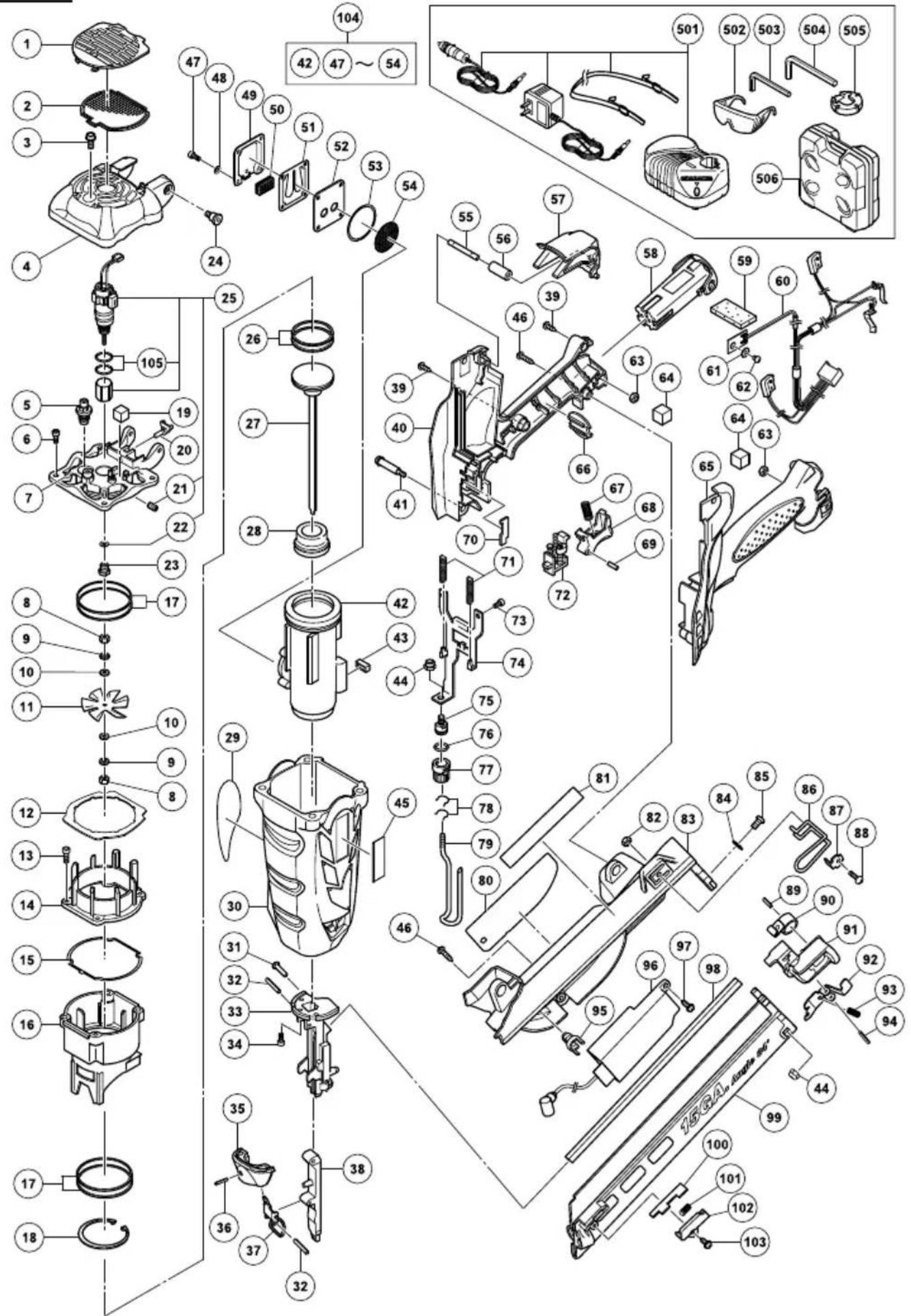

PARTS LIST 104

TABLE DE MATIERES

Français

Page

INFORMATION IMPORTANTE 35

DEFINITION DES MOTS DE SIGNALISATION .... 35

EXPLICATION DE L'ACTION DE CLOUAGE DU CLOUEUR HITACHI .... 35

SECURITE

CONSIGNES DE SECURITE IMPORTANTES POUR L'UTILISATION DU CLOUEUR .... 36

CONSIGNES DE SÉCURITÉ IMPORTANTES À L'ÉGARD DE LA PILE À COMBUSTIBLE 41

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE..... 42

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE ..... 43

PRÉCAUTIONS À RESPECTER LORS DE L'UTILISATION DU CHARGEUR DE BATTERIE AVEC UNE SOURCE D'ALIMENTATION 12 V CC EMBARQUÉE .... 44

MISE AU REBUT D'UNE BATTERIE USÉE .. 44

RESPONSABILITES DE L'EMPLOYEUR ..... 44

UTILISATION

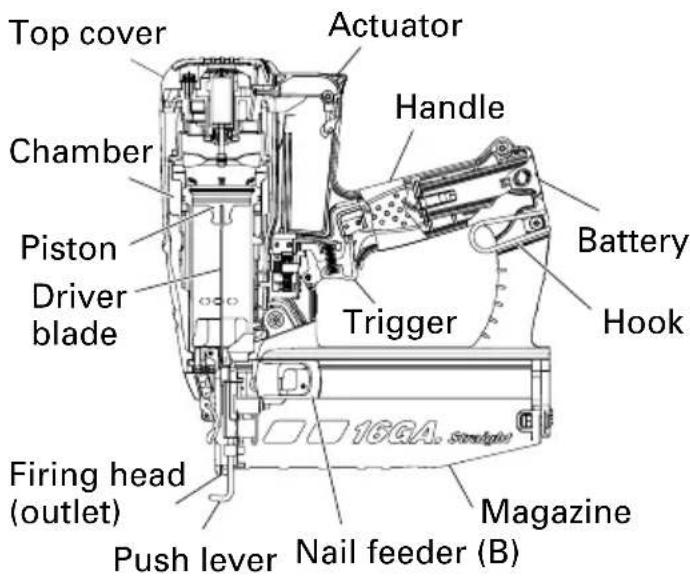

NOM DES PIÈCES 46

SPECIFICATIONS 48

Page

SELECTION DES CLOUS 49

ACCESSOIRES 51

ACCESSOIRES STANDARD 51

ACCESSOIRES EN OPTION 51

APPLICATIONS 51

MÉTHODE DE RECHARGE 51

AVANT L'UTILISATION .... 54 ENVIRONNEMENT DE TRAVAIL .... 54

ENTRETIEN PAR TEMPS FROID .... 54

PRÉPARATION DE LA PILE À COMBUSTIBLE 54

PRÉPARATION DE LA PILE 55

ESSAI DU CLOUEUR 55

CHARGEMENT DES CLOUS 58

UTILISATION DU CLOUEUR 60

MÉTHODES D'UTILISATION 61

RÉGLAGE DE LA PROFONDEUR DE CLOUAGE 61

EMPLOI DU CROCHET 62

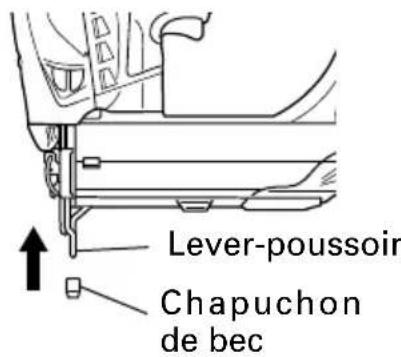

UTILISATION DU CAPUCHON DE BEC ..... 63

ÉLIMINATION D'UN BLOCAGE 63

ENTRETIEN

ENTRETIEN ET INSPECTION 65

ENTRETIEN ET REPARATIONS 67

LISTE DES PIECES 104

ÍNDICE

Español

Página

Silhouette of a person reading a book (no text or symbols)

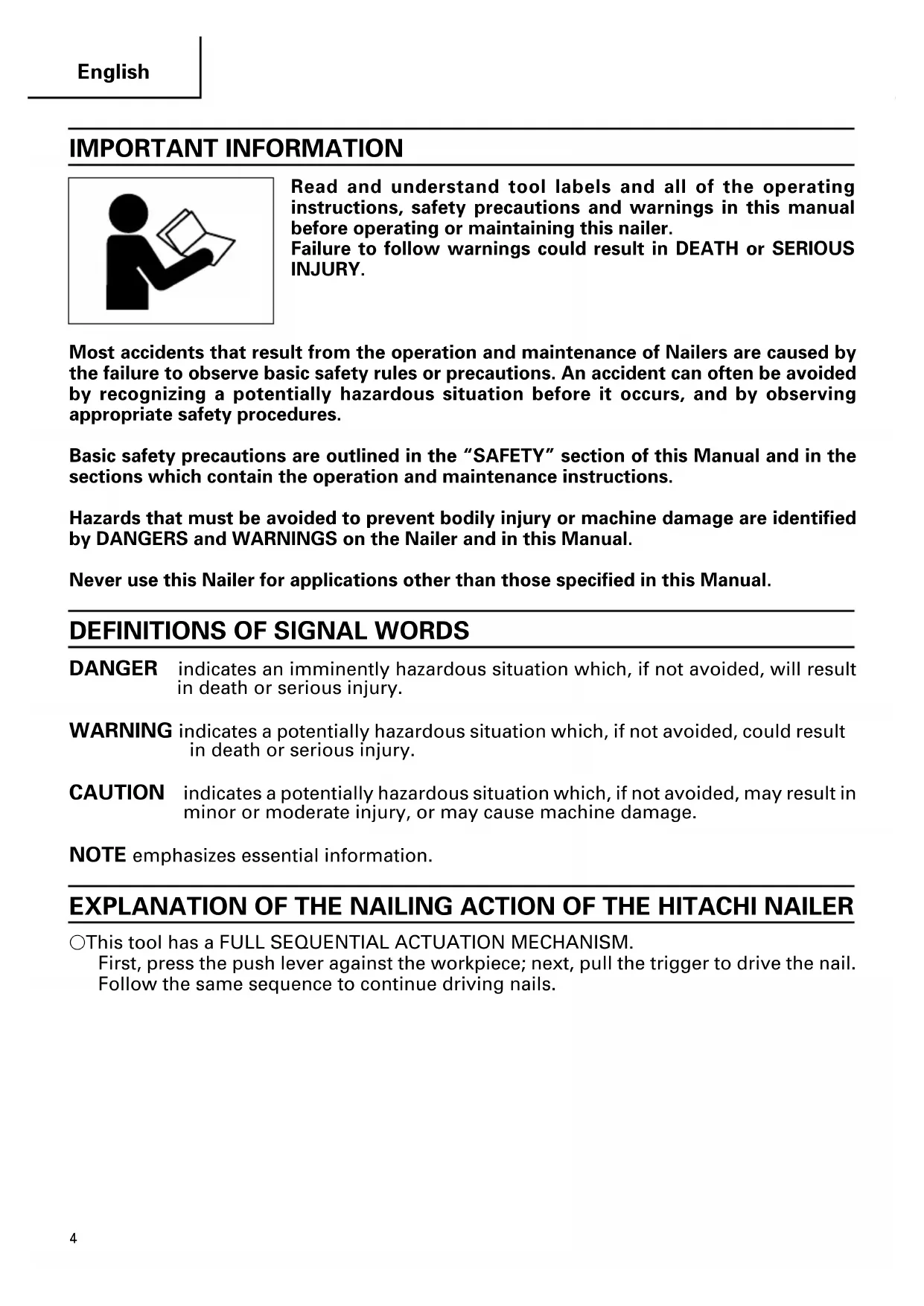

Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this nailer.

Failure to follow warnings could result in DEATH or SERIOUS INJURY.

Most accidents that result from the operation and maintenance of Nailers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Nailer and in this Manual.

Never use this Nailer for applications other than those specified in this Manual.

DEFINITIONS OF SIGNAL WORDS

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

○This tool has a FULL SEQUENTIAL ACTUATION MECHANISM.

First, press the push lever against the workpiece; next, pull the trigger to drive the nail.

Follow the same sequence to continue driving nails.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR USING NAILERS

READ ALL INSTRUCTIONS

Silhouette of a person reading a book (no text or symbols)

This Nailer is powered by internal combustion device. This Nailer shall only be used with dispensers for combustible gas which are listed in this instruction manual.

DANGER

1. OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.

Simple line drawing of a person wearing sunglasses (no text or symbols)

When operating the Nailer, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too. Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side.

The employer must enforce the use of safety glasses by the Nailer operator and others in work area.

1. NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR GASES.

Silhouette of a flame-like shape with no text or symbols

This Nailer must not be used in a combustible environment or in presence of flammable liquids or gases, e.g. lacquer, paint, benzine, thinner or gasoline.

This Nailer produces hot exhaust gases that may ignite flammable materials and produces sparks during operation.

1. DO NOT TOUCH AROUND THE EXHAUST OUTLET.

Simple diagram of three parallel upward arrows above a horizontal line, resembling heat or airflow (no text or symbols)

This Nailer produces hot exhaust gases that may flammable materials. The push lever and nose will become hot and get heated up after prolonged or rapid use.

Do not touch with bare hands.

SAFETY — Continued

DANGER

4. EXPLOSION AND FIRE HAZARD.

Silhouette of a flame-like shape against white background (no text or symbols)

120°F MAX (50°C)

The fuel cell is an aerosol dispensers with flammable contents.

Pressured container and the propellant will remain in the fuel cell.

Failure to follow instructions may result in explosion or fire.

Keep the Nailer, fuel cells and battery away from sunshine and from temperature exceeding 120^ F ( 50^ C).

No smoking sign symbol (circle with diagonal line and smoke icon), no text present

Fuel cell and/or battery may burst, releasing flammable gas.

Do not pierce or burn the container, even after use.

Do not incinerate, refill, reclaim or recycle the fuel cell.

Do not spray to a naked flame or any incandescent material.

Keep away from ignition sources – No smoking.

Keep out of the reach of children.

WARNING

5. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.

Silhouette of a hand with a pen, no text or symbols present

Always assume the Nailer contains fasteners.

Never point the Nailer at yourself toward yourself or others, whether it contains fasteners or not. If fasteners are mistakenly

driven, it can lead to severe injuries.

Never engage in horseplay with the Nailer.

Respect the Nailer as a working implement.

6. KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL FIRING.

Never carry the Nailer with finger on trigger since you could drive a fastener unintentionally and injure yourself or someone else.

Always carry the Nailer by the handle only.

7. ALWAYS WEAR EAR AND HEAD PROTECTION.

Always wear ear protection to protect your ears from loud noise.

Always wear head protection to protect your head from flying objects.

8. USE OUTSIDE OR WELL-VENTILATED AREAS.

Abstract black-and-white illustration of a human head with abstract patterns (no text or symbols)

This Nailer exhausts carbon monoxide which are a danger to health when inhaled.

This Nailer shall not be used in enclosed or poorly ventilated areas.

Do not inhale.

9. OPERATE WITHIN PROPER TEMPERATURE RANGE.

The operating environment for this device is between 32^ F ( 0^ C) and 104^ F ( 40^ C) so ensure use within this temperature range.

The device may fail to operate below 32^ F ( 0^ C) or above 104^ F ( 40^ C).

SAFETY — Continued

WARNING

10. STORE NAILER PROPERLY WITH FUEL CELL AND BATTERY REMOVED.

120°F MAX (50°C)

When not in use, the Nailer, fuel cell and battery should be store in tool case and in a dry place.

Store indoors at temperature below 120^ F ( 50^ C).

Keep the Nailer, fuel cell and battery out of direct sunlight and out of in a vehicle. Keep out of reach of children. Look the storage area.

11. KEEP WORK AREA CLEAN.

Cluttered areas invite injuries. Clear all work areas of unnecessary tools, debris, furniture, etc.

12. KEEP VISITORS AWAY.

Do not let visitors handle the Nailer.

All visitors should be kept safely away from work area.

13. DRESS PROPERLY.

Do not wear loose clothing or jewelry as they can be caught in moving parts.

Rubber gloves and nonskid footwear are recommended when working outdoors.

Wear protective hair covering to contain long hair.

14. CHECK PUSH LEVER BEFORE USE.

The Push Lever and Chamber operate in conjunction for this device.

Remove fuel cell and battery, and then make sure the push lever operates properly. (The push lever may be called "Safety".) Never use the Nailer unless the push lever is operating properly, otherwise the Nailer could drive a fastener unexpectedly. Do not tamper with or remove the push lever, otherwise the push lever becomes inoperable.

Pull the Feeder knob with the device facing upward and press down the Push lever then confirm that the Push lever securely returns to its original position.

The Push lever operation becomes especially heavy in low temperatures and drive operations may not function.

15. KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE.

Keep all screws and covers tightly mounted. Check their condition periodically.

Never use the Nailer if parts are missing or damaged.

16. DO NOT LOAD FASTENERS WITH TRIGGER OR PUSH LEVER DEPRESSED.

When loading fasteners into the Nailer,

1) do not depress the trigger;
2) do not depress the push lever; and
3) keep the Nailer pointed downward.

17. KEEP FACE, HANDS AND FEET AWAY FROM FIRING HEAD DURING USE.

Never place your face, hands or feet closer than 8 inches (200 mm) from the firing head.

A serious injury can result if the fasteners are deflected by the workpiece, or are driven away from the point of entry.

18. PLACE NAILER PROPERLY ON WORKPIECE.

Do not drive fasteners on top of other fasteners or with the Nailer at too steep of an angle; the fasteners can ricochet and hurt someone.

19. DO NOT DRIVE FASTENERS INTO THIN BOARDS OR NEAR CORNERS AND EDGES OF WORKPIECE.

The fasteners can be driven through or away from the workpiece and hit someone.

20. NEVER DRIVE FASTENERS FROM BOTH SIDES OF A WALL AT THE SAME TIME.

The fasteners can be driven into and through the wall and hit a person on the opposite side.

SAFETY — Continued

WARNING

21. CHECK FOR LIVE WIRES.

Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, floors or ceilings. Turn off the breaker switch to ensure there are no live wires.

22. DO NOT OVERREACH.

Keep proper footing and balance at all times.

23. NEVER USE NAILER WHICH IS DEFECTIVE OR OPERATING ABNORMALLY.

If the Nailer appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

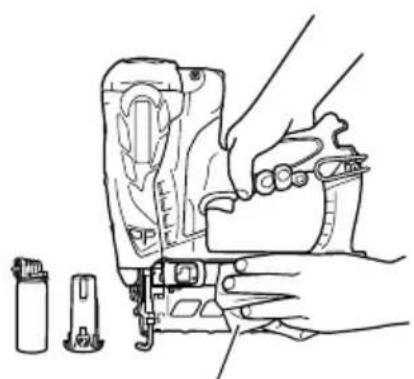

24. TAKE FUEL CELL AND BATTERY OUT OF NAILER WHEN:

1) doing maintenance and inspection;
2) clearing a jam;
3) it is not in use;
4) leaving work area;
5) moving it to another location; and
6) handing it to another person.

Never attempt to clear a jam or repair the Nailer unless you have taken fuel cell and battery out of the Nailer and removed all remaining fasteners from the Nailer.

The Nailer should never be left unattended since people who are not familiar with the Nailer might handle it and injure the themselves.

25. STAY ALERT.

Watch what you are doing. Use common sense.

Do not operate the Nailer when you are tired.

The Nailer should never be used by you if you are under the influence of alcohol, drugs or medication that makes you drowsy.

26. HANDLE NAILER CORRECTLY.

Operate the Nailer according to this Manual.

Never allow the Nailer to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

27. NEVER USE NAILER FOR APPLICATIONS OTHER THAN THOSE SPECIFIED IN THIS MANUAL.

28. HANDLE NAILER CAREFULLY.

Do not drop the Nailer or strike the Nailer against hard surfaces; and do not scratch or engrave signs on the Nailer. Handle the Nailer carefully.

29. MAINTAIN NAILER WITH CARE.

Keep the Nailer clean and lubricated for better and safer performance.

30. USE ONLY PARTS, ACCESSORIES OR FASTENERS SUPPLIED OR RECOMMENDED BY HITACHI.

Unauthorized parts, accessories, or fasteners may void your warranty and can lead to malfunction and resulting injuries.

Only service personnel trained by Hitachi, distributor or employer shall repair the Nailer.

31. NEVER MODIFY OR ALTER A NAILER.

Doing so may cause it to malfunction and personal injuries may result.

SAFETY — Continued

IMPORTANT SAFETY INSTRUCTIONS FOR FUEL CELL

READ ALL INSTRUCTIONS

DANGER

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

Fuel cell, fuel and propellant are flammable under pressure.

Explosion / Fire Hazard

Failure to follow all instructions may result in fire and explosion when handling dispensers for combustible gas for the purpose of storage, transportation, inserting into and taking out of the tool and disposal.

No smoking sign with pictogram of cigarette emitting smoke

Do not smoke when handling the fuel cell.

WARNING

Abstract black-and-white graphic of a human head with a circular pattern on the chest, no text or symbols present.

Do not inhale its contents.

In case of being inhaled ; the person affected should be taken into the open air and brought into a comfortable position.

Expanding gases cause low temperatures.

Fluid gases might cause injuries when getting in touch with skin or eyes.

In case of contact with skin ; wash the contact surface carefully with warm water and soap and apply a skin cream when dry.

In case of contact with eyes ; rinse the open eyes under running water.

Contact a doctor if necessary.

120°F MAX (50 °C)

Store in well-ventilated area.

Do not store above 120^ F ( 50^ C) (e.g. direct sunlight or in a vehicle).

Do not expose to an open flame and sparks.

Do not puncture or open the fuel cell.

Do not refill, reclaim or recycle the fuel cell.

Dispose of according to local regulations for aerosol products.

Do not dispose of fuel cell with other scrap for recycling.

Keep out of reach of children.

SAFETY — Continued

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers.

To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC3SML.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge HITACHI rechargeable battery type EBM315. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger;

b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes*		AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	1	8
2	3	1	8
3	4	1	8

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating – for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.
5. This battery charger might be attached to HITACHI battery operated tools as a standard accessory. In this case, please confirm Instruction Manual of the HITACHI battery operated tools before using the battery charger.

SAFETY — Continued

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you use the Nailer. Before using the model UC3SML battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPE EBM315. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

●Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 50^ F ( 10^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use an engine generator or DC power to charge.

11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).
12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

PRECAUTIONS WHEN USING THE BATTERY CHARGER WITH A DC 12V IN-CAR POWER SOURCE

1. Use the battery charger correctly.
   Do not use the battery charger other than with a DC 12V in-car power source. The battery charger is solely for use on minus-grounded vehicles. Make sure that the minus pole of the car battery is connected to the car body.
2. Keep your attention focused on driving the car.
   If you use the battery charger while driving, fasten the battery charger in place so that it does not move inadvertently and distract your attention from driving. Do not place the battery charger or battery under the driver's seat, irrespective of whether it is charging or not, as it may get under the brake pedal or the cable may get wrapped around the driver's feet and cause an accident.
3. Do not manipulate the battery charger or battery while driving as this may cause an accident.

SAFETY — Continued

1. Do not leave the battery charger or battery within reach of children as this may result in an accident.
2. Be use to use the cable provided.
   Using a different cable could result in a fire or accident due to overheating.
3. Do not place the battery charger on a blanket-type car seat cover or car mat during charging as this may result in a fire or accident due to overheating.
4. Do no expose the battery charger to direct sunlight during charging as this may result in a fire.
5. Do not leave the vehicle unattended during charging.

DISPOSAL OF THE EXHAUSTED BATTERY

WARNING

- Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

EMPLOYER'S RESPONSIBILITIES

1. Ensure that this MANUAL is available to operators and personnel performing maintenance.
2. Ensure that Nailers are used only when operators and others in work area are wearing EYE PROTECTOR.
3. Enforce the use of EYE PROTECTOR by operators and others in work area.
4. Keep Nailers in safe working order.
5. Maintain Nailers properly.
6. Ensure that Nailers which require repair are not further used before repair.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO

OTHER USERS

AND

OWNERS OF THIS TOOL!

OPERATION

NOTE:

The information contained in this Manual is designed to assist you in the safe operation of the Nailer.

Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.

NAME OF PARTS

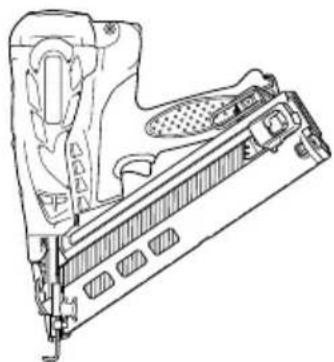

1. Gas Finish Nailer

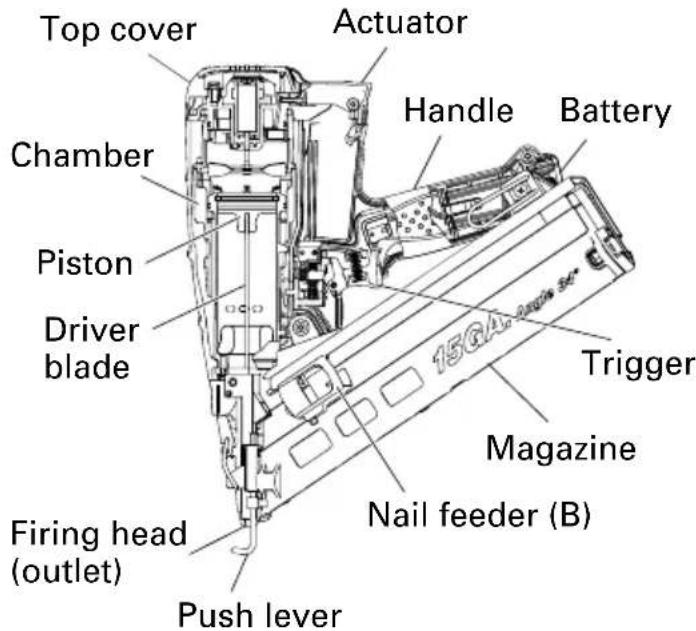

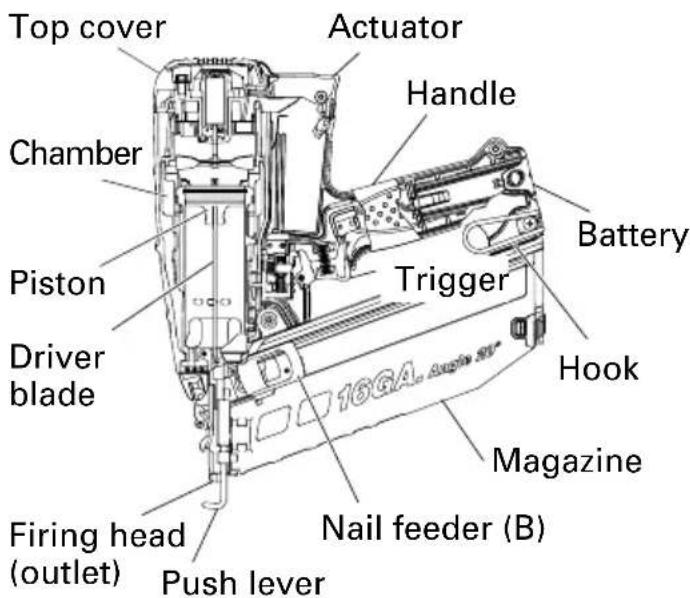

Top cover Actuator Handle Chamber Piston Driver blade Battery Hook Trigger Firing head (outlet) Push lever Nail feeder (B) Magazine 16@A. Straight

Top cover Actuator Chamber Piston Driver blade Firing head (outlet) Push lever Handle Battery 15GAR Trigger Magazine Nail feeder (B)

Top cover Actuator Handle Chamber Piston Driver blade Trigger Battery Hook Magazine Firing head (outlet) Push lever Nail feeder (B)

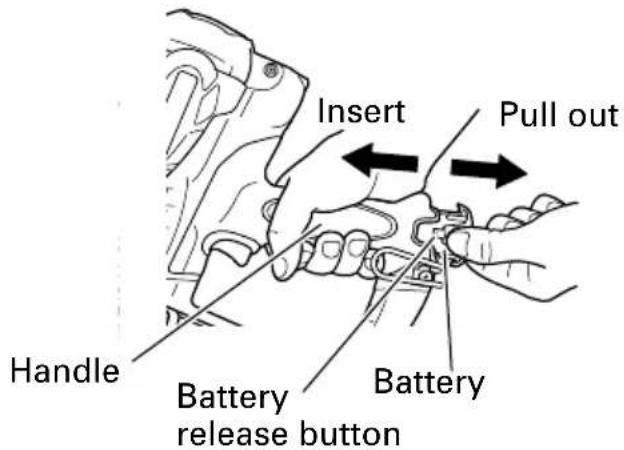

○Battery (EMB315)

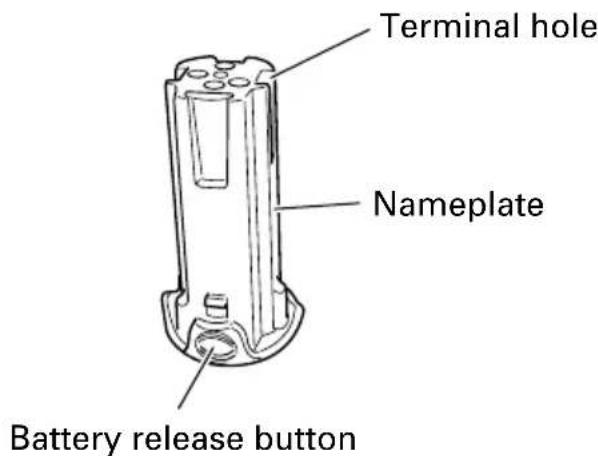

Terminal hole Nameplate Battery release button

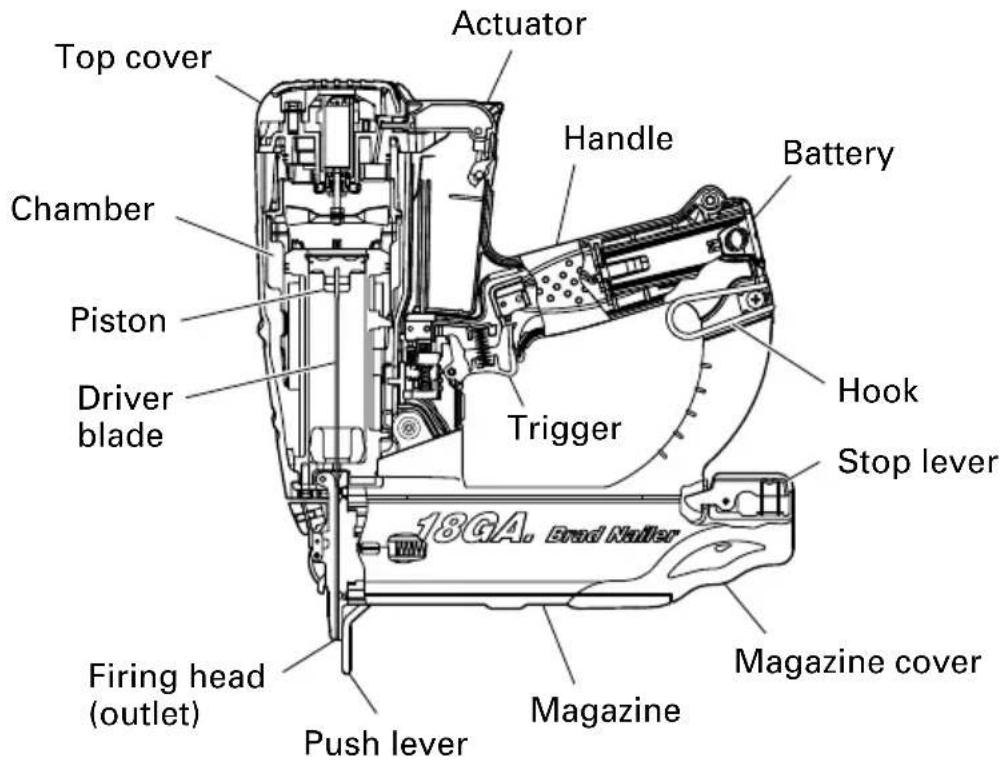

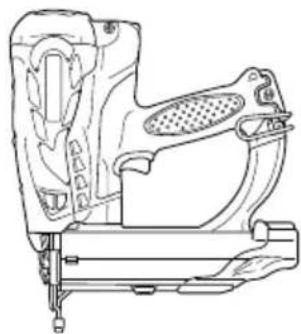

2. Gas Brad Nailer

Top cover Actuator Handle Battery Chamber Piston Driver blade Trigger Hook Stop lever Firing head (outlet) Push lever Magazine Magazine cover 18GA. Erad Neller

3. Battery Charger (UC3SML)

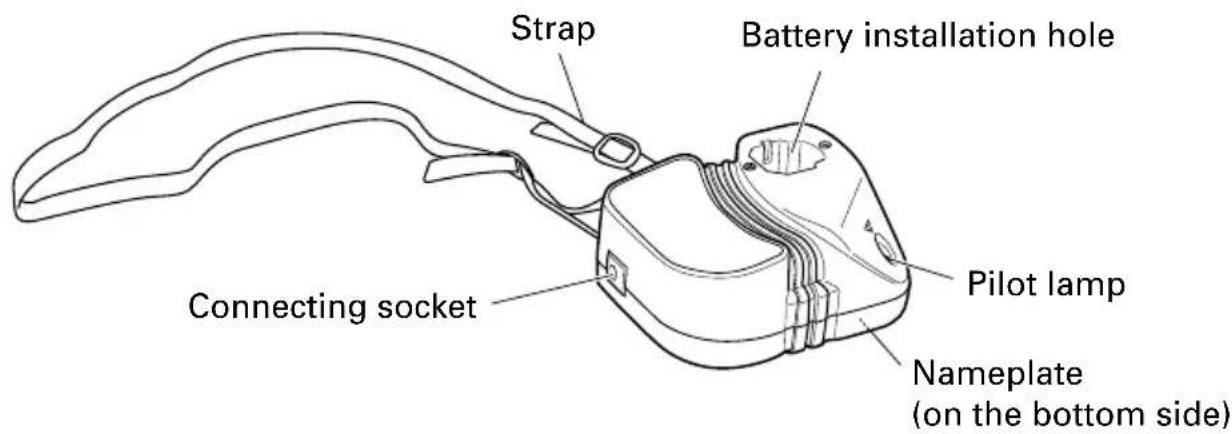

Strap Battery installation hole Connecting socket Pilot lamp Nameplate (on the bottom side)

Charger connecting plug

lighter Cord

Cigarette lighter connecting plug

Charger connecting plug

Simple line drawing of a cable and connector with labeled 'Cord' (no other text or symbols)

AC adapter

SPECIFICATIONS

1. Gas Finish Nailer

Model NT65GS NT65GB NT65GA
DimensionsLength × Height × Width	10-1/4" × 11" × 3-3/8"(260 mm × 278 mm × 85 mm)	10-5/8" × 11-1/8" × 3-3/8"(268 mm × 282 mm × 85 mm)	12" × 12" × 5"(307 mm × 305 mm × 126 mm)
Weight 3.7 lbs. (1.7 kg) 4.2 lbs. (1.9 kg)
Includes battery and fuel cell 4.0 lbs. (1.8 kg) 4.4 lbs. (2.0 kg)
Nail capacity 100 nails (2 strips)	100 nails (1 strip)
Cycle rate	Intermittent: 2 nails per second 1 nail per secondContinuous: 1,000 nails per hour Continuous:900 nails per hour		Intermittent:second
Battery	EBM315 (1.5 Ah)Li-ion battery, 3.6 V
Fuel Cell	Type No. 728-981······sold separately

2. Gas Brad Nailer

Model	NT50GS
DimensionsLength × Height × Width	10-5/8" × 11-1/8" × 3-3/8"(270 mm × 281 mm × 85 mm)
Weight	3.7 lbs. (1.7 kg)
Includes battery and fuel cell	4.0 lbs. (1.8 kg)
Nail capacity	100 nails (1 strip)
Cycle rate	Intermittent: 2 nails per secondContinuous: 1,000 nails per hour
Battery	EBM315 (1.5 Ah)Li-ion battery, 3.6 V
Fuel Cell	Type No. 728-981······sold separately

3. Battery Charger (UC3SML)

Input power source	DC 12V
Charging time	Approx. 60 minutes EBM315
Charger	Charging voltage DC 3.6 VCharging current DC 1.5 A
Weight	0.4 lbs (0.2 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

NAIL SELECTION

WARNING

●Be sure to use only the genuine HITACHI nails for the NT65GS, NT65GB, NT65GA or the NT50GS. The use of any other nails can result in tool malfunction and/or nail breakdown, leading to serious injuries.

Only nails shown in the Table below can be driven with this Nailer.

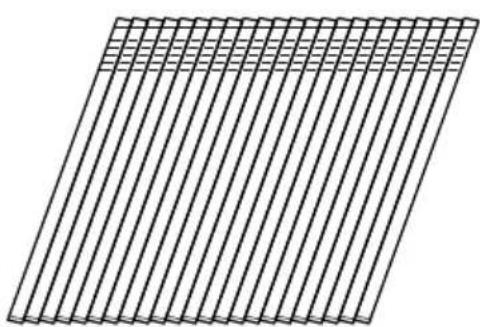

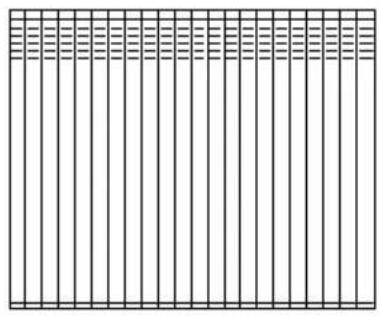

Dimensions of nails

16 Gauge finish nails (straight)	Min.	Max.

16 Gauge finish nails (Angle: 20°)	Min.	Max.

15 Gauge finish nails (Angle: 34°)	Min.	Max.
	(3.0mm) .095" (2.4mm) .12" .045" .072" (1.8mm)	C 2-1/2" (65mm)

18 Gauge brad nails (straight)	Min.	Max.
	.075" (1.9mm) 5/8" (16mm) .043" (1.1mm) .039" (1mm)	2" (50mm)

ACCESSORIES

DANGER

●Accessories other than those shown below can lead to malfunction and resulting injuries.

STANDARD ACCESSORIES

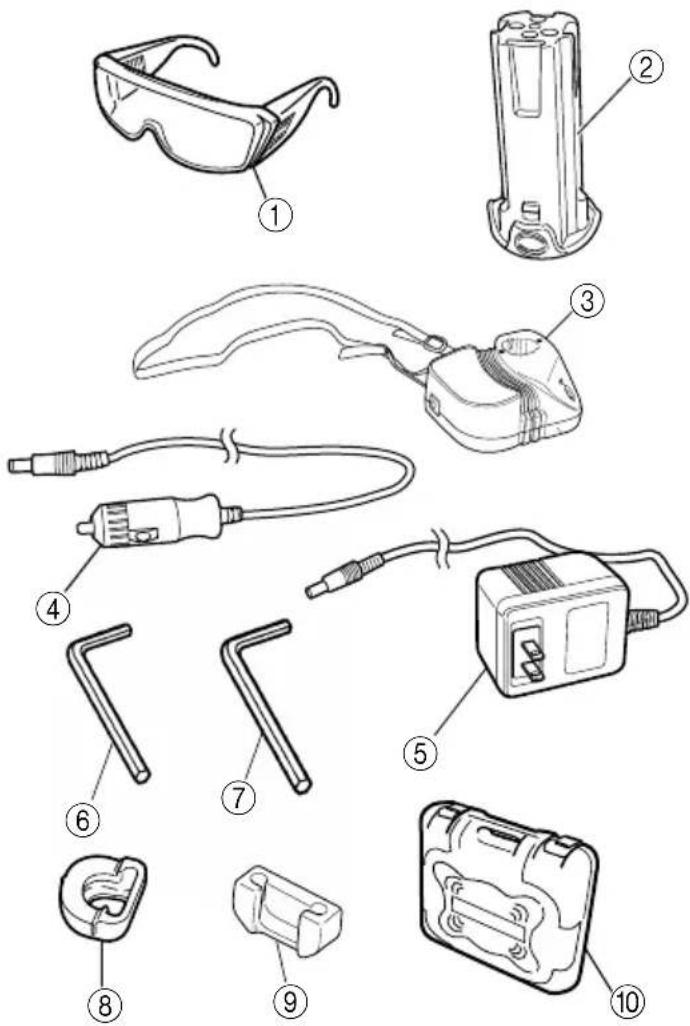

Exploded diagram of safety gear components with numbered labels for identification

①Safety glasses .... 1
②Battery 1
③Charger 1
④Cigarette lighter connecting plug ..... 1
⑤AC adapter 1
⑥Allen wrench for M4 screw 1
⑦Allen wrench for M5 screw 1
⑧Nose cap (mounted on tool) (except NT50GS) 1
⑨Nose cap (mounted on tool) (only NT50GS) 1
⑩Case 1

OPTIONAL ACCESSORIES

sold separately

○Fuel Cell (Code No. 728-981)
○Lubricant oil (Code No. 885-546, No. 728-986)
○Degreaser/cleaner (Code No. 728-985)

NOTE: Accessories are subject to change without any obligation on the part of HITACHI.

APPLICATIONS

○Nailing as finishing process for areas around the doors, windows as well as edgings.
○Securing the bottom of drawers. Making various cases and cabinets.

○Cabinet and picture frame assembly, furniture trim.
○On-site and mobile home trim and molding.

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○The power source voltage is stated on the nameplate.
○The cord is not damaged.

WARNING

●Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the charger connecting plug into the connecting socket of the charger.
2. Connect to the power source.

When using the AC adapter

Insert the AC adapter into the receptacle.

WARNING

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

●Do not use the electrical cord if damaged. Have it repaired immediately.

When using the cigarette lighter connecting plug

○Secure the battery charger in place in the car.

Use the strap supplied with the battery charger to fasten the battery charger in place and prevent it from moving inadvertently.

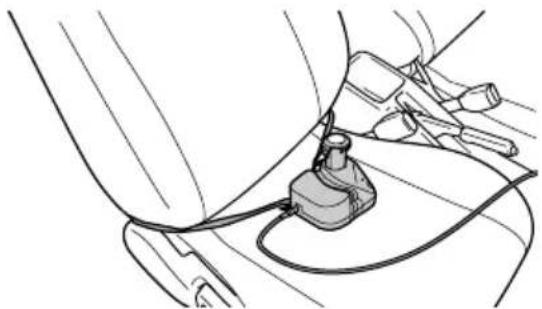

Line drawing of a car interior showing a plug inserted into a seatbelt (no text or symbols)

WARNING

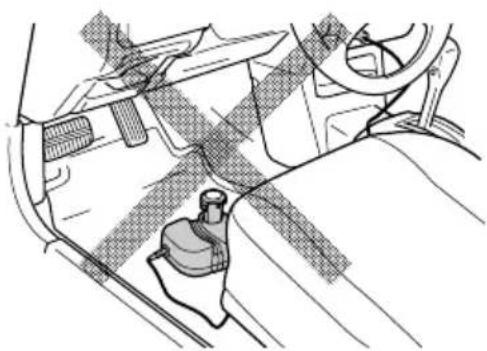

- Do not place the battery charger or battery under the driver's seat. Secure the battery charger in place to prevent it from moving inadvertently as this may lead to an accident.

Technical line drawing of a vehicle interior showing dashboard, steering wheel, and dashboard frame (no text or symbols)

○Insert the cigarette lighter connecting plug into the cigarette lighter socket. If the plug is loose and falls out of the cigarette lighter socket, repair the socket.

As the socket may be faulty, you are recommended to contact your local car dealer. Continued use of the socket may result in an accident due to overheating.

1. Insert the battery to the battery charger.

Line drawing of a mechanical device with a cylindrical component inserted into a housing, connected to a cable (no text or symbols present)

4. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light on.

NOTE: If the pilot lamp does not light, pull out the plug from the receptacle and check if the battery is properly mounted.

○When the battery is fully charged, the pilot lamp will go out.

NOTE: The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

○Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Rechargeable batteries	Temperature at which the battery can be recharged
EBM315	32°F — 122°F (0°C — 50°C)

○Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 20°C

Battery voltage (V)	Battery capacity (Ah)
	1.5 Ah
3.6 EBM	315 60 min.

NOTE: The recharging time may vary according to the ambient temperature and the power supply voltage.

1. Disconnect battery charger from the receptacle or cigarette lighter socket.

CAUTION

- Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

Do not leave the battery charger or battery in the car.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

○Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light.

The battery will not be recharged. In such a case, let the battery cool before charging.

- If the battery charger does not work while the battery is mounted correctly, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE OPERATION

Read section titled "SAFETY" (pages 5 – 12).

Make sure of the followings before operation.

WORKING ENVIRONMENT

WARNING

Silhouette of a flame with sharp edges (no text or symbols)

120°F MAX (50°C)

No smoking sign with pictogram of cigarette and smoke

COLD WEATHER CARE

○Do not store the Nailer, fuel cell and battery in a cold weather environment. Keep the Nailer, fuel cell and battery in a warm area until beginning the work.

○If the Nailer, fuel cell and battery are already cold, bring it in a warm area and allow the Nailer to warm up before use. Observe temperature limit of max. 120°F (50°C).

Do not expose to an open flame and sparks!

CAUTION

●This Nailer may not drive completely below when; at low temperature fuel cell loose the required propellant force, at high temperature fuel cell overdose.
●Do not use the Nailer in the rain or where excessive moisture is present.
●This Nailer is not recommended for use at altitudes above 5,000 feet (1,500 m), or in temperature below 30°F (0°C).

PREPARING THE FUEL CELL

Read section titled "SAFTY, IMPORTANT SAFETY INSTRUCTIONS FOR FUEL CELL" (page 9).

DANGER

Silhouette of a flame with sharp edges and layered texture (no text or symbols)

No smoking sign with pictogram of cigarette emitting smoke

Abstract black-and-white graphic of a stylized human figure with a glowing object, no text or symbols present.

●The fuel cell is flammable.
●Keep away from ignition sources.
●Do not spray to a naked flame or any incandescent material.
●Do not smoke when handling fuel cell.
- Keep stem of fuel cell away from face or skin. Expanding gases cause low temperatures. Do not contact with gases.
●Do not inhale.
●Keep out of reach of children.

CAUTION

• If the gas leaks from the metering valve or the gas cartridge after attached the metering valve, replace with the new metering valve.
  ●Do not attempt to reuse the metering valve. Replace with the new metering valve.

To attach the metering valve to a fuel cell:

Technical line drawing of a mechanical assembly with three views: top view showing internal components, middle view showing a cylindrical component, and bottom view showing a cylindrical housing (no text or symbols)

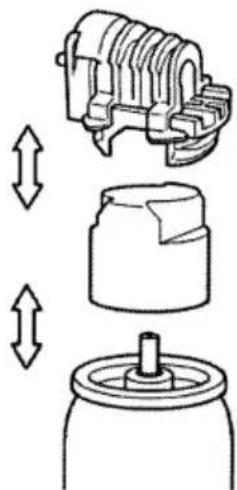

(1) Separate the metering valve and the cap from the gas cartridge.

Diagram of a mechanical device with internal gears and a rotating arrow (no text or symbols)

(2) Press forward (stem side) and downward on the front side of the metering valve.

Hand holding a mechanical component with an arrow indicating downward motion (no text or symbols)

(3) Press downward on the rear of the metering valve until it seals.

Check the metering valve:

Press the metering valve stem on fuel cell two or three times against a stationary object and release.

If gas is not dispersed, fuel cell is empty. Replace it.

Observe Safety Regulations.

The fuel cell is now ready to insert into the Nailer.

PREPARING THE BATTERY

Read section titled "SAFETY, IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER" (page 10).

You must charge the battery before use.

The charging method of battery is shown in page 18 - 20.

TESTING THE NAILER

! DANGER

Simple line drawing of a person wearing sunglasses (no text or symbols)

●Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.

WARNING

●Never use Nailer unless push lever is operating properly.

The machine employs a preventive mechanism for unloaded operation.

The machine enters a state where the push lever cannot be pushed up. This takes place when the magazine is not loaded with nails or when the remaining number of nails becomes less than 6 or 9.

CAUTION

●Use caution not to throw the push lever tip onto wood.

Before actually beginning the nailing work, test the Nailer by using the checklist below. Conduct the tests in the following order. If abnormal operation occurs, stop using the Nailer and contact a Hitachi authorized service center immediately.

(1) REMOVE ALL NAILS, FUEL CELL AND BATTERY FROM NAILER.

□ALL SCREWS MUST BE TIGHTENED.

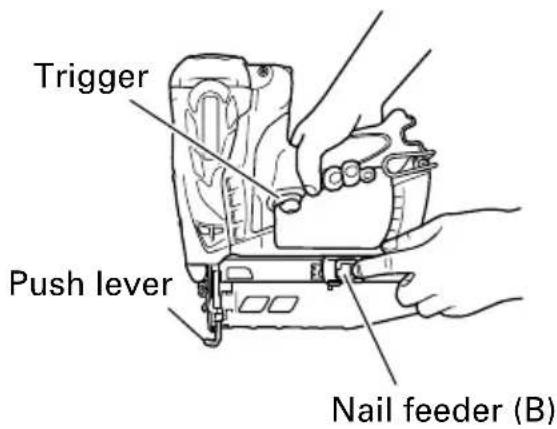

☐THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY with pulling back the nail feeder (B). (NT50GS: Unnecessary to pulling back nail feeder)

Trigger Push lever Nail feeder (B)

(2) Installing the battery.

Do not operate the push lever or trigger while installing the battery.

Make sure the battery indicator light is flashing green.

If the battery indicator light is flashing red, the battery doesn't have enough power and it needs to be charged.

Handle Battery release button Insert Pull out Battery

BATTERY INDICATOR LIGHT

Flashing GREEN: Enough power remaining (The light turns steady during operation).

Flashing RED: Insufficient power remaining (The light turns steady during operation).

OFF: The battery is extremely empty. Charge the battery.

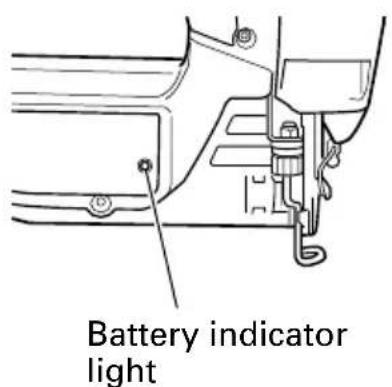

Battery indicator light

(3) INSERT FUEL CELL INTO NAILER.

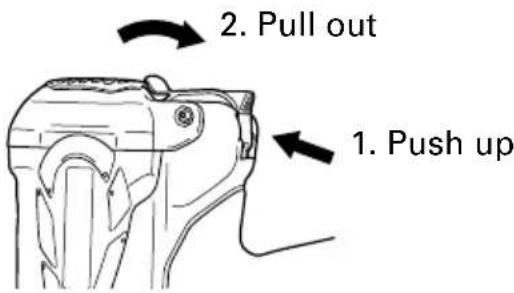

①Push up and pull out the actuator.

2. Pull out 1. Push up

②Insert the fuel cell into nailer.

Fuel cell

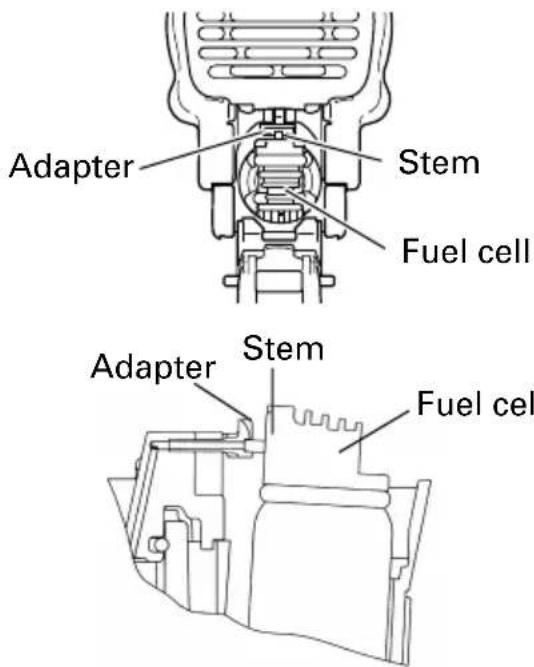

③Insert the stem of fuel cell into the hole of adaptor.

Adapter Stem Fuel cell Adapter Stem Fuel cell

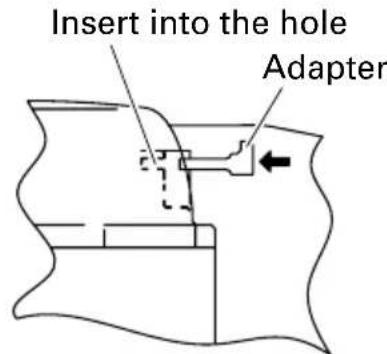

NOTE: Insert a loose adapter according to the instructions in the figure.

Insert into the hole Adapter

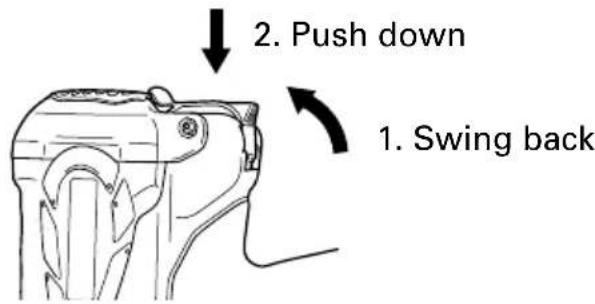

④Close the actuator.

2. Push down 1. Swing back

(4) Remove the finger from the trigger and press the push lever against the workpiece with pulling back the nail feeder (B). (NT50GS: Unnecessary to pulling back nail feeder)

Do not pull trigger Depress push lever Nail feeder (B)

(5) Separate the push lever from the workpiece. Next, point the nailer downward, pull the trigger and then wait in that position for 5 seconds or longer.

Pull trigger

(6) Without touching the trigger, depress the push lever against the workpiece. Pull the trigger.

(7) If no abnormal operation is observed, you may load nails in the Nailer. Drive nails into the workpiece that is the same type to be used in the actual application.

●When loading nails into Nailer,

1) do not pull trigger;
2) do not depress push lever; and
3) keep Nailer pointed downward.

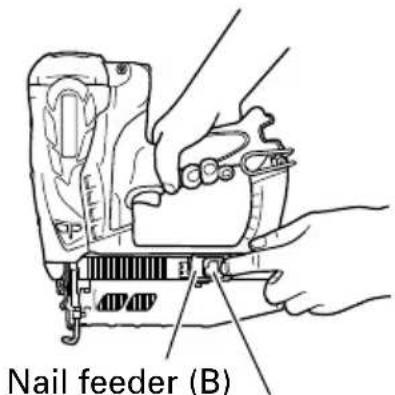

2-Action Nail Feeding!

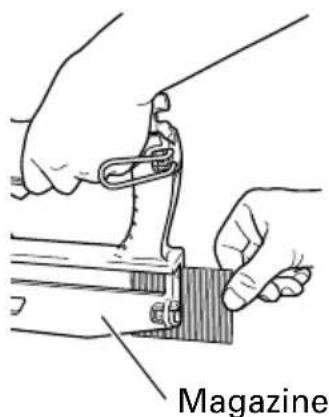

(1) Insert nail strip into the back of the magazine.

Magazine

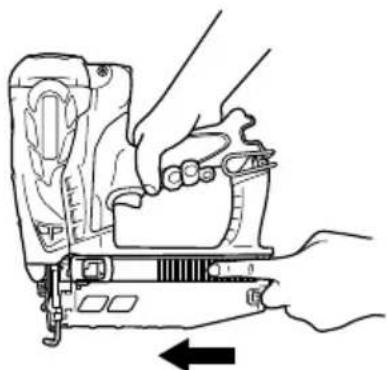

(2) Slide the nail strip forward in the magazine.

Line drawing of hands operating a sewing machine with a tool, showing no text or symbols

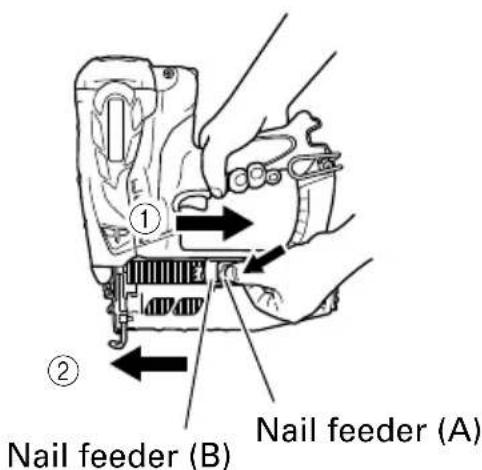

(3) Push the nail feeder (A) to engage the nail feeder (B) to the nail strip.

Nail feeder (B)

Nail feeder (A)

NOTE:

• Quietly push the nail feeder (A) and nail feeder (B) against the nail. If the nail feeder (A) and nail feeder (B) are released from backward the magazine and bumped against the nail, the connecting adhesive of the nail can be damaged.
  ●Use nail strip of more than 10 nails.
  ●Use an unbroken nail strip with nails of all the same length.

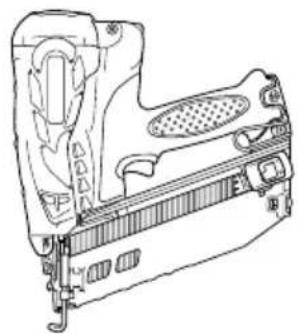

The Nailer is now ready to operate.

Removing the nails:

①Pull the nail feeder (B) backward.
②Return the nail feeder (B) forward quietly while pushing the nail feeder (A).

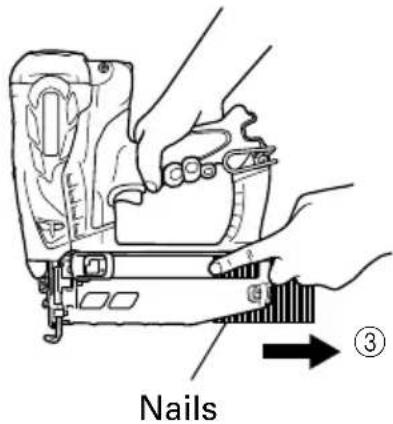

③Pull out nails from the back of the magazine.

① ② Nail feeder (B) Nail feeder (A)

Nails ③

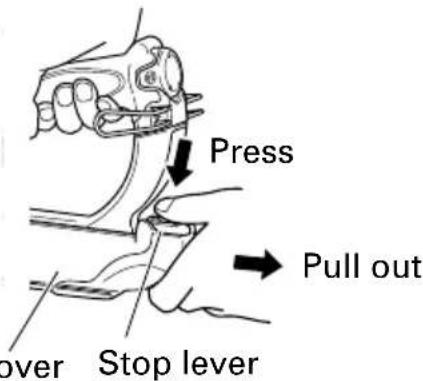

(1) Lightly press the stop lever and gently pull out the magazine cover.

Press Pull out over Stop lever

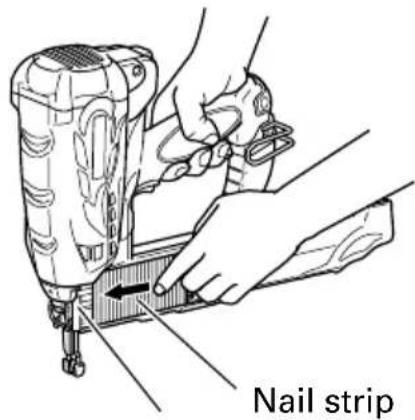

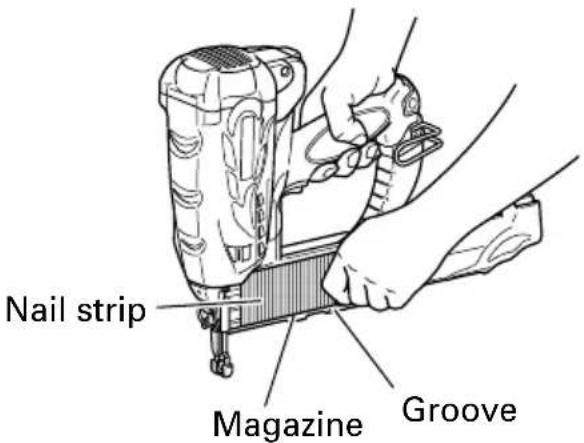

(2) Set nail strip into the magazine and keep the points of nails in contact with Groove.

Nail strip Magazine Groove

NOTE:

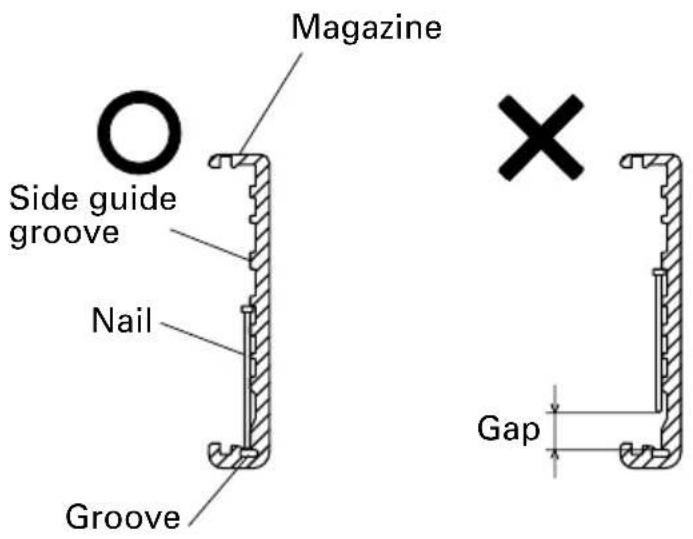

●The nails shown in page 17 can be loaded onto the side guide groove of the magazine without any adjustment. Always keep the points of nails in contact with Groove.

Magazine Side guide groove Nail Groove Gap

(3) Slide the nail strip into the blade guide.

Nail strip

Blade guide

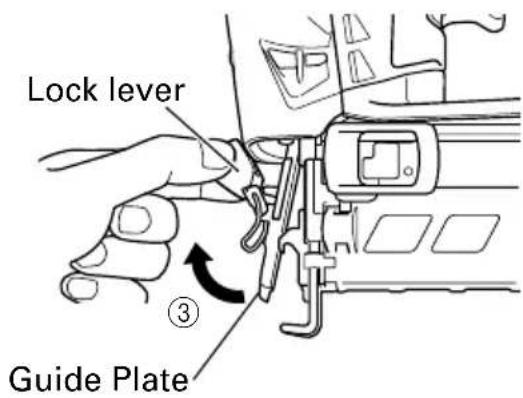

(4) Confirm that nail strip is placed with side guide grooves and Groove properly, then push the magazine cover forward to be latched.

NAILER OPERATION

Read section titled "SAFETY" (pages 5 – 12).

DANGER

Simple line drawing of a person wearing sunglasses (no text or symbols)

●Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

Simple diagram of three parallel upward arrows above a horizontal line, resembling heat or energy flow (no text or symbols)

120°F MAX (50°C)

No smoking sign with pictogram of cigarette emitting smoke

●Never use in presence of fl am m a b le liquids or gases.
●Do not touch around the exhaust outlet with bare hands. The push lever and nose will become hot and get heated up after prolonged or rapid use.
● Explosion and fire hazard. Keep away from sunshine and from temperature exceeding 120°F (50°C).
●Keep away from ignition source.
●No smoking.

WARNING

Silhouette of a hand with a pen inserted, no text or symbols present

Silhouette of a human head with a circular object inside, surrounded by abstract noise patterns (no text or symbols)

●NEVER point tool at yourself or others in work area.
●Keep fingers AWAY from trigger when not driving nails to avoid accidental firing.
●Use outside or well-ventilated area.
●Do not inhale its contents.

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

●Do not use the electrical cord if damaged. Have it repaired immediately.
●Never place your face, hands or feet closer than 8 inches (200 mm) from firing head when using.

●Do not drive nails on the top of other nails or with Nailer at too steep of an angle; nails can ricochet and hurt someone.
●Do not drive nails into thin boards or near corners and edges of workpiece. Nails can be driven through or away from workpiece and hit someone.
●Never drive nails from both sides of a wall at the same time. Nails can be driven into and through the wall and hit a person on the opposite side.
●Never use Nailer which is defective or operating abnormally.
●Do not use Nailer as hammer.
●Disconnect battery and fuel cell from Nailer when:

1) it is not in use;
2) leaving work area;
3) moving it to another location; and
4) handing it to another person.

●Be careful of unwanted fastener.

If pulling the trigger more when not driving nail at the temperature below 30^ F ( 0^ C), an wanted fastener will be driven.

This Nailer is equipped with a FULL SEQUENTIAL ACTUATION MECHANISM.

Explanation of FULL SEQUENTIAL ACTUATION MECHANISM nailing operation;

First, press the push lever against the workpiece;

next, pull the trigger to drive a nail.

NT65GS, NT65GA, NT65GB employ a preventive mechanism for unloaded operation.

NT65GS, NT65GA, NT65GB enter a state where the push lever cannot be pushed up. This takes place when the magazine is not loaded with nails or when the remaining number of nails becomes less than 6 or 9.

CAUTION

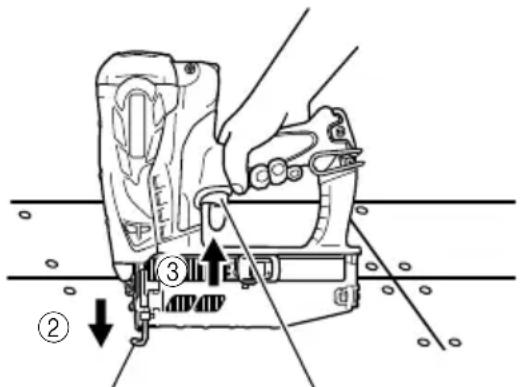

●Use caution not to throw the push lever tip onto wood when the push lever cannot be pushed up.

METHODS OF OPERATION

CAUTION

●Squeeze the push lever when drive a nail, otherwise the piston can not return correctly.
●Make sure the nailing depth when the temperature is above 104^ F ( 40^ C) or below 32^ F ( 0^ C).
● Using the tool for an extended period may lead to oil around the exhaust outlet or nose, resulting in spattering. To ensure that the material to be nailed stays clean, wipe off any oil that gets on the tool.

This Nailer is equipped with the push lever and does not operate unless the push lever is depressed (upward position).

It is intermittent operation (Trigger fire) only.

①Position the nail outlet on the workpiece with finger off the trigger.
②Depress the push lever firmly until it is completely depressed.
③Pull and squeeze the trigger to drive a nail.
④Remove finger from the trigger. To continue nailing in a separate location, move the nailer along the wood, repeating steps ① - ④ as required.

Technical diagram showing a sewing machine with labeled parts and directional arrows indicating assembly or repair steps.

Push lever
Trigger

ADJUSTING THE NAILING DEPTH

To assure that each nail penetrates to the same depth, be sure that the Nailer is always held firmly against the workpiece.

If nails are driven too deep or shallow into the workpiece, adjust the nailing in the following order.

①Remove the fuel cell and the battery from the Nailer.

Fuel cell Battery

②If nails are driven too deep, turn the adjuster to the shallow side. Adjustments are in half-turn increments.

If nails are driven too shallow, turn the adjuster to the deep side.

③Stop turning the adjuster when a suitable position is reached for a nailing test.

④Connect the fuel cell and the battery to the Nailer.

ALWAYS WEAR SAFETY GLASSES.

Perform a nailing test.

⑤Remove the fuel cell and the battery from the Nailer.
⑥Choose a suitable position for adjuster.

USING THE HOOK

CAUTION

• If the tool falls, there is a risk that malfunction and/or physical damage can occur. It is recommended that you also use fall-preventing wires, etc.
  ●Incomplete installation of the hook may result in bodily injury when used.

Hook can be installed on the left or right side.

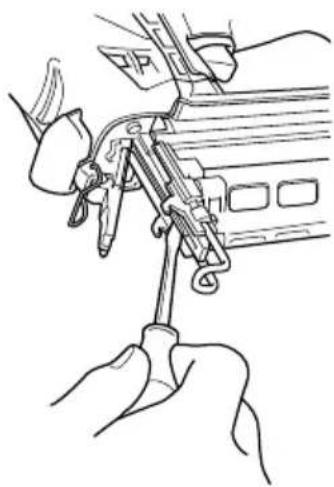

(1) Securely hold the main unit and remove the screw using a screwdriver.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

(2) Remove the hook and hook plate.

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

(3) Install the hook on the other side and securely fasten with screw.

Line drawing of a hand using scissors to cut or mark a piece of paper (no text or symbols present)

USING THE NOSE CAP

WARNING

●When attaching or detaching the nose cap, be sure to remove your finger from the trigger and remove the fuel cell and the battery from the nailer.

If you like to protect the surface of workpiece against scratches or markings made by the push lever, attach the accessory nose cap to the push lever.

①Remove the fuel cell and the battery from the nailer.
②Put the nose cap to the toe of the push lever.
③The nose cap is marked to indicate the exit point of the nail, making alignment easier.
④When not using the nose cap, secure in the storage compartment located on the reverse side of the magazine.

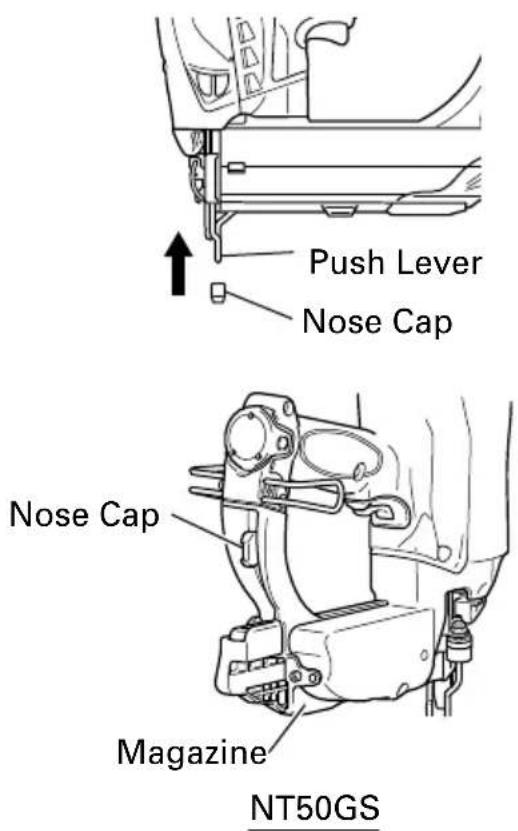

Nose Cap ② Push Lever

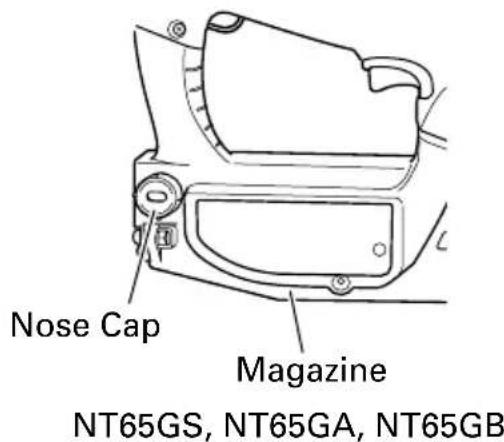

Nose Cap Magazine NT65GS, NT65GA, NT65GB

Push Lever Nose Cap Nose Cap Magazine NT50GS

NOTE:

●The nose cap may reduce nailing depth due to its thickness. Re-adjustment of nailing depth is required.

CLEARING A JAM

If nails are jammed in firing head, remove it, and adjust the nailing in the following order.

CAUTION

- Remove the fuel cell and the battery from the Nailer.

①Remove the fuel cell and the battery from the Nailer.
②Remove all nails.

③Release the lock lever and open guide plate.

Lock lever Guide Plate

④Remove the jammed nail with a slotted-head screwdriver.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

⑤Close guide plate and latch.

NOTE:

●In case of frequent jam, contact a Hitachi authorized service center.

MAINTENANCE

NOTE:

The information contained in this Manual is designed to assist you in the safe maintenance of the Nailer.

Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.

MAINTENANCE AND INSPECTION

Read section titled "SAFETY" (pages 5 – 12).

DANGER

Silhouette of a flame with sharp edges, resembling a stylized fire or smoke plume (no text or symbols)

●Never use and test in presence of flammable liquids or gases.

- Keep away from ignition source.

●No smoking.

No smoking sign with pictogram of cigarette and smoke

WARNING

- Remove fuel cell, battery and all nails from Nailer when:

1) doing maintenance and inspection; and

2) clearing a jam.

1. Inspecting the magazine

①REMOVE FUEL CELL and BATTERY.
②Clean the magazine. Remove dust and wooden chips which may have accumulated in the magazine. Lubricate it with Hitachi Gas tool lubricant.

Line drawing of hands operating a sewing machine with a battery nearby (no text or symbols)

Cloth

CAUTION

- Check that the nail feeder slides smoothly by pulling it with finger. If not smooth, nails can be driven at an irregular angle and hurt someone.

2. Storing

DANGER

Silhouette of a flame with no text or symbols

120°F MAX (50°C)

●Store Nailer properly with fuel cell and battery removed.
●The fuel cell is an aerosol dispensers with flammable contents.
- When not in use, the Nailer, fuel cell and battery should be stored in tool case and in a dry place.
●Store indoors at temperature below 120°F (50°C).

○When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.
○Do not store the Nailer, fuel cell and battery in a cold weather environment. Keep them in a warm area.
○When not in use, the Nailer, fuel cell and battery should be stored in a warm and dry place.
Keep it out of reach of children.

3. WARNING LABEL

Change the WARNING LABEL if missing or damaged.

A new WARNING LABEL is available from a Hitachi authorized service center.

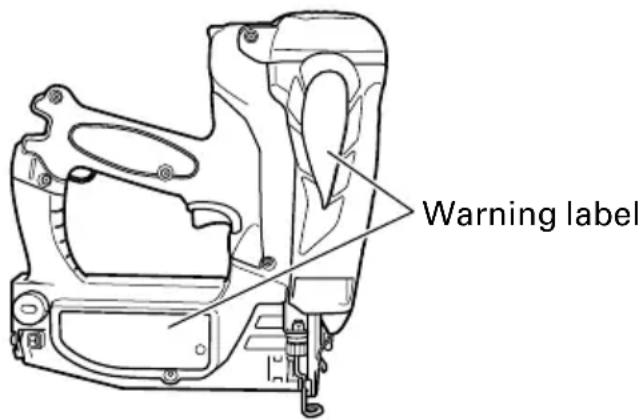

Warning label

1. Maintenance chart (See page 33)
2. Operator troubleshooting (See pages 33 - 34)
3. Service parts list

CAUTION

●Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION

●Using this battery charger with loosened screws is extremely dangerous.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Fuse replacement of cigarette lighter connecting plug

CAUTION

●For continued protection against risk of fire, replace only with same type and ratings of fuse in cigarette lighter connecting plug. 250V, 6A, DC

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

SERVICE AND REPAIRS

WARNING

●Only service personnel trained by Hitachi, distributor or employer shall repair the Nailer.
●Use only parts supplied or recommended by Hitachi for repair.

All quality Nailers will eventually require servicing or replacement of parts because of wear from normal use.

NOTE:

Specifications are subject to change without any obligation on the part of HITACHI.

Maintenance chart

ACTION WHY HOW
Clean magazine and feeder mechanism.	Prevent a jam. Blow clean daily.
Keep push lever working Pro properly. efficient Nailer operation.	mote operator safety and Blow	clean daily.

Operator troubleshooting

PROBLEM CHECK	METHOD CORRECTION
Nailer operates, Check for but no nail is driven.	a jam. Clear a jam.
	Check function of nail feeder C per page 31.	clean and lubricate.
	Ribbon spring weakened or Re damaged?	place ribbon spring.
	Check for proper nails. Use only recommended nails.
	Check if the driver blade Push piston is down or not. slotted-head screwdriver, and put back the piston to the highest position.
Skipping nails. Check for Intermittent feed.	proper nails. Use only recommended nails.
	Check function of nail feeder C per page 31.	clean and lubricate.
	Ribbon spring weakened or Re damaged?	place ribbon spring.
	Nail feeder (B) worn or Replace damaged?	nail feeder (B).
	Check for returning of piston.	Pull the trigger all the way.
		Too low temperature, warm up fuel cell under 120°F (50°C).
	Check for moving of piston smoothly.	Contact Hitachi for replacement.
		Replace piston ring.
		Replace piston.
		Replace cylinder piston ring.
Nails jam. Driven nail is bent.	Check for proper nails. Use only recommended nails.
	Driver blade worn?	Contact Hitachi for replacement.
	Nail feeder (B) worn or Replace damaged?	nail feeder (B).
The operation of the push lever not smooth.	Push lever bent?	Contact Hitachi for replacement.
	Check push lever's moving track, debris?	Contact Hitachi for replacement.
Fan is working, light Check indicator shows GREEN yet it doesn’t drive a nail or operation unstable.	ck for returning of piston. Push the push lever all the way.
	Check fuel cell, insufficient?	Exchange it with a new fuel cell.
	Check spark plug wire, worn out?	Contact Hitachi for replacement.
	Check spark plug, grease or debris?	Contact Hitachi for replacement.
	Check filter, clogged? Clean as instructed on the maintenance sheet.
Fan does not operate Mag when push lever is maga pressed.	gazine empty. Load more nails in the
	Note the color of the light If red: charge the battery. indicator. If green: Contact Hitachi for replacement.
Unable to charge battery.	——	Check the electrical cord.

INFORMATION IMPORTANTE

Silhouette of a person reading a book (no text or symbols)

Silhouette of a person reading a book (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a flame or fire with multiple sharp peaks (no text or symbols)

Simple diagram of three parallel upward arrows above a horizontal line, no text or symbols present.

Silhouette of a flame-like shape with jagged edges, no text or symbols present

120°F MAX (50°C)

No smoking sign with pictogram of cigarette and smoke

Silhouette of a hand with a pen, no text or symbols present

Silhouette of a human head with abstract pattern above, no text or symbols present

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

No smoking sign symbol (circle with diagonal line and smoke icon), no text present

Abstract black-and-white graphic of a human head with abstract patterns (no text or symbols)

18 clous à tête perdue (Droit)	Min.	Max.
	.075" (1.9mm) 5/8" (16mm) .043" .039" (1mm)	2" (50mm)

ACCESSOIRES

DANGER

Exploded diagram of safety gear components with numbered labels for identification

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Line drawing of a car interior showing a cable inserted into a seatbelt (no text or symbols)

AVERTISSEMENT

Technical line drawing of a vehicle interior showing dashboard, steering wheel, and gear (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

4. Recharge

Silhouette of a flame with sharp edges and smoke (no text or symbols)

120°F MAX (50°C)

No smoking sign symbol with pictogram of cigarette

Silhouette of a flame with sharp edges (no text or symbols)

No smoking sign with pictogram of cigarette and smoke

Abstract black-and-white illustration of a stylized human figure with abstract patterns (no text or symbols)

Technical line drawing of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Hand holding a mechanical component with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands operating a sewing machine with a tool, no text or symbols present

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

Simple diagram of three parallel upward arrows above a horizontal line, no text or symbols present.

120°F MAX (50°C)

No smoking sign symbol with pictogram of cigarette

Silhouette of a hand with a pen inserted, no text or symbols present

Silhouette of a human head with abstract smoke or vapor effects, no text or symbols present

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Technical diagram showing a sewing machine with labeled parts and directional arrows indicating assembly or repair steps.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

Line drawing of a hand using a tool to cut or install a mechanical component (no text or symbols present)

UTILISATION DU CAPUCHON DE BEC

AVERTISSEMENT

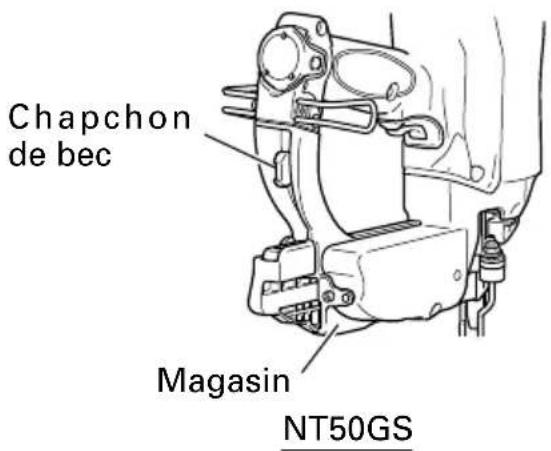

Chapchon de bec Magasin NT65GS, NT65GA, NT65GB

Lever-poussoir Chapuchon de bec

Chapchon de bec Magasin NT50GS

REMARQUE :

Line drawing of hands operating a mechanical device with tools (no text or symbols)

Silhouette of a flame with sharp edges, resembling a stylized fire or smoke plume (no text or symbols)

No smoking sign with pictogram of cigarette and smoke (no text)

AVERTISSEMENT

Line drawing of hands operating a sewing machine with a small battery nearby (no text or symbols)

Tissu

ATTENTION

Silhouette of a flame with no text or symbols

120°F MAX (50°C)

Technical line drawing of a mechanical assembly with no visible text or symbols

Silhouette of a person holding an open book (no text or symbols)

Silhouette of a person reading a book (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a flame with flames, no text or symbols present

Simple diagram of three parallel upward arrows above a horizontal line, resembling heat or airflow (no text or symbols)

Silhouette of a flame-like shape with jagged edges, resembling a stylized fire or smoke plume (no text or symbols)

120°F MAX (50°C)

No smoking sign symbol with pictogram of cigarette

Silhouette of a hand with a pen, no text or symbols present

Abstract black-and-white graphic of a human head with abstract patterns (no text or symbols)

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

No smoking sign with pictogram of cigarette emitting smoke

Abstract black-and-white graphic of a human head with abstract textured patterns (no text or symbols)

Clavos de brads calibre 18 (Recto)	Min.	Max.
	.075" (1.9mm) 5/8" (16mm) .043" .039" (1mm)	2" (50mm)

ACCESORIOS

PELIGRO

Exploded view diagram of safety gear components with numbered labels for identification

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Line drawing of a car's seatbelt with cable and attached seatbelt (no text or symbols)

ADVERTENCIA

Technical line drawing of a car interior showing dashboard, steering wheel, and dashboard lift (no text or symbols)

Line drawing of a handheld device with a cylindrical component inserted, showing internal wiring and a base (no text or symbols)

1. Carga

Silhouette of a flame with flames, no text or symbols present

120°F MAX (50°C)

No smoking sign symbol with pictogram of cigarette

Silhouette of a flame-like shape with no text or symbols

No smoking sign with pictogram of cigarette emitting smoke

Abstract black-and-white illustration of a human head with a circular object inside, no text or symbols present.

Diagram showing mechanical assembly with three views: top view of a cylindrical component, middle view of a cylindrical housing, and bottom view of a cylindrical tank (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Technical line drawing of a sewing machine needle and handle (no text or symbols)

Line drawing of hands operating a sewing machine with a tool, no text or symbols present

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a flame-like shape with no text or symbols

Simple diagram of three parallel wavy arrows above a horizontal line, no text or symbols present.

120°F MAX (50°C)

No smoking sign with pictogram of cigarette emitting smoke

ADVERTENCIA

Silhouette of a hand with a pen inserted, no text or symbols present

Silhouette of a human head with abstract patterned background (no text or symbols)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Technical diagram showing a hand operating a mechanical device with labeled parts and directional arrows indicating assembly or movement.

Palanca de empuje Gatillo

Line drawing of a hand using a tool to cut or adjust a mechanical component (no text or symbols)

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

Line drawing of a hand using a tool to lift or adjust a mechanical component (no text or symbols present)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Silhouette of a flame with multiple sharp peaks against a white background (no text or symbols)

No smoking sign with pictogram of cigarette and smoke

ADVERTENCIA

Line drawing of hands operating a sewing machine with a battery nearby (no text or symbols)

Paño

PRECAUCIÓN

Silhouette of a flame with multiple sharp edges, resembling a stylized fire or smoke plume (no text or symbols)

120°F MAX (50°C)

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a washing machine with numbered parts and Chinese labels

NT65GS

ITEM NO.	PART NAME	Q'TY
1A F	FILTER COVER 1
2 FILTER MESH 1
3	HEX. SOCKET HD. BOLT (W/FLANGE)M5×10	1
4A T	TOP COVER 1
5	S P ARK PLUG (A) 1
6 N	YLOCK BOLT M4×12 4
7A CYLINDER HEAD 1
8 N	UT M3 2
9 SPRING WASHER M3 2
10 WASHER M3 2
11 FAN		1
12 RUBBER PLATE		1
13 HEX. SOCKET HD. BOLT M4×16		4
14 CHAMBER HEAD		1
15 GASKET		1
16 CHAMBER		1
17 PISTON RING (B)		4
18 RETAINING RING FOR D40 HOLE		1
19A MOTOR ASS'Y		1
20 PACKING		1
21 ADAPTER		1
22 HEX. SOCKET SET SCREW M4×5		2
23 SHAFT RUBBER WASHER		1
24A SHAFT COVER		1
25 PISTON RING (A)		2
26 PISTON		1
27 PISTON BUMPER		1
28 NAME PLATE		1
29 HOUSING		1
30 PIN		1
31 BLADE GUIDE		1
32 HEX. SOCKET HD. BOLT M4×12		3
33 LOCK PLATE		1
34 LOCK LEVER COVER		1
35 ROLL PIN D3×10		1
36 LOCK LEVER		1
37 ROLL PIN D3×16		1
38 LOCK SPRING		1
39 GUIDE PLATE		1
40 HEX.SHOULDER BOLT M5		2
41 SEAL LOCK HEX. SOCKET HD. BOLT M4×8		4
42 BELLEVILLE SPRING H8		4
43 BUFFER COVER		1
44 MUFFLER		1
45 REED VALVE		1
46 BUFFER PLATE		1
47 C-RING		1
48 MESH		1
49 TAPPING SCREW (W/FLANGE) D4×16		2
50 HANDLE (B)		1
51 HEX. SHOULDER BOLT M4×32		1
52 CYLINDER		1
53 CHAMBER STOP RUBBER		1
54 NYLON NUT M5		3
55 HITACHI PLATE		1

ITEM NO.	PART NAME	Q'TY
56	CELL PIN	1
57	PIPE RUBBER 1
58	ACTUATER	1
59	TAPPING SCREW (W/FLANGE) D4×20	2
60	BATTERY EBM315	2
61	SUPPORT (B)	1
62	INTERNAL WIRE (A)	1
63	WASHER M4 1
64	MACHINE SCREW M4×10	1
65	LOCK NUT M4 2
66	PACKING	2
67	HOOK	1
68	HOOK PLATE	1
69	TRUSS HD. SCREW M4	1
70	HANDLE (A)	1
71	TERMINAL SUPPORT 1
72	TRIGGER STOPPER	1
73	TRIGGER	1
74	TRIGGER SPRING	1
75	CORD COVER PLATE	1
76	CHAMBER SPRING	2
77	HEX. SOCKET HD. BOLT M4×10	2
78	PIN D3×20	1
79	PUSH LEVER ARM	1
80	PUSH LEVER PIECE	1
81	O-RING	1
82	ADJUSTER	1
83	RATCHET SPRING	2
84	PUSH LEVER (A)	1
86	CAUTION LABEL (A)	1
87	WARNING LABEL	1
88	MAGAZINE COVER	1
89	BOLT WASHER M5	2
90	MACHINE SCREW M5×15	2
91	ROLL PIN D3×16	1
92	RIBBON SPRING	1
93	NAIL FEEDER (B) 1
94	PRISM	1
95	CONTROLLER	1
96	TAPPING SCREW (W/FLANGE) D4×12	1
97	NAIL RAIL	1
98	PUSHING SPRING	1
99	NAIL FEEDER (A)	1
100	ROLL PIN D2.5×26	1
101	MAGAZINE	1
102	CYLINNDER ASS'Y (A)	1
103	O-RING	2
501	CHARGER (UC3SML)	1
502	SAFETY GLASSES	1
503	HEX. BAR WRENCH 4MM	1
504	HEX. BAR WRENCH 3MM	1
505	NOSE CAP (A)	1
506	CASE	1

NT65GA

Exploded view diagram of a mechanical assembly with numbered parts and Chinese labels

ITEM NO.	PART NAME	Q'TY
1 FILTER COVER 1
2 FILTER MESH 1
3	HEX. SOCKET HD. BOLT (W/FLANGE)M5×10	1
4 TOP COVER 1
5	S P ARK PLUG (A) 1
6 NYLOCK BOLT M4×12 4
7 CYLINDER HEAD 1
8 NUT M3 2
9 SPRING WASHER M3 2
10 WASHER M3 2
11 FAN 1
12 RUBBER PLATE		1
13 HEX. SOCKET HD. BOLT M4×16		4
14 CHAMBER HEAD		1
15 GASKET		1
16 CHAMBER		1
17 PISTON RING (B)		4
18 RETAINING RING FOR D40 HOLE		1
19 PACKING		1
20 ADAPTER		1
21 HEX. SOCKET SET SCREW M4×5		2
22 SHAFT RUBBER WASHER		1
23 SHAFT COVER		1
24 HEX.SHOULDER BOLT M5		2
25 MOTOR ASS'Y		1
26 PISTON RING (A)		2
27 PISTON		1
28 PISTON BUMPER		1
29 NAME PLATE		1
30 HOUSING		1
31 GUIDE PIN		1
32 ROLL PIN D3×16		2
33 BLADE GUIDE		1
34	SEAL LOCK HEX. SOCKET HD. BOLTM4×12	3
35 LOCK LEVER COVER		1
36 ROLL PIN D3×10		1
37 LOCK LEVER		1
38 GUIDE PLATE		1
39 TAPPING SCREW (W/FLANGE) D4×16		2
40 HANDLE (B)		1
41 HEX. SHOULDER BOLT M4×32		1
42 CYLINDER		1
43 CHAMBER STOP RUBBER		1
44 NYLON NUT M5		3
45 HITACHI PLATE		1
46 TAPPING SCREW (W/FLANGE) D4×20		2
47	SEAL LOCK HEX. SOCKET HD. BOLTM4×8	4
48 BELLEVILLE SPRING M4		4
49 BUFFER COVER		1
50 MUFFLER		1
51 REED VALVE		1
52 BUFFER PLATE		1
53 C-RING		1
54 MESH		1
55 CELL PIN		1

ITEM NO.	PART NAME	Q'TY
56	PIPE RUBBER 1
57	ACTUATER	1
58	BATTERY EBM315	2
59	SUPPORT (B)	1
60	INTERNAL WIRE (A)	1
61	WASHER M4 1
62	MACHINE SCREW M4×10	1
63	LOCK NUT M4 2
64	PACKING	2
65	HANDLE (A)	1
66	TERMINAL SUPPORT 1
67	TRIGGER SPRING	1
68	TRIGGER	1
69	PIN D3×20	1
70	CORD COVER PLATE	1
71	CHAMBER SPRING	2
72	TRIGGER STOPPER	1
73	SEAL LOCK HEX. SOCKET HD. BOLT M4×10	2
74	PUSH LEVER ARM	1
75	PUSH LEVER PIECE	1
76	C-RING (S-8) 1
77	ADJUSTER	1
78	RATCHET SPRING	2
79	PUSH LEVER (A)	1
80	WARNING LABEL	1
81	CAUTION LABEL (A)	1
82	NUT M4 1
83	MAGAZINE COVER	1
84	BOLT WASHER M5	2
85	MACHINE SCREW M5×15	2
86	HOOK	1
87	HOOK PLATE	1
88	TRUSS HD. SCREW M4	1
89	ROLL PIN D3×16	1
90	RIBBON SPRING	1
91	NAIL FEEDER (B) 1
92	NAIL FEEDER (A)	1
93	PUSHING SPRING	1
94	ROLL PIN D2.5×26	1
95	PRISM	1
96	CONTROLLER	1
97	TAPPING SCREW (W/FLANGE) D4×12	1
98	NAIL RAIL	1
99	MAGAZINE	1
100	PUSH STOPPER (A)	1
101	LOCK SPRING	1
102	PUSH STOPPER COVER	1
103	TAPPING SCREW (W/FLANGE) D3×10	1
104	CYLINNDER ASS'Y	1
105	O-RING	2
501	CHARGER (UC3SML)	1
502	SAFETY GLASSES	1
503	HEX. BAR WRENCH 3MM	1
504	HEX. BAR WRENCH 4MM	1
505	NOSE CAP (A)	1
506	CASE	1

Exploded view diagram of a washing machine with numbered parts and Chinese labels

NT65GB

ITEM NO.	PART NAME	Q'TY
1A F	ILTER COVER 1
2 FILTER MESH 1
3	HEX. SOCKET HD. BOLT (W/FLANGE)M5×10	1
4A T	TOP COVER 1
5	S P ARK PLUG (A) 1
6 NYLOCK BOLT M4×12 4
7A CYLINDER HEAD 1
8 NUT M3 2
9 SPRING WASHER M3 2
10 WASHER M3 2
11 FAN		1
12 RUBBER PLATE		1
13 HEX. SOCKET HD. BOLT M4×16		4
14 CHAMBER HEAD		1
15 GASKET		1
16 CHAMBER		1
17 PISTON RING (B)		4
18 RETAINING RING FOR D40 HOLE		1
19 PACKING		1
20 ADAPTER		1
21 HEX. SOCKET SET SCREW M4×5		2
22 SHAFT RUBBER WASHER		1
23A SHAFT COVER		1
24 HEX.SHOULDER BOLT M5		2
25A MOTOR ASS'Y		1
26 PISTON RING (A)		2
27 PISTON		1
28 PISTON BUMPER		1
29 NAME PLATE		1
30 HOUSING		1
31 PIN		1
32 BLADE GUIDE		1
33 SEAL LOCK HEX. SOCKET HD. BOLT M4×12		3
34 LOCK LEVER COVER		1
35 ROLL PIN D3×10		1
36 LOCK LEVER		1
37 ROLL PIN D3×16		1
38 GUIDE PLATE		1
39 TAPPING SCREW (W/FLANGE) D4×16		2
40 HANDLE (B)		1
41 HEX. SHOULDER BOLT M4×32		1
42 CYLINDER		1
43 CHAMBER STOP RUBBER		1
44 NYLON NUT M5		3
45 HITACHI PLATE		1
46 SEAL LOCK HEX. SOCKET HD. BOLT M4×8		4
47 BELLEVILLE SPRING H8		4
48 BUFFER COVER		1
49 MUFFLER		1
50 REED VALVE		1
51 BUFFER PLATE		1
52 O-RING		1
53 MESH		1
54 CELL PIN		1
55 PIPE RUBBER 1

ITEM NO.	PART NAME	Q'TY
56 A	CTUATER	1
57 T	APPING SCREW (W/FLANGE) D4×20	2
58 B	BATTERY EBM315	2
59 S	SUPPORT (B)	1
60 I	INTERNAL WIRE (A)	1
61 W	WASHER M4 1
62 M	MACHINE SCREW M4×10	1
63 L	DCK NUT M4 2
64 P	ACKING	2
65 H	OOK	1
66 H	OOK PLATE	1
67 T	RUSS HD. SCREW M4	1
68 H	HANDLE (A)	1
69 T	TERMINAL SUPPORT 1
70 T	RIGGER SPRING	1
71 T	RIGGER	1
72 C	ORD COVER PLATE	1
73 C	CHAMBER SPRING	2
74	SEAL LOCK HEX. SOCKET HD. BOLT M4×10	2
75 T	RIGGER STOPPER	1
76 P	IN D3×20	1
77 P	USH LEVER ARM	1
78 P	USH LEVER PIECE	1
79 O	-RING (S-8) 1
80 A	ADJUSTER	1
81 R	ATCHET SPRING	2
82 P	USH LEVER (A)	1
83 C	AUTION LABEL (A)	1
85 W	WARNING LABEL	1
86 M	MAGAZINE COVER	1
87 B	BOLT WASHER M5	2
88 M	MACHINE SCREW M5×15	2
89 R	ROLL PIN D3×16	1
90 R	IBBON SPRING	1
91 N	AIL FEEDER (B) 1
92 N	AIL FEEDER (A)	1
93 S	TOPPER SPRING (C)	1
94 P	RISM	1
95 C	ONTROLLER	1
96 T	APPING SCREW (W/FLANGE) D4×12	1
97 N	AIL RAIL	1
98 R	ROLL PIN D2.5×26	1
99 M	AGAZINE	1
100	PUSH STOPPER (B)	1
101	PUSH STOPPER SPRING	1
102	PUSH STOPPER COVER	1
103	TAPPING SCREW (W/FLANGE) D3×10	1
104	CYLINNDER ASS'Y	1
105	O-RING	2
501	CHARGER (UC3SML)	1
502	SAFETY GLASSES	1
503	HEX. BAR WRENCH 3MM	1
504	HEX. BAR WRENCH 4MM	1
505	NOSE CAP (A)	1
506	CASE	1

NT50GS

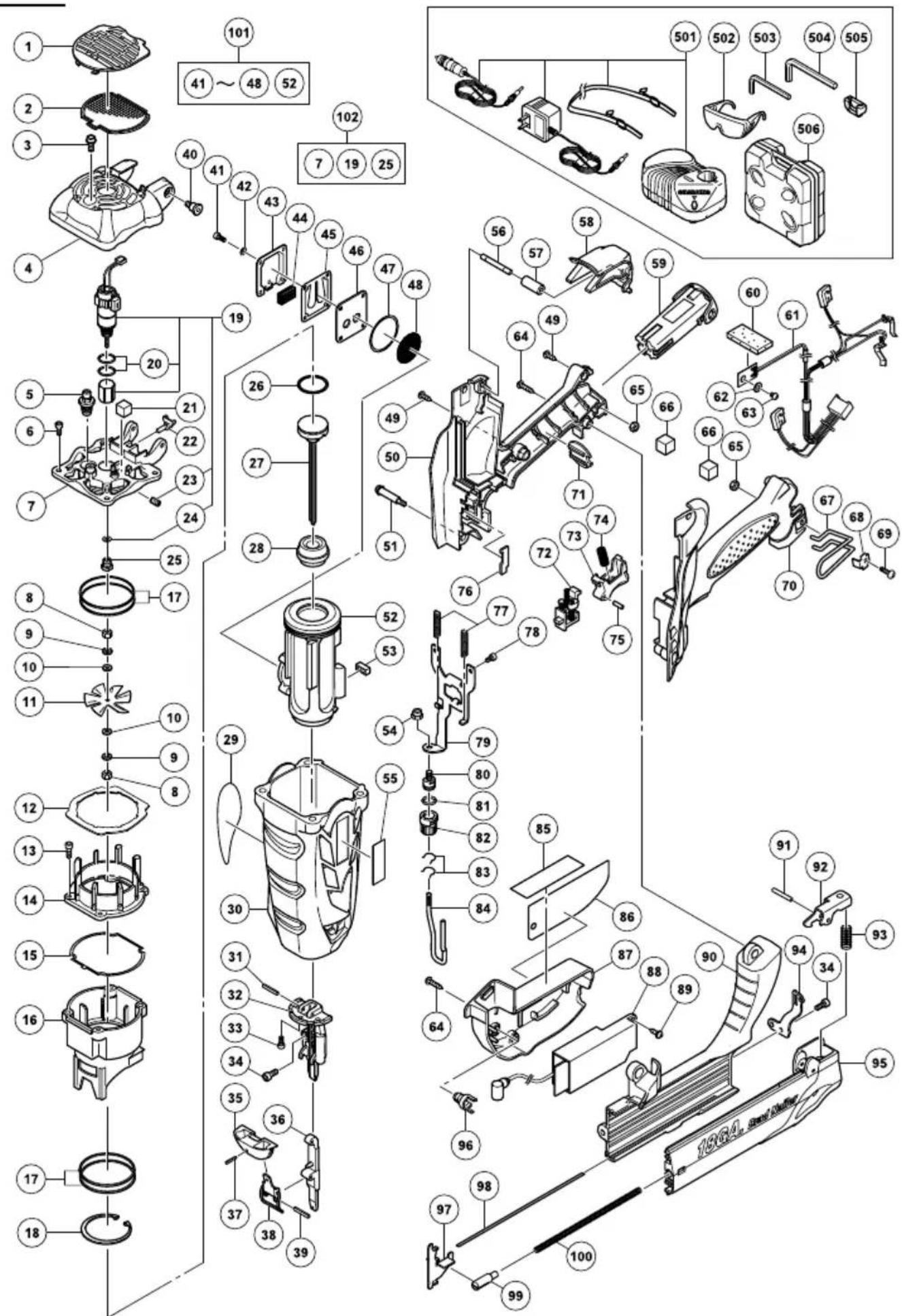

Exploded view diagram of a refrigerator assembly with numbered parts and Chinese labels

NT50GS

ITEM NO.	PART NAME	Q'TY
1 FILTER COVER 1
2 FILTER MESH 1
3	HEX. SOCKET HD. BOLT (W/FLANGE)M5×10	1
4 TOP COVER 1
5	S P ARK PLUG (A) 1
6 NYLOCK HEX. SOCKET HD. BOLT M4×12 4
7 CYLINDER HEAD 1
8 NUT M3 (10 PCS.) 2
9 SPRING WASHER M3 2
10 WASHER M3 2
11 FAN 1
12 RUBBER PLATE		1
13 HEX. SOCKET HD. BOLT M4×16		4
14 CHAMBER HEAD		1
15 GASKET		1
16 CHAMBER		1
17 PISTON RING (B)		4
18 RETAINING RING FOR D30 HOLE		1
19 MOTOR ASS'Y		1
20 C-RING (S-12)		2
21 PACKING		1
22 ADAPTER		1
23 HEX. SOCKET SET SCREW M4×5		2
24 SHAFT RUBBER WASHER		1
25 SHAFT COVER		1
26 PISTON RING (A)		2
27 PISTON		1
28 PISTON BUMPER		1
29 NAME PLATE		1
30 HOUSING		1
31 PIN		1
32 BLADE GUIDE		1
33	SEAL LOCK HEX. SOCKET HD. BOLT M4×12	3
34 NYLOCK HEX. SOCKET HD. BOLT M4×10 2
35 LOCK LEVER COVER		1
36 GUIDE PLATE		1
37 ROLL PIN D3×10		1
38 LOCK LEVER		1
39 ROLL PIN D3×16		1
40 HEX. SHOULDER BOLT M5		2
41	SEAL LOCK HEX. SOCKET HD. BOLT M4×8	4
42 BELLEVILLE SPRING H8		4
43 BUFFER COVER		1
44 MUFFLER		1
45 REED VALVE		1
46 BUFFER PLATE		1
47 C-RING		1
48 MESH		1
49 TAPPING SCREW (W/FLANGE) D4×16		2
50 HANDLE (B)		1
51 HEX. SHOULDER BOLT M4×32		1
52 CYLINDER		1
53 CHAMBER STOP RUBBER		1
54 NYLON NUT M5		1
55 HITACHI PLATE		1

ITEM NO.	PART NAME	Q'TY
56	CELL PIN	1
57	PIPE RUBBER 1
58	ACTUATER	1
59	BATTERY EBM315	2
60	SUPPORT (B)	1
61	INTERNAL WIRE (A)	1
62	WASHER M4 1
63	MACHINE SCREW M4×10	1
64	TAPPING SCREW (W/FLANGE) D4×20	2
65	LOCK NUT M4 2
66	PACKING	2
67	HOOK	1
68	HOOK PLATE	1
69	TRUSS HD. SCREW M4	1
70	HANDLE (A)	1
71	TERMINAL SUPPORT 1
72	TRIGGER STOPPER	1
73	TRIGGER	1
74	TRIGGER SPRING	1
75	PIN D3×20	1
76	CORD COVER PLATE	1
77	CHAMBER SPRING	2
78	SEAL LOCK HEX. SOCKET HD. BOLT M4×10	2
79	PUSH LEVER ARM	1
80	PUSH LEVER PIECE	1
81	O-RING (S-8) 1
82	ADJUSTER	1
83	RATCHET SPRING	2
84	PUSHING LEVER (A)	1
85	CAUTION LABEL 1
86	WARNING LABEL	1
87	CONTROLLER COVER	1
88	CONTROLLER	1
89	TAPPING SCREW (W/FLANGE) D4×12	1
95	MAGAZINE COVER	1
91	ROLL PIN D3×20	1
92	STOP LEVER	1
93	SPRING	1
94	PLATE	1
90	MAGAZINE	1
96	PRISM	1
97	NAIL FEEDER	1
98	NAIL PLATE 1
99	FEEDER PIECE	1
100	FEED SPRING	1
101	CYLINDER ASS'Y (A)	1
102	CYLINDER HEAD ASS'Y	1
501	CHARGER (UC3SML)	1
502	SAFETY GLASSES	1
503	HEX. BAR WRENCH 3MM	1
504	HEX. BAR WRENCH 4MM	1
505	NOSE CAP (A)	1
506	CASE	1

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR HITACHI.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

450 Export Blvd. Unit B,

Mississauga ON L5T 2A4
