Product type	Oscillating sander
Brand	Toolson
Model	PRO-OS 280 E
Mains voltage	230 V ~ 50 Hz
Power consumption	300 W
No-load speed	7,000 - 11,000 rpm
Oscillations at no load	14,000 - 22,000 rpm
Sanding surface	227 x 115 mm
Abrasive paper size (Velcro)	230 x 115 mm
Abrasive paper size (clamping)	280 x 115 mm
Weight	2.2 kg
Protection class	II (double insulation)
Sound pressure level LpA	78.1 dB(A) (uncertainty K=3 dB)
Sound power level LWA	89.1 dB(A) (uncertainty K=3 dB)
Vibration emission value (ah)	9.521 m/s² (uncertainty K=1.5 m/s²)
Main functions	Sanding of wood, iron, plastic and similar materials; integrated dust extraction; variable speed controller; Velcro and clamping fixation
Safety	Lock switch for continuous operation; additional handle; restart protection (not explicitly mentioned but standard)
Maintenance and cleaning	Regular cleaning with damp cloth; replacement of carbon brushes by a specialist; no internal parts requiring maintenance
Spare parts and repairability	Wear parts: carbon brushes, sanding pad; consumables: abrasive paper; after-sales service via ISC GmbH
Warranty	60 months (conditions: non-professional use)

Frequently Asked Questions - PRO-OS 280 E Toolson

What type of abrasive paper to use with the PRO-OS 280 E sander?

Use appropriate abrasive paper: for Velcro fixing, dimensions 230 x 115 mm; for clamping, dimensions 280 x 115 mm. Ensure the perforations match the floating base plate.

How to change the abrasive paper on the Toolson PRO-OS 280 E sander?

Two methods: Velcro: peel off the old one and place the new one, aligning the holes. Clamping: lift the levers (8) at the front and rear, insert the paper up to the stop, then close the levers while tensioning the paper.

How to adjust the rotation speed on the PRO-OS 280 E?

Use the speed regulator (3): turn in the PLUS direction to increase speed (up to 11,000 rpm) and in the MOINS direction to reduce it (down to 7,000 rpm).

Does the sander have a dust extraction system?

Yes, it is equipped with a dust collector (6) to attach to the extraction connection. You can also use a vacuum cleaner adapter (9) for external extraction.

What protective equipment is recommended for use?

Always wear safety goggles, a dust mask and hearing protection (earmuffs). The sound level can reach 89.1 dB(A).

How to maintain the Toolson PRO-OS 280 E sander?

Clean the device with a damp cloth and a little soap after each use. Do not use aggressive products. The ventilation slots must be free of dust. The carbon brushes should be checked by an electrician if excessive sparks appear.

What are the power and voltage of the PRO-OS 280 E sander?

The power consumption is 300 W and the mains voltage is 230 V ~ 50 Hz. The device is protection class II (double insulation).

What materials can I sand with this sander?

The machine is suitable for sanding wood, iron, plastic and similar materials with the appropriate abrasive paper. It is not suitable for wet polishing.

How to empty the dust collector?

Open the dust collector (6) as shown in figure 3, then tap it gently to empty it. You can also wash it with clean water if necessary.

Where can I find spare parts for the PRO-OS 280 E?

Order spare parts from the ISC GmbH after-sales service. Specify the device type, article number and identification number. Wear parts include carbon brushes and the sanding pad.

USER MANUAL PRO-OS 280 E Toolson

GB Original operating instructions Orbital sander

Close-up of hands holding a small electronic device with a paper clip, showing a measurement arrow (no text or symbols visible)

-2-

4 9 a

Close-up of a hand holding a textured metal component with holes, showing part 7 and label 5 (no readable text or symbols)

6 8 7

7 a 2 3

DE

Danger! - Read the operating instructions to reduce the risk of inquiry

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Additional handle
2. Operating switch
3. Speed controller
4. Locking switch
5. Handle
6. Dust collector
7. Oscillating plate
8. Clamping handle
9. Dust extractor adapter

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if

available).

• Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safetyinstructions

3. Proper use

The equipment is designed for the grinding/sanding of wood, iron, plastic and similar materials using the appropriate grinding/sanding paper. The machine is not suitable for wet grinding/sanding.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 230 V\~50 Hz
Power input: 300 W
Idling speed: 7,000 - 11,000 rpm
Orbits: 14,000 - 22,000 rpm
Grinding/sanding area: 227 x 115 mm
Abrasive paper size
(Velcro fastening): 230 x 115 mm
Abrasive paper size (clamp): .....280 x 115 mm
Protection class:
Weight: 2.2 kg

GB

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 78.1 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 89.1 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Vibration emission value a_h = 9.521 m/s^2

K uncertainty = 1.5 m/s ^2

The specific vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specific value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

5.1 Installing the dust collector (Figure 2-3/Item 6)

• The dust collector (6) must be connected to the dust extractor connector (a).
• The dust is extracted directly through the grinding/sanding paper and the orbital disk and into the dust collector.
• To empty the duct collector, open it as shown in Fig. 3 and carefully tap it to remove the debris.

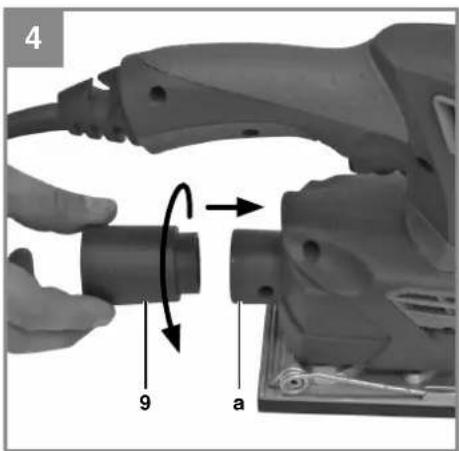

5.2 Installing the dust extractor adapter (Figure 4/Item 9)

Connect the dust extractor adapter (9) to the dust extractor connector (a) as shown in Fig. 4 and secure it by turning it. Connect the dust extractor adapter to a suitable dust extraction system.

Caution!

The use of the dust collector or a dust extraction system is absolutely essential for safety reasons.

GB

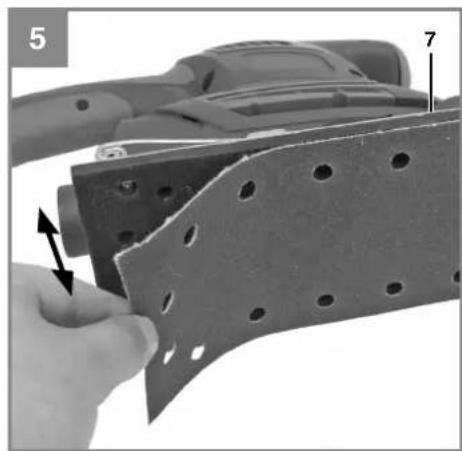

5.3 Securing sanding/grinding paper using a Velcro fastening (Fig. 5)

• Only use sanding/grinding paper of the appropriate size and suitable perforations.
• Place the sanding/grinding paper on the oscillating plate (7) as shown in Fig. 5. Make sure that the perforations in the sanding/grinding paper line up with the oscillating plate.

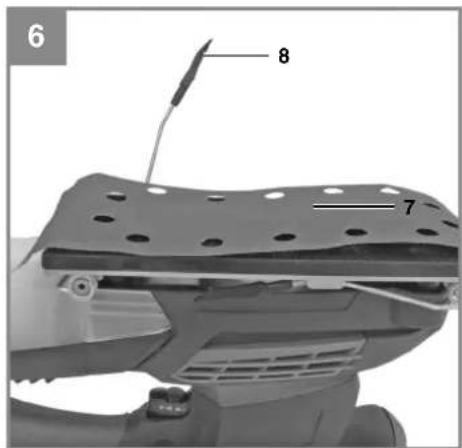

5.4 Securing sanding/grinding paper using a clamp (Fig. 6)

Only use sanding/grinding paper of the appropriate size and suitable perforations.

• Raise the lever (8) on the front of the orbital sander slightly and detach it.
• Insert the sanding/grinding paper as far as possible into the open clamp and close the lever again.
• Place the sanding/grinding paper taut over the orbital plate (7) and clamp it again using the second lever (8) on the rear of the orbital sander.
  • Make sure that the perforations in the sanding/grinding paper line up with the oscillating plate.

6. Operation

6.1 Switching the machine on and off (Fig. 7/Item 2)

To switch on:

Press the control switch (2).

Continuous operation:

Lock the control switch by pressing the locking switch (4).

To switch off :

Press the control switch briefly and release it.

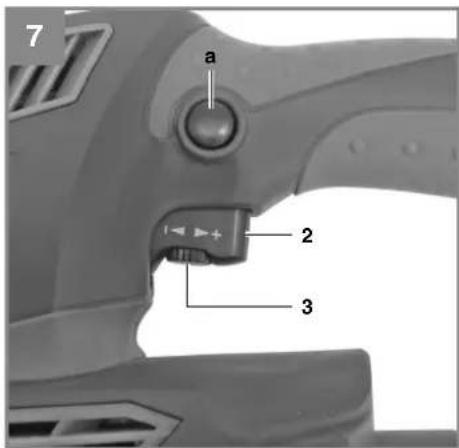

6.2 Speed control (Fig. 7/Item 3)

To pre-select the speed turn the knurled screw (3) on the switch.

Plus direction: Higher speed

Minus direction: Lower speed

6.3 Working with the orbital grinder/sander

• Place the whole surface area of the sanding disk on the material.
• Switch on the machine and move it with gentle pressure over the workpiece completely circular movements or moving it to and fro and up and down.
• Use a coarse paper for coarse sanding and a finer paper for finish sanding. You can find the best paper for the job by means of testing.

Caution!

The dust generated when working with the machine may be harmful.

• Always wear goggles and a dust mask when carrying out sanding/grinding work.
- Everybody who uses the machine or enters the workplace must wear a dust mask.
• Do not eat, drink or smoke at the workplace.
- Do not use the machine on paints which contain lead.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30

°C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes, grinding/sanding plate
Consumables* Grinding/sanding paper
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.
   Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period.

The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

1. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Negotovost K_pA .....3 dB

Negotovost K_WA .....3 dB

P = KW: L/∅ = cm ^mm

Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60745-1; EN 60745-2-4; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR009993

Documents registrar: Daniel Protschka

Wiesenweg 22, D-94405 Landau/Isar

EH 02/2014 (01)
