Product type	Car subwoofer speaker
Brand	Alpine
Model	SPV-10TW
Diameter	10 inches (25 cm)
Impedance	4 ohms
Maximum power (RMS)	300 W
Peak power	600 W
Sensitivity	87 dB (1 W/1 m)
Frequency response	28 Hz – 200 Hz
Dimensions (diameter x depth)	260 mm x 150 mm
Weight	4 kg
Cone material	Reinforced polypropylene
Magnet type	Ferrite
Power handling	Passive, requires external amplifier
Care and cleaning	Dust with a soft dry cloth. Do not use chemicals.
Safety	Disconnect battery before installation. Observe polarity. Do not expose to moisture.
Warranty	1 year (parts and labor)
Included accessories	Sealing gasket, mounting screws, user manual
Repairability	Contact an Alpine authorized repair center

Frequently Asked Questions - SPV-10TW ALPINE

What is the recommended amplifier power for this speaker?

Alpine recommends an amplifier delivering between 150 and 300 Watts RMS at 4 ohms. Do not exceed the maximum power to avoid damaging the voice coil.

Can I use this speaker in a sealed or bass-reflex enclosure?

Yes, the SPV-10TW is suitable for both types of enclosures. For a sealed enclosure, the recommended volume is 28 liters. For a bass-reflex, use a volume of 42 liters with a vent of 75 mm diameter and 200 mm length.

What is the impedance of this speaker?

The nominal impedance is 4 ohms. Check that your amplifier is stable at 4 ohms.

How to install the SPV-10TW correctly in my car?

Secure the speaker firmly using the provided screws. Ensure the cone does not touch any obstacle. Observe polarity: the positive wire from the amplifier must be connected to the speaker's + terminal.

What to do if the speaker emits abnormal sound?

First check the connections. A crackling sound may indicate a damaged voice coil. Reduce volume and test with a different source. If the problem persists, contact an Alpine repair center.

Is this speaker compatible with a factory car audio system?

Yes, but you will need a wiring harness adapter and an external amplifier, as the factory system does not have enough power to drive the SPV-10TW.

How to maintain the speaker?

Regularly clean dust with a soft cloth. Avoid moisture and chemicals. Periodically check the mounting.

What is the warranty period?

The warranty is one year from the date of purchase. It covers defects in materials and workmanship. Keep the proof of purchase.

Can I repair the speaker myself if it is damaged?

It is not recommended to open the speaker. Any unauthorized repair attempt voids the warranty. Contact an Alpine authorized center.

Where can I find Alpine after-sales service?

For the United States, call 1-800-421-2284 (extension 860304) or visit alpine-usa.com. For Canada, contact 905-513-7733 or alpine-canada.com.

USER MANUAL SPV-10TW ALPINE

Congratulations on your purchase of high quality speakers from Alpine. Your listening satisfaction is important to us. In order to maximize and maintain peak speaker performance the following guidelines are being provided. Please read this notice carefully before operating the speakers.

1. Do not over-drive the amplifier. Over-driving the amplifier will result in distortion or clipping and can damage any speaker.
2. Make sure gain controls are properly set. (Follow instructions in amplifier owner's manual.)
3. Make sure that the speaker is properly rated for the amplifier.
4. Make sure that volume, bass, treble, equalization or crossover settings do not cause the amplifier to over-drive.

Failure to follow these guidelines may result in burned or damaged speaker voice coils which will void your warranty.

If further assistance is necessary, please contact your Alpine authorized dealer.

SPV-10TW-WRA

1" Component Tweeter

Front or Soundbar Installation Manual

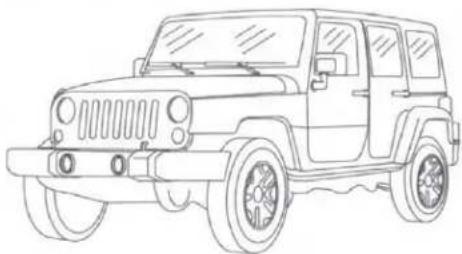

Line drawing of a classic off-road vehicle (no text or symbols)

Jeep

Wrangler (JK)

Wrangler Unlimited (JKU)

● Model Year: 2007 – 2018 (Base audio system only on 2015-Up) Wrangler (JL)

● Model: Wrangler JL 2018-Up (Base audio system only)

Wrangler Unlimited (JLU)

● Model: Gladiator JT 2020-Up (Base audio system only)

* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is not guaranteed if the manufacturer has made production changes to the listed vehicles above.

⚠ Warning: Before you begin wiring, remove the ground wire from the NEGATIVE (-) terminal of the battery. Failing to do so can lead to electric shock, injury or damage to equipment.

Introduction

- Congratulations on purchasing the SPV-10TW-WRA. This installation manual is designed to take you through the step-by-step installation of the SPV-10TW-WRA into a 2007 - Up Jeep Wrangler/Wrangler Unlimited. Please familiarize yourself with the owners manual and if you still have additional questions please call 1-800-TECH-101.

Note

● Design and specifications are subject to change without notice for improvement.

To Ensure Safe Use, Always Follow These Precautions

● The installation of this product requires specialized skills and experience. We recommend that you have the product installed by an Alpine authorized dealer.
Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
● This manual includes a number of symbols that are intended to help you use the product safely, to prevent harm to you and others, and to protect against damage to property. These symbols and their meanings are listed below. Make sure you fully understand these symbols before you begin reading the main text.

Do not sandwich cords between the seat railing or allow them to touch protrusions. Resulting breaks or shorts could lead to electric shock or fire.

Do not block vents or heat sinks. Doing so could lead to fire or damage equipment.

Use the accessories according to the instructions, and attach them securely. Failing to do so could lead to an accident or damage equipment.

Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment.

The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.

Forbidden

Tools Required

Panel Removing Tool	Sockets	5mm Allen Wrench
	/[mm]
Ratchet	Torx

Accessory List

Tweeters x 2 pcs	Crossovers x 2 pcs	3.5" Tweeter Adapter Plate (2015-2018) x 2 pcs
Alpine Logo Badges x 2 pcs

Front Tweeter Removal (2015-2018)

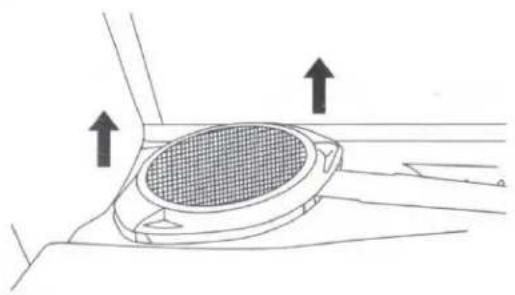

1 Remove top dash speaker grille using a panel removal tool. Clean surface and apply the Alpine badge.

Diagram of a circular component with internal mesh structure and two upward arrows indicating direction (no text or symbols)

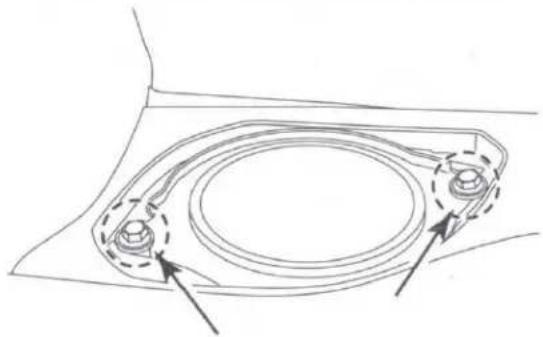

2 Extract the (2) 7mm bolts (save for later) and disconnect and remove the factory speaker.

Technical line drawing of a mechanical component with two circular features and directional arrows indicating motion (no text or symbols)

Front Tweeter Installation (2015-2018)

1 Press the tweeter into the 3.5" tweeter adapter.

Technical illustration of a mechanical component with a circular housing and a downward arrow indicating assembly (no text or symbols)

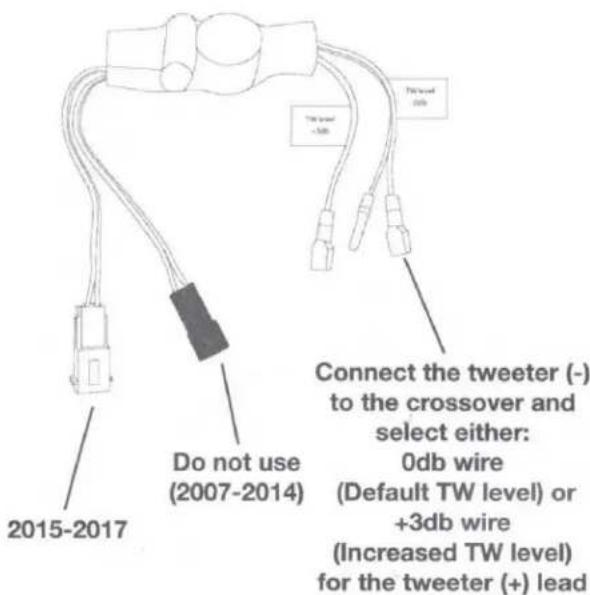

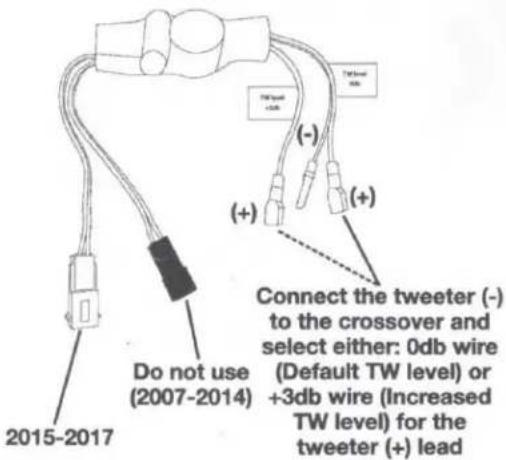

2 Select the (2015-2017) crossover input wires and connect to the vehicle plug. Connect tweeter connectors. Secure the crossover. Note: 2007-2014 input plug is not used.

3 Align tweeter adapter plate notch to the vehicle and reinstall using the (2) 7mm bolts.

Technical line drawing of a mechanical component with no visible text or symbols

4 Align the factory tweeter grill clips and secure by firmly pressing downward.

Diagram of a car's side profile showing a textured interior and two arrows pointing to the edge (no text or symbols present)

Front Speaker (Tweeter) Removal (2007-2014)

1 Remove top dash speaker grill using a panel removal tool. Disconnect the tweeter.

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Front Speaker (Tweeter) Installation (2007-2014)

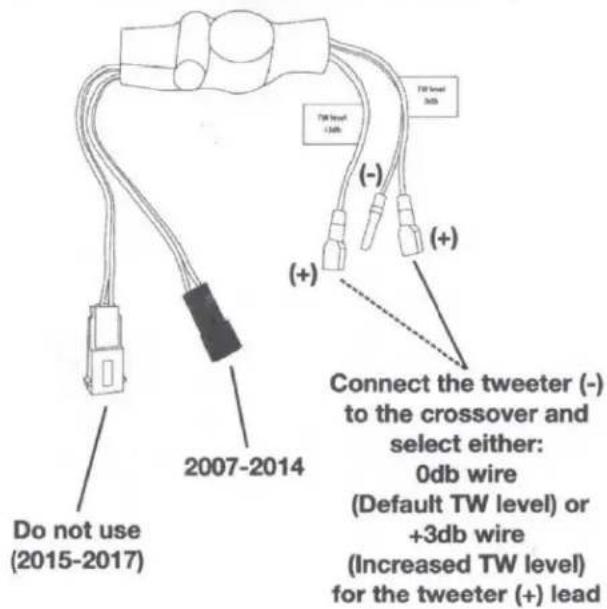

1 Select the (2007-2014) crossover input wires and connect to the vehicle plug. Connect tweeter connectors. Secure the crossover. Note: 2015-2017 input plug is not used.

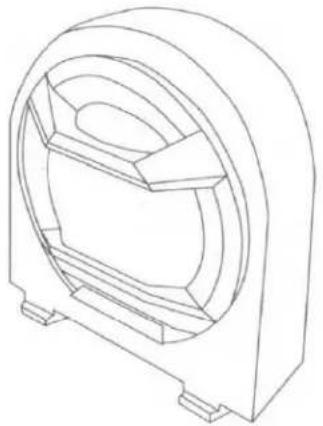

2 Guide the tweeter in the opening and press into place.

Technical line drawing of a mechanical component with concentric circular and rectangular features (no text or symbols)

Rear Soundbar Speaker Removal (2015-2018)

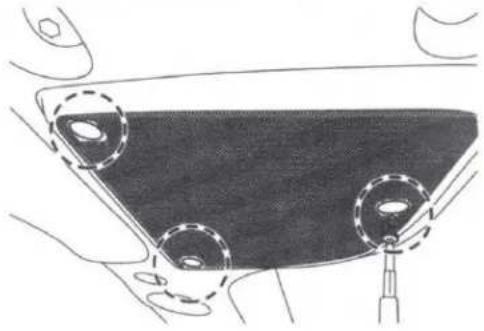

1 Extract the (3) T20 Torx screws from the speaker grilles.

Diagram of a car interior showing dashboard and steering wheel (no text or symbols)

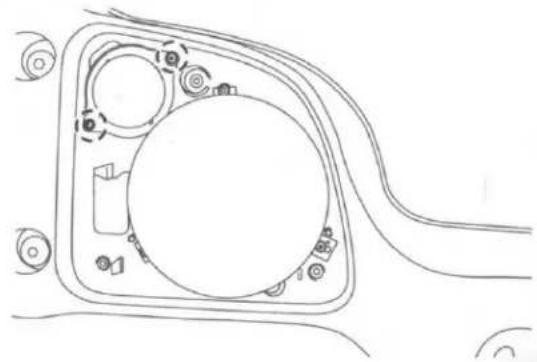

2 Hold the tweeter while extracting the (2) T20 torx screws. Disconnect the tweeter and save the screws for later.

Pure technical line drawing of a mechanical component or housing with no text, numbers, or symbols

Rear Soundbar Speaker Installation (2015-2018)

1 Press the tweeter into the 3.5" tweeter adapter.

Mechanical assembly diagram showing a housing component with a downward arrow indicating motion (no text or symbols present)

2 Select the (2015-2017) crossover input wires and connect to the soundbar vehicle plug. Connect tweeter connectors. Mount the tweeter to the soundbar. Note: 2007-2014 input plug is not used.

3 Install speaker grilles using the reverse procedure. Repeat for the opposite side.

Front Tweeter removal and installation (2018-Up JL, 2020-Up JT)

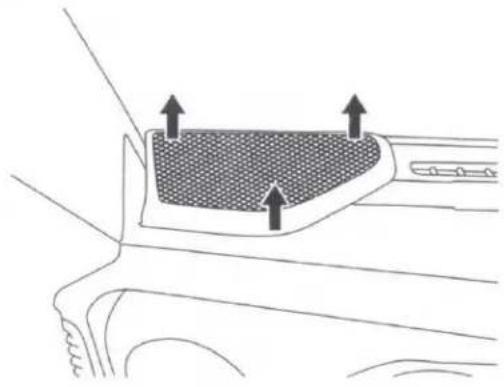

1 Using a panel removal tool, release the clips on the top dash speaker grilles and remove them.

Diagram of a car interior showing a textured grille and directional arrows (no text or symbols)

2 Extract (2) 7mm screws from each of the factory top dash speakers and remove them.

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

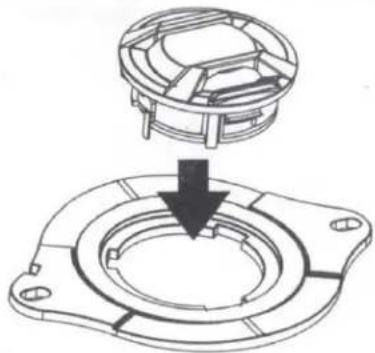

3 Firmly press tweeter into mounting adaptor plate.

Technical illustration of a mechanical component with a magnified view showing internal structure (no text or symbols)

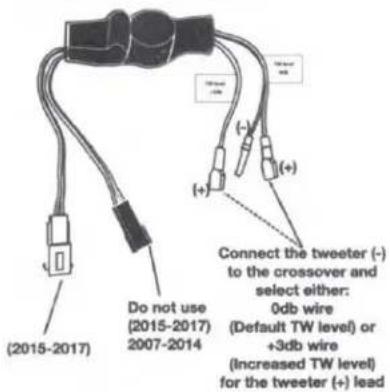

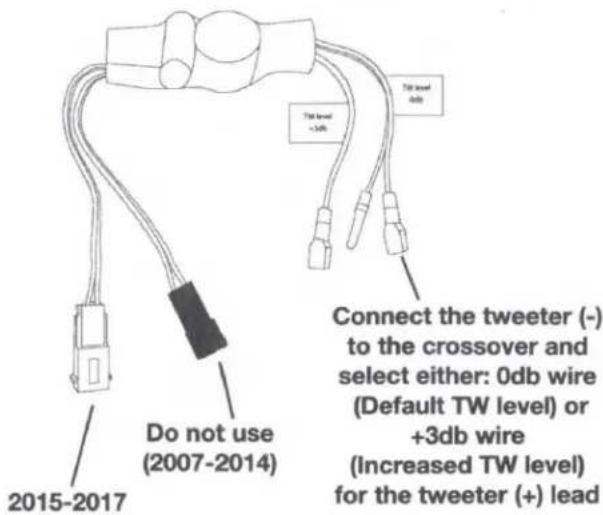

4 Connect crossover as shown. Note: it is recommended to use the red (+) lead when utilizing the OEM radio.

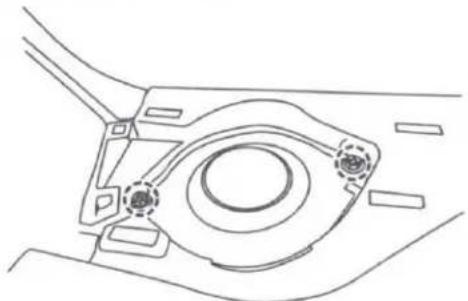

5 Connect tweeter to crossover and mount them using the factory screws.

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

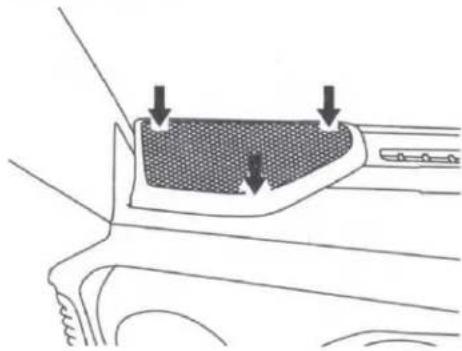

6 Align the factory tweeter grill clips and secure by firmly pressing downward.

Diagram of a car interior showing a textured surface and directional arrows (no text or symbols)

Rear Soundbar Speaker Removal & Installation (2018-Up JL, 2020-Up JT)

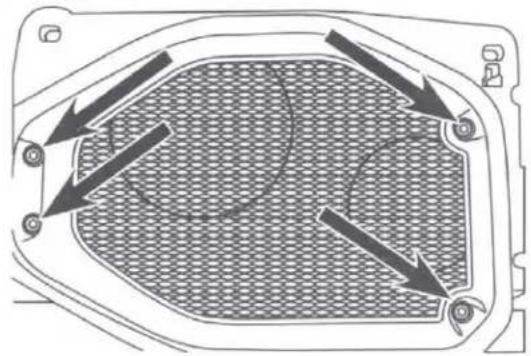

1 Extract the (4) 5mm, allen head, bolts and remove factory grills.

Diagram of a fan or vent structure with directional arrows indicating airflow or movement (no text or symbols)

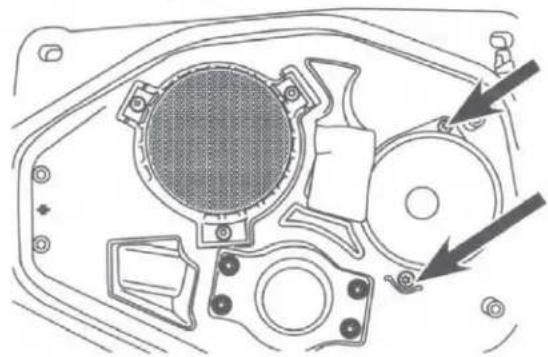

2 Extract the (2) T20, torx, screws from the tweeter.

Technical diagram of a mechanical component with no visible text or symbols

3 Press the tweeter into the 3.5" tweeter adapter.

Mechanical assembly diagram showing a circular component being lifted by a downward arrow into a flanged housing (no text or symbols)

4 Select the (2015-2017) crossover input wires and connect to the vehicle plug. Connect tweeter connectors. Secure the crossover. Note: 2007-2014 input plug is not used.

5 Mount the tweeters with the factory screws. Reverse the procedure for mounting the factory grilles.

SPV-10TW-WRA

COMPONENT TWEETER

225 Watts Peak

75 Watts RMS

Impedance : 4 ohms

Cutout diameter : 1" (2.5cm)

Mounting depth : 3/4" (1.9cm)

Frequency Response : 2kHz to 22kHz

ALPINE®

Emotion in Mobility

SPV-10TW-WRA

COMPONENT TWEETER TWEETER SEPARE

1" (2.5cm)

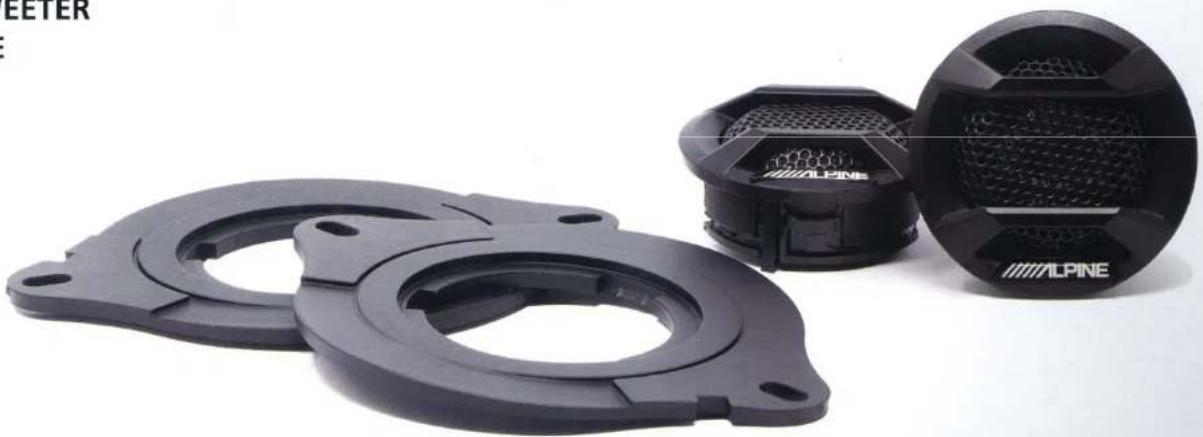

Product photo of three black Alpine speaker modules with mounting flanges and a meshed top component (no text or symbols visible)

75W

RMS POWER

225W

PEAK POWER

LIMITED WARRANTY

●PRODUCTS COVERED:

This Limited Warranty ("Limited Warranty") covers Alpine Car Audio Products and- Related Accessories (the "Product"). Products purchased in Canada are covered only in Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

●LENGTH OF WARRANTY:

This Warranty is in effect for one year (1) from the date of the original retail purchase on the Product.

●WHO IS COVERED:

This Warranty only covers the original purchaser of the Product, who must reside in the United States, Puerto Rico or Canada.

●WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts and labor), under normal use, in the Product.

●WHAT IS NOT COVERED:

This Limited Warranty does not cover the following:
① Damage occurring during shipment of the Product to Alpine for repair (claims must be presented to the carrier).
② Damage caused by normal wear and tear, accidents or abuse, including burned voice coils caused by over-driving the speaker (amplifier level is turned up and driven into distortion or clipping). Speaker mechanical failure (e.g. punctures, tears or rips). Cracked or damaged LCD panels. Dropped or damaged hard drives.
③ Damage caused by negligence, misuse, improper operation or failure to follow instructions contained in the Owner's manual.
④ Damage caused by an act of God, including without limitation, earthquake, fire, flood, storms or other acts of nature. Any cost or expense related to the removal or reinstallation of the Product.
⑤ Service performed by an unauthorized person, company or association.
⑥ Any Product which has the serial number defaced, altered or removed.
⑦ Any Product which has been adjusted, disassembled, altered or modified without Alpine's consent.
⑧ Any Product not distributed by Alpine within the United States, Puerto Rico or Canada.
⑨ Any Product not purchased from an Authorized Alpine Dealer.

●HOW TO OBTAIN WARRANTY SERVICE:

① You are responsible for delivery of the Product to an Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the Product with a new or reconditioned product without charge. If the repairs are covered by this Limited Warranty, and if the Product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges. The repaired or replaced Product will continue to be covered under the original Limited Warranty period.

② You should provide a detailed description of the problem(s) for which service is required.

③ You must supply proof of your purchase of the Product.

④ You must package the Product securely to avoid damage during shipment. To prevent lost packages, it is recommended to use a carrier that provides a tracking service.

●HOW WE LIMIT IMPLIED WARRANTIES:

ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON OR THIRD PARTY IS AUTHORIZED TO ADD TO, MODIFY, OR EXTEND THE TERMS OF THIS LIMITED WARRANTY AND/OR ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

●HOW WE EXCLUDE CERTAIN DAMAGES:

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ALPINE AND ITS PARENT COMPANY, AFFILIATES, AND SUBSIDIARIES EXPRESSLY DISCLAIM LIABILITY TO YOU UNDER ANY THEORY OF LIABILITY FOR ALL INCIDENTAL, INDIRECT DAMAGES, SPECIAL, PUNITIVE, AND CONSEQUENTIAL DAMAGES WHICH MAY BE INCURRED BY YOU IN RELATION TO THE PRODUCT. THE TERM INCIDENTAL DAMAGES INCLUDES, BUT IS NOT LIMITED TO, COSTS AND EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHER COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM CONSEQUENTIAL DAMAGES INCLUDES, BUT IS NOT LIMITED TO, THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITED WARRANTY AND THE REMEDIES PROVIDED HEREUNDER ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE TOTAL LIABILITY OF ALPINE, ITS PARENT COMPANY, AFFILIATIES, AND SUBSIDIARIES IN CONNECTION WITH THIS LIMITED WARRANTY AND/OR THE PRODUCT SHALL NOT EXCEED THE AMOUNT YOU ACTUALLY PAID FOR THE PRODUCT.

●HOW STATE/PROVINCIAL LAW RELATES TO THE LIMITED WARRANTY:

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

If any of the terms of this Limited Warranty are held to be null, void, illegal or unenforceable for any reason, the remaining terms of this Limited Warranty will remain in full force and effect.

For warranty service in the Canadian market, contact: Phone: [phone] Fax: [phone] Email: [e-mail]

Or visit our website at http://www.alpine-canada.com

●HOW TO CONTACT CUSTOMER SERVICE:

Should the Product require service, please call the following number for your nearest Authorized Alpine Service Center.

CUSTOMER SERVICE 1-800-421-2284, ext. 860304 TECH SUPPORT 1-800-TECH-101 (1-800-832-4101)

Or visit our website at http://www.alpine-usa.com

This Limited Warranty is provided by ALPINE ELECTRONICS OF AMERICA, INC., whose principal office is at 1500 Atlantic Blvd, Auburn Hills, MI 48326, U.S.A.

Do not send Products to this address.

Call the toll-free telephone number or visit the website to locate a service center.
