USER MANUAL PSS-23WRA2 ALPINE

Jeep Wrangler PSS-23WRA Sound System Installation Manual

● Model: 4-Door Wrangler Unlimited JL
● Model Year: 2018 –UP

*Not compatible with factory amplified systems

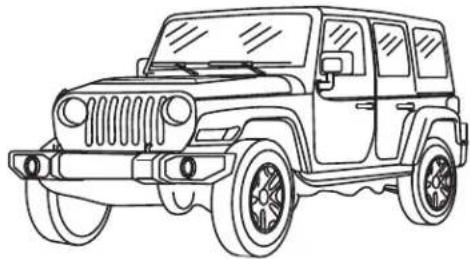

Line drawing of a classic off-road vehicle with front grille and alloy wheels (no text or symbols)

Jeep

Model Year

Wrangler Unlimited 2018 - UP

* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is not guaranteed if the manufacturer has made production changes to the listed vehicles above.

⚠ Warning: Before you begin, remove the ground wire from the NEGATIVE (-) terminal of the battery. Failing to do so can lead to electric shock, injury or damage to equipment.

Introduction

- Congratulations on purchasing the PSS-23WRA. This installation manual is designed to take you through the step-by-step installation of the PSS-23WRA into a 2018 -Up Jeep Wrangler Unlimited. Please familiarize yourself with the owner's manual and if you still have additional questions please call 1-800-TECH-101.

Note

● Design and specifications are subject to change without notice for improvement.

To Ensure Safe Use, Always Follow These Precautions

• The installation of this product requires specialized skills and experience. We recommend that you have the product installed by an Alpine authorized dealer.
• Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
• This manual includes a number of symbols that are intended to help you use the product safely, to prevent harm to you and others, and to protect against damage to property. These symbols and their meanings are listed below. Make sure you fully understand these symbols before you begin reading the main text.

Explanations of Injury and Damage That May Result from Incorrect Use

Warning	Ignoring the content marked by this indication and using the product incorrectly may lead to death or serious injury.
[BYCT] Caution	Ignoring the content marked by this indication and using the product incorrectly may lead to injury or property damage.

Jeep Wrangler

UNLIMITED JL ● 2/11

Types of Precautions

Forbidden	Indicates actions that are forbidden (must not be performed)
Forbidden	Indicates that disassembly is forbidden.
Mandatory	Indicates actions that are mandatory (must be performed)
	Marks content that should receive your full attention.

Warning

Do not disassemble or modify the product. Doing so could lead to an accident, fire, or electric shock.

Forbidden

Store screws and other small objects where small children cannot reach them. If one of these small objects is swallowed, consult with a doctor immediately.

When replacing fuses, be sure to use fuses with the specified current rating. Failing to do so could lead to an accident or fire.

Forbidden Mandatory

Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to an accident or fire.

Mandatory

Before you begin wiring, remove the ground wire from the negative terminal of the battery. Failing to do so could lead to electric shock or injury.

Do not cut the insulation on a cord and take power from another device. Doing so could lead to fire or electric shock.

Forbidden

Do not install the product in a location where it will obstruct the driver's forward view; interfere with the operation of the steering wheel, gearshift, or the like; or pose a threat to passengers. Doing so could lead to an accident or injury.

Forbidden

When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank, electrical wiring, and the like. This kind of damage could lead to an accident or fire.

When installing and grounding the product, do not use any of the bolts or nuts of the steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working or lead to fire.

Forbidden

Do not install the product near the passenger-side airbag. Doing so could interfere with the operation of the airbag and lead to an accident or injury.

Forbidden

Bundle cords so that they don't interfere with driving. Wrapping cords around the steering wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.

Caution

Connect the product properly according to the instructions. Failing to do so could lead to fire or an accident.

Forbidden

Do not sandwich cords between the seat railing or allow them to touch protrusions. Resulting breaks or shorts could lead to electric shock or fire.

Do not block vents or heat sinks. Doing so could lead to fire or damage equipment.

Use the accessories according to the instructions, and attach them securely. Failing to do so could lead to an accident or damage equipment.

Forbidden

Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment.

Forbidden

The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.

Tools Required

Panel Removal Tool Sockets	Phillips Screwdriver
Wire Cutters Extension Ratchet
T50 Torx Cordless Power Drill Cordless Impact Gun

Accessory List

Amplifier Assembly T-Harness Main Harness
(10) Cable Ties RCA Adapters Power Cable
Front Top Dash Speakers

Factory Equipment Removal Process

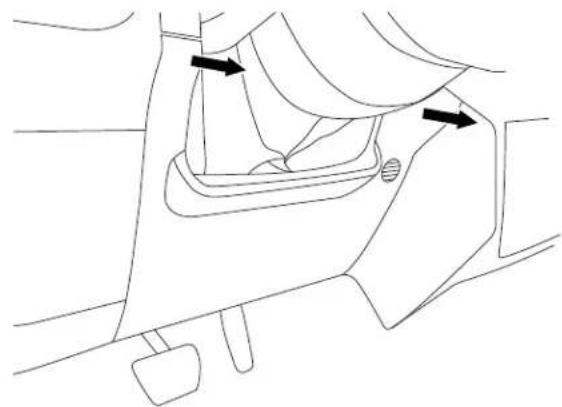

1 Use a panel removal tool to release (2) clips on the top of the plastic knee cover and remove it.

Line drawing of a car interior showing seat, dashboard, and steering wheel (no text or symbols)

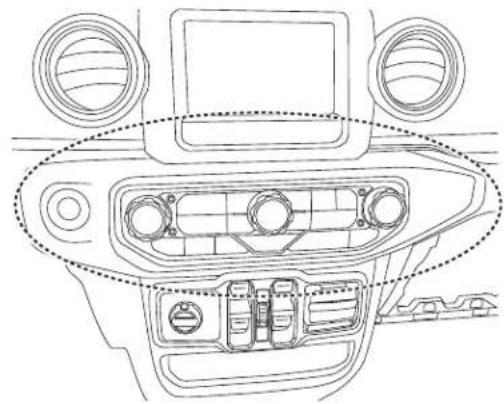

2 Use a panel removal tool to release (10) clips on the HVAC control panel, disconnect and remove it.

Top-down line drawing of a car dashboard and air intake system (no text or symbols)

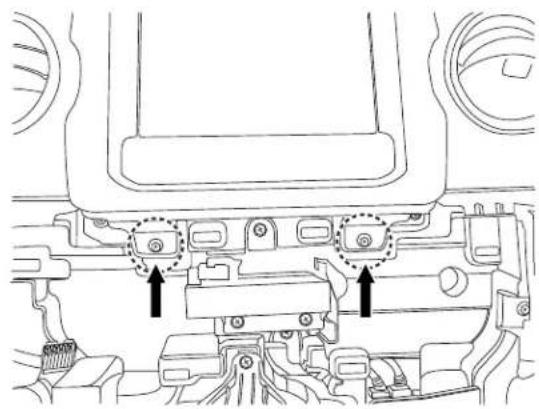

3 Extract (2) 7mm/Phillips screws on the bottom of the radio bezel.

Technical line drawing of a vehicle's internal components with no visible text or symbols

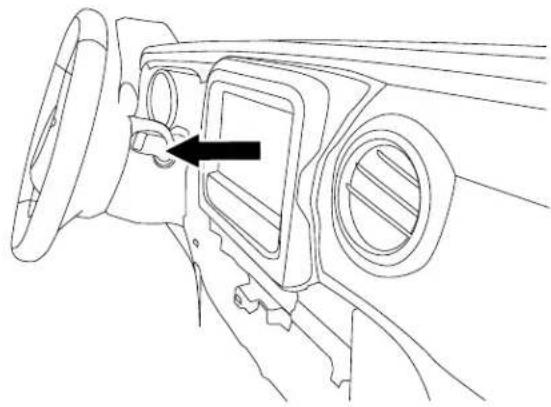

4 Use a panel removal tool to release (6) clips on the radio bezel and remove it.

Line drawing of a vehicle dashboard with a black arrow pointing to the front panel (no text or symbols)

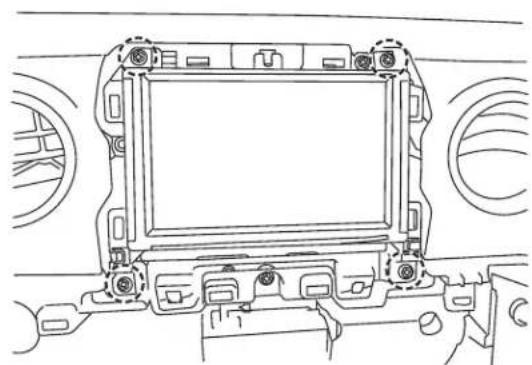

5 Extract (4) 7mm/Phillips screws from the factory radio, disconnect and remove it.

Technical line drawing of a car interior frame with no visible text or symbols

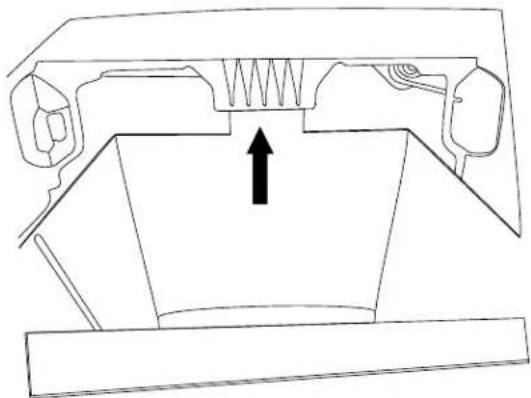

6 Lift the middle tab on the passenger side glovebox to release and remove it.

Technical line drawing of a mechanical component with an upward arrow indicating a specific feature (no text or symbols present)

Factory Equipment Removal Process (continued)

7 Extract (4) T50 Torx Screws from the passenger side seat.

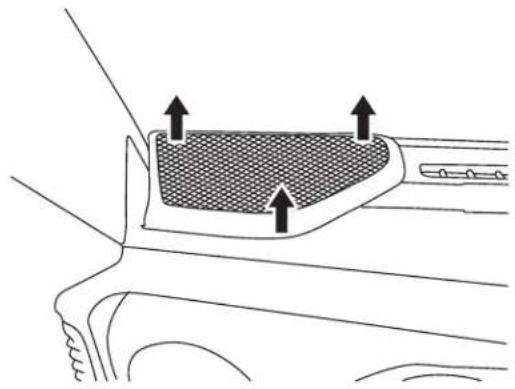

9 Using a panel removal tool, release the clips on the top dash speaker grilles and remove them.

Diagram of a car interior showing a meshed area and directional arrows (no text or symbols)

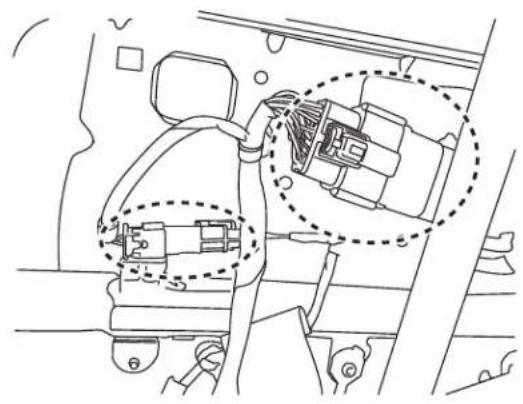

8 Tilt the passenger seat towards the back to reveal (2) connectors, disconnect and remove the seat.

Technical line drawing of a vehicle interior showing engine compartment and dashboard (no text or symbols)

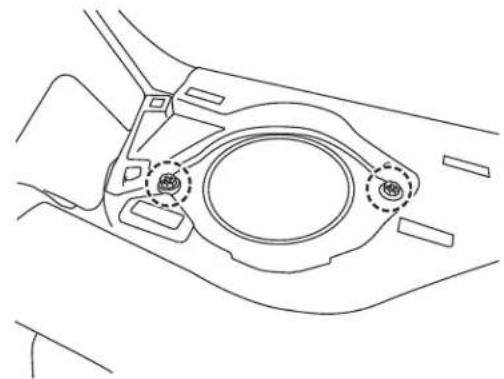

10 Extract (2) 7mm screws from each of the factory top dash speakers and remove them.

Technical line drawing of a mechanical component with no visible text or symbols

Installation

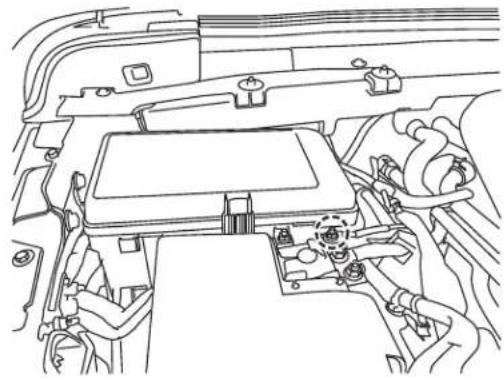

1 Connect the power cable to the Positive (+) battery terminal and route the cable down towards frame of the vehicle. Note: The Negative (-) terminal should remain disconnected until the installation is completed.

Technical line drawing of a car engine bay with internal components and no visible text or symbols

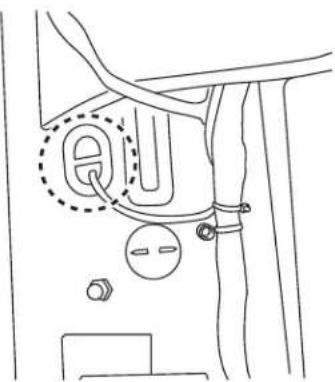

3 Route the Positive (+) power cable through the grommet under the carpet and pull the power cable from under the vehicle. Note: seal the grommet with silicone (not included) to prevent water from entering the cabin.

Line drawing of a mechanical component with no visible text or symbols

5 Connect the power cable to the main harness.

Diagram of a rope knot with directional arrows indicating movement (no text or symbols)

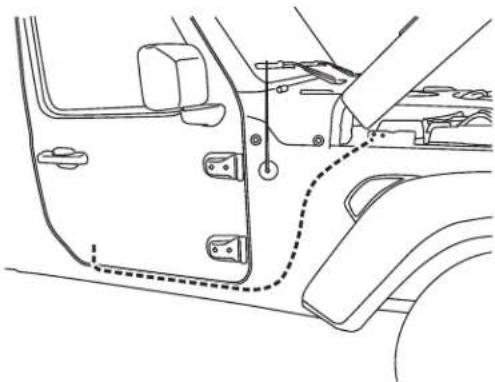

2 Route the power cable following the factory harness along the vehicle's frame.

Line drawing of a car door and side panel showing key components (no text or symbols)

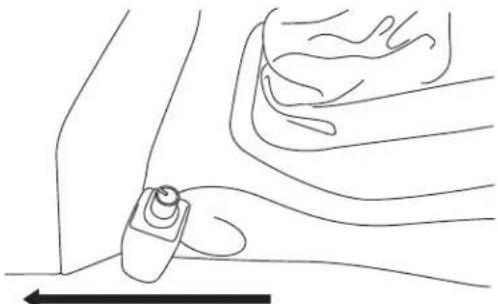

4 Mount the subwoofer level remote on the center console next to the gear shifter and route the cable to the passenger side seat.

Line drawing of a hand holding a small object, with no visible text or symbols

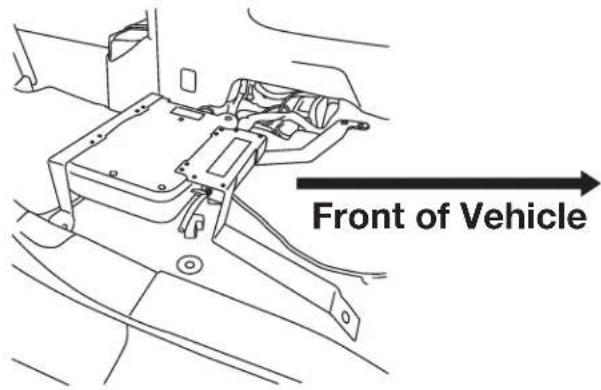

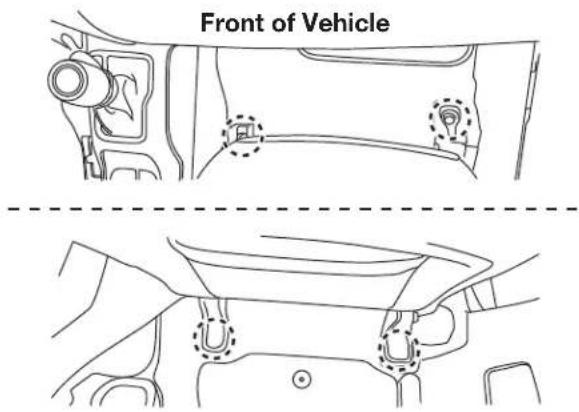

Front of Vehicle

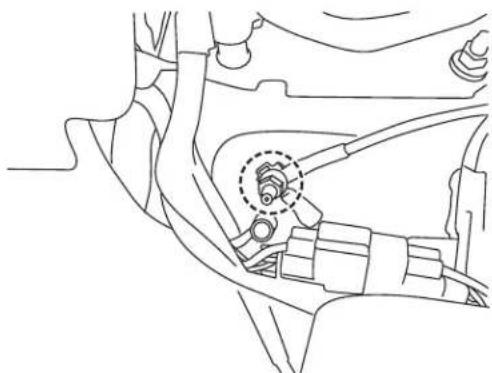

6 Attach the Negative (-) ground terminal to the factory ground stud below the center console.

Technical line drawing of a mechanical assembly with a dashed circle highlighting a component (no text or symbols present)

Installation (continued)

7 Connect the main harness to the amplifier assembly and align it to the seat mounting holes.

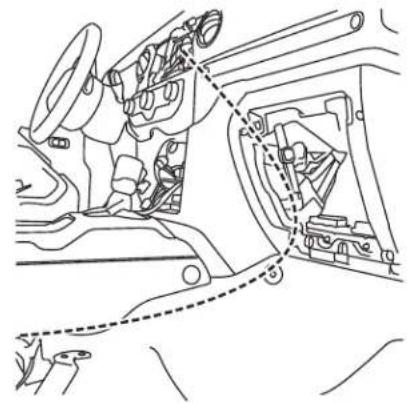

8 Route the main harness along the side of the center console to the radio location.

Line drawing of a car interior showing dashboard, steering wheel, and engine compartment (no text or symbols)

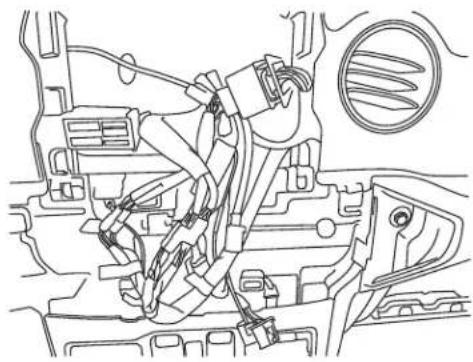

9 Connect the T-harness and main harness to the radio. Refer to page 8, 9 or 10 for the corresponding system wiring diagram.

Technical line drawing of a car engine compartment with hoses and a vent (no text or symbols)

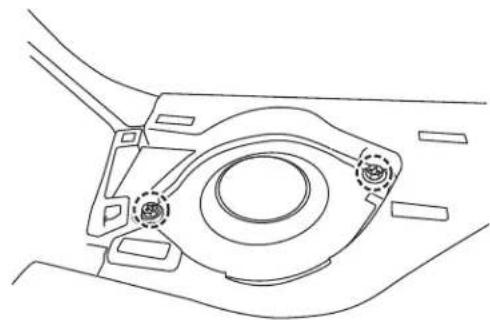

10 Connect the replacement dash speakers and mount them using the factory screws.

Technical line drawing of a mechanical component with two circular features and mounting brackets (no text or symbols)

11 Return all removed components to their corresponding location and connect the Negative (-) battery terminal.

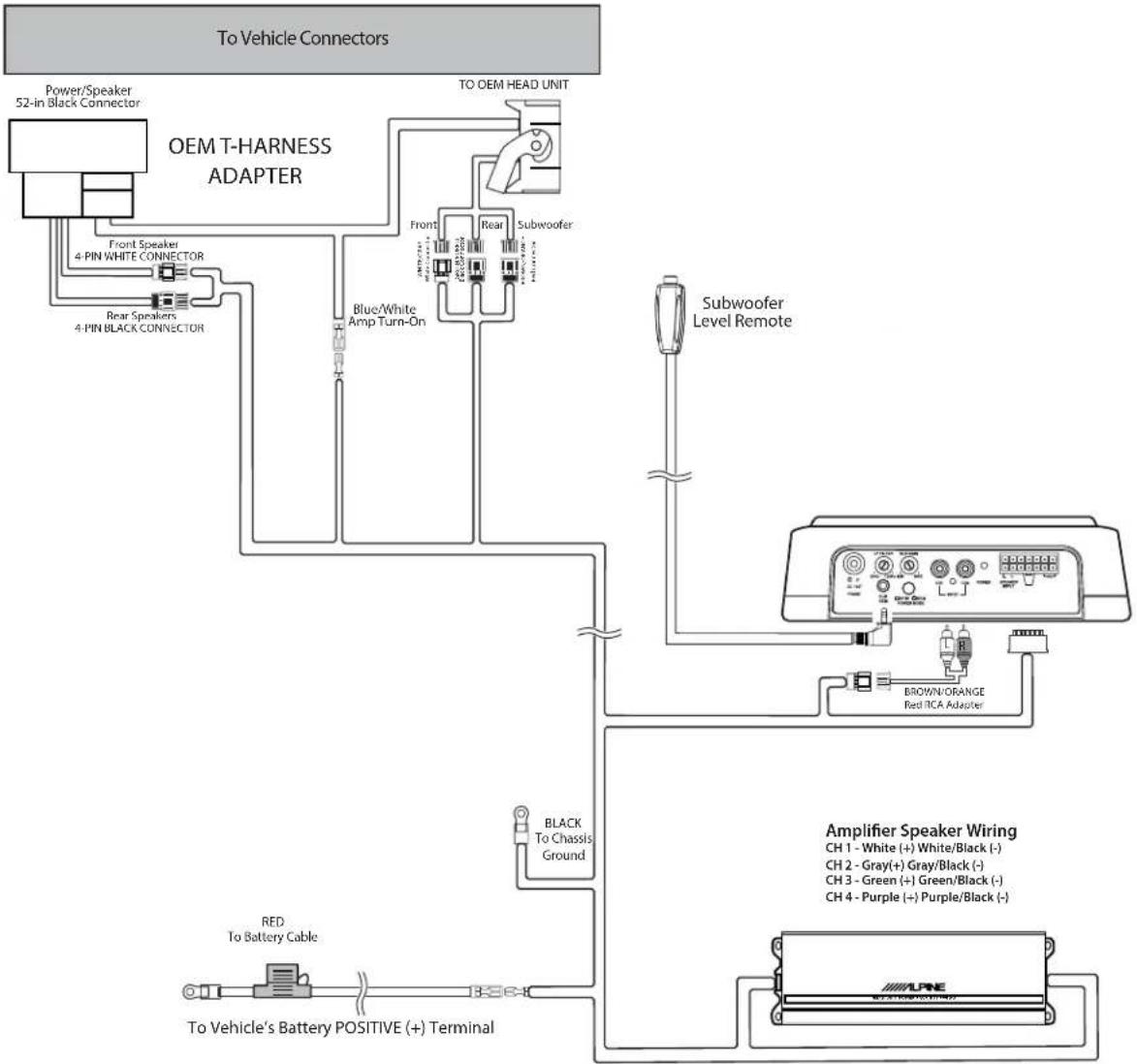

OEM Head Unit Wiring Diagram

POWER PACK AMPLIFIER KTP-445U SUBWOOFER PV

-58

PHASE

SUB REM

□ SPIN □ REM POWER MODE
NOTE: FOR BEST PERFORMANCE SET AMPLIFIER AND SUBWOOFER TO RECOMMENDED SETTINGS AS SHOWN ABOVE

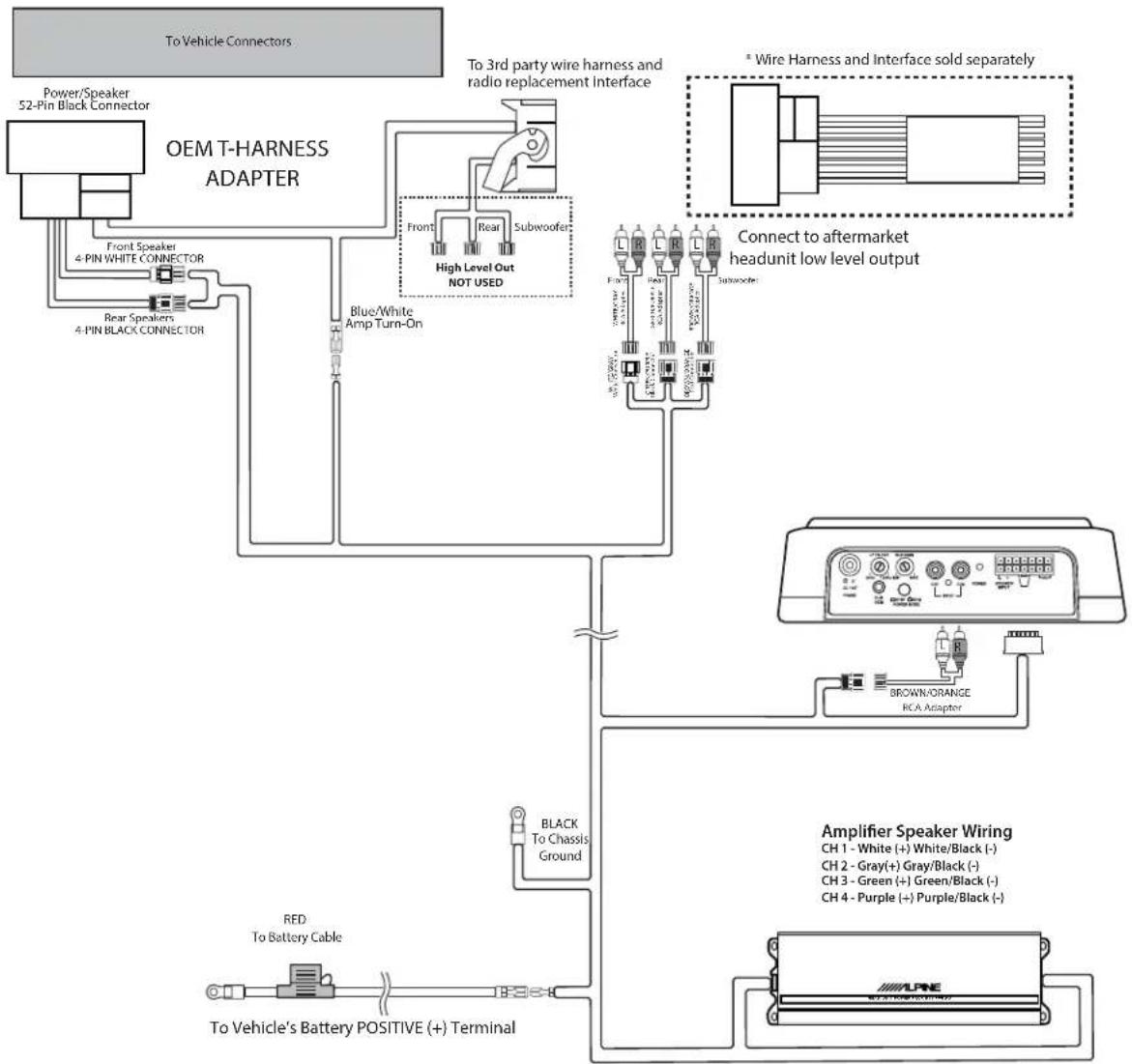

Aftermarket Head Unit Wiring Diagram

POWER PACK AMPLIFIER KTP-445U SUBWOOFER PV

-58

PHASE

SUB REM

□ SPIN □ REM POWER MODE
NOTE: FOR BEST PERFORMANCE SET AMPLIFIER AND SUBWOOFER TO RECOMMENDED SETTINGS AS SHOWN ABOVE

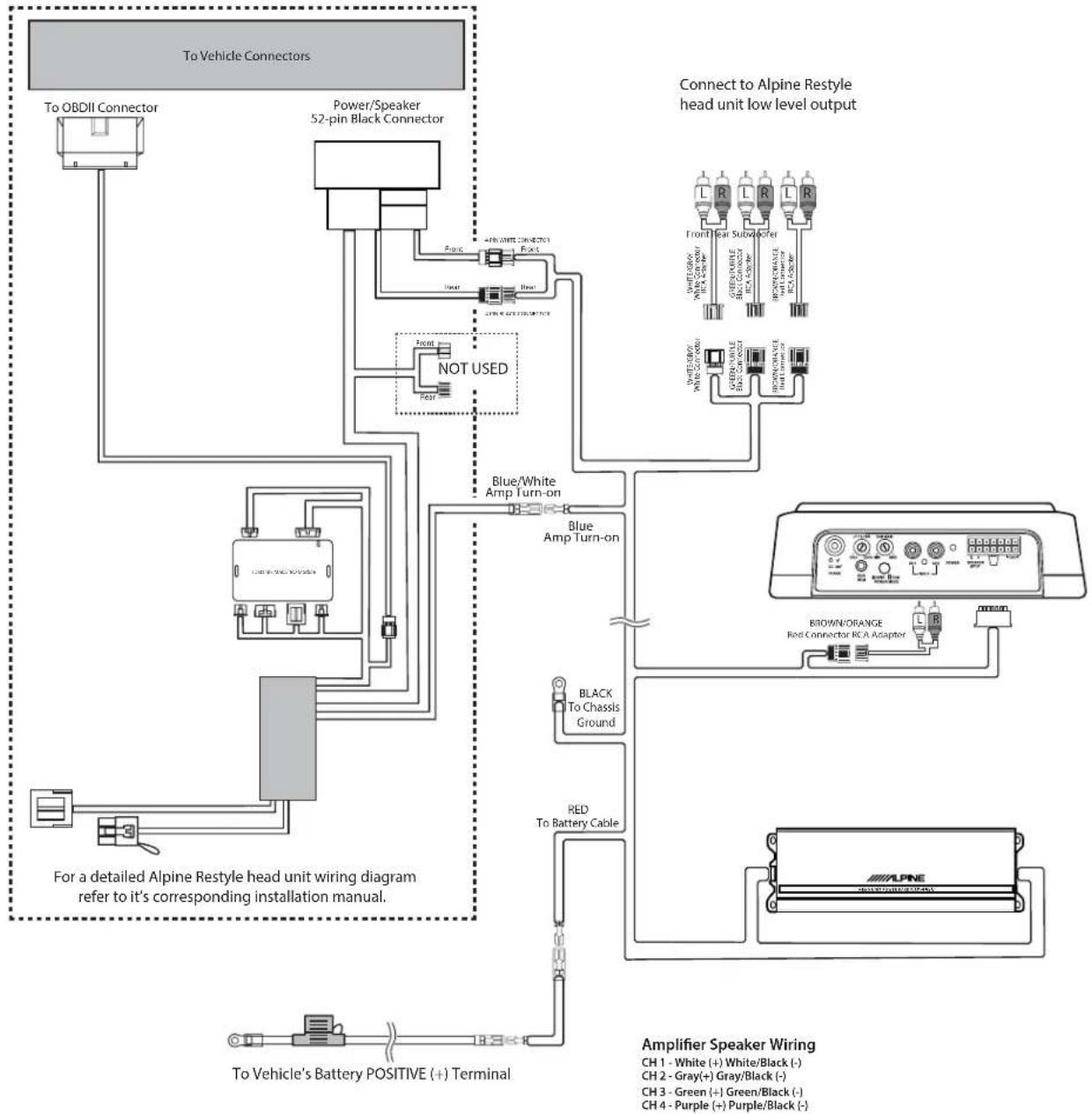

Alpine Restyle Head Unit Wiring Diagram

POWER PACK AMPLIFIER KTP-445U

SUBWOOFER PWE-S8

NOTE: FOR BEST PERFORMANCE SET AMPLIFIER AND SUBWOOFER TO RECOMMENDED SETTINGS AS SHOWN ABOVE

Troubleshooting Guide

Symptom Possible Cause Remedy
1	System will not turn on Missing	or blown fuse at the battery Insert or replace fuse
		Radio's Remote Turn-On wire may be disconnected.	Verify that Remote Turn-On wire is connected.
2	Volume is too loud with aftermarket headunit.	Speaker level out is connected at the T-Harness.	Ensure that the low level RCA adapters are used in aftermarket headunit system (refer to the corresponding wiring diagram).
		Amplifiers gain control has not been properly adjusted.	Refer to the corresponding system diagram.
3	Subwoofer sounds very low.	Gain level may be down to the lowest setting.	Adjust level to recommended setting (refer to the corresponding wiring diagram).
		Audio Phase may be reversed. Ensure that the PHASE is set to 0°.
4	One of the speakers has no sound.	Disconnected pin or loose connection. Check all connections to the speaker, loose pins, disconnected terminals etc..
5	Airbag light is on Failed to disconnect the battery while working on the vehicle.	Disconnect the battery and re-connect after 5 minutes. If problem is not solved, the vehicle will have to be taken to a Jeep dealer.
6	System turns on only on radio source	Aftermarket Power Antenna wire is connected to amp	Connect the Remote Turn-On wire (Blue/White) to the Blue wire on the amplifier harness.

READ BEFORE INSTALLATION

Our goal is to improve your in-vehicle experience. To achieve that, we are here for you. For installation assistance, questions about using your new Alpine Restyle System or if you're having problems with your Alpine product, we can help. Please choose one of the methods below for resolution to any issues you may have.

TECHNICAL SUPPORT

We are here to help with any questions you have about your Alpine Restyle product. For any questions about using your Alpine Restyle System and installation support, get in touch with us:

800-TECH-101

Monday - Friday

7 AM - 5 PM PST

Online Support Center

supportalpineusa.custhelp.com

Owner's Manuals

alpine-usa.com/support

SHARE YOUR #ALPINERESTYLE

Alpine Restyle is not just a product, it's a lifestyle. Share yours with us today using #AlpineRestyle.

@AlpineUSA

www.alpine-usa.com

ALPINE®

Notification

Congratulations on your purchase of an Alpine Restyle System! Alpine Restyle products are covered under a 3-year Manufacturer's limited warranty from the date of the first consumer purchase. PLEASE NOTE THAT THIS PACKAGE INSERT IS NOT THE LIMITED WARRANTY ITSELF. To read and understand the Limited Warranty, please see the Limited Warranty which is printed in the owner's manual and also may be found at alpine-usa.com/support.

We encourage you to register this product on Alpine's website at www.alpine-usa.com/registration at the time it is purchased and installed.

We are here to help with any questions you have about your Alpine Restyle product. For any questions, please contact us at 1-800-832-4101, Monday - Friday, 7 AM - 5 PM PST.

We appreciate your support of Alpine Electronics.

GARANTIE LIMITÉE

●PRODUITS COUVERTS PAR LA GARANTIE:

●COMMENT SE PRÉVALOIR DE LA GARANTIE

●EXCLUSIONS DE LA GARANTIE

ALPINE STIPULE EXPRESSÉMENT QU'ELLE N'EST PAS RESPONSABLE DES DOMMAGES-INTÉRÊTS ET DOMMAGES INDIRECTS PROVOQUÉS PAR LE PRODUIT. LES DOMMAGES-INTÉRÊTS SONT LES FRAIS DE TRANSPORT DU PRODUIT VERS UN CENTRE DE SERVICE ALPINE, LA PERTE DE TEMPS DE L'ACHETEUR ORIGINAL, LA PERTE D'UTILISATION DU PRODUIT, LES BILLETS D'AUTOBUS, LA LOCATION DE VOITURES ET TOUS LES AUTRES FRAIS LIÉS À LA GARDE DU PRODUIT. LES DOMMAGES INDIRECTS SONT LES FRAIS DE RÉPARATION OU DE REMPLACEMENT D'AUTRES BIENS ENDOMMAGÉS SUITE AU MAUVAIS FONCTIONNEMENT DU PRODUIT. LES RECOURS PRÉVUS PAR LES PRÉSENTES EXCLUENT ET REMPLACENT TOUTE AUTRE FORME DE RECOURS.

●LIEN ENTRE LA GARANTIE ET LA LOI

●CLAUSE APPLICABLE AU CANADA SEULEMENT

ALPINE ELECTRONICS OF AMERICA, INC. ("Alpine"), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.

●PRODUCTS COVERED:

This Warranty covers Car Audio Products and Related Accessories ("the product"). Products purchased in the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

●LENGTH OF WARRANTY:

This Warranty is in effect for three years from the date of the first consumer purchase.

●WHO IS COVERED:

This Warranty only covers the original purchaser of the product, who must reside in the United States, Puerto Rico or Canada.

WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts and labor) in the product.

●WHAT IS NOT COVERED:

This Warranty does not cover the following:

① Damage occurring during shipment of the product to Alpine for repair (claims must be presented to the carrier).

② Damage caused by accident or abuse, including burned voice coils caused by over-driving the speaker (amplifier level is turned up and driven into distortion or clipping). Speaker mechanical failure (e.g. punctures, tears or rips). Cracked or damaged LCD panels. Dropped or damaged hard drives.

③ Damage caused by negligence, misuse, improper operation or failure to follow instructions contained in the Owner's manual.

④ Damage caused by act of God, including without limitation, earthquake, fire, flood, storms or other acts of nature. Any cost or expense related to the removal or reinstallation of the product.

⑤ Service performed by an unauthorized person, company or association.

⑥ Any product which has the serial number defaced, altered or removed.

⑦ Any product which has been adjusted, altered or modified without Alpine's consent.

⑧ Any product not distributed by Alpine within the United States, Puerto Rico or Canada.

⑨ Any product not purchased from an Authorized Alpine Dealer.

●HOW TO OBTAIN WARRANTY SERVICE:

① You are responsible for delivery of the product to an Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.

② You should provide a detailed description of the problem(s) for which service is required.

③ You must supply proof of your purchase of the product.

④ You must package the product securely to avoid damage during shipment. To prevent lost packages it is recommended to use a carrier that provides a tracking service.

●HOW WE LIMIT IMPLIED WARRANTIES: ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

●HOW WE EXCLUDE CERTAIN DAMAGES: ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.

●HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY:

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

●IN CANADA ONLY:

This Warranty is not valid unless your Alpine car audio product has been installed in your vehicle by an Authorized Installation Center, and this warranty stamped upon installation by the installation center.

●HOW TO CONTACT CUSTOMER SERVICE:

Should the product require service, please call the following number for your nearest Authorized Alpine Service Center.

CUSTOMER SERVICE 1-800-421-2284, ext. 860307 TECH SUPPORT 1-800-TECH-101 (1-800-832-4101)

Or visit our website at; http://www.alpine-usa.com
