Product Type	Wall / ceiling mount for video projector
Compatible Brand	Epson
Compatible Models	PowerLite S27, X27, W29, 97H, 98H, 99WH, 955WH, 965H, 1751, 1761W, 1771W, 1776W, 1224, 1264, 1284, 935W, W16, 1930, 1955, 1960, 1940W, 1945W, 1975W, 1980WU, 1985WU, 4650, 4750W, 4770W, 4855WU, Pro G6070W, Pro G6170, Pro G6270W, Pro G6470WU, Pro G6570WU, Pro G6770WU, Pro G6870, Pro G6970WU, VS240, VS340, VS345
Maximum Load Capacity	11.34 kg (25 lb)
Compatible Column Diameter	38.1 mm (1.5 in) NPT or NPSM, compliant with ANSI/ASME B1.20.1
Material	Steel / Aluminum
Color	Black (typical)
Dimensions (L x W x H)	Approximately 300 x 200 x 100 mm (estimate)
Net Weight	Approximately 1.5 kg (estimate)
Power Supply	None (mechanical mount)
Main Features	Mounting to ceiling or wall via threaded column; support with interchangeable adapter plate; orientation adjustments (vertical axis, tilt, roll); security lock
Adjustments	Vertical swivel (side-to-side): ±5° (estimate); Tilt: ±15° (estimate); Roll: ±5° (estimate)
Maintenance and Cleaning	Clean with a dry, non-abrasive cloth. Regularly check the mounting and screw tightness.
Safety	Key lock; safety locking system; respect load capacity; installation on a structure capable of supporting 5 times the total weight.
Spare Parts and Repairability	Additional adapter plates available; mounting screws and spacers included; user non-repairable parts.
Warranty	10 years (mechanical parts); 1 year (electrical mechanisms if any)
General Information	Manufactured by Milestone AV Technologies; distributed by Epson America, Inc.; indoor use only.

Frequently Asked Questions - ELPMBPRH EPSON

Which projectors are compatible with this Epson ELPMBPRH mount?

This mount is compatible with many Epson projectors, including the PowerLite S, X, W, 97H, 98H, 99WH, 955WH, 965H, 1751, 1761W, 1771W, 1776W, 1224, 1264, 1284, 935W, W16, 1930, 1955, 1960, 1940W, 1945W, 1975W, 1980WU, 1985WU, 4650, 4750W, 4770W, 4855WU, Pro G6070W, G6170, G6270W, G6470WU, G6570WU, G6770WU, G6870, G6970WU, VS240, VS340, VS345. Refer to Table 1 of the manual for the mounting diagram appropriate for your model.

How to install the projector mount on the ceiling?

The mount screws onto a 1.5 inch (38.1 mm) NPT or NPSM threaded column previously installed in the structure. Screw the mount on by hand, align it, then tighten the pressure screw with a Phillips screwdriver. Ensure the structure can support five times the total weight of the equipment.

What is the maximum load capacity of this mount?

The maximum load capacity is 11.34 kg (25 lb). Never exceed this limit to avoid any risk of falling and injury.

How to adjust the projector orientation after installation?

Three adjustments are possible: vertical swivel (side-to-side rotation), tilt (up/down), and roll (pivot). Use a #2 Phillips screwdriver to loosen the locking screw, turn the micro-adjustment screw, then retighten.

Can I use this mount outdoors?

No, this mount is designed for indoor use only. Outdoor use exposes to corrosion and risk of failure.

How to lock the projector on the mount?

After sliding the projector into the slots, set the locking lever to the locked position, then insert the provided key into the lock and turn it to lock. This prevents accidental removal.

What tools are needed for installation?

You will need a #2 Phillips screwdriver to tighten the pressure and adjustment screws. An adjustable wrench may be needed for the threaded column (not included).

Is the mount compatible with all ceiling types?

The mount is designed to be installed on a standard threaded column. For suspended ceilings, use accessories ELMBC04, ELMBC05, ELMBC06 and the ceiling plate ELMBP07 (sold separately).

How to clean and maintain the mount?

Clean with a soft, dry cloth. Periodically check the tightness of screws and the general condition of the mount. Do not use abrasive chemicals.

What is the warranty of this product?

The warranty is 10 years for mechanical parts and 1 year for any electrical mechanisms. It applies to the original purchaser and does not cover damage due to improper installation or overloading.

USER MANUAL ELPMBPRH EPSON

INSTALLATION INSTRUCTIONS

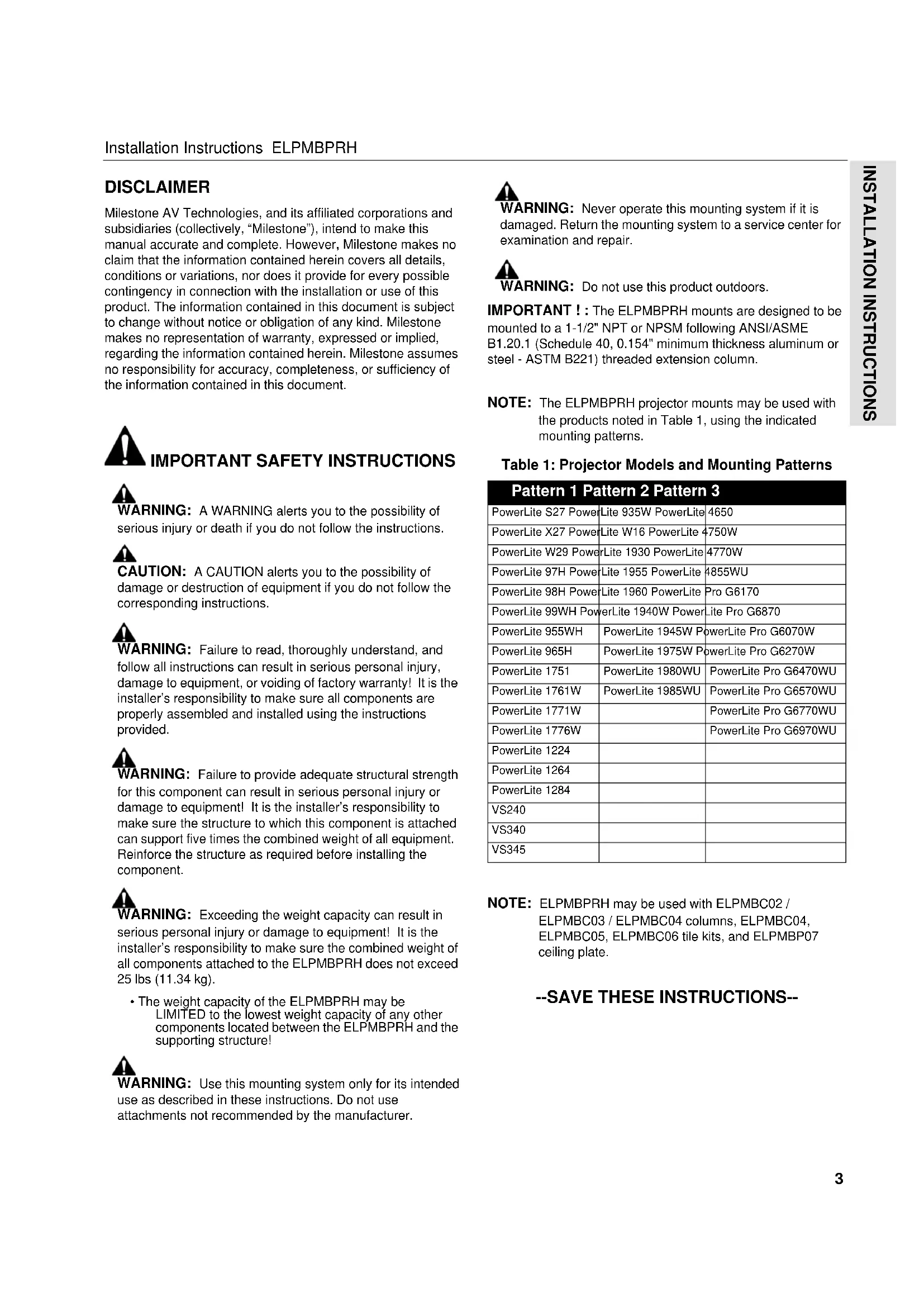

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness, or sufficiency of the information contained in this document.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the ELPMBPRH does not exceed 25 lbs (11.34 kg).

• The weight capacity of the ELPMBPRH may be LIMITED to the lowest weight capacity of any other components located between the ELPMBPRH and the supporting structure!

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The ELPMBPRH mounts are designed to be mounted to a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum or steel - ASTM B221) threaded extension column.

NOTE: The ELPMBPRH projector mounts may be used with the products noted in Table 1, using the indicated mounting patterns.

Table 1: Projector Models and Mounting Patterns

Pattern 1 Pattern 2 Pattern 3
PowerLite S27 PowerLite 935W PowerLite	4650
PowerLite X27 PowerLite W16 PowerLite	4750W
PowerLite W29 PowerLite 1930 PowerLite	4770W
PowerLite 97H PowerLite 1955 PowerLite	4855WU
PowerLite 98H PowerLite 1960 PowerLite	Pro G6170
PowerLite 99WH PowerLite 1940W PowerLite Pro G6870	Lite Pro G6870
PowerLite 955WH	PowerLite 1945W PowerLite Pro G6070W
PowerLite 965H	PowerLite 1975W PowerLite Pro G6270W
PowerLite 1751	PowerLite 1980WU	PowerLite Pro G6470WU
PowerLite 1761W	PowerLite 1985WU	PowerLite Pro G6570WU
PowerLite 1771W		PowerLite Pro G6770WU
PowerLite 1776W		PowerLite Pro G6970WU
PowerLite 1224
PowerLite 1264
PowerLite 1284
VS240
VS340
VS345

NOTE: ELMPBPRH may be used with ELMBC02 / ELMBC03 / ELMBC04 columns, ELMBC04, ELMBC05, ELMBC06 tile kits, and ELMBP07 ceiling plate.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

TOOLS REQUIRED FOR INSTALLATION

2

5/32" - security
(included)

PARTS

A (1)
[Large adapter plate]
B(1)
[Small adapter plate]

C (1)
[Projector mount]

D (6)
10-24 x 1/4"
[security]

E (4)
M4×20mm
[security]

F (4)
M4 x 20mm
[security]
(one extra included)

G (4)
.375 x .194 x .375"

Projectile Mount Installation

1. Carefully determine required mounting location.

IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance.

1. Install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum - ASTM B221) threaded extension column (not included) into threaded collar (not included) until tight, with a minimum of four threads engaged. (See Figure 1)

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

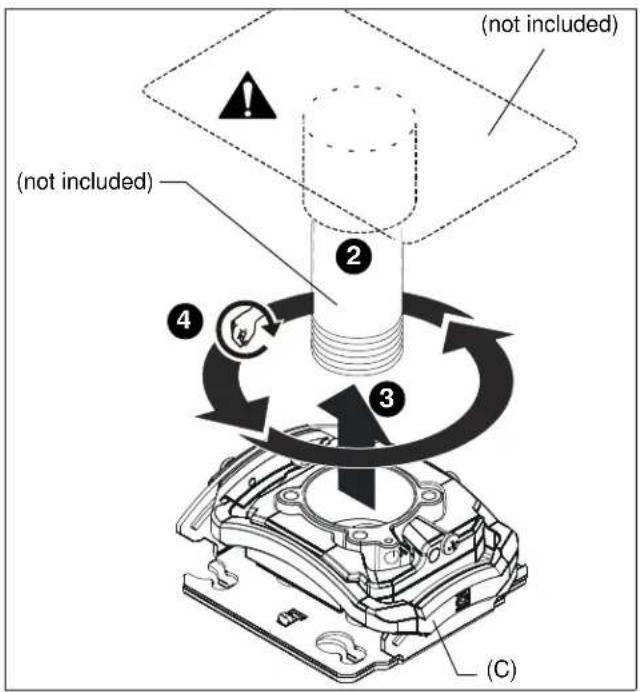

1. Align projector mount (C) with end of NPT pipe.
2. Thread projector mount up onto pipe by turning until hand tight. (See Figure 1)

Figure 1

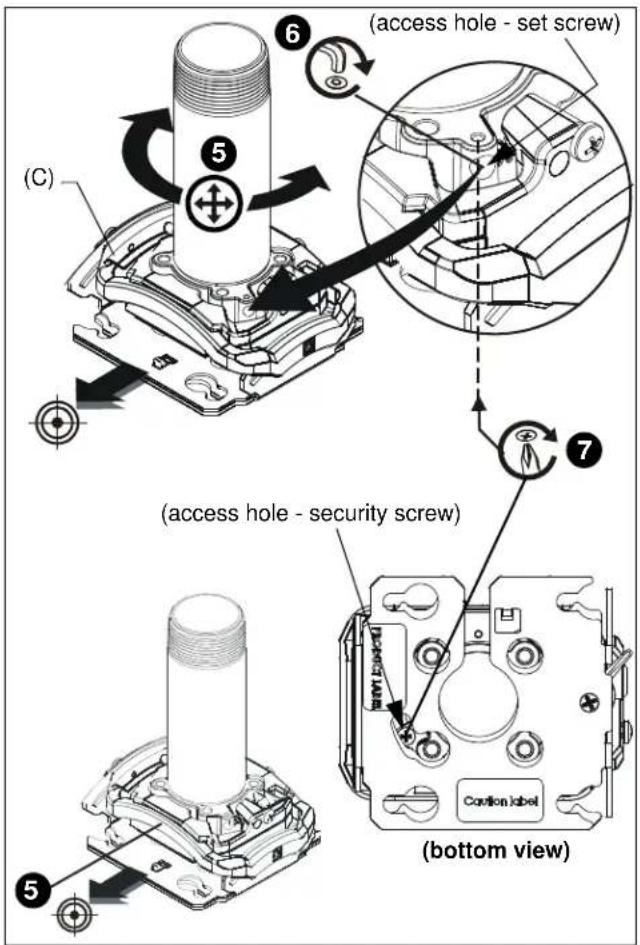

Rough Alignment of Projector Mount

1. Turn projector mount (C) clockwise or counter-clockwise until front of mount is facing target.
2. Secure projector mount to pipe by turning set screw (shipped installed in projector mount) until tight.

CAUTION: DO NOT OVERLIGHTEN! Overtightening of set screw can damage threads on pipe.

1. Turn security screw (shipped installed in projector mount and accessed through bottom of projector mount) using a Phillips screwdriver until set screw cannot be seen through access hole in projector mount. (See Figure 2)

Figure 2

PROJECTOR INSTALLATION

Install Interface Bracket

1. Determine correct mounting pattern for projector model being installed.

Pattern 1 Pattern 2 Pattern 3
PowerLite S27 PowerLite 935W PowerLite	4650
PowerLite X27 PowerLite W16 PowerLite	4750W
PowerLite W29 PowerLite 1930 PowerLite	4770W
PowerLite 97H PowerLite 1955 PowerLite	4855WU
PowerLite 98H PowerLite 1960 PowerLite	Pro G6170
PowerLite 99WH PowerLite 1940W PowerLite Pro G6870
PowerLite 955WH	PowerLite 1945W PowerLite Pro G6070W
PowerLite 965H	PowerLite 1975W PowerLite Pro G6270W
PowerLite 1751	PowerLite 1980WU	PowerLite Pro G6470WU
PowerLite 1761W	PowerLite 1985WU	PowerLite Pro G6570WU
PowerLite 1771W		PowerLite Pro G6770WU
PowerLite 1776W		PowerLite Pro G6970WU
PowerLite 1224
PowerLite 1264
PowerLite 1284
VS240
VS340
VS345

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING, RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer.

IMPORTANT! : Proceed to the appropriate attachment instructions for Pattern 1, 2, or 3.

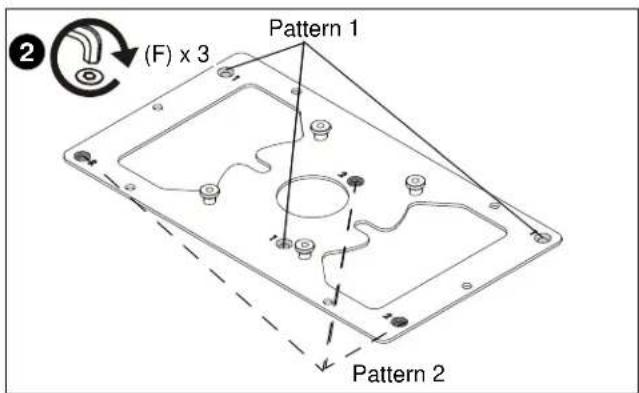

Patterns 1 and 2

1. Secure small adapter plate (B) to projector using three security flat head screws (F) and three spacers (G) in attachment holes marked with a "1" or "2". (See Figure 3) Proceed to Attaching to Projector Mount section.

Figure 3

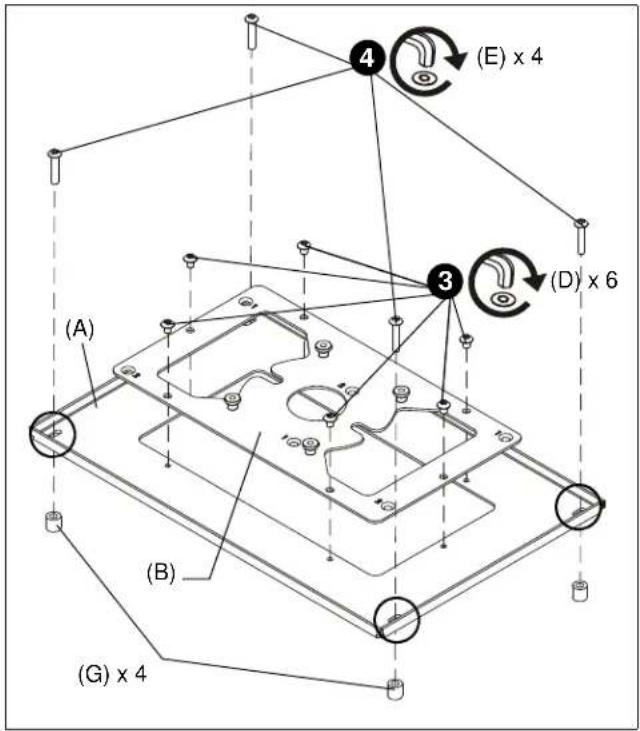

Pattern 3

1. Secure small adapter plate (B) to large adapter plate (A) using six 10-24 x 1/4" security button head screws (D). (See Figure 4)
2. Secure joined adapter plates to projector using four M4 x 20mm security button head screws (E) and (if required) spacers (G) through each corner of the large adapter plate (A). (See Figure 4)

Figure 4

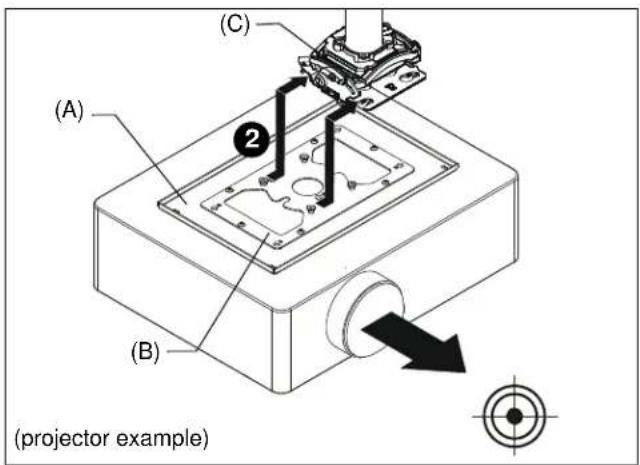

Attaching to Projector Mount

1. Orient projector with projector mount. (See Figure 5)
2. Lift projector so that screws with thumb nuts are aligned with mounting slots in projector mount base.
3. Slide projector with adapter plate(s) into mounting slots in projector mount base until screws are seated against the back of mounting slots.

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING, RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under thumb screws and that screws are seated in the back of slots.

Figure 5

1. Verify that mounting screws are properly seated in mounting slots in mount base.
2. Move locking lever to "Locked" position. (See Figure 6)
3. Insert key into lock and turn to secure projector to mount.

Figure 6

ADJUSTMENTS

YAW Adjustment (See Figure 7)

1. Loosen YAW adjustment locking screw using a #2 Phillips screwdriver.
2. Turn YAW micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten YAW adjustment locking screw using a #2 Phillips screwdriver.

Figure 7

Pitch Adjustment (See Figure 8)

1. Loosen PITCH adjustment locking screw using a #2 Phillips screwdriver.
2. Turn PITCH micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten PITCH adjustment locking screw using a #2 Phillips screwdriver.

Figure 8

Roll Adjustment (See Figure 9)

1. Loosen ROLL adjustment locking screw using a #2 Phillips screwdriver.
2. Turn ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten ROLL adjustment locking screw using a #2 Phillips screwdriver.

Figure 9

LIMITED WARRANTY

With the exception of electrical products, Milestone warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Milestone. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Milestone disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Milestone also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty. Milestone's sole warranty obligation to the owner of its products is to repair or replace (at Milestone's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Milestone via prepaid shipping. To the maximum extent permitted by applicable law, Milestone disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Milestone will not be liable for any damages whatsoever arising out of the use or inability to use Milestone products, even if Milestone has been advised of the possibility of such damages. Milestone bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Milestone products performed by someone other than a Milestone employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Milestone will not be responsible for damage to Milestone products caused by misuse, abuse, failure to properly package the product for return to Milestone or for damage caused by carriers during shipment to or from Milestone. Any repairs to Milestone products required due to misuse, abuse or shipping damage or repairs of defective Milestone product outside the warranty period will be performed at the current rates established by Milestone for factory service.
