CDAP4500 - Air purifier Guardian - Free user manual and instructions

Product Type	Intelligent Air Purifier
Brand	Guardian
Model	CDAP4500
Dimensions (L x W x H)	22.55 x 16.20 x 55.88 cm
Weight	4.28 kg
Power Supply	120 V, 60 Hz, 55 W
Power Consumption	55 W
Speed Levels	5 (1 = silent night, 5 = high speed)
Filtration Technology	Activated carbon pre-filter + main filter (Filter B)
UV-C Lamp	Yes, 5 W UV-C tube (ref. LB4000)
Connectivity	Wi-Fi and Bluetooth
Air Quality Sensor	Smart AQM (PM particle detection)
Automatic Mode	Yes
Timer	Yes (adjustable up to 8 h)
Clean Air Delivery Rate (CADR Smoke)	80+
Recommended Area	Up to 11.5 m²
Replacement Filter	Filter B (ref. FLT4825)
Replacement UV Tube	LB4000
Warranty	3-year limited
Maintenance	Vacuum the pre-filter; replace the filter approximately every 6 months; replace the UV tube according to indicator
Safety	Polarized plug, automatic shutdown in case of issue, FCC certified
Certifications	ENERGY STAR, FCC compliant

Frequently Asked Questions - CDAP4500 Guardian

How to replace the filter of the Guardian CDAP4500?

Turn off and unplug the device. Press the lock/unlock button and remove the back cover. Remove the old combined filter (Filter B), insert the new one following the arrow direction, then close the cover. Reset the replacement indicator by holding the timer button for 5 seconds.

When to replace the UV-C tube?

The UV indicator flashes on the control panel to indicate it's time to replace the UV-C tube. To replace it, unplug the device, remove the back cover and filter, unscrew the metal protector, then grasp the tube with a clean cloth and pull to remove. Insert the new tube (ref. LB4000) horizontally. Reset the indicator by holding the UV button for 3 seconds.

How to connect the purifier to Wi-Fi?

Download the Guardian Technologies app from the App Store or Google Play. Make sure your phone is connected to Wi-Fi. On the purifier, press and hold the CONNECT button until the light flashes green. Follow the instructions in the app to complete the connection. Bluetooth range is used for short distance, then Wi-Fi takes over.

What does the color of the light ring on the purifier mean?

The light ring is the air quality indicator (AQM). Green (0-100): good. Yellow (101-200): moderate. Red (201+): poor. In automatic mode, the fan speed adjusts automatically based on this measurement.

Why does the device turn off by itself?

This may be due to a faulty outlet, improperly installed filter, or back cover not locked properly. Check that the device is properly plugged in, the filter is in place, and the cover is correctly closed. If the problem persists, contact customer service at 1.866.603.5900.

How to clean the pre-filter of the CDAP4500?

Gently vacuum the activated carbon layer (pre-filter) to remove debris and dust. Do not wash the filter. If the main filter (pleated) is gray and dirty, replace it. Regular maintenance extends the life of the filter.

What is the recommended coverage area?

The Guardian CDAP4500 is designed for a closed room up to 11.5 m². For best performance, keep doors and windows closed.

Can I use the purifier in a child's room?

Yes, but close supervision is recommended. Place the device on a flat, stable surface out of reach of children. Do not let children play with the device. The silent mode (speed 1) is ideal for nighttime.

How to reset the filter replacement indicator?

After changing the filter, hold the timer button for 5 seconds. The replacement indicator will turn off. For the UV tube, hold the UV button for 3 seconds.

Where can I buy genuine replacement parts?

Order directly from www.guardiantechnologies.com or by phone at 1.866.603.5900. Use only genuine parts to maintain warranty and performance. Filter B: ref. FLT4825; UV-C tube: ref. LB4000.

USER MANUAL CDAP4500 Guardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers product that was purchased from authorized distributors. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

The product warranty registration can be completed online at

www.guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Guardian Technologies is under license. Other trademarks and trade names are those of their respective owners.

guardian technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

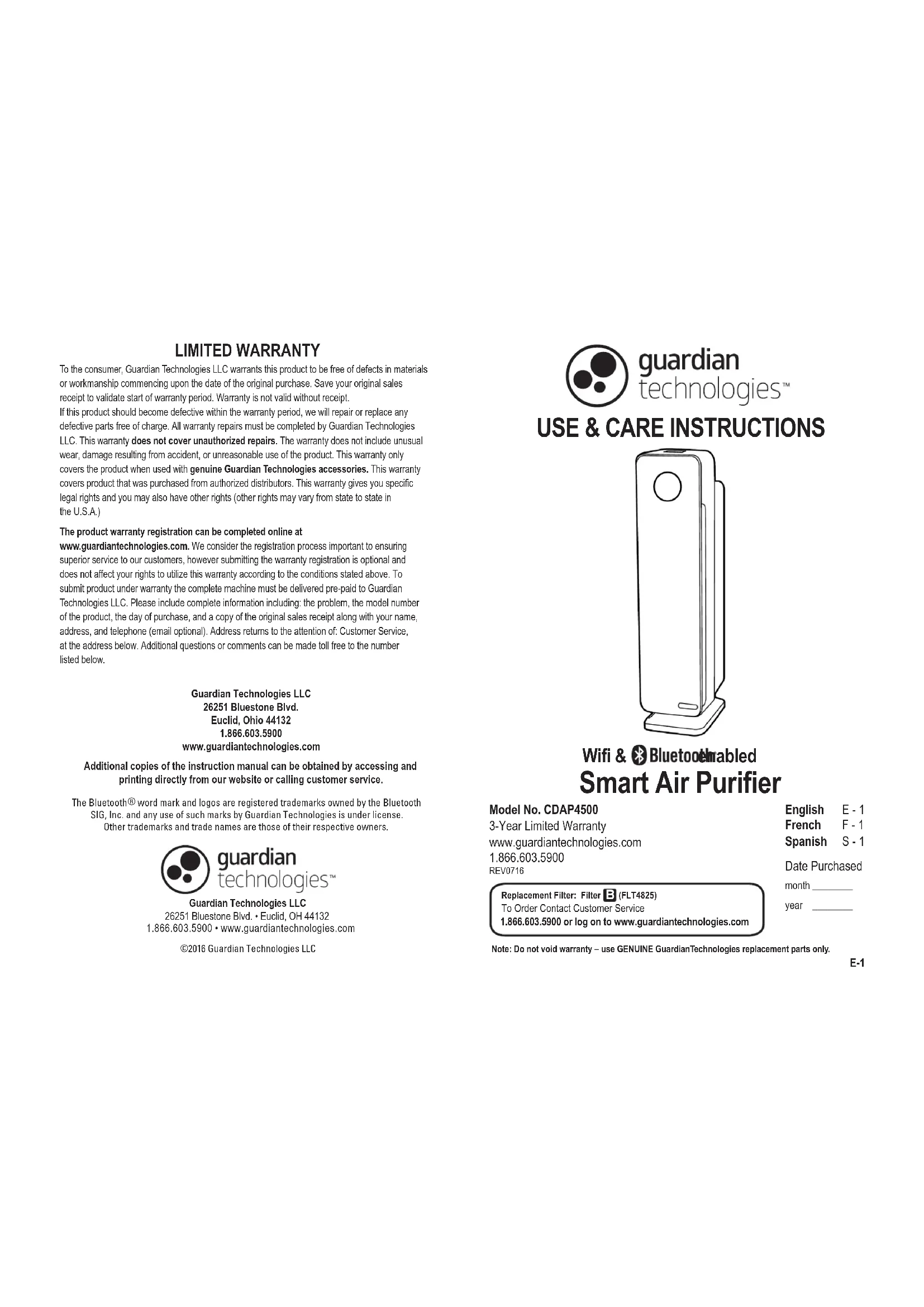

USE & CARE INSTRUCTIONS

Line drawing of a mobile phone casing with a circular button and base (no text or symbols)

Wifi & Bluetooth Enabled Smart Air Purifier

Model No. CDAP4500

3-Year Limited Warranty

www.guardiantechnologies.com

1.866.603.5900

REV0716

English E-1

French F - 1

Spanish S - 1

Date Purchased

month ____

year ____

Replacement Filter: Filter B (FLT4825)

To Order Contact Customer Service

1.866.603.5900 or log on to www.guardiantechnologies.com

Note: Do not void warranty – use GENUINE GuardianTechnologies replacement parts only.

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). Toreduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

WARNING: The cords, wires and/or cables supplied with this product contain chemicals, including lead or lead compounds, known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after using.

(California code of regulations Proposition 65)

READ AND SAVE THESE INSTRUCTIONS WARNINGS

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Model No. LB4000, Manufactured by Guardian Technologies.
  • Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

PRODUCT SPECIFICATIONS AND PARTS

MODEL NUMBER	CDAP4500
DIMENSIONS	8.88"L x 6.38"W x 22"H
WEIGHT	9.45 pounds
INPUT VOLTAGE	120 V, 60Hz, 55W, 0.5 Amps

REPLACEMENT FILTER:

FILTER B (FLT4825)

REPLACEMENT BULB: LB4000

BULB: 5W

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20 cm (8 inches) during operation.

ENERGY STAR

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

PRODUCT SPECIFICATIONS AND PARTS

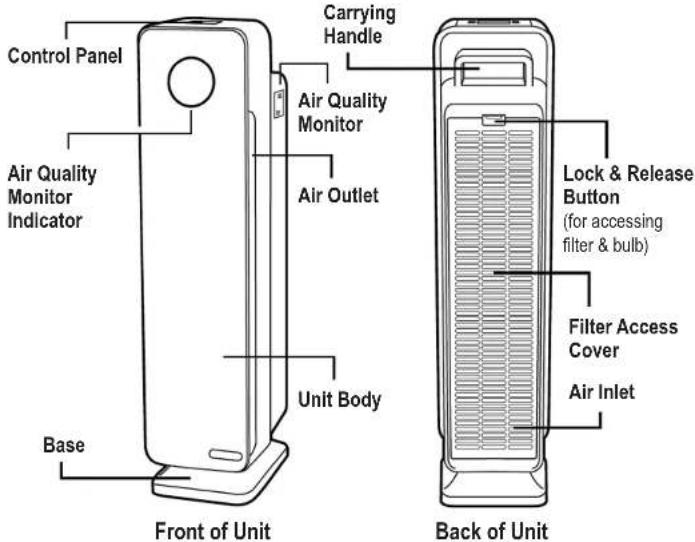

Control Panel Air Quality Monitor Indicator Base Front of Unit Carrying Handle Air Quality Monitor Air Outlet Unit Body Back of Unit Lock & Release Button (for accessing filter & bulb) Filter Access Cover Air Inlet

CONTROLS

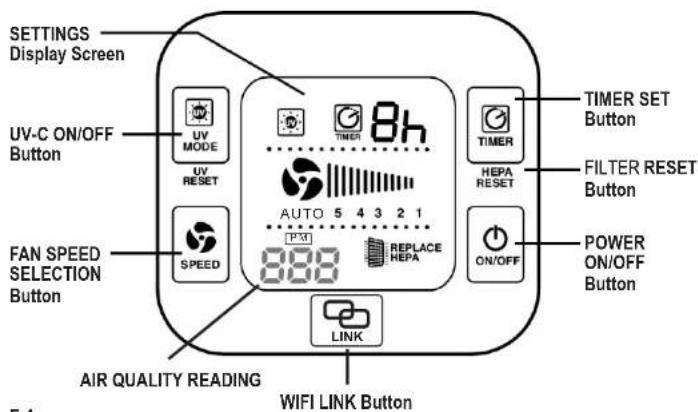

SETTINGS Display Screen UV-C ON/OFF Button UV MODE UV RESET FAN SPEED SELECTION Button SPEED AIR QUALITY READING 8h AUTO 5 4 3 2 1 P.M. REPLACE HEPA LINK WIFI LINK Button TIMER SET Button FILTER RESET Button POWER ON/OFF Button

WiFiSmart Air Purifier

Improve your indoor air quality with your new GermGuardian WiFi and Bluetooth Smart Enabled Air Cleaning System. Multiple levels of cleaning provide allergy relief, fight germs and reduce unpleasant odors.

The Smart Air Quality Monitor (AQM) detects the amount of particles in the air and will automatically adjust the speed of the purifier to optimize room air quality when set in auto mode.

Easily download the GuardianTechnologies app and you can control the system wirelessly with a smartphone. This product is enabled with Bluetooth Smart (Low Energy) technology which enables a wireless connection over short distances using a low level of energy. When your smartphone is out of Bluetooth range, it will automatically switch to a WiFi connection that you select during your set up process.

AIR CLEANING LAYERS

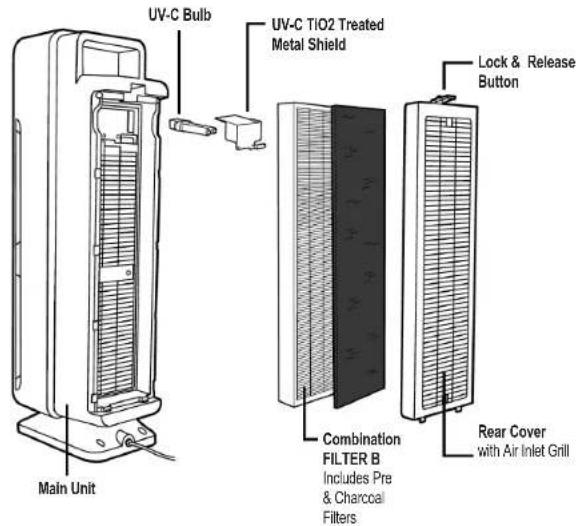

UV-C Bulb UV-C TiO2 Treated Metal Shield Main Unit Lock & Release Button Combination FILTER B Includes Pre & Charcoal Filters Rear Cover with Air Inlet Grill

1. Select a firm, level and flat location for the air purifier.

* For proper air flow, locate the unit at least 1 foot from any wall or furniture.

* Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

Wifi / ✉ CONNECTION

We support iOS7 and above and most Android 4.3 and above

1. Plug the power cord into a 120V AC outlet.

2. Make sure your smartphone is connect to WiFi.

3. Download the Guardian Technologies™ free app to your smartphone from the Apple App Store or Google Play.

1. Once installed, hold the LINK button until the wireless connection light blinks green. Tip – Make sure smartphone is within arm's length of purifier during set up.

2. Complete WiFi connection as indicated on app set up instructions. Tip – when in use, the device will automatically select between Bluetooth ^® and WiFi. For more detailed app instructions, visit www.guardiantechnologies.com

OPERATING INSTRUCTIONS

Now you can control your air purifier both wirelessly and manually

1. Turn unit power ON.

1 = low, ultra quiet sleep mode

5 = high speed allergen control

AUTO MODE - The last fan speed is AUTO. When AUT O is selected the air purifier will change the fan speeds depending on the air quality level.

1. Select UV-C ON or OFF using UV -C Mode Button.

1. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.

1. LINK - Links Air Purifier to app set-up. If green light appears Wifi can connect to Smartphone. If red light appears Wifi cannot connect to Smartphone.

OPERATING INSTRUCTIONS (cont.)

Smart Air Quality Monitor (AQM): detects the amount of particulate matter (PM) in the air. The circular light on the front panel of the purifier is the AQM Indicator and it will change colors, indicating the air quality level in the room. The particulate matter value will be displayed on the control panel. See values and status ranges in chart below.

Auto Mode: when "Auto" mode is selected the SmartAQM will automatically adjust the speed level of the purifier to optimize the room air quality.

Your app will also display the color of the circle and provide the PM value.

Below are the color/values that can be displayed:

Ring Color	Particulate Matter Value (Range)	Air Quality Status
Green 0-100	Good
Yellow 101-200	Average
Red 201+	Poor

Filter Replacement Indicator: The Replace Filter light on the display will illuminate and flash indicating that it is time to replace your filter. Replace the filter according to directions (E8) then press and hold the TIMER button on your purifier for 5 seconds to reset the system.

Your app will notify you and also display a banner when it is time to replace the filter.

UV Bulb Replacement Indicator: The "UV" light on the display will flash when it is time to replace the UV bulb. Replace the bulb according to direction (E9). To reset the UV-C Replacement Indicator, press and hold the UV button to reset system. Hold for 5 seconds and change reset to restart.

Your app will notify you and also display a banner when it is time to replace the bulb.

*Control Panel Beep/Sound: The sound emitted from pressing the buttons on the control panel can be turned off/on by holding the SPEED button for 5 seconds.

Visit www.guardiantechnologies.com for more information regarding the use of the Guardian Technologies app.

FILTER REPLACEMENT

The Replace Filter light will flash continuously indicating that it is time to replace your filter. Replace the filter according to directions then restart the system. Depending on usage, filter will last approximately 6 months.

1. Tum off and unplug the unit.

Diagram of a portable air conditioner unit with cooling fins and a close-up inset showing a hand holding a small object (no text or symbols present)

1. Press the lock and release button and remove the rear cover from the unit.

Diagram of a portable air conditioner unit with cooling fins and a heat sink (no text or symbols)

1. Remove the used Combination Filter (Filter B) and dispose of it in the garbage.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or labels)

1. Insert filter system into the unit. Consult the arrow on the filter for correct installation direction.

2. To reset the filter indicator press and hold the timer button for 5 seconds.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.

Depending on air quality conditions, you may need to replace it more frequently.

Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter. (Refer to pg. E5 for filter layers view).

To check the status of the filter, peel back the carbon layer to expose the pleated Filter. If the Filter is no longer white and is covered in grey dust/dirt it should be replaced.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter.

IMPORTANT: To maintain warranty and the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

Genuine Filter Replacements can be purchased directly at www.guardiantechnologies.com

FILTER B (FLT4825)

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will flash when its time to replace the UV bulb.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

1. Turn off and unplug unit. Press the lock and release button and remove the rear cover from the unit.

Diagram of a portable air conditioner unit with a black cover and arrow indicating direction (no text or symbols)

1. Remove the combination filter.

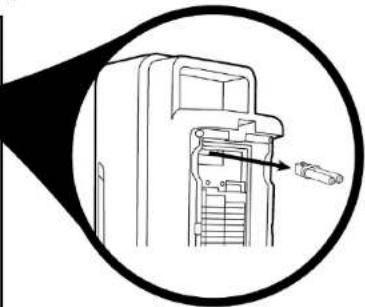

Line drawing of a vertical electric heater with cooling fins and heat exchangers (no text or symbols)

1. Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

2. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

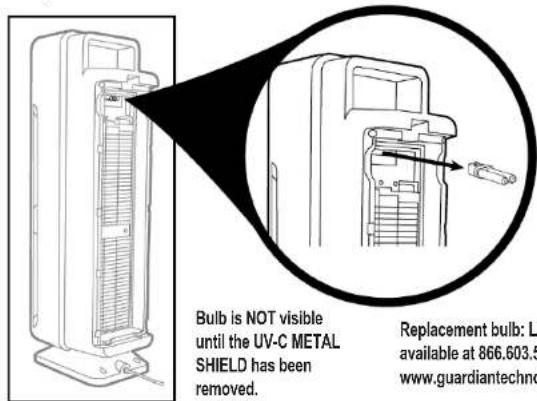

Bulb is NOT visible until the UV-C METAL SHIELD has been removed. Replacement bulb: Li available at 866.603.5 www.guardiantechno

1. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.
2. To reset the UV-C Replacement Indicator, press and hold the UV button for 5 seconds

REPLACEMENT PARTS

IMPORTANT: To maintain warranty and the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

To Purchase Contact Customer Service at 1.866.603.5900 or visit www.guardiantechnologies.com

FILTER B Replacement Combo Filter Model No. FLT4825

Replacement Carbon Filter 4 Pack Model No. FLT22CB4

Replacement UV-C Bulb Model No. LB4000

Check out our

AutoShip & Save

Filter Replacement Program™ www.guardiantechnologies.com

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

This air cleaner is suggested for use in a single, closed room up to 124 square feet. Higher CADR rates provide improved performance in all room sizes. Portable air cleaners will be much more effective in rooms when all the doors and windows are closed.

TOBACCO SMOKE: 80+

This value represents performance that can be expected within the first 72 hours of operation. Subsequent use may vary with use.

Tested per ANSI/AHAM AC-1 National Standard

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION
Unit does not operate. Check that the unit is plugged in.Check that filter is in place.Confirm that filter is Genuine Replacement FilterCall Customer Service 1.866.603.5900.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service 1.866.603.5900.
No air circulating from unit.	Unplug unit. Check Pre-/Carbon Filters. Clean Pre-/Carbon Filter if necessary.Replace Filter if necessary.
Increase in noise level. Make sure the filters are clean. Replace if necessary.
App will not download. Check to make sure you have most recent update on smartphone.
Not "LINKING" / finding Wifi or Bluetooth®. smartphone is within	Check that the device is plugged in. Make sure arm's length of the purifier.Make sure that light is blinking blue.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a mobile phone casing with a circular button and base (no text or symbols)

Diagram of a portable air conditioner unit with cooling fins and a close-up inset showing the front panel (no text or symbols)

Diagram of a device with a fan or scanner-like structure, showing internal components and an arrow indicating rotation (no text or symbols present)

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or labels)

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Diagram of a portable air conditioner unit with a black cover and arrow indicating direction (no text or symbols)

Line drawing of a vertical cylindrical device with internal structure and mounting base (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a handle (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

Line drawing of a mobile phone casing with a circular button and base (no text or symbols)

1. Complete WiFi connection as indicated on app set up instructions.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Diagram of a device with a black panel and arrow indicating direction (no text or symbols)

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or labels)

Diagram of a portable air conditioner unit with cooling fins and a side panel showing water flow (no text or symbols)

Diagram of a portable air conditioner unit with a black cover and arrow indicating direction (no text or symbols)

Line drawing of a vertical industrial or electrical device with internal structure and mounting base (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a close-up of the lid (no text or symbols)

Diagram of a device inside a circular frame, showing internal components and an arrow pointing to a connector (no text or symbols present)
