DogBox - Baby products X4 Tech - Free user manual and instructions

Product Type	Bluetooth Speaker for Kids
Brand	X4 Tech
Model	DogBox
Category	Baby Products
Dimensions	9.65 x 8.5 x 8.8 cm
Weight	Approx. 222 g
Power Supply	Built-in battery 1,150 mAh, 3.7 V; charges via micro-USB 5 V DC
Power Output	3 watts
Bluetooth	Version 4.2
Playback Formats	MP3 from USB, SD card (FAT32, up to 128 GB), Line-In, Bluetooth
Headphone Connection	3.5 mm jack
Functions	MP3 player, synchronized LED light circles, volume control via ears, auto-off
Safety	For children over 3 years; adult supervision; hearing protection
Care	Clean with a soft dry cloth; avoid solvents
Warranty	2 years (voluntary manufacturer warranty)
Package Contents	DogBox, Line-In cable, micro-USB cable, manual
Operating Temperature	0 °C to 40 °C
Battery Life	Approx. 5 hours (depending on volume)
Charging Time	Approx. 3 hours

Frequently Asked Questions - DogBox X4 Tech

How to turn the DogBox on and off?

Press and hold the top button to turn on (a bark sounds) or off (the red light goes off). The device turns off automatically after 10 minutes of inactivity.

How to charge the battery?

Plug the included micro-USB cable into a 5V DC USB port (computer or charger). The red light glows during charging and turns off when fully charged (approx. 3 hours). The battery charges under adult supervision.

How to connect my smartphone via Bluetooth?

Turn on the device, press the Mode button several times until Bluetooth mode is selected (blue LED). Enable Bluetooth on your smartphone, search for 'DogBox', and select it. The connection is established.

Can I use headphones with the DogBox?

Yes, plug a headphone (not included) into the 3.5mm jack. The speaker is then disabled. Adjust volume via the box ears. Be mindful of volume to protect children's hearing.

How to skip to the next track?

Press briefly the >> or ▶▶ button (next) to skip to the next track. Press << or ◀◀ to go back.

What to do if the sound is low or missing?

Check the volume (press the right ear to increase). Make sure the mode is correct (Bluetooth, USB, SD, Line-In). Verify that the audio source is playing. If headphones are plugged in, the speaker is disabled.

How to clean the DogBox?

Use a soft dry cloth. For stubborn dirt, slightly dampen the cloth with mild detergent. Never use alcohol, gasoline, or thinner.

What to do if the battery doesn't hold a charge?

Make sure you have fully charged the battery (approx. 3 hours). If the problem persists, the battery may be defective. Contact customer service. The battery is not user-replaceable.

Which SD card to use?

Use an SD card formatted in FAT32, with a maximum capacity of 128 GB. Files must be in MP3 format. Insert the card into the designated slot.

Is the device suitable for babies?

The DogBox is intended for children over 3 years old. It contains small parts (choking hazard). Use under direct adult supervision. Set moderate volume to protect hearing.

USER MANUAL DogBox X4 Tech

Illustration of a cartoon dog-shaped device with open door and textured body (no text or symbols)

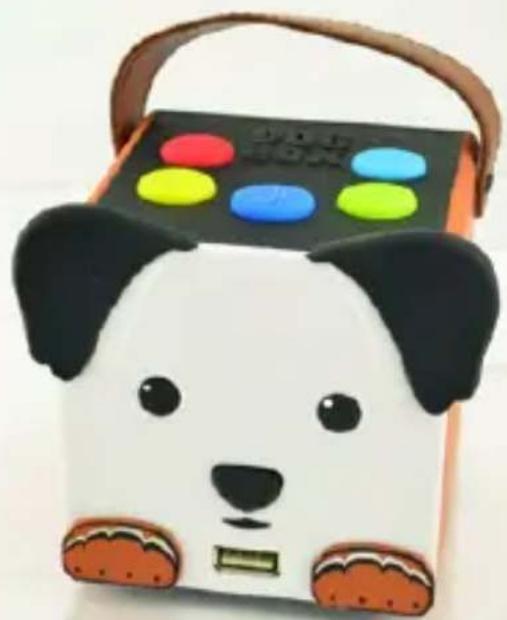

Cute cartoon dog-shaped device with colorful buttons and a brown handle (no text or symbols visible)

DOGBOX

NL HANDLEIDING ▶ FR MANUEL ▶ IT MANUALE

Service

Lived non food GmbH | Friedrich-Seele-Straße 20

DE-38122 Braunschweig, Germany

( +49 [0] 531 224356-82 | [e-mail]

www.x4-tech.de

DE-38122 Braunschweig, Germany

[e-mail] | www.lived-non-food.de

Inhalt

DogBox 8

Information on this user manual 24

Liability....24

Designated use 24

© Copyright 25

General notes....25

Declaration of Conformity 25

Signal words....26

Safety guide....26

The Box 28

ON/OFF 28

Volume 29

Headphones 29

USB-/SD-/Line In-operation 30

Track selection 31

Bluetooth function....31

LED light circle 32

Technical data 32

Power supply....33

Cleaning and maintenance 34

Disposal....34

Guarantee and service conditions....34

Inhoud

DogBox 8

Dear parents, we are pleased that you have decided to buy our product and wish you an enjoyable and successful use.

Information on this user manual

This user manual contains important information for the safe use of the product. Therefore, for your own safety and for a successful use, please read this user manual completely before assembling and using the product. Please keep this operating manual for reference. If you pass on the product to anyone else, please hand over the operating manual as well.

Liability

We do not accept liability for any damage to property or for personal injury that is due to improper use or failure to follow the instructions in this operating manual and the safety advice. In such cases any claim under the guarantee is null and void!

Designated use

The X4-TECH DogBox is designed to play music indoors from USB-Sticks, SD-Cards, via Bluetooth and Line-In. The designated use is defined by the instruction manual and in following the appliance and the warnings mentioned in this user manual. This product is not suitable for commercial usage.

© Copyright

Lived non food GmbH © All rights reserved. All mentioned company and product names are registered trademarks under the rights of their owners. No liabilities will be taken for damages or claims resulting out of not reading and/or not following the user guide and/or any form of modification on or in the product. Under these circumstances, no warranty services will be given. Liability cannot be taken for consequential damages.

Any reproduction, transfer, duplication or fling of this user manual or parts of it, as well as the translation into a foreign language or computer language is prohibited without the explicit approval of the manufacturer.

General notes

The contents of this user manual may differ from the product. If so, please consult additional manuals in the packing. Keep this user manual in a safe place. If you give this product away to a third party, make sure that you also pass on the user manual. For the reason of safety and CE-licensing it is not allowed to modify this unit in any way and/or use it for functions, other than the designated use.

Declaration of Conformity

CE This product meets the requirements of both current national and European guidelines. The declaration of conformity can be found at: https://secure.productip.com/public/view/file/id/80a1d?f=80a1d

Signal words

CAUTION! HIGH RISK!

Disregard of this regulation may result in danger to life or physical condition.

WARNING! MEDIUM RISK!

Disregard of this regulation may cause material damage.

ATTENTION! LOW OR NO RISK!

Facts to follow for the designated use of this product.

Safety guide

CAUTION! Hearing damage! To avoid hearing damage, do not listen to music at maximum volume for a long period of time!

CAUTION! Not suitable for children under the age of 3. Danger of suffocation due to small parts. Danger of strangulation due to

long cables. The toy must be kept out of reach of children under 3 years!

CAUTION! To be used under the direct supervision of an adult!

»The product may not be subjected to extreme heat or cold. Do not expose the product to intense sunlight, open fire or other heat sources: Storage temperature: 0°C to 40°C; Working temperature: 0°C to 40°C.

»This device is equipped with an integrated rechargeable battery. Batteries and rechargeable batteries must be kept out of the reach of children. Leaking or damaged batteries can cause acid burns if they come into contact with the skin

»Fully charge the battery before storage and every 6 months when the product is not in use.

» Charge the battery completely before starting the device for the first time (approx 3 hours).

The following safety and danger references/notices serve not the protection of the product, but also the protection of your safety health. Please read all following instructions carefully.

»NEVER let anyone, especially children, put objects into the holes, slots or openings of this device. This may lead into death due to electric shock. The device must only be opened by a qualified service technician.

»Never leave packaging material lying around unsupervised – this can become a hazardous toy for children and/or pets and lead to serious injuries, e.g. suffocation.

» The ventilation system must be clear of objects at all times. Do not obstruct the ventilation of this device. Make sure that no curtains, newspapers, furniture or any other types of objects are blocking the ventilation system of this device. Overheating may lead into serious damage of the device and reduce its performance and lifespan

» Contact a service technician if there is any reason to believe that the operation or safety of the device has been impaired. Please adhere

to the additional safety information found in the individual chapters of this instruction manual. Should you be in doubt of the correct operation of this device or questions arise that are not explained within this manual, please contact our technical hotline or a service technician for further information.

BATTERY / RECHARGEABLE BATTERY

WARNING! Children are at risk of injury! If the batteries are handled by children or adults unable to assess the risk, they run the risk of injury, which could even be life-threatening. Do not

leave batteries lying around. There is a risk that children or pets might swallow them.

The Box

ORE FIRST OPERATION, FULLY CHARGE THE BATTERY!

ON/OFF

Switch on the product by a long press at the ON/OFF-button located at the nose. The box can be used after it makes a short woof sound. Additionally the red LED operation indicator at the backside turns on. To turn the box off, press the nose for a few seconds, the red LED turns off. When the box is not in use for about 10 minutes it switches off automatically to save on energy.

Volume

CAUTION! Hearing damage! To avoid hearing damage, do not listen to music at maximum volume for a long period of time!

To increase the volume, keep on pressing the right ear, to decrease the volume, keep on pressing the left ear.

Headphones

By connecting headphones (not included in delivery content) to the 3,5 mm socket, the loudspeaker will be muted. The volume can be controlled via the ears of the box.

PROTECT YOUR CHILDREN FROM HEARING IMPAIRMENT

»Depending on the head- or earphones, high volume levels can be produced which may lead to permanent hearing impairment due to sustainable usage!
» Children should be supervised all the time during usage and not use headphones on high volume and for a longer time period.
»Determine and retain a pleasant volume level. As the hearing gets accustomed to a certain volume level and the volume perceived by the human ear decreases over time, there is a tendency to increase the volume regularly. This procedure will inevitably lead to hearing impairment.
» The higher the volume levels are set, the faster the hearing of your child will be damaged.

USB-/SD-/Line In-operation

SD-cards and USB-sticks have to be formatted in FAT32! Copy your MP3 files to the SD-card or USB-stick. The files will be in the same order they have been copied onto the medium.

»Connect the USB-stick, SD-card or Line-In cable to the appropriate socket. Switch on the box by pressing the nose. The device automatically switches to SD mode. Keep on pressing the Mode-button to get the desired mode.

»The LED light circle shortly shows the currently chosen mode by color: Blue = Bluetooth, Green = USB, Yellow = Line-In, Red = SD »Playback starts automatically.

»Press the Play/Pause button to pause the track or to start the playback again.

» Adjust the volume to a suitable listening level by pressing the ears. »On USB and SD mode, the box has a memory function that remembers the last played position of the track, when the box is switched off. When disconnecting the medium from the box, this memory is erased.

Note on copy protection. Under applicable law it is forbidden to copy, transfer, lease or make available any material protected by copyright without a permit of the right-holder.

Track selection

During playback you can skip with ▶ or ◀ to the next or previous track.

» Select the track during playback or pause mode with ▶▶ or ◀◀ and start the playback by pressing the Play/Pause-button.
» Pressing briefly on ▶▶ you can skip to the next track. Pressing briefly on ◀◀ you will return to the beginning of the current track. To skip several tracks forward or back press the button repeatedly.

Bluetooth function

» Switch on the box by pressing the nose.
»Activate bluetooth on your smartphone/tablet.
» Keep on pressing the Mode-button of the box to get to the Bluetooth-mode. The LED circle shines blue.
»Search for bluetooth devices on your smartphone/tablet.
» Pick "DogBox" from the list of available devices on your smartphone/tablet. Box and smartphone/tablet are now connected and ready for playback.
»Choose the desired music on your smartphone/tablet.

LED light circle

The box has an integrated LED light circle that reacts to the played music.

»Turn on the box.

» Press the light button ✦ briefly to activate the lighting.

To deactivate the lighting press the button once again.

»When switching through the different modes, the LED light circle shows the current mode via different colors:

SD: Red | USB: Green | Bluetooth: Blue | Line-In: Yellow

Technical data

Power supply 1.150 mAh accu, 3.7 V

Charging port 5 V DC micro-USB

Output 3 Watts

Headphones jack 3,5 mm

Bluetooth 4.2

USB 1.1, 2.0, 3.0/ Playback of MP3 fles; the volume has to

SD-card be formatted in FAT32; capacities of up to 128 GB are supported

Dimensions | Weight 9,65 x 8,5 x 8,8 cm | ca. 222 g

Delivery content DogBox, Line-In cable,

micro-USB charging cable, Manual

Power supply

» The device has a built-in rechargeable battery, which can be charged with the provided micro-USB cable.

»Connect the micro-USB cable to an appropriate 5 V DC USB-socket, like on a computer.

»The red battery LED at the backside of the device starts glowing until the device is fully recharged. The battery LED turns off after the recharging process is finished.

» One complete charging takes approx. 3 hours. The runtime is approx. 5 hours, depending on the volume.

»Optionally available: X4-TECH USB power adapter 5 V 2.100 mA, Art.-No. 701734.

The battery may only be charged under the direct supervision of adults.

»Batteries must not be exposed to excessive temperatures, such as arise in direct sunlight, in a fire or an oven. There is an explosion risk.

»Make sure that the batteries are not shortcircuited. Furthermore, they must not be charged. There is an explosion risk.

If there is any doubt in the safety of this device (e.g. because of ge to the enclosure or cables), the device should not be used until image has been properly removed.

Cleaning and maintenance

Always use a soft, dry and lint-free cloth to clean the units exterior. If the device is extremely dirty, you can use a soft cloth dampened with water, or a mild cleaning solution to clean. Never use any abrasive or harsh cleaning agents (e.g. alcohol, petrol or thinners) as these could damage the controls, casing or any markings and labels found on the device.

Disposal

Electrical- and electronic devices must never be disposed of in the regular household waste! Consumers are legally obligated and responsible for the proper disposal of electronic and electrical devices by returning them to collecting sites designated for the recycling of electrical and electronic equipment waste. For more information concerning disposal

sites, please contact your local authority or waste management company.

Do not dispose of batteries and rechargeable batteries with your household waste! Customers are legally obliged to return used and rechargeable batteries, whether they contain harmful substances* or not, to designated disposal sites or collecting sites in shops selling batteries. By doing so you are contributing to a better and cleaner environment.

* Identification mark Cd= Cadmium; Hg= Mercury; Pb= Plumb

Guarantee and service conditions

Due to the fast advancement of these products, no guarantee of completeness can be given. Modifications in technique and configuration are subject to change at any time. To receive a digital copy of this user manual, please contact our service department.

You receive a voluntary 2-year manufacturer guarantee, starting at purchase date, for material and production defects of the product. This guarantee is applicable in Germany, Austria and Switzerland. The receipt counts as a proof of guarantee.

Within the guarantee period we will repair all material and manufacturer defects free of charge. Your statutory warranties remains unaffected by this guarantee.

The guarantee does not count:

– in case of damages which have arisen after improper use
- for wear parts / accessories that are subject to natural wear and tear
– for defects that are known to the customer at purchase
- in case of damages that occurred due to repair or intervention of the buyer or an unauthorized third party
– in case the device was connected to a higher voltage as stated on the device
- when dropping the device or single elements of it
– for improper transportation or packaging
– damages that occurred due to force majeure
- for non -observance of valid safety precautions
- for non -observance of the manual

Batteries / rechargeable batteries are not covered by the guarantee as they are parts of consumption. In case of a guarantee claim, the date of sale has to be proven by receipt or invoice. Replacements for reasons covered by the guarantee do not lead to an extension of the original guarantee period, neither for the device itself nor for any replaced components. If you are claiming a valid guarantee, we are entitled to choose whether we will repair the device free of charge or exchange it for a new device. Any further claims are excluded. Parts replaced will pass into our property. We reserve the right to change defective parts or products against follow-up models. Please always contact us before you return your product. Provided that a return shipment has been agreed upon, send the defective product securely packaged at your own cost to our service department. It is absolutely necessary that you add a copy of your receipt to your return shipment. Repairs carried out after the guarantee period are subject to a charge. We will not accept freight collect shipments and will return them to the sender.
