Product Type	Immersion blender (stick blender)
Brand	Waring Commercial
Model	Quik Stik WSB35
Usage	Professional and commercial
Blender shaft material	Stainless steel
Blade material	Metal (stainless steel)
Number of speeds	2 (High and Low)
Power supply	120 V ~ 60 Hz (estimation)
Functions	Blending, whisking, beating, preparing sauces and soups
Safety	3-prong plug with grounding, blade guard, very sharp blade
Cleaning	Wash with non-foaming detergent solutions and chlorine disinfectant (100 ppm), max temperature 46°C
Maintenance	Rinse, clean, disinfect after each use
Warranty	1 year (parts and labor)
Spare parts	Available from Waring after-sales service
Included accessories	No additional accessories
Recommended use	Non-abrasive liquids and semi-liquids
Usage precautions	Do not immerse motor unit, unplug before cleaning, keep out of reach of children

Frequently Asked Questions - Quik Stik WSB35 Waring Commercial

How to clean the blender shaft?

After each use, rinse the shaft under running water. Clean with a brush and a non-foaming detergent solution. Immerse 3/4 of the shaft in the solution and run at full speed for 2 minutes. Rinse with clean water, then disinfect with a bleach solution (1 tbsp per 3.8 L of cold water) by repeating the operation. Do not rinse after disinfection and allow to air dry.

Can I blend ice with this appliance?

Yes, but use crushed ice rather than ice cubes for best results.

What if food gets stuck under the blade?

Turn off and unplug the appliance. Use a plastic spatula to dislodge stuck food. Never use your fingers as the blade is very sharp. Replug and continue blending.

Can I immerse the motor unit in water?

No, never immerse the motor unit, cord, or plug in water or any other liquid. Only the blender shaft and blade guard are designed to be immersed.

What is the warranty of the appliance?

Waring warrants this blender against defects in material or workmanship for a period of one year from the date of purchase, subject to normal use with non-abrasive foods.

Is this appliance suitable for professional use?

Yes, it is a Waring Commercial model designed for heavy professional use in settings such as restaurant kitchens.

How to use the speeds?

Use high speed (HI) to blend liquid ingredients while keeping the blade at the bottom of the container to avoid splashing. Low speed (LO) is suitable for thicker mixtures or for gentle whisking.

Can I use harsh chemicals for cleaning?

No, use only a non-foaming detergent cleaning solution and a chlorine-based disinfectant solution (minimum 100 ppm). The temperature of the solutions must not exceed 46°C to prevent burns.

Where can I find spare parts?

Spare parts are available from Waring after-sales service. In the United States and Canada, contact Waring Service Center at 314 Ella T. Grasso Ave., Torrington, CT 06790, or by phone at 1-800-492-7464.

Does the appliance come with a power cord?

Yes, the appliance comes with a power cord equipped with a three-prong grounding plug. A temporary adapter can be used if necessary.

USER MANUAL Quik Stik WSB35 Waring Commercial

Line drawing of a Waring handheld device with no visible text or symbols on the body

QUIK STIK ^® IMMERSION BLENDER QUIK STIK ^® LICUADORA DE MANO QUIK STIK ^® MIXER PLONGEANT

WSB35

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using an electrical appliance, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS.

1. Unplug from outlet when not in use and before cleaning.
2. To protect against risk of electrical shock, do not put motor base, cord or plug in water or other liquid. Only the blade guard and shaft of this appliance have been designed for submersion into water or other liquids. Never submerge any other portion of this unit in any liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Keep hands, hair, clothing, and utensils away from blade and mixing container while operating the Waring® Quik Stik® Immersion Blender to prevent the possibility of severe injury to persons and/or damage to the Immersion Blender. A spatula may be used but must be used only when the unit is not operating. Avoid contact with moving parts.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest Waring authorized service facility for examination, repair, electrical or mechanical adjustment.
6. The use of accessory attachments not recommended or sold by Waring for this specific model may result in fire, electric shock or personal injury.
7. Do not use outdoors.
8. Do not let any cord hang over the edge of the table or counter. Do not let cord come into contact hot surfaces, including stovetop.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Blade is SHARP. Handle carefully.
11. When mixing liquids, especially hot liquids, use a tall container or make only small quantities at a time to reduce spillage and possibility of injury.

SAVE THESE INSTRUCTIONS

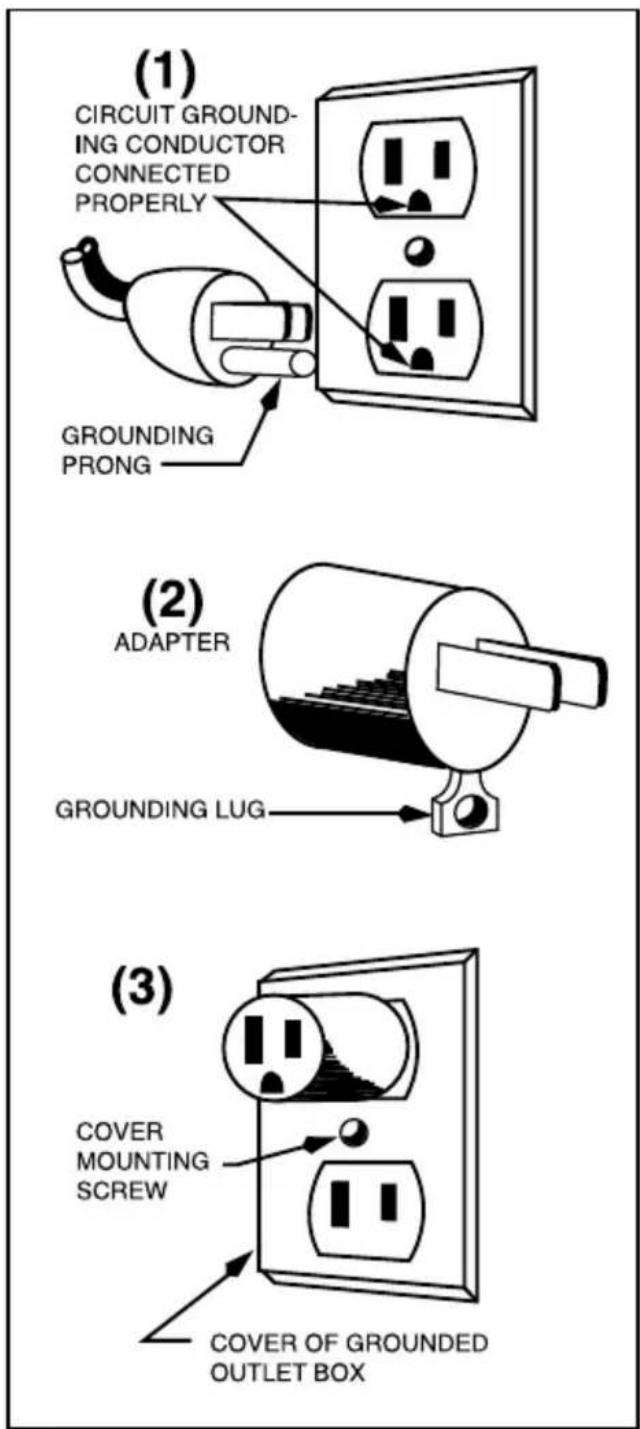

GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like the plug in drawing (1). An adapter, as in drawing (2), should be used for connecting the appliance plug to two-prong receptacles. The grounding tab which extends from the adapter must be connected to a permanent ground such as a properly grounded outlet box as shown in drawing (3) using a metal screw.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG (2) ADAPTER GROUNDING LUG (3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

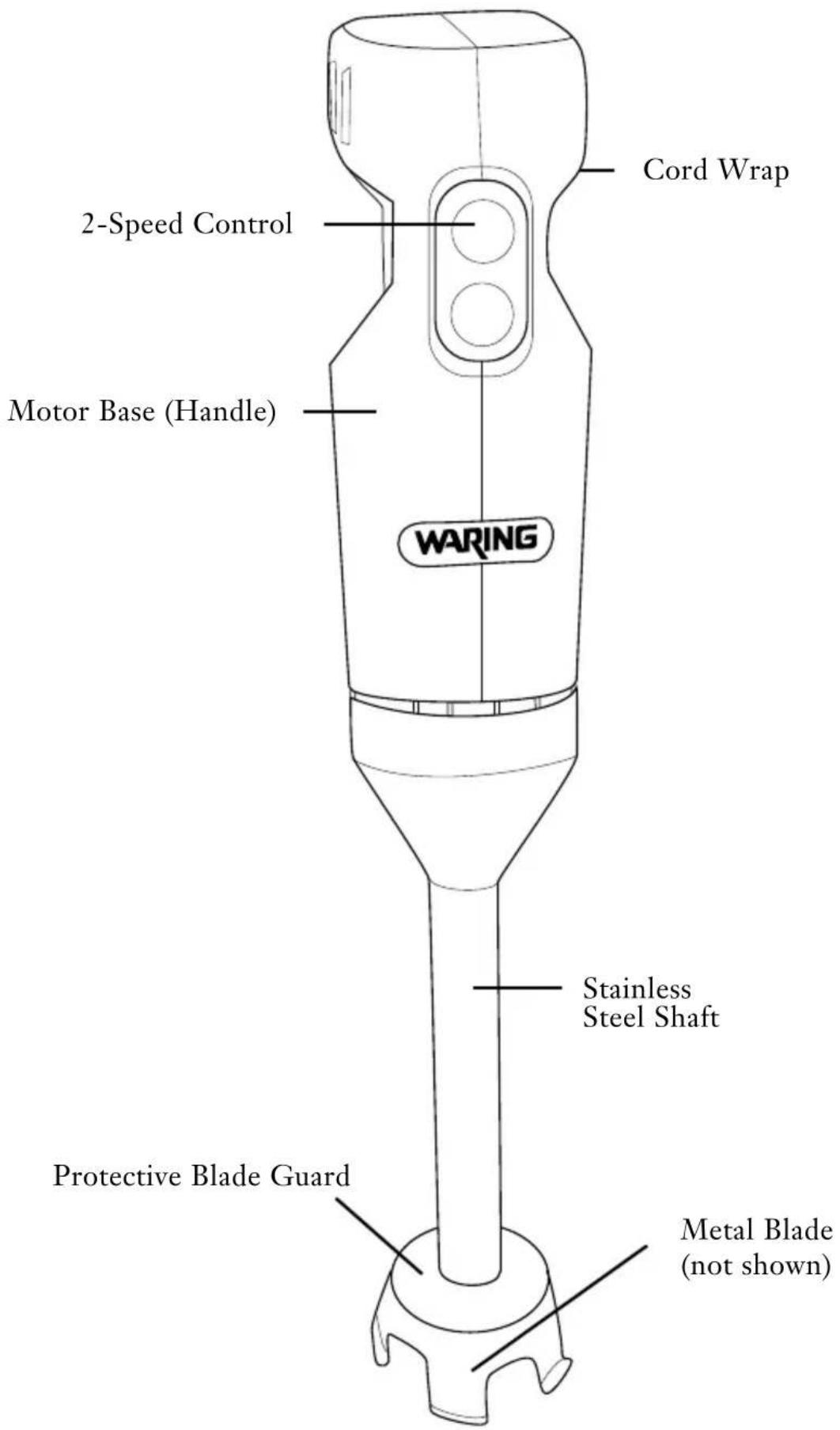

THE PARTS

Cord Wrap 2-Speed Control Motor Base (Handle) WARING Stainless Steel Shaft Protective Blade Guard Metal Blade (not shown)

BEFORE YOU BEGIN

NOTE: Always unplug the Waring® Quik Stik® Immersion Blender before cleaning the metal blade.

Before using the Quik Stik ^® , Waring suggests that you wipe the unit with a clean, damp cloth to remove any dirt or dust. Place the metal blade end of the hand blender under running water to rinse it. Dry thoroughly with a soft absorbent cloth. Read all instructions completely for detailed operating procedures.

USING YOUR WARING® QUIK STIK® IMMERSION BLENDER

NOTE: Always unplug the Quik Stik® after each use. Keep the Immersion Blender out of reach of children.

• To prevent splattering, be careful never to remove the Waring® Quik Stik® Immersion Blender from the liquid while in operation.
• Blend ingredients to make salad dressing, whip eggs, whip cream, and to purée soups and sauces.
• Use HI Speed for liquid ingredients, and hold the protective blade guard at the bottom of the mixing container to prevent splattering.
• For recipes calling for ice, use crushed ice (not whole cubes) for best results.

NOTE: If a piece of food becomes lodged in the protective guard surrounding the metal blade, follow the safety instructions noted below:

1. Release the power button and unplug the unit from the electrical outlet.
2. Once the power source has been disconnected, use a spatula to carefully remove the food lodged in the blade guard. Avoid injury. The blade is sharp. DO NOT USE YOUR FINGERS TO REMOVE LODGED OBJECTS.
3. After the lodged food has been removed, plug the unit back into its power supply and continue processing.

CLEANING INSTRUCTIONS

THE QUIK STIK® IMMERSION BLENDER MUST BE CLEANED AND DRIED ACCORDING TO THE FOLLOWING INSTRUCTIONS AFTER EACH USE.

For Food Service Applications

• Wash, rinse, and sanitize the stainless steel portion of the Quik Stik® prior to initial use, after each use, or whenever it will not be used again within a period of 1 hour.
• Clean and sanitize the plastic motor housing prior to initial use and after each use.
• Washing solutions based on non-sudsing detergents, and chlorine-based sanitizing solutions having a minimum chloride concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used.

SOLUTION	PRODUCT IN WATER TEMPERATURE
Washing Diversey	4 Tbsp./Gallon WyandotteDiversol BX/AOr CX/A	Hot 115°F (46°C)
Rinsing Plain Water Warm 95°F (35°C)
Sanitizing Clorok	1 Tbsp./Gallon Institutional (10–21°C)Bleach	Cold 50–70°F

- In repetitive use applications, frequent cleaning will prolong life.

To wash and sanitize the Quik Stik®:

1. Rinse the exterior and interior stainless steel portion of the Quik Stik ^® under running water. Scrub and flush the exterior and interior stainless steel portion to dislodge and remove as much food residue as possible.
2. Wipe down the exterior of the plastic housing and the stainless steel portion of the Quik Stik ^® with a soft cloth or sponge dampened with the washing solution.
3. Immerse approximately 3/4 of the length of the stainless steel portion in a container of the washing solution and run for two (2) minutes on High.
4. Repeat steps two (2) and three (3) using clean rinse water in place of the washing solution.

NOTE - IMPORTANT

IN ORDER TO MINIMIZE THE POSSIBILITY OF SCALDING, TEMPERATURE OF THE WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115°F (46°C).

1. Wipe down the exterior of the plastic housing and the stainless steel portion of the Quik Stik ^® with a soft cloth or sponge dampened with the sanitizing solution.
2. Immerse approximately 3/4 of the length of the stainless steel portion in a container of the sanitizing solution and run for two (2) minutes on High.
3. DO NOT RINSE AFTER SANITIZING IS COMPLETE. Allow to air dry before use.

NOTE

DO NOT IMMERSE PLASTIC HOUSING IN WASHING SOLUTION, RINSE WATER, OR SANITIZING SOLUTION. PREVENT LIQUID FROM RUNNING INTO PLASTIC HOUSING BY WRINGING ALL EXCESS MOISTURE FROM CLOTHS OR SPONGES BEFORE USING THEM.

WARRANTY - LIMITED ONE YEAR WARRANTY

Waring warrants every new WARING® COMMERCIAL to be free from defects in material and workmanship for a period of 1 year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, provided it has not been subjected to loads in excess of the indicated rating.

Under this warranty, Waring Commercial will repair or replace any part which, upon examination, appears to us to be defective in materials or workmanship, provided the unit is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Avenue, Torrington, CT 06790, or any Authorized Service Center.

This warranty does not: a) apply to any unit which has become worn, defective, damaged or broken due to misuse, repairs, or servicing by other than the Waring Service Center or an Authorized Service Center or due to abuse, misuse, overloading or tampering; b) cover consequential damages of any kind.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state so that certain limitations or exclusions set forth above may not apply to you.

WARNING - This warranty is VOID if the appliance is used on Direct Current (DC)

GARANTIE - GARANTIE LIMITÉE D'UN AN

Should service on this product in USA or Canada be required at any time, call or write to:

Waring Service Center • 314 Ella T. Grasso Ave. • Torrington, CT 06790

Tel: [phone] • FAX [phone]

or Nearest Authorized Service Center

Replacement parts for Waring Out of Warranty repairs are obtainable at the above address.

Note: If your application involves the processing of biologically active materials, any items returned for service must be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any returns unless they are so identified.

Any trademarks or service marks of third parties herein are the trademarks or service marks of their respective owners.

©2022 Waring Commercial Products
