WW250BX2 - Waffle Maker Waring Commercial - Free user manual and instructions

Product Type	Double Commercial Waffle Maker
Brand	Waring Commercial
Model	WW250BX2
Power Supply Voltage	208 V
Power	2700 W
Plug Type	6-15P with Ground
Usage	Commercial Use
Number of Plates	2 (double)
Plate Depth	2.5 cm (1 in)
Plate Coating	Non-Stick
Removable Plates	Yes, replaceable
Temperature Control	Yes, dial (levels 1-4+)
Indicator Lights	Red (power), green (ready)
Audible Alert	6 beeps for preheat, 3 beeps for cooking
Lockable Lid	Yes
Measuring Cup Included	Yes, with "Belgian Waffle" line
Removable Drip Tray	Yes
Rotation Function	180° for even cooking
Independent Switches	Yes, for each side
Plate Cleaning	Damp cloth, do not immerse
Safety	Do not use metal utensils, do not open during cooking
Replacement Parts Available	Replacement plates
Warranty	1 year (U.S. and Canada)

Frequently Asked Questions - WW250BX2 Waring Commercial

How to clean the plates after use?

Let the plates cool completely, then wipe with a damp cloth to remove residues. Do not use abrasive cleaners. Never immerse the appliance in water. For stubborn stains, pour a little oil and wait 5 minutes before wiping.

Can I use metal utensils on the non-stick plates?

No, never use metal utensils as they scratch the non-stick coating. Use a heat-resistant silicone or wooden spatula.

How to change the plates?

Unplug the appliance and let it cool. Remove the screws holding the plates using the screwdriver provided in the replacement kit. Lift the plates, then install the new ones by aligning the tabs with the notches. Replace the screws (large screw near the handle, small screws around).

What temperature setting to use for Belgian waffles?

The recommended setting is level 4. For crispier waffles, use a higher setting.

What to do if the appliance smokes on first use?

This is normal. There may be slight smoke and odor during the first heating. Make sure to season the plates with a little oil before first use.

Are the plates dishwasher safe?

Yes, the plates can be washed in the dishwasher, but it is not recommended to remove them for cleaning unless you need to replace them. It is better to clean them by hand with a damp cloth.

How to know when the waffle is cooked?

The appliance emits 3 beeps to indicate the waffle is cooked. The green lights also turn on when the temperature is reached.

Can I use an extension cord?

If necessary, use a three-prong grounded extension cord with a voltage rating at least equal to that of the appliance. Do not use a damaged extension cord and keep it away from hot surfaces.

Is the appliance covered by a warranty?

Yes, this Waring Commercial waffle maker is warranted for one year against defects in material or workmanship from the date of purchase, for normal commercial use in the United States and Canada.

Can I use the appliance outdoors?

No, this appliance is designed for indoor use only. Do not use it outdoors or for purposes other than intended.

USER MANUAL WW250BX2 Waring Commercial

USER-SERVICEABLE NEW WAFFLE PLATES

PLACAS REEMPLAZABLES NUEVO POR EL USUARIO

PLOQUES REMPLACABLES NOUVEAU PAR L'UTILISATEUR

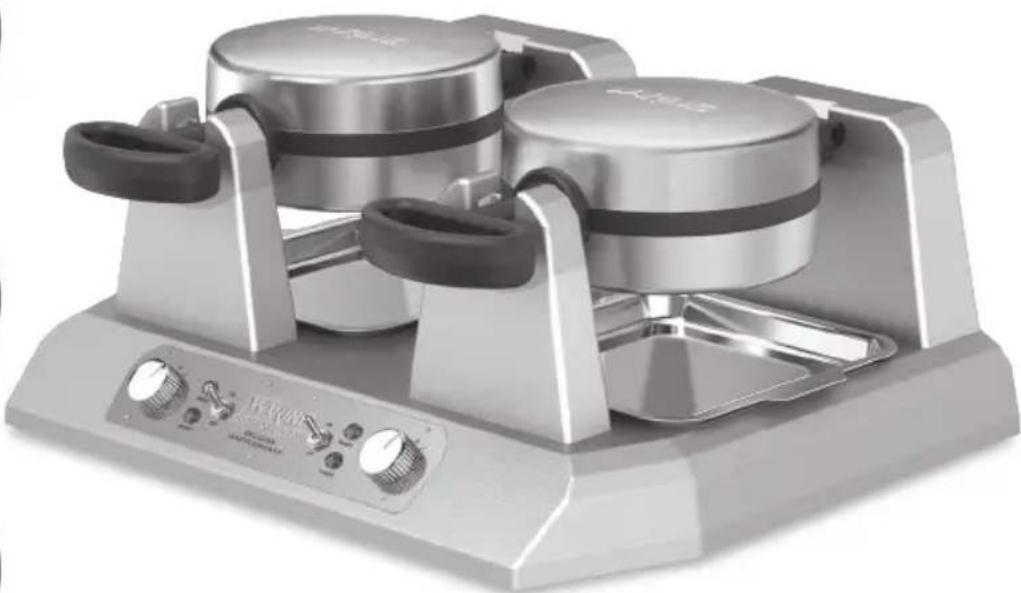

Exterior view of a modern stainless steel waffle grater with control panel (no visible text or symbols)

WW250X2 & WW250BX2

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

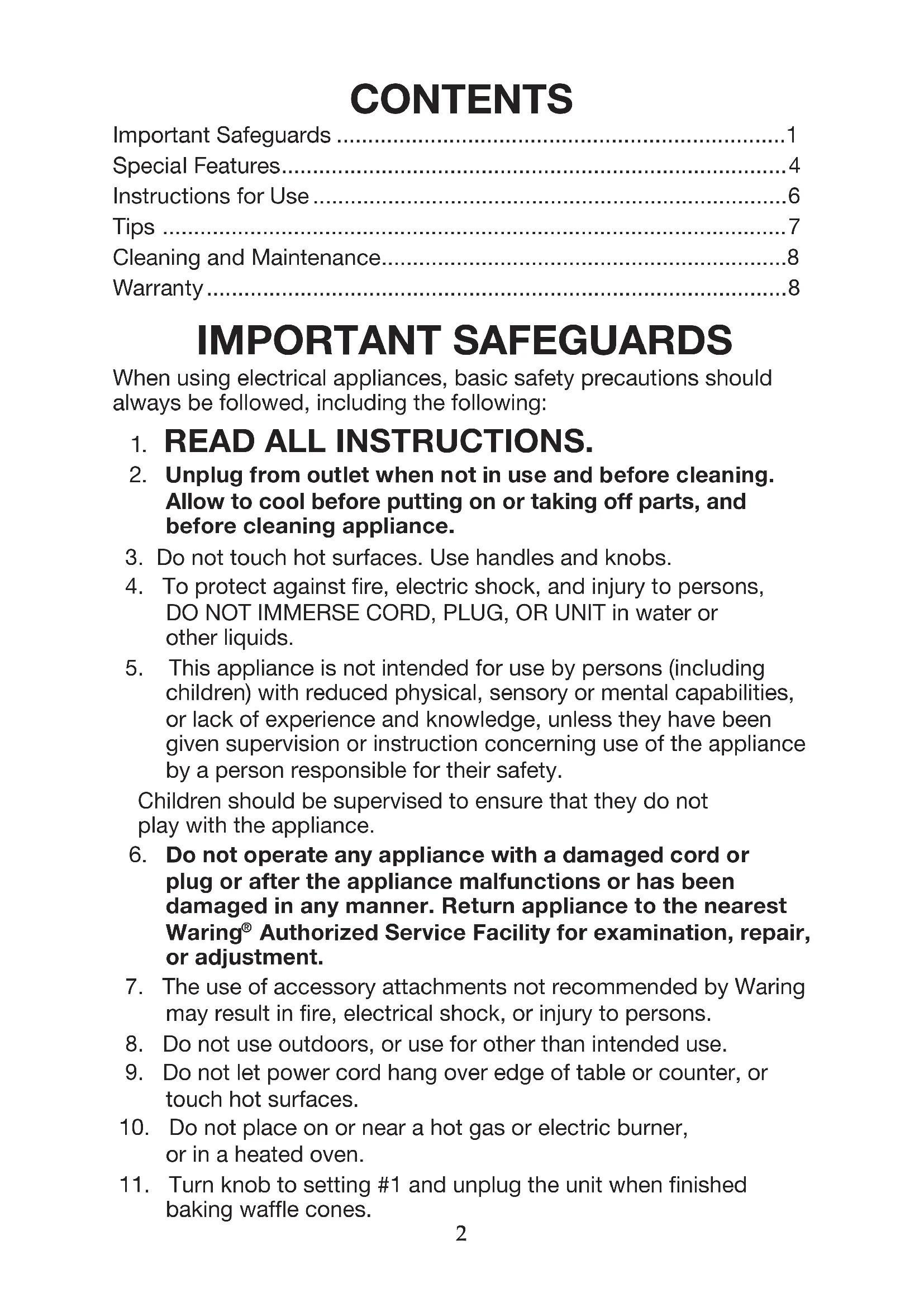

Important Safeguards ....1

Special Features....4

Instructions for Use....6

Tips 7

Cleaning and Maintenance....8

Warranty 8

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
3. Do not touch hot surfaces. Use handles and knobs.
4. To protect against fire, electric shock, and injury to persons, DO NOT IMMERSE CORD, PLUG, OR UNIT in water or other liquids.

5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Waring® Authorized Service Facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by Waring may result in fire, electrical shock, or injury to persons.

8. Do not use outdoors, or use for other than intended use.

9. Do not let power cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Turn knob to setting #1 and unplug the unit when finished baking waffle cones.

12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

13. Always begin by plugging appliance into wall outlet. To disconnect, turn control to setting 1, switch toggle to off position, then remove plug from wall outlet.
14. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIRS SHOULD BE MADE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO USER-SERVICEABLE PARTS ARE INSIDE.
15. T o acquire a digital instruction manual, go to www.waringcommercialproducts.com/resources

SAVE THESE INSTRUCTIONS APPROVED FOR COMMERCIAL USE

Model Voltage	Power Plug Type
WW250X2 120V	2400W		5-20P
WW250BX2 208V	2700W		6-15P

For your protection, this appliance is supplied with a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet. Use of any other voltage or altering of the plug or cord may damage the unit, will void the warranty and may cause injury.

WARNING - FOR USE ON INDIVIDUAL BRANCH CIRCUIT ONLY.

Caution: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada and Europe.

EXTENSION CORDS

Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Use only extension cords that are intended for indoor use. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges.

SPECIAL FEATURES

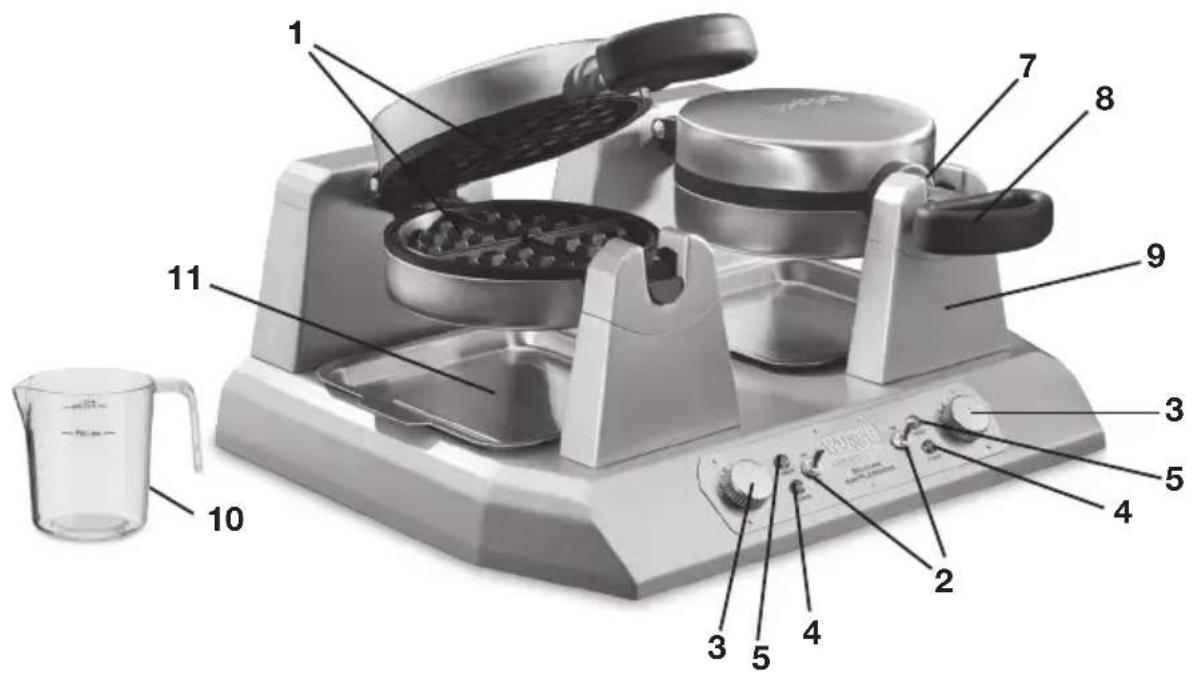

Labeled diagram of a coffee waffle with numbered parts for identification

1. Deep 1" Waffle Grids
2. Power Switch

3. Browning Control Dial
   Adjustable for different batters and personal preference.

4. Power Indicator Light Red light illuminates when waffle maker is on and heating up.

5. Indicator Lights Green light illuminates when waffle maker is ready to bake.

6. Indicator Beeps (not shown)

- 6 beeps indicate unit is ready to bake. After the waffle maker has been plugged into electrical outlet and turned to the ON position, the waffle maker will beep 6 times, indicating it has reached baking temperature. Please note: this will occur only for the first waffle of each baking session.

- 3 beeps indicate waffle is done.

1. Lockdown Lid

- After rotating, lid will not rise as waffles bake.

1. Handle

2. Housing

3. Measuring Cup (1 supplied)

4. Removable Drip Tray

NOTE: This Waring® Commercial Waffle Maker has been treated with a special nonstick coating. Before the first use, we suggest you season the waffle grids by brushing with cooking oil. Wipe with a paper towel or pastry brush.

INSTRUCTIONS FOR USE

1. Before using your Waring® Commercial Waffle Maker for the first time, remove any dust from shipping by wiping the plates with a damp cloth. Remove all protective paper and wrapping.

2. Plug cord into 120V AC, 20 Amp (NEMA 5-20) wall outlet (for WW250X2) or 208V AC wall outlet (for WW250BX2). Each waffle unit works independently. You can use one at a time or both at the same time. Switch the toggle switch or switches to the ON position. The red light(s) will go on to signal power. The waffle unit(s) will now begin the preheating process. This should take about 3-4 minutes. Each unit will sound 6 beeps and the green indicator light(s) will go on to signal the unit is ready for baking. Season the waffle grids by spraying with cooking spray or brushing with a flavorless oil.

For initial use, it is important that the waffle maker is preheated before seasoning with cooking spray or oil.

NOTE: The first time you use your waffle maker, it may have a slight odor and may smoke a bit. This is normal, and common to heating appliances.

1. Preheat your Waring® Commercial Waffle Maker on setting #4 or preferred setting (green indicator lights will be illuminated when preheated).

For best results, do not open waffle maker during cooking process. Doing so will interfere with the timing mechanism.

1. Fill measuring cup to Belgian Waffle fill line (top line on batter cup) marking or to top of measuring cup, depending on the recipe. (For loose batters, fill to the fill line; for thicker batters, fill to the top) and pour batter evenly into the center of the waffle grids. Use a heat-proof spatula to spread the batter evenly over the grids. Close the lid and rotate the unit 180^ to the right.

2. When the waffle is completely baked, the waffle maker will sound 3 beeps. Baking time is determined by browning level. Choose a setting on the browning control dial. For golden brown waffles, we recommend using setting #4.

3. Once the waffle(s) are ready and the waffle maker has beeped 3 times, rotate the waffle maker 180^ to the left, open the lid and remove waffle(s) by gently loosening the edges with a heat-

proof plastic spatula. Never use metal utensils, as they may damage the nonstick coating.

1. Always disconnect the plug from the wall outlet, once baking has been completed.

TIPS FOR MAKING PERFECT BELGIAN WAFFLES

We recommend setting #4 when using commercial pancake/waffle mixes.

We recommend setting #4 for Belgian waffle recipes.

If you prefer crisper, darker Belgian waffles, increase the browning control.

For evenly filled waffles, pour the batter into the center of the lower grid and spread out evenly to the edges. The entire lower grid should be filled.

For best results, we recommend using the Belgian waffle fill line (top line on batter cup) on the batter cup or use enough batter to fill the entire lower grid.

For added convenience while baking waffles, hang measuring scoop on bowl with handle hanging on outside of bowl and scoop on inside of bowl until the next baking cycle.

To measure flour, stir the flour first to aerate it, since it settles when it sits. Then spoon it into a measuring cup, leveling off the top with the back of a knife – do not pack down into measuring cup. These quick steps will help you avoid heavy waffles. Belgian waffles taste best when made to order, but baked Belgian waffles may be kept warm in a 200°F oven. Place in a baking pan or wrap in foil while in the oven. Waffles wrapped in foil may lose their crispness.

Baked waffles may be frozen. Allow to cool completely, and then place in plastic food storage bag. Use waxed paper to keep waffles separated. Reheat in an oven, toaster or toaster oven when ready to use.

WAFFLE PLATE CLEANING & MAINTENANCE

Clean daily and diligently; doing so will ensure that your waffle maker works properly and continues to work well over time.

How to Clean Waffle Plates

Once you have finished baking each day, turn the switch to the OFF position and remove plug from electrical outlet. Leave top lid open and allow plates to cool before cleaning. Be certain plates have cooled completely before cleaning

Never take your waffle maker apart for cleaning. Brush crumbs from grooves and absorb any excess cooking oil by wiping with a dry cloth or paper towel. You may clean the plates by wiping with a damp cloth to prevent staining and sticking from batter or oil buildup. If batter adheres to plates, simply pour a little cooking oil onto the baked batter and let stand approximately 5 minutes. This will allow the batter to soften and will make it easier to remove.

To help remove oil buildup and batter residue, place a damp paper towel in between the waffle plates and close the lid. Allow to sit for a few minutes.

To clean exterior, wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. NEVER IMMERSE CORD, PLUG OR UNIT IN WATER OR OTHER LIQUIDS.

Serviceable Plates

To order replacement plates, call customer service at 1-800-4WARING, order online or find a local distributor or service center.

Although removable, these plates are not intended to be removed for routine cleaning. Plates are ONLY meant to be removed if there is a scratch on the nonstick coating and you need to replace the plate. If removed for cleaning, the plates are dishwasher safe.

How to Remove the Waffle Plates

PARTS

• 2 waffle plates
  • 4 large screws (2 extra)
  • 16 small screws (6 extra)
• Screwdriver

INSTRUCTIONS

1. Carefully unpack the replacement kit.
2. Using the provided screwdriver, carefully remove the screws from the perimeter edge of waffle plate/s. Lift plates up and off the housing. Slight force may be needed to release the plates completely. Discard the old plate/s and screws.
3. Starting with the lower grid, place the new plate onto the housing by aligning rear and front projections onto the base. The wider projections will fit into the rear.
4. Install 1 large screw into the slot located near the handle.
5. Install the smaller screws around the perimeter.
6. Repeat steps 2–5 for the upper grid replacement.

LIMITED ONE YEAR WARRANTY

(U.S. and Canada only)

Waring® Commercial warrants every new Waring® Commercial Waffle Maker to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semiliquids, providing it has not been subject to loads in excess of the indicated rating.

Under this warranty, Waring® Commercial will repair or replace any part which, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at: 314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product that has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

Warning: This warranty is void if appliance is used on Direct Current (DC).

WARING COMMERCIAL®

WARING COMMERCIAL

314 Ella T. Grasso Ave.

Torrington, CT 06790

ÍNDICE

Labeled diagram of a coffee waffle oven with numbered parts and a glass cup for scale

Labeled diagram of a coffee waffle maker with numbered parts and a glass cup for scale

GARANTIE LIMITÉE D'UN AN

Trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners.

©2021 Waring Commercial

WW250X2/WW250BX2 Series IB

21WC080401

IB-14973
