USER MANUAL RA-F320B JVC
Operating Instructions
Hotline Darty France

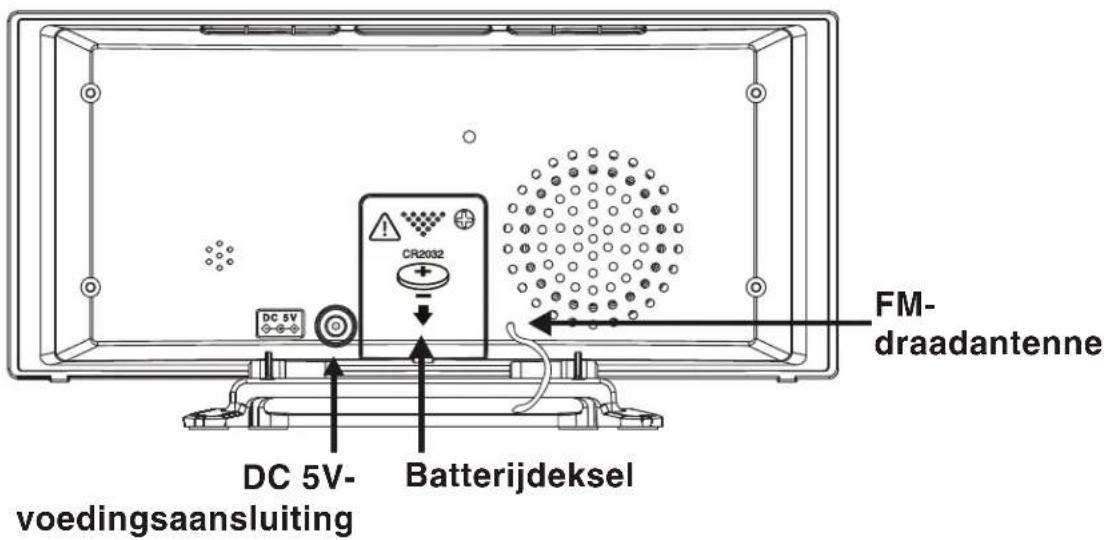

Achteraanzicht
WERKING VAN DE DUBBELE WEKKER

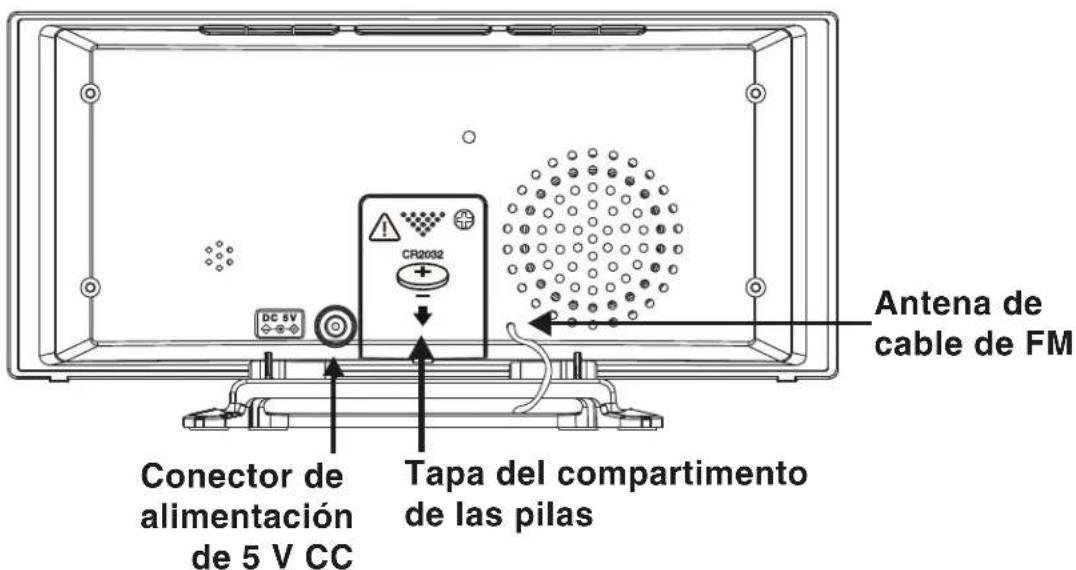

Vista posterior

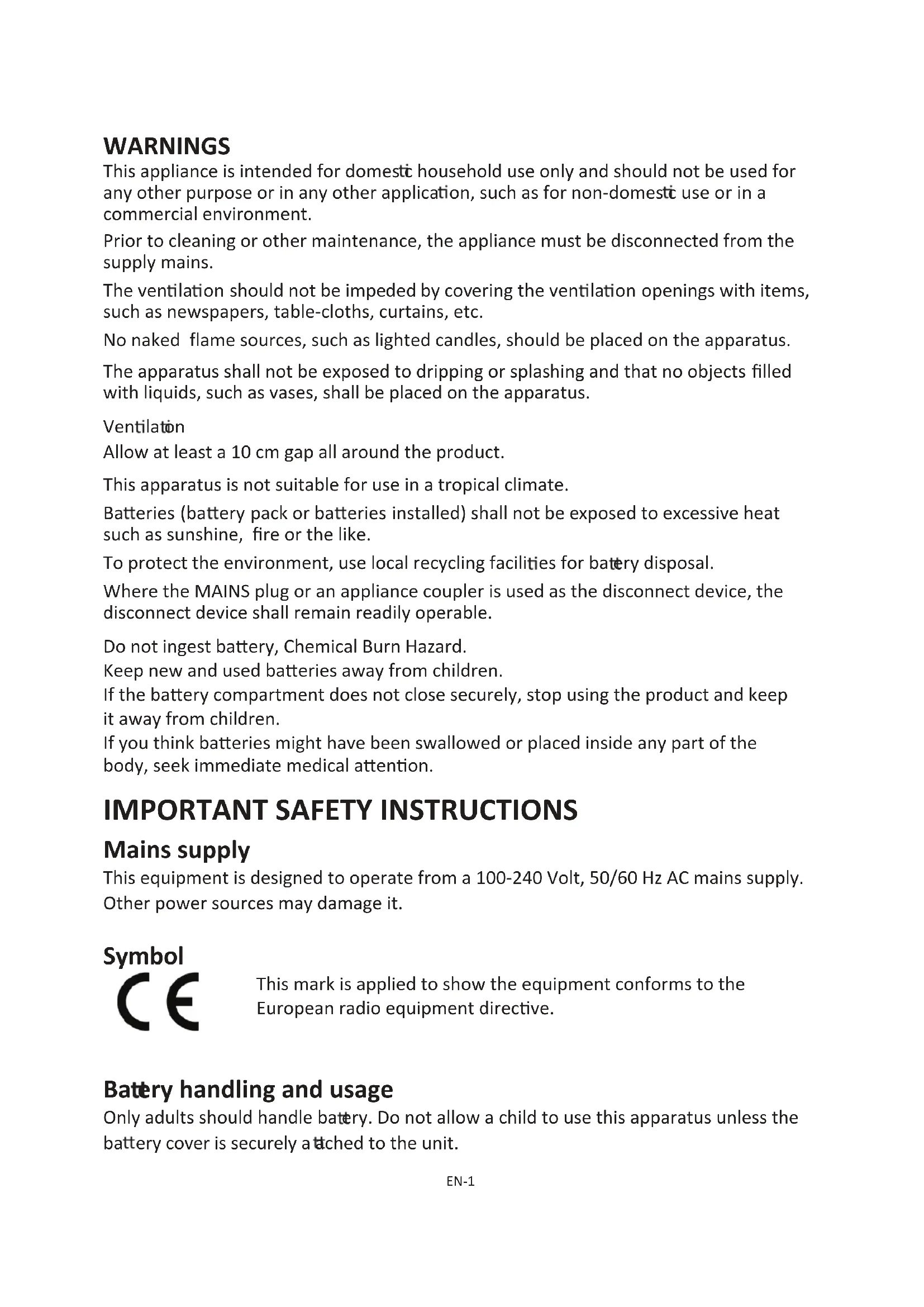

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Ventilation
Allow at least a 10 cm gap all around the product.
This apparatus is not suitable for use in a tropical climate.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
To protect the environment, use local recycling facilities for battery disposal.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Do not ingest battery, Chemical Burn Hazard.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
IMPORTANT SAFETY INSTRUCTIONS
Mains supply
This equipment is designed to operate from a 100-240 Volt, 50/60 Hz AC mains supply.
Other power sources may damage it.
Symbol
This mark is applied to show the equipment conforms to the European radio equipment directive.
Battery handling and usage
Only adults should handle battery. Do not allow a child to use this apparatus unless the battery cover is securely attached to the unit.
The battery type used in the unit is one CR2032 3V Lithium battery which is accessible and can be replaced.
Remove the battery cover located at the rear of the unit to remove the battery.
To replace the battery:
Insert a new battery into the battery holder with the positive side facing up.
Replace the battery cover.
LOCATION OF CONTROL

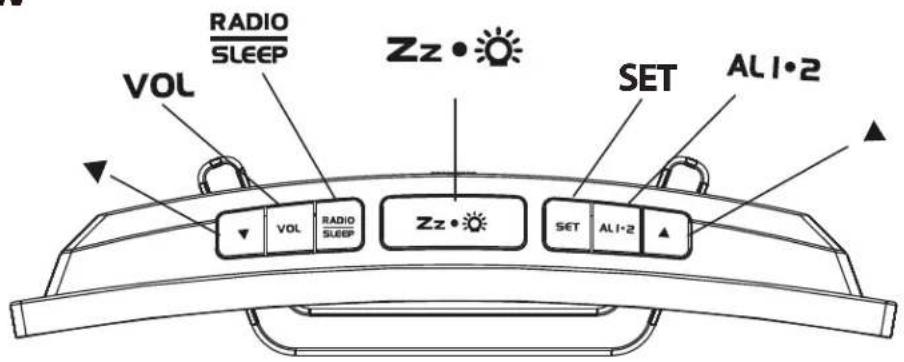

Top View

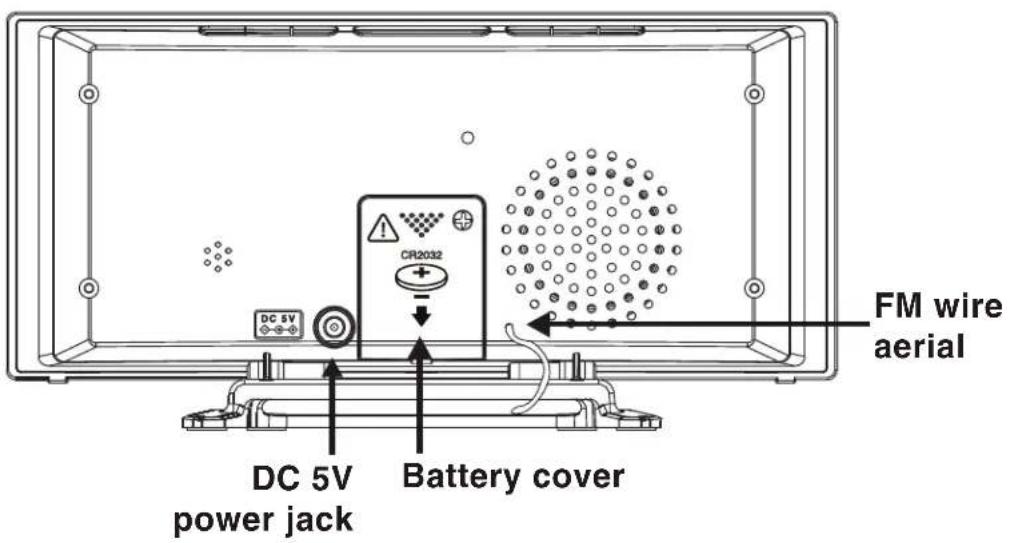

Rear View

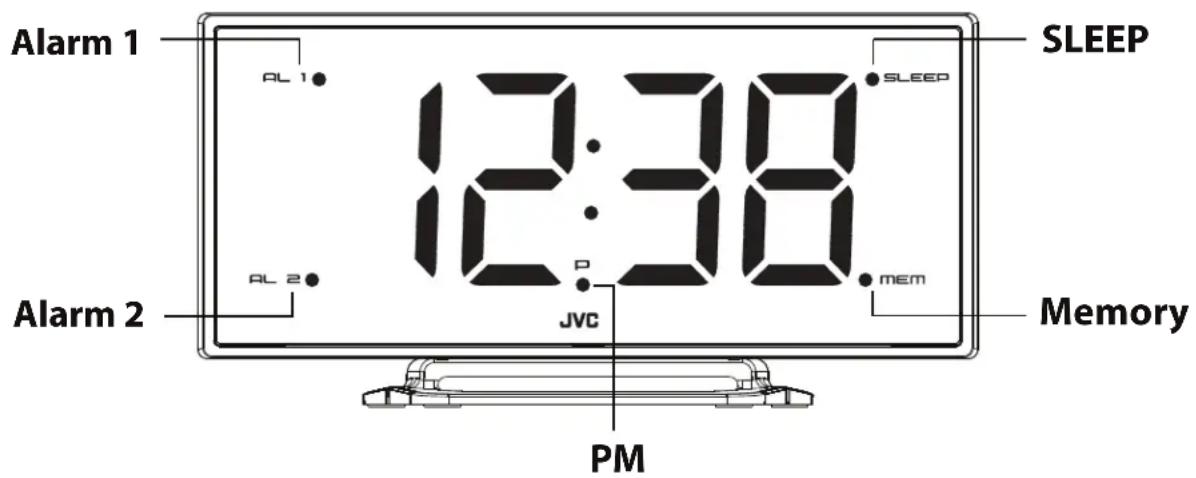

Indicator lights
BATTERY BACKUP
The clock and alarm settings can be protected against AC power failure with the battery for a short period of time. If no backup battery is installed or the power failure is prolonged, you will need to set the clock and alarm settings again.
SETTING THE CLOCK AND SNOOZE DURATION
- Place the unit on a flat stable surface.
- Connect one end of the power adapter into the DC 5V power jack on the rear of the unit. Plug the power adapter into the mains socket.
• The display will show 0:00.
- Press SET once.
• The hour digit will flash on the display.
-
While the hour digit is flashing, repeatedly press ▲/▼ until the desired hour appears. Press SET to confirm.
-
Press and hold ▲/▼ for fast setting.
• The minute digits will flash on the display.
-
While the minute digits are flashing, repeatedly press ▲/▼ until the desired minutes appear. Press SET to confirm.
-
Press and hold ▲/▼ for fast setting.
• The hour format will flash on the display.
-
While the hour format is flashing, repeatedly press ▲/▼ to select 12-hour or 24-hour format. Press SET to confirm.
• The snooze time will flash on the display.
- While the snooze time is flashing, repeatedly press ▲/▼ until the desired snooze time appears. Press SET to confirm.
- Press and hold ▲/▼ for fast setting.
• The snoozetime can be selected from 5 to 60 minutes.
NOTE: In 12 hour format the P indicator light will illuminate on the display for PM time.
- The display will show "ON" and then the radio frequency in MHz.
- Tune in to the desired station by repeatedly pressing ▲/▼.
- The wire aerial located on the rear of the unit is for FM reception. The wire should be fully extended and positioned for optimum reception.
- Press and hold ▲/▼ for 2 seconds and then release the button, the unit will scan the frequencies until a broadcasting station strong enough for good reception is found.
-
To set the volume, press VOL once. The display will show "L07". While "07" shows, repeatedly press ▲/▼ to set the desired volume from L01 (minimum) to L15 (maximum).
-
To turn off the radio, press
NOTE: Keep your radio away from fluorescent lamps or other electronic devices which may cause interference to the radio.
PRESETTING YOUR FAVOURITE RADIO STATION
Up to 10 FM radio stations can be preset.
- Follow steps in "LISTENING TO THE RADIO" and tune in to the station that you wish to preset.
- Press and hold SET until the MEM indicator light appears and "01" flashes on the display.
- While the memory slot number is flashing, repeatedly press ▲/▼ to select the desired memory slot.
- Press SET again to store the station.
- Repeat steps above to store desired stations.
- To listen to preset radio stations, repeatedly press SET to select the desired radio station.
Before setting the alarm bit, make sure the Clock has been set.
Settig Alarm 1 / Alarm 2
- In clock me state, press . ALI•2
- The AL1 indicator light and hour digits will flash on the display.
- While the hour digits are flashing, set hours for alarm 1 by repeatedly pressing ▲/▼.
- Press and hold ▲/▼ for fast setting.
- Press AL1·2 to confirm.
• The minute digits will flash.
- Whilst the minute digits are flashing, set minutes for alarm 1 by repeatedly pressing ▲/▼.
- Press and hold ▲/▼ for fast setting.
- Press ALI•2 to confirm.
- "OFF" will flash on the display.
- Whilst "OFF" is flashing, set the alarm to wake to the desired mode by repeatedly pressing ▲/▼.
r d = wake-by-radio
bu= wake-by-buzzer
OFF= alarm off
- Press ALI•2 to confirm.
- The AL2 indicator light and hour digits will flash on the display.
- Follow steps 2 to 7 to set the alarm 2.
-
When the alarm 1 or 2 is sounding, the AL1 or AL2 indicator light will flash.
-
The alarm will sound for 3 minutes at the preset time on each day and come back again after 9 minutes. The alarm will last for 1 hour.
To stop the alarm, Press or ALI•2. The alarm will come on again at the set time on the following days.
Snooze function
When the alarm sounds, press Zz • 🌐. The alarm will be turned off and come on again after the set snooze duration.
NOTE: If your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm will override the first alarm (the first alarm will be reset to come on the next day).
SLEEP TIMER
- Press RADIO SLWPE to enter the sleep mode.
- The SLEEP indicator light will illuminate and "05" (5 minutes) will flash on the display.
- While the sleep time is flashing, repeatedly press to set the desired sleep time from 5, 15, 30, 45, 60, 75 or 90 minutes.
- The radio will be turned off after the set sleep time has elapsed.
To check remaining sleep time, press twice.
To turn off the radio before the sleep time has elapsed, press Zz•.
DIMMER CONTROL
In order to adapt the intensity of the display to suit the ambient room lighting, repeatedly press Zz to select the display brightness among high, low and off settings. This can only be done when the radio is off or the unit is not sounding.
SPECIFICATIONS
FM 87.5-108.0MHz
INPUT: DC 5V = 0.6A
Battery backup: 1 x CR2032
Max output power: 3W
---Direct Current
WARNING
Do not ingest the battery, Chemical Burn Hazard
(The remote control supplied with) This product contains a coin/button
cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
External power supply
| Information published | Value and precision | Unit |
| Manufacturer's name or trade mark, commercial registration number and address | Shenzhen Fushigang Technology Co., Ltd. 301, 401 No. 8 Building, Shiguan Industry Park Shangcun Community, Gongming Street Guangming District 518106 Shenzhen, Guangdong Province, P.R China | |
| Model identifier | AS0601A-0500600EUL | |
| | V 042-00 |
| Input AC frequency | 50/60 | Hz |
| Output voltage | DC 5 | V |
| Output current | 0.6 | A |
| Output power | 3 | W |
| Average active efficiency | ≥slant 69.65 | % |
| Efficiency at low load (10 %) | - | % |
| No-load power consumption | ≤slant 0.1 | W |
. egathφωτ
• Alternating Current
Class II equipment
To identify equipment meeting the safety requirements specified for Class II equipment according to IEC 61140.
This symbol indicates that a safety connection to electrical earth (ground) is not required.
For indoor use only
Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types).
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or expose to excessive heat such as sunshine, fire or the like that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the appliance.
The supply terminal are not to be short-circuited.
Do not ingest battery, Chemical Burn Hazard.
[The remote control supplied with] This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
DISPOSAL
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.
You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.
Contact the store where you bought the product and your local authority to learn about disposal and recycling.
The batteries must be disposed of at your local recycling point.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
EU Declaration of Conformity
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
EN IEC 62368-1:2020+A11:2020
This declaration of conformity is drawn up under the sole responsibility of the manufacturer.
The person responsible for this declaration is:
Place, Date / Lieu :
Ivry-sur-Seine, mars 28, 2022
JVC
Made in China
