KAB24 - Battery KRESS - Free user manual and instructions

Product type	Rechargeable lithium-ion (Li-Ion) battery
Model	KAB24
Brand	Kress
Rated voltage	24 V
Intended use	For Kress cordless tools only
Protection	Protection against deep discharge (automatic shut-off)
Charging temperature	0 °C to 45 °C
Optimal operating temperature	+15 °C to +25 °C
Storage temperature	0 °C to 45 °C
Recommended charger	Charger specified by Kress
Maintenance	Clean ventilation slots with a soft, clean, dry brush
Transport	Subject to dangerous goods transport regulations; pack to prevent movement
Recycling	Do not dispose of in household waste; mandatory separate collection
Safety	Do not open, short-circuit, expose to heat (sun, fire) or mechanical shocks
Symbols	Do not burn; crossed-out bin (separate collection)
Service life	Battery life decreases after several cycles; replace if significant degradation
Disposal	Follow local battery recycling procedures

Frequently Asked Questions - KAB24 KRESS

How to charge the Kress KAB24 battery?

Use only the charger specified by Kress. Plug the charger into a mains outlet, insert the battery into the charger. The battery is delivered discharged, charge it fully before first use. The charging process can be interrupted without damage. Let it cool if the battery is hot.

Can I use a charger from another brand?

No, use only the charger specified by Kress. An unsuitable charger can damage the battery or cause a fire. Consult the device manual for the recommended charger.

What is the ideal charging temperature?

The charging temperature must be between 0 °C and 45 °C. Avoid charging below 0 °C or above 45 °C to preserve the battery.

Why does my tool suddenly stop during use?

This is normal: the battery is protected against deep discharges. When the voltage is too low, the tool automatically stops to avoid damaging the battery. Recharge it before continuing.

How to maintain the KAB24 battery?

Keep the battery clean and dry. Clean the ventilation slots with a soft, dry brush. Do not open or expose to water. Store it in a cool place, away from sunlight.

What is the battery life?

Battery life depends on usage. If the runtime decreases significantly after charging, the battery is worn and must be replaced. Do not dispose of with household waste.

Can I transport the battery by plane?

Lithium-ion batteries are subject to regulations. For transport, ensure the battery is not damaged and cannot move in the packaging. Check with the carrier for specific conditions.

What to do if the battery leaks?

Avoid any contact of the liquid with skin and eyes. In case of contact, rinse thoroughly with water and call emergency services. If the battery leaks, do not use it and dispose of it properly.

How to dispose of the used battery?

Do not throw the battery in household waste. It must be separately collected for recycling. Take it to an appropriate collection point (store, recycling center). Observe the symbols on the battery.

Can I store the battery in a car in summer?

Avoid storing the battery in a car in summer, as the temperature can exceed 45 °C. The recommended storage range is 0 °C to 45 °C. Excessive heat can reduce battery life.

USER MANUAL KAB24 KRESS

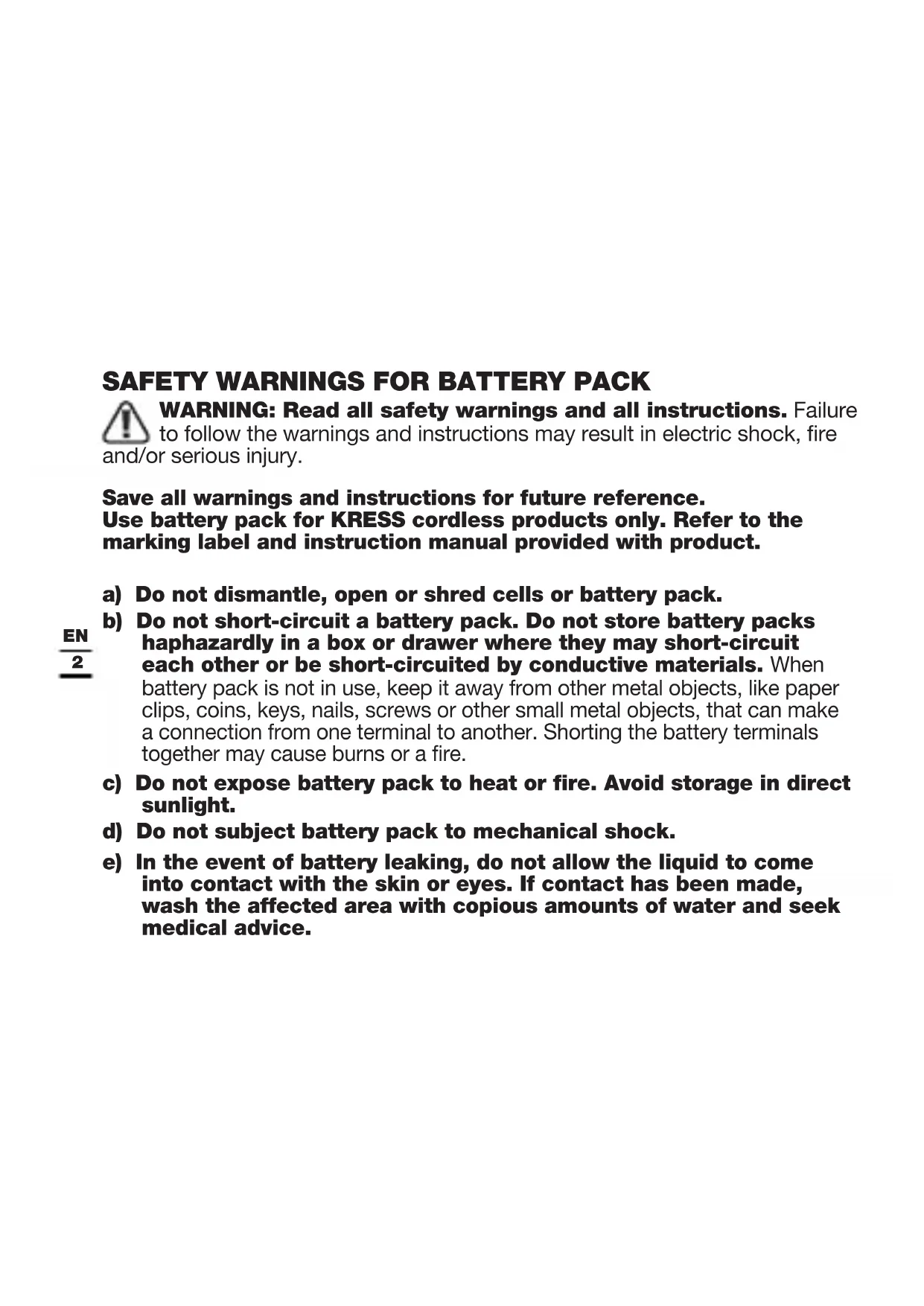

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Use battery pack for KRESS cordless products only. Refer to the marking label and instruction manual provided with product.

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by KRESS. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.

r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (−) marks on the battery and ensure correct use.

SYMBOL

	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-lon battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery NOTE:

1. Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
2. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

How to charge the battery

Refer to the instruction manual provided with product or charger.

WARNING: Do not continue to press the On/Off Switch after the machine has been automatically switched off. The battery could be over-discharged.

Store the battery only within a temperature range between 0 °C and 45 °C. As

an example, do not leave the battery in the car in summer time.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

EN

6

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

When the battery is no longer operative, please refer to an authorized after-sales service agent for KRESS power tools.

MANUTENCAO E SERVICO

Copyright © 2022, Positec. All Rights Reserved. AR01523801
