KAB25 - Battery KRESS - Free user manual and instructions

Product type	Rechargeable Li-Ion battery for cordless tools
Rated voltage	25 V
Typical capacity	2.5 Ah (estimated)
Weight	0.6 kg (estimated)
Dimensions (L x W x H)	120 x 80 x 60 mm (estimated)
Recommended charging temperature	0 °C to 45 °C
Optimal operating temperature	+15 °C to +25 °C
Power supply	Specific KRESS charger (not included)
Integrated protection	Protection against deep discharge, short circuits and overheating
Compatibility	KRESS cordless tools of the 25 V range
Cell types	Lithium-Ion (Li-Ion)
Charge at any time	Yes, without memory effect
Storage	In a dry place, out of the sun, between 0 °C and 45 °C
Maintenance	Clean the ventilation slots with a soft, clean, dry brush
Safety	Do not open, short-circuit, expose to heat or fire; follow the warnings in the manual
Recycling	Do not dispose of with household waste; comply with separate battery collection
After-sales service	Contact an authorized KRESS service center in case of malfunction
Transport	Subject to dangerous goods regulations; pack to prevent movement
Documents supplied	User manual (downloadable)

Frequently Asked Questions - KAB25 KRESS

How to charge the KAB25 battery?

Use only the specific KRESS charger and follow the procedure described in the charger manual. The battery is not charged upon delivery, charge it fully before first use.

Can I use a different charger?

No, never use a charger not specified by KRESS. An unsuitable charger can cause fire or damage.

What should I do if the battery heats up during charging?

Let the battery cool down before recharging. The battery may become too hot after intensive use or in a hot environment. Wait until it reaches a temperature below 45 °C.

How to store the battery long-term?

Store it in a dry place, out of the sun, at a temperature between 0 °C and 45 °C. Avoid leaving it in a car in summer.

Does the battery discharge when not in use?

Yes, the battery discharges slowly when outside the charger or in an unplugged charger. Recharge it if necessary.

What to do in case of battery leakage?

Avoid any contact of the liquid with skin and eyes. In case of contact, rinse thoroughly with water and call emergency services. If ingested, call emergency services immediately.

How to clean the battery?

Clean the ventilation slots from time to time with a soft, clean, dry brush. The battery must remain clean and dry.

Can I throw the battery in the trash?

No, do not dispose of the battery with household waste. It must be recycled or dismantled through separate battery collection, in accordance with regulations.

What if the battery no longer holds a charge?

If the runtime decreases significantly after several charges, the battery is worn out and must be replaced. Contact an authorized KRESS service center.

Can I transport the battery by plane?

Lithium-ion batteries are subject to dangerous goods regulations. For transport, pack the battery to prevent movement and ensure the casing is not damaged.

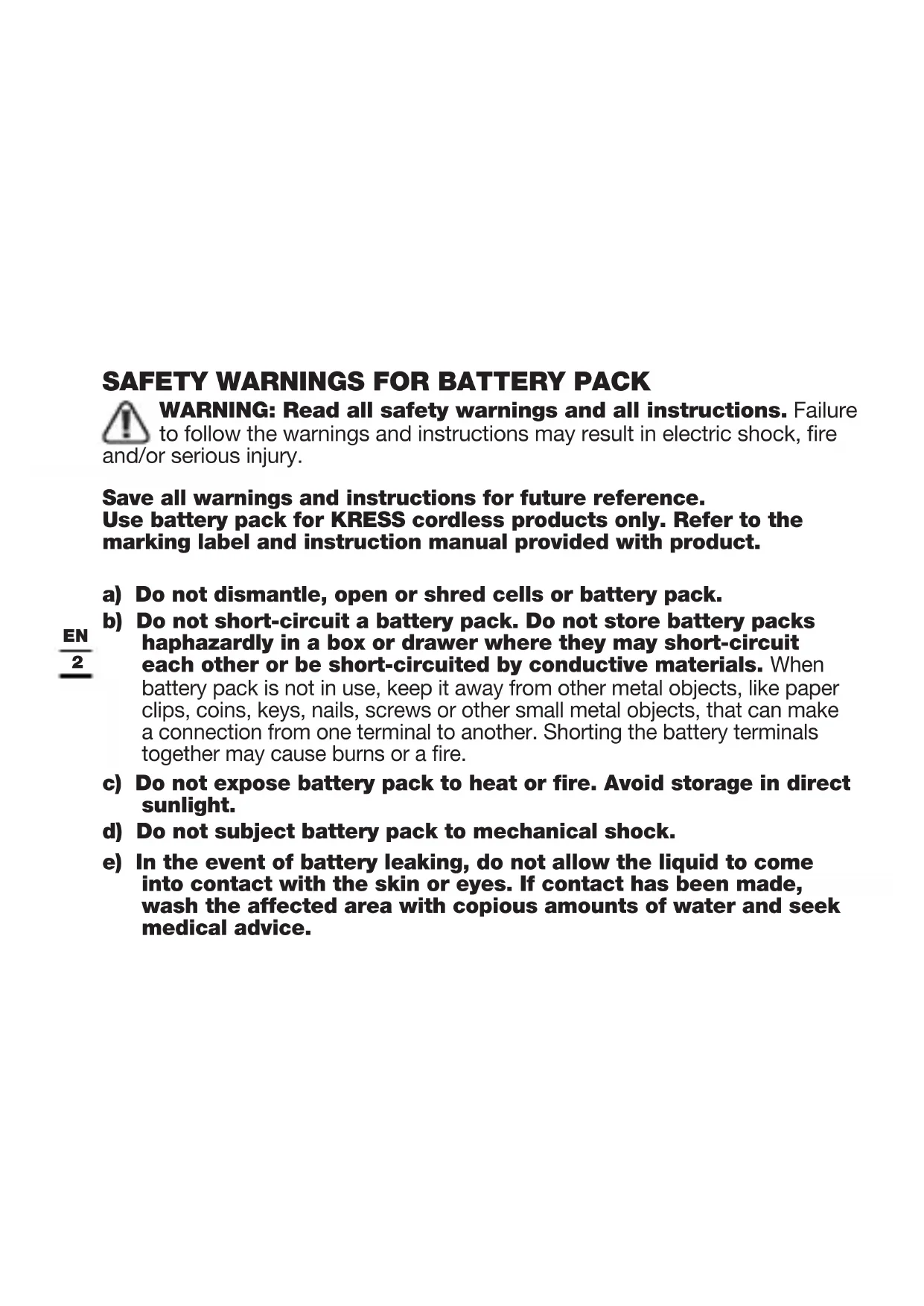

USER MANUAL KAB25 KRESS

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Use battery pack for KRESS cordless products only. Refer to the marking label and instruction manual provided with product.

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by KRESS. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.

r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (−) marks on the battery and ensure correct use.

SYMBOL

	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-lon battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery NOTE:

1. Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
2. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

How to charge the battery

Refer to the instruction manual provided with product or charger.

WARNING: Do not continue to press the On/Off Switch after the machine has been automatically switched off. The battery could be over-discharged.

Store the battery only within a temperature range between 0 °C and 45 °C. As

an example, do not leave the battery in the car in summer time.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

EN

6

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

When the battery is no longer operative, please refer to an authorized after-sales service agent for KRESS power tools.

MANUTENCAO E SERVICO

Copyright © 2022, Positec. All Rights Reserved. AR01523801
