USER MANUAL KAC22 KRESS

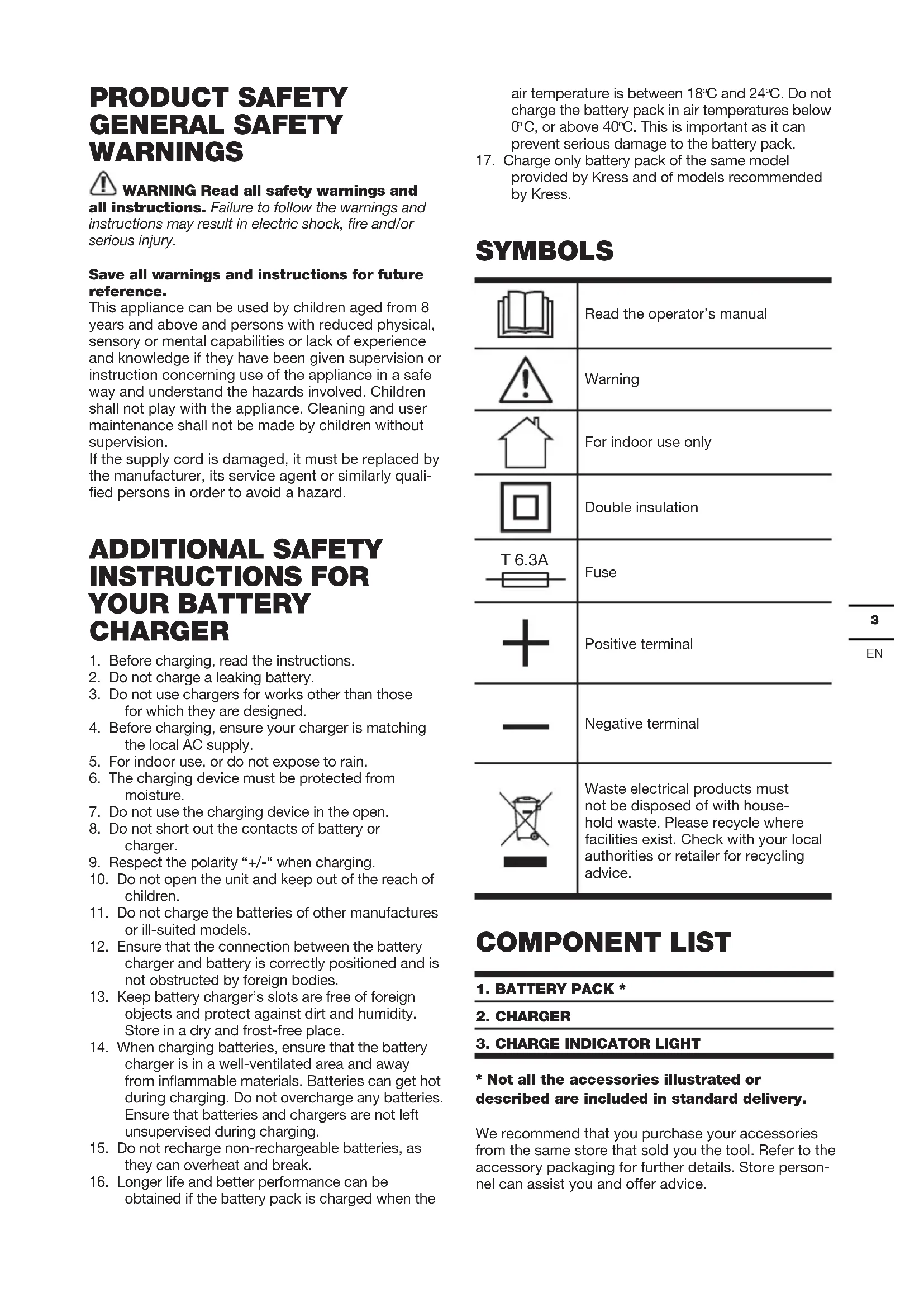

PRODUCT SAFETY GENERAL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali- ed persons in order to avoid a hazard. ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR BATTERY CHARGER

1. Before charging, read the instructions.

2. Do not charge a leaking battery.

3. Do not use chargers for works other than those

for which they are designed.

4. Before charging, ensure your charger is matching

the local AC supply.

5. For indoor use, or do not expose to rain.

6. The charging device must be protected from

7. Do not use the charging device in the open.

8. Do not short out the contacts of battery or

10. Do not open the unit and keep out of the reach of

11. Do not charge the batteries of other manufactures

or ill-suited models.

12. Ensure that the connection between the battery

charger and battery is correctly positioned and is not obstructed by foreign bodies.

13. Keep battery charger’s slots are free of foreign

objects and protect against dirt and humidity. Store in a dry and frost-free place.

14. When charging batteries, ensure that the battery

charger is in a well-ventilated area and away from inammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.

15. Do not recharge non-rechargeable batteries, as

they can overheat and break.

16. Longer life and better performance can be

obtained if the battery pack is charged when the air temperature is between 18

C. Do not charge the battery pack in air temperatures below

C. This is important as it can prevent serious damage to the battery pack.

17. Charge only battery pack of the same model

provided by Kress and of models recommended by Kress. SYMBOLS Read the operator’s manual Warning For indoor use only Double insulation T 6.3A Fuse Positive terminal Negative terminal Waste electrical products must not be disposed of with house- hold waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. COMPONENT LIST

• Not all the accessories illustrated or described are included in standard delivery. We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store person- nel can assist you and offer advice.4

TECHNICAL DATA Charger voltage 220-240V~50/60Hz Output voltage 14.4-20V Charging current 12A Power input 260W Charge battery Li-ion Charging time 6.0Ah approx. 35mins 8.0Ah approx. 60mins Protection class /II Machine weight 1.08kg For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged, please refer the nameplate of the battery pack supplied by Kress. CHARGING PROCEDURE NOTE: Before using the tool, read the instruction book carefully. CHARGING INSTRUCTIONS

1. CHARGING YOUR BATTERY PACK

WARNING: The charger and battery pack are

specically designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.

2. BEFORE USING YOUR CORDLESS TOOL

Your battery pack is UNCHARGED and you must charge once before use.

1) Plug the charger into an appropriate outlet.

2) Slide the battery pack into the charger, the LIGHT

will become green and ash to show charging has started.

3) After charging approx. 45 minutes, the light will

stay green without ashing, which means the battery is full, and charging is completed.

When battery charge runs out after continuous use or exposure to direct sunlight or heat, allow time for the battery to cool down before re-charging to achieve the full charge. CHARGING INDICATOR This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). If this occurs, insert a new battery pack to determine if the charger is OK. If the new battery charges correctly, then the original pack is defective and should be returned to a service center or recycling service center. If the new battery pack displays the same problem as the original Battery Pack, have the charger tested at an authorized service center. Light ON flash Status Red on Defective Battery Red ash

Battery Temperature Protection The temperature of bat- tery pack is less than 0°C or more than 45°C. Green on Fully Charged Green ash ---------- Charging

BATTERY TEMPERATURE PROTECTION

This charger has a battery temperature protection feature. When the charger detects a battery pack that is too hot or cold (the light will be red and ash), it automatically activates the protection circuit, and suspends charging until the battery pack has reached the correct temperature. The charging process will then automatically begin (the light will be green and ash). This feature ensures maximum battery life.

DEFECTIVE BATTERY PACKS

This charger will detect a defective battery pack. When a defective battery pack is inserted into the charger, the charger will try to repair it. This process will last about 30mins (the light will be green and ash). If the repair is successful, the charger will automatically begin to charge the battery pack to the highest capacity possible (the light will be green and ash). If the light becomes solid red, the battery pack is dead. NOTE: Repaired battery packs are still usable but should not be expected to perform as much work as new battery packs. IMPORTANT CHARGING NOTES:

1. For a new battery or a battery that has been in storage

for sometime, please recharge the battery before use. If you want to store the battery for a long time, please fully charge the battery pack to ensure maximum battery life.

2. Longer life and better performance can be obtained if

the battery pack is charged when the air temperature is between 18

. Do not charge the battery pack in air temperatures below 0

This is important as it can prevent serious damage to the battery pack.

3. Never freeze your charger or immerse charger in water

or any other liquid.

4. When the battery pack fails to produce sufcient5

power on jobs that were previously done easily, please recharge you battery, do not continue to use under this condition. You may charge a partially used pack whenever you desire with no adverse affect on the battery pack.

5. When charging it is normal that the charger and

battery pack may become warm to touch.

6. If the battery pack does not charge properly:

a. Check current at power outlet by plugging in another appliance. b. Plug and unplug to check whether the charger is ok c. Check whether the battery has been damaged d. Move the charger and battery pack to a location where the surrounding air temperature is approximately 18

e. If the charging problem persists, take the tool, battery pack and charger to an authorized service center. f. Under certain conditions, when the charger is plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the charger or before attempting to clean. PROBLEM SOLUTION I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY? a) Check if the charger and the battery pack are specically designed for working together. b) The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the indicator light should be green and ash when the battery is charging.

REASONS FOR DIFFERENT CHARGING TIMES

The charging time can be affected by many reasons which are not defects in your product. a) If the battery pack is only partly discharged it may be re-charged in less than rated charging time. b) If the battery pack and ambient temperature are very cold/ hot, it may take longer to re-charge. Please nd an appropriate environment with proper air temperature to start charging. c) If the battery pack is very hot, remove battery pack from the charger and allow battery pack to cool rst to ambient temperature and then recharging can be started. MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your tool requires no additional lubrication or maintenance. Never use water or chemical cleaners to clean your tool. Wipe clean with a dry cloth. Always store your tool in a dry place. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. PLUG REPLACEMENT

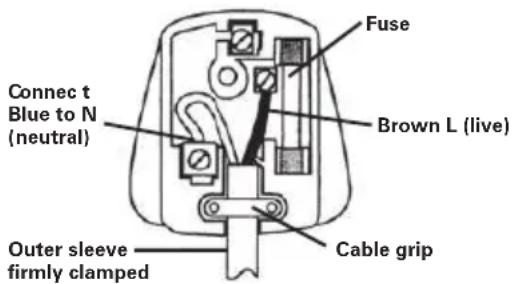

PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue = Neutral Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L. Warning! Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated current fuse which is used in the plug. Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

neutral) Outer sleeve firmly clamped Cable grip Brown L (live) Fuse6
