USER MANUAL MS-125 Mestic

AC 230 V 0.8 L 4 m 600 W KG 2 kg Relax... it's mestic®

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

CYCLONE STOFZUIGER MS-125

Waarschuwingen:

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a handheld vacuum cleaner with attached spring and handle (no text or symbols)

Line drawing of a manual electric drill with handle and blade (no text or symbols)

Bediening

Het aansluitsnoer

Technical line drawing of a mechanical assembly with gears and a shaft (no text or symbols)

Line drawings of two hand-cranked industrial vacuum cleaner designs, showing internal components and assembly (no text or symbols)

Line drawings of a hand holding a filter device and its internal structure, with no text or symbols present.

Before using the product, read all user instructions in this manual, even if you are familiar with a similar product.

This product is not suitable for users including: children, persons with psychological, motor or mental disorders or people with insufficient experience. Use is only allowed under supervision.

Young children should be supervised when using the appliance to prevent improper use.

Safety Warnings:

Please read these safety warnings carefully. It is recommended that you keep them for future reference.

1. Do not vacuum water, liquids, ash, hot objects, cigarettes, coal, or other objects not intended.
2. Do not vacuum highly flammable substances, or use the product near highly flammable substances (liquids or vapours).
3. Do not vacuum toxic material (such as bleach, ammonia, drain cleaner, ect.).
4. Do not vacuum toners (from printers or copiers), there is a risk of fire and explosion.
5. Do not vacuum cement, plaster or other finely dusty materials. This can clog the filter.
6. Do not use if any of the filters are missing from the unit.
7. Do not use or store near appliances that generate a lot of heat or in places with high temperatures.
8. When vacuuming, do not run the vacuum cleaner mouth over the power cord.
9. Do not use if the device is blocked anywhere. First switch off the device and remove the blockage before resuming work.
10. Do not use if filters are clogged. In this case, the filters must be cleaned before continuing.
11. Do not use when the device makes strange noises, is broken, smells strange, smoke comes out, shows other damage and does not work properly. In this case, consult the nearest authorized service point in your area and have the product checked there.
12. Do not misuse the power cord, which means that it should not be used to pull the device towards you. When pulling out the plug, it is also important to do this as close to the socket as possible and not to pull on the cord.
13. Do not use to pick up large or sharp objects such as, glass, screws, shards ect.
14. Do not leave the appliance unattended when it is connected to the mains socket.
15. Do not use if the device has been damaged, has been left outdoors, or has been exposed to water or other humid conditions.
16. Be careful with the power cord. Do not pull too hard or let sharp objects pass over it. Be careful with sharp corners.
17. Do not use if you have wet or dirty hands, it may affect the operation in a dangerous way.
18. Do not put objects other than absorbable dirt into the openings of the vacuum cleaner as this can cause irreparable damage.
19. Do not use if an opening is clogged.
20. Do not use if the appliance power cord has visible damage. In this case, have the device checked by an authorized dealer or contact the importer.
21. Do not attempt to make any adjustments to the device.
22. Important: empty the dust container in time to prevent blockage.
23. Important: keep hair, clothes, body parts away from the openings of the vacuum cleaner. This can lead to dangerous situations.
24. Important: always switch off the device with the on/off switch before plugging in or out of the socket.
25. Important: always remove the plug from the socket when the appliance is not in use, the filters must be cleaned or other maintenance is necessary.
26. Important: use indoors only.
27. Important: use the device only as described in the manual.
28. Important: keep the power cord away from hot surfaces, such as radiators, etc.
29. Important: keep all suction openings free of blockage.
30. Important: pay extra attention when using the vacuum cleaner on stairs.
31. Important: make sure the work area is well lit.
32. Important: store the device in a cool, dry place after use.
33. Important: make sure that packaging materials, accessories and other loose parts are not in the vicinity of children or babies.
34. Important: use the appliance only on the mains voltage stated on the label on the appliance.
35. Important: if the device is used by third parties, please provide them with these instructions.
36. Important: this device is only suitable for the user's purposes as described in this manual.

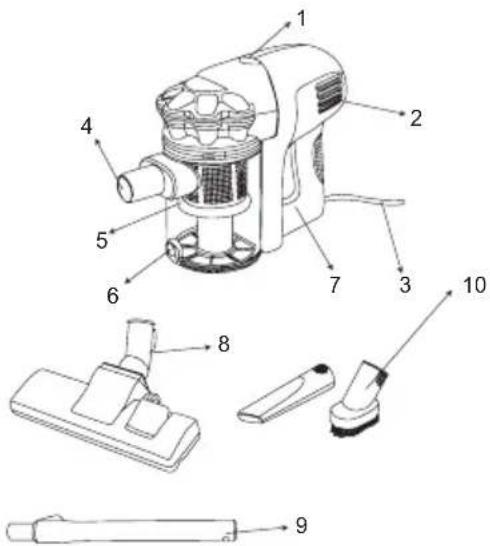

Characteristics:

1. Button to release bin
2. Air outlet grille
3. Power cord
4. Air intake opening
5. Filter
6. Button to empty bin
7. On/Off switch
8. Floor brush
9. Telescopic vacuum cleaner tube
10. Accessories

Technical diagram of a vacuum cleaner with numbered parts for identification

Important: The above specifications and components are always subject to change.

Usage:

Read and keep these instructions carefully.

To move the vacuum cleaner from one room to the next, carry it by the handle. Never carry the appliance by the connecting cable.

Montage methode:

Before you start installing the device, check that all necessary parts from the list above are present. Make sure that the connecting cable is not connected to the mains socket.

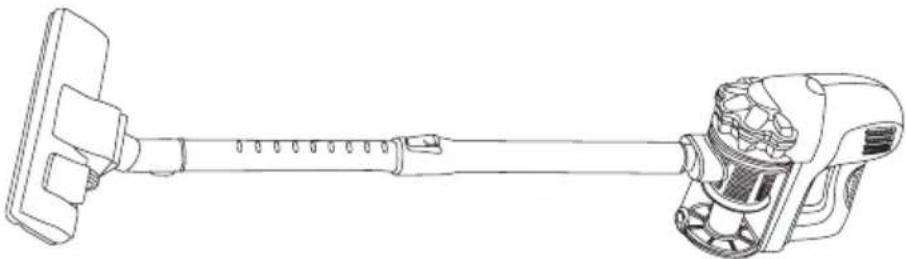

Installing the vacuum cleaner tube

1. Mount the telescopic tube on the vacuum cleaner opening.
2. Now connect the floor brush to the other end of the telescopic tube.

Line drawing of a handheld vacuum cleaner with attached mechanical components (no text or symbols)

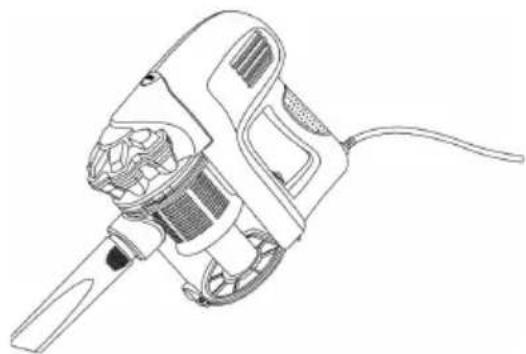

Connecting the accessories

1. To fit one of the attachments, it is necessary to remove the telescopic tube first.
2. After this, the attachment can be mounted.

Line drawing of a manual electric drill with handle and blade (no text or symbols)

Usage

The power cord

1. Unroll the cord and insert the plug into the socket.
2. Press the on/off switch to start the engine.
3. Remove the plug from the socket after use.

Emptying the dust container

Empty the hopper as often as possible. An overfilled container can cause blockage.

WARNING: The plug must be disconnected from the mains before the container can be emptied.

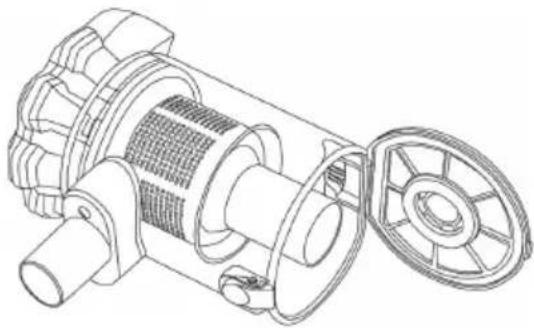

Emptying the container - method 1

Stand with the vacuum cleaner over a waste bin and press the button to open the container. The cover at the bottom of the container will now open.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

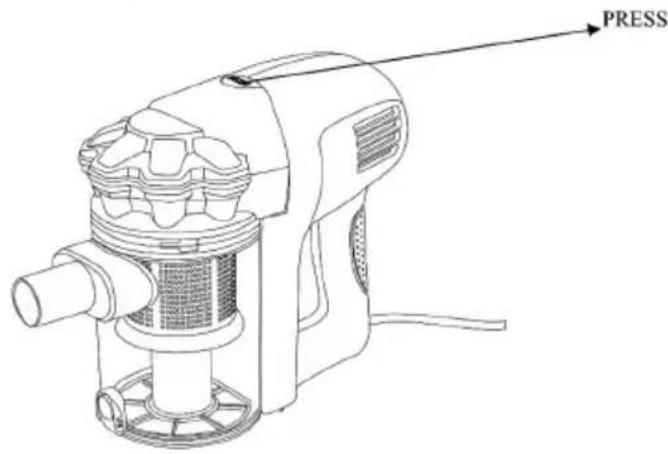

Emptying the container - method 2

Remove the container completely from the vacuum cleaner by pressing the container release button. You can now remove the entire container from the device. Now empty the container by standing over a waste bin and open the flap at the bottom of the container by pressing the empty button.

PRESS

Cleaning the filters

WARNING: If the filters are clogged or the suction power is greatly reduced, clean the filters to prevent further damage.

Never use the device without filters, this will cause irreparable damage.

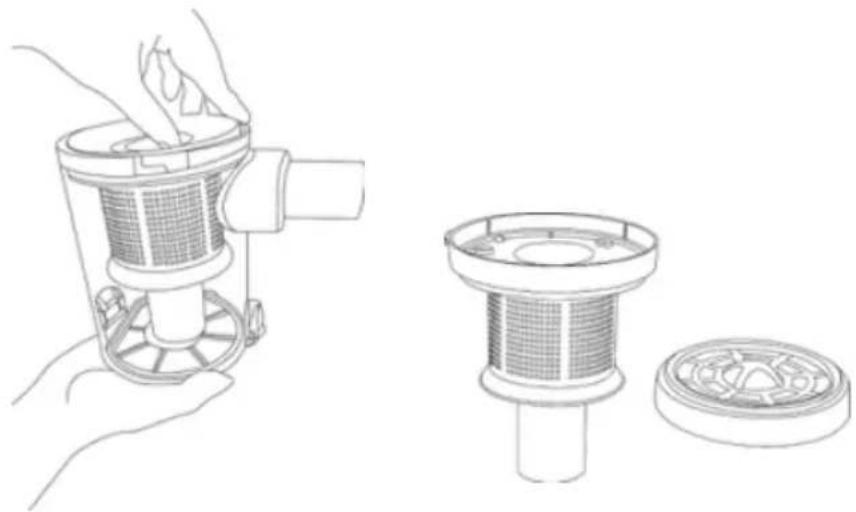

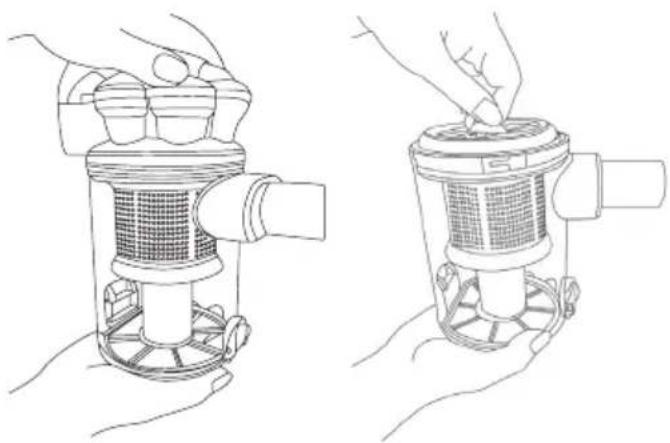

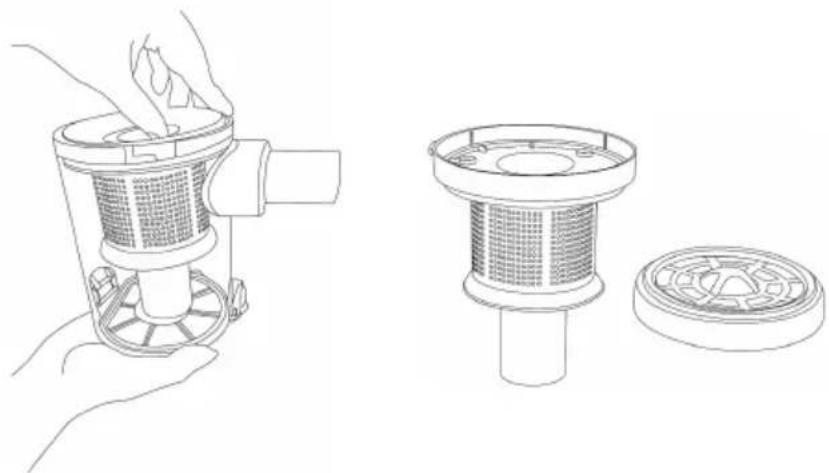

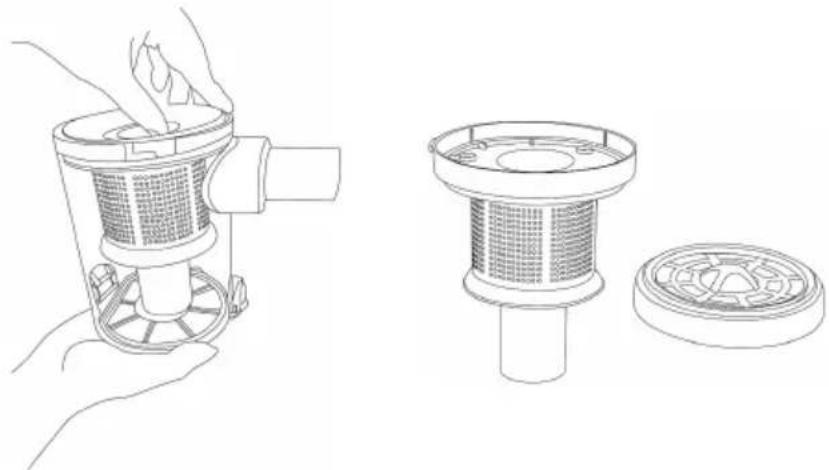

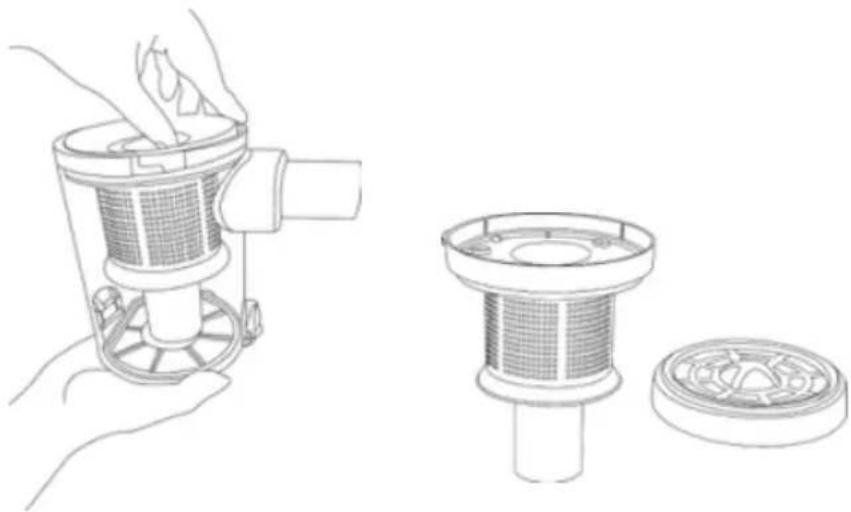

1. Remove the container from the device.
2. Rotate the top of the container counterclockwise to remove it.
3. The filter can now be removed.

Line drawings of two hand-drawn views of a manual blender with handle and spout (no text or symbols)

Line drawings of a hand holding a filter device and its internal structure, with no text or symbols present.

To safely clean the filters, the filter can be shaken above a waste bin. In case of stubborn dirt, the filter can be cleaned under the tap. Before replacing the filters, they must be completely dry. Do not under any circumstances use a hard brush, this can irreparably damage the filters.

Replacing the filters

1. Place the filter housing back into the container by aligning the triangle mark (on the top) and the line marking on the side of the container.
2. Now put the filters back in place and close with the cover. Align it in the same way as the filter housing until it clicks into place.
3. Now reassemble the motor housing and the collector by clicking them together.
4. Now put the exhaust filter back in place and click the grill cover back on.

Important while cleaning

1. The filters should be cleaned regularly to ensure the best performance of the device and to avoid overheating.
2. Cleaning is best done after you have emptied the container.
3. Never operate the appliance when the filters are still wet or when no filters are installed.
4. Wash the filters in medium hot water with a mild, non-aggressive detergent. Then rinse them with cold water and let them dry completely.
5. Clean the filter housing with medium hot water and let it dry completely.
6. Using wet filters can create dangerous situations and cause irreparable damage to you and the device.
7. Do not dry the filters with a hair dryer.
8. Do not clean any parts of the vacuum cleaner or filters with fuel or other highly flammable products.
9. Only clean the vacuum cleaner itself on the outside, using only a damp cloth and a mild detergent.
10. After cleaning, dry off the moisture from the vacuum cleaner, parts and accessories with a dry cloth.
11. Do not put accessories or parts in a dishwasher.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device MS-120, applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the adress listed on the backside of this manual

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a handheld vacuum cleaner with attached mechanical components (no text or symbols)

Line drawing of a manual electric drill with handle and blade (no text or symbols)

Betrieb

Das Netzkabel

Technical line drawing of a mechanical assembly with gears and a central hub (no text or symbols)

Entleeren des Tablett - Methode 2

Line drawings of two hand-drawn views of a manual vacuum cleaner device, showing internal components and housing (no text or symbols)

Line drawing of a hand holding a cleaning brush and next to a close-up of its internal structure (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a mechanical device with a long shaft and attached housing (no text or symbols)

Raccordement des accessoires fournis

Line drawing of a manual electric drill with handle and blade (no text or symbols)

Fonctionnement

Le cordon

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Line drawings of two hand-drawn views of a mechanical device, one with handle and internal structure, the other with handle and top component (no text or symbols)

Line drawings of a hand holding a filter device and its side view showing internal components (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a handheld electric shaver with attached circuit board (no text or symbols)

Line drawing of a handheld electric drill with a handle and wiring (no text or symbols)

Utilización

Technical line drawing of a mechanical assembly with gears and a pump (no text or symbols)

Vaciado del recipiente - método 2

Line drawings of two hand-drawn views of a manual blender with handle and lid (no text or symbols)

Line drawings of a hand holding a cleaning brush and a close-up of its internal components (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a handheld vacuum cleaner with attached sensor and connector (no text or symbols)

Line drawing of a handheld electric drill with a handle and wiring (no text or symbols)

Utilizzo

Technical line drawing of a mechanical device with internal components and a pulley (no text or symbols)

Line drawings of two hand-drawn views of a manual blender with handle and spout (no text or symbols)

Line drawings of a hand holding a cleaning brush and a close-up of its internal components (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a mechanical device with a shaft and housing (no text or symbols)

Line drawing of a handheld electric drill with a handle and wiring (no text or symbols)

Brug

Strømledningen.

Technical line drawing of a mechanical assembly with gears and a pump (no text or symbols)

Line drawings of two hands operating a portable device, showing internal components and casing (no text or symbols)

Line drawings of a hand holding a cleaning brush and a close-up of its internal components (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Technical line drawing of a mechanical device with attached spring and housing (no text or symbols)

Line drawing of a handheld electric drill with a handle and screw head (no text or symbols)

Användande

Nätsladden

Technical line drawing of a mechanical assembly with gears and a pump (no text or symbols)

Line drawings of two hands operating a shared cleaning device (no text or symbols present)

Line drawings of a hand holding a cleaning brush and a close-up of its internal structure (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a mechanical device with a shaft and housing (no text or symbols)

Line drawing of a handheld electric drill bit with handle and screw (no text or symbols)

Bruk

Strømledningen

Technical line drawing of a mechanical assembly with gears and a pump (no text or symbols)

Tømme beholderen – metode 2

Line drawings of two hands operating a shared cleaning brush (no text or symbols present)

Line drawings of a hand holding a filter device and its three views (top, front, side), showing internal components without any text or symbols.
