Product Type	Marine autoradio with Bluetooth receiver, USB, SiriusXM, and FM/AM/Weather Band tuner
Brand and Model	JVC KD-MR305BTS
Panel Dimensions (W × H)	15 × 106 mm
Chassis Dimensions (W × H × D)	∅77 × ∅77 × 74 mm
Weight	0.9 kg
Power Supply	Car battery 12 V DC (negative ground)
Maximum Power	34 W × 4 (@ 4 Ω, peak) / 50 W × 4 (@ 2 Ω, peak)
RMS Power (1% THD)	19 W × 4 (@ 4 Ω) / 28 W × 4 (@ 2 Ω)
Speaker Impedance	2 – 8 Ω
Display	2.7-inch color TFT display, LED backlight
Bluetooth Connectivity	Bluetooth 5.0, A2DP and AVRCP 1.5 profiles, SBC and AAC codecs
USB Port	USB 2.0, 5 V / 1.5 A, mass storage compatible (FAT16/32/exFAT), up to 32 GB, 999 files and 255 folders
Supported Audio Formats	MP3, WMA, FLAC, AAC (DRM-free)
Auxiliary Input (AUX)	3.5 mm mini-jack (via RCA adapter)
Satellite Receiver	SiriusXM Ready (requires optional tuner)
FM Tuner	87.5 – 108 MHz (50 kHz steps) or 87.9 – 107.9 MHz (200 kHz steps) depending on region
AM Tuner	531 – 1701 kHz (9 or 10 kHz steps depending on region)
Weather Band (WB)	162.400 – 162.550 MHz (25 kHz steps)
Graphic Equalizer	13 bands (62.5 Hz – 16 kHz), gain –9 to +9 dB, presets and user mode
Additional Functions	SiriusXM parental control, voltage display, lighting color adjustment, dimmer mode
Preamp Outputs	Front, rear, subwoofer (2 V / 10 kΩ)
Protection Rating	IP66 (face) / IP X4 (body)
Maintenance and Cleaning	Wipe with a soft, dry cloth; do not use solvents or sharp objects
Safety	Use only fuses of the same rating; professional installation recommended; do not block ventilation
Spare Parts and Repairability	Optional RM-RK62M remote control; SiriusXM tuner; cables and accessories available from JVC dealer

Frequently Asked Questions - KD-MR305BTS JVC

How to pair a Bluetooth smartphone with the JVC KD-MR305BTS car stereo?

Activate Bluetooth on your smartphone. Search for available devices and select KD-MR305BTS. If a PIN is requested, enter 0000. The SSP (Secure Simple Pairing) function allows simple pairing.

How to connect a USB device?

Connect the USB device via a USB cable (sold separately) to the USB port of the car stereo. The device supports USB drives up to 32 GB and FAT16/32/exFAT formats. Make sure the cable does not interfere with driving.

How to listen to SiriusXM satellite radio?

You need to connect a SiriusXM Connect tuner (optional) and set the AUX input to SiriusXM in the general settings. Then, subscribe and activate the service by calling 1-866-635-2349 (USA) or via siriusxm.ca (Canada).

What to do if the car stereo emits no sound?

Check that the volume is not at minimum or in mute mode (MUTE). Check the speaker connections and power cables. If the problem persists, reset the device via the general settings (Factory Reset).

How to adjust the sound equalizer?

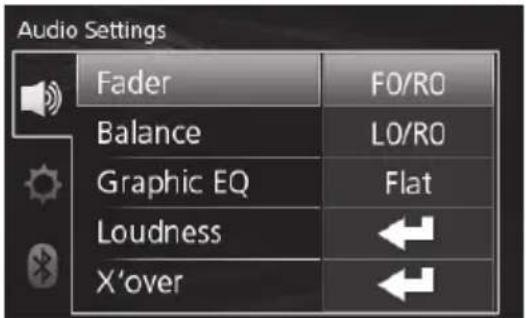

Press and hold <♂> to access settings. Select Audio Settings, then Graphic Equalizer. You can choose a preset (Flat, Rock, Pop, etc.) or create a user setting on 13 bands from 62.5 Hz to 16 kHz.

Connected iPhone does not play music correctly, what to do?

Disconnect and reconnect the iPhone. Make sure the Lightning-USB cable is in good condition. Update the iPhone software and reset if necessary. In iPhone settings, disable the equalizer and VoiceOver.

How to lock SiriusXM channels with parental control?

In the SiriusXM function menu, select Parental Control and enter the default parental code 1111. Choose Lock Channels, then select the channels to lock. The code can be changed later.

Radio stations are not saving, how to do?

Tune the desired station, then press <☀> to open the function menu. Select Add Presets and turn the volume knob to choose a preset location. Confirm by pressing the knob.

The car stereo displays 'Check Antenna' on SiriusXM, what does this message mean?

This message indicates a problem with the SiriusXM antenna. Check that the antenna is properly connected to the tuner, not bent or broken, and mounted outside the vehicle with a clear view of the sky.

How to clean the car stereo without damaging it?

Use a soft, dry cloth (such as a silicone cloth) to wipe the face. For stubborn dirt, lightly dampen the cloth with a neutral cleaner, then wipe with a dry cloth. Never use solvents, alcohol, or sharp objects.

USER MANUAL KD-MR305BTS JVC

How to read this manual....2

Precautions 2

Getting Started....3

Set the general settings....3

Basics....4

Common operations 4

Select a source....4

USB 5

Preparation 5

Playback operations....5

Function settings....5

iPhone 6

Preparation....6

Playback operations....6

Function settings....6

Tuner....7

Tuner basic operations 7

Function settings....7

SiriusXM ^® 8

Activating subscription....8

NOTE 8

SiriusXM® basic operations 8

Function settings....9

Parental Control....9

Reset to the default settings....10

External Components....10

Using external audio players....10

Camera....10

Bluetooth ^® smartphone....11

Register your smartphone to the unit 11

Playing Bluetooth Audio Device 11

Function settings....11

Setup....12

Settings....12

Remote control 13

Functions of the remote control buttons 13

Installation....14

Before installation 14

Installing the unit 15

Ab out this Unit....17

Maintenance 17

More information....17

Troubleshooting 17

Specifications 19

Copyrights 20

Before use

How to read this manual

- The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

- In operation procedures, bracket shape indicates the item you should control.

[ ]: indicates the selected items or menu.

<>: indicates the name of panel buttons.

This symbol on the product means there are important operating and maintenance instructions in this manual.

Be sure to carefully read instructions in this manual.

Precautions

WARNING

■ Trevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.
• Do not watch or fix your eyes on the unit's display when you are driving for any extended period.
• If you experience problems during installation, consult your JVC dealer.

☐ Precautions on using this unit

• When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area.
• You can select a language to display menus, audio file tags, etc. See Set the general settings(P.3)
• The Tuner Data System or Tuner Broadcast Data System feature won't work where the service is not supported by any broadcasting station.

□ofacting the monitor

- To protect the monitor from damage, do not operate the monitor using a ballpoint pen or similar tool with the sharp tip.

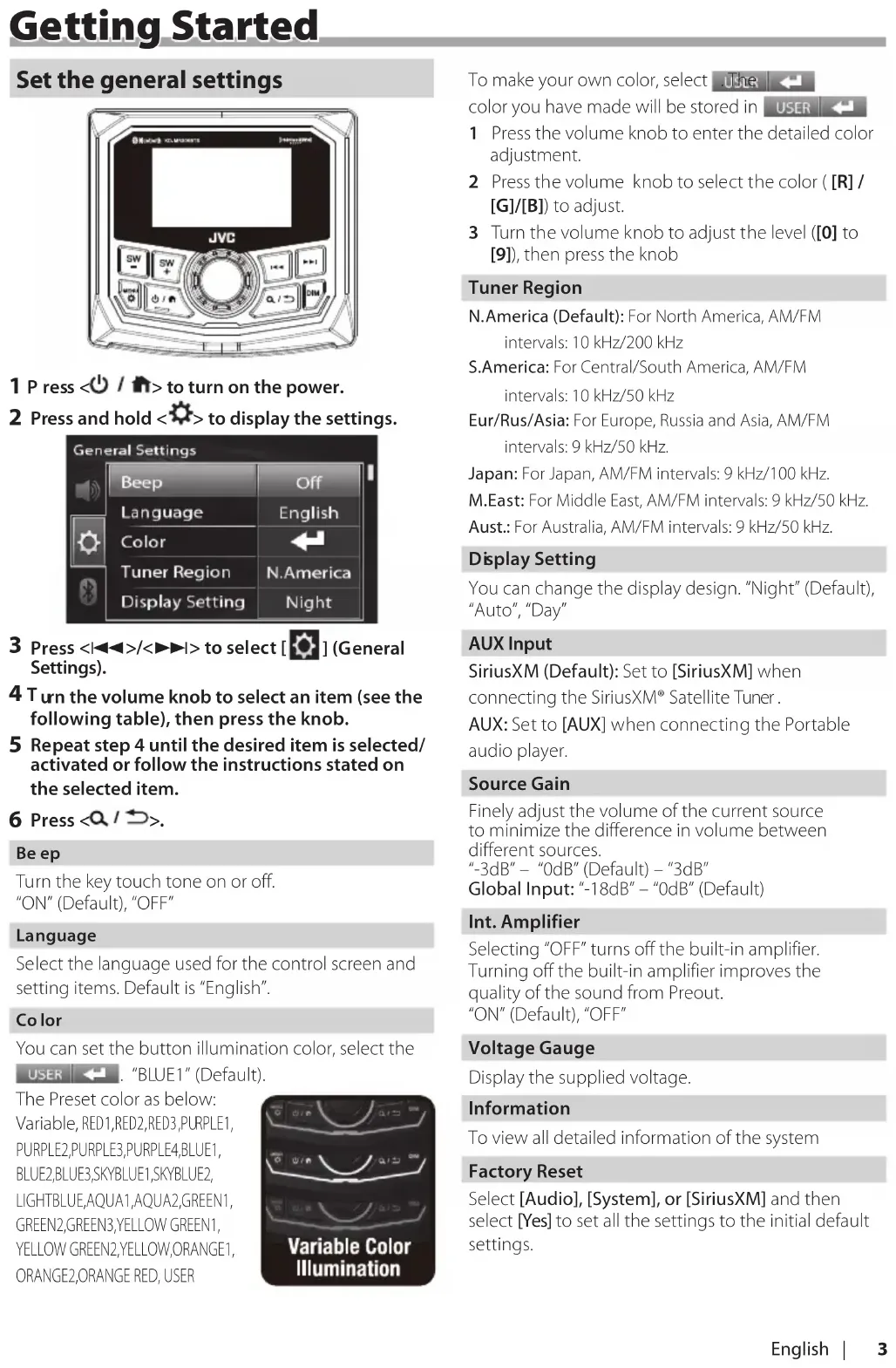

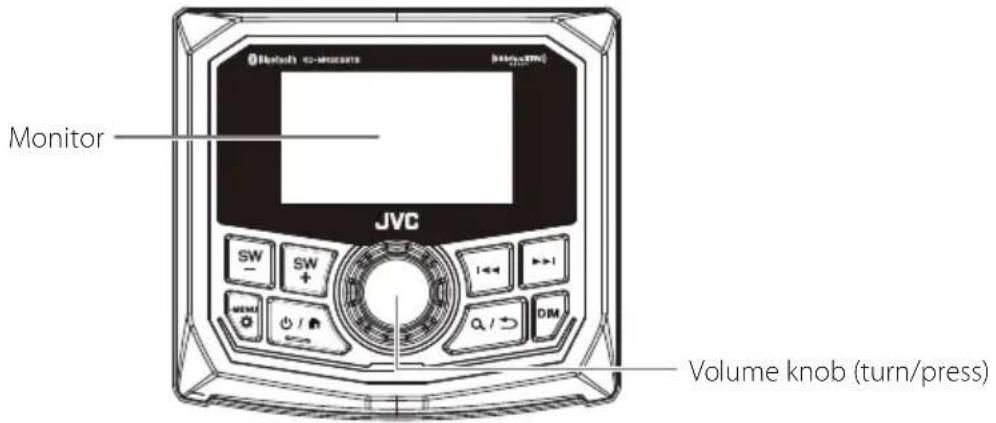

Set the general settings

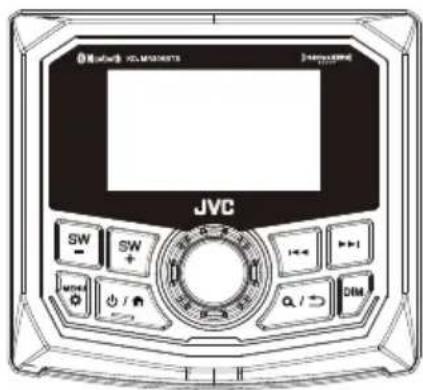

1 Press </> to turn on the power.

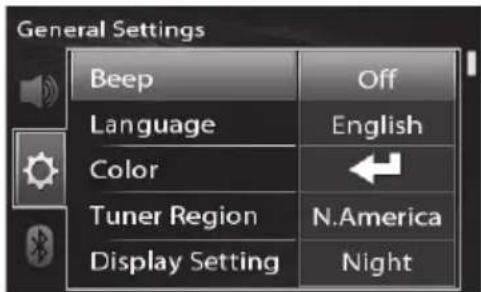

2 Press and hold <⚙> to display the settings.

3 Press <|◀◀>/<▶▶> to select [icon] (General Settings).
4 Turn the volume knob to select an item (see the following table), then press the knob.
5 Repeat step 4 until the desired item is selected/activated or follow the instructions stated on the selected item.
6 Press .

Be ep

Turn the key touch tone on or off. "ON" (Default), "OFF"

Language

Select the language used for the control screen and setting items. Default is "English".

Color

You can set the button illumination color, select the

USER ← "BLUE1" (Default).

The Preset color as below: Variable, RED1, RED2, RED3, PURPLE1, PURPLE2, PURPLE3, PURPLE4, BLUE1, BLUE2, BLUE3, SKYBLUE1, SKYBLUE2, LIGHTBLUE, AQUA1, AQUA2, GREEN1, GREEN2, GREEN3, YELLOW GREEN1, YELLOW GREEN2, YELLOW, ORANGE1, ORANGE2, ORANGE RED, USER

To make your own color, select the color you have made will be stored in USER

1 Press the volume knob to enter the detailed color adjustment.
2 Press the volume knob to select the color ([R] / [G]/[B]) to adjust.
3 Turn the volume knob to adjust the level ([0] to [9]), then press the knob

Tuner Region

N.America (Default): For North America, AM/FM intervals: 10 kHz/200 kHz

S.America: For Central/South America, AM/FM intervals: 10 kHz/50 kHz

Eur/Rus/Asia: For Europe, Russia and Asia, AM/FM intervals: 9 kHz/50 kHz.

Japan: For Japan, AM/FM intervals: 9 kHz/100 kHz.

M.East: For Middle East, AM/FM intervals: 9 kHz/50 kHz.

Aust.: For Australia, AM/FM intervals: 9 kHz/50 kHz.

Display Setting

You can change the display design. "Night" (Default), "Auto", "Day"

AUX Input

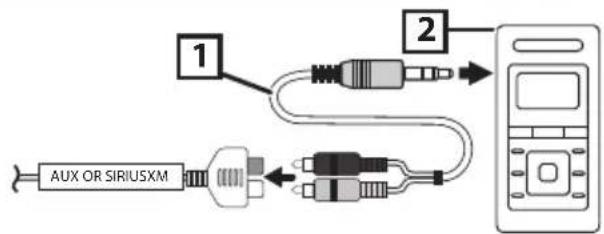

SiriusXM (Default): Set to [SiriusXM] when connecting the SiriusXM® Satellite Tuner.

AUX: Set to [AUX] when connecting the Portable audio player.

Source Gain

Finely adjust the volume of the current source to minimize the difference in volume between different sources.

"-3dB" - "0dB" (Default) - "3dB"

Global Input: "-18dB" - "0dB" (Default)

Int. Amplifier

Selecting "OFF" turns off the built-in amplifier. Turning off the built-in amplifier improves the quality of the sound from Preout.

"ON" (Default), "OFF"

Voltage Gauge

Display the supplied voltage.

Information

To view all detailed information of the system

Factory Reset

Select [Audio], [System], or [SiriusXM] and then select [Yes] to set all the settings to the initial default settings.

Common operations

rring on the power

1 Press <@ / #>.

dring off the power

1 Press and hold < ⏻ / ⓗ>.

■ justing the volume

1 Turn the volume knob.

the sound or Play/pause

1 Press the volume knob.

• Ter/AUX

• pears when the mute function is active.

- To restore the sound, press again, or adjust the volume.

- USBhone/SiriusXM

- Plays or pauses.

■ leSet dimmer mode

1 Press the button.

i Dimer, off

Select a source

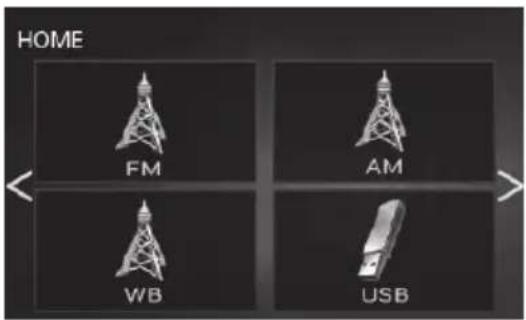

1 Press </> to display the HOME screen.

HOME screen appears.

2 Turn the volume knob to select the source, then press the knob.

Switches to the FM tuner broadcast. (P.7)

Switches to the AM tuner broadcast. (P.7)

Switches to the WB (Weather Band) tuner broadcast. (P.7)

[USB]

Plays files on a USB device. (P.5)

[iPhone]

Plays an iPhone. (P.6)

- When iPhone is connected.

Plays a Bluetooth audio player. (P.11)

[SiriusXM]

Switches to the SiriusXM® satellite tuner broadcast. (P.8)

[AUX]

Switches to an external component connected to the AUX input terminal. (P.10)

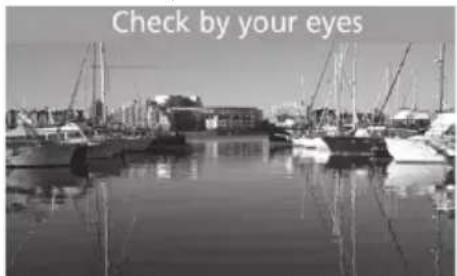

Displays the view camera screen. (P.10)

Preparation

Connecting a USB device

1 Connect the USB device with the USB cable (sold separately).

- USB maximum power supply current: DC 5 V = 1.5A

2 Press </> to display the HOME screen.

3 Tu rn the volume knob to select [USB], then press the knob.

■ disconnect the USB device:

1 Press </> to display the HOME screen.
2 Tu rn the volume knob to select other than [USB], then press the knob.
3 Detach the USB device.

NOTE

- For playable file types and other information, see (P.17).

Playback operations

List screenSource screen

To Do	this
Play/pause	Press the volume knob.
Select a file	Press/ I/ repeatedly.
Fast-backward/ Fast-forward	Press and hold I/ .
Previous/next folder	Press and hold SW-/ SW+ .

Soeiscreen

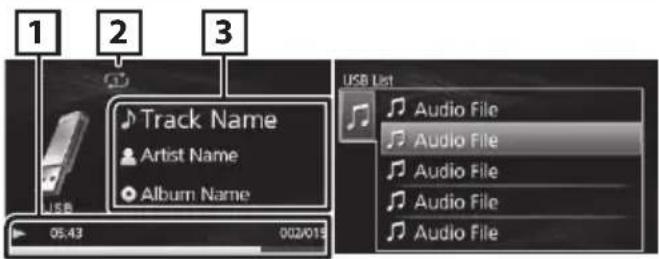

1 Playback status/Playing time Play time bar: For confirmation of current playing position
2 : Repeat playback mode indicator × : Random playback mode indicator
3 Displays the information of the current file.

■leating a track in a list (Searches file)

1 Press to display the List screen.
2 Turn the volume knob to select the desired folder, then press the knob.

- When you select a folder its contents are displayed.

• To return to the previous layer, press

3 Turn the volume knob to select the desired item, then press the knob.

Function settings

1 Press <⚙> to display the function menu.
2 Turn the volume knob to select the item to set (see the table below), then press the knob to make a selection.

3 Press .

Browsing See Selecting a track in a list (P.5).

Repeat

All: Repeats all files. ( [IMAGE] )One: R epeats the current file. ( [IMAGE ]Folder: Repeats all files in the current folder. ( [IMAGE] )

Random	Off: Normal playback.
	Folder: Randomly plays all files in the current folder. (✗)

Preparation

Connecting iPhone

1 Connect the iPhone using the Lightning-USB cable (sold separately).

Simple line drawing of a cable and plug connected to a device via cable routing (no text or symbols)

• USB maximum power supply current :

DC 5 V = 1.5A

2 Press </> to display the HOME screen.

3 Turn the volume knob to select [iPhone], then press the knob.

■ disconnect the iPhone

1 Press </> to display the HOME screen.

2 Turn the volume knob to select other than [iPhone], then press the knob.

3 Detach the iPhone.

Gentable iPhone

The following models can be connected to this unit. Made for

iPhone 14 Pro MaxiPhone 14 ProiPhone 14 PlusiPhone 14iPhone 13 Pro MaxiPhone 13 ProiPhone 13iPhone 13 miniiPhone 12 Pro Max

iPhone 12 ProiPhone 12iPhone 12 miniiPhone SE (2nd generation)iPhone 11 Pro MaxiPhone 11 ProiPhone 11iPhone XS MaxiPhone XS

iPhone XRiPhone XiPhone 8 PlusiPhone 8iPhone 7 PlusiPhone 7iPhone SEiPhone 6s PlusiPhone 6siPhone 6 PlusiPhone 6

NOTE

- If you start playback after connecting the iPhone, the music that has been played by the iPhone is played first.

Playback operations

List screenSource screen

To Do	this
Play/pause	Press the volume knob.
Select a file	Press I / I repeatedly.
Fast-backward/ Fast-forward	Press and hold I / I .

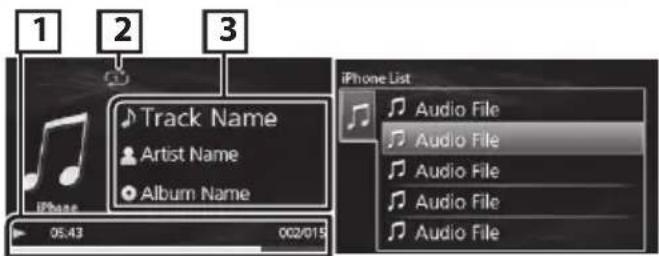

Soescreen

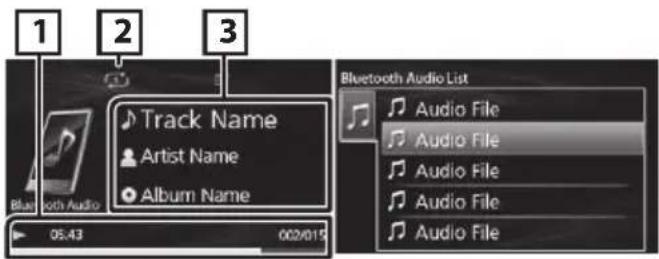

1 Playback status/Playing time/File number Play time bar : For confirmation of current playing position
2 : Repeat playback mode indicator × : Random playback mode indicator
3 Displays the information of the current file.

■ leading a content in a list

1 Press to display the List screen.
2 Turn the volume knob to select category, then press the knob.

• To return to the previous layer, press .

3 Turn the volume knob to select the desired item, then press the knob.

Function settings

1 Press <☀> to display the function menu.
2 Turn the volume knob to select the item to set (see the table below), then press the knob to make a selection.

3 Press .

Browsing	See Selecting a content in a list (P.6).
Repeat	All: Repeats all files. (☐)One: Repeats the current file. (☐)Off: Repeat off.
Random	Off: Normal playback.All: Functions the same as “Shuffle Songs”. (☒)

Tuner basic operations

1 Press </> to display the HOME screen.
2 Turn the volume knob to select [FM], [AM], or [WB], then press the knob.
3 Press <|◀◀>/<▶▶|> to search for a station automatically.

"Auto Seek" appears.

(or)

Press and hold <|◀◀|>/<▶▶|> repeatedly to search for a station manually.

"Manual Seek" appears.

List screenSource screen

ONE

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
• To store stations, perform [Add Presets] or [Auto Store].
• To select a stored station: Press and hold / .

Soeiscreen

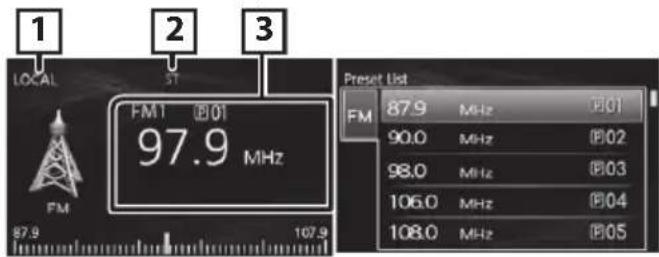

1 LOCAL indicator
2 ST (Stereo) indicator
3 Displays the information of the current station: PS name, Frequency, PTY Genre, Indicator Items

□ eSe a stored station of the current band

You can preset 6 stations for the current band (FM1/FM2/FM3/AM1/AM2/WB).

1 Press to display the List screen.
2 Turn the volume knob to select a preset number, then press the knob.

NOTE

• To exit, press

Function settings

1 Press <⚙> to display the function menu.
2 Turn the volume knob to select the item to set (see the table below), then press the knob to make a selection.

3 Press .

Add Presets	Stores a station manually to the current band.While listening to a station you want to store, turn the volume knob to select a preset number, then press the knob.
Remove Presets	Remove stored a station to the current band.Turn the volume knob to select a preset number, then press the knob.
FM *1	Select the preset band (FM1/FM2/FM3).
AM *2	Select the preset band (AM1/AM2).
Auto Store *1*2	Automatically searches and stores the 6 stations with the strongest signals for the selected band."Auto Store" appears.
Local *1*2	Tunes in only to the stations with sufficient signal strength. (LOCAL indicator lights up.) "ON", "OFF" (Default)
RBDS *1	ON (Default): Activates FM Tuner Broadcast Data System features.OFF: Deactivates the function.

*1 FM only
*2 AM only

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite tuner. A SiriusXM Connect Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Activating subscription

• Check your Tuner ID.
  The SiriusXM Satellite Tuner ID is required for activation and can be found by tuning in Channel 0 as well as on the label found on the SiriusXM Connect Tuner and its package. The Radio ID does not include the letters I, O, S or F.
• Activate the SiriusXM Connect Connect Tuner using either one of the two methods below:
• Frousers in U.S.A.
  Online: Visit www.siriusxm.com/activatenow Phone: Call SiriusXM Listener Care at 1-866-635- 2349
• Frousers in Canada:
  Online: Visit www.siriusxm.ca/activate
  Phone: Call SiriusXM Customer Care at 1-888-539-7474

NOTE

• To use SiriusXM® Satellite Tuner, the optional accessory is necessary. "Supplied accessories for installation" (P.14)
• To select the SiriusXM source, it is necessary to set "AUX Input" to "SiriusXM" in [General Settings]. (P.3).

SiriusXM® basic operations

1 Press </> to display the HOME screen.
2 Turn the volume knob to select [SiriusXM], then press the knob.
3 Press <⚙> to d display the function menu.
4 Turn the volume knob to select [CATEGORY], then press the knob.
5 Turn the volume knob to select a category, then press the knob.
6 Turn the volume knob to select a channel, then press the knob.
7 Pres s <|◀◀>/<▶▶|> to search for a channel info.

- Pressing and holding <I>/<▶> changes the channel rapidly.

Source screen

NOTE

• To select a stored station: Press .

Soeiscreen

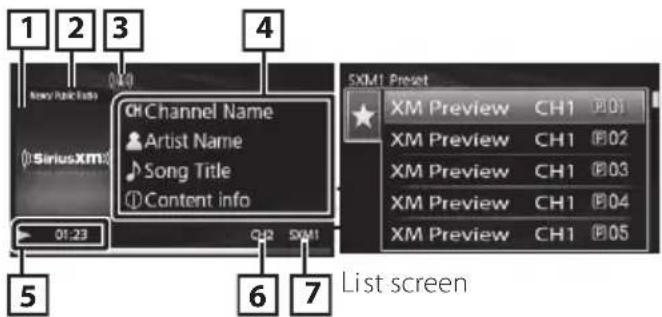

1	Album Art
2	Category Name
3	Signal Strength indication
4	Displays the information of the current channel: Channel name, Artist name, Song title, Content Info
5	Replay Playback
6	Channel Number
7	SiriusXM Band

■ left a stored channel of the current band

You can preset 6 channels for the current band (SXM1/SXM2/SXM3).

1 Press to display the List screen.

2 Turn the volume knob to select a preset number, then press the knob.

NOTE

• To exit, press .

reDi Access Tuning

You can tune in a channel directly.

1 Press <☀> to display the function menu.
2 Turn the volume knob to select [Direct Tuning], then press the knob.
3 Turn the volume knob to select the entry position, then press the knob.
4 Turn the volume knob to select a number, then press the knob.
5 Repeat step 3 to 4 until the channel number is completed.

1 Press the volume knob.

To Do this
Play/pause Press the volume knob.

Select a file	Press I / repeatedly.
Fast-backward/ Fast-forward	Press and hold I / .

To return to live music/content

1 Press <⚙> to display the function menu.
2 Turn the volume knob to select [Jump to Live], then press the knob.

Function settings

1 Press <⚙> to display the function menu.
2 Turn the volume knob to select the item to set (see the table below), then press the knob to make a selection.

3 Press .

SXM S	elect the preset band (SXM1/SXM2/SXM3).
Add Presets	Stores a channel manually to the current band.While listening to a channel you want to store, turn the volume knob to select a preset number, then press the knob.
Remove Presets	Remove stored a channel to the current band.Turn the volume knob to select a preset number, then press the knob.
Channel Displays a complete listing of channels.To switch the information on the list (channel name/artist name/song title/content information/ category), press ◄◄◄ /►►► .
Category You can specify the desired category and select a channel.1) Select a category.2) Select a channel.
Direct Tuning	Display the direcchannel search screen.(P.8)
Parental Contr.	See Parental Control (P.9).

Parental Control

Parental Control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user selected channels.

■tiAating parental control

1 Press <⚙> to display the function menu.
2 Turn the volume knob to select [Parental Contr.], then press the knob.

3 Enter the initial parental code ("1111")

1) Turn the volume knob to select a number, then press the knob.
2) Re peat step 1 until the parental code is completed.

Patal Lock channel selection

1 Press <☀> to display the function menu.
2 Turn the volume knob to select [Parental Contr.], then press the knob.
3 Enter the initial parental code ("1111")
4 Turn the volume knob to select [Lock Channels], then press the knob.

5 Enter the parental code.

1) Turn the volume knob to select a number, then press the knob.
2) Re peat step 1 until the parental code is completed.

6 Turn the volume knob to select a channel you want to lock, then press the knob.

" a ppears.

7 Press <Q/

Changing the parental code

1 Press <☀> to display the function menu.
2 Turn the volume knob to select [Parental Contr.], then press the knob.
3 Enter the initial parental code ("1111")
4 Turn the volume knob to select [Change Code], then press the knob.

5 Enter the old parental code.

1) Turn the volume knob to select a number, then press the knob.
2) Re peat step 1 until the parental code is completed.

6 Enter a new four-digit code.

7 Repeat step 6 above to confirm the new code.

Reset to the default settings

1 Press and hold <☀> to display the settings.
2 Press <|◀◀>/<▶▶> to select [icon] (General Settings).
3 Turn the volume knob to select [Factory Reset], then press the knob.
4 Turn the volume knob to select [SiriusXM], then press the knob.
5 Turn the volume knob to select [Yes], then press the knob.

External Components

Using external audio players

1 3.5 mm stereo mini plug to RCA plug (Sold separately)
2 Portable audio player (Sold separately)

fasting playback

1 Connect an external component to the AUX input terminal.
2 Press </> to display the HOME screen.
3 Turn the volume knob to select [AUX], then press the knob.
4 Turn on the connected component and start playing the source.

NOTE

- To select the AUX source, it is necessary to set "AUX Input" to "AUX" in [General Settings]. (P.3).

Camera

A reverse trigger is provided to activate the camera when putting the vessel in reverse or you may select the camera from the source menu.

□spDaying the picture from the camera

The camera screen is displayed when you shift the gear to the reverse (R) position.

■ Tspday the picture from the camera manually

1 Press </> to display the HOME screen.
2 Tu rn the volume knob to select [Camera], then press the knob.

Bluetooth® smartphone

■ oAb the Bluetooth smartphone and Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth 5.0

Profile

Audio player:

A2DP (Advanced Audio Distribution Profile)

AVRCP (V1.5) (Audio/Video Remote Control Profile)

Sound codec

SBC

AAC

Register your smartphone to the unit

You can use your Bluetooth smartphone when paired to this unit.

• You can pair the device and the unit using SSP (Secure Simple Pairing) which only requires confirmation.
  • One device can be connected at a time.
• When you register a new Bluetooth device, disconnect the Bluetooth device currently connected and then register the new device.

1 Turn on the Bluetooth function on your smartphone.
2 Search the unit ("KD-MR305BTS") from your smartphone.

If a PIN code is required, enter the PIN code ("0000").

■sConnecting the device

• Turn off the Bluetooth function from your smartphone.
• Turn off the ignition switch.

Playing Bluetooth Audio Device

1 Press </> to display the HOME screen.
2 Turn the volume knob to select [Bluetooth Audio], then press the knob.

List screenSource screen

To Do	this
Play/pause	Press the volume knob.
Select a file	Press I /< I repeatedly.
Fast-backward/ Fast-forward	Press and hold I /< I .

NOTE

- Operations and display indications may differ according to their availability on the connected device.

Soescreen

1 Playback status/Playing time/File number Play time bar : For confirmation of current playing position
2 : Repeat playback mode indicator X : Random playback mode indicator
3 Displays the information of the current file.

■ leading a content in a list

1 Press to display the List screen.
2 Turn the volume knob to select an item, then press the knob.

• To return to the previous layer, press

Function settings

1 Press <☀> to display the function menu.
2 Turn the volume knob to select the item to set (see the table below), then press the knob to make a selection.

3 Press .

Browsing	See Selecting a content in a list (P.11).
Repeat	All: Repeats all files. (→)One: Repeats the current file. (→)Off: Repeat off.
Random	Off: Normal playback.All: Randomly plays all files. (→)

Settings

1 Press and hold <⚙> to display the settings.
2 Press <|◀◀>/<▶▶|> to select the category.

3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press .

Audio Settings

Fader F12 — R12 (F0/R0): Adjusts the front and rear speaker output balance.
Balance L12 — R12 (L0/R0): Adjusts the left and right speaker output balance.
Graphic Equalizer	Selects a preset equalizer suitable to the music genre.Flat / Hard Rock / Classical / Pop / Dance / DRVN / Hip Hop / UserSelect [User] to use the settings made1) Press the volume knob to select the frequency.2) Turn the volume knob to adjust the level.3) Press
Loudness Sets the amounts of boost of low and high tones."ON", "OFF" (Default)
X'over You can set the crossover frequency of speakers.1) Press I_◄◄► / I> to select the speaker.2) Press the volume knob to select the item.3) Turn the volume knob to adjust the value.4) Press Q_◄►► .

General Settings (P.3)

Bluetooth Settings

Discoverable Enable (Default)/Disable: Set whether to pair or not.

Device Name The Bluetooth device name of this unit is displayed.

Remote control

This unit can be operated using the remote control. The wired remote control RM-RK62M (optional accessory) can be used.

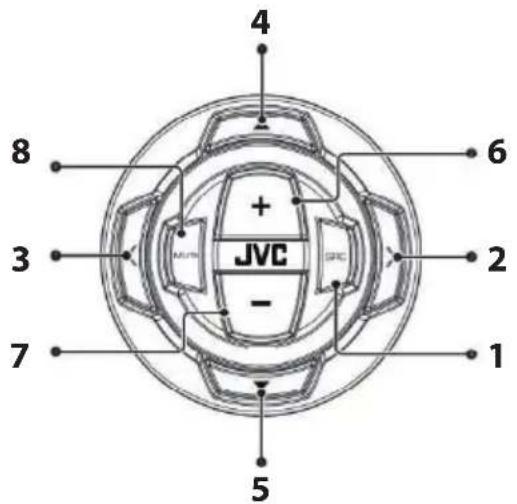

Functions of the remote control buttons

1 SRC S		witches to the source to be played. (excluding Camera)
2/3		Selects the track or file to be played.
		During tuner source, switches to broadcast stations received by the unit.
		During SiriusXM source, search for a channel.
4/5 ▲		During tuner/SiriusXM source, selects preset station.
6/7 VOL + – Adjusts the volume.
8 MUTE Tuner/AUX
		Mutes/restores the sound.
		USB/iPhone/SiriusXM
		Plays or pauses.

Before installation

Before installation of this unit, please note the following precautions.

▲WARNINGS

• If you connect the ignition wire (red) to the negative ground point, you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red). The power supply must be connected to the wires via the fuse.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If your vessel ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.
• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires and to prevent short circuit.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the vessel.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ⊕ connector of the left speaker to a front output terminal, do not connect the ⊖ connector to a rear output terminal.

• After the unit is installed, check whether the signal lamps, wipers, etc. on the vessel are working properly.
- Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

■ supplied accessories for installation

1	x1	2	x1
3	x1	4	(M3..m) x4
5	(M4) x8	6	(M1X57mm) x2
7	x1	8	x1

stillation procedure

1) To prevent a short circuit, remove the key from the ignition and disconnect the terminal of the battery.
2) Make the proper input and output wire connections for each unit.
3) Connect the wire on the wiring harness.
4) Connect the wiring harness wires in the following order; ground, battery, ignition.
5) Connect the wiring harness connector to the unit.
6) Install the unit in your vessel.
7) Re connect the ⊖ terminal of the battery.

Installing the unit

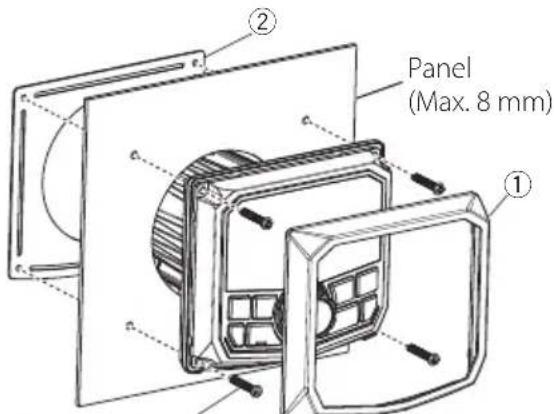

Mounting (Using Mounting Plate)

To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it's necessary wiring.

1) Once you have determined a mounting location, you will need to cut a circular hole 77 mm (3inch) in diameter.
2) After the hole is cut slide the unit and wiring through the hole.
3) Slide the mounting plate (accessory ②) over the backside of the unit and secure with the supplied screws (accessory ④).
4) Press on the trim plate (accessory ①) to the front side of the unit.
5) Plu g in all wiring harnesses and cables. Refer to the wiring diagram for wire harness connection types.

④ M3.5 × 25 mm

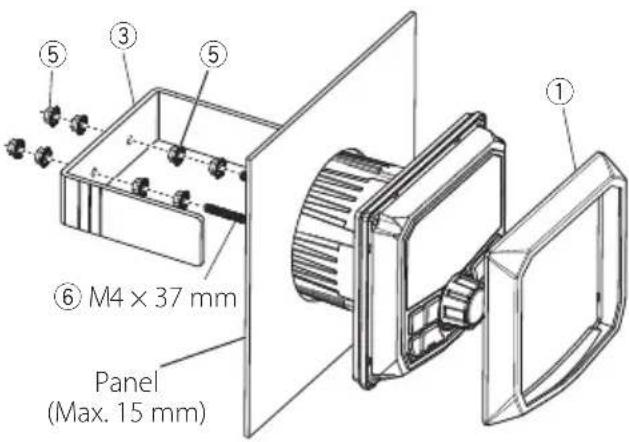

■ Mding (Using U Bracket)

To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it's necessary wiring.

1) Attach the screw with nut (accessory ⑥) to the back of the unit.
2) On ce you have determined a mounting location, you will need to cut a circular hole 77 mm (3inch) in diameter.

3) After the hole is cut slide the unit and wiring through the hole.

4) Take the bracket (accessory ③) and slide over the two studs on the back of the unit. Tighten down with supplied nuts (accessory ⑤).

5) Press on the trim plate (accessory ①) to the front side of the unit.

6) Plug in all wiring harnesses and cables. Refer to the wiring diagram for wire harness connection types.

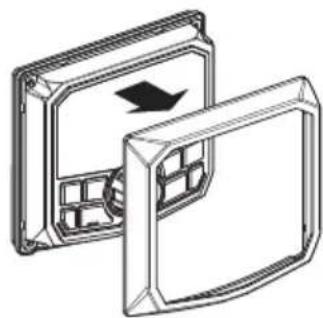

☐ Raving the trim plate

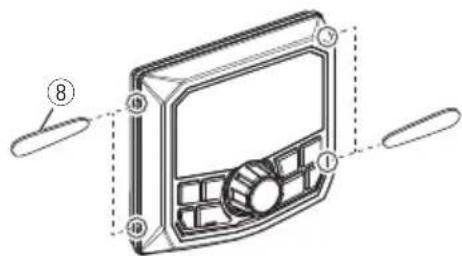

1) Use the extraction key (accessory ⑧) to lever out the four tabs (two on the left part, two on the right part).

2) Pull the trim plate forward.

Diagram of a device with a double door frame and internal compartments, showing a directional arrow (no text or symbols)

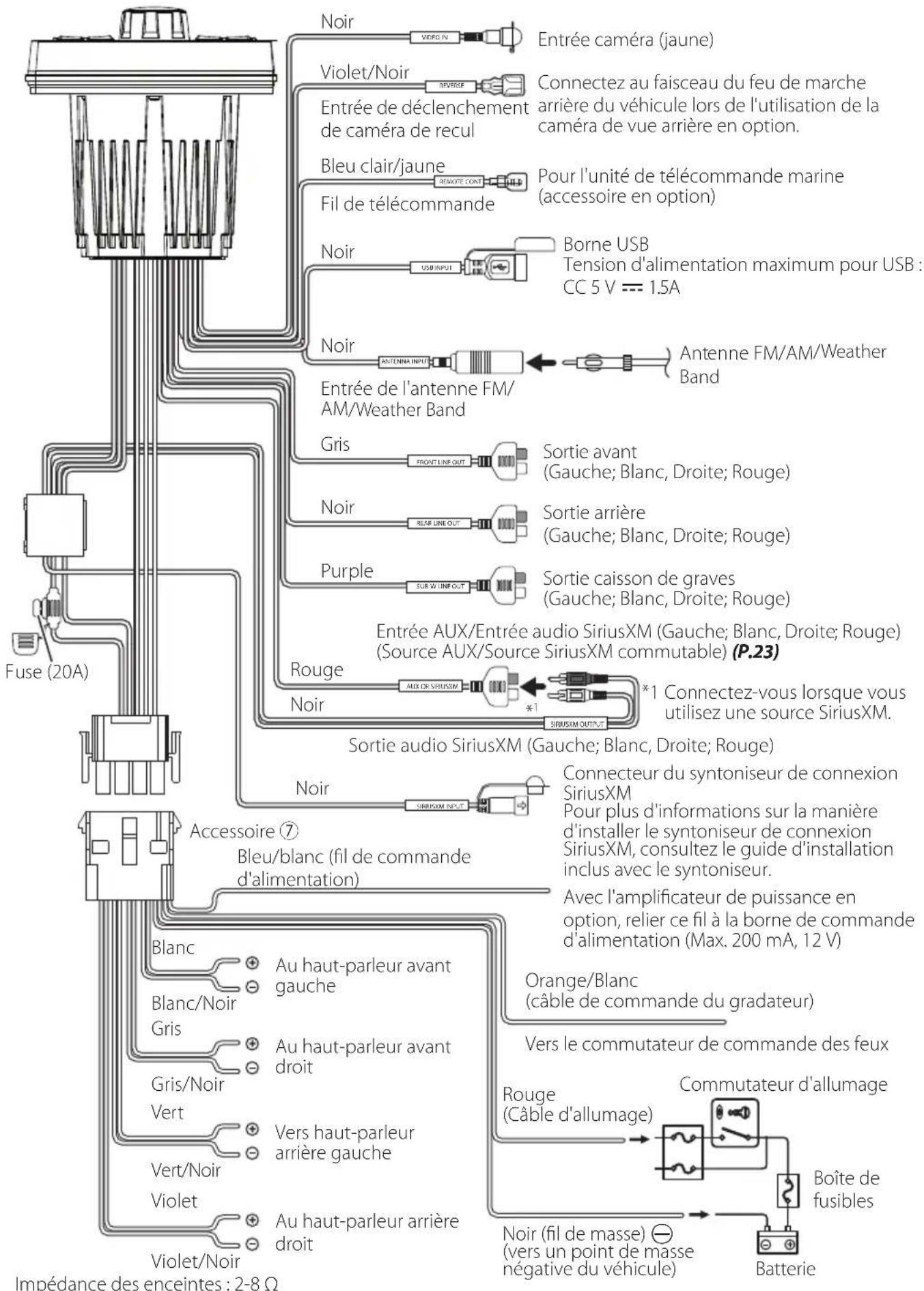

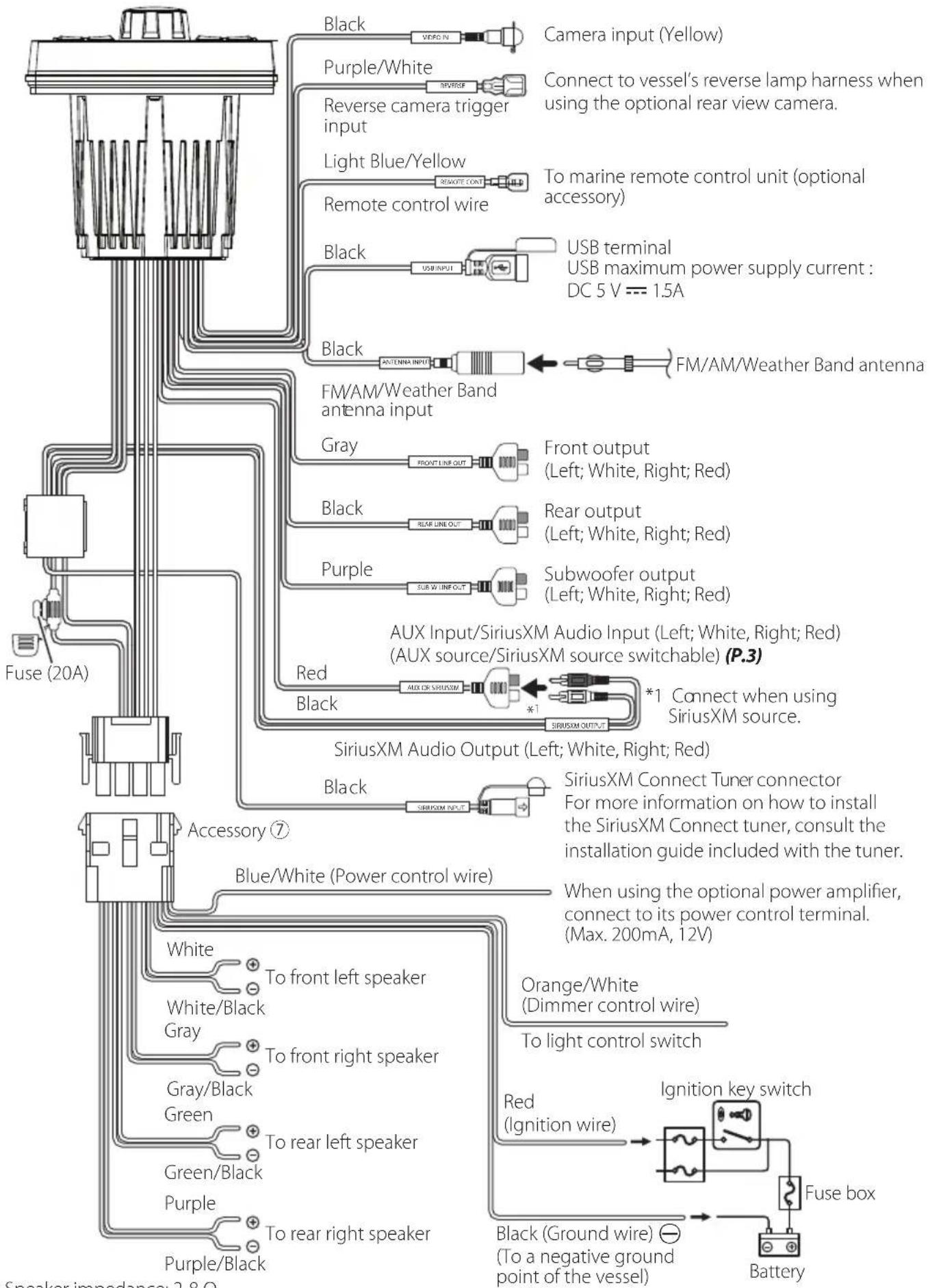

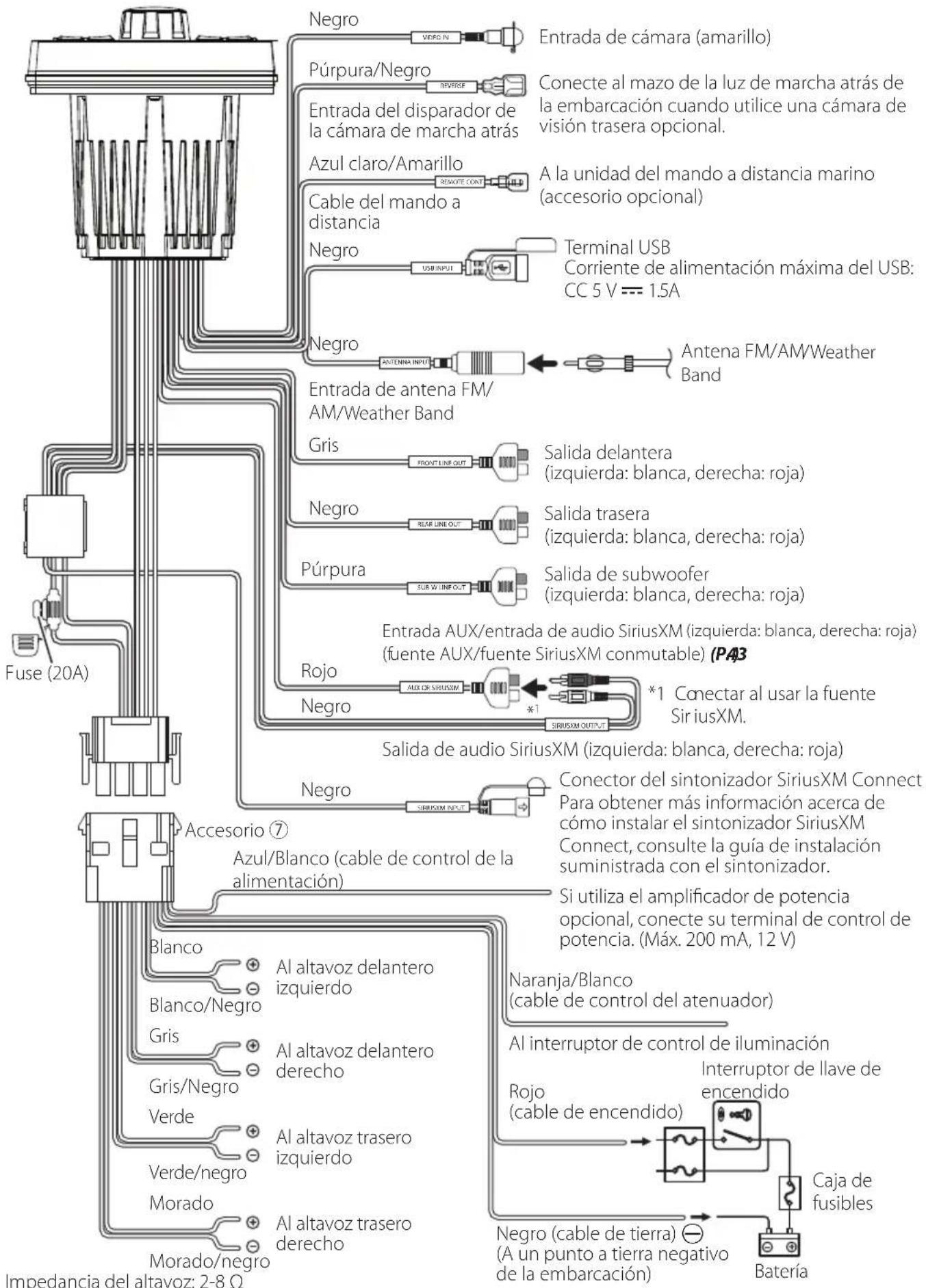

■nfecting wires to terminals

Speaker impedance: 2-8 Ω

Maintenance

Cleaning the Unit

If the front panel of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the front panel is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

CAUTION

- Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the front panel with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

More information

Usable USB device

This unit can play MP3/ WMA/ FLAC/AAC files stored in a USB mass storage class device.

• File system: FAT16,FAT32,exFAT
• This unit can recognize a total of 999 files and 255 folders (a maximum of 999 files per folder).
  • The maximum number of characters:
  – Folder names : 24 characters
• File names : 24 characters
• Tag : 30 (Title) /30 (Artist/ Album) characters

NOTE

• When the USB device is connected to this unit, it can be charged through the USB cable.
  • Install the USB device in the place where it will not affect safe driving.
• You cannot connect a USB device via a USB hub and Multi Card Reader.
  • Take backups of the audio files used with this unit. The files may be erased depending on the operating conditions of the USB device.
  We shall have no compensation for any damage arising from any erased data.
• No USB device comes with this unit. You need to purchase a commercially available USB device.
• Cap the USB terminal whenever not using.

playable Audio files

Au dio format Bit rate/ (Bit count)	Sampling frequency
MP3 (.mp3) 32 – 384kbps, VBR	16 – 48 kHz
WMA (.wma) 32 – 320kbps 32 – 48 kHz
FLAC (.flac) 8 – 48 kHz - 24 bit)
AAC-LC (.m4a) 16 – 320kbps 16 – 48 kHz

• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).
  • The maximum number of characters:
• To: 30 (Title) /30 (Artist/ Album) characters

NOTE

• WMA and AAC of which is covered with DRM cannot be played.
• Although the audio files are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device.

Troubleshooting

Wh at appears to be trouble is not always serious. Check the following points before calling a service center.

- For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).

Gead

No sound comes out of the speakers.

- Adjust the volume to the optimum level.

- Check the cords and connections.

The remote controller does not work.

- Check the wiring of the remote controller.

USB

While playing a track, sound is sometimes interrupted.

- The tracks are not properly copied into the USB device. Copy the tracks again, and try again.

thöPhe

No sound comes out of the speakers.

• Disconnect the iPhone, then connect it again.
• Select another source, then reselect "iPhone".

The iPhone does not turn on or does not work.

• Check the connecting cable and its connection.
• Update the firmware version of iPhone.
• Charge the battery of iPhone.
• Reset the iPhone.

Sound is distorted.

- De activate the equalizer either on this unit or the iPhone.

A lot of noise is generated.

- Turn off (unchecked) "VoiceOver" on the iPhone. For details, visit https://www.apple.com.

Ean

Automatic presetting does not work.

- Store stations manually. (P.7)

Static noise while listening to the tuner.

- Connect the antenna firmly.

udboth

The sound is interrupted or skipped while using a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.
• Turn off, then turn on the unit. (When the sound is not yet restored) connect the player again.

The connected audio player cannot be controlled.

- Check whether the connected audio player supports AVRCP (Audio/Video Remote Control Profile).

The Bluetooth device does not detect the unit.

- Make sure that the "Discoverable" in Bluetooth settings is set to "Enable".

The unit does not pair with the Bluetooth device.

• Turn off, then turn on the Bluetooth device.
• Disconnect the Bluetooth device currently connected and then register the new device. (P.11)

iSsiKM

"No Signal" appears.

- Make sure the SiriusXM Satellite Tuner antenna is mounted outside the car. Move the car to an area with a clear view of the sky.

"Check Antenna" appears.

- Check the SiriusXM Satellite Tuner antenna connection, and make sure the antenna is firmly attached to the tuner. - Check whether the SiriusXM Satellite Tuner antenna cable is bent or broken. If it is damaged, replace the whole antenna unit.

"Check Tuner" appears.

- Make sure the SiriusXM Connect Vehicle Tuner is connected to the unit.

"Channel Not Available" appears.

- The selected channel is no longer available. Select another channel or continue listening to the previous channel.

"Channel Not Subscribed" appears.

The currently selected channel is not subscribed to.

• In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel.
  • In Canada, visit www.siriusxm.ca or call 1-877-438-9677.

"Subscription Updated" appears.

- Your subscription has been updated. Press the appropriate button to continue.

"Channel Locked" appears.

- The selected channel has been locked by the parental controls. Enter the unlock code when you are asked.

Specifications

Dust/Water proof

: IP66 for Faceplate

: IPX4 for Body

(Equivalent to IEC standard publication 60529)

nMtor section

Picture Size

: 2.7 inch Color TFT

Back Lighting

: LED

USB interface section

USB Standard

: USB 2.0 (Full Speed)

Compatible Devices

: Mass storage class

File System

: FAT16,FAT32,exFAT

Capacity

: 32GB maximum capacity, 255 Folders max, 999

Files per Folder max

Maximum Power Supply Current

: DC 5V = 1.5A

Frequency Response

: 20 - 20,000 Hz

Audio Decoder

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Pairing

: SSP(Secure Simple Pairing)

Profile

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (V1.5) (Audio/Video Remote Control Profile)

FUMER section

Frequency Range (step)

North America: 87.9 MHz – 107.9 MHz (200 kHz)

South America, Europe, Russia, Asia, Middle East,

Australia: 87.5 MHz – 108 MHz (50 kHz)

Japan: 76.0 MHz – 99.0 MHz (100 kHz)

Amér section

Frequency Range (step)

North America, South America

: 530 kHz - 1700 kHz (10 kHz)

Europe, Russia, Asia: 531 kHz – 1611 kHz (9 kHz)

Japan: 522 kHz – 1629 kHz (9 kHz)

Middle East: 531 kHz – 1602 kHz (9 kHz)

Australia: 531 kHz – 1701 kHz (9 kHz)

□ aMeer Band tuner section

Frequency Range (step)

USA/Canada: 162.400 MHz – 162.550 MHz (25 kHz)

ubdizer

Band

: 13 Band

Frequency

:62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/

10k/16kHz

Gain

:-9 — +9 (-9 dB — +9 dB)

dAusection

Maximum Power

: 34W × 4 (@ 4 Ω, Peak), 50W × 4 (@ 2 Ω, Peak)

Full Bandwidth Power (1% THD)

: 19W × 4 (@ 4 Ω, RMS), 28 W × 4 (@ 2 Ω, RMS)

Preout Level/ Load

: 2000 mV/ 10 kΩ (USB)

Preout Impedance

:≤500 Ω

Speaker Impedance

:2-8Ω

Geeal

Operating Voltage

: 12 V DC battery

Installation Dimensions

Panel (W × H)

: 15×106 mm

4-9/16 × 4-3/16 inch

Body (W × H × D)

: ∅77 × ∅77 × 74 mm

∅3-1/16 × ∅3-1/16 × 2-15/16 inch

Weight

: 0.9 kg (2.0 lbs)

Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Tuner Inc. All rights reserved.

NOTE

• Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly.
• Specifications subject to change without notice.

For USA

CFCAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment may cause harmful interference to tuner communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to tuner or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Rorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Conect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced tuner /TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

For Canada

EDSCAUTION

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

CAUTION

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC tuner frequency (RF) Exposure Guidelines and RSS-102 of the ISED tuner frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Supplier's Declaration of Conformity

Trade Name: JVC

Products: DIGITAL MEDIA RECEIVER

Model Name: KD-MR305B TS

Responsible Party: JVCKENWOOD USA

CORPORATION

4001 Worsham Avenue,

Long Beach, CA 90808, U.S.A.

PHONE: [phone]

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

For Argentina

To view all detailed information of the system

Factory Reset

Simple line drawing of a cable and plug connected to a device via tubing (no text or symbols)

Diagram of a device with a rectangular frame and internal grid structure, showing an arrow indicating rotation (no text or symbols present)

■nfecting wires to terminals

Automatic presetting does not work.

- Store stations manually. (P.27)

Static noise while listening to the tuner.

- Connect the antenna firmly.

udboth

: SSP (Secure Simple Pairing)

Profil

Japon : 76,0 MHz – 99,0 MHz (100 kHz)

- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

- Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

REMARQUE

Pure electrical circuit lines without any symbols

Diagram of a device with a double-headed arrow indicating rotation or movement (no text or symbols present)

■nfecting wires to terminals

: SSP (Secure Simple Pairing)

Perfil

Australia: 531 kHz-1.701 kHz (9 kHz)

• La marca denominativa y los logos de Bluetooth® son marcas registradas propiedad de Bluetooth SIG, Inc. y cualquier uso de dichas marcas por JVCKENWOOD Corporation está sujeto a los términos de licencia. El resto de marcas comerciales y nombres comerciales corresponden a sus respectivos propietarios.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

NOTA
