RC55 - Beard trimmer GIRMI - Free user manual and instructions

Brand	Girmi
Model	RC55
Type	Beard trimmer
Power supply	Mains (AC 230V, 50Hz) or rechargeable battery
Battery	Lithium 600 mAh
Charging time	Approximately 2 hours
Input voltage of power adapter	100-240 V AC, 50-60 Hz
Output voltage of power adapter	5 V DC, 1000 mA
Output power	5 W
Blade type	Movable ceramic blade, fixed titanium-coated blade
Length adjustment	From 0.8 mm to 2 mm (without comb) or with combs
Supplied accessories	4 combs, power adapter, lubricating oil, cleaning brush
Charge indicator	Red when charging, blue when fully charged
Usage	Dry use only
Safety	Do not use in bath or shower, do not immerse
Maintenance	Clean with brush, lubricate periodically
Minimum age	8 years (under supervision)

Frequently Asked Questions - RC55 GIRMI

How to charge the Girmi RC55 trimmer for the first time?

For first use, fully charge the device for 2 hours. Plug the power adapter into the wall socket and the plug into the charging port. The red light indicates charging, then turns blue when the battery is full.

What is the battery life?

Battery life is not specified in the manual, but the 600 mAh lithium battery provides enough use for several sessions. It is recommended to fully discharge the battery before recharging to extend its lifespan.

How to adjust the cutting length?

You can use one of the 4 combs supplied for a longer cut, or without comb for a short cut (0.8 mm to 2 mm) by adjusting the length regulator on the device.

Can I use the trimmer in the shower or bathtub?

No, never use the device in the bathtub or shower. Do not immerse the device in water and avoid splashes. If it falls into water, unplug it immediately without touching it with hands.

What maintenance is required for the trimmer?

After each use, clean the comb and trimmer with the supplied brush or by blowing. Lubricate the blades periodically with the supplied oil: 1-2 drops on the ceramic blade and on the locking point. Open the small cover to access the parts to lubricate.

How much does a battery replacement cost?

The manual does not mention a price, but if the battery no longer holds a charge, contact an authorized service center for replacement. Do not use other power adapters than the one supplied.

Are the blades replaceable?

The manual does not specify if the blades are individually replaceable. If there is a problem, contact an authorized service center.

Can I use the trimmer on wet hair?

No, the device is designed for dry use only. Do not use on wet hair to avoid electrical risk.

What to do if the device no longer turns on?

First check the charge. If the battery is empty, recharge it. If it still doesn't work when plugged in, the battery may be defective. Contact an authorized service center.

Is there a risk of cuts with the blades?

The blades are designed to cut hairs, but they can cause cuts if used carelessly. Always use the combs for safe cutting and make precise movements.

USER MANUAL RC55 GIRMI

Red and silver hairbrush with black and silver buttons (no visible text or symbols)

Professional hairand beard clipper

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

RC55 p. 11

Operating.... p. 11

Charging.... p. 11

Maintenance and cleaning....p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive)....p. 29

PORTUGUES:....p. 13

ESPAÑOL......p. 18

FRANCAIS...... p. 13

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Illustration of a hand holding a handheld device with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical illustration of a mechanical assembly with hands and close-up insets showing internal components (no text or symbols)

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with

current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use.

Always disconnect unit from power supply if you leave it unattended, or before mounting and dismounting.

Cleaning operations should be carried out after unplugging the unit.

- Not for commercial use. Household use only

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

In case of failure and / or malfunction do not tamper with

the unit; to repair the appliance, always contact the service center authorized by the manufacturer and request the use of original spare parts; failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• Before every use, unroll the power cord.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

WARNING: do not use the hair dryer inside the bathtub, under the shower or inside the shower box. If it falls in water, do not pick it up and immediately disconnect the power plug. Avoid ashing of water. If you face one of these problem, more operating it any further, bring the device to authorized service center; it must be checked by qualified personnel.

• Before using, fully charge the hair-clipper, leaving it connected to the charger for about 2 hours.
• Do not immerse the appliance in water or other liquids.
• Use extreme caution when using: do not use in a state of sleepiness and perform delicate movements. Do not use on wigs or irritated skin.

• Do not use the clipper for more than 10 minutes continuously and allow to completely cool down for at least 5 minutes.

• Power off the device while changing attachment.

• Clean and lubricate the clipper regularly to ensure better performance and longer life.
• Never leave unattended while it is running.
• Do not wrap the power cord around the unit during use.
• If the adaptor breaks or gets lost, contact an authorized service center for replacement.

Pay attention to the features of the adaptor, if you decide to change it. An incorrect voltage may damage the motor and jeopardize the functionality of the device.

DESCRIPTION RC55

1. Blade

2. Charging light

3. Small brush

4. Cutting regulator

5. Charging input

6. Lubricating oil

7. On/off button

7.4 combs set

1. Adaptor

2. Connection pin

OPERATING

The hair clipper can be recharged using the adaptor and it can be used both weather it is connected to the adaptor or not.

WARNING: if during battery working the appliance stop working, put switch (4) in OFF position, connect adaptor (11) to power supply and pin (12) to connector (6). Wait one minute before starting again operation. HOW TO USE

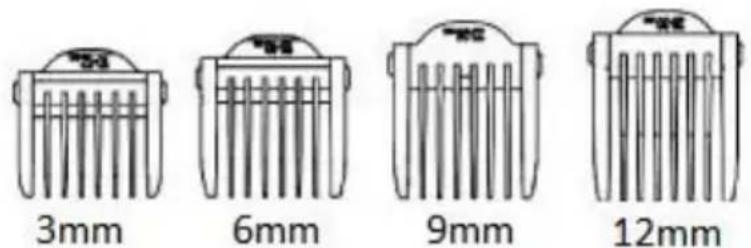

- Keeping off the unit, mount one of the supplied combs (7). Choose the attachment depending on the length you wish to obtained (see figure below).

- If you want to obtain a shorter cut, between 0.8mm and 2mm, use the clipper without any comb (7), but with the supplied comb. If so, set the cutting height using the regulator (3).

- Turn on the clipper and start cutting.

- Once finished cutting operation, turn off the device using the power button (4), remove any comb and store the clipper and its accessories out of the reach of children.

RECHARGING

CAUTION: to recharge the clipper, only use the adaptor supplied.

If the adaptor gets lost or damaged, contact an authorized service center and do not use any other adaptor which may damage the internal battery and jeopardize the functionality of the device. When you first use the product fully charge it, leaving it connected to the charger for at least 2 hours.

Plug the power adaptor (11) to the power outlet and the connection pin (12) into the socket on the rear of product (6). During charging operation, the LED (5) is red. When battery is fully charged, it becomes blue.

The following measures will preserve the battery life.

Before first use, charge the battery by leaving the hair clipper connected to the adapter for about 2 hours.

Before you recharged, completely discharged the battery.

When the unit is not in use for a long period (2 months), it is recommended to let it charge for about 2 hours before using. In any case it is advisable to fully discharged the battery before recharging.

If the appliance, even after a recharge, works only if it is connected to the adapter, it is possible that the battery is no longer capable of delivering enough power to the unit. In this case, please contact an authorized service center.

MAINTENANCE AND CLEANING

Disconnect the clipper from the power adaptor, and unplug it from the power outlet before starting any cleaning operations.

After each cut, always clean used comb (7) and cutting blade (1) by blowing over them or using the small brush (9). Periodically lubricate the blade by following the steps below.

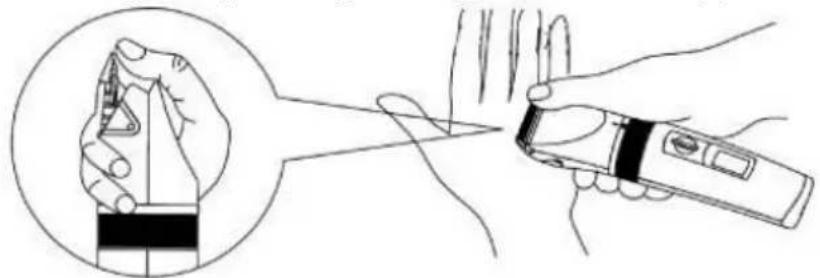

Open the flap (2) placed beneath the cutting blade, pushing the blade as shown in figure below. Remove remaining hair by blowing or using the small brush (9).

Illustration of a hand holding a tool with a magnified inset showing the blade being cut (no text or symbols)

Illustration of hands assembling or inspecting a mechanical component with a tool, showing internal components and close-up insets (no text or symbols)

Use lubricating oil (10) for the blade. 2 or 3 drops are enough if this operation is carried out frequently.

As shown in the figure, two points must be lubricated with oil:

Put 1-2 drops on the blade (white ceramic). Put 1-2 drops on the driveshaft joint.

Use only the provided oil or similar oil without acids.

Replace the cover by following the next steps:

A B Fig. 1

- CAUTION: before assembling the cover, bring the cutting height regulator (3) at 2 mm, as the assembling is easier in this way.

- Insert the tab (B) in the joint (A), as shown in fig. 1.

- Push the door (2) towards the clipper body until it clicks in position (fig. 2)

Clean the main body by using a soft damp cloth, never immerse the unit in water or other liquids.

TECHNICAL FEATURES

• AC/DC Adaptor: IN AC 230V, 50Hz, OUT DC 5V – 1000mA
- Charging light
• Cutting height adjustment - Ceramic cutting blade, titanium fixed blade
• Lithium battery, 600mAh, with fast charging: 2 hours
• Accessories: 4 combs, AC/DC adaptor, lubricating oil, small brush

Fig. 2

TECHNICAL SHEET POWER SUPPLY: LW-050100EU

Information	Value	Unit
Input voltage	100 - 240	V
Input AC frequency	50-60	Hz
Output voltage	5.0 a.C.	V
Output current	1.0	A
Output power	5.0	W
Average active efficiency	74.66	%
No-load power consumption	0.68	W

PORTUGUES: ADVERTÊNCIAS

Illustration of a hand holding a pen and a tool, with a magnified inset showing the tip of the pen (no text or symbols present)

Illustration of hands assembling a mechanical component with magnified insets showing internal parts (no text or symbols)

Illustration showing a hand using a hairdryer to cut the jawbone, with inset images of the tool and mechanical components (no text or symbols)

Line drawing of a hand holding a small object, labeled Fig. 2 (no text or symbols on the object itself)

Illustration of a hand holding a pen and a handheld device, with no visible text or symbols

Technical diagram showing mechanical components with cross-sectional views (no text or labels)

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.
