LF 2000 UV-C - Air purifier Nevoox - Free user manual and instructions

Product type	Air purifier
Brand	Nevoox
Model	LF 2000 UV-C
Filtration technology	6-stage HEPA 13 filter
UV-C lamp	Integrated (UV-C unit)
Display	High-definition screen with PM2.5 indicator
Air quality sensor	Yes (PM2.5 measurement)
Fan speed levels	4 (25%, 50%, 75%, 100%)
Timer off	0 to 12 hours (in 1-hour increments)
Child lock	Yes (short press to lock, 3 seconds to unlock)
Auto mode	Yes (automatic speed adjustment according to air quality)
Remote control	Included (infrared, range up to 5 meters)
Power supply	220-240 V ~ 50 Hz
Filter lifespan	1500 operating hours
Filter replacement indicator	Yes (flashing "FILTER REMAINING TIME" at ~60h remaining)
Filter counter reset	"FILTER RESET" button (press for 3 seconds)
Maintenance	Clean the interior housing with a soft cloth after unplugging and removing the filter
Installation precautions	Minimum distance of 10-15 cm from walls; flat, non-slip surface
Safety precautions	Do not block air intakes/outlets; avoid heat sources; unplug before cleaning or long inactivity
Spare parts	HEPA 13 filter (specific model LF 2000 UV-C)
Included accessories	User manual, remote control

Frequently Asked Questions - LF 2000 UV-C Nevoox

How to turn the air purifier on or off?

Press the POWER button on the control panel or remote control once to turn on, again to turn off.

How to set the timer off?

Press the TIMER button to cycle through hours (0 to 12). The device will turn off automatically after the selected delay.

How to reset the filter counter after replacing it?

After changing the filter, press the FILTER RESET button for 3 seconds. The counter resets to 1500 hours.

How to activate the child lock?

Briefly press the CHILD LOCK button to lock all buttons. To unlock, press the same button for 3 seconds.

What do the screen colors mean?

The screen changes color according to measured air quality: green (PM2.5 < 75 µg/m³, excellent), blue (average), red (poor).

When should the filter be replaced?

The filter must be replaced after 1500 hours of operation. The screen flashes and displays 'FILTER REMAINING TIME' approximately 60 hours before end of life to alert you.

How to clean the air purifier?

Turn off and unplug the device. Remove the back cover, take out the filter, then clean the interior of the housing with a soft cloth. Do not use water or abrasive products.

Can I use the purifier in a large room?

The LF2000 UV-C is designed for medium-sized rooms. For optimal performance, it is recommended to close doors and windows and place the device at least 10-15 cm from the wall.

Is the remote control mandatory?

No, you can control all functions from the control panel on the device. The remote control is a convenient addition.

What to do if the power cord is damaged?

Do not use the device and immediately contact your retailer or an authorized service for cord replacement.

USER MANUAL LF 2000 UV-C Nevoox

Row of eight silver industrial air purifiers with circular buttons, displayed against a white background (no text or symbols visible)

Exploded view diagram of a portable air conditioner unit with numbered parts labeled 1 through 11

1 Frontabdeckung

Front cover / Couverture

2 Gehäuse

Housing / Logement

3 6 fach Filter HEPA 13

Retractable handles (from model LF 2030)

screws Fixed power line links power cord base

①

Technical line drawing of a rectangular device with internal components and a circular grid pattern (no text or symbols)

②

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

③

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

④

Top-down schematic of a circular mechanical or architectural component with internal grid and mounting points (no text or symbols)

⑤

6. Aufstellungsort


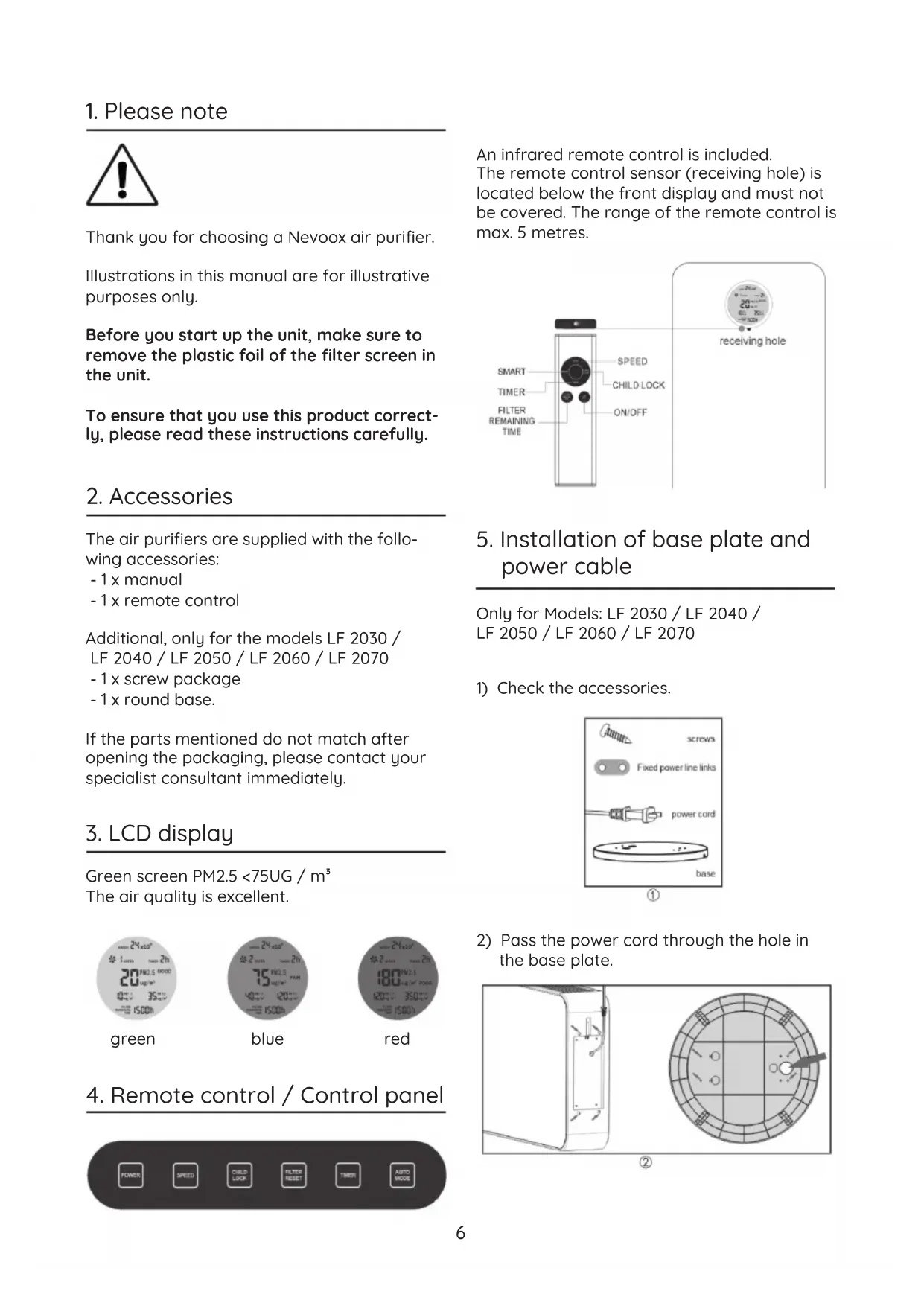

Thank you for choosing a Nevoox air purifier.

Illustrations in this manual are for illustrative purposes only.

Before you start up the unit, make sure to remove the plastic foil of the filter screen in the unit.

To ensure that you use this product correctly, please read these instructions carefully.

2. Accessories

The air purifiers are supplied with the following accessories:

• 1 x manual
• 1 x remote control

Additional, only for the models LF 2030 / LF 2040 / LF 2050 / LF 2060 / LF 2070

• 1 x screw package
• 1 x round base.

If the parts mentioned do not match after opening the packaging, please contact your specialist consultant immediately.

3. LCD display

Green screen PM2.5 <75UG / m ^3 The air quality is excellent.

green

blue

red

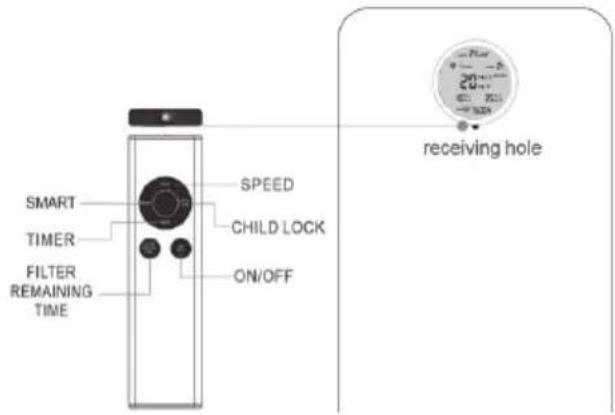

4. Remote control / Control panel

POWER SPEED CHILD LOOK FILTER RESET TIMER AUTO MODE

An infrared remote control is included. The remote control sensor (receiving hole) is located below the front display and must not be covered. The range of the remote control is max. 5 metres.

SMART TIMER FILTER REMAINING TIME SPEED CHILD LOCK ON/OFF receiving hole

5. Installation of base plate and power cable

Only for Models: LF 2030 / LF 2040 / LF 2050 / LF 2060 / LF 2070

1) Check the accessories.

screws Fixed power line links power cord base

①

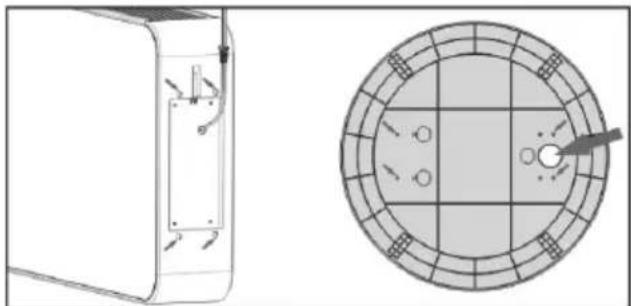

2) Pass the power cord through the hole in the base plate.

Technical line drawing of a mechanical component and its circular cross-section with internal grid pattern (no text or symbols)

②

3) Screw the base plate to the holes in the bottom of the air purifier marked in the picture.

Technical diagram showing a mechanical assembly with arrows indicating forces or motion, no readable text or symbols present.

4) Press the cable guide into the base plate and screw the cable fixing to the base plate.

Technical diagram of a mechanical component with two circular features and a central rectangular housing (no text or symbols)

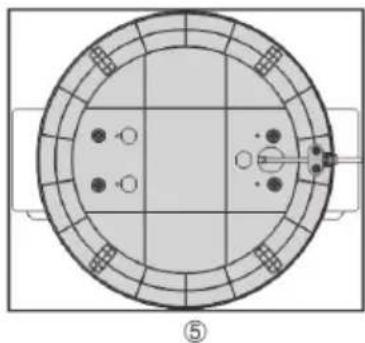

5) Check that the illustration corresponds to the base plate and cable guide of your appliance.

Top-down schematic of a circular mechanical or architectural component with internal grid and mounting brackets (no text or symbols)

6. Place of installation

To make full use of the air purifier's performance, the unit should be placed at a minimum distance of 10-15cm from walls or similar. This ensures that sufficient air can be sucked in through the back of the unit.

If you use the air purifier, it is recommended that you close the doors and windows to achieve a better cleaning effect.

To prevent the appliance from wobbling or tilting, ensure that the appliance is placed on a level and non-slip surface.

7. Commissioning

7.1. Switch on and off

POWER

Press once to switch on, press again to switch off.

7.2. Fan speed (Speed)

SPEED

The fan speed can be set in four stages.

7.3. Child Lock

CHILD LOCK

Briefly press the key to lock all control keys. Press for three seconds to return all the control keys to the unlock modus.

7.4. Filter Timer (Filter Reset)

FILTER RESET

The maximum running time of the filters is 1,500 hours. When the remaining running time of the filters is approx. 60 hours, the display flashes and shows „FILTER REMAINING TIME“. During this period the filter must be

replaced.

After changing the filter, press the „FILTER RESET“ key for 3 seconds to reset the counter to 1500 hours.

7.5. Off Timer

TIMER

The unit can be switched off in 12 steps (0-12 hours) using the timer.

7.6. Automatic mode (Auto Mode)

AUTO MODE

The speed of the fans (and thus the air flow) is automatically controlled according to the measured air quality. Each fan stage less reduces the airflow by 25%.

(Level 4 = 100%/ Level 3=75%/ Level 2= 50%/ Level 1=25%)

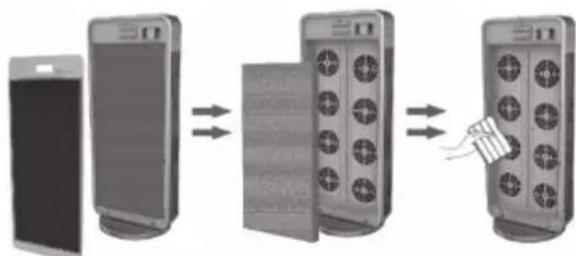

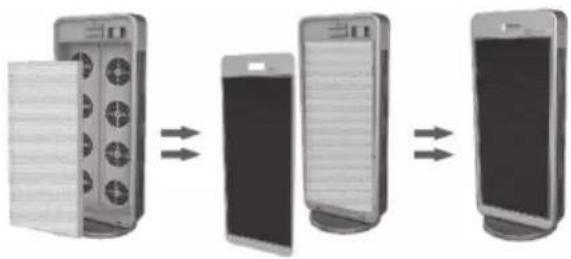

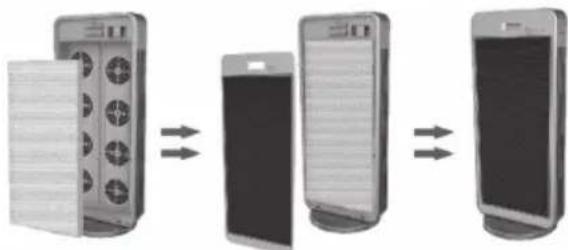

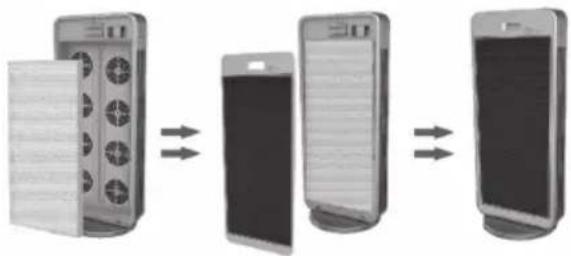

8. Filter change

1. switch off the unit, pull out the mains plug and remove the back cover by hand.
2. remove the used filter; the filter can be disposed of in the household waste.
3. clean the inner housing with a soft cloth.
4. install the new filter with the blue side facing outwards.
5. close the lid.
6. the installation is complete.

Note: After changing the filter, press the „FILTER RESET“ key.

The maximum running time of 1,500 hours of the replaced filter is thus correctly calculated.

The running time of the filters depends, among other things, on the load of the air sucked in and the speed of the fans and is shown on the display.

9. Safety Instructions

9.1. To prevent damage due to overheating of the air purifier, make sure that both the air inlet and the air outlet are not covered.
9.2. Do not place the unit next to a heater, as there is a risk of fire or deformation of the cabinet due to heat.
9.3. Unplug the power cord when cleaning the machine, replacing the filter or when not using it for a long period of time.
9.4. Do not move the air purifier unless it has been previously switched off.
9.5. Do not use the unit if the power supply cable is damaged. In this case contact your point of sale.
9.6. To prevent the appliance from wobbling or tilting, ensure that the appliance is placed on a level and non-slip surface.

screws Fixed power line links power cord base

①

Technical line drawing of a mechanical component and its circular cross-section with internal grid pattern (no text or symbols)

②

Pure technical diagram showing mechanical components without any text, numbers, or symbols

Technical diagram of a mechanical or electrical component with two circular features and a rectangular housing (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with internal grid and mounting points (no text or symbols)
