Product type	Air purifier
Brand	Nevoox
Model	LF 2030
Filtration technology	HEPA 13 6-stage
Display	High-definition LCD display
Remote control	Yes, infrared (range 5 m)
Number of speeds	4 (25%, 50%, 75%, 100%)
Auto mode	Yes, adjusts according to air quality
Timer	0 to 12 hours
Child lock	Yes, key lock
UV-C lamp	Yes, built-in
Air quality indicator	Green, blue, red display based on PM2.5
Filter reset	Yes, after 1500 hours of operation
Filter replacement	HEPA 13 filter, recommended replacement every 1500 h
Base plate	Round base plate included (models LF2030/LF2040/LF2050/LF2060/LF2070)
Included accessories	User manual, remote control, round base, screws

Frequently Asked Questions - LF 2030 Nevoox

How to turn the Nevoox LF 2030 air purifier on and off?

Press the power button once to turn on, again to turn off.

How to adjust the fan speed?

Use the speed button to cycle through 4 levels: 25%, 50%, 75% and 100% air flow.

How to activate auto mode?

Press the Auto Mode button. The speed will adjust automatically based on the measured air quality.

How to use the timer?

Press the timer button to set a delayed shutdown from 0 to 12 hours in increments.

How to lock the buttons (child lock)?

Briefly press the child lock button to lock all buttons. Press for 3 seconds to unlock.

When and how to change the filter?

The filter should be changed after 1500 hours of operation. A flashing "FILTER REMAINING TIME" appears 60 hours before. To change, turn off the device, unplug, remove the back cover, replace the filter (blue side facing outward), then reset the counter by pressing "FILTER RESET" for 3 seconds.

What to do if the screen displays "FILTER REMAINING TIME"?

This indicates that the filter life is almost exhausted (less than 60 hours remaining). Replace the filter as soon as possible and then reset the counter.

How to clean the device?

Unplug the device before cleaning. Use a soft cloth to clean the inside of the housing after removing the filter. Do not use abrasive products.

Where to place the air purifier for optimal use?

Place the device at least 10-15 cm away from the wall for good air circulation. On a flat, non-slip surface. Close doors and windows for better effect.

The remote control does not work, what to do?

Check that nothing is blocking the infrared sensor located below the front display. The maximum range is 5 meters. Replace the batteries if necessary.

USER MANUAL LF 2030 Nevoox

Front cover / Couverture

2 Gehause

Housing / Logement

3 6 fach Filter HEPA 13

Retractable handles (from model LF 2030)

UV-C unit / Unite UV-C

1.itte beachten

Thank you for choosing a Nevoox air purifier.

Illustrations in this manual are for illustrative purposes only.

Before you start up the unit, make sure to remove the plastic foil of the filter screen in the unit.

To ensure that you use this product correctly, please read these instructions carefully.

2. Accessories

The air purifiers are supplied with the following accessories:

-1xmanual
- 1xremotecontrol

Additional, only for the models LF 2030 / LF 2040 / LF 2050 / LF 2060 / LF 2070

• 1 x screw package
• 1x round base.

If the parts mentioned do not match after opening the packaging, please contact your specialist consultant immediately.

3. LCD display

Green screen PM2.5 < 75UG / m^3 The air quality is excellent.

green

blue

red

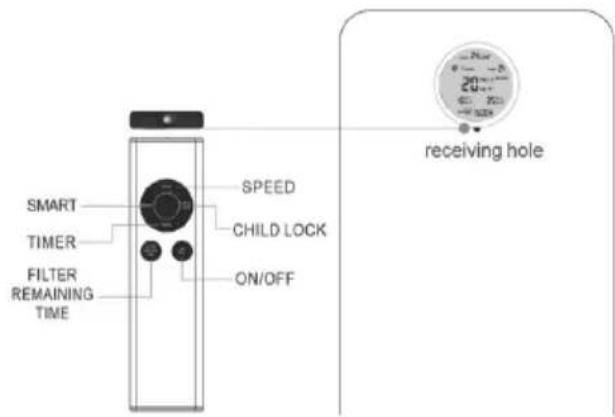

1. Remote control / Control panel

An infrared remote control is included. The remote control sensor (receiving hole) is located below the front display and must not be covered. The range of the remote control is max. 5 metres.

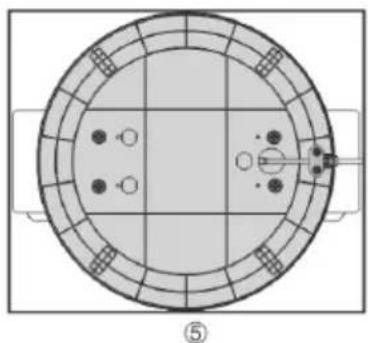

5. Installation of base plate and power cable

Only for Models: LF 2030 / LF 2040 / LF 2050 / LF 2060 / LF 2070

1) Check the accessories.

①

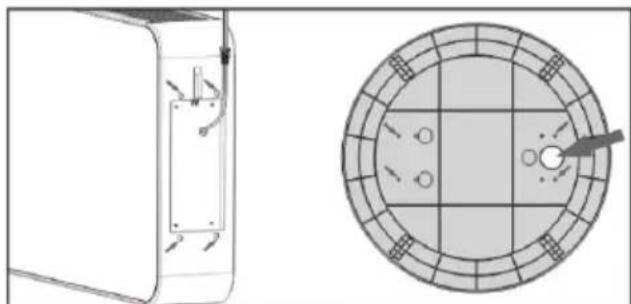

2) Pass the power cord through the hole in the base plate.

②

3) Screw the base plate to the holes in the bottom of the air purifier marked in the picture.

4) Press the cable guide into the base plate and screw the cable fixing to the base plate.

5) Check that the illustration corresponds to the base plate and cable guide of your appliance.

6. Place of installation

To make full use of the air purifier's performance, the unit should be placed at a minimum distance of 10-15cm from walls or similar. This ensures that sufficient air can be sucked in through the back of the unit.

If you use the air purifier, it is recommended that you close the doors and windows to achieve a better cleaning effect.

To prevent the appliance from wobbling or tilting, ensure that the appliance is placed on a level and non-slip surface.

7. Commissioning

7.1. Switch on and off

Press once to switch on, press again to switch off.

7.2. Fan speed (Speed)

The fan speed can be set in four stages.

7.3.Child Lock

Briefly press the key to lock all control keys. Press for three seconds to return all the control keys to the unlock modus.

7.4.Filter Timer (Filter Reset)

The maximum running time of the filters is 1,500 hours. When the remaining running time of the filters is approx. 60 hours, the display flashes and shows „FILTER REMAINING TIME". During this period the filter must be

replaced.

After changing the filter, press the „FILTER RESET“ key for 3 seconds to reset the counter to 1500 hours.

7.5. Off Timer

The unit can be switched off in 12 steps (0-12 hours) using the timer.

7.6. Automatic mode (Auto Mode)

The speed of the fans (and thus the air flow) is automatically controlled according to the measured air quality. Each fan stage less reduces the airflow by 25% .

(Level 4 = 100% / Level 3 = 75% /

Level 2=50%/ Level 1=25%)

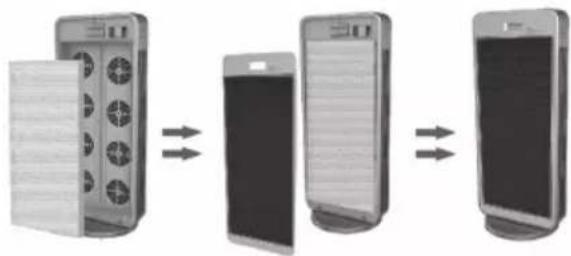

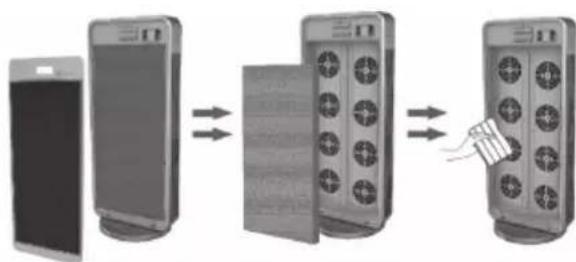

8. Filter change

1. switch off the unit, pull out the mains plug and remove the back cover by hand.
2. remove the used filter; the filter can be disposed of in the household waste.
3. clean the inner housing with a soft cloth.
4. install the new filter with the blue side facing outwards.
5. close the lid.
6. the installation is complete.

Note: After changing the filter, press the "FILTER RESET" key. The maximum running time of 1,500 hours of the replaced filter is thus correctly calculated.

The running time of the filters depends, among other things, on the load of the air sucked in and the speed of the fans and is shown on the display.

9. Safety Instructions

9.1. To prevent damage due to overheating of the air purifier, make sure that both the air inlet and the air outlet are not covered.
9.2. Do not place the unit next to a heater, as there is a risk of fire or deformation of the cabinet due to heat.
9.3. Unplug the power cord when cleaning the machine, replacing the filter or when not using it for a long period of time.
9.4. Do not move the air purifier unless it has been previously switched off.
9.5. Do not use the unit if the power supply cable is damaged. In this case contact your point of sale.
9.6. To prevent the appliance from wobbling on tilting, ensure that the appliance is placed on a level and non-slip surface.
