USER MANUAL F7 JIMMY

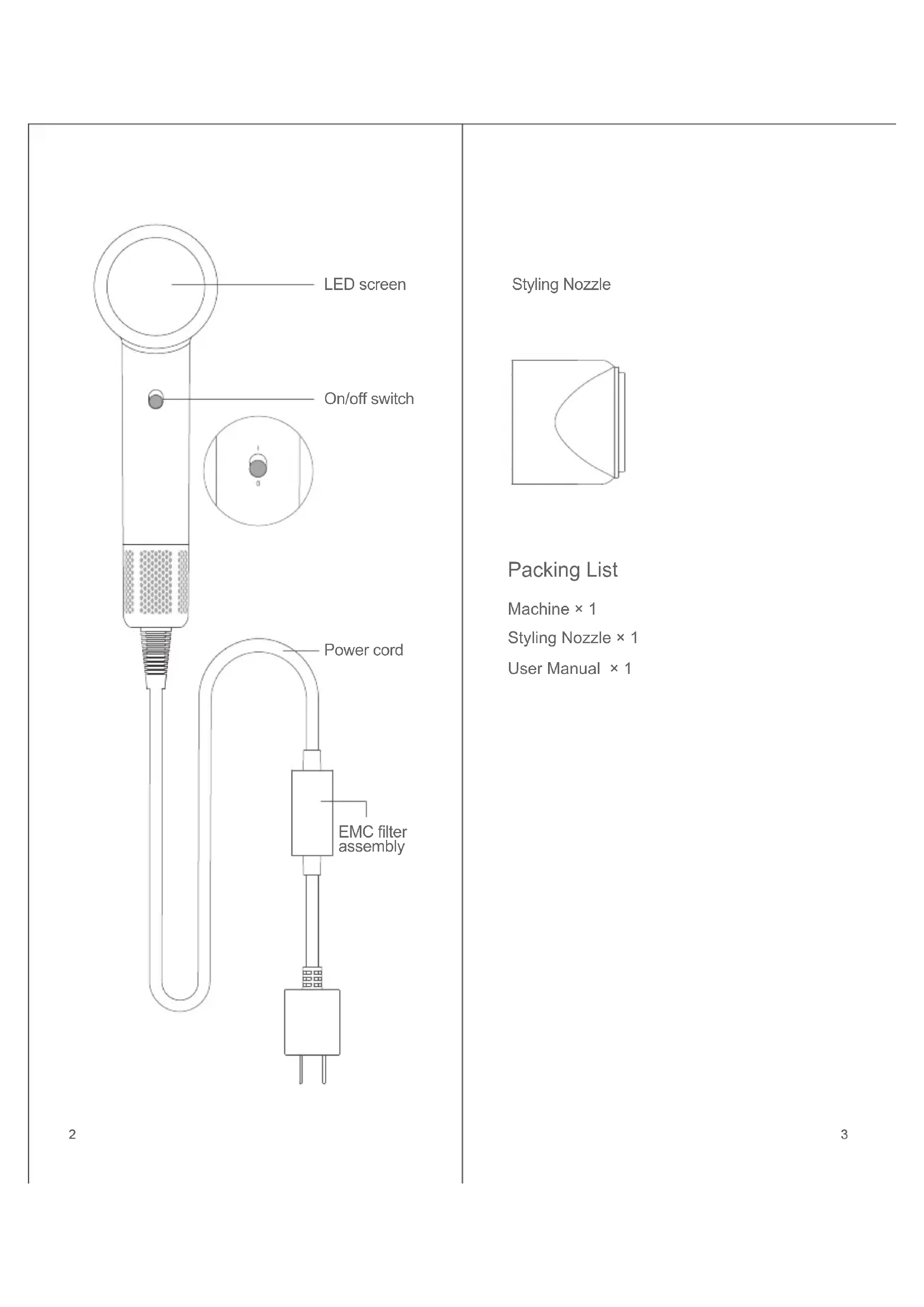

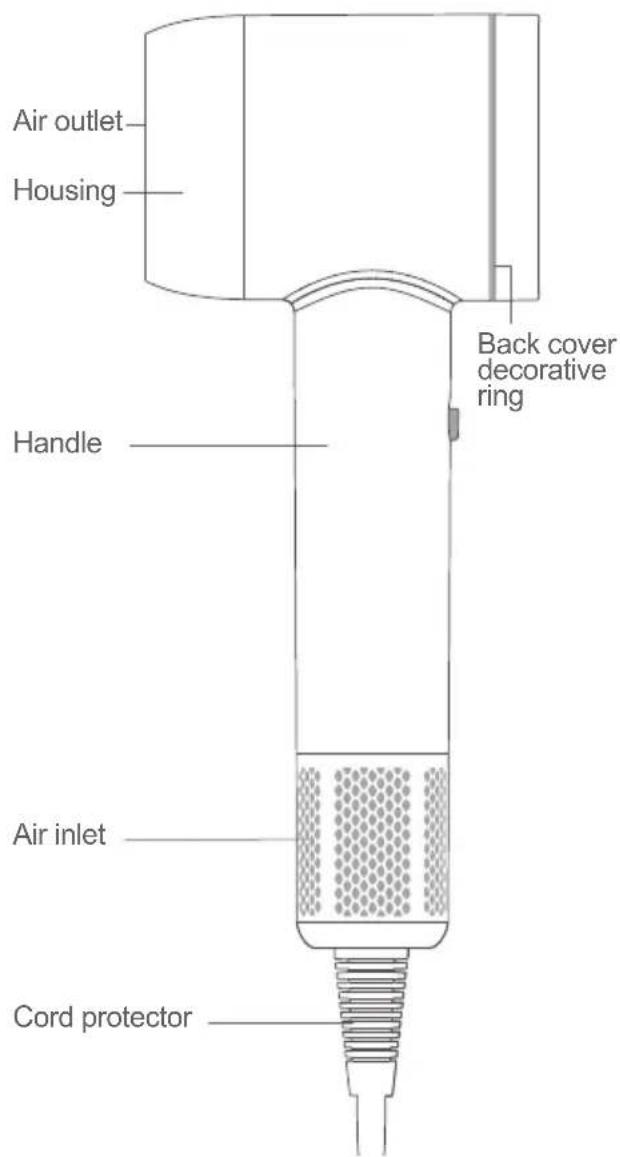

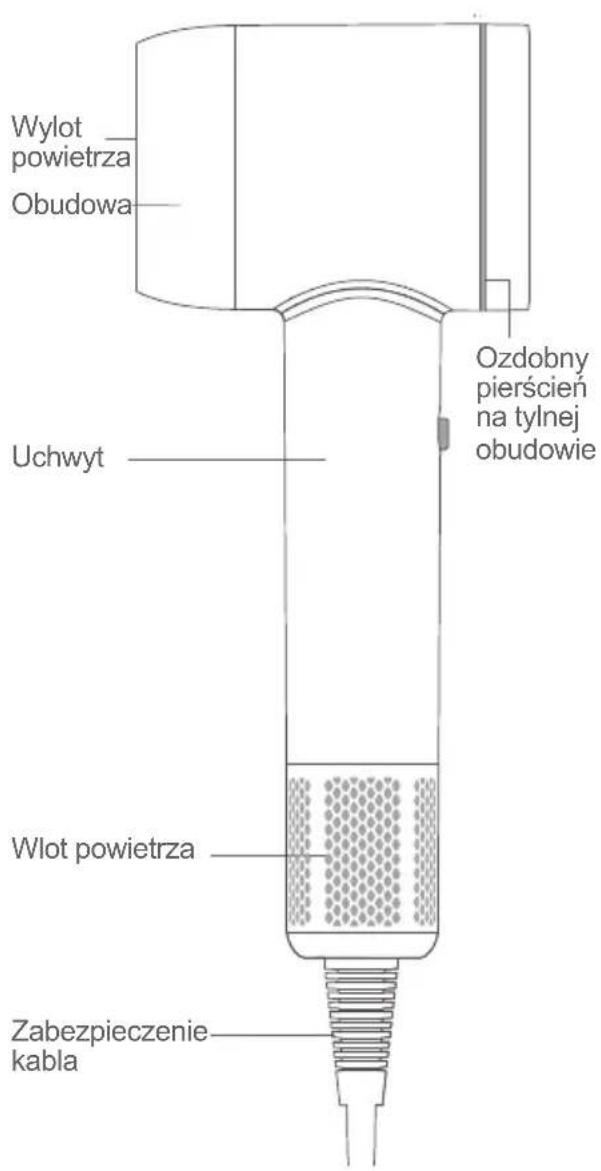

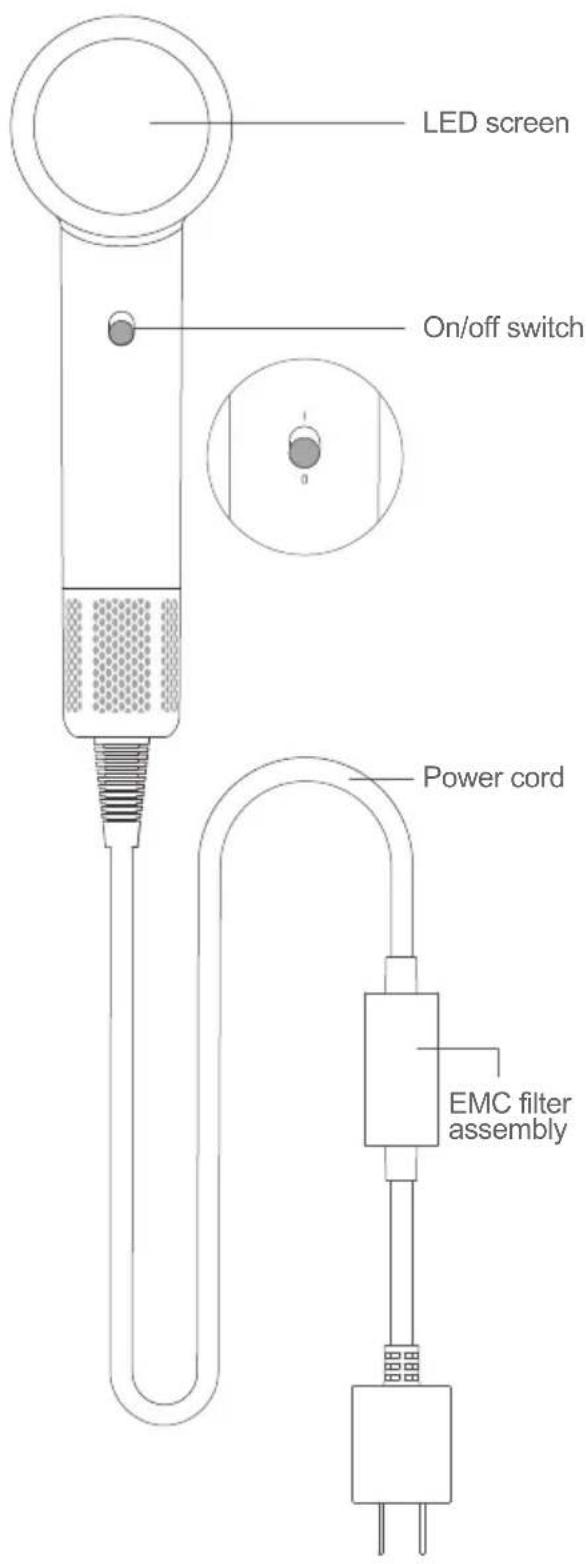

Product Installation Parts Name Air outlet Housing Handle Air inlet Cord protector Back cover decorative ringLED screen On/off switch Power cord EMC filter assembly

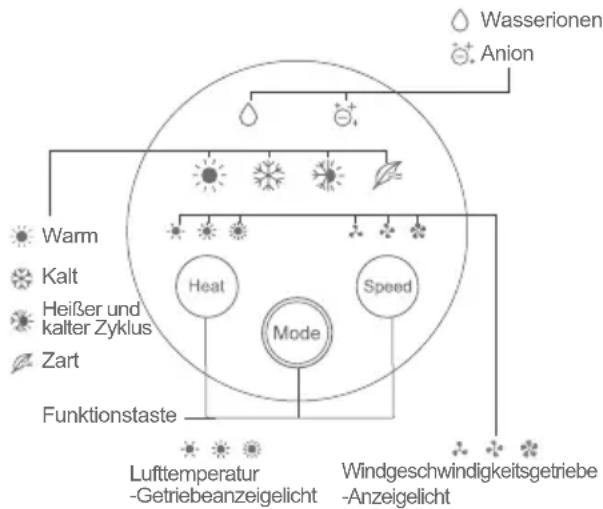

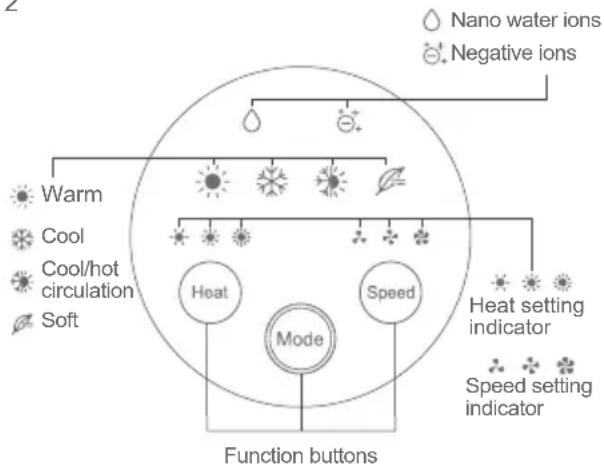

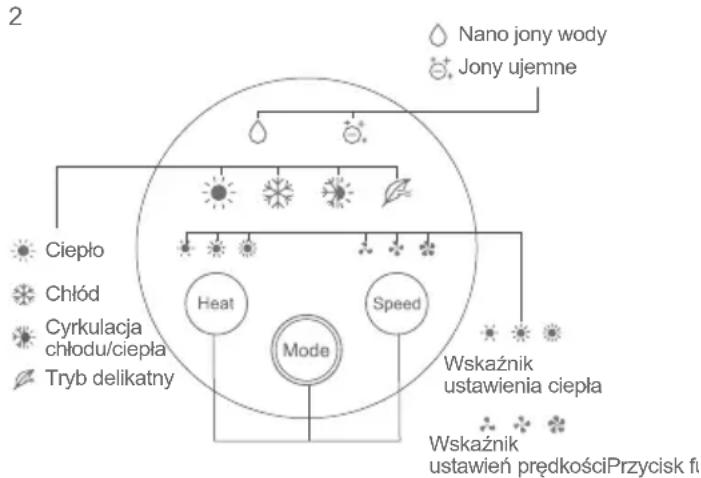

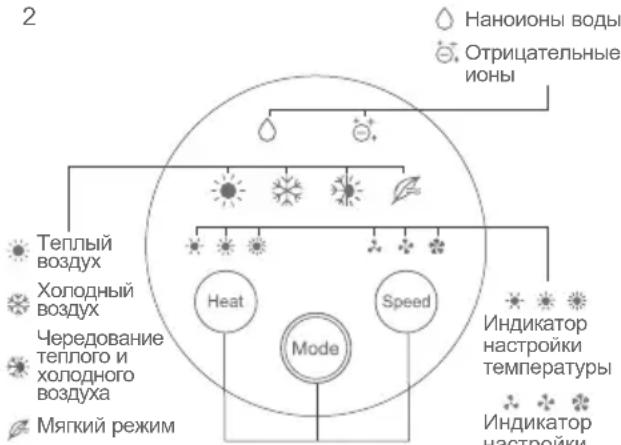

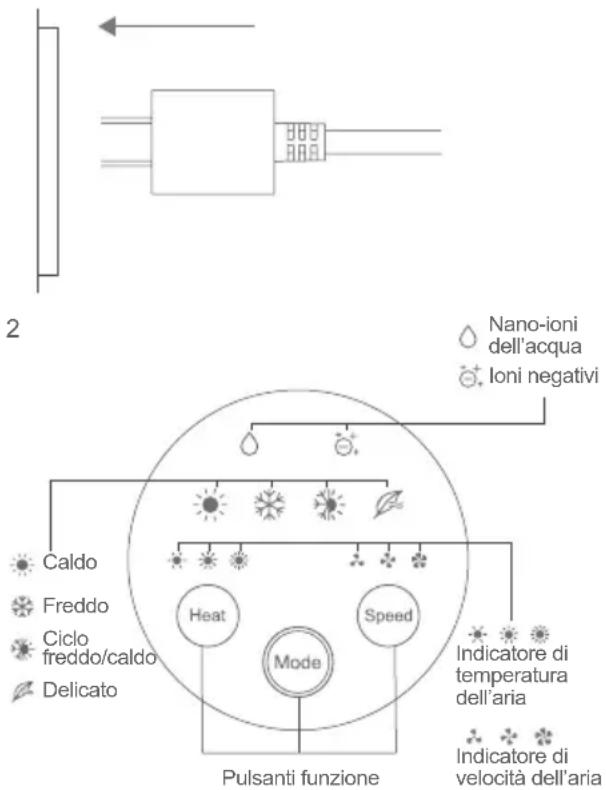

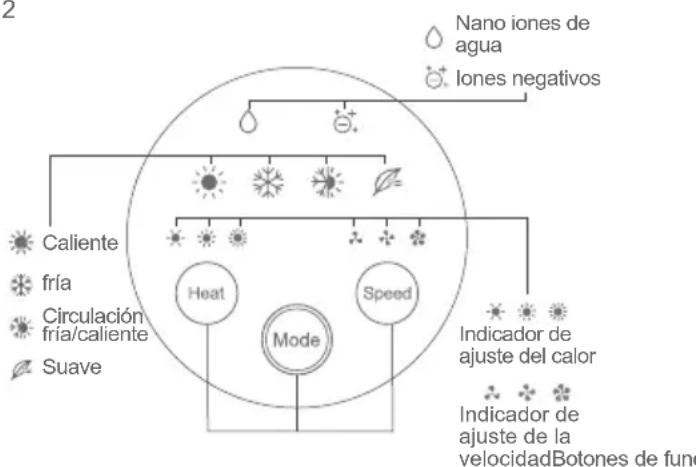

Styling Nozzle4 5 Using Method Use of Product First, Set the On/Off button to Off “ ” position, then plug in the socket. Push the On/Off button to turn on the machine. Press the LED display screen to choose suitable wind heat, suitable wind speed and mode.(Figure 1,Figure 2) Operate the LED display screen after turn on machine. The function description of the LED display screen includes: (Figure2) 1.Function icon:Nano water ion“ ” and negative ion“ ”. When turn off the machine the icon disappears. When turn on the machine the icon lights up and indicates that the function is normal. 2.Mode button：Press the Mode button to switch among four modes: Warm “ ”、Cool “ ”、Cool/Hot “ ”、Soft

Cool/hot circulation mode:Its original air and speed setting stays the same as the first two modes. Air heat and speed are adjustable. The air heat and speed indicator ring displays red and blue light alternately. Warm mode: In this mode, machine stays in the same heat and air speed setting as when it is turned off. Both air heat and air speed settings are adjustable in this mode. Cool mode：When change from warm mode to cool mode, the air speed stays unchanged, air speed is adjustable in this mode.If press Heat button to change heat setting, the device will change automatically to warm mode. Soft mode:In this mode device works in low air heat and speed mode .The Air heat & speed indicator ring shows full white. 3.Heat button: Press Heat button to switch among high, mid, low, 3 different air heat settings, the indicator changes accordingly as below: High air heat: Air heat indicator “ ” lights up. Mid air heat:Air heat indicator “ ” lights up. Low air heat:Air heat indicator “ ” lights up. 4.Speed button: Press Speed button to switch among high, mid, low, 3 different air speed settings, the indicator changes accordingly as below: High air speed:indicator “ ” lights up. Mid air speed:indicator “ ” lights up. Low air speed:indicator “ ” lights up.

Warm Cool Cool/hot circulation Soft 5.Memory function: when device is turned on for the first time, its original mode is high heat and high speed. When it is turned on from second time, it stays in the same mode as previous use. Nano water ions Negative ions Heat setting indicator Speed setting indicator Function buttons6 Product Features This hair dryer adopts high-speed turbofan digital motor, the strong air flow can dry the hair quickly without damaging hair. The Nano water ion and millions of negative ion technology, deeply moisturizing, making hair smooth, reducing the accumulation of static electricity, also good for the tightening of hair cuticle, which makes hair more shining and healthy. 1.The nano water ion is the microparticle ion wrapped by water , which is formed by the decomposition of water under high voltage electricity. 2.During using, under the mode of “warm”、“cool”, it all blows out the air with nano water ion. 3.The following issues will occur during nano water ion generation, which are normal phenomenon: There is water drop out from the water ion nozzle. It might have some special smell, which do no harm to human body. 4.The water ion hair drying will no have obvious effect for the following people: People with natural curly hair People with with hair that can be curled easily People with good quality hair People who has negative ion perm hair for not over 3-4 months People with short hair 5.The water ion is generated through accumulating the water in the air,but under some circumstances, due to limited restrictions, it might not generate water ion. Such as it is difficult to accumulate water under the low temperature and low humidity status, in this case, it will generate negative ion.

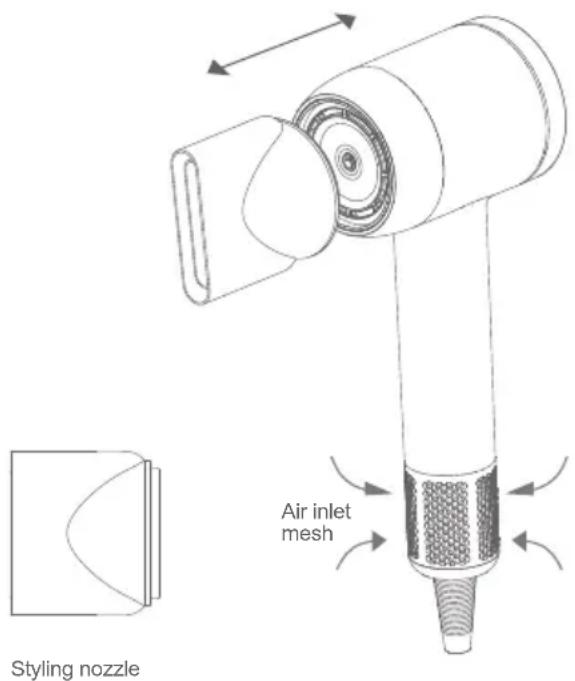

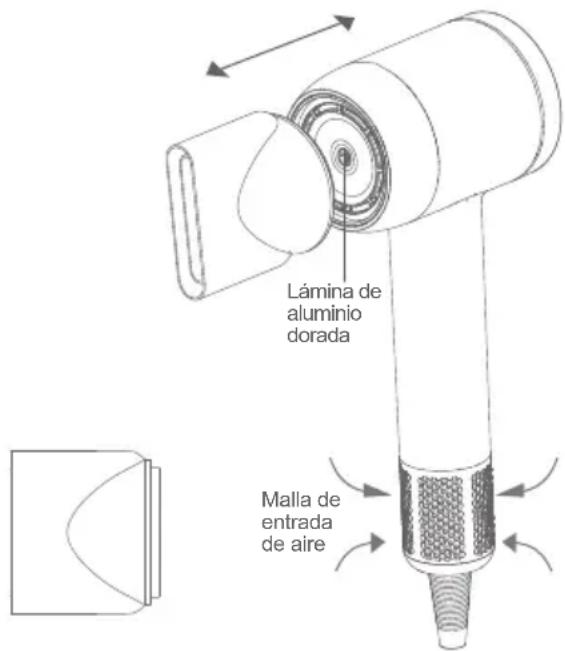

Styling nozzle Air inlet mesh Notes: 1.Keep the position of holding the handle upward to avoid blocking the inlet mesh and affecting the air inlet effect. 2.The product is equipped with styling nozzle that can rotate 360° (Fig 3). Styling nozzle can concentrate airflow to make different hair style. Please install the nozzle under the switch-off status, do not disassemble the nozzle during device working to avoid scald. After using, remove the nozzle until it cools down to avoid scald. Please keep the distance of more than 10cm between hair and air inlet, to avoid hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and air outlet to avoid scald. After using, turn off the device and unplug the power cord.

Maintenance and Storage Please make sure the button is in the Off position and then unplug the socket during cleaning. Please regularly use the towel, cotton bud or tooth brush to clean the inlet and outlet.And Rotate down air inlet end cap to clean the filter screen. Please do not use nail or sharp articles to press and rub the inlet and outlet to avoid products damage. Please do not use alcohol, nail polish remover or detergent to clean the products, otherwise, it will cause failure, crack or colour fading. Safety Notes Please read this instruction manual carefully before use, properly save and store it for future use. Please use the voltage and electric current as described on the rating label. Please do not block the outlet and inlet, otherwise, it will cause scald, electric shock or fire due to short circuit. Please do not use the hair dryer when the hands are wet, otherwise, it will cause electric shock and fire caused by short circuit. Please do not unplug the power plug when the hands are wet, otherwise, it will cause electric shock and injury. When the hair dryer is used in the bathroom, unplug it after using, even though the hair dryer is powered off, it is still dangerous when it is close to water.otherwise it might cause accidents or damages. Please do not use hair dryer next to bath tub, shower, lavatory or other utensil etc. Please do not use the products when the power line is entangled, otherwise it will cause electric shock or fire due to short circuit. Please do not use the machine near to petroleum gas or other inflammable (like propellant, paint thinner, spray etc.), otherwise it will cause explosion. Please do not leave the power on when the machine is not used, otherwise it will cause fire due to short circuit. Please do not entangle the power line around the main machine, otherwise it will cause power cut and cause electric shock or fire due to short circuit. Please keep out reach of children and infants to avoid electric shock and injury. Please do not put the inlet downwards during working, otherwise it will cause thermal fuse red and cause fire. Please do not damage, refit, bend hardly, pull,twist the power line, or put anything on the power cord , squeeze the10

power line, otherwise it will cause electric shock or fire due to short circuit. The outlet and nozzle will get hot during using, please do not touch it to avoid getting hurt. If the smell of protein burning occurs during use, it may be caused by the hair debris entering the hair dryer with the wind. After normal use for a period of time, the odor will dissipate automatically and will not affect normal use. Prevent the fan from falling down or from getting strike, otherwise it will cause electric shock or fire due to short circuit. Please avoid to use it when the inlet is damaged, otherwise hair might be drawn into inlet, causing hair damage. Please unplug the socket immediately, please do not immerse your hand into the water if the machine is accidentally fallen into the water. For additional protection,It is recommended to install a residual current device (RCD) with rated current not exceeding 30mA when using electrical products, so as to avoid fire accidents and personal hazards caused by leakage. Ask your installer for advice. Please do not use it If it is not plugged in tightly, otherwise it will cause, scald, electric shock or fire due to short circuit. Clean the socket regularly to prevent dust from accumulating, otherwise it will cause insulation fault due to humidity, eventually causing fire. Disconnect the power immediately and clean it with dry cloth. Please make sure that hold the power plug and do not drag the power cord and make when unplugging the power plug.Otherwise, the power cord may be broken, scald, electric shock or fire due to short circuit. Please stop using the machine If you see the fire in the outlet during hot wind mode, clean the dust in the inlet and outlet, otherwise it might cause scald or fire. Please do not store the power line when it is twisted, otherwise it will cause power line cut, which might cause scald, electric shock or fire due to short circuit. The product is only for the use of drying hair, please do not use to dry shoes or clothes etc., otherwise it will cause electric shock or fire due to short circuit. Please keep the distance of more than 10cm between hair and inlet,avoiding hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and outlet to avoid scald. The hair dryer is equipped with overheating protection system, the power will be cut when it is over-heated.And switch off and unplug immediately, let it cool down for a minutes. Check if there is some fluff or hair in the inlet or outlet, then switch on again. Please make sure to adjust to “off” after using, unplug from the socket, otherwise it might cause scald or fire. If the power line is damaged, which must be replaced by professional staff from local agents. Note: This sign means Forbidden to use it during bath or shower.12

Trouble Shooting Please check the following issues before sending to designated repair offices. Failure 1: The motor is not working Failure 2: Device does not work after turned on Possible Cause 1: Not plugged in tightly. Solution 1: Check whether power cord plugged in tightly. Possible Cause 2: The on/off button has been pushed too frequently, machine protection has been activated. Solution 2: Turn off machine, wait for 2-3 seconds, then turn on again. Failure 3: Device power off suddenly Failure 4: Air volume is small Possible Causes 1: Overheating protection system started. Possible cause 1: The inlet was blocked by fluffy, hair, etc. Solution 1: Switch off and unplug the power cord, use it after it cool down for few minutes. Solution 1: Clean air outlet. Possible Causes 2: The air inlet was blocked by fluffy, hair, etc, which lead to overheating protection system. Solution 2: Switch off and unplug the power cord, use it after cool down for few minutes. Possible Cause 2: No power on the socket. Possible Cause 3: The on/off button is not pushed to proper position. Solution 2: Check the socket. Solution 3: Push on/off button to proper position. If fault remains after adopting the above solutions, contact after sale service or local distributor immediately. Product Specification Technical Parameter Circuit Diagram Model No F7 220V-240V~50Hz Rated Power Rated Power Supply 1600W Motor Control Circuit Heating Fuse Control Circuit Temperature fuse PTC Bidirectional thyristorHeaterHigh speed digital motorr220V-240V~ 50Hz Slide switchNTC outlet Fuse Negative ion generator Nano water ion generator Display button Capac- itor Resistance Recti- fying circuitManufacturer Information Manufacturer Kingclean Electric Co., Ltd No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China Address The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Disposal
