USER MANUAL F6 JIMMY

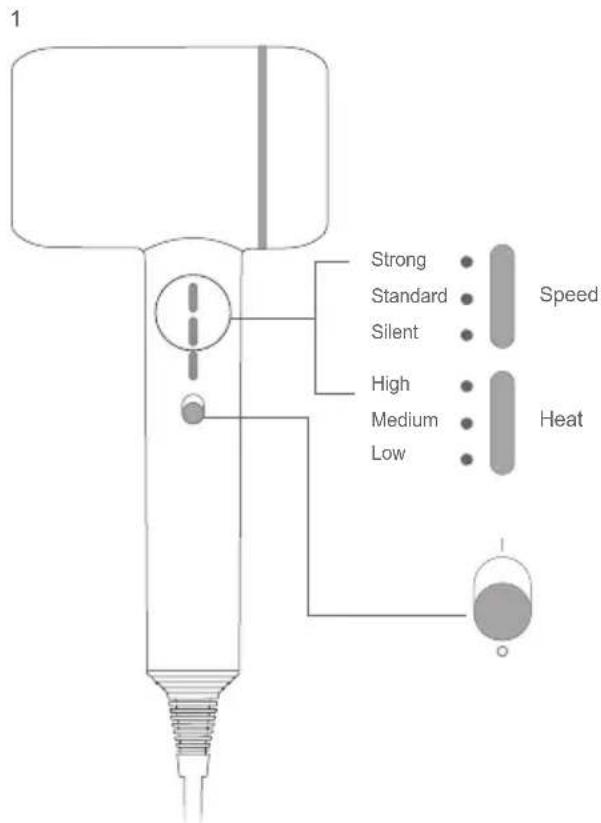

32Quick Dry Nozzle Quickly dry the hair through smooth, wide air flow. With the help of round comb, the focused wind can easily set the hair style of fringe, inner buckle, straight hair. Dispersing wind can make hair style have stereo feeling, make natural curly, make curly hair look more fluffy. Styling Nozzle Diffuser Nozzle First, Set the On/Off to the Off ( ) position, then plug in the socket, and then push the On/Off to turn on the machine. Press speed to choose suitable air speed and press heat button to choose suitable air heat. ( Picture 1 )( Picture 2 )

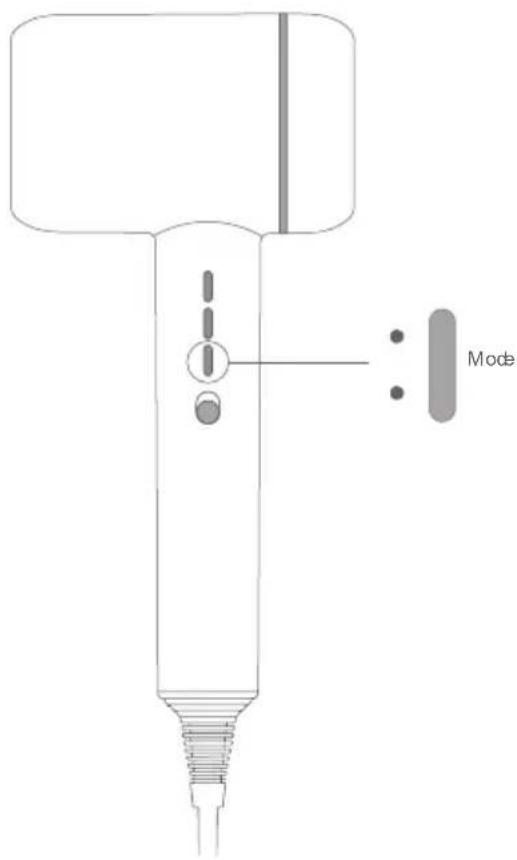

The product is equipped with easily disassemble magnetic nozzle, which can spin 360°.(Picture 4)(Picture 5) Please install the nozzle under the switch-off status, do not disassemble the nozzle during using to avoid scald. After using, reassemble it until the nozzle cool down to avoid scald. Please keep the distance of more than 10cm between hair and inlet,avoiding hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and outlet to avoid scald. After using, switch to off and unplug the power line. When the machine starts up every time, its original mode is medium temperature and medium speed. Press mode button,you can choose cool mode, heat/cool circulation mode or adjust to the original hot mode.(Picture 3) *Press mode button for 10-15s to enter “Turbo” mode.

Product Features The water ion hair drying will have no obvious effect for the following people: 1.People with natural curly hair. 2.People with easily getting curly hair. 3.People with good quality hair. 4.People who do negative ion hair not over 3-4 months. 5.People with short hair. The water ion is generated through accumulating the water in the air, but under some circumstances,due to limited restrictions, it might not generate water ion. Such as it is difficult to accumulate water under the low-temperature and low humidity status, in this case, it will generate negative ion. This hair dryer adopts high-speed turbofan digital motor, the strong air-flow can dry the hair quickly without damaging hair. The Nano water ion and millions of negative iontechnology, deeply moisturizing, making hair smooth, reducingthe accumulation of static electricity, also good for the tightening of hair cuticle, which makes hair more shining and healthy. The water ion is decomposed under high water pressure, the water ion is wrapped by the water molecule. During using, under the mode of “hot ”“cool”, it all blows out the wind with water ion. The following issues will occur during water ion generation, which are normal phenomenon: 1.There is water drop out from the water ion nozzle. 2.It might have some special smell, which do no harm to human body. Daily Maintenance and Storage Please make sure the button is in the off position and then unplug the socket during cleaning. Please regularly use the towel, cotton bud or tooth brush to clean the inlet and outlet. (Picture 6) Please do not use nail or sharp articles to press and rub the inlet and outlet to avoid products damage. Please do not use alcohol, nail polish remover or detergent to clean the products, otherwise, it will cause failure, crack or colour fading.

Safety Notes Please read this instruction manual carefully before use, properly save and store it for future use. Please use the voltage and electric current as described on the rating label. Please do not block the outlet and inlet, otherwise, it will cause scald, electric shock or fire due to short circuit. Please do not immerse the hair dryer into the water. Please do not use hair dryer under the humid environment. Please keep the hair dryer dry to avoid electric shock. Please do not use the hair dryer when the hands are wet, otherwise, it will cause electric shock andfire caused by short circuit. Please do not use the machine near to petroleum gas or other inflammable (like propellant , paint thinner, spray etc.), otherwise it will cause explosion. Please do not leave the power on when the machine is not used, otherwise it will cause fire due to short circuit. Please do not entangle the power line around the main machine, otherwise it will cause power cut and cause electric shock or fire due to short circuit. Please do not store it in the highly humid environment, otherwise it will cause electric shock or fire due to short circuit. Please keep out reach of children and infants to avoid electric shock and injury. Please do not put the inlet downwards during working, otherwise it will cause thermal fuse red and cause fire. Please avoid use the wet hand to unplug the socket in order to avoid electric shock and injury. Please do not use the products when the power line is entangled, otherwise it will cause electric shock or fire due to short circuit. Please do not damage, refit, bend hardly, pull,twist the power line, or put anything on the power line, squeeze the power line, otherwise it will cause electric shock or fire due to short circuit. The outlet and nozzle will get hot during using, please do not touch it to avoid getting hurt. Please do not use it If it is not plugged in tightly, otherwise it will cause, scald, electric shock or fire due to short circuit. Prevent the fan from falling down or from getting strike, otherwise it will cause electric shock or fire due to short circuit. Please avoid to use it when the inlet is damaged, otherwise hair might be drawn into inlet, causing hair damage. Please unplug the socket immediately, please do not immerse your hand into the water if the machine is accidentally fallen into the water. Please keep out reach of infants to avoid scald. Please do not store the power line when it is twisted, otherwise it will cause power line cut, which might cause scald, electric shock or fire due to short circuit. Clean the socket regularly to prevent dust from accumulating, otherwise it will cause insulation fault due to humidity, eventually causing fire. Disconnect the power immediately and clean it with dry cloth.12 Trouble Shooting Please check the following issues before sending to designated repair offices. Failure 1:The motor is not working. Failure 2:Press On,not working Possible Cause 1:Not plug in tightly Solution 1:Check whether it plug in tightly Possible Cause:The button has been pressed too quickly, machine protection has been started Solution:Press “off”, wait 2-3 seconds, then start again Failure 3：Power off suddenly Failure 4:Air volume is small Possible Cause 1:Overheating protection system started Possible Cause:The inlet was blocked by fluff, hair etc., Solution 1:Switch off and unplug the power line, reuse it after it cool down for a minutes Solution:Clean outlet Possible Cause 2:The inlet was blocked by fluff, hair etc., which lead to overheating protection system Solution 2:Switch off and unplug the power line, reuse it after it cool down for a minutes Possible Cause 2:No power on the socket Possible Cause 3:The switch On is not in proper position Solution 2:Check the socket Solution 3:Switch on to the proper position

Please stop using the machine If you see the fire in the outlet during hot wind mode, clean the dust in the inlet and outlet, otherwise it might cause scald or fire. Please keep the distance of more than 10cm between hair and inlet,avoiding hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and outlet to avoid scald. The product is only for the use of drying hair, please do not use to dry shoes or clothes etc., otherwise it will cause electric shock or fire due to short circuit. The hair dryer is equipped with overheating protection system, the power will be cut when it is over-heated.And switch off and unplug immediately, let it cool down for a minutes. Check if there is some fluff or hair in the inlet or outlet, then switch on again. When the hair dryer is used in the bathroom, unplug it after using, even though the hair dryer is powered off, it is still dangerous when it is close to water. For the purpose of protection, it is recommended to install 30mA RCD, please ask local RCD installation agent for detail information. Please do not use hair dryer next to bath tub, shower, lavatory or other utensil etc.. The appliance is equipped with heating surface, for the people who are not sensitive to the heat (like diabetic) use it with the help of normal people. Please make sure to adjust to “off” after using, unplug the socket, otherwise it might cause scald or fire. If the power line is damaged, which must be replaced by professional staff from local agents. Note: This sign means Forbidden to use it during bath or shower.Manufacturer Information Warranty Information Manufacturer Kingclean Electric Co., Ltd The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China Address This product enjoys two years warranty from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances. Product Specification Technical Parameter Circuit Diagram Model No F6 220V-240V~50Hz Rated Power Rated Power Supply 1800W Product Size 284.5×121×76.5mm Fuse Capacitance M a c h i n e C i r c u i t Motor Control Circuit Heating Fuse Control Circuit Temperature Fuse TemperatureControl BidirectionalThyristorHeating Fuse OutletHigh SpeedMotorLED DisplayWater IonGeneratorNegative IonGenerator220V-240V~ 50Hz R e s i s t a n c e
