USER MANUAL F2 JIMMY

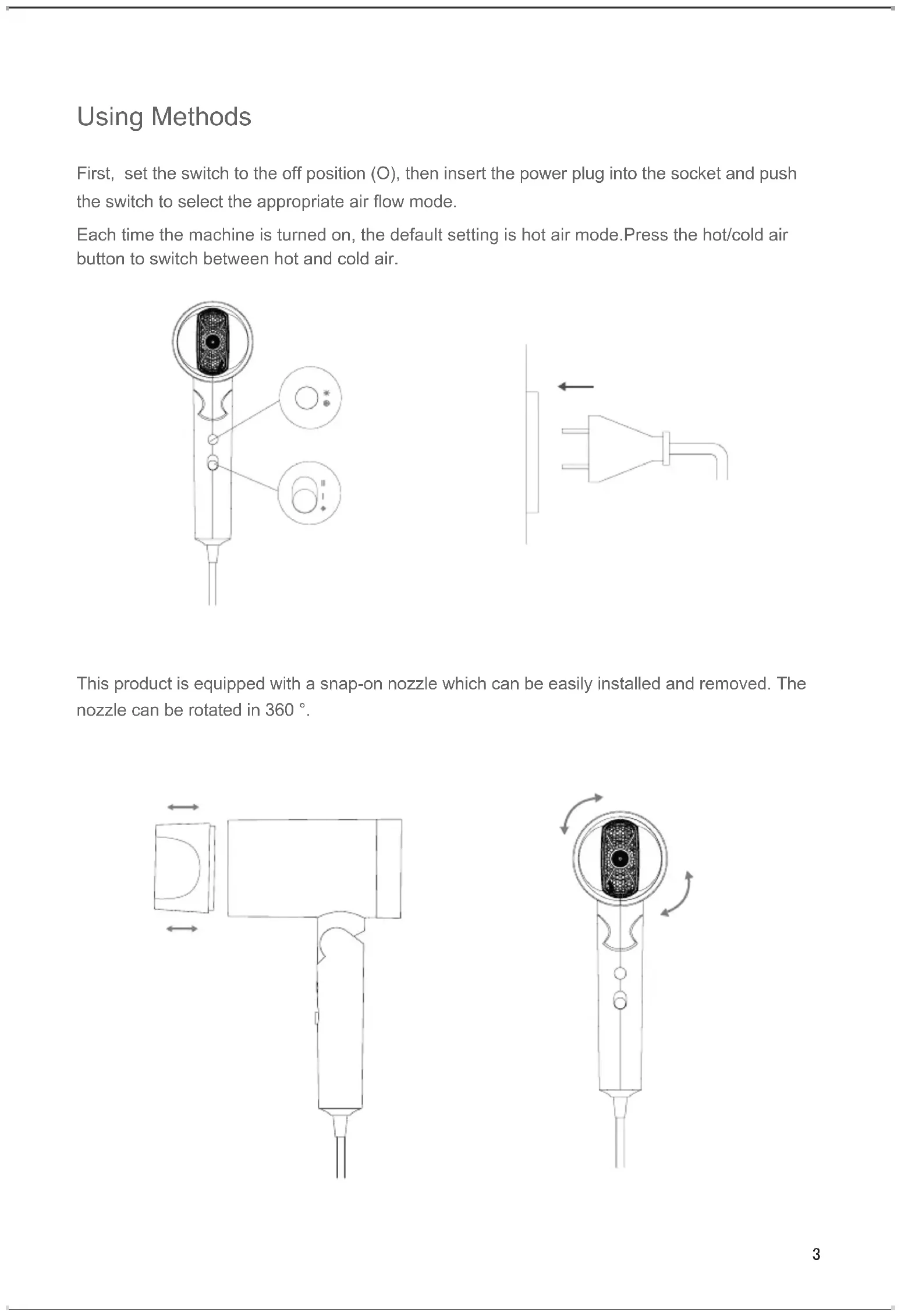

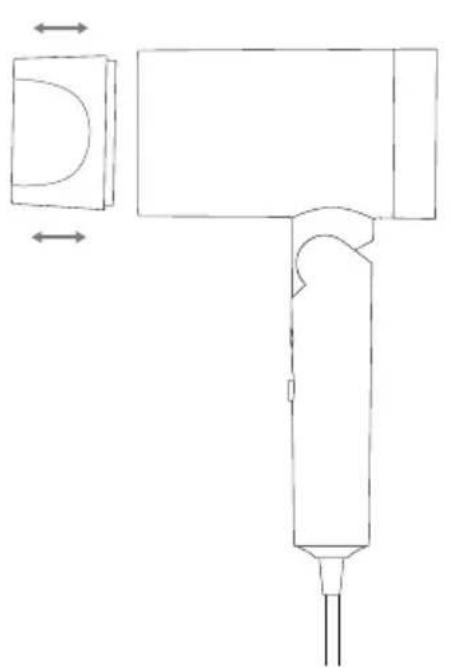

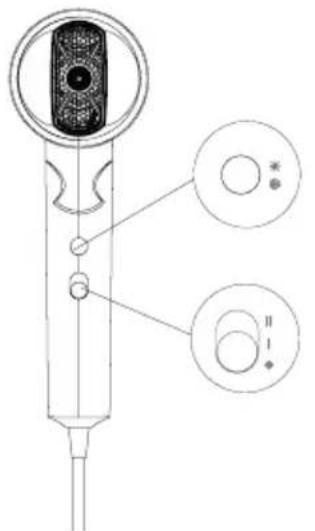

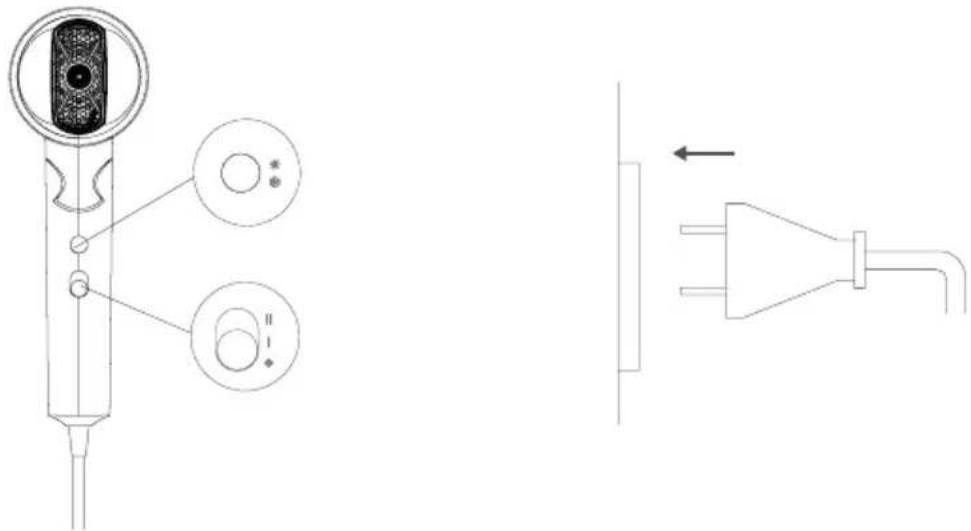

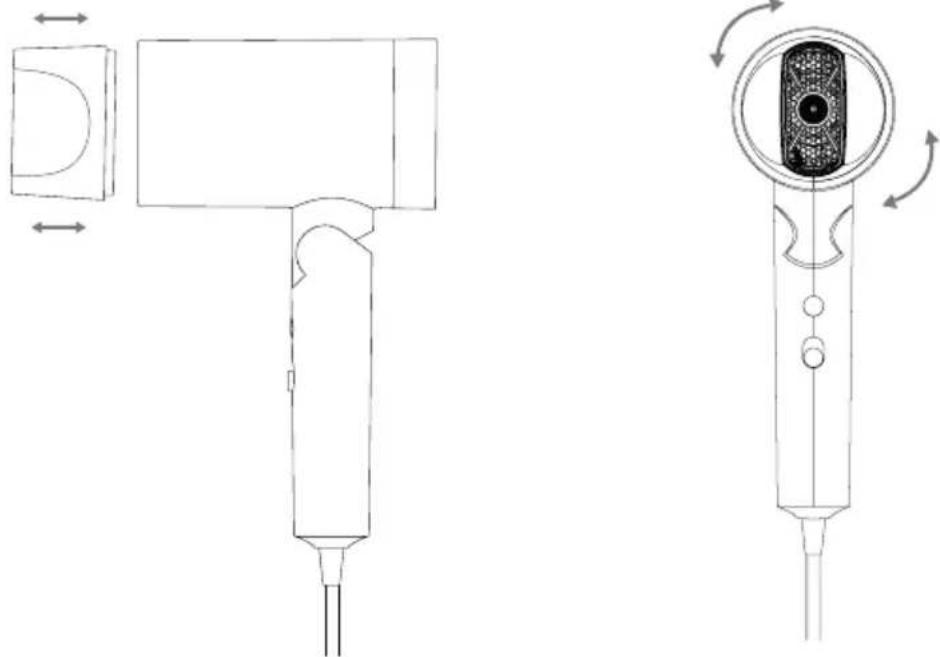

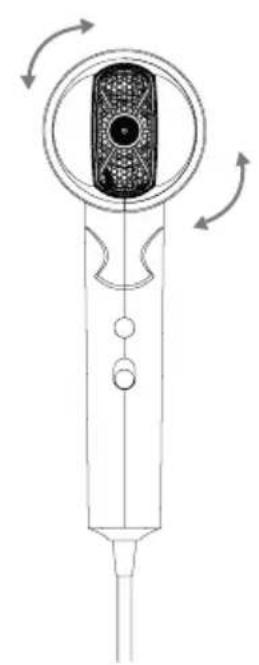

Using Methods First, set the switch to the off position (O), then insert the power plug into the socket and push the switch to select the appropriate air ow mode. Each time the machine is turned on, the default setting is hot air mode.Press the hot/cold air button to switch between hot and cold air. This product is equipped with a snap-on nozzle which can be easily installed and removed. The nozzle can be rotated in 360 °.4 Please install the nozzle under the switch-off status, do not assemble or disassemble the nozzle during using to avoid scald. After using, reassemble it until the nozzle cool down to avoid scald. Please keep the distance of more than 10cm between hair and inlet, to avoid hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and outlet to avoid scald. After using, turn off the hair dryer and unplug the power cord plug. Product features This hair dryer uses Nano water ion and negative ion technology to deeply replenish hair, remove frizz, care for damaged hair, help reduce static electricity accumulation in the hair, and help tighten hair scales, making the hair more healthy and shiny. Nano water ions are created by water decomposition under high electricity voltage, the ions are wrapped by water. During using, the air includes Nano water ions in both hot and cool wind mode. In the process of generating Nano water ions, this hair dryer may have the following conditions, which are normal: 1.There is water drop out from the water ion nozzle. 2.It might have some special smell, which will not cause harm to the human body. The water ion hair drying will have no obvious effect for the following people:

• people with natural curly hair

• People with easily curled hair

• People with good hair quality

• People with short hair The Nano water ions is generated through accumulating the water in the air, but under some circumstances, due to limited restrictions, it might not generate water ions, it will generate negative ions instead. Daily maintenance and storage Please make sure the power button is in the off position and then unplug the socket during cleaning. Please regularly use the towel, cotton bud or tooth brush to clean the air inlet and outlet and remove the foreign objects attached on the mesh of back cover. Please do not use nail or sharp articles to press and rub the air inlet and outlet to avoid products damage. Please do not use alcohol, nail polish remover, detergent or napkin with alcohol to clean the product, otherwise, it will cause failure, crack or colour fading.5 Safety Notes Please read this instruction manual carefully before using this machine, and please keep it for future reference. Please use the voltage and electric current as described on the rating label. Please do not block the outlet and inlet, otherwise, it will cause scald, electric shock or re due to short circuit. Please do not use with wet hands, otherwise, it will cause electric shock or re due to short circuit. Please disconnect the plug after using it in the bathroom, as access to water can be dangerous even after the hair dryer is powered off. Failure to do so may cause accidents or damage. Please do not use the machine near a water bath, shower, washbasin, or other utensils. The appliance is equipped with heating surface, for the people who are not sensitive to the heat (like diabetic) , please be sure to use it with the help of normal people. Please do not use the machine near petroleum gas or other ammable materials (such as propellant , paint thinner, spray etc.), otherwise it will cause explosion or re due to short circuit. Please do not leave the product there with the electric power on, otherwise it will cause re due to short circuit. Please do not entangle the power cord around the main machine, otherwise it will cause power cut and cause electric shock or re due to short circuit. Please keep out reach of children and infants to avoid electric shock and injury. Please do not put the inlet downwards during working, otherwise it will cause thermal fuse red and cause re. Please do not unplug the socket when your hands are wet, otherwise it may cause electric shock and injury. Please do not use the machine when the power cord is entangled, otherwise it may cause electric shock or re due to the short circuit. The outlet and nozzle will get hot during using, please do not touch it with your hands, otherwise it may cause burns. Please avoid the hair dryer from falling down or under impact intense by external force,otherwise6 it will cause electric shock or re due to short circuit. Please do not use with the air inlet damaged, otherwise hair may get caught in the air inlet and cause hair damage. If the product accidentally falls into the water, please unplug it immediately, never put your hand in the water. For the purpose of protection, it is recommended to install 30mA RCD, please ask local RCD installation agent for detail information. Clean the socket regularly to prevent dust from accumulating, otherwise it will cause insulation fault due to humidity, eventually causing re. Disconnect the power immediately and clean it with dry cloth. Please do not twist the power cord when unplugging it. Please be sure to hold the power plug with your hand and pull it out, otherwise it will cause power cord cut, which might cause scald, electric shock or re due to short circuit. Please stop using the machine If you see the re in the outlet during hot wind mode, clean the dust in the inlet and outlet, otherwise it might cause scald or re. Please do not store the power cord when it is twisted, otherwise it will cause power cord cut, which might cause scald, electric shock or re due to short circuit. The product is only for drying hair, please do not use to dry shoes or clothes etc., otherwise it will cause electric shock or re due to short circuit. Please keep the distance of more than 10cm between inlet and hair, avoiding hair from entangling into the hair dryer. Please keep the distance of more than 3cm between hair and outlet to avoid scald. The hair dryer is equipped with overheating protection system, the power will be cut automatically when it is over-heated. And switch off and unplug immediately, let it cool down for a minute. Check if there is some uff or hair in the inlet or outlet, then switch on again. After use, please be sure to set the power switch to the "0" position and unplug the power plug from the socket, otherwise it may cause burns or re. If the power cord is damaged, to avoid danger, it must be replaced by a professional from the manufacturer, its service department, or a similar department. Failure to do so may result in accidents or injuries.7 Please do not repair, disassemble or ret the hair dryer by yourself, otherwise you may be injured due to re or abnormal movement. Please contact the local customer service center if repair is needed. Note: This symbol on the body indicates that it is prohibited to use in the bath or shower. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision Trouble Possible Causes Solutions The motor is not working Not plug in tightly Check if the power cord plug is tight. The motor is not working No power on the socket Check power socket The motor is not working The switch buttons are not pressed in place Press the switch button in the right place. Power off suddenly Hair dryer temperature is too high and activated overheating protection. Switch off and unplug the power cord, reuse it after it cool down for a minutes. Power off suddenly The air inlet is blocked by obstacles (such as uff, hair, etc.), and activated overheating protection system . Switch off and unplug the power cord. Remove the foreign objects in air inlet. Reuse it after it cool down for a minutes. Air ow is small The air inlet is blocked by obstacles (such as uff, hair, etc.) Clean air inlet Trouble Shooting Please check the following issues before sending to designated repair ofces. Attention:If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices.8 Technical Parameter Circuit Diagram 220V-50Hz~High Voltage PackageDC Motor HeaterPower PCBRefrigeration sheetControl PCB Water Ions Model No F2 Rated Voltage 220V-240V~ Rated 50Hz Rated Power 1800W Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China Manufacturer Information9 Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice. Warranty Information This product enjoys one year warranty for the machine

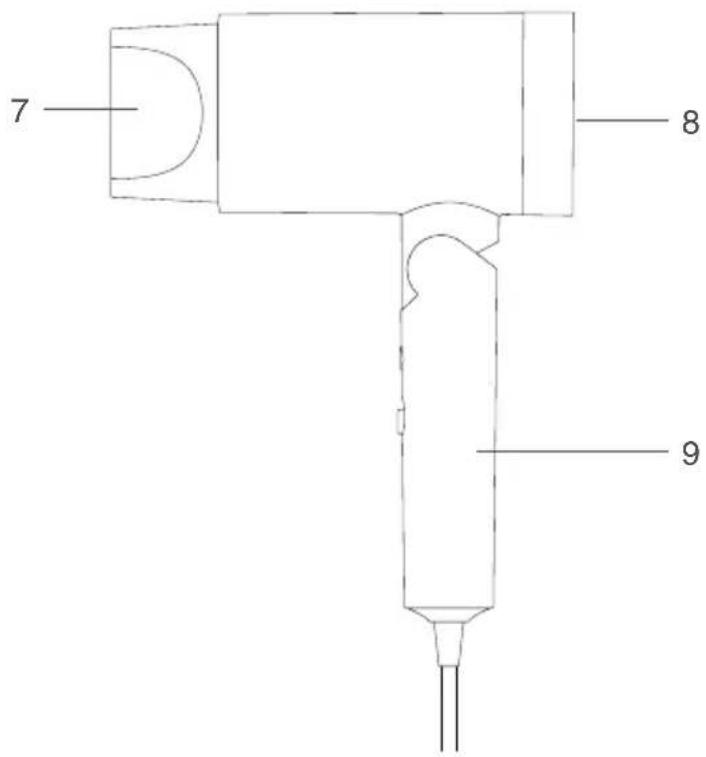

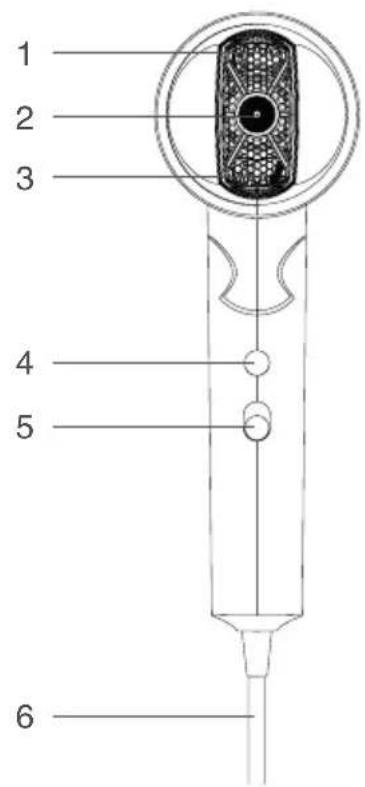

service starting from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries.10 Produkteinführung Teilname 1.Luftauslass 4 .Heiß- / Kaltluftknopf 7.Düse 2.Nanoionenausgang
