POWDP50400 - Sander PowerPlus - Free user manual and instructions

Product type	Cordless random orbital sander
Brand	PowerPlus
Model	POWDP50400
Rated voltage	20 V
Rotation speed	6,000 - 12,000 min⁻¹
Oscillation speed	12,000 - 24,000 min⁻¹
Oscillation width	1.5 mm
Sanding surface	∅125 mm
Motor type	Brushed
Ergonomic handle	"Soft grip" coating
Paper attachment system	Hook and loop
Dust bag	Included
Speed adjustment	Adjustment dial from MIN to MAX (6 positions)
Battery charge indicator	3 LEDs (100%, 60%, almost discharged)
Battery	Not included (Li-ion 20 V)
Charger	Not included (specific charger recommended)
Sound pressure level	79 dB(A)
Sound power level	90 dB(A)
Vibration level	4.3 m/s²
Handle material	TPR (thermoplastic rubber)
Intended use	Sanding and polishing of wood, plastic and similar materials (non-professional use)
Warranty	36 months (excluding battery, charger, accessories)
Package contents	1 sander, 1 dust bag, 1 abrasive sheet (80 grit), 1 manual

Frequently Asked Questions - POWDP50400 PowerPlus

How to install the sandpaper?

Choose a suitable self-adhesive abrasive paper. Place it on the sanding pad aligning the holes, then press firmly. To remove, peel it off carefully.

How to adjust the sanding speed?

Turn the speed adjustment dial (10) from MIN (slow speed) to MAX (fast speed) according to the work. Do not force beyond positions 1 or 6.

How to install and remove the battery?

To install, slide the battery pack into the compartment until you hear a click. To remove, press the release latch and pull the battery outward.

What does the battery capacity indicator mean?

Three LEDs indicate the level: 3 LEDs = fully charged, 2 LEDs = 60%, 1 LED = almost discharged.

Can I use this sander on plaster?

No, do not sand plaster surfaces. This can block the motor and cause irreparable damage to the machine. The warranty does not apply in this case.

How to use the dust bag?

Insert the dust bag into the extraction port of the tool. Check that it is securely attached by gently pulling on it.

What is the power-on procedure?

Make sure the battery is installed. Press the 'I' side of the on/off switch to turn on, and 'O' to turn off.

What safety precautions should be observed?

Always wear protective goggles and a dust mask. Secure the workpiece. Do not leave the tool running unattended. Avoid any contact with water.

How to clean and maintain the sander?

Before any cleaning, remove the battery. Clean the ventilation openings with a soft brush. Do not use solvents.

What to do if the battery does not charge?

Check that the battery is inserted correctly in the charger and that the charger is plugged in. If the charger indicator shows a steady green and red light, the battery or charger is damaged. Contact customer service.

USER MANUAL POWDP50400 PowerPlus

POWERPLUS 20 M L X

Fig. A

Fig. 1

POWERBUTTER Green Red

Fig. 2

Hand using an orange power tool with a black tag, showing mechanical components and a magnified view of the lever (no text or symbols visible)

Fig. 3

20V DUAL POWER 8 7

Fig. 4

Orange and black power tool with circular dial indicator (no readable text or symbols)

Fig. 5

Orange and black electric shaver with sand filter cover, no visible text or symbols

Orange and black power shaver tool with perforated top (no visible text or symbols)

Fig. 6

Orange power plant with black strap and 'POWERPLUS' branding, shown with bidirectional arrow (no text on device)

Fig. 7

Orange power tool with black mesh and orange body, showing a 120V power button (no text or symbols visible)

POWDP50400 NL

1 TOEPASSING .... 3

2 BESCHRIJVING (FIG. A) 3

3 INHOUD VAN DE VERPAKKING....3

4 TOELICHTING VAN DE SYMBOLEN 4

5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN ....4

5.1 Werkplaats....4

5.2 Elektrische veiligheid....4

2 BESCHRIJVING (FIG. A)

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 FR

17 DÉCLARATION DE CONFORMITÉ

C ∈

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 EN

1 APPLICATION....3
2 DESCRIPTION (FIG. A) 3
3 PACKAGE CONTENT LIST....3
4 SYMBOLS 4
5 GENERAL POWER TOOL SAFETY WARNINGS ....4
5.1 Working area 4
5.2 Electrical safety....4
5.3 Personal safety....5
5.4 Power tool use and care....5
5.5 Service....6
6 ADDITIONAL SAFETY INSTRUCTIONS FOR SANDERS......6
7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS ....6
7.1 Batteries 6
7.2 Chargers....7
8 CHARGING AND INSERTION OR REMOVAL OF BATTERY ......7
8.1 Charger indications (Fig. 1)....7
8.2 Removal / insertion of battery (Fig. 2)....7
8.3 Battery capacity indicator (Fig. 3)....7
9 FEATURES....8
10 OPERATING INSTRUCTIONS......8
10.1 Sanding....8

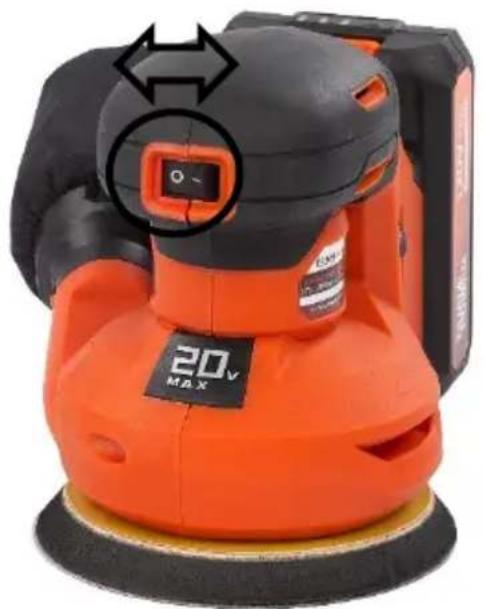

10.2 Switching On-off (Fig. 4)......8

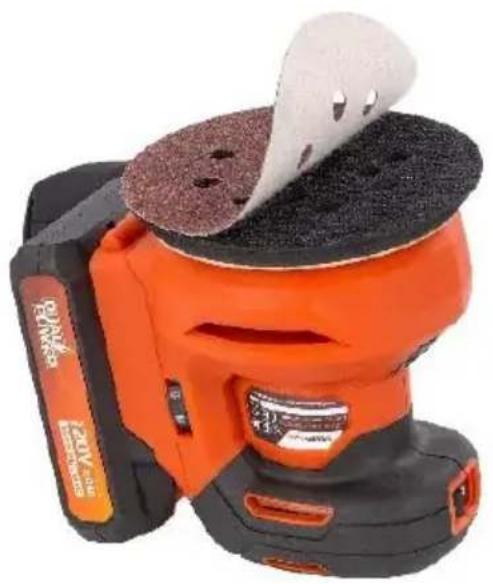

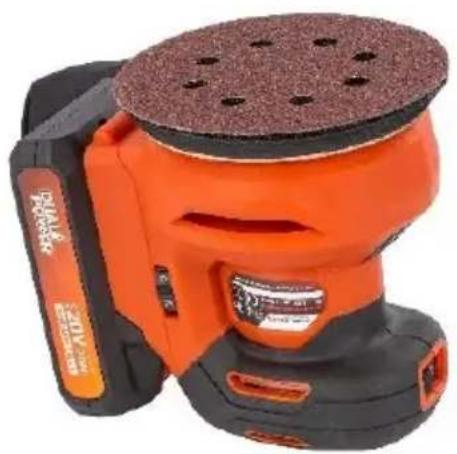

10.3 Attaching the sandpaper 8

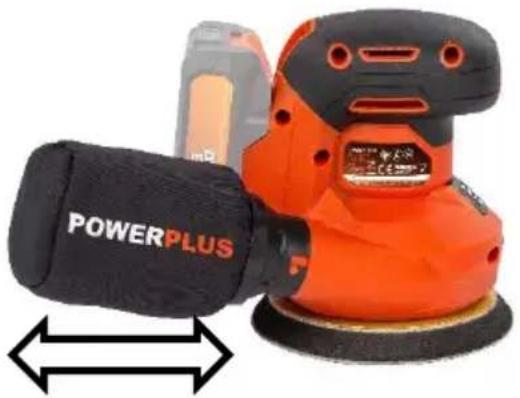

10.4 Using the dust bag (Fig. 6)....9
10.5 Changing the speed (Fig. 7)....9
11 TECHNICAL DATA 9
12 NOISE 9
13 CLEANING AND MAINTENANCE....9
14 STORAGE 9

POWERPLUS HIGH QUALITY TOOLS

POWDP50400 EN

15 WARRANTY....10
16 ENVIRONMENT....10
17 DECLARATION OF CONFORMITY....11

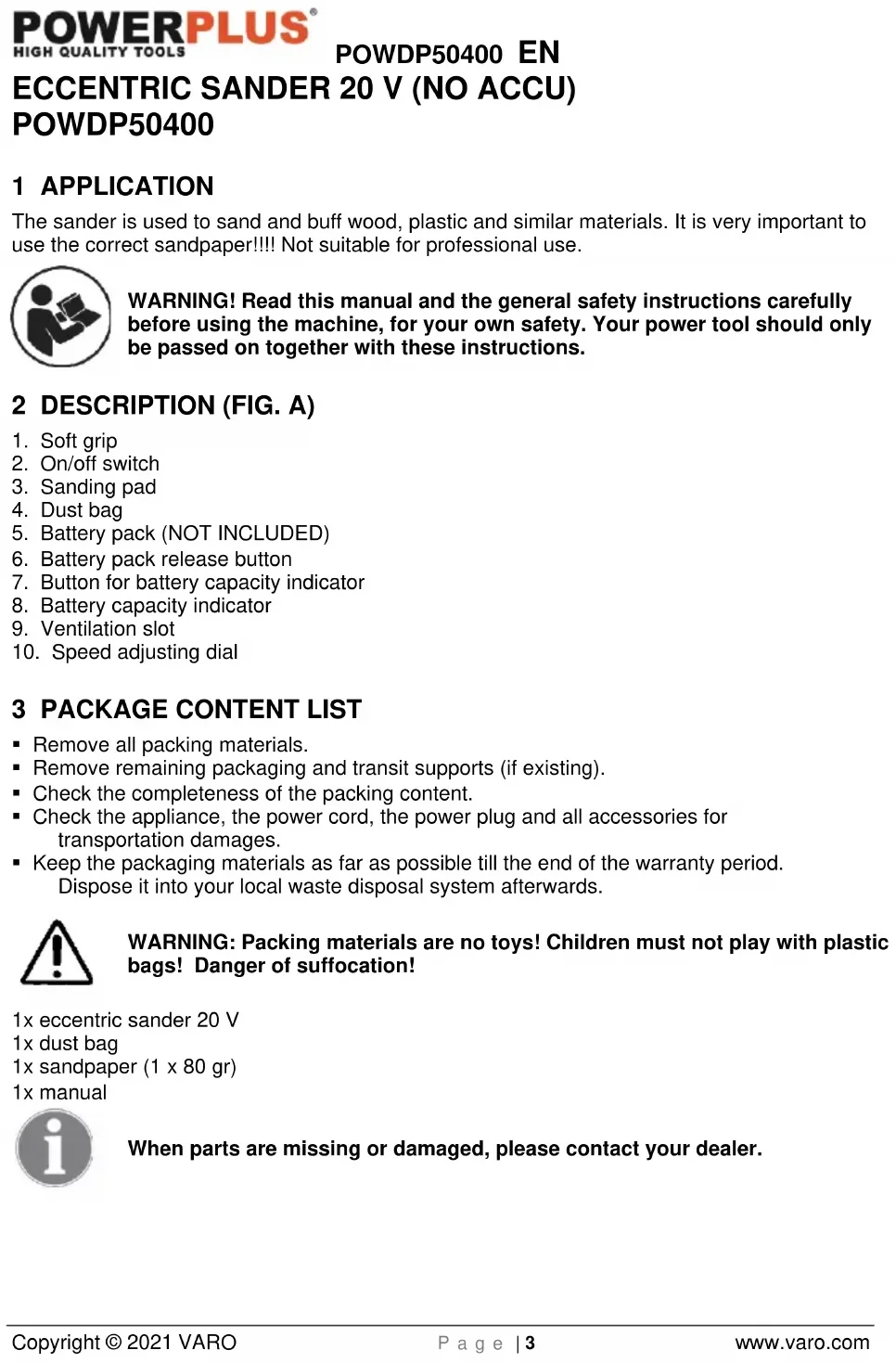

ECCENTRIC SANDER 20 V (NO ACCU)

POWDP50400

1 APPLICATION

The sander is used to sand and buff wood, plastic and similar materials. It is very important to use the correct sandpaper!!!! Not suitable for professional use.

WARNING! Read this manual and the general safety instructions carefully before using the machine, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A)

1. Soft grip
2. On/off switch
3. Sanding pad
4. Dust bag
5. Battery pack (NOT INCLUDED)
6. Battery pack release button
7. Button for battery capacity indicator
8. Battery capacity indicator
9. Ventilation slot
10. Speed adjusting dial

3 PACKAGE CONTENT LIST

• Remove all packing materials.
• Remove remaining packaging and transit supports (if existing).
• Check the completeness of the packing content.
• Check the appliance, the power cord, the power plug and all accessories for transportation damages.
• Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1x eccentric sander 20 V

1x dust bag

1x sandpaper (1 x 80 gr)

1x manual

When parts are missing or damaged, please contact your dealer.

POWDP50400 EN

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.		In accordance with essential requirements of the European directive(s).
	Read manual before use.		Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for charger).
	Ambient temperature 40 °C max. (only for battery).		Do not expose charger and battery pack to water.
	Use battery and charger only in closed rooms.		Do not incinerate battery pack or charger.
	Mandatory use of eye protection.		Wear gloves.
	Wear a mask in dusty conditions.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.

POWDP50400 EN

• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
  If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

POWDP50400 EN

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR SANDERS

• Always wear safety-goggles and a dust-mask during your work with the eccentric sander.
• Always secure the work piece by clamps or else to avoid slipping away.
• Always keep the holes in the base plate clean from dust.
• Always connect a vacuum cleaner to the attached adaptor during your work.
  ■ Take special care when sanding lead based paint:

○ All persons entering the work area must wear a mask specially designed for protection against lead paint dust and fumes.

○ Children and pregnant women must not enter the work area.
- Do not eat, drink or smoke in the work area.
- Do not leave the tool running. Operate the tool only when hand-held.

- Ventilate your work area adequately when you perform sanding operations.

- Be sure that there are no cracks or breakage on the pad before use. Cracks or breakage may cause a personal injury.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

7.1 Batteries

■ Never attempt to open for any reason.

- Do not store in locations where the temperature may exceed 40 °C.

- Charge only at ambient temperatures between 4 °C and 40 °C.

- Store your batteries in a cool dry place (5 °C-20 °C). Never store batteries in discharged state.

It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

- When disposing of batteries, follow the instructions given in the section "Protecting the environment".

- Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.

- Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

- Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:

• Carefully wipe the liquid off using a cloth. Avoid skin contact.
  – In case of skin or eye contact, follow the instructions below:

√ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.

√ In case of eye contact, rinse abundantly with clean water for at least 10 minutes.

Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

POWDP50400 EN

7.2 Chargers

• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
  ■ The charger is intended for indoor use only.

8 CHARGING AND INSERTION OR REMOVAL OF BATTERY

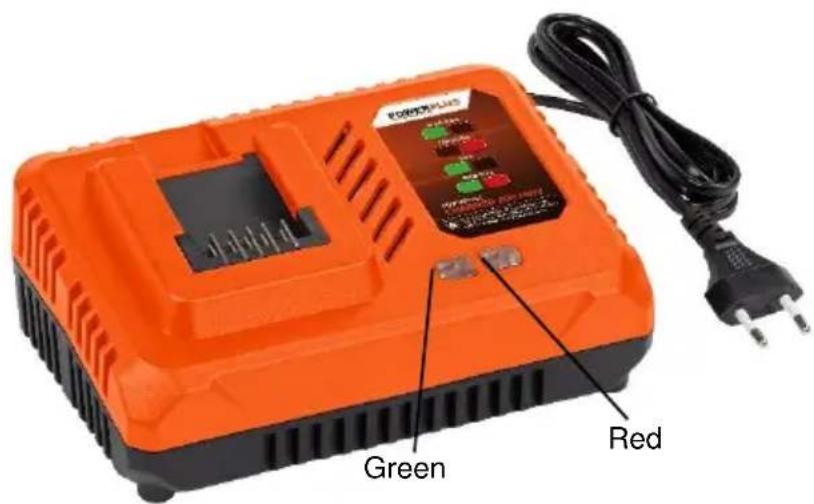

8.1 Charger indications (Fig. 1)

Connect the charger to the power outlet socket:

• Solid green: ready to charge.
  ■ Flickering red: charging.
• Solid green: charged.
• Solid green and red: battery or charger damaged.

Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

1. Frequently monitor the charger and battery pack while connected.
2. Unplug the charger and disconnect it from the battery pack when finished.
3. Allow the battery pack to cool completely before using it.
4. Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.

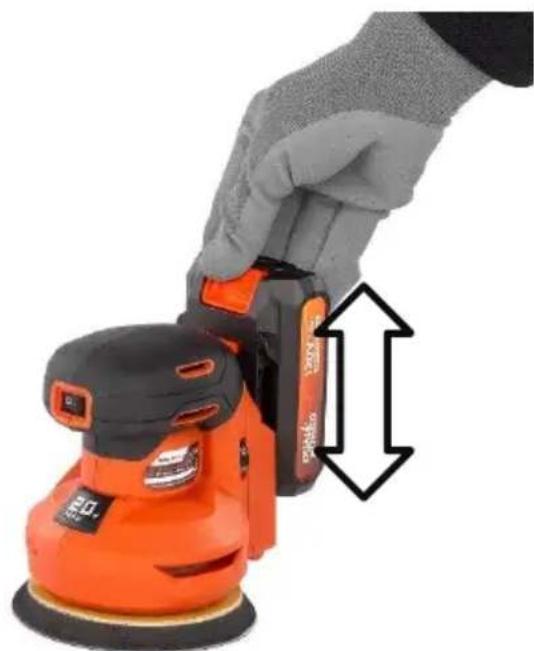

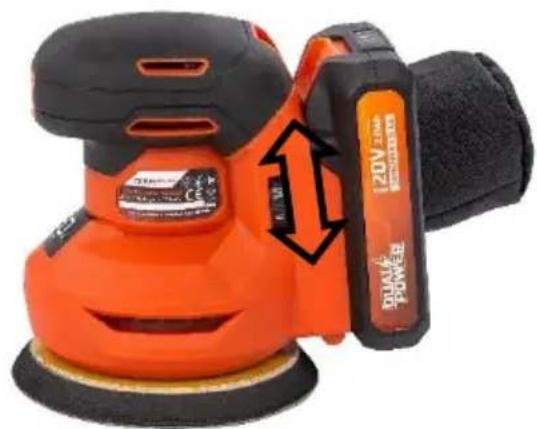

8.2 Removal / insertion of battery (Fig. 2)

WARNING: Before making any adjustments ensure the machine is switched off or remove the battery pack.

• Hold the tool with one hand and the battery pack with the other.
• To install: push and slide battery pack into battery port, make sure the release latch on the rear side of the battery snaps into place and battery is secure before beginning operation.
• To remove: Press the battery release latch and pull the battery pack out at the same time.

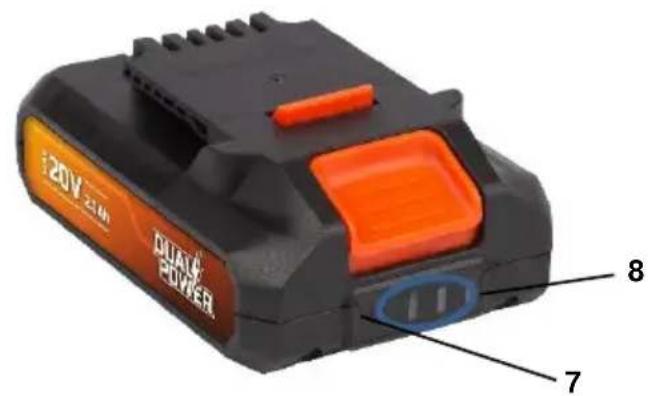

8.3 Battery capacity indicator (Fig. 3)

There are battery capacity indicators (8) on the battery pack, you can check the capacity status of the battery if you squeeze the button (7) Before using the machine, please press switch trigger to check if the battery is full enough for properly working.

Those 3 LED might show the status of the capacity level of the battery:

3 LED's are lit: Battery fully charged.

2 LED's are lit: Battery 60% charged.

1 LED is lit: Battery almost discharged.

9 FEATURES

Your eccentric sander is equipped with TPR soft grip and protective parts. TPR (Thermoplastic rubber) is elastic, chock absorbing and environmental friendly (recyclable).

10 OPERATING INSTRUCTIONS

Before attempting to use your sander be sure to familiarize yourself with all its operating features and safety requirements.

Warning! The battery should always be removed from the machine when assembling parts, marking adjustments, cleaning or when the tool is not in use. Disconnecting the battery will prevent accidental starting that could cause serious injury.

Do not sand plaster surfaces, (WARNING: In this case your guarantee becomes void) this may clog the motor (brushes, ball bearings, ...).

10.1 Sanding

• Hold the sander in front and away from you, keeping it clear of the work piece.
• Start the sander.
• Let the motor build up to speed then gradually lower it on to the work with a slight forward movement.
• Move the sander slowly over the work piece using forward and back or side to side strokes.
• Upon completion of the sanding operation remove the sander from the work piece before turning it off.

10.2 Switching On-off (Fig. 4)

Connect the battery pack (5) to the power tool by pushing the release button (6). The tool is switched "On" by the ON/OFF switch (2) located on top of the tool housing.

• Switch on: push the ON/OFF switch button (2) to the "I" position.
• Switch off: push the ON/OFF switch button (2) to the "O" position.

10.3 Attaching the sandpaper

Attaching self-adhesive sandpaper (Fig. 5).

• Select a sandpaper with the appropriate grit size for the task.
  ■ Position the sandpaper so that its holes are aligned with those on the sanding pad (3).
• Press the sandpaper onto the sanding pad (3) and check it is secure.
• To remove the sanding paper carefully peel the sanding paper away from the sanding pad (3).

WARNING: When removing the sanding paper, follow the above procedure in reverse order.

WARNING: Before making any adjustments ensure the machine is switched off or remove the battery pack.

POWDP50400 EN

10.4 Using the dust bag (Fig. 6)

• Insert the dust bag (4) into dust extraction port, make sure the dust bag is tightly fastened.
• Check whether the dust bag (4) is firmly fixed on the dust extraction port by pulling it gently.

10.5 Changing the speed (Fig. 7)

The rated speed and impact rate can be adjusted just by turning the speed adjusting dial (10). The dial is marked MIN (lowest speed) to MAX (full speed).

The speed adjusting dial (10) can be turned only as far as 6 and back to 1. Do not force it past 6 or 1, or the speed adjusting function may no longer work.

WARNING: Avoid blocking the vent holes, as this may cause the eccentric sander to overheat.

WARNING: To prevent accidents, turn off the tool and disconnect its power supply after use. Clean and store the tool indoors and out of children's reach.

11 TECHNICAL DATA

Rated voltage (DC)	20 V
Rotation speed	6.000 – 12.000 min ^-1
Sanding surface	∅125 mm
Engine type	Brushed
Oscillation speed	12.000 – 24.000 /min
Oscillation width	1.5 mm
Soft grip	Yes
Hook&loop system	Yes

12 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA 79 dB(A)

Acoustic power level LwA 90 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

4.3 m/s²

K = 1.5 ~m / s^2

13 CLEANING AND MAINTENANCE

• The machine does not require any special maintenance.
• For safe and efficient working, always keep the machine and the ventilation slots clean.
• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

14 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.

POWDP50400 EN

• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

15 WARRANTY

• This product is warranted as provided by law for a 36-month period effective from the date of purchase by the first user.
• This warranty covers all material or production flaws excluding: batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
  We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
• Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
• You can always obtain more information at the number 00 32 3 292 92 90.
• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
  ■ Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
• Your purchase receipt must be kept as proof of date of purchase.
• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.
• Your tool must be charged at least 1x per month to ensure optimal operation of this tool

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

C ∈

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Eccentric sander 20 V – Battery operated

Trade mark: PowerPlus

Model: POWDP50400

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature):

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature):

EN62841-1:2015

EN62841-2-4:2014

EN55014-1:2017

EN55014-2:2015

Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Mertens Ludo

Ludo Mertens

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 DE

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 ES

11/06/2021, Lier - Belgium

POWDP50400 IT

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 PT

Certification Manager

11/06/2021, Lier - Belgium

1 BRUKSOMRÅDE ....3
2 BESKRIVELSE (FIG. A)....3
3 PAKKENS INNHOLD 3
4 SYMBOLFORKLARING....4
5 GENERELLE SIKKERHETSADVARSLER ....4
5.1 Arbeidsplassen 4
5.2 Elektrisk sikkerhet 4
5.3 Personsikkerhet....5
5.4 Vær nøyaktig og omhyggelig når du omgås elektroverktøy 5
5.5 Service....5
6 EKSTRA SIKKERHETSINSTRUKSJONER FOR SLIPEMASKINER . 6
7 EKSTRA SIKKERHETSREGLER FOR BATTERIER OG LADERE .... 6
7.1 Batterier 6
7.2 Ladere....6
8 LADING OG INNSETTING ELLER FJERNING AV BATTERIET .....7
8.1 Laderindikasjoner (Fig. 1)....7
8.2 Fjerning/innsetting av batteri (Fig. 2)....7
8.3 Batterikapasitetsindikator (Fig. 3)....7
9 UTSTYR....8
10 BRUK....8
10.1 Sliping....8
10.2 Skru på/av (Fig. 4)....8
10.3 Feste av sandpapir....8
10.4 Bruke støvposen (Fig. 6)....9
10.5 Endre hastigheten (Fig. 7)....9
11 TEKNISKE DATA....9
12 ST∅Y 9
13 RENGJ∅RING OG VEDLIKEHOLD 9
14 OPPBEVARING....9

POWERPLUS HIGH QUALITY TOOLS

POWDP50400 NO

15 GARANTI....10
16 MILJ∅ 10
17 SAMSVARSERKLÆRING .... 11

EKSENTERSLIPER 20 V (UTEN BATTERI) POWDP50400

1 BRUKSOMRÅDE

Certification Manager

11/06/2021, Lier - Belgien

POWDP50400 SV

3 FÖRPACKNINGSINNEHÅLL

11/06/2021, Lier - Belgium

POWDP50400 EL

11/06/2021, Lier - Belgium

POWDP50400 HR

1 PRIMJENA .... 3
2 OPIS (SLIKA A) 3
3 POPIS SADRŽAJA PAKETA 3
4 SIMBOLI....4
5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA......4
5.1 Radno mjesto 4
5.2 Električna sigurnost....4
5.3 Osobna sigurnost .... 5
5.4 Uporaba i održavanje električnog alata 5
5.5 Servis....6
6 DODATNE SIGURNOSNE UPUTE ZA BRUSILICE......6
7 DODATNE SIGURNOSNE UPUTE ZA BATERIJE I PUNJAČE ..... 6
7.1 Baterije....6
7.2 Punjači....7
8 PUNJENJE I UMETANJE ILI UKLANJANJE BATERIJE ....7
8.1 Indikatori punjača (slika 1)....7
8.2 Uklanjanje / umetanje baterije (slika 2)....7
8.3 Indikator kapaciteta baterije (slika 3)......8
9 ZNAČAJKE 8
10 UPUTE ZA UPORABU 8
10.1 Brušenje 8
10.2 Uključivanje i isključivanje (slika 4)....8
10.3 Postavljanje brusnog papira 8
10.4 Korištenje vrećice za prašinu (slika 6)....9
10.5 Promjena brzine (slika 7)....9
11 TEHNIČKI PODACI....9
12 BUKA 9
13 ČIŠĆENJE I ODRŽAVANJE....10
14 ČUVANJE....10

POWERPLUS HIGH QUALITY TOOLS

POWDP50400 HR

15 JAMSTVO 10
16 OKOLIŠ....11
17 IZJAVA O SUKLADNOSTI....11

EKSCENTRIČNA BRUSILICA 20 V (BEZ BATERIJE) POWDP50400

1 PRIMJENA

Brusilica se koristi za brušenje i poliranje drveta, plastike i sličnih materijala. Vrlo je važno da koristite brusni papir ispravne gradacije! Nije prikladno za profesionalnu uporabu.

UPOZORENJE! Prije uporabe alata, a radi vaše vlastite sigurnosti pažljivo pročitajte ovaj priručnik i opće upute o sigurnosti. Ove upute čine sastavni dio opreme električnog alata, pa i u slučaju prodaje drugom vlasniku.

2 OPIS (SLIKA A)

1. Meki rukohvat
2. Sklopka za uključivanje/isključivanje
3. Brusna podloga
4. Vrećica za prašinu
5. Baterija (NIJĖ UKLJUČENA)
6. Gumb za oslobađanje baterije
7. Gumb za indikator kapaciteta baterije
8. Indikator napunjenosti baterije
9. Otvor za ventilaciju
10. Gumb za podešavanje brzine

3 POPIS SADRŽAJA PAKETA

Certification Manager

11/06/2021, Lier – Belgicko

POWDP50400 RO

Certification Manager

11/06/2021, Lier - Belgia

1 ZASTOSOWANIE....3

2 OPIS (RYC. A)....3

3 LISTA ELEMENTÓW W OPAKOWANIU .... 3

4 SYMBOLE 4

5 OGÓLNE ZASADY BEZPIECZNEJ PRACY ELEKTRONARZĘDZIAMI....4

7.1 Akumulatory....6

7.2 Ładowarki....7

8 ŁADOWANIE I WKŁADANIE LUB WYJMOWANIE AKUMULATORA 7

Certification Manager

11/06/2021, Lier - Belgium

POWDP50400 RU

Certification Manager

11/06/2021, Lier - Belgium

DISCOVER THE ENTIRE PRODUCT RANGE AT WWW.DUAL-POWER.COM
