USER MANUAL Dawn Pole Mount Charge Amps

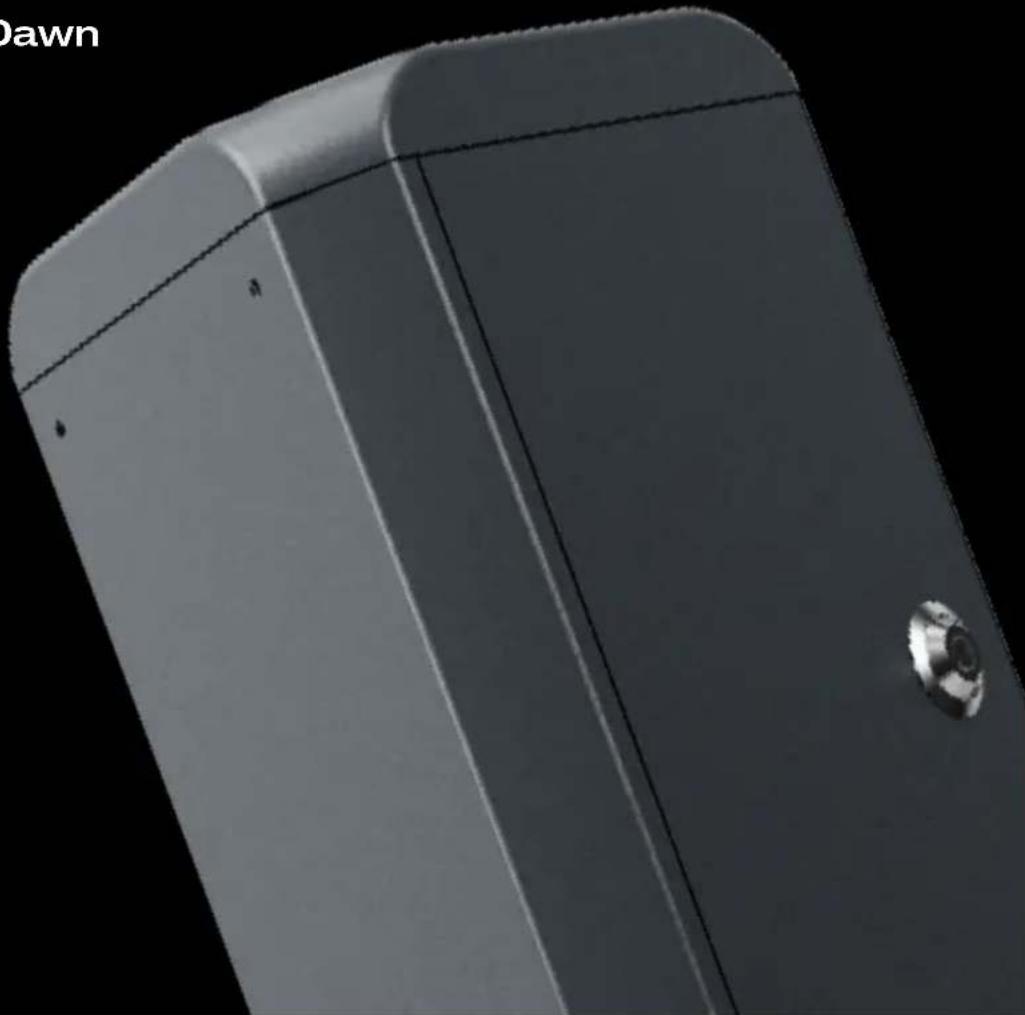

Charge Amps Pole Mount

Charge Amps Dawn

Dual - Charge Amps Dawn

3D rendered image of a gray rectangular object with a knob, against a black background (no text or symbols)

Installation Manual

Dansk Nederlands

Deutsch Norsk

English Português

Español Suomi

Français Svenska

Respect the environment! Must not be discarded with household waste! This product contains electrical or electronic components. Leave the product for separate collection and proper treatment at a designated location e.g. the local authority's recycling station.

CE UK CA

Approved in conformity with the relevant EU directives and UK legislation.

Neglecting to follow and carry out the directions, instructions and safety precautions in this Installation Manual implies that any warranty provisions will be cancelled and that Charge Amps can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect – that are a result of such negligence.

Charge Amps does not give any warranties as to the accuracy or completeness of this document and shall have no liability for the consequences of using such information. The manufacturer reserves the right to make changes to information published in this document without notice. Visit www.chargeamps.com for the latest document releases.

© Copyright Charge Amps AB. All rights reserved. Copying, amending and translating are strictly forbidden without prior written approval from Charge Amps AB.

Safety

Warning: Read all instructions before use

• The product must only be installed by a qualified electrician in accordance with the Installation Manual.
  • National usage requirements and restrictions apply.
• Inspect the product for visible damage before use.
• Never attempt to repair or use the product if it is damaged. The product must only be repaired by a qualified electrician.
• Make sure to switch the power off at the main switch before installation or service. Improper use may create a risk of personal injury.
• Make sure all cables are correctly fastned.
• Double check all screw termanials after installation.
• Avoid combustible materials to be used in the product.
• Never attempt to disassemble the product in any other way than described in this manual.

Technical data

Rated voltage (Un) 230/400 V
Rated insulation voltage (Ui) 250/400 V
Rated impulse withstand voltage (Uimp)	4 kV
Rated frequency (fn) 50 Hz
Rated current (In) 64/32 A
Rated diversity factor (RDF) 1 (can be lowered if used together with a load balancing functionality)
Pollution degree 3
Types of earthing system for which the assembly is designed	TN, TT, IT
IP code IP44
IK code IK10
Measures for protection against electric shock	Class I
Dimensions (W x D x H)	215 x 188 x 512 mm
Weight	4.1 kg
Incoming cable dimensions Cu 0.5 - 16 mm2

Charge Amps Pole Mount Charge Amps Dawn

Line drawing of a mechanical device with two control buttons and a warning symbol (no text or labels)

Technical line drawing of a cylindrical mechanical component with mounting flanges (no text or symbols)

• x2x1x2BA


E x1

F x 4

G x1

H x 4

1 x 1

Charge Amps Pole Mount - Dual - Charge Amps Dawn

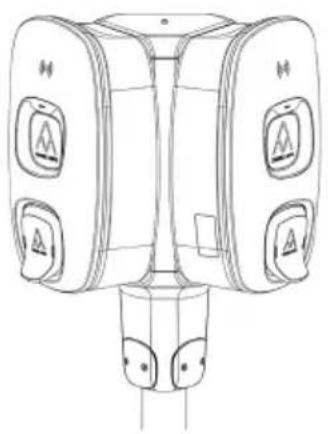

Line drawing of a mechanical device with two identical components and warning symbols (no text or labels)

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

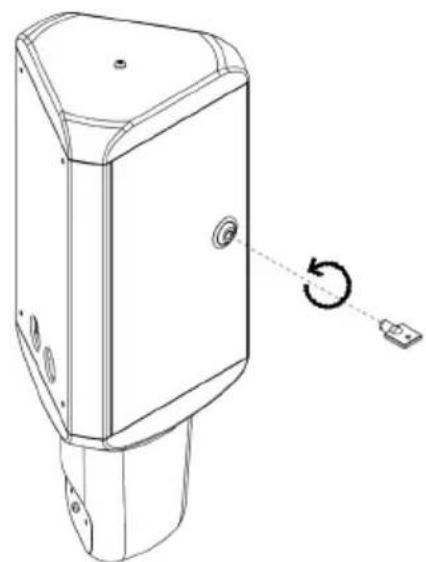

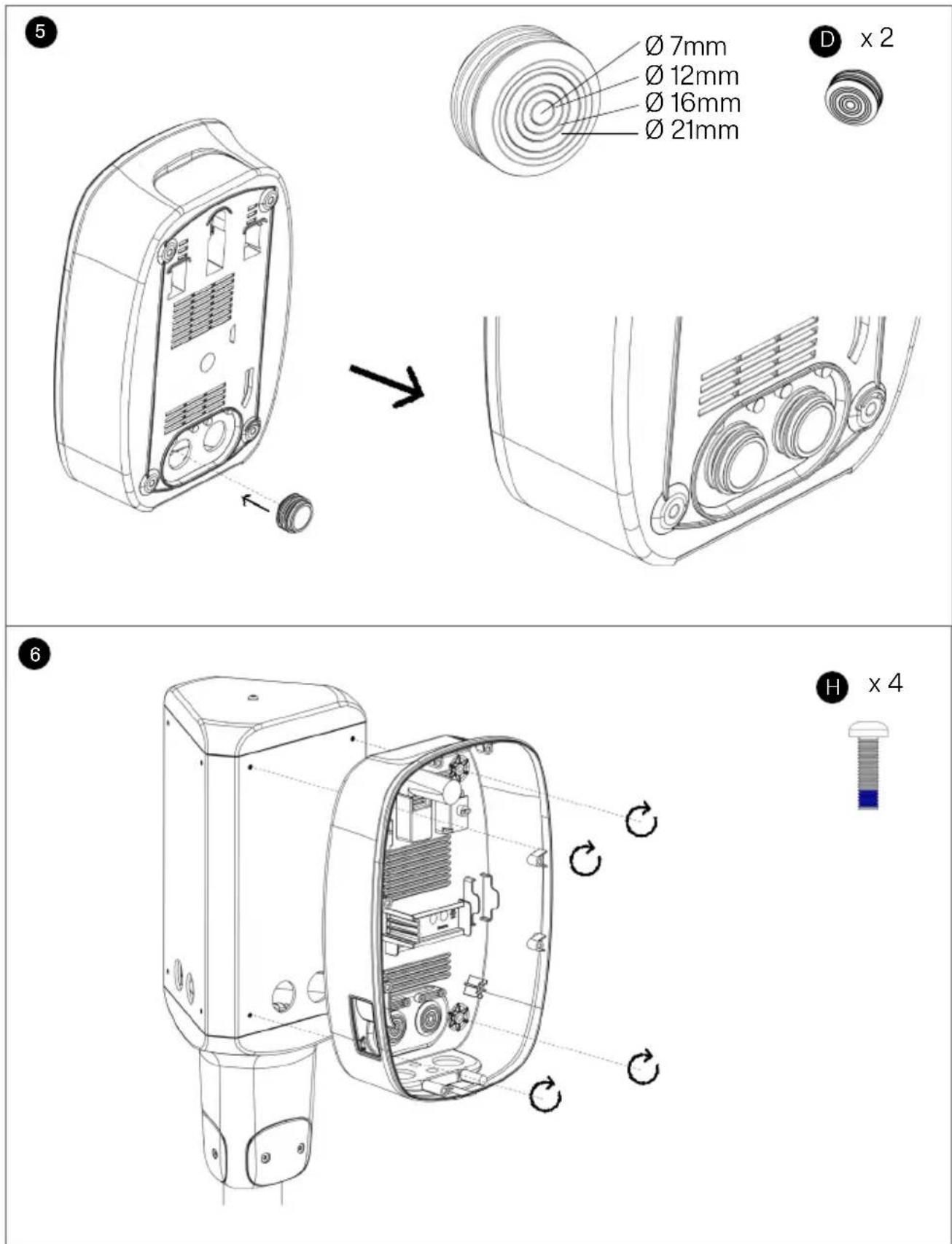

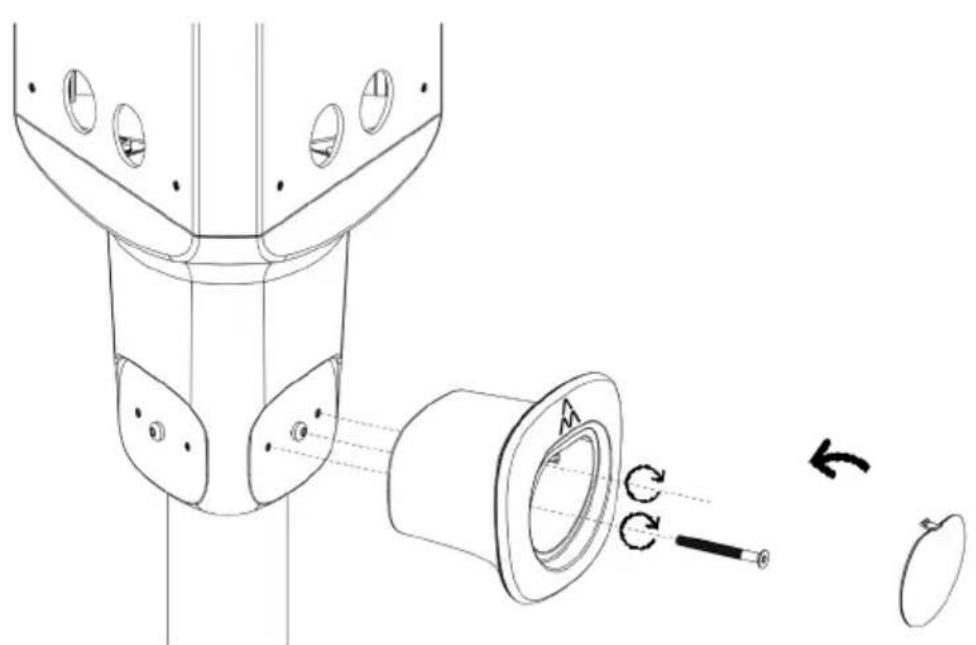

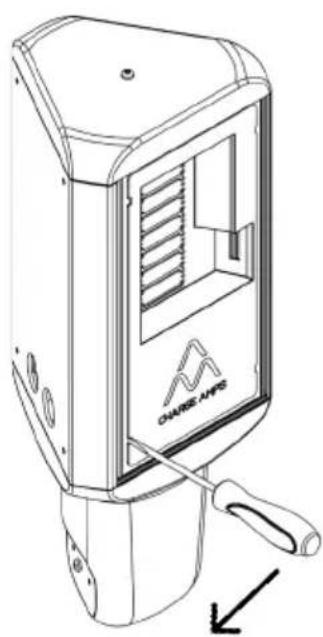

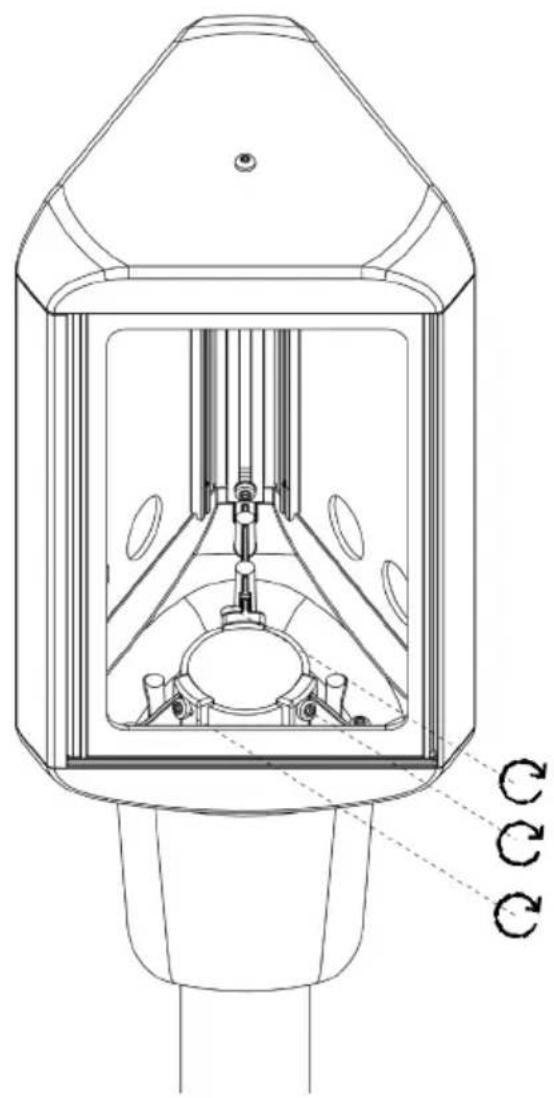

Installation

1

Technical line drawing of a mechanical device with a circular component and a hanging pin (no text or symbols)

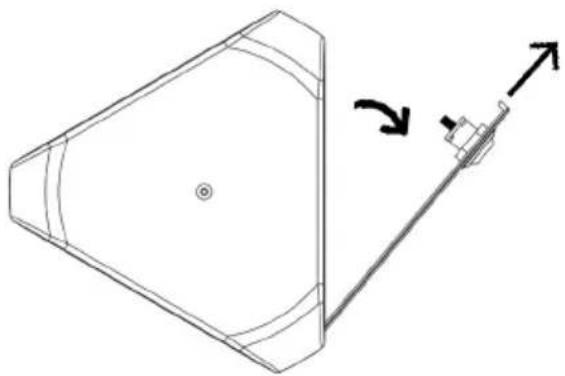

Technical line drawing of a triangular mechanical component with an arrow indicating rotation (no text or symbols)

2

Line drawing of a device with a handle and internal panel, no text or symbols present

Isometric line drawing of a door with ventilation grilles and a label 'CHARGE ANES' (no technical text or symbols beyond the label)

3

Ø 60 mm 1475 - 925 mm

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

4A

Technical line drawing of a mechanical component with mounting holes and a circular motion indicator (no text or symbols)

A x 2 F x 4

4B

N.B. Charge Amps Cable Holder and screws are not included in the package for Charge Amps Pole Mount.

Technical line drawing of a mechanical component with no visible text or symbols

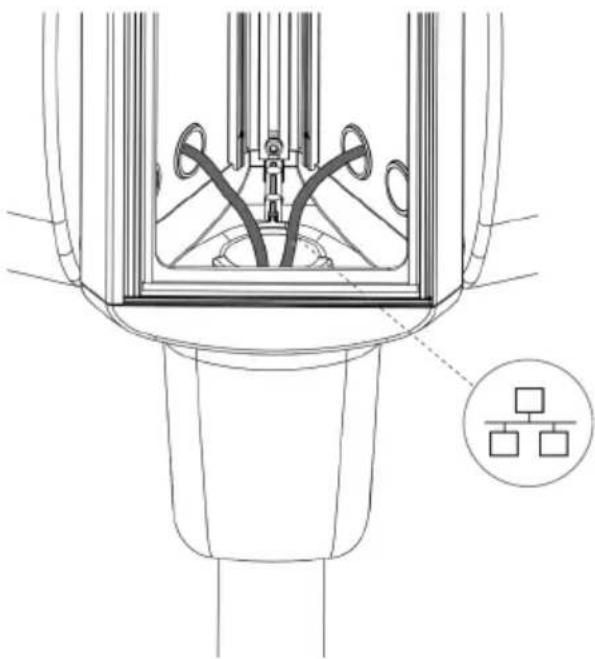

N.B. If applicable, install the LAN cable

Technical line drawing of a mechanical component with internal tubing and a highlighted section showing three groups (no text or symbols present)

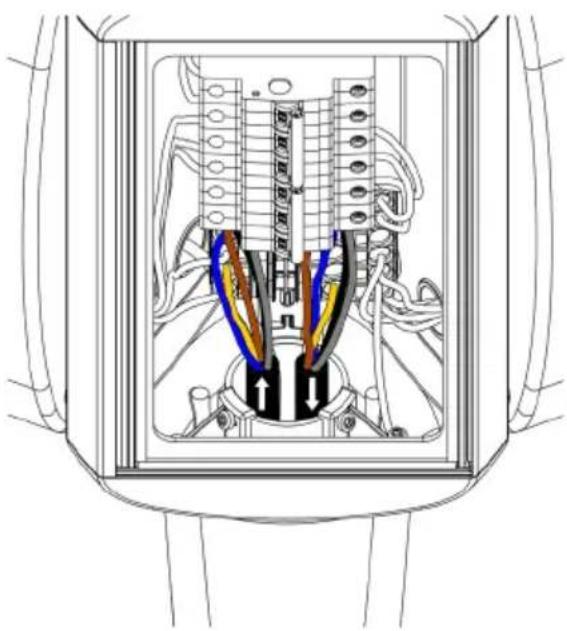

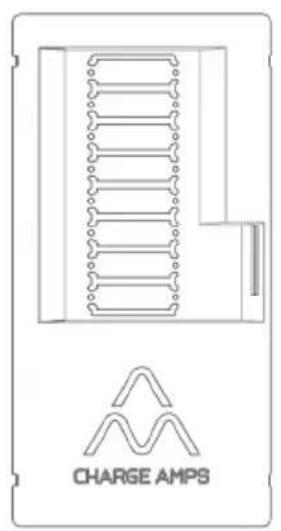

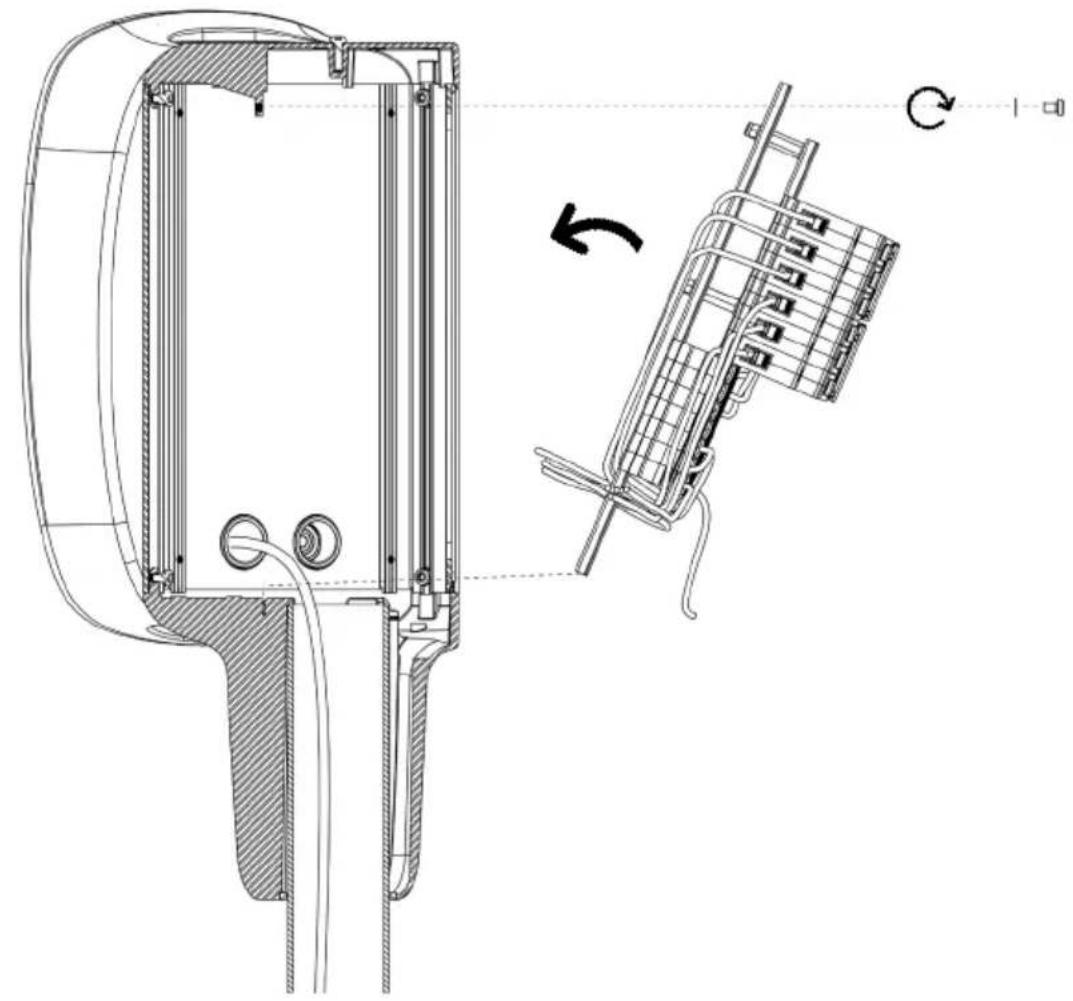

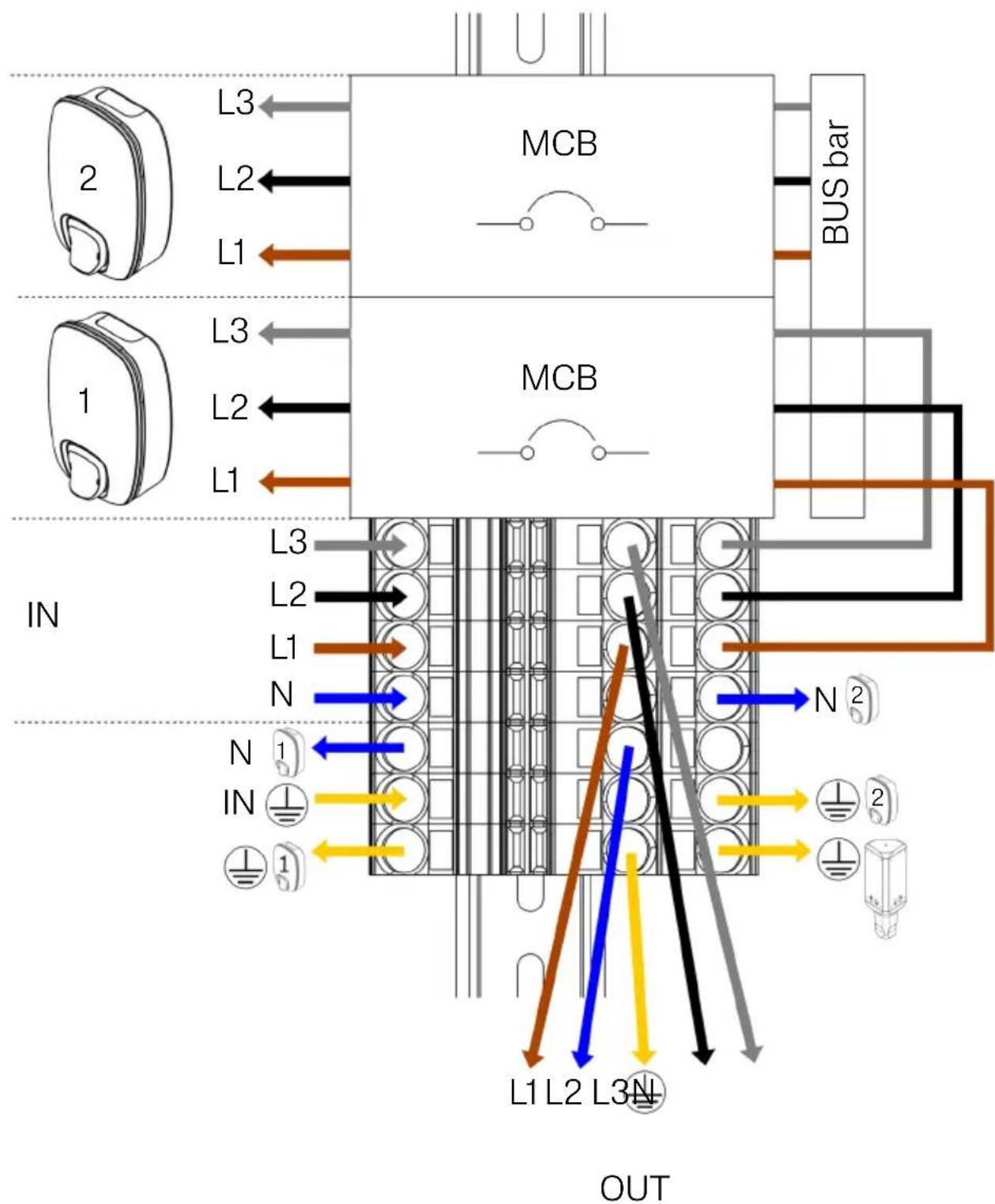

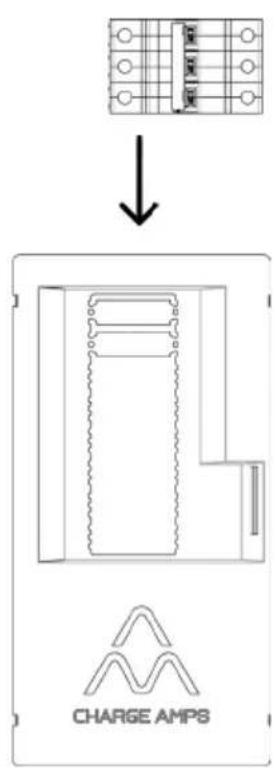

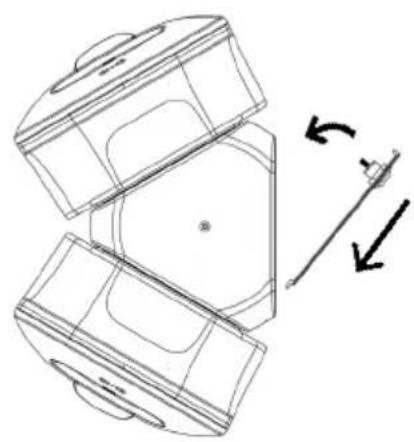

Cable connection overview

N.B. Check the cable connection below before proceeding with connecting the cables

L3 L2 L1 MCB BUS bar 2 1 L3 L2 L1 MCB IN L3 L2 L1 N N 1 IN 1 N 2 L1 L2 L3 N OUT

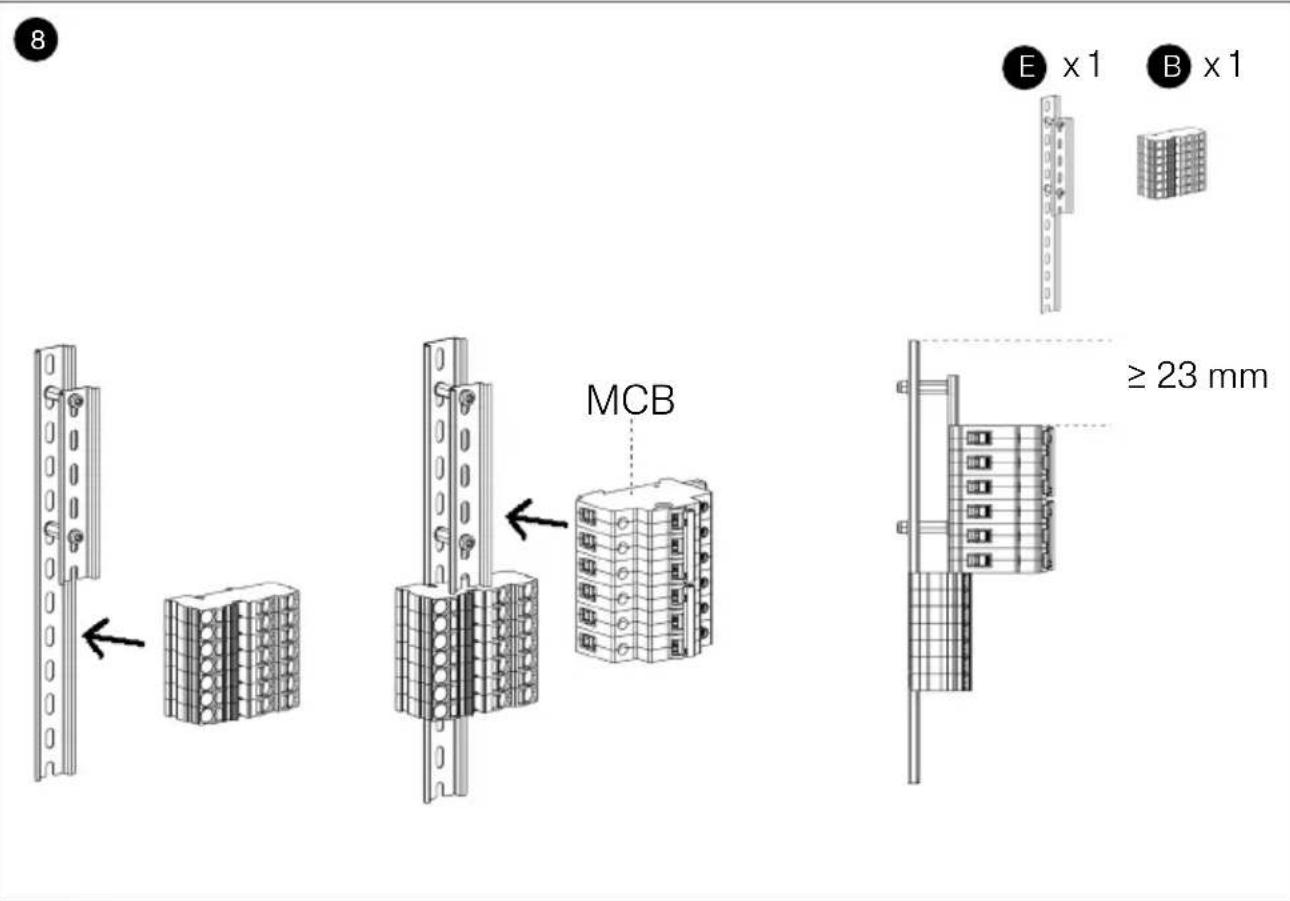

8 E x1 B x1 MCB ≥ 23 mm

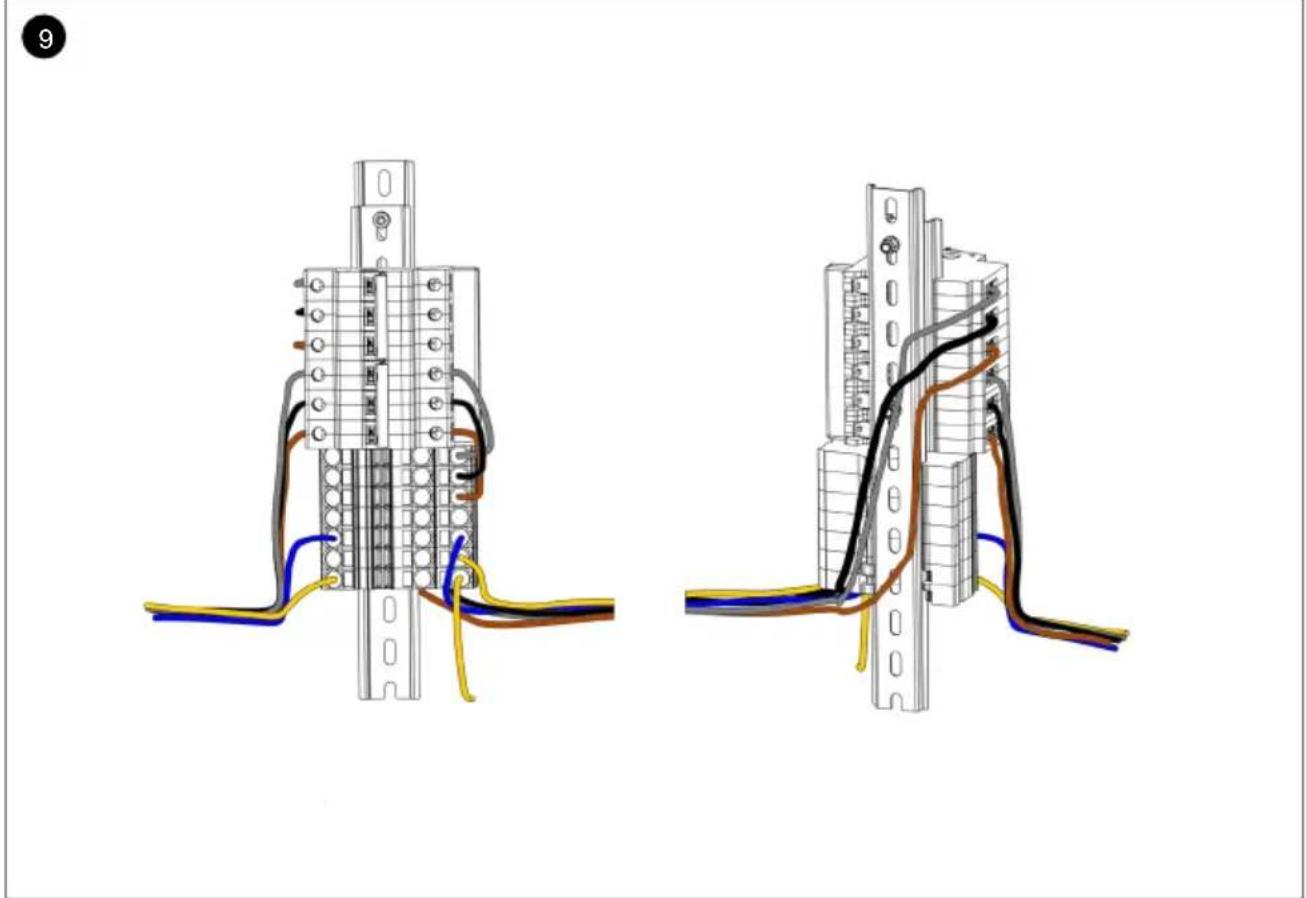

Two technical diagrams showing cable connections in a connector assembly, with no visible text or symbols.

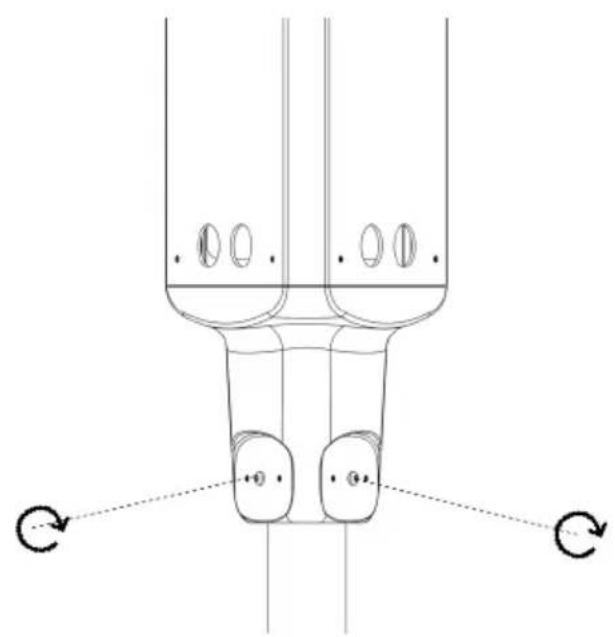

10

G x1x1 I

Technical diagram of a device with labeled components and directional arrow indicating rotation or assembly.

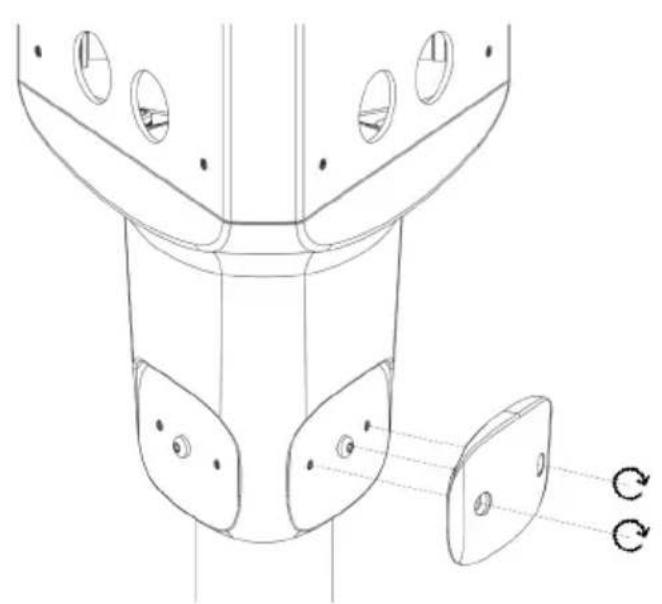

11

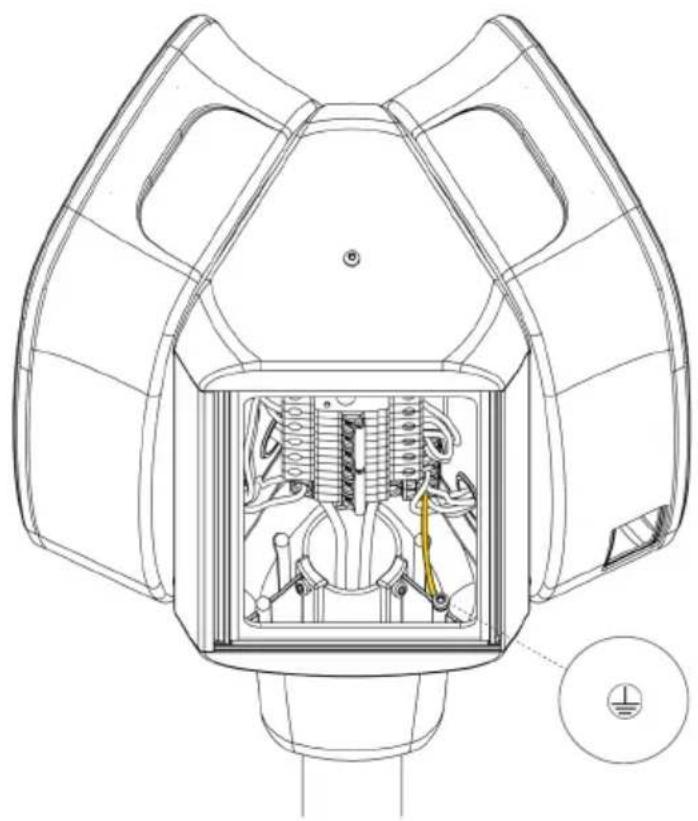

Technical line drawing of a mechanical device interior with internal components and a circular symbol at the bottom (no text or labels)

12

Technical line drawing of an electrical connector with colored wires and components (no text or symbols)

13

CHARGE AMPS

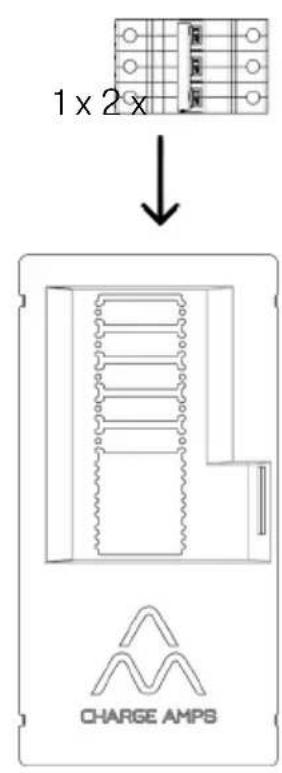

1 x 2 x CHARGE AMPS

CHARGE AMPS

14

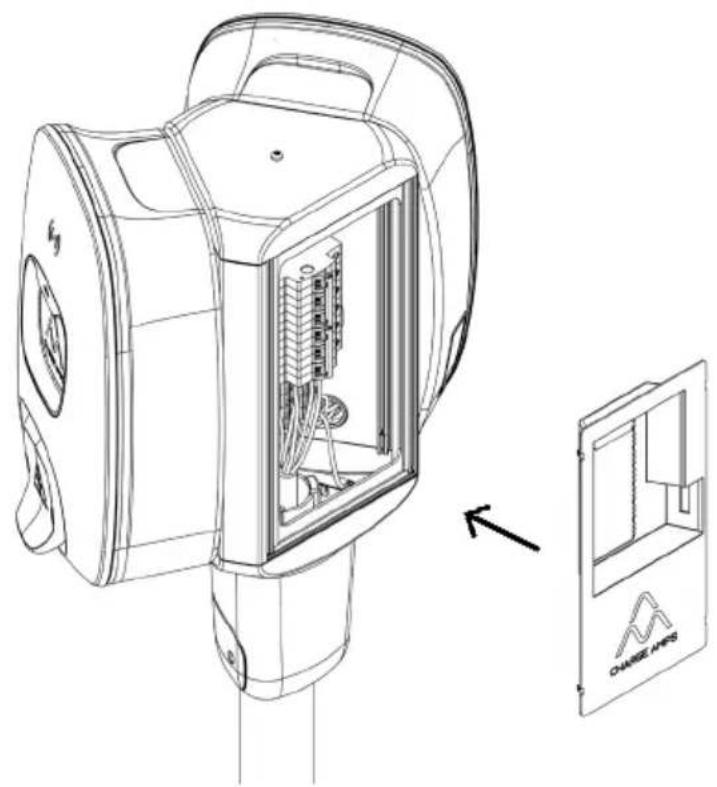

Technical diagram of a device with internal wiring and a separate labeled 'CHASE HIPS' panel showing internal components.

C x1

15

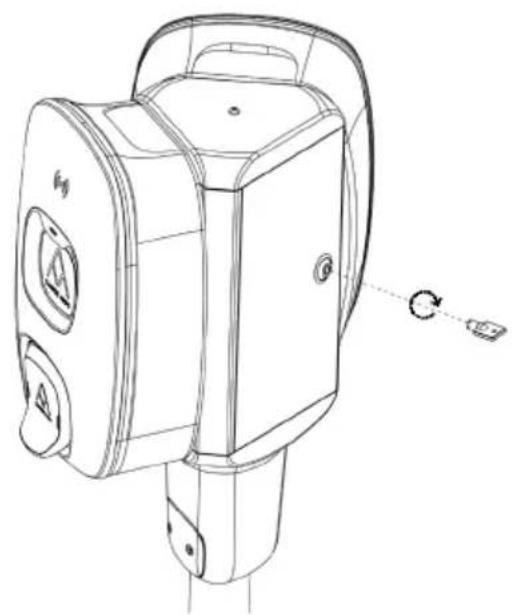

Technical line drawing of a mechanical component with two views and directional arrows indicating movement (no text or symbols)

图

Technical line drawing of a mechanical device with no visible text or symbols
