Product Type	Power Limiter for Charging Station
Brand	Charge Amps
Model	Amp Guard
Dimensions (W x D x H)	17.5 x 73 x 100 mm (main module) 17.5 x 58 x 90 mm (power supply)
Weight	Approximately 150 g (module only)
Power Supply	12 VDC, 0.5 A (supplied via 230 VAC adapter)
Power Consumption	6 W max
Measurement Range (Current)	± 0 – 63 A
Measurement Range (Voltage)	85 – 256 VAC, single-phase to three-phase, 50 Hz
Connectivity	Wi-Fi 802.11b/g/n 2.4 GHz and LAN port
Operating Frequency	2400 – 2500 MHz (WiFi), max power 20 dBm
Installation	DIN rail mounting (module and power supply)
Protection Rating	IP2X
Operating Temperature	-35 °C to +55 °C
Relative Humidity	0 – 90%
Maximum Altitude	2000 m
Safety Category	CAT III 300 V
PMD Classification	PMD-x, I and U, SD, Kx
Main Functions	Current and voltage measurement, power limitation, network monitoring, LED indicators
Package Contents	Main module, 12 VDC power supply, monitoring module with 3 current sensors, voltage terminal block, WiFi antenna, 12V cable, installation guide
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use harsh products.
Safety	Installation by qualified electrician only. Do not open or repair yourself.
Spare Parts and Repairability	Contact Charge Amps customer service in case of defect.

Frequently Asked Questions - Amp Guard Charge Amps

How to install the Charge Amps Amp Guard?

Installation must be carried out by a qualified electrician. The module mounts on a DIN rail in an electrical panel. Follow the provided installation guide and respect national standards.

How to connect the Amp Guard to the WiFi network?

The Amp Guard connects via WiFi or LAN. Use the mobile app or web interface to configure the network. A green LED indicates a successful cloud connection.

What do the current sensors measure?

The three current sensors measure the current on each phase (up to 63 A per phase). The 80 cm cable allows placing them around the main conductors.

How to interpret the LED indicators?

The illuminated logo indicates the device is powered on. Green = cloud connection OK, blue = connected to local network, off = no network. Voltage and current measurement LEDs: green = OK, red = phase error.

Can I use the Amp Guard with any charging station?

Yes, the Amp Guard is compatible with most electric vehicle charging stations. It acts as a power limiter to prevent overloads.

What is the supply voltage and frequency?

The Amp Guard operates on a voltage of 85 to 256 VAC, single-phase or three-phase, at 50 Hz. Module power is 12 VDC supplied by a mains adapter.

How to reset the Amp Guard?

Use the reset button located on top of the module (under the Charge Amps logo). Hold for 5 seconds to restore factory settings.

What are the required environmental conditions?

The device is designed for indoor use, with a temperature of -35°C to +55°C, humidity of 0 to 90%, and altitude up to 2000 m. Protection rating IP2X.

What to do if the voltage measurement LED is red?

A red LED indicates a phase order error. Check the wiring of the phases and the connection of the voltage measurement terminal block.

Can the Amp Guard be used outdoors?

No, the Amp Guard is intended for indoor installation (IP2X). Place it in an electrical panel protected from the weather.

USER MANUAL Amp Guard Charge Amps

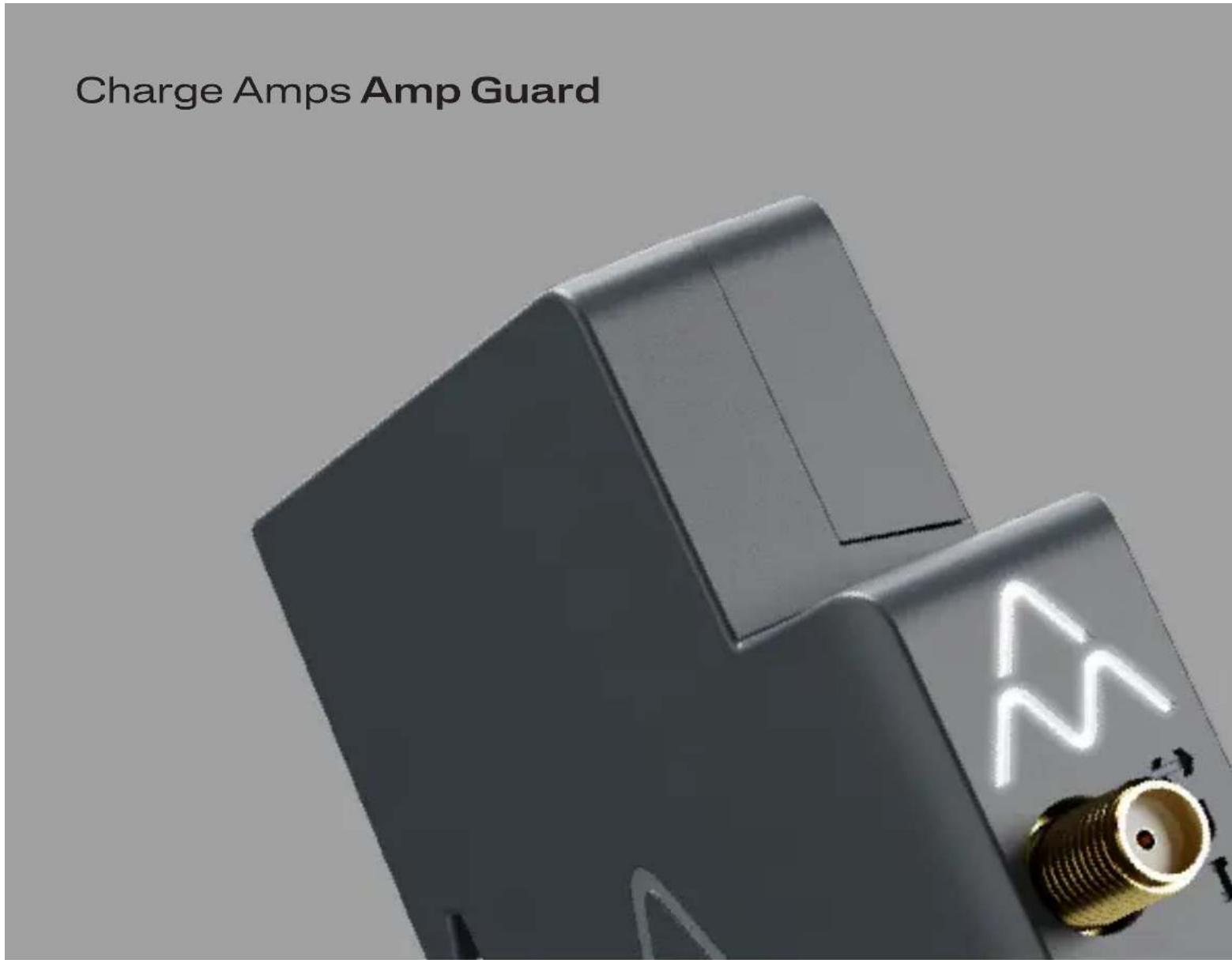

Charge Amps Amp Guard

Quick Guide Installation

Dansk Nederlands

Deutsch Norsk

English Português

Español Suomi

Français Svenska

Charge Amps Amp Guard

Warning: Note the marking on the Power Supply.

Support

If you need service or repair, start by contacting the supplier from whom you purchased the product.

CE

UKCA

[NO TEXT]

Recycle as electrical waste.

Charge Amps App

Please download our App for full control, adjusting settings and enabling smart charging and scheduling.

Charge Amps Cloud

https://my.charge.space/

Full product information

Visit www.chargeamps.com for full Charge Amps Amp Guard product documentation including Charge Amps Amp Guard Installation Manual.

https://www.chargeamps.com/product/charge-amps-amp-guard/

https://www.chargeamps.com/product/charge-amps-amp-guard/

https://www.chargeamps.com/product/charge-amps-amp-guard/

Warning: Always read and follow the full Installation nual when installing Charge Amps Amp Guard.

• Read all instructions before use.
• Improper use may create a risk of personal injury.
• The product must only be installed by a qualified electrician in accordance with the Installation Manual.
• National installation requirements and restrictions apply.
• Inspect the product for visible damage before use.
• Never attempt to repair or use the product if it is damaged.
• Do not immerse the product in water, subject it to physical abuse or insert foreign objects in any part of the product.
• Never attempt to disassemble the product in any way.
• Charge Amps Amp Guard is a power monitor. Only use the product for its intended use.

Neglecting to follow and carry out the abovementioned directions, instructions and safety precautions implies that any warranty provisions will be cancelled and that Charge Amps can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect – that are a result of such negligence.

Hereby, Charge Amps AB declares that the radio equipment type Charge Amps Amp Guard is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.chargeamps.com/product/charge-amps-amp-guard/.

Hereby, Charge Amps AB declares that the radio equipment type Charge Amps Amp Guard is in compliance with The Radio Equipment Regulations 2017 (SI 2017/1206). The full text of the UKCA declaration of conformity is available at the following internet address: https://www.chargeamps.com/product/chargeamps-amp-guard/.

© Copyright Charge Amps AB (publ). All rights reserved. Copying, amending and translating are strictly forbidden without prior written approval from Charge Amps AB (publ).

Technical data

Measuring range (current) ± 0-63 A
Measuring range (voltage) 85-256 VAC, single to 3-phase, 50 Hz
Network LAN, Wi-Fi 802.11b/g/n 2.4 GHzFreq. range: 2400-2500 MHzMax power output: 20 dBm
Power supply Rated voltage: 12 VDC 0.5 A, provided by the supplied 230 VAC (+/-15%)50 Hz power supply
Installation DIN rail mounting in a cabinet:1M Charge Amps Amp Guard1M power supply
Dimensions (W x D x H) Charge Amps Amp Guard:17.5 x 73 x 100 mmPower supply:17.5 x 58 x 90 mm
Current sensor cable length	80 cm
Must not be tampered with to maintain measurement accuracy.
Maximum cable diameter for current sensors	10 mm
Current sensors' rated secondary current	30(36) mA
PMD classification PMD-x, I and U, SD, Kx
Safety rating CAT III 300 V

Climatic conditions Operating temperature:

-35°C to +55°C

Relative humidity: 0 - 90%

Altitude: 0 - 2000 m

Pollution Degree: 2

Ingress protection: IP2X

Indoor meter: Yes

Function characteristics according to IEC 61557-12

Function symbols Function performance class	Measuring range Other complementary characteristics
12 ± 0-63 A
V 2 85-256 VAC

Package contents

• Charge Amps Amp Guard
  • 12 VDC Power Supply, which powers the Charge Amps Amp Guard
• Monitoring Module, consisting of a Sensor Cartridge and three connected Current Sensors including cables
  • Terminal block for voltage measurement
• Wi-Fi antenna
• 12 V power cable
• Quick Guide Installation (this document)

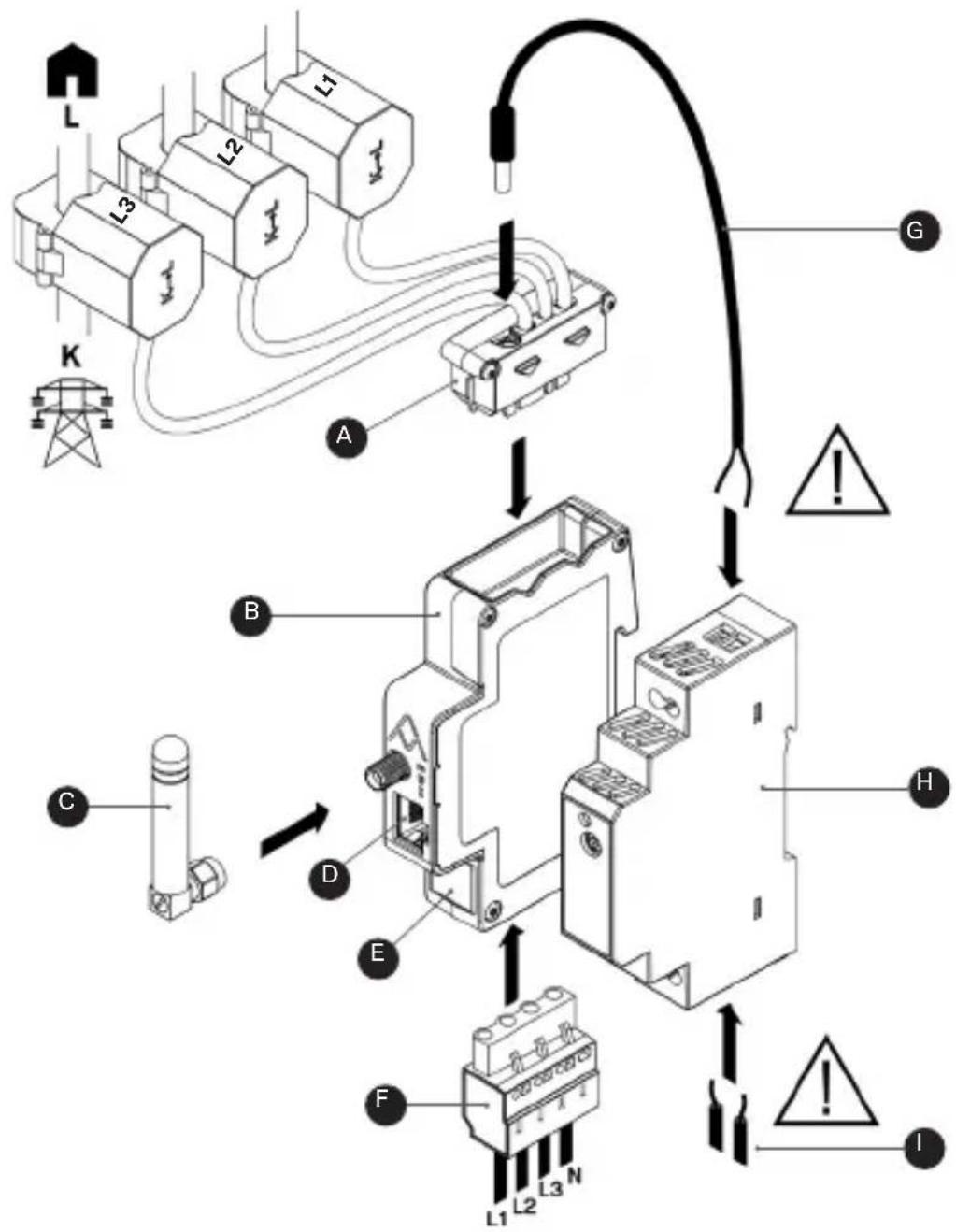

Product overview

A Monitoring Module with current sensors
B Charge Amps Amp Guard
c Wi-Fi antenna
D LAN-port
E Serial number and PIN
F Terminal block for voltage measurement
G 12 V power cable
H 12 VDC Power Supply
Power Supply AC input

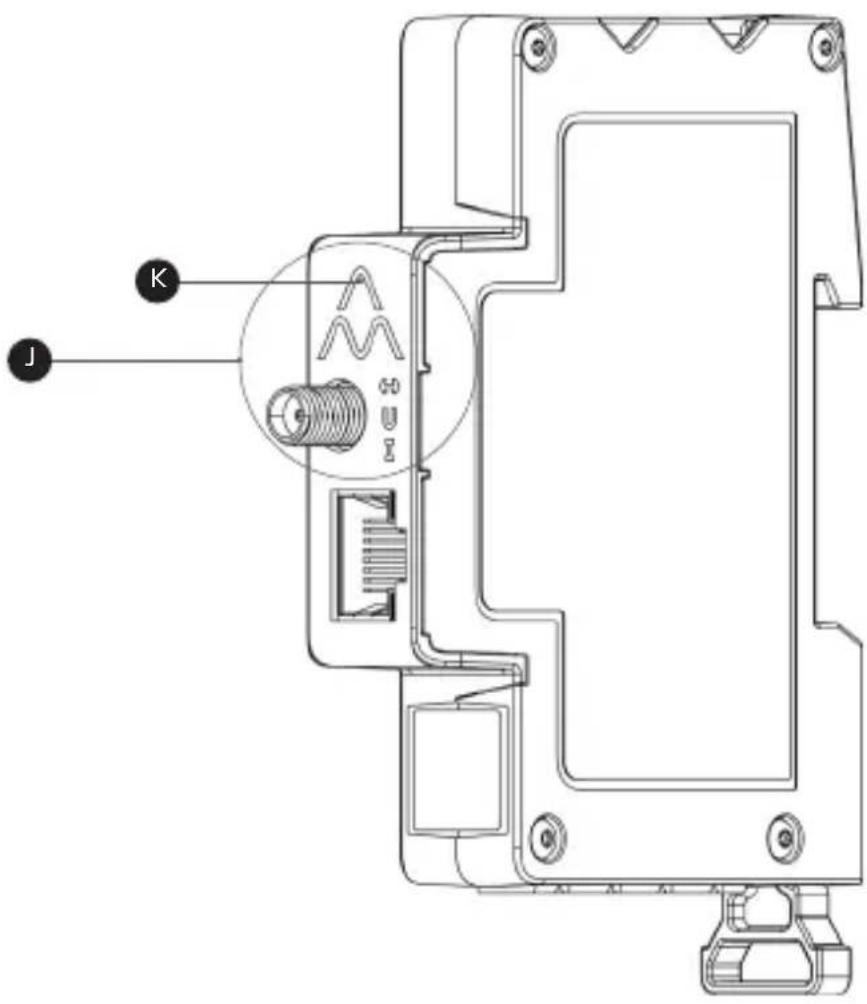

Status indicators
K Reset button (top of Charge Amps logo)

Status indicators

	Charge Amps logotype:Lights On – Power OnLights Off – Power Off
	Communication status:Green light – Connected to cloud & networkBlue light – Connected to networkNo light – No network connection
	Voltage measurement status:Green light – OkRed light – Error, incorrect phase orderNo light - Voltage measurement not connected
	Current measurement status:Green light – OkRed light– Error, incorrect phase orderNo light – Current measurement not connected

https://www.chargeamps.com/product/charge-amps-amp-guard/

Charge Amps Amp Guard 1 m

B Charge Amps Amp Guard

c Antena wifi

D Puerto LAN

https://www.chargeamps.com/product/charge-amps-amp-guard/

https://www.chargeamps.com/product/charge-amps-amp-guard/

https://www.chargeamps.com/product/charge-amps-amp-guard/

B Charge Amps Amp Guard

C Antena Wi-Fi

D Porta LAN

E Número de série e PIN

https://www.chargeamps.com/product/charge-amps-amp-guard/
