USER MANUAL ORC-151-BI Orima

Interior view of an Orima appliance with visible battery compartments and control panel (no text or symbols)

www.orima.pt

facebook.com/orima.pt

MMA

MARIO MIRANDA DE ALMEIDA

MÁQ. LAVAR LOUÇA DE ENCASTRE

Diswasher | Lavavajilla | Lave-Vaiselle

ORC-151-BI

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone] E: [e-mail]

Serviço Pós Venda:

Tel.: [phone] E: [e-mail]

PT Obrigado por ter adquirido este produto ORIMA. Por favor leia atentamente este manual antes de começar a usar o aparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez lire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produto ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

orima

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

ORC151BI

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a faucet with a valve and base, showing electrical hazard symbol (no text or labels)

Labeled diagram of a kitchen appliance showing internal components with numbered parts

Close-up of mechanical components with a numbered arrow pointing to a circular component (no text or symbols visible)

3.1 Aparência Geral

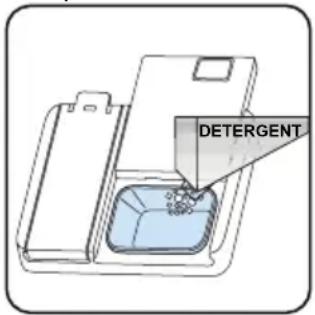

DETERGENT

Illustration of a hand using a tool to press or install a device, showing a blue panel and a blank card (no text or symbols)

Line drawing of a tool interacting with a mechanical device (no text or symbols)

Technical line drawing of a car chassis frame with red arrows indicating motion or force vectors (no text or symbols present)

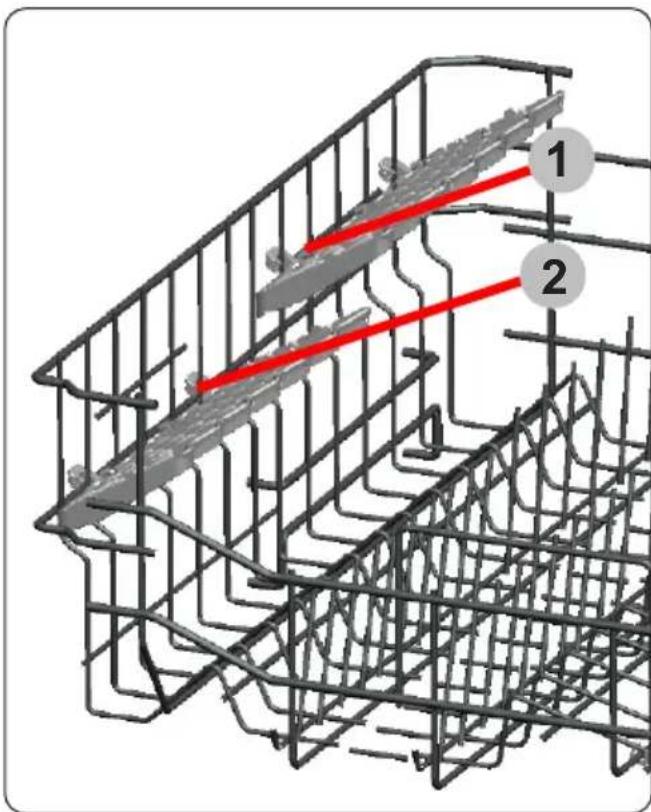

Cesto superior

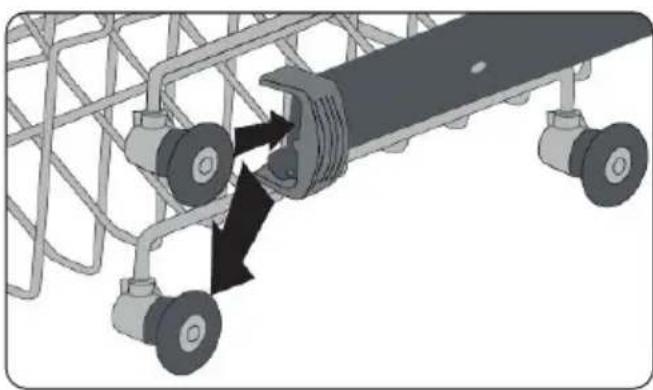

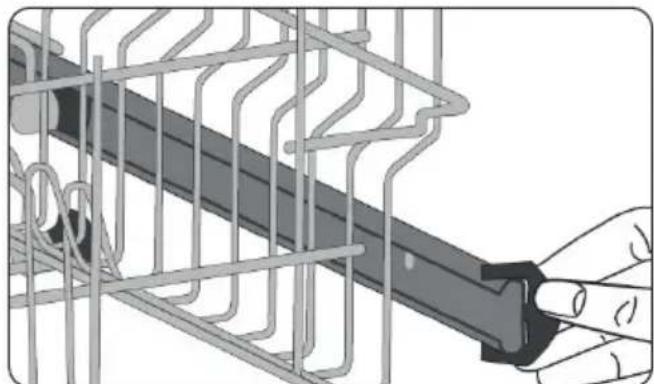

Ajuste de altura

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Diagram of a mechanical assembly with wheels and a central component, showing directional arrows (no text or symbols)

Technical diagram of a wire mesh structure with labeled components 1 and 2, showing internal structural elements and red directional lines.

3D wireframe model of a building complex with grid-like structures and a small rectangular component (no text or symbols)

3D rendering of a steel rebar cage with an upward arrow indicating force or direction (no text or symbols)

3D rendering of a grid-based mechanical or electrical component with multiple cylindrical components and a central rod (no text or symbols visible)

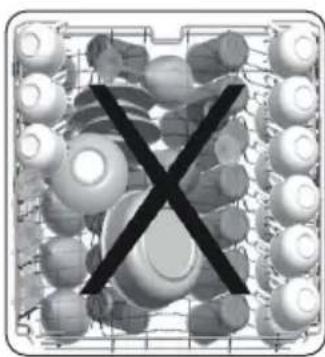

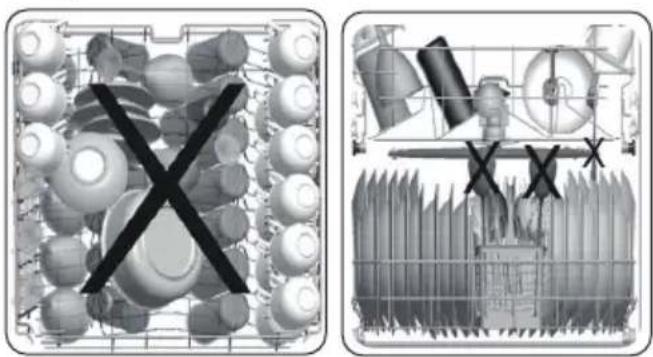

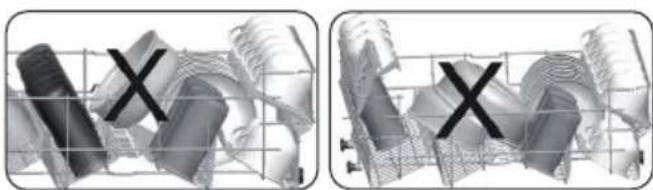

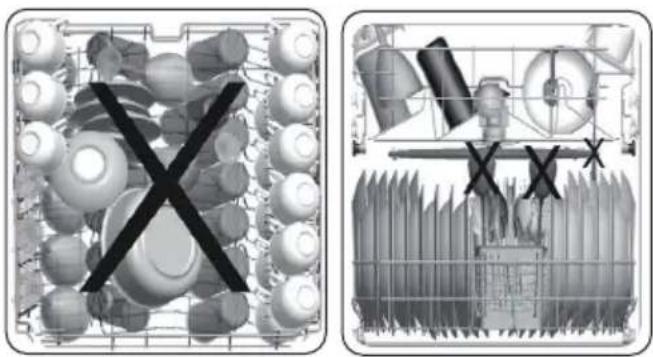

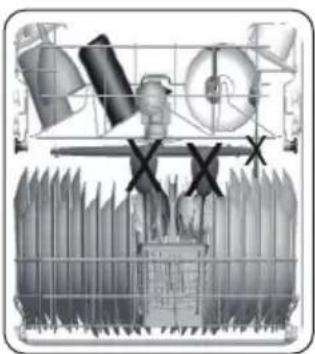

Cargas incorretas

Two grayscale industrial equipment diagrams showing circular components and a grid structure with X marks (no text or symbols)

Abstract grayscale graphic with grid overlay and a black 'X' symbol (no text or symbols)

3D wireframe model of a mechanical or architectural structure with no visible text or symbols

Diagram of a mechanical assembly with a central component and a circular base, no visible text or symbols

② b a

Diagram of a device with labeled components and directional arrow, showing a container with a circular component and a valve.

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Simple line drawing of a rectangular container with a horizontal bar at the top (no text or symbols)

ORC151BI

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS .... 4

1.1 General Safety Warnings ....4
1.2 Installation Warnings ....5
1.3 During Usage....6

2 INSTALLATION 9

2.1 Machine Positioning 9
2.2 Water Connection....9
2.3 Water Inlet Hose....9
2.4 Drain Hose (Model Depending)....10
2.5 Electrical Connection....10

3 TECHNICAL SPECIFICATIONS....11

3.1 General Sppearance ...... 11
3.2 Technical Specifications ...... 11

4 BEFORE USING THE APPLIANCE 13

4.1 Preparing Your Dishwasher For First Use 13
4.2 Salt Usage (IF AVAILABLE)....13
4.3 Fill The Salt (IF AVAILABLE) 13
4.4 Test Strip....14
4.5 Water Hardness Table 14
4.6 Water Softener System....14
4.7 Setting 14
4.8 Detergent usage....15
4.9 Filling the detergent....15
4.10 Using combined detergents....15
4.11 Rinse-aid usage....15

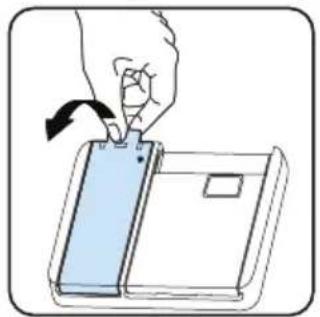

4.12 Filling the rinse-aid and setting....15

5 LOADING YOUR DISHWASHER....17

5.1 Recommendations ....17

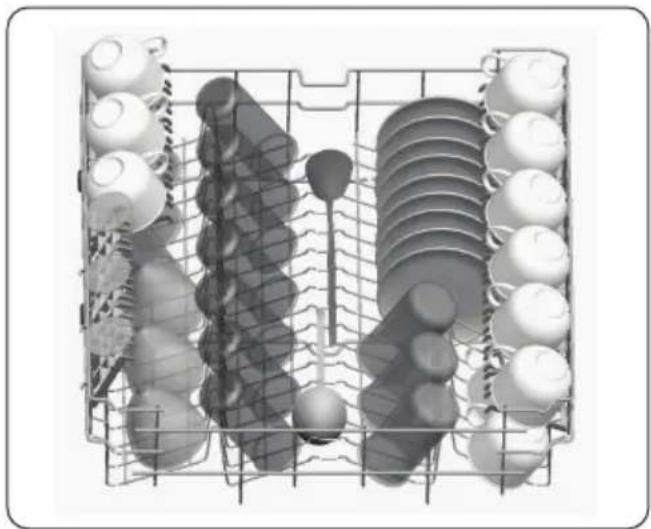

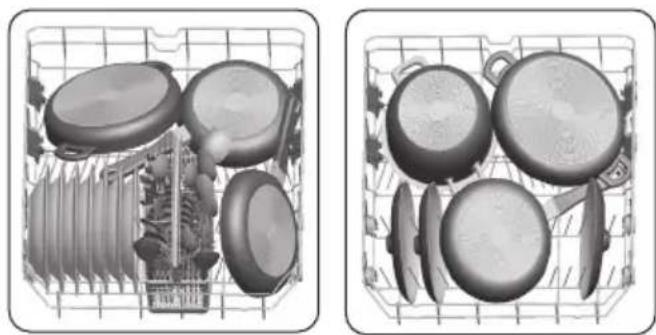

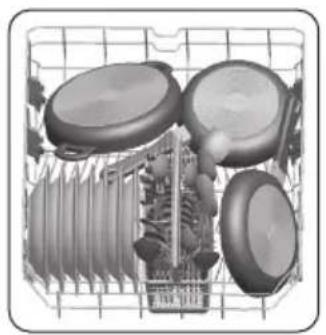

5.2 Alternative Basket Loads 19

6 PROGRAMME TABLE....20

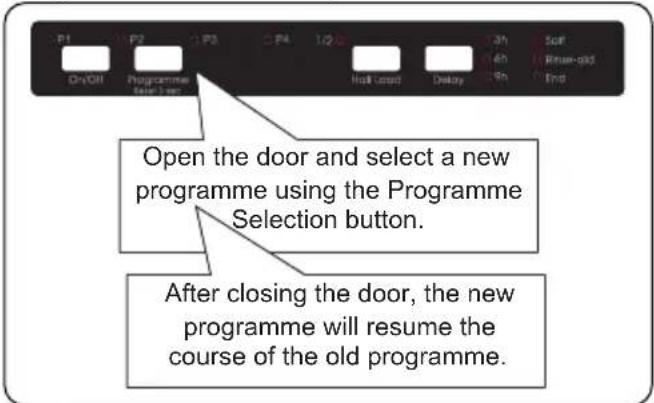

7 THE CONTROL PANEL....21

8 CLEANING AND MAINTENANCE....24

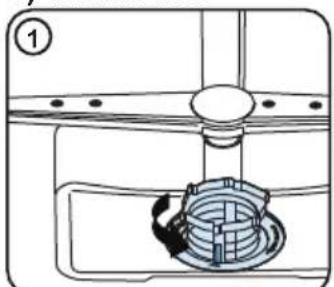

8.1 Filters....24

8.2 Spray Arms 24

8.3 Drain Pump....25

9 TROUBLESHOOTING 26

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

- Read these instructions carefully before using your appliance and keep this manual for future reference.

⚠️ Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

⚠️ Remove packaging and keep it out of reach of children.

⚠️ Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

1.2 Installation Warnings

- Choose a suitable and safe place to install your machine.

- Only original spare parts should be used with the machine.

△! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

△! Always use the coated plug supplied with your machine.
△△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

1.3 During Usage

- This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee.

⚠️Do not stand, sit or place loads on the open door the dishwasher.

⚠️Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

⚠️ Do not drink water from the machine.

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

- Check the heat-resistance of plastic items before washing them in the machine.

⚠️ Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

⚠️ The machine door should not be left open. It may cause accidents.

⚠️Place knives and other sharp objects in the cutlery basket in a blade-down position.

⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

2 INSTALLATION

2.1 Machine Positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

Please install the decorative panel as indicated on the assembly sheet. Otherwise, the door may not open properly and steam leakage problem may occur.

2.2 Water Connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose!

If models are marked with 25^ , the water temperature may be max. 25^ C (cold water).

For all other models:

Cold water preferred; hot water max. temperature 60 °C.

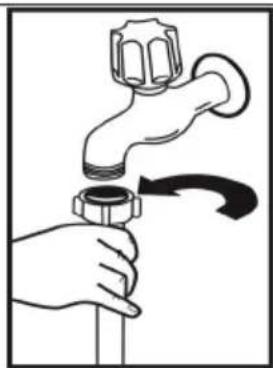

2.3 Water Inlet Hose

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

WARNING: Use the new water inlet supplied with your machine, do not an old machine's hose.

WARNING: Run water through the nose before connecting.

WARNING: Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING: After the connections are made, turn the tap on fully and check water leaks. Always turn off the water tap after a wash program has finished.

Simple line drawing of a pipe valve with a base, no text or symbols present

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

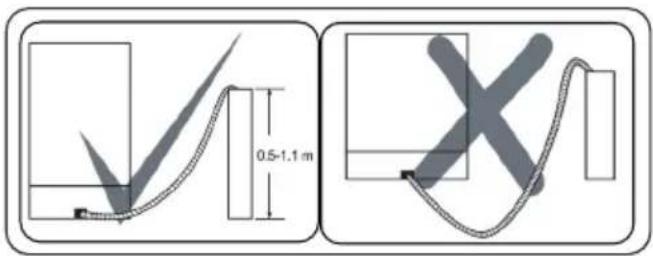

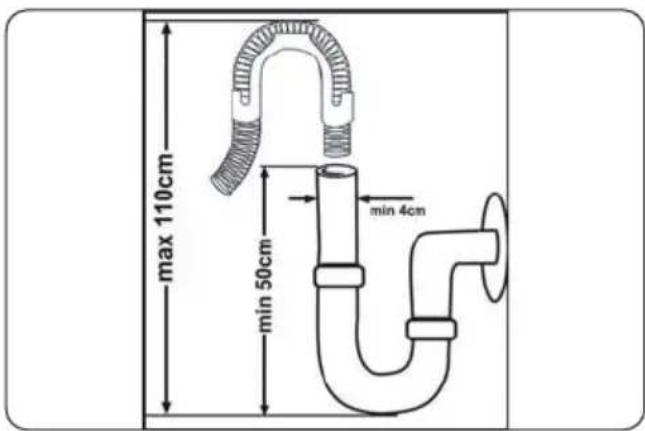

2.4 Drain Hose (Model Depending)

max 110cm min 50cm min 4cm

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m ed.

0.5-1.1 m

2.5 Electrical Connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

3 TECHNICAL SPECIFICATIONS

Labeled diagram of a kitchen appliance showing internal components with numbered parts

Close-up of a mechanical component with a labeled dimension '12' pointing to a circular feature (no text or symbols beyond the number)

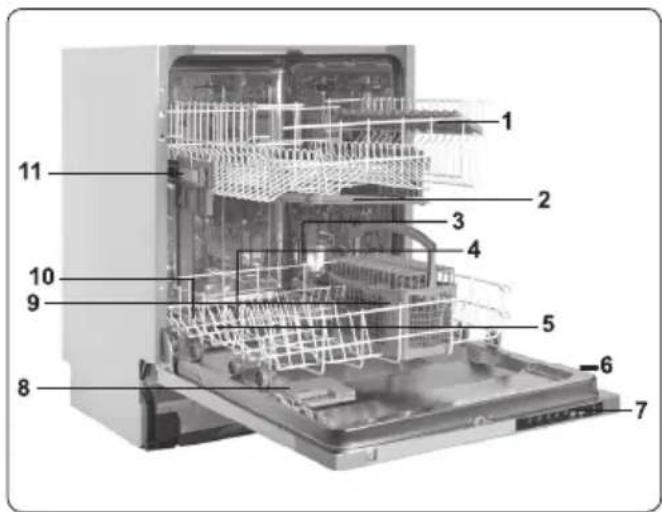

3.1 General Sppearance

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser
11. Upper basket track latch

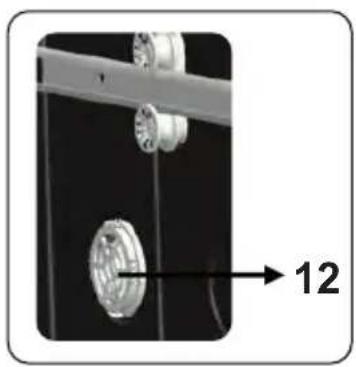

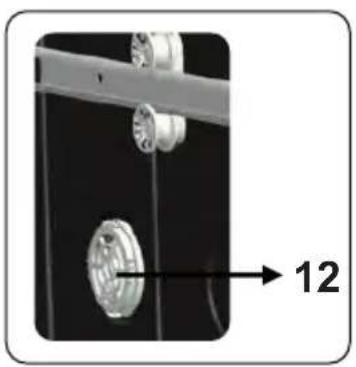

12. Mini Active Drying Unit: This system provides better drying performance your dishes.

3.2 Technical Specifications

Capacity	14 place settings
Dimensions
Height	820-870 (mm)
Width	598 (mm)
Depth	570 (mm)
Net weight	32,1 kg
Operating voltage / frequency	220-240V50 Hz
Total current 10(A)
Total power 1900(W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

4 BEFORE USING THE APPLIANCE

4.1 Preparing Your Dishwasher For First Use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
  • Fill the rinse aid compartment..

4.2 Salt Usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

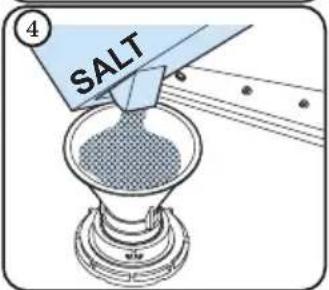

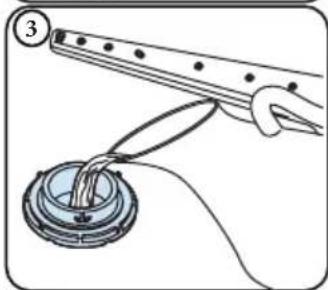

4.3 Fill The Salt (IF AVAILABLE)

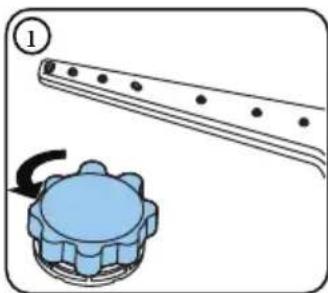

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Diagram showing a mechanical component with a gear and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a circular part and a circular base (no text or symbols)

Illustration of a hand using a tool to lift a circular component, no text or symbols present

SALT

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

4.4 Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip. Wait (1min.)		Set the hardness level of your machine.

NOTE: The factory hardness level setting is "3". If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.5 Water Hardness Table

Level	German dH French	dF British dE	Indicator
1 0-5	0-9 0-6 P1-9h LEDs are on.
2 6-11	10-20 7-14 P2-9h LEDs are on.
3	12-17	21-30	15-21	1/2-9h LEDs are on.
4 18-22	31-40	22-28		3h-9h LEDs are on.
5 23-31	41-55	29-39		6h-9h LEDs are on.
6	32-50	56-90	40-63	P1-6h-9h LEDs are on.

4.6 Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

4.7 Setting

In order to change the salt level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until all leds blink once.
  • The machine will display the last setting.
• Set the level by pressing the Programme button.
• Switch off the machine to save the setting.

4.8 Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer's instructions for a further information.

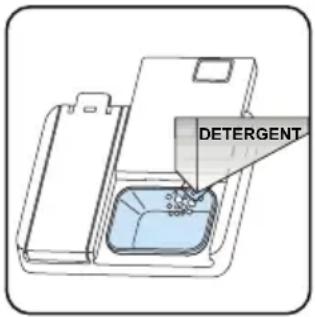

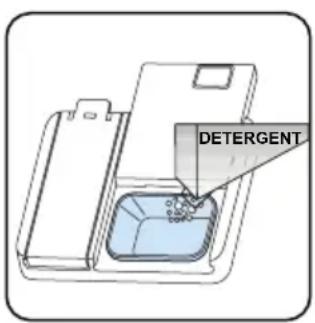

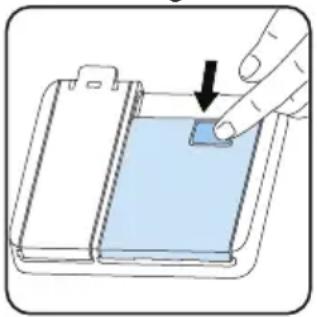

4.9 Filling the detergent

Push the latch to open the dispenser and pour in the detergent. Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand inserting a blue liquid into a plastic container (no text or symbols)

DETERGENT

4.10 Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional

components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

4.11 Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

4.12 Filling the rinse-aid and setting

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until all leds blink twice. Rinse aid setting follows water hardness setting.
• The machine will display the last setting.
• Change the level by pressing the programme button.
• Switch off the machine to save the setting.

The factory rinse aid level setting is "4". If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand using a tool to press or adjust a device (no text or symbols visible)

Line drawing of a hand holding a key inserted into a device (no text or symbols)

Level	Brightener Dose Indicator
1	Rinse-aid not dispensed	P1-9h LEDs are on
2	1 dose is dispensed	P2-9h LEDs are on
3	2 doses are dispensed	1/2-9h LEDs are on
4	3 doses dispensed	3h-9h LEDs are on
5	4 doses dispensed	6h-9h LEDs are on

5 LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct rotation of spray arms.

WARNING: Make sure after loading ishes do not prevent opening the gent dispenser.

5.1 Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible es, place long-handle and sharp-ed knives with their sharp points facing or horizontally on the baskets.

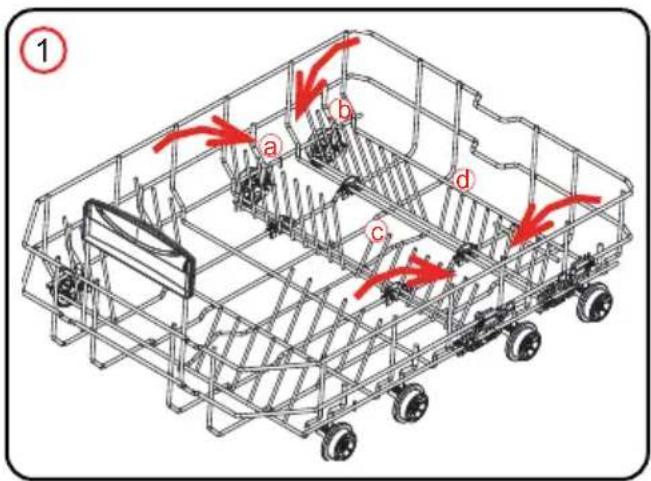

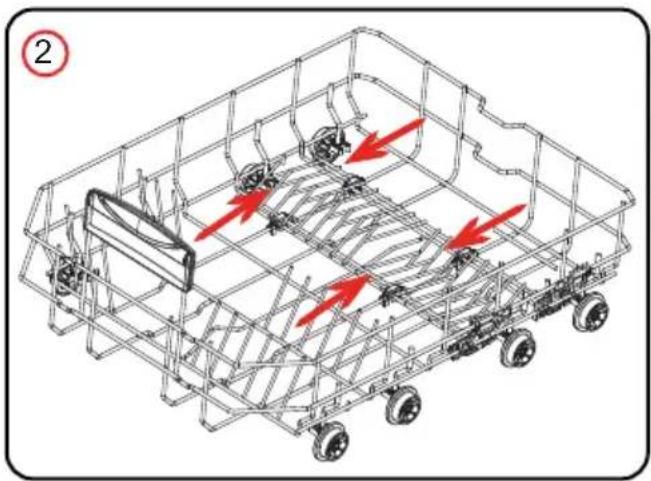

Four Folding Racks

The folding racks are designed so that large items, such as pots and pans, can be easily placed in the dishwasher. Each section can be folded separately. The racks can be folded down or raised up, as shown in the images below.

① a b c d

Technical line drawing of a vehicle chassis frame with red arrows indicating motion or movement (no text or symbols)

Upper Basket

Height Adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a black tool interacting with a wire mesh structure (no text or symbols visible)

Diagram of a mechanical assembly with two wheels and a central component, showing directional arrows (no text or symbols)

Height Adjustable Rack (peg type)

The height adjustable racks enable glasses and cups to be placed on or under the racks. The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed on the racks horizontally.

Technical diagram of a wire mesh structure with two red directional arrows labeled 1 and 2 indicating flow or movement paths.

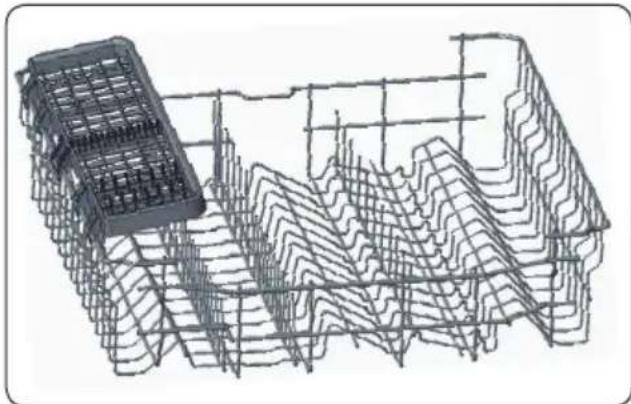

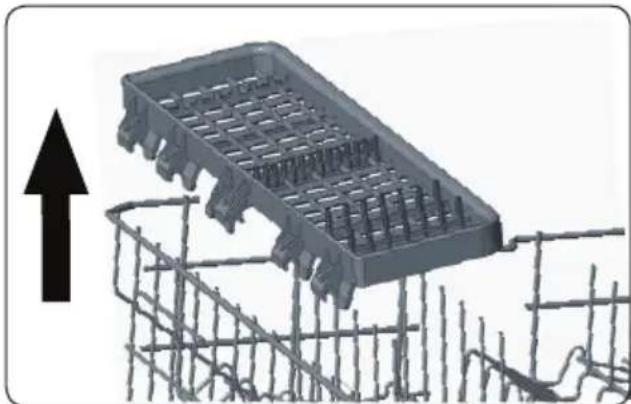

Upper Basket Knife Rack

Thanks to the knife rack in the upper baskets, you can easily wash kitchen utensils such as bread knives and ladles.

3D wireframe model of a building complex with grid-like structures and a small rectangular component (no text or symbols)

When you do not want to use it, you can remove the upper basket knife shelf by pulling it upwards.

3D rendering of a steel rebar cage with an upward arrow indicating force or movement (no text or symbols)

5.2 Alternative Basket Loads

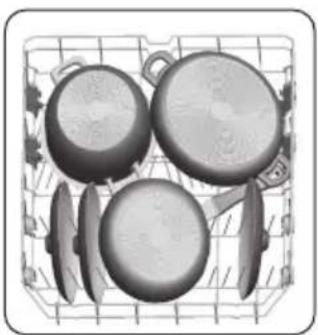

Lower Basket

Two grayscale illustrations of kitchen utensils in a grid, showing various kitchenware and kitchenware (no text or symbols visible)

Upper Basket

Diagram of a multi-layered industrial machine with cylindrical components and a central valve (no text or labels)

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

Two grayscale industrial equipment diagrams showing circular components and a grid structure with X marks (no text or symbols)

Two 3D rendered mechanical components with grid lines, no visible text or symbols

Unsuitable Items For Dishwashing

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials.
• Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Temperature-sensitive plastics, copper or tincoated containers.
  • Aluminium and silver objects.
• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
• Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase

dishwasher-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

6 PROGRAMME TABLE

	P1 P2 P3 P4 P5	P6
Program Name:	Eco	Intensive 65°C	Hygiene 70°C Super 50' Quick 30	Prewash
Type of Soil:	Standard program for normally soiled daily using dishes with reduced energy and water consumptions.	Suitable for heavily soiled dishes.	Suitable for heavily soiled dishes requiring hygienic washing.	Suitable for normally soiled daily dishes with faster program.	Suitable for lightly soiled dishes and quick wash.	Suitable to rinse dishes that you plan to wash later.
Level of Soil:	Medium Heavy Heavy Medium Light		Light
Amount of Detergent:A: 25 cm3B: 15 cm3"	A A A A A -
Program Duration (h:min)	03:41	01:57	02:07	00:50	00:30	00:15
Electricity consumption (kWh/cycle)	0.950	1.700	1.900	1.100	0.740	0.020
Water consumption (l/cycle)	9.0	17.2	16.0	12.0	12.4	4.5

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
  • To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.

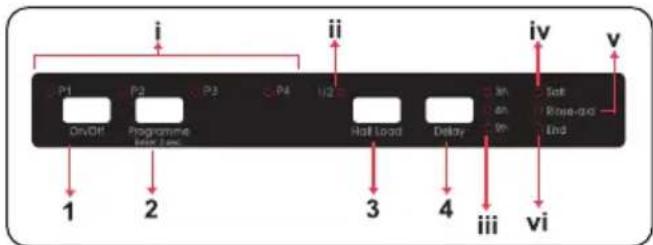

7 THE CONTROL PANEL

1. On/Off button
2. Programme Selection Button
   i. Programme Leds
3. Half Load Button
   ii. Half Load Led
4. Delay Button
   iii. Delay Leds
   iv. Salt Indicator
   v. Rinse Aid Indicator
   vi. End of Programme Indicator

1. On/Off Button

Switch the machine on by pressing On/Off button. When machine is on, the End Of Programme Indicator (vi) will illuminate.

2. Programme Selection Button

Select a suitable programme for your dishes by pressing Programme Selection button. The Programme Led (i) corresponding to the selected programme will illuminate and the End Of Programme Indicator (vi) will switch off. The programme will start automatically when the door is closed.

3. Half Load Button

Press the Half Load button to reduce the duration of the selected programme, and therefore decrease your energy and water consumption. When Half Load option is selected, Half Load led (ii) will illuminate.

4. Delay Button

Press the Delay button to delay the start time of a programme for 3, 6 or 9 hours. Pressing once will delay the start time for 3 hours, pressing twice for 6 hours, and three times for 9 hours. Press the Delay Timer

button to change or cancel the delayed start time. The Delay led (iii) corresponding to the remaining delay duration (3h, 6h, 9h) will be on. If you switch off the machine after activating the delay time, the delayed time is cancelled.

NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections.

NOTE: When there is insufficient softening salt, the Salt Lack Warning Indicator (iv) will illuminate to indicate the salt chamber needs filling.

NOTE: When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (v) will illuminate to indicate the rinse aid chamber needs filling.

Changing a Programme

Follow the steps below to change a programme while in operation.

P1 P2 P3 P4 1/2 Dr/OH Programme New Step Hall Board Delay 2h Soft An End Riser-old 5h End Open the door and select a new programme using the Programme Selection button. After closing the door, the new programme will resume the course of the old programme.

NOTE: Open the door slightly at first to stop a programme before it is complete in order to avoid water spillage.

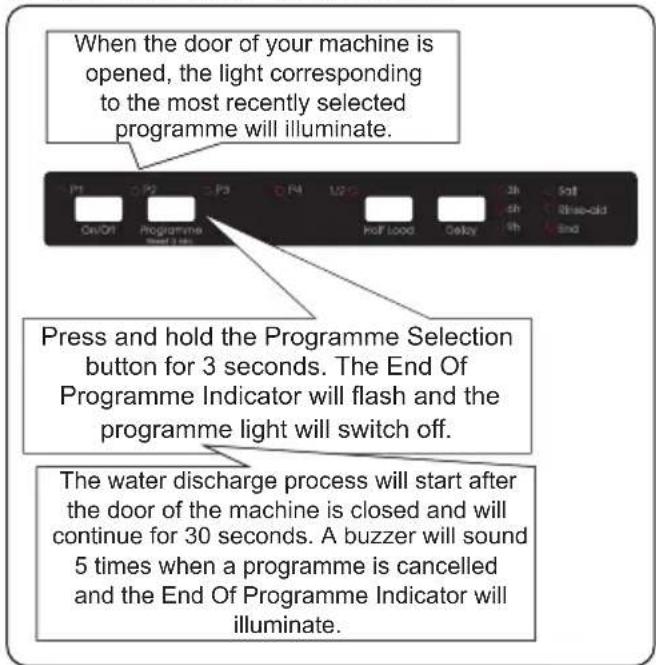

Cancelling a Programme

Follow the steps below to cancel a programme while in operation.


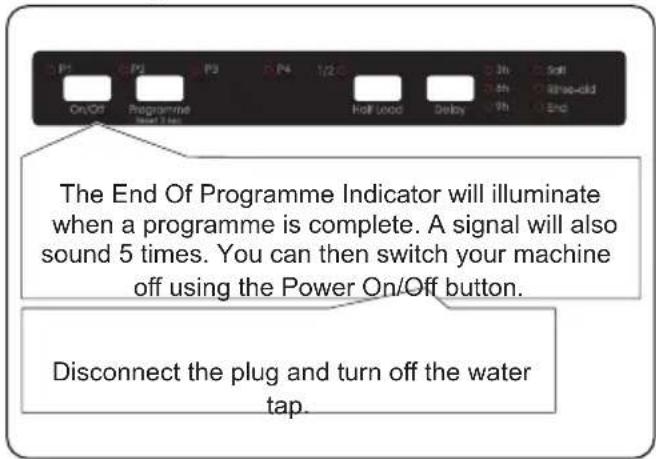

Switching the Machine Off

P1 On/Off Programme Signal 2 tap P3 P4 M2 Hall Load Delay In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In In Inden- Programme Indicator will illuminate when a programme is complete. A signal will also sound 5 times. You can then switch your machine off using the Power On/Off button. Disconnect the plug and turn off the water tap.

NOTE: Do not open the door before the gramme is complete.

NOTE: If the door of the machine is closed or the power is cut off while a programme is in operation, the programme continue when the door is closed or the over returns.

NOTE: If the power is cut or the machine door is opened during the drying process, the programme will terminate.

Your machine will now be ready for a new programme selection.

Buzzer Sound Control

To change the buzzer sound level, follow the below steps:

1. Open the door and press Programme (2) and Half Load (3) buttons simultaneously for 3 seconds.

2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".

3. To decrease sound level press Programme (2) button. To increase sound level, press Half Load (3) button.

4. When voice level is changed, corresponding leds shown below table illuminate.

Voice Levels	Leds
	1/2 3h	6h 9h
S0 X
S1 X X
S2 X X X
S3 X X	X X

1. To save the selected sound level, turn off the machine.

"S0" level means all voices are off. Factory setting is "S3.

Save Power Mode

To activate or deactivate save power mode, follow the below steps:

1. Open the door and press Half Load (3) and Delay (4) buttons simultaneously for 3 seconds.

2. After 3 seconds, the machine will display last setting.

3. When Save Power Mode is activated, P1, P2, 1/2 leds illuminate. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.

4. When Save Power Mode is deactivated P1, P2 leds illuminate. If Save Power Mode is deactive, interior lights will be on as long

as the door is open, and the machine will always be on unless it is turned off by user.

5. To save the selected setting, turn off the machine.

In factory setting, Save Power Mode is active.

Infoled 2.1 (Model Dependent)

LED Indicator State	of the Machine
Red, continuous	The machine is running a program.
Red, flashing A program	is cancelled.
Red, flashing rapidly	The machine has a fault. Refer to section "Automatic fault warnings and what to do".
Green, continuous A program	is finished.

8 CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
  • To extend the life of your dishwasher, clean the appliance regularly on each month
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

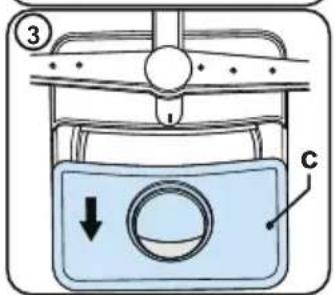

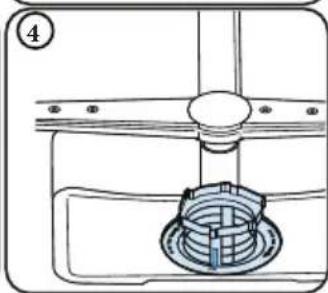

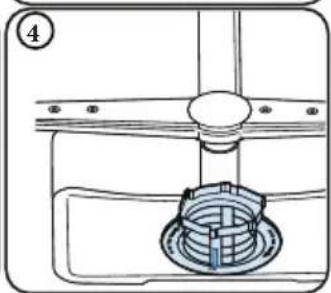

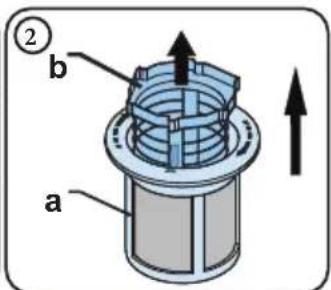

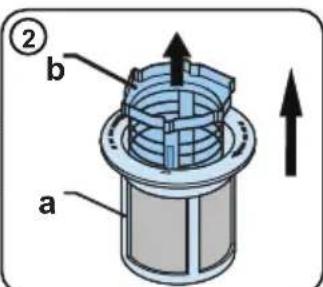

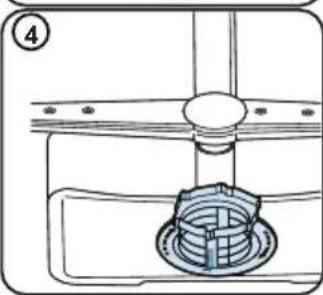

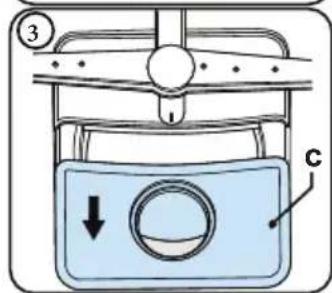

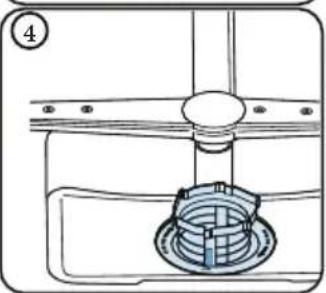

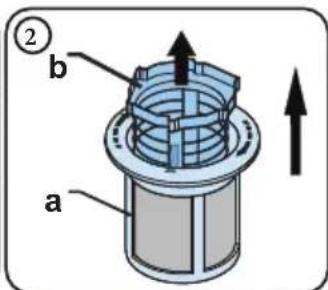

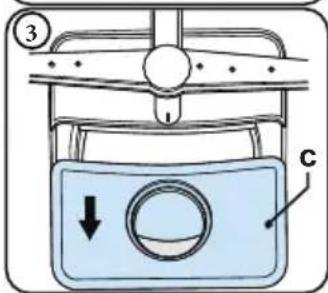

8.1 Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter b) Coarse Filter
c) Metal Filter

Technical diagram of a mechanical assembly with a central component and a circular component, no visible text or symbols.

② b a

Diagram of a car air vent with labeled components and directional arrow

Technical diagram of a mechanical assembly with a central component and a base (no text or symbols)

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

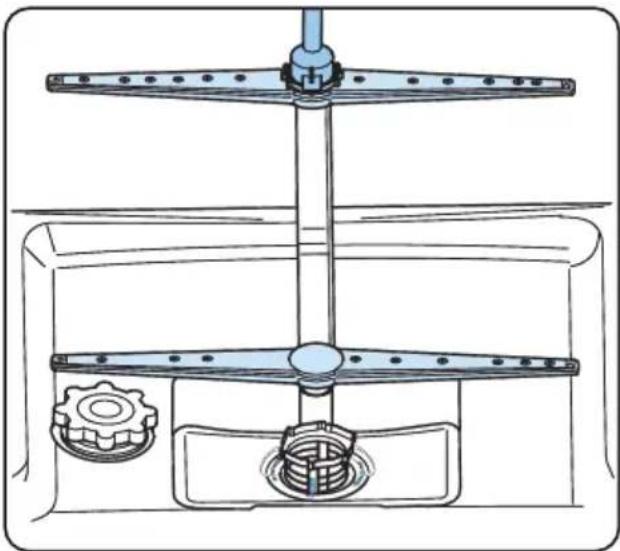

8.2 Spray Arms

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

9 TROUBLESHOOTING

FAULT POSSIBLE CAUSE	TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softerner level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE POSSIBLE FAULT WHAT TO DO
P1 P2 1/2 3h 6h
	[DZGS]				Water inlet system failure	Make sure the water inlet tap is open and water is flowing.
						Separate the inlet hose from the tap and clean the filter of the hose.
						Contact for service if the error continues.
					Pressure system failure	Contact for service.
					Continuous water input	Close the tap and contact for service.
					Inability to discharge water	Water discharge hose and filters may be clogged.
						Cancel the programme.
						If the error continues, contact for service.
						Contact for service.
					Faulty heater Contact for service.
					Overflow	Unplug the machine and close the tap.
						Contact for service.
					Faulty electronic card	Contact for service.
					Overheating Contact for service.
					Faulty heater sensor	Contact for service.
					Hihg voltage failure	Contact for service.
					Low voltage failure	Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

www.orima.pt

CE

orima

ES Lavavajillas / Manual de instrucciones

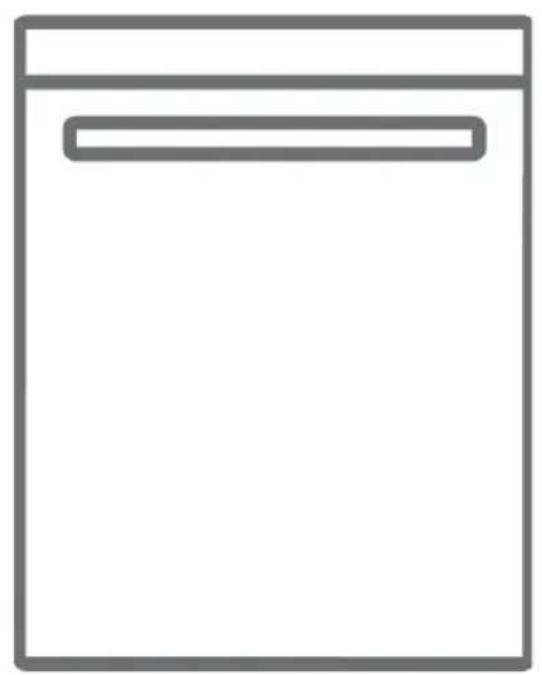

Simple line drawing of a rectangular box with a horizontal bar at the top (no text or symbols)

ORC151BI

Illustration of a hand holding a faucet with a curved arrow indicating rotation (no text or symbols)

Diagram of a faucet with a valve and base, showing fluid flow (no text or symbols)

Labeled diagram of a kitchen appliance showing internal components with numbered parts

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

3.1 Aspecto general

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

DETERGENT

Illustration of a hand inserting a card into a device (no text or symbols present)

Line drawing of a hand inserting a small lock into a device (no text or symbols)

Isometric technical diagram of a vehicle chassis frame with red arrows indicating motion or force vectors (no text or symbols present)

Cesta superior

Ajuste de altura

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Diagram of a mechanical assembly with rotating wheels and a central component, showing directional arrows (no text or symbols)

Technical diagram showing a 3D wire mesh structure with two red lines labeled 1 and 2 indicating reference or measurement points.

3D wireframe model of a mechanical or structural component with layered internal structure (no text or symbols)

3D rendering of a metal grate structure with rebar framework and upward arrow indicator (no text or symbols)

5.2 Cargas de cesta alternativa

Cesta inferior

Interior view of a shopping basket with cutlery and a small object inside (no visible text or symbols)

Illustration of a basket containing various kitchen utensils and pots (no text or symbols)

Cesta superior

Diagram of a multi-tiered industrial machine with multiple cylindrical components and a central rod (no text or labels)

Cargas incorrectas

Black X symbol centered on a grid of spherical objects, no text or symbols present

Diagram of industrial machinery components with no visible text or symbols

Abstract grayscale graphic with geometric shapes and a central 'X' mark, no text or symbols present.

Abstract 3D wireframe structure with a large 'X' symbol overlay (no text or symbols present)

Diagram of a mechanical assembly with a coiled spring and shaft, no text or symbols present

② b a

Diagram of a car air vent with labeled components and directional arrow

Technical line drawing of a mechanical assembly with a central component and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Simple line drawing of a rectangular box with a horizontal bar at the top (no text or symbols)

ORC151BI

5.1 Recommendations ....14

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating motion (no text or symbols)

Simple line drawing of a faucet with a valve and base (no text or symbols)

Close-up of a mechanical component with a circular component and a numbered arrow pointing to it (no text or symbols visible)

Illustration of a hand pressing a small blue object on a rectangular tray (no text or symbols)

DETERGENT

Illustration of a hand inserting a card into a device (no text or symbols present)

Line drawing of a hand inserting a small lock into a device (no text or symbols)

Technical line drawing of a car chassis frame with red arrows indicating motion or movement (no text or symbols)

Panier supérieur

Illustration of a hand holding a tool interacting with a wire cage (no text or symbols visible)

Diagram of a mechanical assembly with two wheels and a central component, showing directional arrows (no text or symbols)

Technical diagram of a wire mesh structure with labeled components 1 and 2, showing internal structural elements and red directional arrows.

3D rendering of a multi-tiered industrial machine with multiple cylindrical components and a central knob (no text or symbols visible)

Charges incorrectes

Abstract 3D rendered mechanical components with a central 'X' mark, no text or symbols present

Abstract 3D wireframe structure with a large 'X' symbol overlay (no text or symbols present)

Diagram of a mechanical assembly with a central component and a circular base, no visible text or symbols

② b a

Diagram of a device with labeled components and directional arrow, showing a container with a circular component and a valve.

Technical diagram of a mechanical assembly with a central component and a circular base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

8.3 Pompe de vidange
