USER MANUAL Flowmate ARC Casual Djive

White portable air purifier with a circular control knob and 'djive' branding (no text or symbols on the device itself)

2 IN 1

BLADELESS FAN & AIR PURIFIER

English Deutsch Français Español Italiano

CONTENTS

SAFETY INSTRUCTIONS 4

PRODUCT OVERVIEW 6

DISPLAY INTERFACE 7

REMOTE CONTROL 8

MAIN BODY FUNCTIONS 12

FILTER REPLACEMENT 13

MAINTENANCE 15

WIFI CONNECTION 17

TECHNICAL SPECIFICATIONS 17

[djive]

070

Dear Customer,

Your new Flowmate ARC Casual is about to be used for the first time for refreshing the air in your home.

Please take a moment to read this manual to familiarise yourself with your new 2in1 Bladeless Tower Fan.

If you have any questions, please contact our customer service.

Enjoy fresh clean air every day with your new djive Flowmate.

Customer Care

Phone [phone]

[e-mail]

www.djive.eu ffl owmate djive_home

Robovox Distributions GmbH | Hamburger Straße 11, D - 45889 Gelsenkirchen

SAFETY INSTRUCTIONS ||

WARNING

To avoid fire, electric shock or injury, you urgently need to meet the following requirements. In addition, please follow the respective national and local electricity regulations. Before using the Flowmate ARC Casual please read all instructions and cautionary markings in this manual carefully. When using an electrical appliance, basic precautions should always be considered, including the following:

1. The device can be used by children aged from 8 years and above and persons with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge, only if they have been given supervision or instruction by a responsible person concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be performed by children without supervision.
2. Please use a separate power outlet according to the required voltage for the fan. Do not use a multi-purpose socket for simultaneous use with other electrical devices.
3. Should Flowmate ARC Casual does not work properly due to damaged power cord, turn off the power and ask a qualified person for repair or refer to your djive service contact primarily.
4. Do not move Flowmate ARC Casual when applying the plug in or out of power outlet.
5. Do not pull out the plug by the cable only. Pull out the plug by grip on appropriated spot.
6. Do not operate Flowmate ARC Casual with damaged cord or connector. Please contact djive customer service in order to replace or repair your device.
7. Do not stretch or violate the cord. Keep cord also away from any heat sources.

8. Do not place power cord covered by carpets or similar. Make sure to prevent cord from tripping over.

9. Always turn off Flowmate ARC Casual before pulling the plug out of power outlet. In case of long term non-usage, please plug out the device.

10. Do not place any objects covering the air inlet or outlet. Make sure the ventilation mouths are free of dust, lint, hair or other obstacles that could impair the air flow.

11. Flowmate ARC Casual should be placed on horizontal, dry surface and should also be kept away from heat sources, corrosive air and moisture. In order to grant best function results do not place any obstacles 150 mm around the device.

12. Do not use Flowmate ARC Casual outdoors or on wet surfaces.

13. Do not immerse the device, power cord, or plug in water or other liquids to avoid danger of shock or damage. The use of an extension cord is not recommended unless it has been authorized by a qualified person.

14. The device contains an UV-C emitter. Unintended use of the appliance or damage to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may harm to the eyes and skin. WARNING – This appliance contains a UV-C emitter. Do not stare at the light source.

15. Do not use any cleaning agents or lubricants for cleaning Flowmate ARC Casual and always pull out the power plug before cleaning, transporting and servicing the device.

16. Do not turn or knock over the device.

17. Pacemakers and defibrillators may be affected by strong magnetic fields as well as magnetic cards. If user or someone in household has a pacemaker or defibrillator, avoid having the remote control near to the appliance.

FLOWMATE

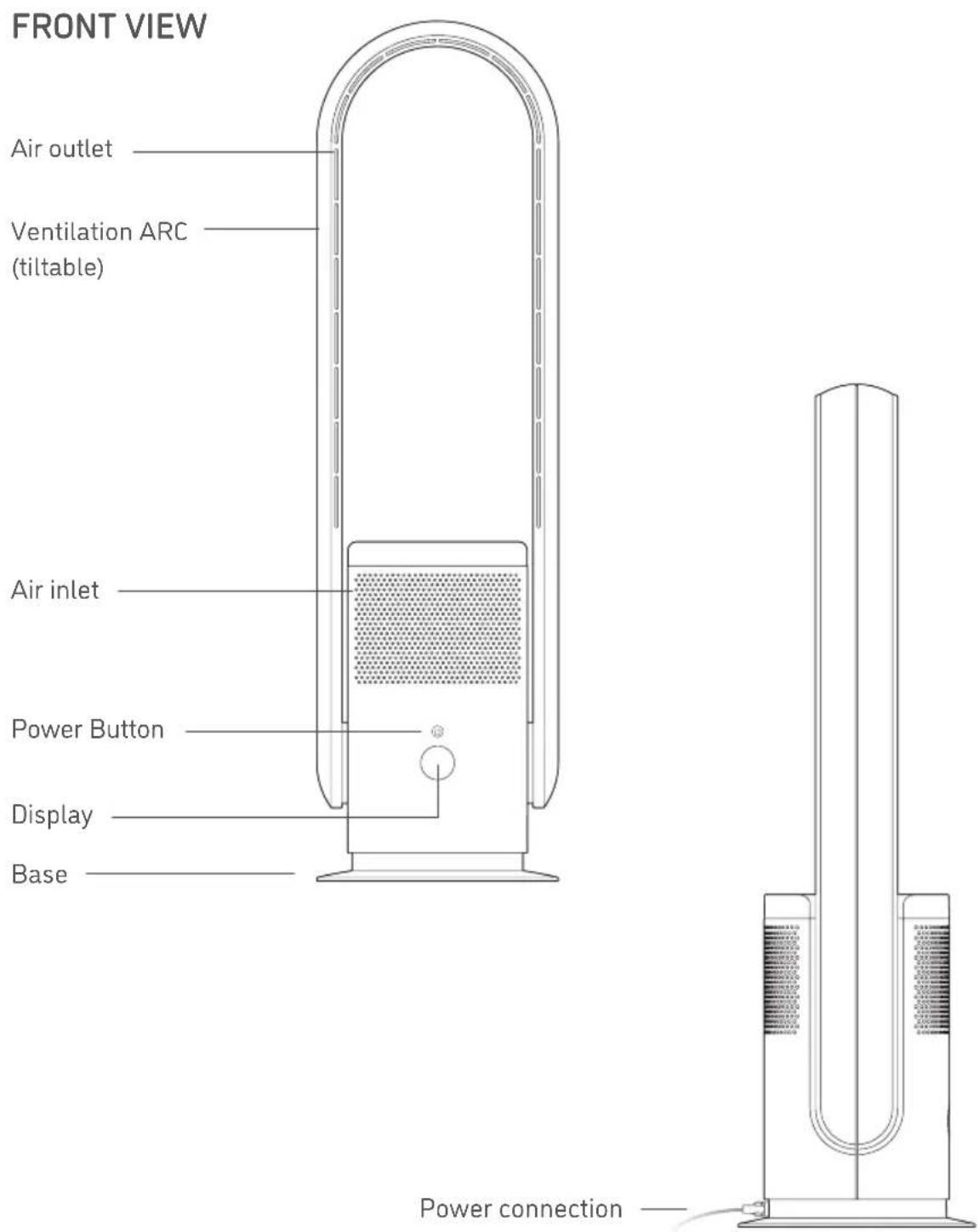

PRODUCT OVERVIEW ||

FRONT VIEW Air outlet Ventilation ARC (tiltable) Air inlet Power Button Display Base Power connection

FLOWMATE

DISPLAY INTERFACE ||

LED INDICATORS

Mode WIFI P2.5 date Wind speed Timer function icon UV 070 µg/m³ PM2.5 PM2.5 icon 3

FLOWMATE

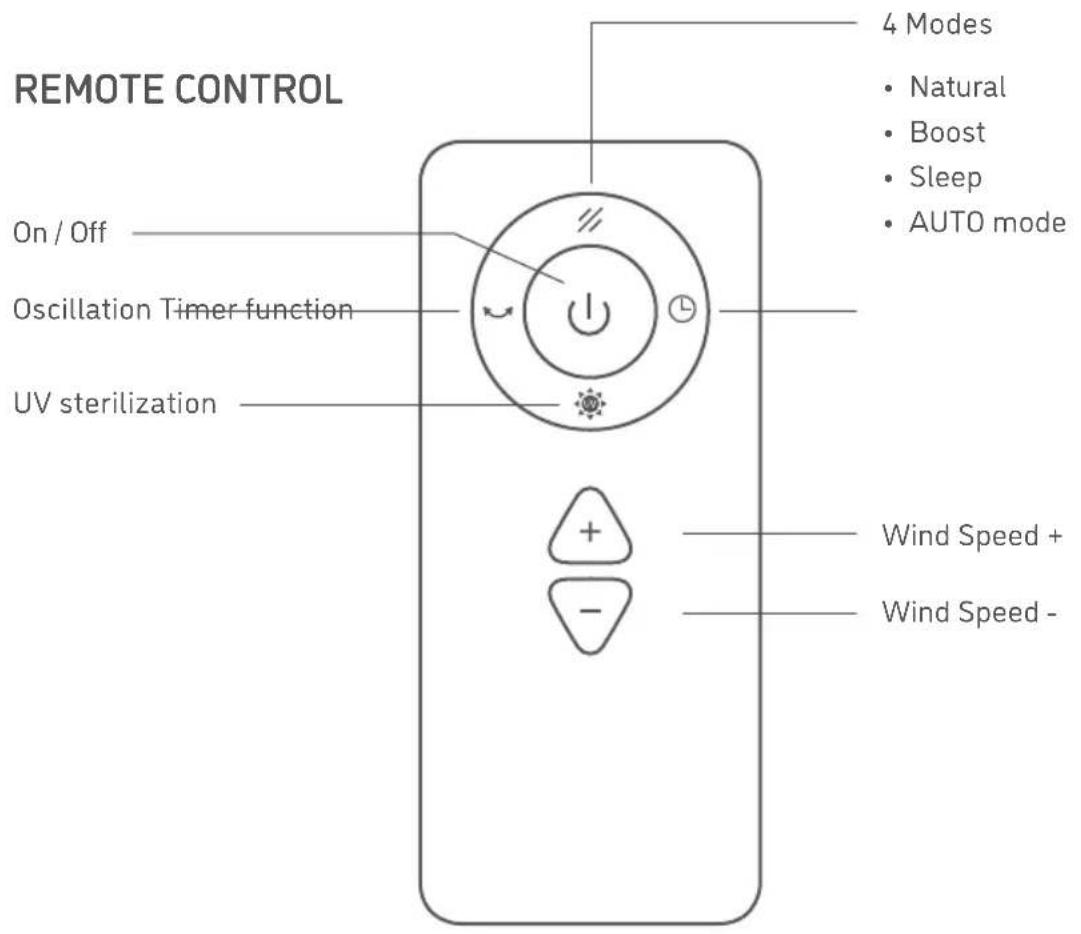

REMOTE CONTROL ||

REMOTE CONTROL On / Off Oscillation Timer function UV sterilization 4 Modes • Natural • Boost • Sleep • AUTO mode Wind Speed + Wind Speed -

FLOWMATE

The device can be switched on and off by touching the „ON / OFF“ button.

This button allows to switch between 3 different wind presets:

NATURAL

Simulates a natural wind flow by adjusting the wind speed randomly.

BOOST

Highest possible wind speed running at a maximum of 7300RPM.

SLEEP

Lowest possible wind speed to reduce operational noises to a minimum.

AUTO MODE

This button activates the AUTO Air Purifi er mode.

Touch the oscillation button for 1 sec to turn on oscillation function. The ARC Casual can swing left and right up to 80°. Touch the button again for 1 sec to turn off oscillation.

UV-Sterilization is activated by default. You can easily turn it off by touching the UV button on the remote control. Please note: UV-Sterilization is also deactivated automatically after 1 hour of running.

You can set the timer function from 1 hour up to 8 hours. Please note: Whether timer is set or not you can use all functions regularly. All timer function adjustments are turned to default once the ARC Casual is turned off.

FLOWMATE

AUTO mode: When atmospheric load (PM2.5) is detected the wind speed level is adjusting automatically as follows:

000 - 035 μg Level 2
036 - 070 μg Level 4
071 - 120 μg Level 6
120 - 199 μg Level 9

± Press the „+“ key to increase wind speed and press the „-“ key to decrease wind speed.

REMOTE CONTROL

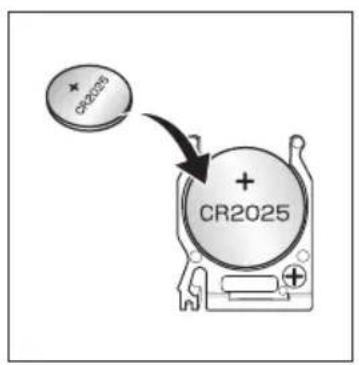

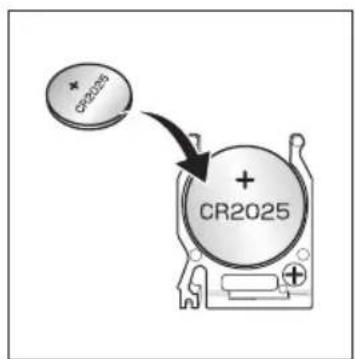

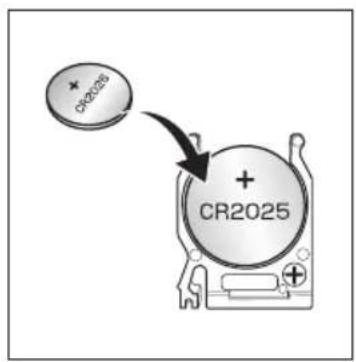

Please remove the insulation sheet before using the remote control. Battery replacement method as shown in the picture. Please note the battery direction.

Illustration of a hand holding a tool with an arrow and a downward arrow, no text or symbols present

CR2025 + CR2025

CR2025

FLOWMATE

Do not recharge the battery. The battery is NOT a toy, keep away from Children. In case of battery swallowed accidentally, see a doctor immediately Point remote control directly to Flowmate ARC Casual in order to grant best connection results.

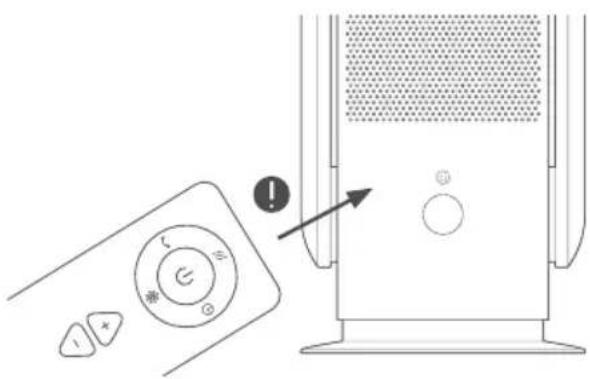

Diagram showing a remote control with a warning icon and indicator finger pointing to a device panel.

POTENTIAL ISSUES

It is possible that the ARC Casual may respond to the remote control of other devices.
⚠️ If you use the ARC Casual remote control it is possible that other devices may respond to it.

This is due to the overlapping frequencies of the remote control. It is not a malfunction or other technical issue. To avoid misuse, keep the remote control away from other electrical devices during operation.

WARNING

Illustration of a hand holding an electrical socket with a black arrow indicating the direction (no text or symbols present)

When using the remote control to switch off the device be aware it is not turned off properly.

If the device is not used for a longer period of time, make sure to disconnect the main plug from the power outlet.

FLOWMATE

MAIN BODY FUNCTIONS ||

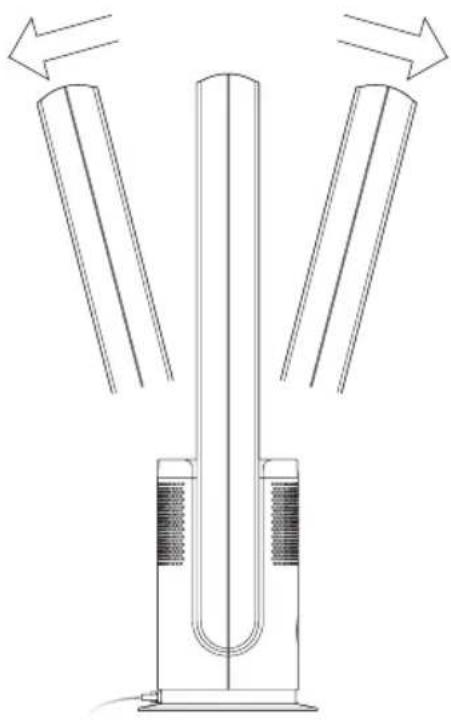

Diagram of a vertical cylindrical device with three side-mounted ports and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hand inserting a small circular component into a device panel (no text or symbols)

TILTABLE VENTILATION ARC

Turn the device off. Please fix the main body in place with one hand and adjust the ventilation arc with the other hand. It is tiltable by 15 degrees front- and backwards.

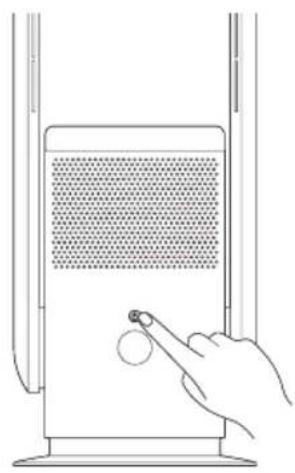

ON / OFF OPERATION

ON Touch the power button on main body, the buzzer will beep once to start operation.

OFF Touch and hold the power button for 2 seconds, the buzzer will beep two times, device will stop operation.

Please note: Flowmate ARC Casual is always set to standby unless it is plugged out from power outlet.

AIR VOLUME SHIFT

When main body is operating: Press the power button on main body in order to switch air volume from level 1 to 9.

FILTER REPLACEMENT

0%

The Flowmate ARC Casual is equipped with a HEPA 14 air cleaning filter. Before using the device, install the filter as explained below in order to purify the air.

After 720 hours of operation, the display will show an alarm with a beep as feedback in addition. Press and hold the power button (either on the main body or on the remote control) for 5 seconds to reset the filter duration counter.

FLOWMATE

HOW TO INSTALL OR REPLACE THE HEPA 14 AIR CLEANING FILTER

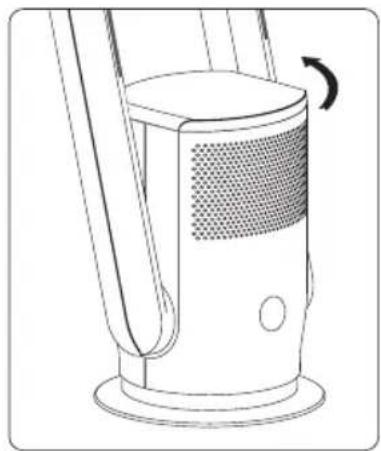

Line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

1. Lift the cover with the attached filter carefully. The cover attaches magnetically to the main body.

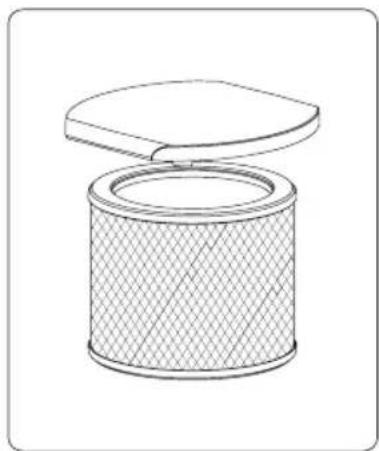

Line drawing of a cylindrical mechanical component with a lid, showing internal texture and no text or symbols.

1. Remove the old filter carefully from the cover with minimal effort.

Simple line drawing of a cylindrical object with a flat top and textured fill (no text or symbols)

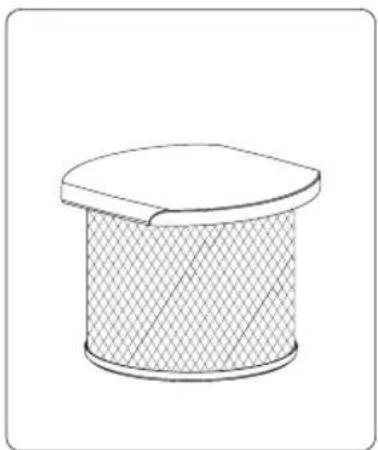

1. Unpack the new filter and attach it to the cover (snaps in, no screwing).

Diagram of a handheld device with mesh insulation and a downward arrow indicating action (no text or symbols)

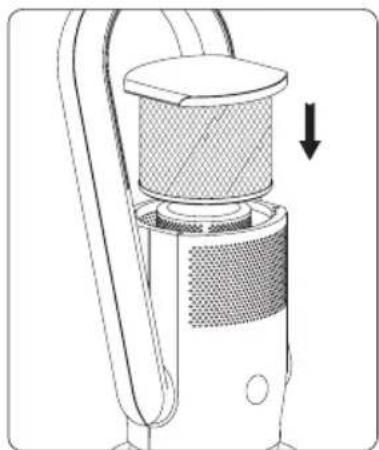

1. Finally put the cover with the attached filter back in place until it magnetically snaps to the main body.

NOTE

The smooth side of the filter cover faces forward.

FLOWMATE

MAINTENANCE ||

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

POWER SUPPLY

Plug out Flowmate ARC Casual from power outlet before maintenance.

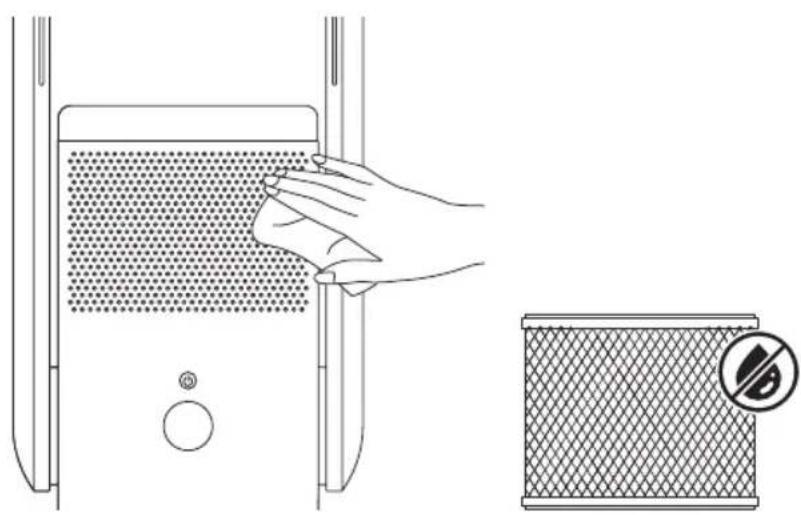

Diagram showing a hand cleaning a window with a mesh pattern and a noise barrier (no text or symbols)

HOUSING

Gently wipe the device with a soft, dry cloth.

If the surface of the device is dirty, dilute it with a mild detergent.

FLOWMATE

AIR INLET & AIR OUTLET

Use a soft brush or vacuum cleaner to remove dust from air inlet and air outlet. Please note: If dust is not removed properly, the device functions maybe affected.

REMOTE CONTROL

Gently wipe the surface of the remote control with a soft, dry cloth. For long time non-usage, please remove the button battery in the remote control.

POWER PLUG

Please clean the power plug with a soft, dry cloth.

SAFEKEEPING

After the device has been cleaned, it can be stored in a plastic bag. Keep away from vibrations and electrical devices with cooling / heating function. Do not expose device to direct sunlight, hot or humid places.

Keep away from children. Filter is absorbing any type of liquid, therefore do not use water to clean filter directly.

WIFI CONNECTION ||

Make sure device is plugged in into power outlet.

Hold the power button for 5 seconds, WIFI icon on LCD display will flash when connected. The WIFI icon on LCD display will be displayed permantly once the connection is successful.

TECHNICAL SPECIFICATIONS

FLOWMATE ARC CASUAL
Product Name Flowmate ARC Casual
Model SKJ-CR022UF-S
Voltage	220-240 V ~ 50-60 Hz
Oscillation 80° ± 5°
Rated power 35 W
Timer 1-8 H
Scope of supply • main body	• remote control• filter• manual

INHALT

Illustration of a hand holding a pen with arrows indicating movement (no text or symbols)

CR2025 + CR2025

CR2025

FLOWMATE

Diagram showing remote control with labeled buttons and an alert icon pointing to a device panel

POTENTIELLE PROBLEME

Illustration of a hand holding a plug inserted into an electrical outlet (no text or symbols)

Diagram of a vertical cylindrical device with three side-mounted ports and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hand inserting a small circular component into a device panel (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a cylindrical mechanical component with a lid, showing internal texture and no text or symbols.

Simple line drawing of a cylindrical object with a flat top and textured fill (no text or symbols)

Diagram of a handheld device with mesh insulation and a downward arrow indicating action (no text or symbols)

Illustration of hands connecting a plug to an electrical outlet with two switches (no text or symbols)

STROMVERSORGUNG

Diagram showing a hand cleaning a wall-mounted device with a mesh filter and a no-smoking panel (no text or symbols)

REINIGUNG

REEMPLACEMENT DES FILTRES 45

MAINTENANCE 47

CONNEXION WIFI 49

Cher client, cher client,

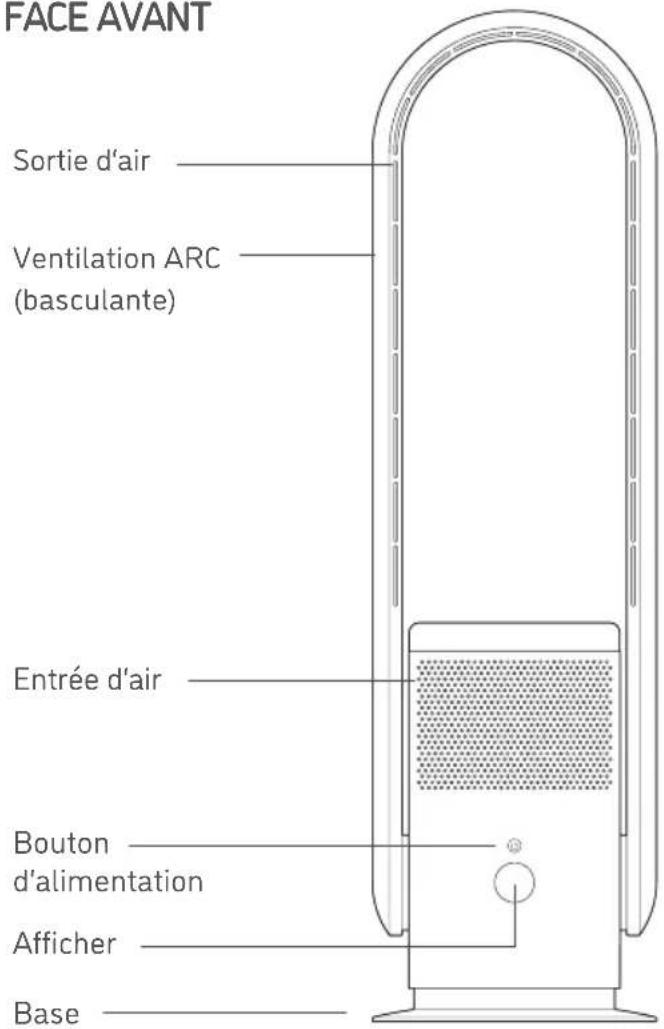

APERÇU DES PRODUITS ||

FACE AVANT

Technical diagram of a vertical cylindrical device with labeled internal components and measurement markings

FLOWMATE

INTERFACE D'AFFICHAGE ||

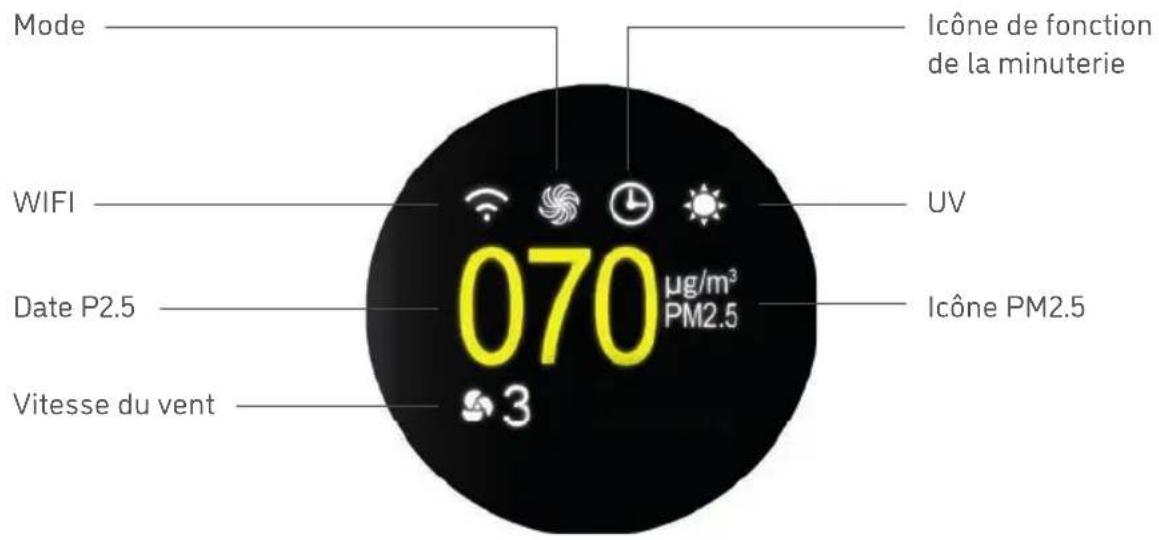

INDICATEURS LED

Illustration of a hand holding a pen or tool with an arrow indicating direction (no text or symbols present)

CR2025 + CR2025

CR2025

FLOWMATE

Diagram showing a remote control with labeled buttons and an alert icon pointing to a device panel.

PROBLÈMES POTENTIELS

Diagram of a vertical cylindrical device with three opposing arrows indicating flow or direction, no text or symbols present.

ARC DE VENTILATION INCLINABLE

Line drawing of a hand inserting a small circular component into a device container (no text or symbols)

DÉPLACEMENT DU VOLUME D'AIR

REEMPLACEMENT DES FILTRES

0%

Line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a cylindrical mechanical component with a lid open, showing internal texture and no text or symbols.

Simple line drawing of a cylindrical object with a flat top and textured fill (no text or symbols)

Diagram of a handheld device with mesh insulation and directional arrow (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

ALIMENTATION ÉLECTRIQUE

Diagram showing a hand placing a textured surface into a panel, next to a meshed air filter with a no-smoking symbol (no text or labels present)

LOGEMENT

Technical line drawing of a vertical cylindrical device with internal components and labeled measurement scales at the base.

Diagram showing a remote control with a warning icon and indicator arrow pointing to a device panel

POSIBLES PROBLEMAS

Diagram of a U-tube manometer with three vertical tubes and a central cylinder, showing airflow direction (no text or labels)

Line drawing of a hand inserting a small circular component into a device container (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a cylindrical mechanical component with a lid, showing internal texture and no text or symbols.

Simple line drawing of a cylindrical object with a flat top and textured fill (no text or symbols)

Diagram of a handheld device with mesh insulation and a downward arrow indicating action (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Illustration showing a hand cleaning a wall-mounted device with a mesh filter and a no-smoking sign (no text or symbols on the diagram itself)

VIVIENDA

CONNESSIONE WI-FI 81

SPECIFICHE TECNICHE 81

djive

070

Gentile cliente,

Technical diagram of a vertical cylindrical device with labeled internal components and measurement markings

FLOWMATE

INTERFACCIA DEL DISPLAY ||

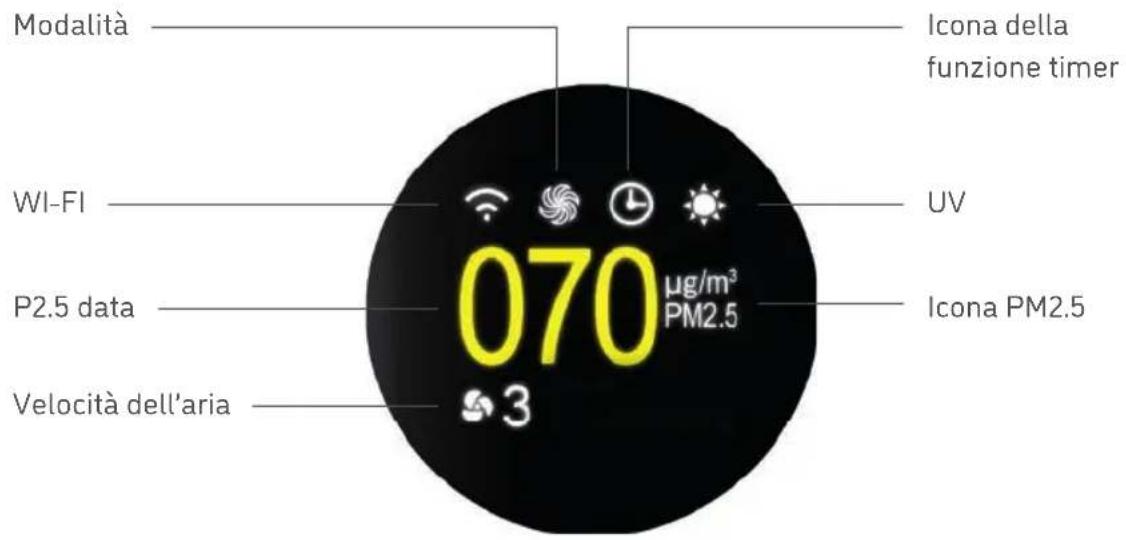

INDICATORI LED
