Product Type	Freestanding fridge-freezer
Brand	Thomson
Model	CTH378NFAWH
Total volume	378 litres
Fridge volume	216 litres
Highly perishable food compartment volume	40 litres
Freezer volume	122 litres (4 stars)
Freezing capacity	8.5 kg/24h
Dimensions (H x W x D)	2010 x 595 x 700 mm
Net weight	98 kg
Power supply	220-240 V ~ 50 Hz, 1.1 A
Annual energy consumption	113 kWh/year
Energy class	A
Noise level	29 dB(A) – class A
Refrigerant	R600a (isobutane) / 55 g
Insulating gas	Cyclopentane
Defrost	Automatic (No Frost)
Special functions	Rapid cooling, rapid freezing, holiday mode, screen lock
Lighting	LED (class G, replaceable by professional)
Reversible door	Yes (technical intervention recommended)
Climatic class	ST (subtropical) / T (tropical): 10 °C to 43 °C
Power failure autonomy	15 hours
Warranty	2 years
After-sales service	FNAC DARTY (0978 970 970) or Vanden Borre (02 334 00 00)

Frequently Asked Questions - CTH378NFAWH THOMSON

How to adjust the fridge temperature?

Repeatedly press the Fridge 3sec - Vacation button to select the desired temperature between 2°C and 8°C.

How to activate holiday mode?

Press and hold the Fridge 3sec - Vacation button for about 3 seconds. The symbol appears. The freezer stays at -18°C, the fridge stops cooling. Remove perishable foods before activating this mode.

Why is my fridge making noise?

Buzzing sounds (compressor) and cracking sounds (refrigerant circulation) are normal. If the noise is excessive, check that the appliance is level and not touching a wall or object.

What to do in case of power cut?

Do not open the door. Frozen food stays good for up to 15 hours. Never refreeze completely thawed food.

How to clean my fridge?

Unplug the appliance, remove food and shelves. Use a soft cloth with warm water and mild detergent (bicarbonate or vinegar). Rinse and dry. Do not use abrasive products.

The temperature shows an error code, what to do?

Codes E1 to E7 indicate a sensor or communication fault. Contact authorized after-sales service. Do not attempt to repair yourself.

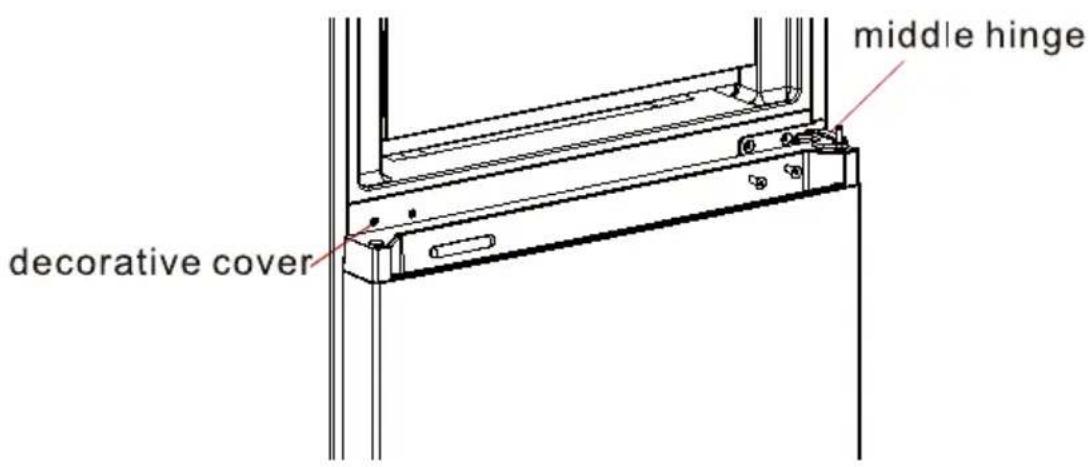

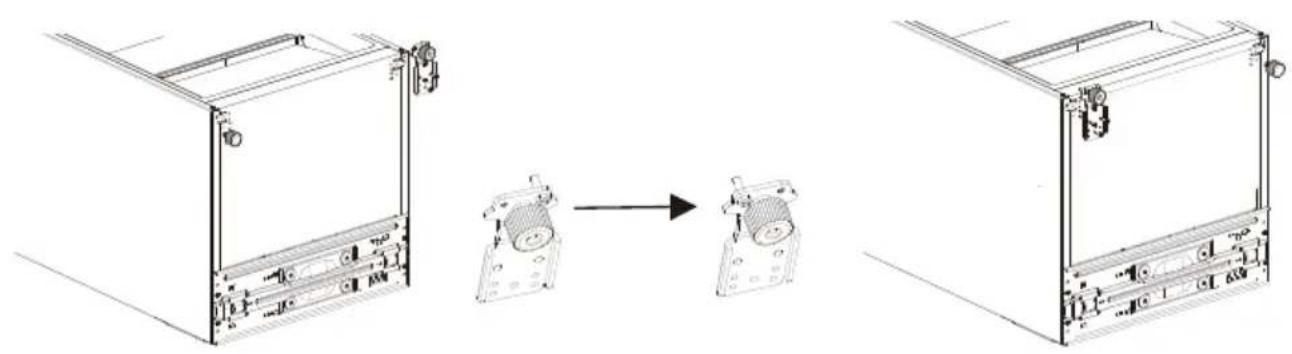

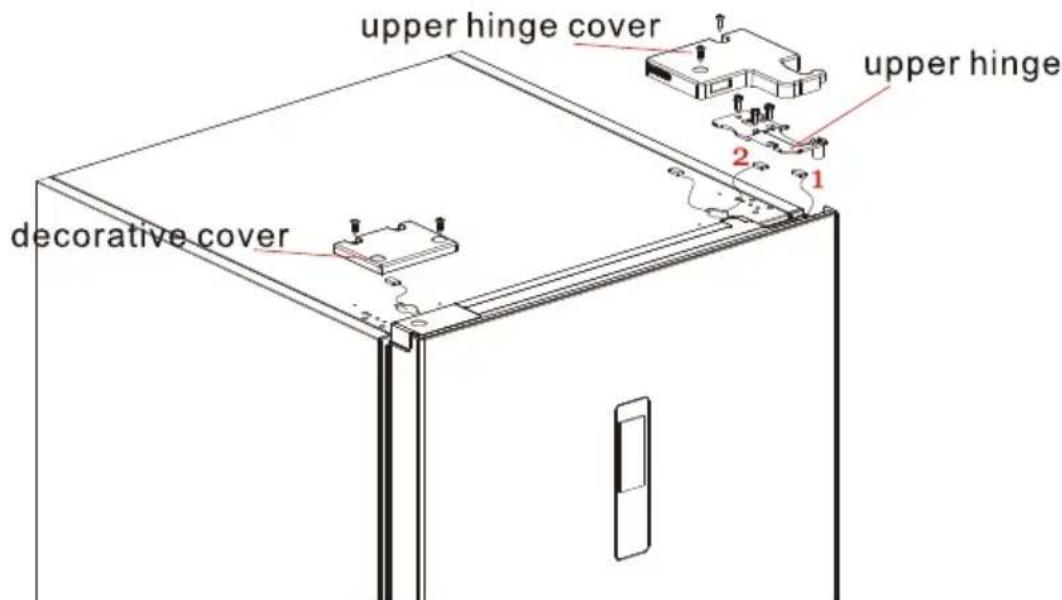

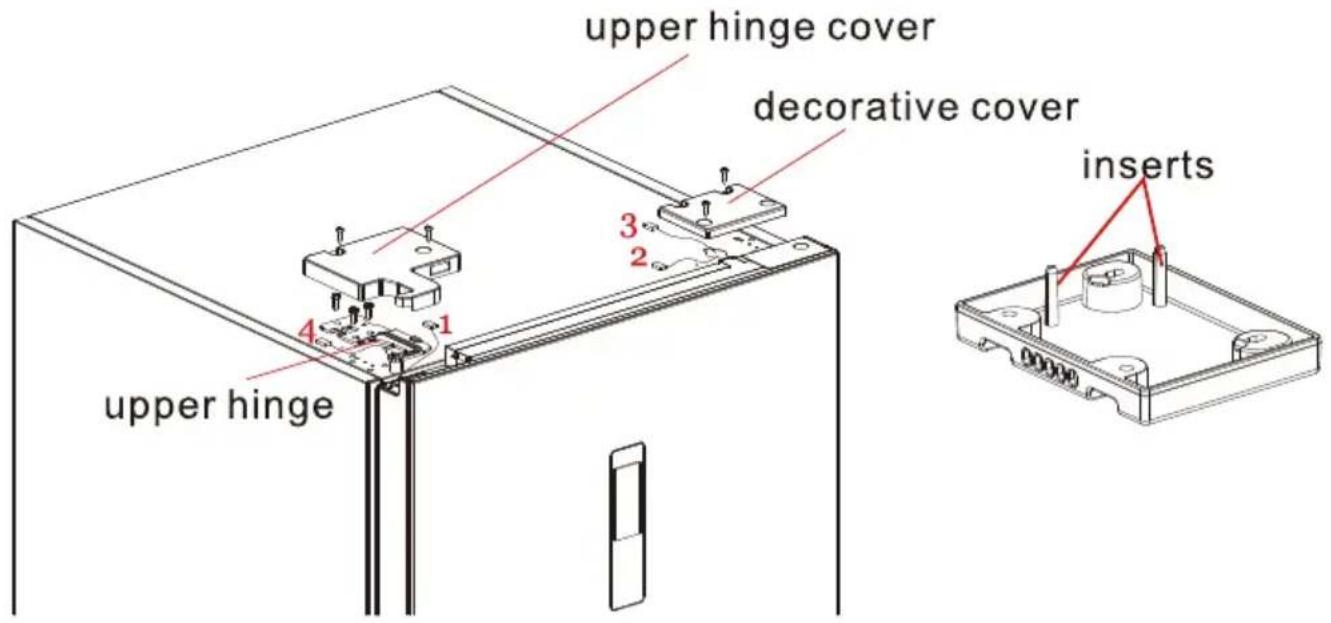

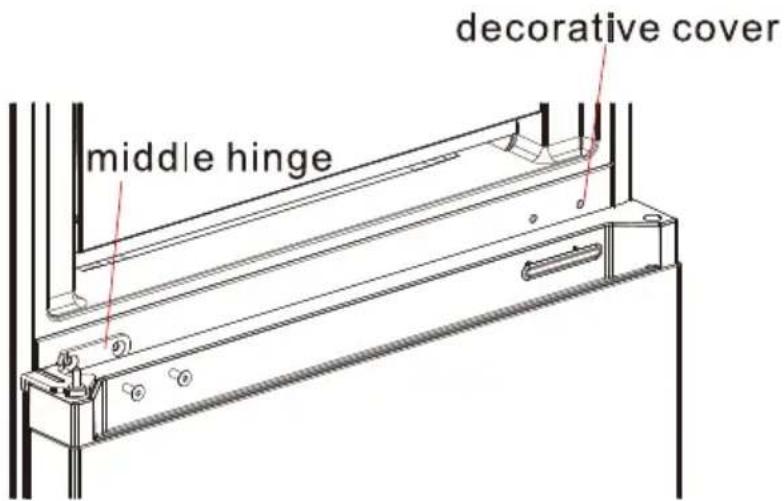

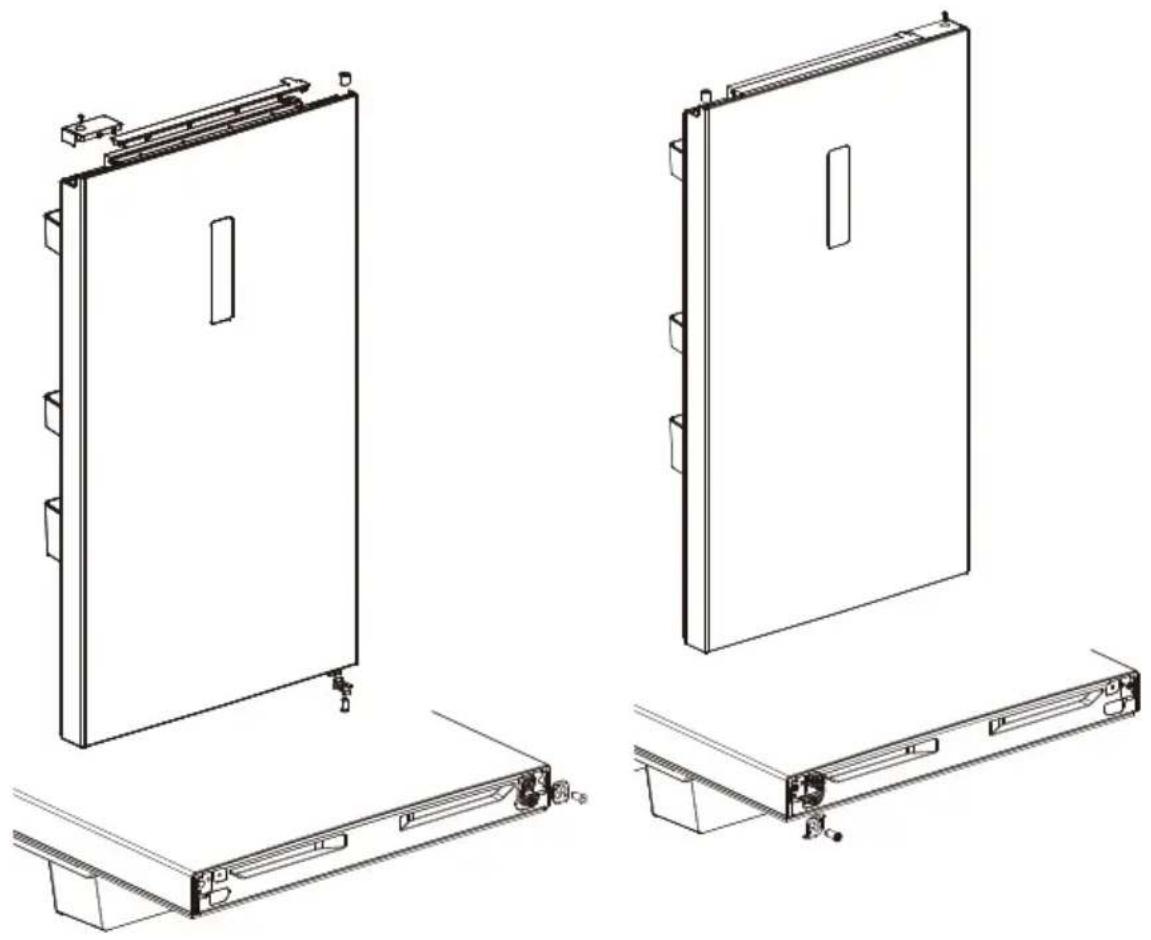

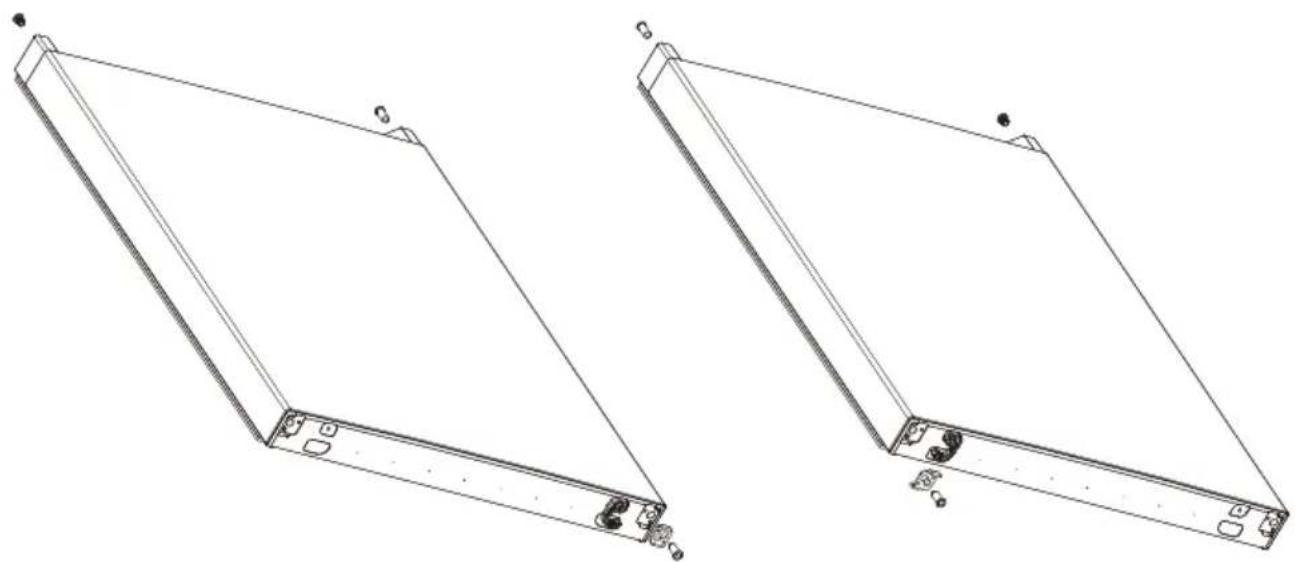

How to reverse the door opening direction?

It is recommended to call an authorized technician. The detailed procedure is in the manual (unplug, disassemble hinges, reverse parts). Tools are required.

Where is the coldest zone in the fridge?

The coldest zone is above the vegetable drawer, indicated by a symbol. For No Frost models (like yours), the temperature is uniform throughout the compartment.

How to use the quick freeze function?

Press Super / Super Cool Frz several times until the symbol appears. The temperature drops to -24°C. The mode stops automatically after 24 hours.

What is the storage time for frozen foods?

It varies by food: 1 month for bacon, 6 months for butter, 12 months for raw beef. Refer to the chart in the manual for details.

USER MANUAL CTH378NFAWH THOMSON

Front view of a white refrigerator with a single door and front panel (no visible text or symbols)

Table des matières

MISES EN GARDE IMPORTANTES....1

DESCRIPTION DU PRODUIT 5

AVANT D'INSTALLER L'APPAREIL 6

INSTALLATION 6

TEMPÉRATURE AMBIANTE....7

UTILISATION DE VOTRE RÉFRIGÉRATEUR CONGÉLATEUR....7

INVERSION DU CÔTÉ D'OUVERTURE DE LA PORTE....13

DÉGIVRAGE....16

NETTOYAGE ET ENTRETIEN 16

GUIDE DE DÉPANNAGE....17

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE....21

MISE AU REBUT....22

Close-up of a refrigerator front with visible door, drawer, and lid (no text or symbols)

Porte-bouteilles ( CTH378NFABIX )

Diagram showing a device being processed into two views of a server rack (no text or symbols present)

Technical line drawings of a refrigerator panel assembly (no text or symbols)

Technical line drawing of two rectangular electronic components with mounting holes and connectors (no text or symbols)

Diagram showing a refrigerator with an open door and a numbered step pointing to the interior panel.

VERIFICATION DE LA TEMPERATURE DANS LA ZONE LA PLUS FROIDE

UW DIEPVRIES KOELKAST 7

DRAAIRICHTING VAN DE DEUR WIJZIGEN....12

ONTDOOIEN 16

REINIGING EN ONDERHOUD 16

PROBLEEMOPLOSSING....17

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN ....20

VERWIJDERING 21

UW DIEPVRIES KOELKAST

Diagram showing a device being processed into a rack-mounted unit, with no visible text or symbols.

Technical line drawing of a door frame assembly with mounting bracket and side panel (no text or symbols)

Technical line drawing of two rectangular electronic components with mounting holes and connectors (no text or symbols)

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1260583

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1260971

Diagram showing a refrigerator with an open door and a numbered step labeled '①' pointing to the interior.

VERIFICATIE VAN DE TEMPERATUUR IN DE KOUDSTE ZONE

CLEANING AND MAINTENANCE....15

TROUBLESHOOTING....16

PRODUCT INFORMATION SHEET 17

REPAIR AND SPARE PARTS SERVICE 19

DISPOSAL 20

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by EtsDartyetFils(S. A.).

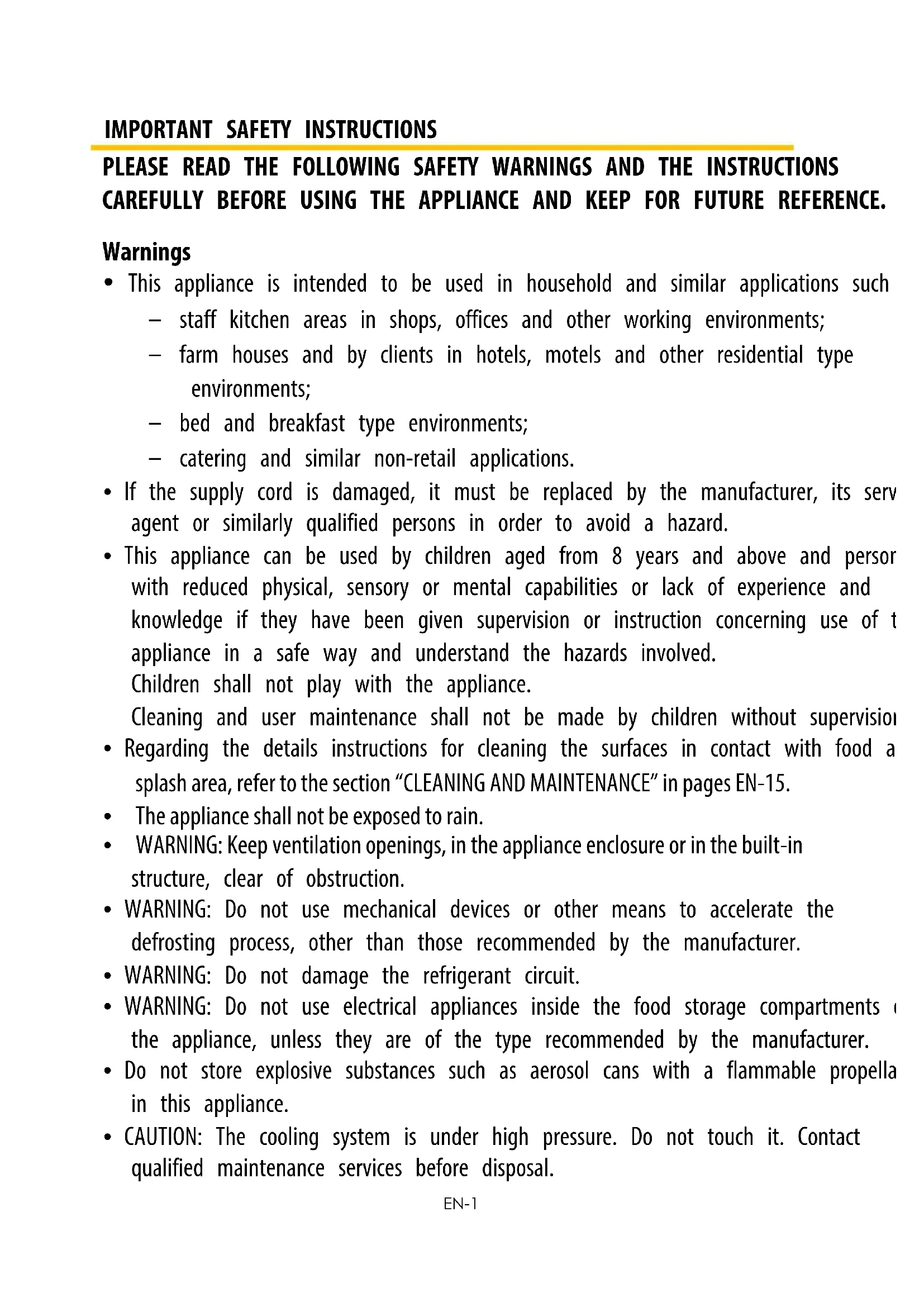

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended to be used in household and similar applications such
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the supply cord is damaged, it must be replaced by the manufacturer, its serv agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision

- Regarding the details instructions for cleaning the surfaces in contact with food a splash area, refer to the section “CLEANING AND MAINTENANCE” in pages EN-15.

• The appliance shall not be exposed to rain.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propella in this appliance.

- CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOOCOLD, SUCHASTHEOUTBUILDINGS, GARAGESORWINECELLARS.
  • Fordisposaloftheappliance:

Topreventpossibleharmtotheenvironmentorhumanhealthfromuncontrolled wastedisposal,recycletheapplianceresponsiblytopromotethesustainablereuse ofmaterialresources,therefrigerantsandtheflammableinsulationblowinggases.

The disposal should only be done through public collection points; contact the wastetreatmentcentrearestyourhomeformoredetailsonthecorrect proceduresfordisposal.

• Forinstallation,servicing:

Appliances should be placed on horizontalsurface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

- Forhandling:

Alwayshandletheappliancetoavoidanydamage.

• WARNING: Formakingice(icecubes), use potable water only.
• Neverfreezedefrostedfoodexceptiftheyhavebeencookedbefore,inorderto eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

• Warning, Riskoffire/flammable materials
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Donotlocatemultipleportablesocket-outletsorportab lepower suppliesattherearoftheappliance.
- Childrenaged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Toavoidcontaminationoffood, pleaserespectthefollowinginstructions:

- Openingthedoorforlongperiodscancauseasignificantincreaseofthe temperatureinthecompartmentsoftheappliance.

— Clean regularly surfaces that can come in contact with food and accessible drainagesystems.

• Store raw meat and fish in suitable containers in the refrigerator, so that it not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety Precautions

• Keep all packaging away from children as there is risk of suffocation.
• The plug must be accessible when the refrigerator freezer is in position.
• Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly ar pull it out.
• Place the refrigerator freezer in a dry place – avoid areas of high moisture or humidity.
• Keep the refrigerator freezer out of direct sunlight.
• Do not place the refrigerator freezer near stoves, fires or heaters.
• Do not use electrical appliances in the refrigerator freezer.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Never use the base, doors etc. to stand on or as supports.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freezer burns' on the lips.
• Effervescent drinks should not be stored in the freezer compartment.

- The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

- WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

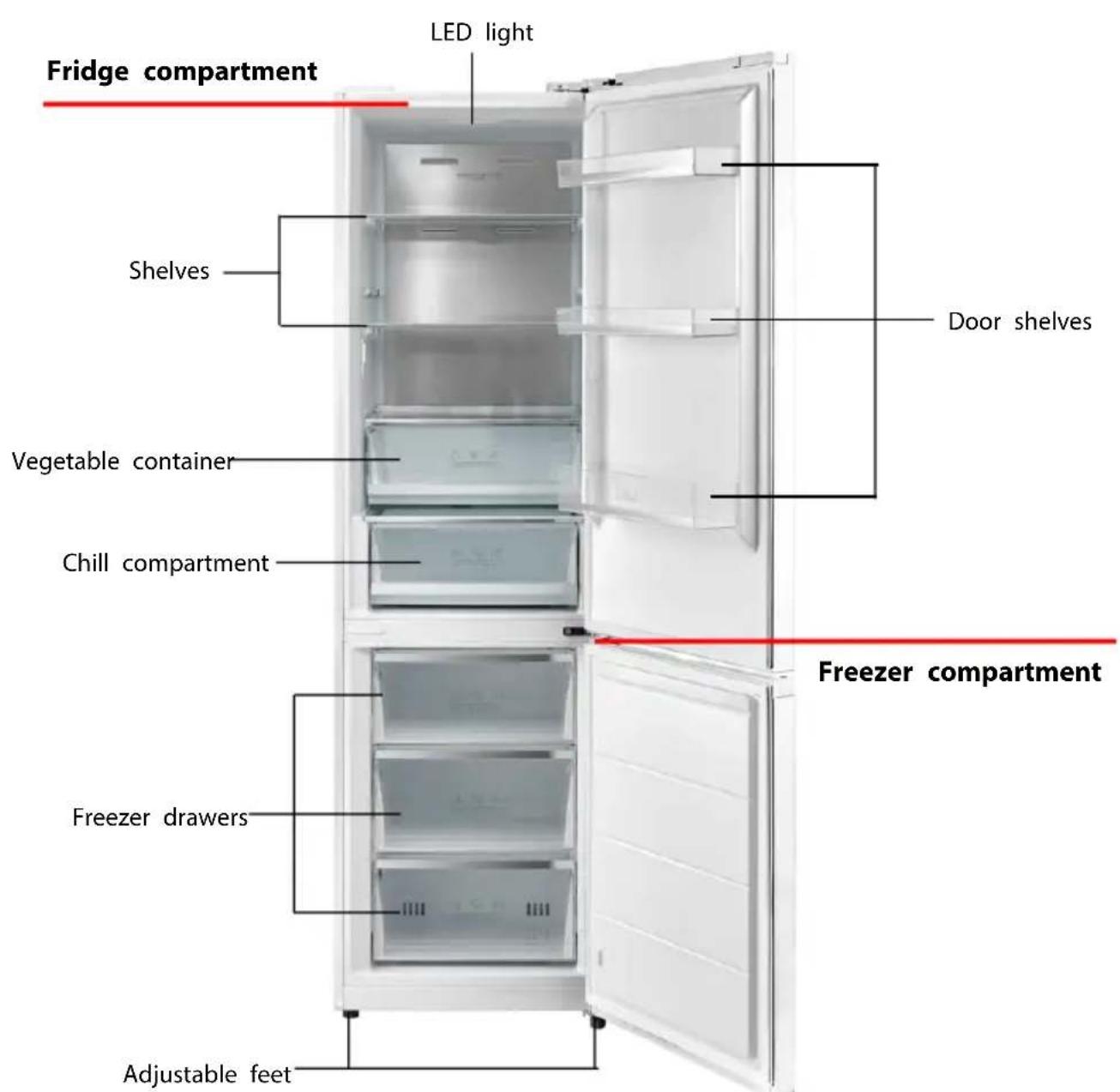

PRODUCT OVERVIEW

Fridge compartment LED light Shelves Door shelves Vegetable container Chill compartment Freezer compartment Freezer drawers Adjustable feet

EN-4

Close-up of a stainless steel refrigerator with visible grilles and side panels (no text or symbols)

Wine bottle rack ( CTH378NFABIX )

Recommended food arrangement

Refrigerator compartment (4°C):

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top section:	canned food, bread, cake...
Middle section:	dairy products, readymade food, desserts...
Bottom section:	meat, meat products, delicatessen ...
Container:	fresh fruit, vegetables, salads...
Chill compartment:	Meat, fisha target temperature equal to 2°C, and storage conditions range from - 3°C to 3°C

Refrigerator door shelves (2°C \~ 8°C):

Top section:	eggs, butter, cheese...
Bottom section:	beverages, cans, bottles...

Freezer compartment (-18°C):

Top/middle drawers :	Cakes and pastriesDairy products such as cheese and butter
Bottom drawer :	Cooked meat and fish

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To tu off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow 10 cm of space between the back of the refrigerator freezer and the wall and at least 10 cm of space from the side to the wall, a height of over 30 cm from its top.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATUE

This appliance is designed to operate in ambient temperature between 10^ C and 43^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ C and food spoilage may occur.

☐ Before placing food in the appliance

• Remove all packaging.
• Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

☐ Hints for fresh food refrigeration

• Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4°C.
• Higher temperature setting inside the appliance may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its freshness and aroma.
• Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment.
• To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one.
• It is recommended to defrost the food inside the fridge.
• Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance.

□ Hints for refrigeration

• Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days.
• Fruit and vegetables: clean thoroughly (eliminate the soil) and place them in the refrigerator.

• It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator.
• Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator.
- Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to excludeasmuchairaspossible.
- Bottles: close them with a cap and place them on the door bottle shelf.
• Always refer to the expiry date of the products to know how long to keep them.

Adjusting the temperatures and functions

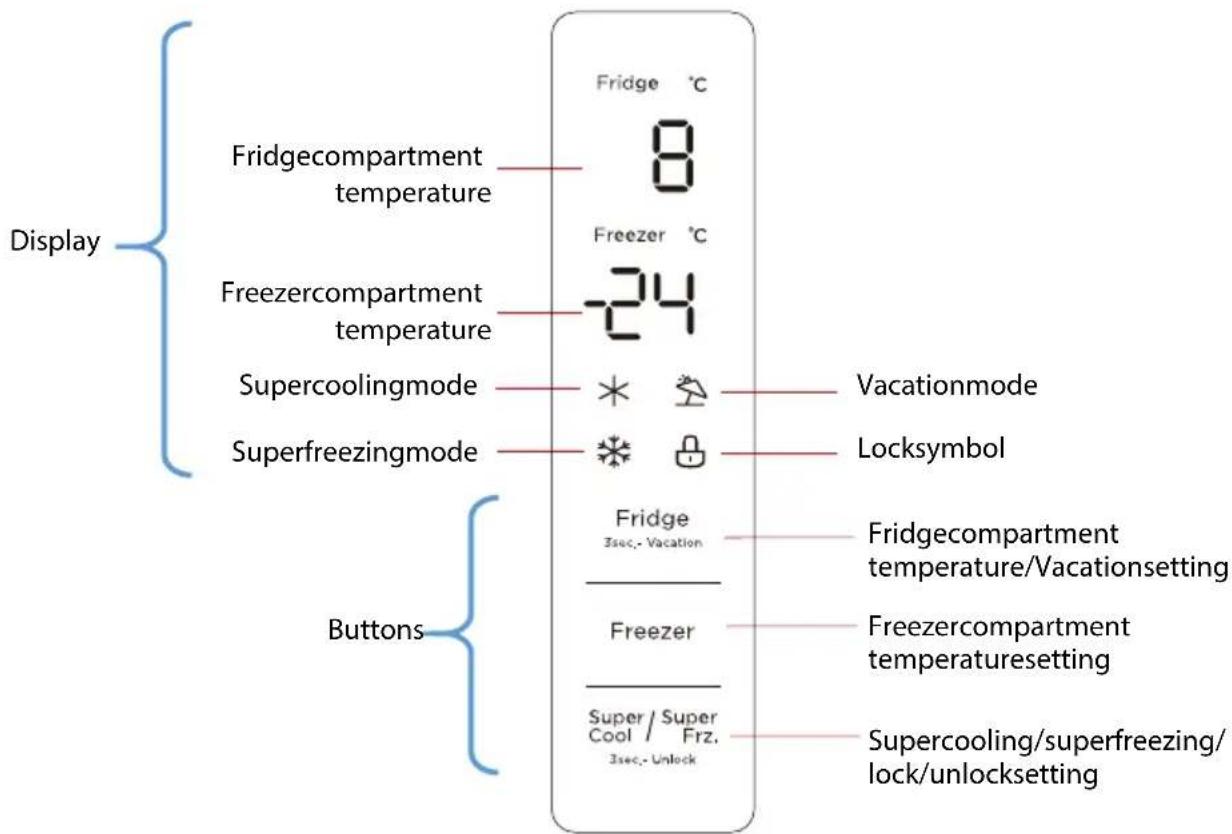

ControlPanel

Display Fridge compartment temperature Freezer compartment temperature Supercoolingmode Superfreezingmode Buttons Fridge 8 °C Freezer 24 °C Vacationmode Locksymbol Fridge 3sec.-Vacation Freezer Super / Super Cool Frz. 3sec.-Unlock Fridge compartment temperature/Vacationsetting Freezer compartment temperaturesetting Supercooling/superfreezing/lock/unlocksetting

SettingtheFridgeCompartmentTemperature

Thefridgecompartmenttemperaturecanbesetbetween2°Cand8°C.

Fridge

Repeatedlypresstosetthedesiredtemperature.

SettingtheFreezerCompartmentTemperature

The temperature of the freezer compartment can be set between -24^ and -16^ .

Freezer

Repeatedlypresstosetthedesiredtemperature.

Vacationmode

This mode is recommended when the appliance will not be used for a long period of time (during vacationsforexample).

Fridge

Press and hold 3sec.-Vacation for about 3 seconds. When this mode is activated, the symbol will appearonthedisplay.

The display will show the temperature '-18°C' on the freezer compartment. No active cooling will be performed in the fridge compartment.

NOTE: Before activating this function, remove perishable foods from the fridge compartment and closetedoor.

Fridge

Todeactivatethismode, you can repeatedly press, or and the

Freezer

Super / Super Cool Frz.

3sec.-Unlock

symbolwilldisappearfromthedisplay.

Supercoolingmode

This mode allows you to cool food quickly and keep food fresh for a longer period. The temperature insidethefridgecompartmentwillbe2°C.

Super / Super Cool Frz.

Press.Whenthismodeisactivated,thesymbol

willappearonthedisplay.

- This mode will be automatically deactivated after 6 hours of operation.

Super / Super Cool Frz.

- To manually deactivate this mode, repeatedly press 3sec.-Unlock until no mode symbol appears onthedisplay.

Superfreezingmode

This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance.

Super / Super Cool Frz.

Repeatedly press 3sec.-Unlock . When this mode is activated, the symbol 🏠 will appear on the display. Thetemperatureinsidethefreezercompartmentwillbe-24°C.

- Thismodewillbeautomaticallydeactivatedafter24hoursofoperation.

Super / Super Cool Frz.

- To manually deactivate this mode, repeatedly press 3sec.-Unlock until no mode symbol appears on the display.

Lock/Unlock

Super / Super Cool / Frz.

To activate this function, press and hold 3sec. - Unlock for about 3 seconds. The lock symbol 📋 will appearonthedisplay.

Super / Super Cool Frz.

To deactivate this function, press and hold 3sec.- Unlock again for 3 seconds. The lock symbol 📋 will disappearfromthedisplay.

IMPORTANT! In the unlock state, if there is no operation of any button about 30 seconds, the system will automatically enter the lock state.

ErrorCodes

When an error occurs in the appliance, the display will show the corresponding error code as shown in

the list below. Please contact the local authorised service centre.

E1	Temperature sensor failure inside the fridge compartment
E2	Temperature sensor failure inside the freezer compartment
E3	Temperature sensor failure inside the chill compartment
E5	Failure of freezing and defrosting sensors
E6	Communication failure
E7	Ambient temperature sensor failure

Power failure

If there is a power failure, do not open the door. Frozen food should not be affected if the power failu lasts for less than 15 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

☐ Freezing and storing food in the freezer compartment

Using the freezer compartment

• To store deep-frozen food
- To make ice cubes
- To freeze food

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/'date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

- The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

□ Making ice cubes

Fill the ice cube tray with 3/4 full of drinking water and place in the freezer drawer.

If the ice cube tray is stuck to the freezer drawer, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

☐ Door opening alarm

If the fridge door is left open for approximately 120 seconds, the alarm will sound.

To turn off the alarm, you can close the door or press any button.

□ Operating noises

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

□ Moving your refrigerator freezer

- Unplug the refrigerator freezer.

• Removeallthefood.
  • Securely tape down all loose items inside your refrigerator freezer.
• Tapethedoorshut.
• Be sure the refrigerator freezer stays in the upright position during transportation.

- If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Energysavingtips

For the most energy efficient use of your appliance:

• Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to coolrefrigeratedfood
• Keepdooropeningstoaminimum.
• Open the appliance as briefly as possible.
  • Regularlydefrosttherefrigeratorfreezert oremovethelayeroffrost.
• Ensure that the fridge and freezer doors are always closed properly..

DOORCONVERSION

If you need to hinge the doors on the opposite sides, it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use across head screw driver and aspanner (both not supplied).

1. Remove the upper left decorative cover, upper right hinge cover and upper right hinge, and disconnect the right signal line (signal line terminal 1, 2) at the top of the appliance.

upper hinge cover upper hinge 2 1 decorative cover

1. Remove the fridge door (be careful not to lose small parts such as the shaft sleeve and stop on the door).

Remove the middle hinge and remove the decorative cover on the opposite side.

decorative cover middle hinge

1. Remove the freezer door (be careful not to lose small parts such as the shaft sleeve and stop on the door). Remove the bottom hinge and adjustable foot from the bottom of the appliance. Remove and install the lower hinge shaft to the opposite side of the hinge and install the lower hinge to the opposite side of the bottom of the appliance. Replace the adjustable foot.

Diagram showing a device chassis with two views and a close-up of its internal components (no text or symbols present)

1. Changetherefrigeratordoor:

1) Remove the upper cover of the refrigerator door and the left decorative cover. Install the upper shaftsleeveands signal line of the door to the opposite side and fit the upper cover plate. Install the decorative cover to the opposite side.

2) Remove the door self-locking, door stop and shaft sleeve from the refrigerator door and install them to the oppositeside.

Technical line drawing of a door frame assembly with mounting brackets and internal components (no text or symbols)

1. Changethefreezerdoor:

1) Remove the shaft sleeve and cap from the freezer door and install them on the opposite side.
2) Remove the door self-locking, door stop and shaft sleeve from the freezer door and install them to the oppositeside.

Technical line drawing of two rectangular electronic components with mounting holes and connectors (no text or symbols)

1. Install the freezer door on the lower hinge and then install the middle hinge and decorative cover.

decorative cover middle hinge

1. Install the refrigerator door on the middle hinge and install the upper left hinge. Connect the refrigerator top signal line 4 to the door body signal line 1, and connect the signal line 2 to the signal line 3. Replace the hinge decorative cover to the right side. (Note: when replacing the hinge decorative cover to the right side, the two inserts on the hinge decorative cover shall be cut off.)

upper hinge upper hinge cover decorative cover 3 2 4 1 inserts

This appliance is equipped with a frost free system.

This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

CLEANING AND MAINTENANCE

Always unplug the appliance before cleaning.

1. Take out the food and store in a cool location.
2. Remove all removable parts, such as shelves, vegetables containers, drawers etc.
3. Use a soft damp cloth or paper towel to clean the interior and exterior including different drainage area and water evacuation port.

4. Wipe up spills in the fridge and freezer compartment with a damp cloth immediately.

5. Use a mild cleanser such as dish detergent or use either some baking soda vinegar to clean the splash area.

6. Place a small amount of detergent, vinegar, or baking soda in a bowl and warm water to it. Dip a towel or cloth into the cleaning solution and wash inside of your appliance.

7. Clean the removable parts using a clean sponge or soft cloth in warm soapy with Rinse and dry thoroughly before replacing them.

- Do not use abrasive or chemical cleaning agents.

1. Clean the door liners and gaskets using a clean sponge or soft cloth and a mil detergent in warm water.

- Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

1. Dry all surfaces thoroughly and then plug in the appliance. Adjust the temperatu

2. Put the food back in the appliance.

The LED light in the fridge compartment cannot be replaced by the user. If the LE stops working, please contact the local authorised service agent.

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service.

Warning!

Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.

Problem	Possible Causes & Solution
Appliance does not operate	Check that the appliance is plugged into the mains sockeproperly and that the outlet is switched on.Check the fuse is not blown.Check the circuit breaker is not tripped.
Unusual noises	Re-adjust the feet to ensure the appliance is level.Check that the appliance is not touching the wall or othe objects. Move the appliance slightly.Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start stop.This is normal.Creak: Refrigerant flowing inside the appliance may prod creak, which is normal.
Inadequate refrigeration	Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently.Warm air enters the refrigerator every time the door is opened. Open the door less often.Check that the door is closed completely.Ensure that the door gasket does not seal properly.A large amount of warm or hot food might have been stored recently.Wait until the refrigerator has reached its temperature.
Bad smell in the appliance	Food with strong odour should be packed tightly before be put inside the appliance.Please check whether there is any deteriorated item or whet the door seals are left dirty for a long time.
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer whe ambient temperature is high.It is not recommended to place too much food in the appli and at the same time, food shall get cool before being put the appliance.The doors are opened too frequently.
Doors cannot be properly closed.	The door is stuck by food packages. Too much food is place The refrigerator is tilted.
Door seal fails to be tight.	Remove foreign matters on the door seal.Heat the door seal and then cool it for restoration.(or blow it with an electrical drier or use a hot towel for he
Water pan overflows.	There is too much food in the chamber or food stored conttoo much water,resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due entry of air and increased water due to defrosting.
Hot housing	Heat dissipation of the built-in condenser via the housing, w is normal.When housing becomes hot due to high ambient temperatu and storage of too much food, it recommended to provide ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high Just wipe the condensate with a clean towel.

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labellia refrigerating appliances

Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON

Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France

Model identifier: CTH378NFAWH CTH378NFABIX

Type of refrigerating appliance:

Low-noise appliance: no Design type: freestanding Wine storage appliance: no Other refrigerating appliance: yes

General product parameters:

Parameter		Value	Parameter	Value
Overall dimensions (millimeter)	Height	2010	Total volume ( d^3 or l)	378
	Width	595
	Depth	700
EEI		41	Energy efficiency class	A
Airborne acoustical noise emissions (dB(A) re 1 pW)		29	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		113	Climate class:	Extended temperate/ Temperate/ Subtropical/ Tropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	43
Winter setting		no

Compartment Parameters:

Compartment type	Compartment parameters and values
	Compartment Volume (dm3or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)

Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	216,0	4	—	A
Chill	yes	40,0	2	—	A
0-star or ice-making	no	—	—	—	—
1-star	no	—	—	—	—
2-star	no	—	—	—	—
3-star	no	—	—	—	—
4-star	yes	122,0	-18	8,5	A
2-star section	no	—	—	—	—
Variable temperature compartment	no	—	—	—	—
For 4-star compartments
Fast freeze facility			yes
For wine storage appliances
Number of standard wine bottles			—
Light source parameters^a ( :
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer : 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

^(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C'.
• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.
• Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database:

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1260583

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1260971

Rated voltage and frequency	220-240V~ 50Hz
Refrigerant/Amount	R600a / 55g
Insulation blowing gas	Cyclopentane
Rated current	1,1A
Lamp rated power	MAX 4,5W
Electric shock protection class	Class I
Rated defrosting power	170W
Temperature rise time	Power cut safe 15h
Energy consumption	E16: 0,188kWh/24h E32: 0,430kWh/24h
Net weight	98 kg

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

	www.darty.com	Vanden Borrein alle vertrouwenwww.vandenborre.be
	240978 970 97024 Hours7 Days a week	02 334 00 008 AM - 6 PMMon to Sat
	9 Rue des Bateaux-Lavoirs,94200 Ivry-sur-Seine,France	Slesbroekstraat 1011600 Sint-Pieters-LeeuwBelgium

Vanden Borre

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

The symbol indicates the location of the coldest part of your refrigerator. The area is in between the vegetable compartment at the bottom and the sym the top, or the shelf at the same height.

In order to maintain the temperature in this area, make sure not to change position of this shelf.

In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator with an open door and a numbered label pointing to the door panel.

CHECKING THE TEMPERATURE IN THE COLDEST AREA

Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should increase the thermostat setting and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting

Temperature too high, adjust the thermostat

EU Declaration of Conformity

Product Description:

REFRIGERATOR FREEZER

Front view of a white refrigerator with a single door and front panel (no visible text or symbols)

Marque –

Brand /Merk /Marca:

THOMSON

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

LVD :

EN 60335-2-24:2010+A1+A2+A11

EN 60335-1:2012+A11+A13+A1+A14+A2+A15

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU) 2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

ASSURANCE SERVICE QUALITY FNAC DARTY
