Brand	Philips
Model	PerfectCare Performer GC8752
Product type	Steam generator with iron
Technology	OptimalTEMP (automatically adapted temperature), Compact ProVelocity (penetrating steam)
Water tank	Removable, easy filling
Recommended water type	Tap water; distilled/demineralized water for very hard water
Steam functions	Continuous steam, press effect, Turbo mode, ECO mode
Safe rest	Hot soleplate can be placed horizontally on the board without support
Vertical steaming	Yes, to de-wrinkle clothes on hangers
Auto-off	Yes, after 5 minutes of inactivity
Heating indicator	"Iron ready" light
Anti-scale system	Intelligent anti-scale system with dedicated tank and audible/visual reminder
Descaling treatment	Required every 1 to 3 months; performed with the anti-scale tank
Soleplate maintenance	Regular cleaning with damp cloth; hot pass on damp cloth for stains
Storage	Foldable hose and cord; iron lockable on base for transport
Safety	Do not direct steam at people; turn off after use
Power supply	Mains, grounded plug
Included accessories	Intelligent anti-scale tank, quick start guide, important information brochure

Frequently Asked Questions - PerfectCare Performer GC8752 PHILIPS

Why is my iron not producing steam?

Several possible causes: the water tank is empty (fill it above the MIN level), the steam trigger is not pressed long enough (hold it down for up to 30 seconds), or the descaling treatment has not been performed (the CALC-CLEAN light flashes). Follow the instructions in the manual.

What to do if the CALC-CLEAN light flashes and the appliance emits beeps?

It is the descaling reminder. You must perform the descaling treatment with the anti-scale tank. Fill the water tank halfway, place the iron on the anti-scale tank, then press and hold the CALC-CLEAN button for 2 seconds. The treatment lasts about 2 minutes.

Can I use scented water or vinegar in the tank?

No. Use only tap water, or distilled/demineralized water if the water is very hard. Do not use scented water, vinegar, starch, descaling agents, or other chemicals, as they may cause spitting, brown stains, or damage the appliance.

How to use the Press effect function?

To remove stubborn wrinkles, press the steam button twice quickly. This produces a powerful steam jet.

Can the iron be placed directly on the ironing board without a base?

Yes, thanks to OptimalTEMP technology, you can place the hot soleplate directly on the ironing board without risk to the cover. This allows you to handle the garment more easily.

How to activate ECO mode?

Press the ECO button (identified by a green light). ECO mode reduces the amount of steam to save energy without compromising the ironing result. To deactivate, press again.

What does Turbo mode mean and how to activate it?

Turbo mode offers a more powerful steam flow, recommended for cotton, denim, and linen. To activate, press and hold the power button for 2 seconds until the light turns white. To deactivate, repeat the same operation until the light turns blue again.

How to clean the soleplate?

For regular maintenance, clean the soleplate with a damp cloth. For stubborn stains, heat the iron and pass it over a damp cloth. Clean regularly to ensure optimal glide.

How to store the appliance after use?

Turn off and unplug the appliance. Empty the water tank. Fold the water supply hose and store it in its storage compartment. Fold the power cord and secure it with the Velcro strap. Lock the iron onto its base. You can carry the appliance by the iron handle.

Can I iron all types of fabrics with this iron?

OptimalTEMP technology allows ironing all ironable fabrics without temperature adjustment: linen, cotton, polyester, silk, wool, viscose, rayon. However, do not iron non-ironable fabrics (crossed-out symbol) such as elastane, polyolefins, or garment prints.

USER MANUAL PerfectCare Performer GC8752 PHILIPS

© 2021 Telco Devices Australia Holding Ltd. All rights reserved. 42/15/07 10:38-6:00-2:38-2:01

Exterior view of a steam iron with black and white casing (no text or symbols visible)

EN User Manual	FI Kiyttöopas
DE Bedienungsanleitung	SV Användarhandbok
ES Manual del usuario	EL Eyxapiäto xpiņons
FR Mode d'emploi	DA Brugervejledning
IT Manuale per l'utente	NO Brukenhandbok
NL Gebruiksaanwijzing	HE ۷۰۱۰۲۳۷۳۰
ES Manual d'interment

Diagram of a steam iron with numbered parts and internal component labels

1
③

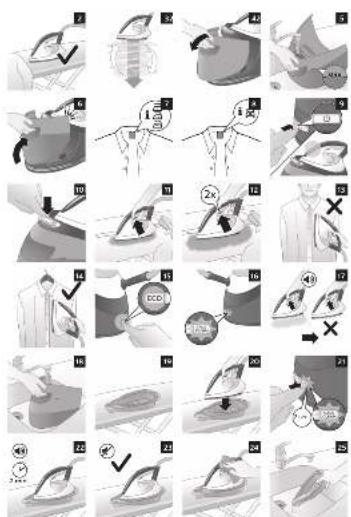

Medical procedure image showing step-by-step steps for a procedure involving iron iron, hand positions, and oxygen absorption.

English 6

Deutsch 10 Fenzel 16

Français 22

Italiano 28

Illustration of a pair of steam iron pieces with different angles and sizes, shown from different angles (no text or symbols present)

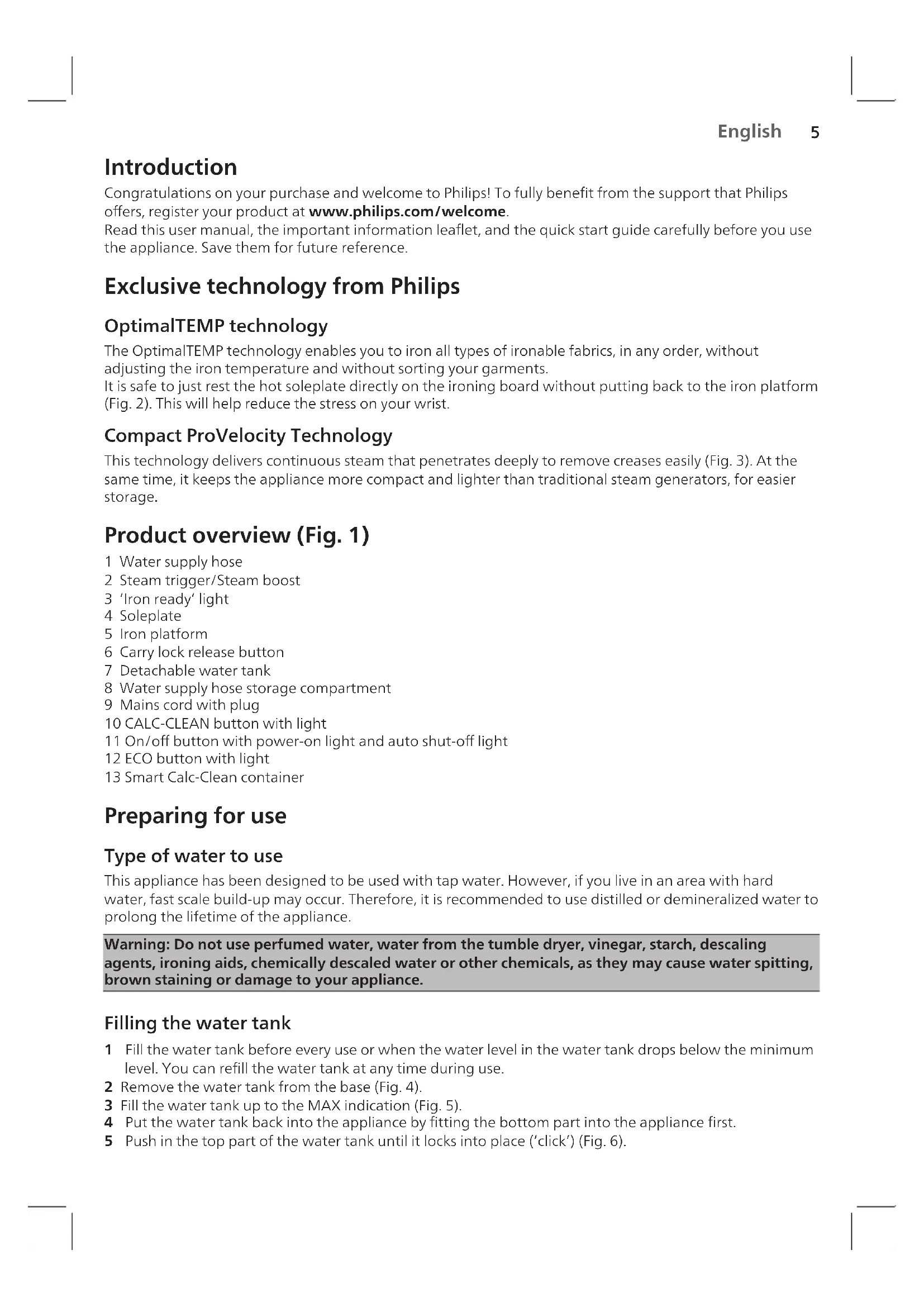

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

Exclusive technology from Philips

OptimalTEMP technology

The OptimalTEMP technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron temperature and without sorting your garments. It is safe to just rest the hot soleplate directly on the ironing board without putting back to the iron platform (Fig. 2). This will help reduce the stress on your wrist.

Compact ProVelocity Technology

This technology delivers continuous steam that penetrates deeply to remove creases easily (Fig. 3). At the same time, it keeps the appliance more compact and lighter than traditional steam generators, for easier storage.

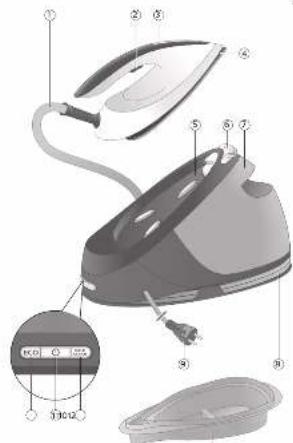

Product overview (Fig. 1)

1 Water supply hose
2 Steam trigger/Steam boost
3 'Iron ready' light
4 Soleplate
5 Iron platform
6 Carry lock release button
7 Detachable water tank
8 Water supply hose storage compartment
9 Mains cord with plug
10 CALC-CLEAN button with light
11 On/off button with power-on light and auto shut-off light
12 ECO button with light
13 Smart Calc-Clean container

Preparing for use

Type of water to use

This appliance has been designed to be used with tap water. However, if you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use distilled or demineralized water to prolong the lifetime of the appliance.

Warning: Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

1 Fill the water tank before every use or when the water level in the water tank drops below the minimum level. You can refill the water tank at any time during use.
2 Remove the water tank from the base (Fig. 4).
3 Fill the water tank up to the MAX indication (Fig. 5).
4 Put the water tank back into the appliance by fitting the bottom part into the appliance first.
5 Push in the top part of the water tank until it locks into place ('click') (Fig. 6).

6 English

Using the appliance

Ironable fabrics

Do not iron non-ironable fabrics.

Fabrics with these symbols are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon (Fig. 7).

Fabrics with this symbol are not ironable (Fig. 8). These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolefins (e.g. polypropylene). Prints on garments are not ironable either.

Ironing

1 Place the steam generator on a stable and even surface.

Note: In order to ensure safe ironing we recommend to always place the base on a stable ironing board.

2 Make sure that there is enough water in the water tank.

3 Put the mains plug in an earthed wall socket and press the on/off button to switch on the steam generator. Wait until the 'iron ready' light lights up continuously (Fig. 9). This takes approx. 2 minutes.

4 Remove the water supply hose from the water supply hose storage compartment.

5 Press the carry lock release button to unlock the iron from the iron platform (Fig. 10).

6 Press and hold the steam trigger to start ironing (Fig. 11).

Warning: Never direct steam at people.

7 For best ironing results, after ironing with steam, perform the last strokes without steam.

Note: When you use the appliance for the first time, it may take 30 seconds for steam to come out of the appliance.

Note: The pump is activated each time you press the steam trigger. It produces subtle rattling sound, which is normal. When there is no water in the water tank, the pump sound is louder. Fill up the water tank with water when the water level drops below the minimum level.

For more powerful steam, you can use the TURBO steam mode, which is safe on all ironable fabrics. For fabrics such as cotton, jeans and linen, you are recommended to use the TURBO steam mode.

1 Press and hold the on/off button for 2 seconds until the light turns white.

2 To deactivate the TURBO mode, press and hold the on/off button for 2 seconds again until the light turns blue.

Steam boost function

Use the steam boost function to remove stubborn creases.

1 Press the steam trigger twice quickly (Fig. 12).

Vertical ironing

Warning: Hot steam is emitted from the iron. Never attempt to remove wrinkles from a garment while someone is wearing it (Fig. 13). Do not apply steam near your or someone else's hand.

You can use the steam iron in vertical position to remove wrinkles from hanging fabrics.

1 Hold the iron in vertical position, press the steam trigger and touch the garment lightly with the soleplate and move the iron up and down (Fig. 14).

Safe rest

Resting the iron while rearranging your garment

While rearranging your garment, you can rest the iron either on the iron platform or horizontally on the ironing board (Fig. 2). The OptimalTEMP technology ensures the soleplate will not damage the ironing board cover.

Energy saving

Eco mode

By using the ECO mode (reduced amount of steam), you can save energy without compromising on the ironing result.

1 To activate the ECO mode, press the ECO button (Fig. 15). The green ECO light goes on.
2 To deactivate the ECO mode, press the ECO button again. The green ECO light goes out.

Auto shut-off (specific types only)

• To save energy, the appliance switches off automatically when it has not been used for 5 minutes. The auto shut-off light in the on/off button starts to flash.
• To activate the appliance again, press the on/off button. The appliance then starts to heat up again.

Warning: Never leave the appliance unattended when it is connected to the mains. Always unplug the appliance after use.

Cleaning and maintenance

Smart Calc-Clean System

Your appliance has been designed with a Smart Calc-Clean system to ensure that descaling and cleaning is done regularly. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time. To ensure that the cleaning process is performed, the steam generator gives regular reminders.

Sound and light Calc-Clean reminder

After 1 to 3 months of use, the Calc-Clean light starts flashing and the appliance starts beeping to indicate that you have to perform the Calc-Clean process (Fig. 16).

Besides that, a second defense step to protect the steam generator from scale is integrated: the steam function gets disabled if descaling is not done (Fig. 17). After descaling is done, the steam function will be restored. This takes place regardless of the type of water used.

Note: The Calc-Clean process can be performed at any time, even when the sound and light reminder is not activated yet.

Performing the Calc-Clean process with the Calc-Clean container

Warning: Do not leave the appliance unattended during the Calc-Clean process.

Caution: Always perform the Calc-Clean process with the Calc-Clean container. Do not interrupt the process by lifting the iron up from the Calc-Clean container, as hot water and steam will come out of the soleplate.

1 Fill up the water tank halfway (Fig. 18).
Note: Make sure that the appliance is plugged in and switched ON during the Calc-Clean process.
2 Place the Calc-Clean container on the ironing board or any other even, stable surface (Fig. 19).
3 Place the iron stably on the Calc-Clean container (Fig. 20).
4 Press and hold the CALC-CLEAN button for 2 seconds until you hear short beeps (Fig. 21).
Note: The Calc-Clean container has been designed to collect scale particles and hot water during the Calc-Clean process. It is perfectly safe to rest the iron on this container during the entire process.
5 During the Calc-Clean process, you hear short beeps and a pumping sound (Fig. 22).
6 Wait approximately 2 minutes for the appliance to complete the process. When the Calc-Clean process is completed, the iron stops beeping and the CALC-CLEAN light stops flashing (Fig. 23).
7 Wipe the iron with a piece of cloth and put it back on the base station (Fig. 24).

8 English

Caution: The iron is hot.

8 As the Calc-Clean container becomes hot during the Calc-Clean process, wait approx. 5 minutes before you touch it. Then carry the Calc-Clean container to the sink, empty it and store it for future use (Fig. 25).
9 If necessary, you can repeat steps 1 to 8. Make sure that you empty the Calc-Clean container before you start the Calc-Clean process.

Note: During the Calc-Clean process, clean water may come out of the soleplate if no scale has accumulated inside the iron. This is normal.

For more information on how to carry out the Calc-Clean process, refer to the videos in this link: http://www.philips.com/descaling-iron.

Cleaning the soleplate

To properly maintain your appliance, clean it regularly.

1 Clean the appliance with a moist cloth.
2 To easily and effectively remove stains, let the soleplate heat up and move the iron over a moist cloth (Fig. 26).

Tip: Clean the soleplate regularly to ensure smooth gliding.

Storage

1 Switch off the steam generator and unplug it.
2 Pour the water out of the water tank into the sink (Fig. 27).
3 Fold the water supply hose. Wind the water supply hose inside the water supply hose storage compartment and secure it inside the storage hook (Fig. 28).
4 Fold the mains cord and fasten it with the Velcro strip (Fig. 29).
5 Push the carry lock release button to lock the iron onto the iron platform (Fig. 30).
6 You can carry the appliance with one hand by the handle of the iron when the iron is locked on the iron platform (Fig. 31).

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The iron does not produce any steam.	There is not enough water in the water tank.	Fill the water tank beyond the MIN indication. Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out.
	You did not press the steam trigger.	Press and hold the steam trigger until steam comes out.
	The steam function has been disabled until you have performed the Calc-Clean process.	Perform the Calc-Clean process to restore the steam function. (see chapter ‘Cleaning and maintenance’)
	The water tank is not placed in the appliance properly.	Fit the water tank back into the appliance firmly ('click').
	At the start of your ironing session, the steam trigger has not been pressed long enough.	Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out.
The light of the CALC-CLEAN button flashes and the appliance beeps.	This is the Calc-Clean reminder.	Perform the Calc-Clean after the Calc-Clean reminder is given (see chapter ‘Cleaning and maintenance’).

Problem Possible cause Solution

No steam comes out of the soleplate, the light of the CALC-CLEAN button flashes and the appliance beeps.	You have not done or have not completed the Calc-Clean process.	Perform the Calc-Clean process to enable the steam function again (see chapter 'Cleaning and maintenance').
The appliance has switched off.	The auto shut-off function is activated automatically when the appliance has not been used for more than 5 minutes.	To activate the appliance again, press the on/off button. The appliance then starts to heat up again.
The appliance produces a loud pumping sound.	The water tank is empty. Fill the water tank with water and press the steam trigger until the pumping sound becomes softer and steam comes out of the soleplate.
Water droplets come out of the soleplate.	After the Calc-Clean process remaining water may drip out of the soleplate.	Wipe the soleplate dry with a piece of cloth. If the Calc-Clean light still flashes and the appliance still beeps, perform the Calc-Clean process (see chapter 'Cleaning and maintenance').
	The Calc-Clean process has not been completed.	You have to perform the Calc-Clean process again (see chapter 'Cleaning and maintenance').
	Steam condenses into water in the hose when you use steam for the first time or have not used it for a long time.	This is normal. Hold the iron away from the garment and press the steam trigger. Wait until steam instead of water comes out of the soleplate.
Dirty water and impurities come out of the soleplate.	Impurities or chemicals present in the water have deposited in the steam vents and/or soleplate.	Perform the Calc-Clean process regularly (see chapter 'Cleaning and maintenance').
Water flushes out of the soleplate.	You have accidentally started the Calc-Clean process (see chapter 'Cleaning and maintenance').	Switch off the appliance. Then switch it back on again. Let the iron heat up until the 'iron ready' light lights up steadily.
The Calc-Clean process does not start.	You have not pressed the CALC-CLEAN button for 2 seconds until the appliance started beeping.	See chapter 'Cleaning and maintenance'.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven, for instance because you were ironing over a seam or a fold in the garment.	PerfectCare is safe on all garments. The shine or imprint is not permanent and will come off if you wash the garment. Avoid ironing over seams or folds or you can place a cotton cloth over the area to be ironed to avoid imprints.
	There was not enough felt in the ironing board cover.	Put an extra layer of felt material under the ironing board cover.
The ironing board cover becomes wet, or there are water droplets on the floor/garment.	Steam has condensed on the ironing board cover after a long ironing session.	Replace the ironing board cover if the foam or felt material has worn out. You can also add an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board.
	You have an ironing board that is not designed to cope with the high steam rate of the appliance.	Put an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board.
