BBP44 - Lighting BeamZ - Free user manual and instructions

Product type	LED lighting projector
Brand	BeamZ
Model	BBP44
Power supply	Mains (voltage and frequency as per label on the device)
Light sources	LED RGBW
Operating modes	Automatic, Sound, Strobe, Manual (fixed colors)
Control	Remote control with CR2025 battery
Remote control functions	Black Out, Auto, Sound, Strobe, Speed (fade), Sensitivity, Colors R/G/B/W/1-9
Operating temperature	-5°C to +45°C
Use	Indoor use only
Installation	Mounting with safety sling if height > 100 cm
Maintenance	Clean with a soft, clean, lint-free cloth
Safety	Do not look at the light beam; allow to cool before handling; keep a 50 cm clearance around
Electrical protection	Grounding mandatory; do not use with a dimmer
Spare parts	Fuses and bulbs of the same type and power
Repairability	Repairs, maintenance and electrical connection by a qualified technician
Warranty	Not specified

Frequently Asked Questions - BBP44 BeamZ

How to use the remote control?

The remote control allows you to control modes and functions. Make sure to remove the battery protective sheet before first use. Use the buttons Auto, Sound, Strobe, Black Out, Speed, Sensitivity and keys R, G, B, W and 1 to 9 for static colors.

How to change the remote control battery?

On the back of the remote control, press the small tab with a slot to the right (1) and simultaneously remove the battery holder (2). Replace with a 3V button cell battery type CR2025 respecting polarity (positive pole facing up).

How to activate automatic mode?

Press the Auto button on the remote. The display shows 'CC99'. Press Auto again (display shows 'CP00'). Use the + or - keys to select an automatic program. To exit, press Black Out again.

How to activate sound mode?

Press the Sound button on the remote. Use the + or - keys to adjust sound sensitivity. To exit, press Black Out again.

How to adjust sensitivity or speed?

Sensitivity is adjusted in sound mode with the + or - keys after pressing Sound. Fade speed is adjusted with the Speed button: press to display 'EE00' then use + or -.

What is the allowed ambient temperature?

The ambient temperature must be between -5°C and +45°C. Do not use outside this range.

Can I use the device outdoors?

No, this device is designed exclusively for indoor use. Do not expose it to moisture, dust or inclement weather.

How to clean the device?

Unplug the device and let it cool down. Use a soft, clean, lint-free cloth moistened with a mild cleaning solution. Do not use solvents or abrasives. Dry with a dry cloth.

What to do if the device does not turn on?

First check that the power cord is properly connected and that the mains outlet works. Also check the device fuse: it must be of the same type and rating. If the problem persists, contact a qualified technician.

Can I repair the device myself?

No, repairs, maintenance and electrical connection must be carried out only by a qualified technician. Do not disassemble or modify the device yourself.

USER MANUAL BBP44 BeamZ

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
  Please read these instructions carefully and follow the instructions.
  Observe all safety warnings. Never remove safety warnings or other information from the equipment.
• Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
- Do not switch the unit on and off in short intervals.
- Do not connect the unit to a dimmerpack.
- Install the unit in a well ventilated place.
- Never place any material over the lens.
- Never let the sunlight lights directly to the front lens, even when the unit is not working.
Always allow free air space of at least 50 cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
- Never attempt to bypass the thermostatic switch or fuses.
- Do not dismantle or modify the unit.
For replacement use fuses/bulb of same type and rating only.
Repairs, servicing and electric connection must be carried out by a qualified technician.
The ambient temperature must always be between -5°C and +45°C
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
- Plastic bags must be kept out of reach of children.
Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the unit is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to

avoid the risk of electrocution or fire.

REMOTE CONTROLLER

BLACK OUT

1. Press OK AOK Out modes.
2. Press (BLACKOUT) the last modes.

AUTO

Automatic mode will enable you to run the automatic light programs. To turn on automatic mode:

1. Press remote controller. Display shows. CC99
2. Press Display shows "CP00"
3. Press to choose between the different auto programs.
4. Press Blackout off the auto mode.

SOUND

Sound mode will enable the product to respond to the music. To turn on sound mode:
1. Press <Soutndmote controller.
2. Press or to increase or decrease the sound sensitivity.
3. Press OK out off the sound mode.

STROBE

Activate the strobe function in automatic or sound mode.

1. Press STROBEmote controller.
2. Press → to either increase or decrease the speed of strobe.
3. Press (Strobo)rn off the strobe.

SPEED

No function

SENSITIVITY

To adjust sound sensitivity for in sound mode.

1. Press CTRLPTroller.
2. Press to either increase or decrease sound sensitivity.
3. Press the sensitivity mode.

%

No function

FADE

To adjust the fade speed of the automatic program, the sound active program and the manual mode.

1. Press <DAExemote controller. Display shows "DE00"
2. Press + or - to either increase or decrease the speed of the program.
3. Press to turn off the fade mode.

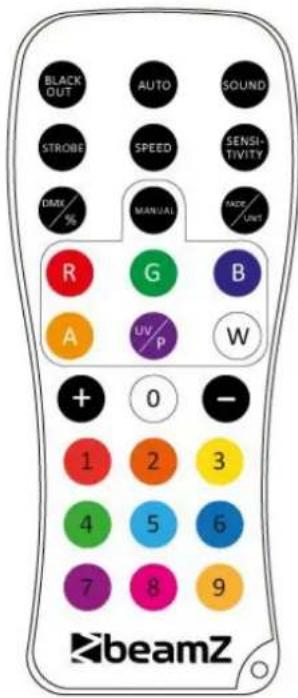

R,G,B,W AND NUMBER 1~9

1. Select static colour with the buttons R , G , B , W or digit 1 to 9
2. Press either increase or decrease brightness.

The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of

MAINTENACE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

• Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
• Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
  Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
• Check the mechanically moving parts, these must not show any signs of wear or fatigue.
• Check the electrical power and signal cables, they must not show any damage or fatigue.
• Do not use solvents, abrasives or other aggressive products to clean the unit.
  Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
  Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

VEILIGHEIDSINSTRUCTIES

To adjust sound sensitivity for in sound mode.

1. Press <GENEDITYontroller
2. Press to either increase or decrease sound sensitivity.
3. Press the sensitivity mode.

%

Pas de fonction

FADE

IRYE	yE	Turn on the remote control function
	no	Turn off the remote control function
OXXX	000-255	Master dimmer 0-100%
RXXX	000-255	Red dimmer 0-100%
GXXX	000-255	Green dimmer 0-100%
BXXX	000-255	Blue dimmer 0-100%
UXXX	000-255	White dimmer 0-100%
FXXX	000-255	Strobe from slow to fast
CL0X	01-08	Select static colour
CCXX	00-99	Automatic colour change, jumping, speed from slow to fast
DEXX	00-99	Automatic colour change, gradual, speed from slow to fast
CP01	00-99	Automatic colour change, pulse, speed from slow to fast
SUNX	0-9	Sound control sensitivity from high to low
U XX	0-100	Battery level indicator

NOTE:

Display will turn of automatically after a while. This is an energy-saving function.
- Confirm with toENTERur menu settings.

TECHNICAL SPECIFICATIONS

Rated voltage : via adapter 12Volt

Battery :12.6Volt / 3.2Ah Lithium

LED : 4x4Watt 4-in-1 LED (Red, Green, Blue and White)

Beam angle : 25-42°

Illuminance : 2100lx @lm

IP Class :IP65

Functions : Automatic programs. Sound to light and remote.

Dimensions per unit :100 x 90 x 125mm

Weight (per unit) : 1.1 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Trionios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S1.2016:1091

S.l. 2012:3032

BEAMZ

YOUR FUTURE

YOUR SKILLS

YOUR PLATFORM

YOUR PARTY

YOUR EVENT

beamZ

is a leading developer of lighting products, including intelligent DMX moving heads, wireless battery operated DMX effects, static washes, sound-activated club effects, strobes & blacklights, LED lighting, fog and special effects machines, lasers and indoor and outdoor architectural lighting, as well as lighting controllers and protective bags.
