Product type	Color CCTV dome camera
Power supply	24 V AC ±10% (60/50 Hz) or 12 V DC +10%/-5%
Power consumption	Approx. 1.7 W
Image sensor	1/3-inch Super-HAD CCD
Horizontal resolution	540 TV lines
Signal-to-noise ratio	Approx. 50 dB
Minimum illumination (SCC-B5345, 50IRE, F1.2, sens-up off)	Color: 0.4 lux, B/W: 0.04 lux
Lens	Auto iris (DC), focal length 2.9 ~ 10.0 mm, aperture F1.2
Special features	Line lock (LL), Sens-up (LSS), H/V reversal, BLC, Flickerless (FL), D/N, AWB, DNR, Dynamic CCD defect compensation
Synchronization mode	INT / Line lock (adjustable via INC/DEC)
Video output	Composite 1.0 Vp-p, 75 ohms, BNC + test monitor output
Pan	0° ~ 355° (100° clockwise, 255° counterclockwise)
Tilt	0° ~ 90°

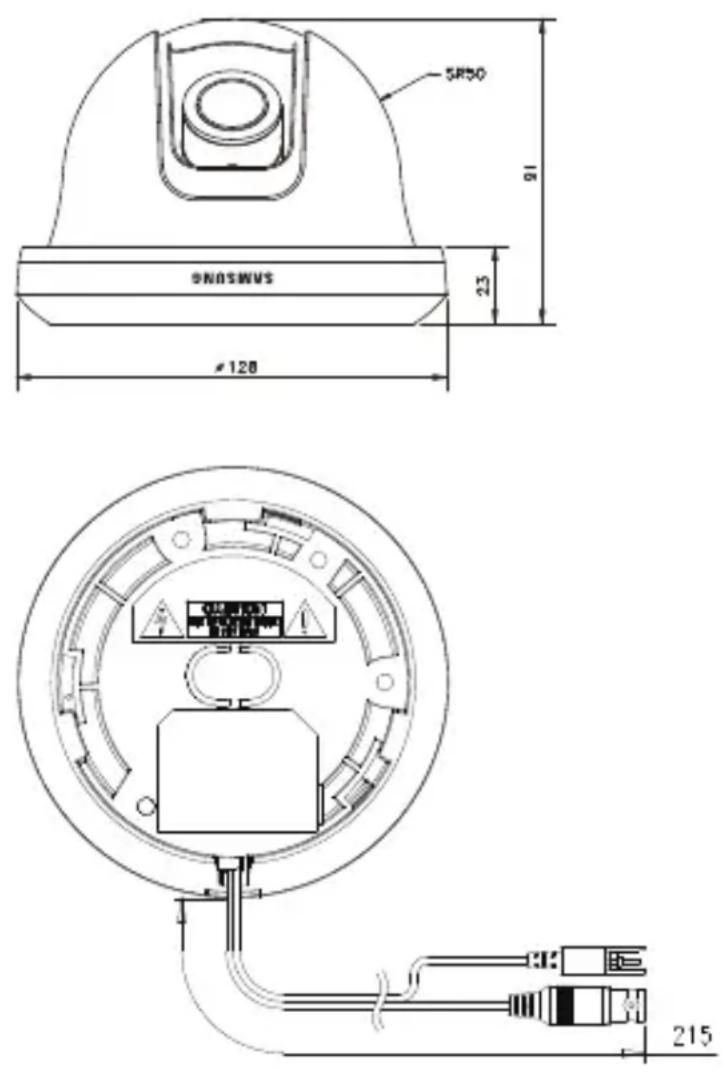

Dimensions (diameter x height)	128 mm x 91 mm
Weight	327 g
Operating temperature	-10 °C to +50 °C
Operating humidity	90% max
Cleaning	Use a dry cloth; do not direct water directly
Safety	Risk of electric shock; do not open; use specified adapter; solid installation

Frequently Asked Questions - SCC-B5345 SAMSUNG

How to adjust focus and zoom?

Use the zoom lever and focus lever while viewing the image on a monitor. Tighten the levers once adjustment is complete.

What to do if the image shakes when switching from one camera to another?

Activate line lock (LL) by setting switch 1 to ON. Adjust the phase using the INC/DEC buttons if necessary.

How to activate automatic day/night mode?

Set switch 7 (D/N) to ON. The camera automatically switches between color and black & white according to ambient brightness.

How to compensate for strong backlight?

Activate backlight compensation (BLC) by setting switch 5 to ON. This allows you to clearly see a subject in front of an intense light source.

What type of power supply is required?

The camera accepts 24 V AC ±10% (60/50 Hz) or 12 V DC +10%/-5%. Use only the specified adapter.

How to install the camera on the ceiling?

First fix the mounting bracket to the ceiling with the provided screws. Hang the main body aligning the markers, then turn to LOCK position. Adjust the angle and reattach the covers.

What to do if the image is inverted?

Use the H-REV (horizontal reversal) and V-REV (vertical reversal) switches to correct the orientation.

How to improve vision in darkness?

Activate the Sens-up (LSS) function by setting switch 2 to ON. The camera accumulates light up to 128 times for a clearer image.

How to clean the camera?

Use a dry cloth to clean the exterior. Never direct water directly onto the device to avoid fire or electric shock hazards.

What are important safety precautions?

Do not open the housing (risk of electric shock). Install securely to prevent falls. Disconnect during thunderstorms. Use only the provided adapter.

USER MANUAL SCC-B5345 SAMSUNG

Digital Color Dome Camera operating instructions

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.
2. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
3. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or damage to the product.
4. Keep out of direct sunlight and heat radiation sources. It may cause fire.
5. Install it in a place with good ventilation.
6. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.

7. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

8. The Mains plug is used as a disconnect device and shall stay readily operable at any time

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

13. Unplug this apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or been dropped.

Contents

Overview 6

About this guide....6

Product overview....6

Main features 6

Components......6

Checking components in the package 6

Components of your camera 7

Installation 8

Setting switches....8

Setting function switches 8

Connecting cables and changing the settings ....10

Installing camera 11

Before installation 11

Installation procedure 11

Adjusting the camera direction....12

Appendix A: Specifications for NTSC Standard ..... 14

Appendix B: Specifications for PAL Standard ..... 15

Overview

About this guide

This user guide includes basic instructions for the product. It is recommended that all users read this guide before use.

This guide is divided as follows:

■ Chapter 1, "Overview," introduces the user guide and product related information. (This chapter)
■ Chapter 2, "Installation," explains how to set and install the product.
■ Appendix, "Specifications," provides the specifications of the product.

Product overview

This is the high resolution (540 TV lines) dome camera equipped with a Vari-focal lens, which has no dynamic delay when implementing motion pictures, and provides the features such as digital noise reduction (DNR) by real-time CCD defect compensation, low speed shutter (LSS: Auto x128) to implement clear picture quality, Day/Night color compensation, and the like.

Main features

■ Power: DC 12V/AC 24V
■ Special functions
• Line lock (LL) control
• Auto white balancing
• Horizontal/vertical image reversing
- Flickerless control
• Low shutter speed control
- Backlight compensation control
• Automatic switching between color and black & white modes
• Equipped with vari-focal lens
• Auto Iris function
• Digital noise reduction (DNR)
• Dynamic CCD defect compensation

Components

Checking components in the package

Please check your camera and accessories are included in the package. Those components are as shown below:

Camera Test Monitor Cable

Tab screw User's Guide

Note

The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera to a monitoring display, use the BNC cable.

Components of your camera

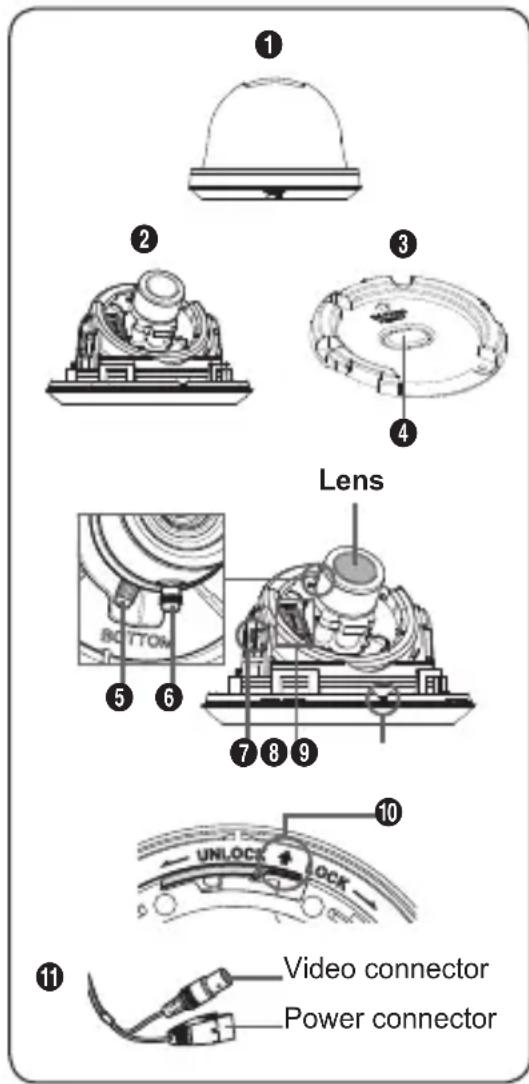

Your camera has the following components:

① ② ③ ④ Lens ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ UNLOCK LOCK ⑪ Video connector Power connector

① Cover dome: Covers the main body for protection.
② Main body: Includes a lens, a switch board, a PCB board, screws, and such.
3 Mount bracket: Used as a ceiling or wall fixture. It is fixed using three long tab screws provided in the package.
4 Cable Stopper: If drawing the cable from a hole in the ceiling, remove this stopper and pass the cable through the opening to connect.
⑤ Zoom lever: Using this lever, the lens zoom can be adjusted and fixed.
6 Focus lever: The lens focus can be adjusted by rotating it left or right. Rotate it clockwise for fixing.
⑦ Tilt fixing screw Using this screw, the slope of the lens can be adjusted and fixed.
8 Switch board: Includes two kinds of control switches such as function switches and phase-control switches. The board has eight function switches in the middle and two phase-control buttons on each side of the function switch area.
9 Installation Guide Mark: This mark must be aligned with the marking on the bracket when attaching the camera to the bracket.
10 Lock releaser. Push it outward and rotate the main body in UNLOCK direction when you want to remove the Mount bracket from the Main body or to remove the installed camera from the Mount bracket.
Cable: Connect the Video connector to BNC cable and Power connector to power adapter.

Installation

Setting switches

Setting function switches

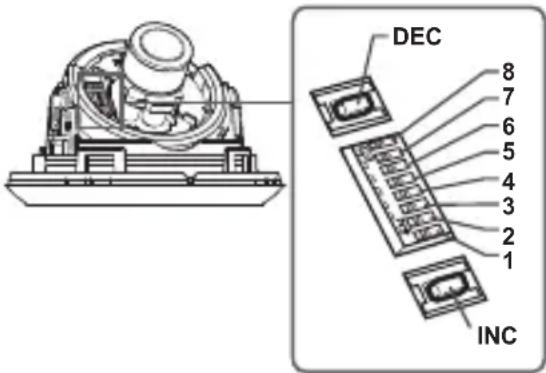

To set the available functions on your camera, adjust eight switches as shown below:

DEC 8 7 6 5 4 3 2 1 INC

No	Name	Brief	description
1	LL	Line lock	ON/OFF
2	LSS	Sens-up	or Low speed shutter ON/OFF
3	H-REV	Horizontal	reverse ON/OFF
4	V-REV	Vertical	reverse ON/OFF
5	BLC	Backlight	compensation ON/OFF
6	FL	Flickerless	ON/OFF
7	D/N		Automatic switching between color and black & white ON/OFF
8	AWB	Automatic white balance ON/OFF

1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal synchronization mode, while when it is set to ON, the camera operates in the line lock mode. In the internal synchronization mode, the camera always uses an inside crystal oscillator for synchronization. However if multiple cameras are connected to a sequential switcher, picture rolling or flickering may occur when switching from one camera to another. In this case, you can set this switch to ON to solve this problem.

The line lock mode allows the camera to use the phase of the AC power as the synchronization reference. In this mode, you can use the phase control buttons(INC/DEC).

Note

When you are using the DC 12V power, set this switch to OFF. The line lock feature will not normally operate even when the switch is set to ON.

Set the LL switch to ON while the AC power is connected. If any picture roll happens, you have to adjust the phase using the phase-control buttons. Press the INC or DEC button to increase or decrease the phase by one degree.

Blank white image with no visible content, text, or symbols

1. Switch 2 (LSS): This sens-up mode accumulates the image fields in memory to reduce noise but increase the brightness and contrast rate. When this switch is set to ON, the camera automatically switches to a maximum of 128 times of image acquisition speed to implement a clear picture for darker image.
2. Switch 3 (H-REV): When this switch is set to ON, the camera image is reversed horizontally. If you want to monitor your site using a mirror, you can use this feature to see the right image.
3. Switch 4 (V-REV): When this switch is set to ON, the camera image is reversed vertically. If your camera reluctantly displays the vertically reversed image, you can use this feature to see the right image.
4. Switch 5 (BLC): When this switch is set to ON, you can view a clear image even though the camera faces any excessive light such as sunlight and fluorescent light. When it is set to OFF, the subject with excessive light is not clearly shown.
5. Switch 6 (FL): When this switch is set to ON, the shutter speed is fixed to 1/100 sec (for NTSC) or 1/120 sec (for PAL) to prevent screen from flickering by the disaccordance between vertical synchronous frequency (50Hz for NTSC, 60Hz for PAL) and on-and-off frequency of a light.
6. Switch 7 (D/N): When this switch is set to ON, the camera automatically switches between color and B&W according to the brightness of the vicinity.
7. Switch 8 (AWB): This switch adjusts white balancing. When this switch is set to ON, this camera operates in ATW mode, and in case of OFF, this camera operates in AWC mode.

- ATW (Auto Tracking White Balance): The color temperature is automatically adjusted according to the environmental change. (Approx. 2000°K to 11,000°K)

- AWC (Auto White Balance Control): It stores the color temperature just when the switch is changed to OFF. Accordingly color temperatures are adjusted by the stored value.

Caution

-. The IRIS setting range for the camera is approximately 80 to 120 IRE. It means the camera does not provide the IRIS full open/close feature but the restricted variation range.
- Use the camera after setting to the proper level (80 IRE or above) because the IRIS hunting may occur when the level is 75 IRE or below.

Pure grayscale gradient background with no visible text, symbols, or identifiable objects

Connecting cables and changing the settings

Before installing your camera, you have to adjust the lens focus, zoom, and switch settings.

Monitor BNC Cable

To connect cables

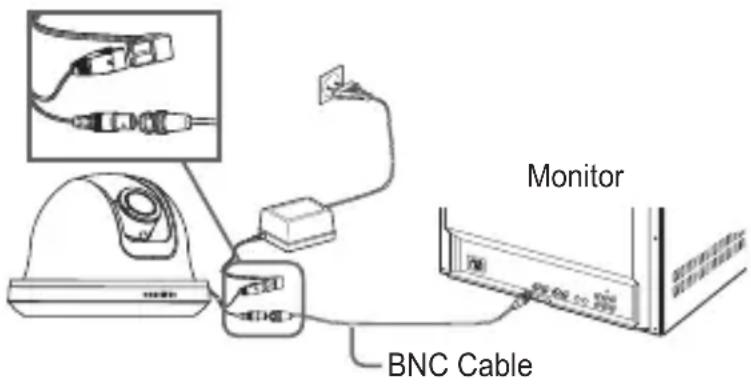

1. Connect the BNC cable to the Video connector attached on your camera.
2. Connect the BNC cable to the Video Input on a monitor.
3. Connect the power adapter to the Power connector attached on your camera. When the monitor is turned on, the camera image appears.

To adjust the lens focus, zoom, and function settings

1. Remove the Cover dome and Inner cover. For more details about the removing procedures, see "Installation procedure," in the Installing camera section on the next page.
2. Adjust the focus, zoom, and function settings of your camera using the Focus lever, Zoom lever, and Switch board while you are viewing the image on the screen.
3. If you want to fix the adjusted focus and zoom, screw up the levers.

Installing camera

Before installation

Before installing your camera, you have to read the following cautions:

• You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
- Don't let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
- When installing your camera, don't allow any person to approach the installation site. If you have any valuable things under the place, move them away.
- Partial blind spot can occur at tilt angles of less than 20^ , depending on the lens configuration.

Installation procedure

1

Illustration of a hand holding a tool interacting with a dome-shaped object, showing structural change (no text or symbols)

2

3

Ceiling mount opener

To install your camera

Pry up the outer casing with a flat-head screwdriver to remove the protective cover from the Main body of the camera.
2 Remove the Mount bracket from the Main body by rotating the Main body in the UNLOCK direction while pushing the Lock releaser outward. If it is not easily done, rotate the Mount bracket in the LOCK direction while holding small holes on the Mount bracket.
③ Fix the Mount bracket to the location (ceiling or wall) with supplied three screws.

Note

The CAMERA FRONT sign on the Mount bracket should face the camera monitoring area.

Pure grayscale gradient background with no visible text, symbols, or identifiable objects

4 If a hole has been drilled on the bracket installation surface for cable access, press down to remove the Cable Stopper and then draw the cable in. If connecting through the side of the camera, use the empty space opposite to the side marked CAMERA FRONT.
5 Now attach the Main body to the Mount bracket by rotating it in the LOCK direction after aligning the Groove mark on the Main body with the wide groove around the CAMERA FRONT inlay.
6 Adjust the camera direction. For more details on the direction control, see "Adjusting the camera direction," on the same page. When required to adjust the zoom and focus for your camera, see "Connecting cables and changing the settings," on page 10.
⑦ Attach the Inner cover to the Main body by pressing it until a “click” sound is heard after aligning two screw holes on the Wing lockers of the Inner cover with two screw holes on the Main body's left and right sides.
⑧ Finally attach the Cover dome to the Main body by pressing it until a "click" sound is heard after aligning the bump inside the Cover dome with the Groove mark on the Main body.

Adjusting the camera direction

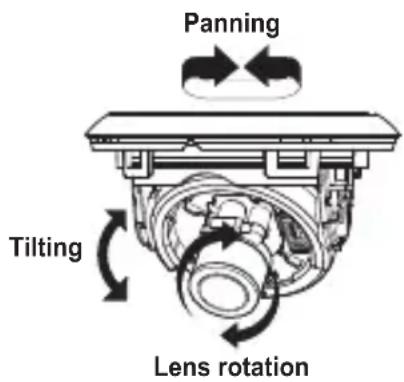

When the camera is fixed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting).

In case of panning, the rotation limit of your camera is set to 355 degree (100 degree clockwise and 255 degree counterclockwise). The rotation is stopped by the Stopper inside of the camera. For panning control, first unfasten two screws located on the bottom and rotate in the direction you want, and then fasten them to fix the camera.

Tilt can be adjusted between 0^ to 90^ ; however, tilt angles of less than 20^ may result in a partial blind spot, depending on your lens configuration. To fix the location after adjusting the tilting angle, use the Tilt fixing screws.

Panning Tilting Lens rotation

To adjust the focus and zoom of your camera, use the Zoom lever and Focus lever. When you install the camera on the inclined ceiling or wall, you can rotate the camera lens to see a correct direction image.

Blank white image with no visible content, text, or symbols

SCC-B534X

Appendix A: Specifications for NTSC Standard

Item Details
Product type CCTV color dome camera
Power input AC 24V ± 10% (60Hz ± 0.3 Hz), DC 12V +10%/-5%
Broadcast type NTSC Standard System (525 Lines, 60 Fields)
Power consumption Approx. 1.7W
Image device 1/3 inch IT Type Super-HAD CCD
Pixels	Total: 811(H) x 508(V), 410,000 pixelsEffective: 768(H) x 494(V), 380,000 pixels
Scanning mode 525 Lines, 2:1 Interlace
Scanning line frequency	Horizontal: 15.734Hz(INT)/15.750Hz(LL)Vertical: 59.94Hz(INT)/60Hz(LL)
Synchronization mode IN T/Line Lock (Adjusting the phase using INC/DEC button)
Horizontal resolution 540 TV Lines
S/N Ratio Approx. 50dB
Min. object illumination			SCC-B5345 (Color/BW) SCC-B5344 (Color/BW)
	F1.2	Sens-up Off	50IRE 0.4/0.04Lux 0.4/0.4Lux
			30IRE 0.24/0.024Lux 0.24/0.24Lux
			15IRE 0.12/0.012Lux 0.12/0.12Lux
		Sens-up x128	50IRE 0.0031/0.00031Lux	0.0031/0.0031Lux
			30IRE 0.0019/0.00019Lux	0.0019/0.0019Lux
			15IRE 0.0009/0.00009Lux	0.0009/0.0009Lux
Signal output	COMPOSITE Video(1.0 Vp-p, 75ohm, BNC), Test Monitor OUT(1.0 Vp-p, 75ohm, Harness cable)
Lens	Auto Iris (DC) / Focal length: 2.9 ~ 10.0mm / Aperture ratio: 1.2
PAN function	Range: 0 to 355° (100 degree clockwise and 255 degree counterclockwise)
TILT function	Range: 0 to 90°
Controls	Line Lock (LL)Sens-Up; Low Speed Shutter(LSS)Horizontal Reverse (H-REV)Vertical Reverse (V-REV)Backlight compensation (BLC)Flickerless (FL)Switching between color and B&W modes (D/N)Auto white balancing (AWB)Digital noise reduction (DNR)Dynamic CCD defect compensation
Product color	SCC-B534xN : White
Operation temperature	-10°C to +50°C
Operation humidity	Up to 90%
Size	128(∅) x 91(H)mm
Weight	327g

Appendix B: Specifications for PAL Standard

Item Details
Product type CCTV color	dome camera
Power input AC 24V ± 10% (50Hz ± 0.3 Hz), DC 12V +10%/-5%
Broadcast type PAL Standard System (625 Lines, 50 Fields)
Power consumption Approx. 1.7W
Image device 1/3 inch IT	Type Super-HAD CCD
Pixels	Total: 795(H) x 596(V), 470,000 pixelsEffective: 752(H) x 582(V), 440,000 pixels
Scanning mode 625 Lines, 2:1 Interlace
Scanning line frequency	Horizontal: 15.625Hz(INT)/15.625Hz(LL)Vertical: 50Hz(INT)/50Hz(LL)
Synchronization mode INT/Line Lock (Adjusting the phase using INC/DEC button)
Horizontal resolution 540	TV Lines
S/N Ratio Approx. 50dB
Min. object illumination				SCC-B5345 (Color/BW)	SCC-B5344 (Color/BW)
	F1.2	Sens-up Off	50IRE 0.4/0.04Lux		0.4/0.4Lux
			30IRE	0.24/0.024Lux 0.24/0.24Lux
			15IRE	0.12/0.012Lux 0.12/0.12Lux
		Sens-up x128	50IRE	0.0031/0.00031Lux	0.0031/0.0031Lux
			30IRE	0,0019/0.00019Lux	0.0019/0.0019Lux
			15IRE	0.0009/0.00009Lux	0.0009/0.0009Lux
Signal output	COMPOSITE Video(1.0 Vp-p, 75ohm, BNC), Test Monitor OUT(1.0 Vp-p, 75ohm, Harness cable)
Lens	Auto Iris (DC) / Focal length: 2.9 ~ 10.0mm / Aperture ratio: 1.2
PAN function	Range: 0 to 355° (100 degree clockwise and 255 degree counterclockwise)
TILT function	Range: 0 to 90°
Controls	Line Lock (LL)Sens-Up; Low Speed Shutter(LSS)Horizontal Reverse (H-REV)Vertical Reverse (V-REV)Backlight compensation (BLC)Flickerless (FL)Switching between color and B&W modes (D/N)Auto white balancing (AWB)Digital noise reduction (DNR)Dynamic CCD defect compensation
Product color	SCC-B534xP : White
Operation temperature	-10°C to +50°C
Operation humidity	Up to 90%
Size	128(∅) x 91(H)mm
Weight	32/g

Pure grayscale gradient background with no visible text, symbols, or identifiable objects

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SCC-B5344

SCC-B5345

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Technical diagram showing three steps of a camera lens assembly: top view, close-up, and bottom view with labeled components.

2

3

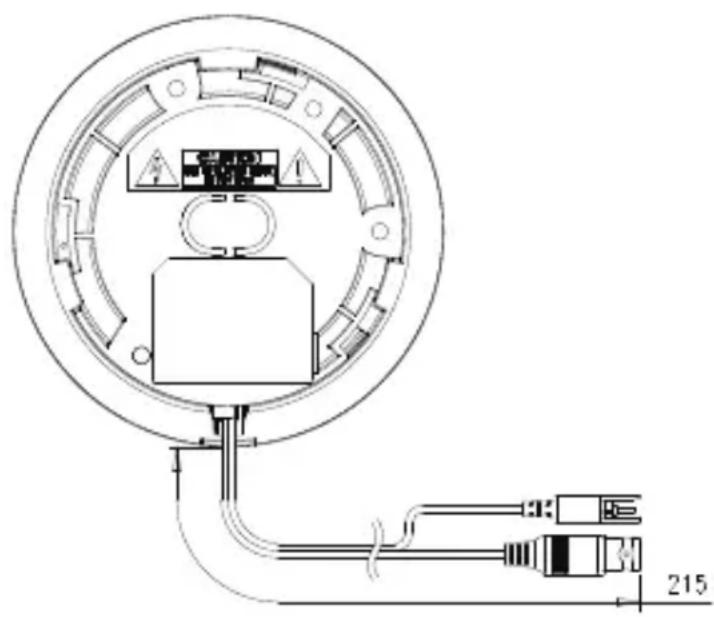

SR50 91 ONR5WVS 23 Ø128

Technical diagram of a circular electrical connector with labeled pins and cable connections, including a 215-pin connector.

Blank white image with no visible content, text, or symbols

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

2

3

Blank white image with no visible content, text, or symbols

Monitor Cable BNC

Blank white image with no visible content, text, or symbols

Technical diagram showing three steps of a camera lock mechanism: dial, lock switch, and camera lock.

2

3

• Controllo line lock (LL)

Line drawing of a handheld device with a bulb and cable, no text or symbols present

Telecamera Cavo Test Monitor

Viti Manuale utente

Nota

Blank white image with no visible content, text, or symbols

Monitor Cavo BNC

Per collegare i cavi

Diagram illustrating camera front and lock mechanism with labeled components and hand gesture

2

3

Aprisupporto da soffitto

Per installare la telecamera

Blank white image with no visible content, text, or symbols

Monitor BNC kablosu

Blank white image with no visible content, text, or symbols

Kameranın Kurulumu

Kurulumdan önce

Technical diagram showing three steps of a device with labeled parts: top view, middle view, and bottom view with 'CAMERA RIGHT' label.

2

3

Tavan montaj açicisi

Blank white image with no visible content, text, or symbols

Memo

Blank white image with no visible content, text, or symbols

Memo

Blank white image with no visible content, text, or symbols

Memo

SAMSUNG

Part No. AB68-00687D(00)
