USER MANUAL VPS082A Vonyx

VPS Series Active Speaker Set LED MP3/BT

Ref. nr.: 178.126, 178.128

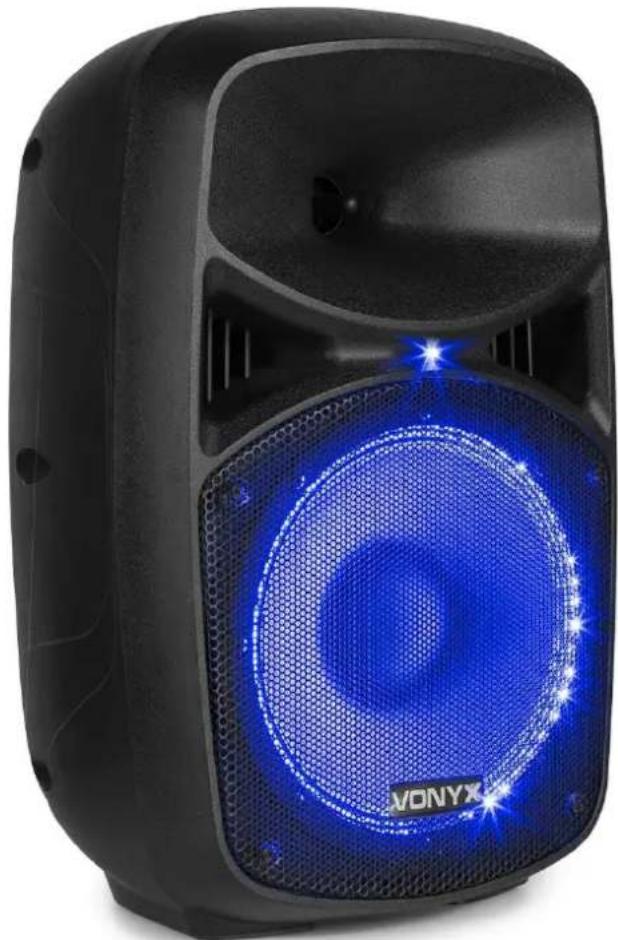

Black VONYX audio amplifier with blue LED display and starburst effect (no text or symbols visible)

Black VONYX audio amplifier with blue LED display and starburst effect (no text or symbols on body)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the product be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

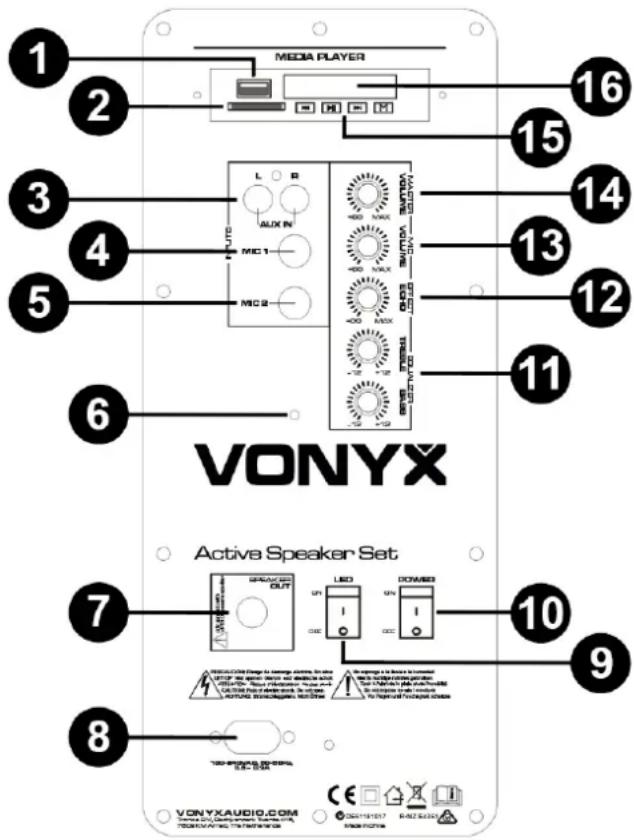

CONTROLS AND CONNECTIONS

1. USB port

Connect your USB devices to this slot to play music with MP3 or WMA format.

2. SD port

Connect your SD/MMC card in this slot to play music with MP3 or WMA format.

3. AUX input left and right

RCA AUX input left and right.

4. Microphone input channel 1

6.3mm 14 " input jack for connecting a microphone.

5. Microphone input channel 2

6.3mm 1/4" input jack for connecting a microphone.

6. Power light

Power on/off LED (green) indicator.

7. Speaker output (active speaker)

Put the plug of the supplied speaker cable into this connector and put the other plug of speaker cable into passive speaker.

8. Power input

Before connecting the power cord, check if the mains corresponds to the voltage indicated on the rating plate on the unit. Connect the power cord only to a mains socket outlet with a protective earthing connection.

9. LED switch (active speaker)

Turn on the LED (frontside) of the active speaker on or off.

10. Power switch

Turn the power on/off.

11. Tone control

Using the bass and treble knobs, the overall system frequency response can be adjusted.

12. Microphone echo control

Adjust the intensity of the echo effect.

13. Microphone volume control

Adjust the sound level of microphone channel 1 and 2.

14. Master volume control

Adjust the overall output level of the sound system.

15. Direct selection buttons

Previous button: press to select previous track Pause/Play button: press to switch between pause and play Next button: press to select next track Mode button: Press to switch between BT/USB/SD modes

16. LCD display

Display to show you various information like file name, elapsed time, total time, file number, total file number, file and playback mode.

MEDIA PLAYER VONYX Active Speaker Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LED LPG PWM Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power

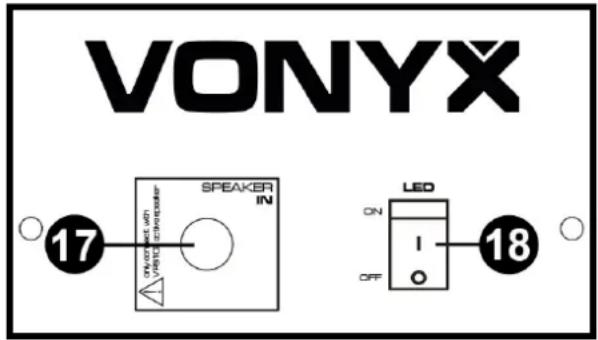

17. Speaker input (passive speaker)

Put the plug of the supplied speaker cable into this slot and put the other plug of the speaker cable into the active speaker.

18. LED switch (passive speaker)

Turn the LED ring (frontside) of the passive speaker on or off.

VONYX SPEAKER IN ON OFF 17 LED ON - - 18

CONNECT BT-DEVICE

BT

1. Set the search function on of the BT device you want to play the music. See the operating instructions for that device..
2. Press the "MODE" button until "AUX" will show in display and activate BT-function.
3. Find on your BT-device "VONYX" and make the connection.

If password is required, you can enter "0000".

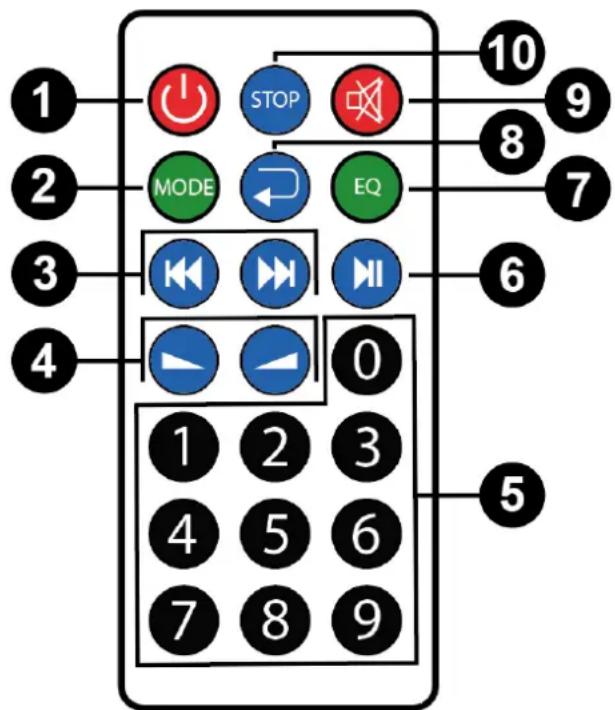

REMOTE CONTROL

1. Stand-by button

Use this button to put the unit into or out of standby mode.

2. Mode button

Press to switch between BT/USB/SD modes.

3. Previous & next buttons

Press to change to previous or next track.

4. Master volume control

Adjust the overall output level of the sound system.

5. Num pad

Numeric keyboard for selecting presets.

6. Play/pause

Press this button to start or pause play.

7. Equalizer

Press to use EQ function.

8. Enter button

Press to confirm.

9. Mute

Press to mute the device.

10. Stop

Press to stop.

1 2 3 4 MODE STOP EQ 0 1 2 3 4 5 6 7 8 9 10 9 8 7 6 5

NOTE: Improper use of the batteries may cause battery leakage and corrosion. To operate the remote control correctly, follow the instructions below:

• Do not insert batteries into the remote control in the wrong direction.
• Do not charge, heat, open or short-circuit batteries. Do not throw batteries into a fire.
• Do not leave dead or exhausted batteries in the remote control.
• Do not use different types of batteries together or mix old and new batteries.
• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.
• If the remote control does not function correctly or the operating range becomes reduced, replace all batteries with new ones.
• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries. The batteries can be used for one year in normal condition.

NEDERLANDS

3. Previous & next buttons

VONYX SPEAKER IN 17 LED ON I OFF 18

VERBINDEN BT-GERÄT

BT

VONYX 17 SPEAKER IN ON OFF LED ON I O 18

	VPS082A	VPS102A
Ref. nr.:	178.126	178.128
Input connections:	2 x 6.3mm jack (microphone), RCA, USB, SD
Output connections:	6.3mm jack
Power max.:	400Watt	600Watt
Diameter woofer:	8"	10"
Power supply:	100-240VAC 50/60Hz
Power consumption:	0.6-0.3A
Dimension (L x W x H):	200x260x390mm	260x310x495mm
Weight (kg):	7.60	11.70

The specifications are typical, the actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
