USER MANUAL WM 43981 S KALORIK

4. Green temperature pilot light

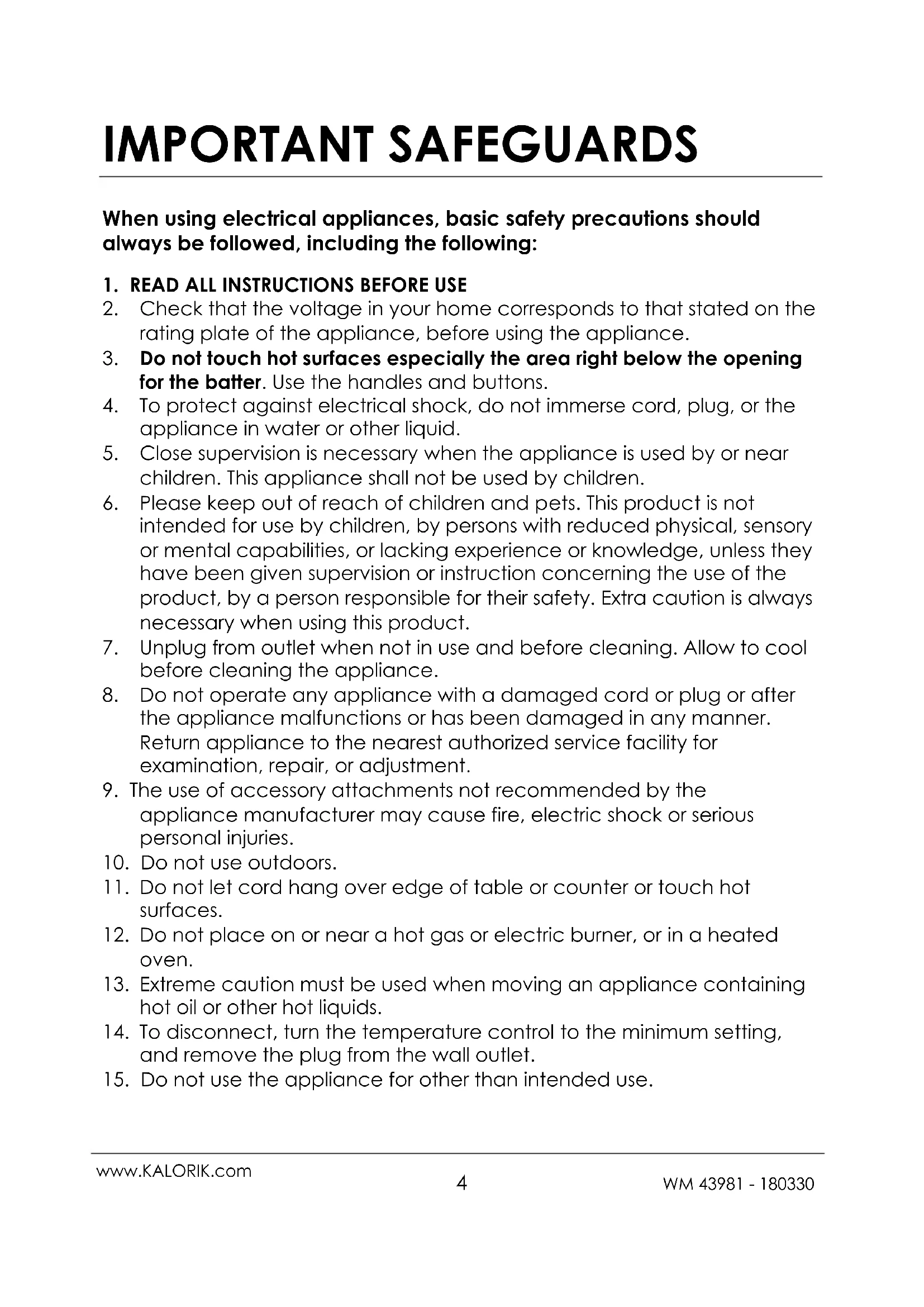

www.KALORIK.com IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USE

2. Check that the voltage in your home corresponds to that stated on the

rating plate of the appliance, before using the appliance.

3. Do not touch hot surfaces especially the area right below the opening

for the batter. Use the handles and buttons.

4. To protect against electrical shock, do not immerse cord, plug, or the

appliance in water or other liquid.

5. Close supervision is necessary when the appliance is used by or near

children. This appliance shall not be used by children.

6. Please keep out of reach of children and pets. This product is not

intended for use by children, by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, unless they have been given supervision or instruction concerning the use of the product, by a person responsible for their safety. Extra caution is always necessary when using this product.

7. Unplug from outlet when not in use and before cleaning. Allow to cool

before cleaning the appliance.

8. Do not operate any appliance with a damaged cord or plug or after

the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

9. The use of accessory attachments not recommended by the

appliance manufacturer may cause fire, electric shock or serious personal injuries.

10. Do not use outdoors.

12. Do not place on or near a hot gas or electric burner, or in a heated

13. Extreme caution must be used when moving an appliance containing

hot oil or other hot liquids.

14. To disconnect, turn the temperature control to the minimum setting,

and remove the plug from the wall outlet.

16. When using this appliance, provide adequate airspace above and on

all sides for air circulation. On surfaces where heat may cause a problem, an insulated hot pad is recommended.

17. Do not leave unit unattended during use.

18. Always use the product on a clean, flat, hard, dry and heat resistant

surface. There should be no material such as a tablecloth or plastic between the unit and surface. A fire may occur if the waffle maker is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.

19. It is absolutely necessary to keep this appliance clean at all times as it

comes in direct contact with food.

20. Be careful not to scratch the non-stick coating of the cooking plate, as

you might get little pieces of this coating into the food. If scraping is necessary, unplug the appliance and use a wooden spatula or a heat resistant plastic one.

21. DO NOT touch the cover during use. HOT SURFACE!

22. Never impact this unit or drop from a high place.

SAVE THESE INSTRUCTIONS

This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into the polarized outlet only one way. If the plug does not properly fit into the outlet at first, reverse it. If it still does not fit, contact a competent qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.6 WM 43981 - 180330

• The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.

• The resulting extended cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over. PARTS DESCRIPTION See page 2-3.

BEFORE THE FIRST USE

• Before using the appliance for the first time, remove and peel off all promotional and packaging materials. Check that the cooking plates are clean and free of dust.

• Clean the waffle maker (See "Cleaning and Care") and place the unit on a flat, dry, and heat-resistant surface.

• Prop up the unit on the side which has the batter opening and remove the stand from underneath the appliance and place it on the surface like shown in the picture on Page 2.

• It is recommended to heat the waffle maker for about 10 minutes without any foodstuff on its surfaces. This helps to eliminate any grease that may have adhered during manufacturing and to eliminate the "new" appliance smell.

• Ventilate the room during this period. When your grill is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance. OPERATION

• Place the unit on a flat, dry, and heat-resistant surface.

• Prop up the unit on one side using the attached stand on the bottom of the unit to fix it in place as shown in the picture on page

• Plug into the electrical outlet. The red power light will come on to indicate that the appliance is on.7 WM 43981 - 180330

• Set the thermostat to the desired position from “MIN” to “MAX” (MAX being the hottest). When the green pilot light goes on, it means that the desired temperature is reached. During use, this light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature. Caution: during operation, the baking plates heat up. Use caution to avoid burns. Use oven mitts and heat-resistant wooden or plastic utensils!

• Open the appliance carefully by using two fingers to pull on the clamp and lightly brush the plates with oil or non-stick cooking spray. Do not touch the region next to the warning sign at any time as it may be hot.

• Shut the lid using the same clamp making sure not to touch the region next to the warning sign with bare hands.

• Pour the batter into the measuring cup until 185 ml

• Begin to pour batter through the black colored opening on the raised side of the unit.

• As the unit is raised from one side and shut from the other, the batter will spread evenly through the unit.

• Pour all the batter from the measuring cup into the opening.

• Bake until golden brown. If necessary, adjust the temperature by turning the thermostat to the desired browning level needed to bake, and wait until the green pilot light goes out. Caution: After pouring the batter, take extra precaution to not touch the region next to the ‘hot surface symbol’ warning sign on the machine

• When the waffles are ready, use two fingers again to pull on the clamp and open the appliance. Caution: Do not operate the appliance in the horizontal position

• Remove the waffle with a plastic or wooden spatula. Never use any sharp metallic objects, as this might damage the non-stick coating.

• When baking is finished, set thermostat to “off” or “min.”, unplug the cord from the socket and leave the appliance open to cool. Note: For best results, use a thinner waffle batter rather than a thick one.8 WM 43981 - 180330

www.KALORIK.com HOW TO MAKE THE PERFECT EASY POUR WAFFLE Your Easy Pour Waffle Maker is designed to create a delicious Belgium style waffle without holes, empty spaces or messy overflow. Its custom baking plates channel the batter down on a 45% angle to produce a complete waffle with a crisp finish and a tender center. The batter expands during the cooking process and the overflow is contained in the pour spout. Just remove the excess tab, leaving you with a picture perfect delicious waffle every time. Use the following recipes or, if using a boxed waffle mix, follow the directions on the box, then thin with water (2 tbsp. to 2/3 cup depending on batch size) for a smooth pourable batter. Use the enclosed perfect portion measuring cup to pour batter into the waffle maker when green ready light is illuminated. Pour batter slow and steadily holding the measuring cup 3-5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 4 minutes on max setting. Open the lid and remove the waffle to serve. We recommend using tongs, or a fork specially design for Belgian Waffles. With these instructions you will make the perfect waffle every time.9 WM 43981 - 180330

• 1 3/4 cups All-Purpose Flour

• 2 teaspoons Baking Powder

• 1 teaspoon Baking Soda

• 1/3 cup Bakers Sugar

• 1/2 cup Vegetable Oil Start with all ingredients at room temperature. Sift together Flour, Baking Powder, Baking Soda, Salt and Sugar. In separate bowl whisk together Milk, Water, Eggs, Vanilla Extract, Almond Extract and Oil. Add wet ingredients to dry and whisk until batter is smooth. Allow batter to rest for 5 minutes, stir again. Use the enclosed perfect portion measuring cup to pour batter into waffle maker when green ready light is illuminated. Pour batter slow and steady holding cup 3-5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 4 minutes on max setting. Serves 6. Serve with Fresh Berries and Powdered Sugar. PUMPKIN WAFFLE

• 2 cups All-Purpose Flour

• 2 teaspoons Baking Powder

• 1 teaspoon Baking Soda

• 1/4 teaspoon Ground Clove Sift together Flour, Baking Powder, Baking Soda, and Salt. In a separate bowl beat together Milk, Water, Pumpkin, Oil, Eggs, Brown Sugar, Maple Syrup, Vanilla Extract, Cinnamon, Ginger, Nutmeg and Clove. Add wet ingredients to dry ingredients and blend together until the batter is smooth. Allow to rest for 5 minutes, stir again. Use the enclosed perfect portion measuring cup to pour batter into waffle maker when green10 WM 43981 - 180330

www.KALORIK.com ready light is illuminated. Pour batter slowly and steadily holding cup 3- 5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 4 minutes on max setting. Serves 6. Serve with Whipped Cream and Cinnamon Sugar Sprinkles. CINNAMON WAFFLE WITH MASCARPONE MAPLE HONEY ICING

• 2 cups All-Purpose Flour

• 2 teaspoons Baking Powder

• 1 teaspoon Baking Soda

• 1/3 cup Brown Sugar packed firm

• 1 teaspoon Vanilla Extract Start with Buttermilk, Eggs and Water at room temperature. Sift together Flour, Baking Powder, Baking Soda, Salt and Cinnamon. In a separate bowl blend together with a hand mixer Buttermilk, Vegetable Oil, Water, Eggs, Brown Sugar and Vanilla Extract. Add wet ingredients to dry and blend until batter is smooth. Allow batter to rest for 5 minutes, blend again. Use the enclosed perfect portion measuring cup to pour batter into waffle maker when green ready light is illuminated. Pour batter slowly and steadily holding cup 3-5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 3-4 minutes on max setting. Serves 6. Serve with: 1 cup Mascarpone, 1/3 cup Maple Syrup & 1 tablespoon Honey blended together, drizzle icing

PEANUT BUTTER WAFFLE

• 1 3/4 cups All-Purpose Flour

• 2 teaspoons Baking Powder

• 1 teaspoon Baking Soda

• 1/3 cup Bakers Sugar

• 1/2 cup Vegetable Oil Sift together Flour, Baking Powder, Baking Soda, Salt and Sugar. In separate bowl whisk together Milk, Water, Eggs and Vanilla Extract. In11 WM 43981 - 180330

www.KALORIK.com separate bowl blend Peanut Butter and Oil, with hand mixer or blender. Add to Milk mixture and blend until smooth. Add wet ingredients to dry and blend until batter is smooth. Allow to rest for 5 minutes, stir again. Use the enclosed perfect portion measuring cup to pour batter into waffle maker when green ready light is illuminated. Pour batter slowly and steadily holding cup 3-5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 3-4 minutes on max setting. Serves 6. Serve with Jelly or Elvis style with Bacon and Banana.

CHEDDAR JACK CHEESE & CHIVE WAFFLE

• 1 3/4 cups All-Purpose Flour

• 2 teaspoons Baking Powder

• 1 teaspoon Baking Soda

• 1/2 teaspoon granulated Garlic

• 1/2 teaspoon granulated Onion

• 2 tablespoons finely chopped fresh Chive

• 1/3 cup fancy shredded Cheddar & Monterey Jack Cheeses

• 1/4 cup fancy shredded Parmesan Cheese Sift together Flour, Baking Powder, Baking Soda, Salt, Sugar and Spices. In separate bowl whisk together Water, Eggs, Vanilla Extract, Oil and Chives. Add wet ingredients to dry and whisk until batter is smooth. Mix in shredded Cheeses. Allow batter to rest for 5 minutes, stir again. Use the enclosed perfect portion measuring cup to pour batter into waffle maker when green ready light is illuminated. Pour batter slow and steady holding cup 3-5 inches above the pour spout. This helps prevent clogging of the pour spout. Cook for 4 minutes on max setting. Serves 6. Serve for breakfast with Poached Egg & sliced Avocado or for lunch with Fried Chicken and Honey.12 WM 43981 - 180330

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for it to cool down completely.

• If the unit is propped up, lift it slightly and shut the stand and place in a horizontal position.

• Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.

• Wipe the inside and the edges of the plate with paper towel or a soft cloth.

• Do not clean the inside or outside of the unit with any abrasive scouring pads or steel wool as this will damage the finish.

• If there is any hard-to-remove batter residue baked onto the cooking plates, we would advise using vegetable oil to soften it, waiting 5 minutes before removing with a paper towel.

• DO NOT place in the dishwasher.

• NEVER clean or rinse the appliance under running water.

• DO NOT IMMERSE THE WAFFLE MAKER IN WATER OR ANY OTHER LIQUID.

• Any other servicing should be performed by an authorized service representative.13 WM 43981 - 180330

www.KALORIK.com WARRANTY We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com This KALORIK product is warranted in the U.S.A. and in Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik’s option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product. This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user’s manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user. ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If14 WM 43981 - 180330

www.KALORIK.com servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location. If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center). When sending the product, please include a letter explaining the nature of the claimed defect. If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change. If you would like to write, please send your letter to: KALORIK Customer Service Department Team International Group of America Inc. 1400 N.W 159th Street, Suite 102 Miami Gardens, FL 33169 USA Or call: Toll Free: +1 888-521-TEAM / +1 888-KALORIK Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.15 WM 43981 - 180330

For questions please contact: KALORIK Customer Service Department Team International Group of America Inc. 1400 N.W 159th Street, Suite 102 Miami Gardens, FL 33169 USA Toll Free: +1 888-521-TEAM / +1 888-KALORIK www.KALORIK.com Model WM 43981 User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.
