USER MANUAL EBS 40398 BK KALORIK

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

• Never leave the appliance unsupervised when in use.
• From time to time check the appliance for damages. Never use the appliance if it shows any signs of damage. All repairs should be made by a qualified electrician.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• Never immerse the appliance in water or any other liquid for any reason whatsoever.
• Before cleaning, always remove the battery.
• If the battery leaks, remove it, clean the contacts of the appliance and wash your hands.
• If you do not use the appliance for a long time, remove the battery so that it does not leak.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

• People with pacemakers or other types of electronic implants should not use this product because the measuring method of the resistance might interfere with its good functioning.
  • This product is suitable for adults and children of age 10 or older.

If you have any doubt about the use of this product, please consult your physician.

• The scale uses the Bioelectrical Impedance Analysis (BIA) method to measure the body fat, the total body water, the bone mass and the muscular mass.
• BIA = the scale has electrodes measuring the body electric resistance (muscles offer less resistance than fat, and that can be correlated with the body weight).
• The integrated computer calculates the body fat and other data percentages based on age, sex and height.
• This method is quick, sure and accurate and gives a result within 30 seconds.
• The scale has a memory for 10 persons at most, which allows the whole family to use it without having to re-enter all data at every use.

Why is measuring the body fat (bf) so important?

For years, obesity has been defined as the presence of superfluous body fat. It is not a matter of sheer body weight. Some people have a strong proportion of fat balanced with muscular mass, and some slim people experience a large increase of body fat. The body fat is an important part of the human body and it deals with a certain number of essential tasks: protecting our joints, storing vitamins, regulating our body temperature. However, fat may contribute to a lot of stress for the human body (particularly for the cardiovascular system) and may also lead to diabetes. The goal is not only to reduce fat as much as possible, but rather to reach and maintain a good rate between muscular mass and body fat. Therefore, the control of these two levels, weight and fat, is a fundamental requirement for a good physical condition and a good health.

Why is water content such an important measure?

After oxygen, water is the most important of the nutritive elements which the body requires to work efficiently. Water plays an essential role in almost all bodily functions and contributes notably to regulate the body temperature, carry nutrients, moisturize and purify the skin, improve the digestive system, lubricate joints. Every process in our body is dependent on water and most people do not drink enough water. By keeping your body liquid level under control, you can react quickly to regulate fluids when necessary.

MEASURING METHOD

The measuring method accepted by scientists worldwide is called "Bioelectrical Impedance Analysis". With this method, a weak and imperceptible electric current travels through the body (this current is totally harmless for the human body*). The current, which has the capacity to circulate more easily through liquid in our muscles than through fat, goes through the legs and allows measuring the body electric resistance. This resistance depends on the quantity of water in the body (our muscles contain about 73% of water).

After measuring the electric resistance, this value can be used to calculate directly the muscular mass of our lower limbs. Our gender and our height are taken into account to determine muscular mass as a whole.

On the contrary, body fat acts as an insulating substance (it reduces the capacity of the current to go through) and thus cannot be calculated directly. It is more about determining the measured weight indirectly using the formula Fat mass = Body weight - Muscular mass.

This method allows us to take the whole-body fat into account. The water content of the body is measured by the calculation of the 73% of the muscular mass.

*See warning at the beginning of the notice

CHARACTERISTICS OF YOUR SCALE

• Tempered Glass platform
- LCD display
• Three weight units: kg / lbs. / stone
• Maximum weight = 180 kg / 396 lb. / 28.4 st.
- Precision of the measurement = 0.1 kg / 0.2 lb. / 1 lb
• Height range set: 3 ft. 3in. – 7 ft. 10 in. (100-240cm)
• Male or female settings
- Age range set: 10-80 years (age)
• Fat range rate: 5-50%, steps of 0.1% (fat)
• Water range rate: 10-80%, step of 0.1% (TBW)
- Muscle range rate: 10-80%, steps of 0.1%
- Bone range rate: 0.5-8kg, steps of 0.1kg
- 10 memories (for use by 10 different people) – P0 to P9, with automatic identification range 2.0kg / 4.4 lb. (PB)
• Normal mode and athlete mode
- Calorie analysis (KGAL)
• Body mass index indicator (BMI)
- Low battery indicator and overloading indicator
- Impedance error ( )Err2
• Auto-on, auto-zero and auto-off functions
- Low body fat indication ErrL
• High body fat indication ErrH

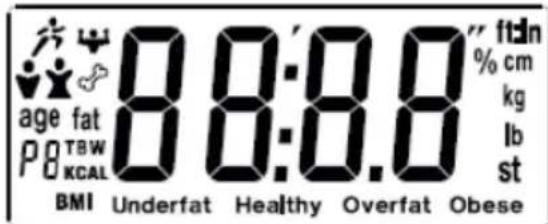

age fat P8 KBW KCAL BMI Underfat Healthy Overfat Obese 8:0.0 ft:In % cm kg lb st

BEFORE THE FIRST USE

This appliance works with 2 AAA-type batteries (2 x 1.5V, included).

Open the lid of the battery housing, on the rear part of the scale. Place the batteries, respecting the polarity indicated, and then close the lid. You can now use your scale.

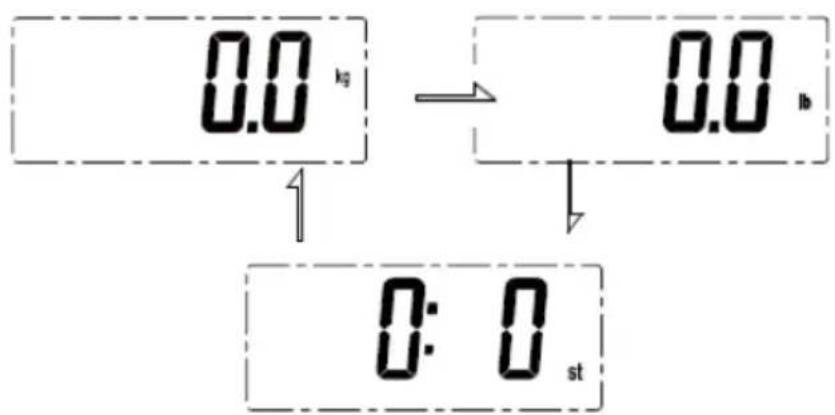

Your scale allows you to use the metric measurement system (kilograms) OR the imperial system (pounds) OR the British system (stone). Choose the measurement system by pressing the “UNIT” switch. LCD screen will display “kg...lb...St” depending on the measurement system you wish to use. This switch is situated on the rear side of the appliance.

Note: if Ib. is selected, then the height setup of the body analyzer will be in ft. and in.. If kg is selected, the height will be entered in cm.

OPERATING INSTRUCTIONS

Personal data capture or modification of your data:

Put the scale on an even and hard surface. Avoid carpets or soft surfaces.

- Push the "SET" button to turn on the scales. The screen displays the height and memory number (P...) of the person whose who last used the scale, or enables to enter the data in the memory #1 (P0)

- Select a memory number (P0 to P9) by pushing on the "▲" or "▼" button and confirm your choice by pushing on the "SET" button.

178 cm P I

Remember which user uses which memory.

- Select your gender (the icon "Man" or "Woman" is blinking – see LCD display -), and choose "normal mode" or "athlete mode", by pushing the "▲" or "▼" button and confirm your choice by pushing on the "SET" button.

PO 170 cm

- Select your height by pushing the "▲" or "▼" button and confirm your choice by pushing on the "SET" button. The scale has a range going from 3 ft. 3in. – 7 ft. 10 in. (100 to 240 centimeters) with a one inch graduation (one-centimeter graduation if metric system is selected).

P1 170 cm

- Select your age by pushing on the "▲" or "▼" button and confirm your choice by pushing on the "SET" button. The range goes from 10 to 80 years old and the graduation is 1 year.

age P I 30

• Data capture is now finished.
- Data can be modified and/or you can add members of the family repeating the process described here above.
- It is recommended to proceed with a weighing immediately after entering the personal data to activate the user recognition feature (see: Automatic user identification).

Weighing and analyzing the body data:

• Take off your shoes and socks.

- Step on the scale (stand right in order to distribute the weight evenly), making sure your both feet touch the metallic electrodes on each side of the scale.

Note: if your user memory is not selected automatically when stepping on the scale, then first press “SET” and press the ▲ button to choose your own memory (0-9) and press “SET” 4 times to enter or confirm the data (the screen displays the memory number, the gender, the height, the age with each time you press on “SET”.

- Your weight is displayed on the screen (stay on the scales during the whole process).

P I 70.0 kg

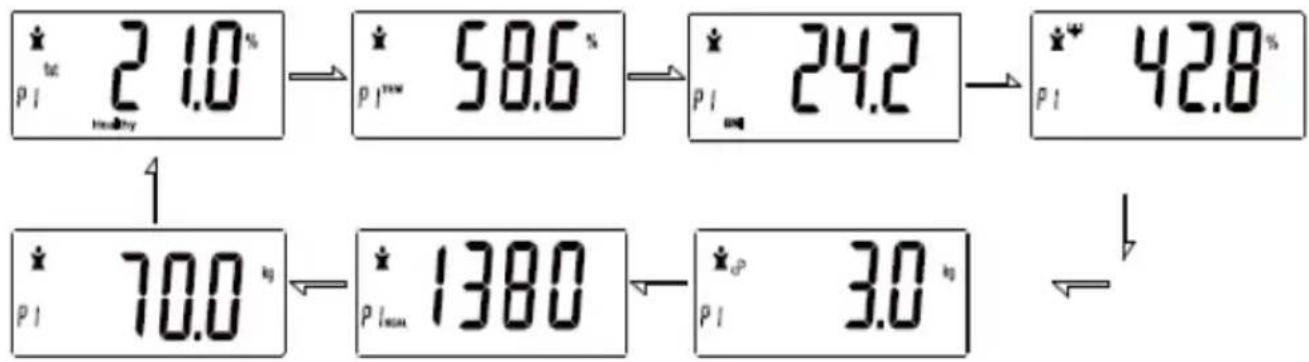

- The following screen displays "☐ ☐ ☐ ☐" for a couple of seconds, then the squares will disappear, and the following will be displayed on the screen alternatively (twice) with their symbol:

• The body fat percentage (BF),
• The water percentage (TBW),
• The B.M.I. * (Body Mass Index)
• The muscular mass (MM)
• The bone mass (BM) in kg or lb.
• The recommended calorie count
• And then the weight again ...

- After displaying the body data analysis twice, the scale will display the weight again, and lets the user confirm the information again. After this, the scale will turn off automatically.

P I 170 cm

age P 1 30

Automatic user identification

• If you correctly measured the body data the first time (or last time you used the scale), the scale will memorize the user's weight. When doing the next measurement, the scale will automatically "recognize" the user and you will not have to enter your personal data again. This automatic user identification function requires though that 2 different users have more than 2kg / 4.4 lb. difference in mass.
• Stand directly on the scale, wait for the weight to stabilize.
• Let the scale display the weight and body analysis measurements, and display the correct user profile (P0-P9)
• If the weight is similar for 2 users (or more), use the "▲" or "▼" button to choose your correct profile.

UP DOWN PIPE

Weighing only

The scale has a step-on function that will only display the weight in case no user information was entered, or if the weight is too different than any already-set user's weight. If you step down after the weight is displayed, the scale will turn off after a few seconds.

Remark: If the quantity of body fat is very high or very low, check if the right measurement system was chosen (male or female), if your feet are dry and clean and if they are placed correctly on the electrodes. Wet feet might alter the body fat measurement. If this should happen, step off the scales and repeat the instructions.

Body fat proportion is an individual characteristic. The figures hereafter can be used as a rough guide for your fitness profile.

The following charts shows how body data differs from one person to another and how it depends on gender and age. The figures below are to be considered as a rough estimate, if you have any doubt, please consult your physician or dietetics specialist.

Body fat analysis (in %)
Age	Female				Male
	Under-fat	Healthy	Over-weight	Obese	Under-fat	Healthy	Over-fat	Obese
10-39	<21	21-33	33-39	>39	<8	8-20	20-25	>25
40-59	<23	23-34	34-40	>40	<11	11-20	22-28	>28
60-80	<24	24-36	36-42	>42	<13	13-25	25-30	>30

Body water analysis (in %)
Age	Female			Male
	Under-fat	Healthy	Over-fat	Under-fat	Healthy	Over-fat
10-15	<57	57-67	>67	<58	58-72	>72
16-30	<47	47-57	>57	<53	53-67	>67
31-60	<42	42-52	>52	<47	47-61	>61
61-80	<37	37-47	>47	<42	42-56	>56

The B.M.I. data (Body Mass Index) is a simple way to present your health situation. The BMI is an index calculated in function of your height and weight:

BMI = WEIGHT / HEIGHT ^2 (weight in kg and height in m)

BMI Parameters
	Under-weight	Healthy	Over-weight	Obese
BMI	<18.5	18.5-25	25-30	>30

Body muscle analysis (in %)
Gender	Female	Male
Normal	>34%	>40%

Body bone analysis (in kg)
Gender	Female			Male
Weight	<45	45-60	>60	<60	60-75	>75
Bone mass	1.8	2.2	2.5	2.5	2.9	3.2
Body bone analysis (in lb.)
Gender	Female			Male
Weight	<99	99-132	>132	<132	132-165	>165
Bone mass	4	4.9	5.5	5.5	6.4	7

The body needs a certain amount of calories to sustain life demands every day. The values below are the suggested numbers of calories to be consumed per day by a person of a certain weight range and age.

Calories analysis (in KJ)
Gender	Age / weight	<17	18-29	30-50	>50
Male	<50 kg / 110 lb.	1350	1200	1115	1075
	50-65 kg / 110-143 lb.	1485	1320	1227	1183
	65-80 kg / 143-176 lb.	1890	1680	1561	1505
	80-95kg / 176-209 lb.	2295	2040	1896	1828
	>95 kg / 209 lb	2700	2400	2230	2150
Female	< 50 kg / 110 lb	1265	1180	1085	1035
	50-65 kg / 110-143 lb.	1392	1298	1194	1139
	65-80 kg / 143-176 lb.	1771	1652	1519	1449
	80-95kg / 176-209 lb.	2151	2006	1845	1760
	>95 kg / 209 lb	2530	2360	2170	2070

ERROR INDICATION

• If the display shows symbols randomly or if the scale doesn't turn off automatically, it means that your scale has a problem (wrong initialization or weighing error).
• Step off the scale and wait for it to turn off.
• You can start again.
• If the problem goes on, remove the batteries for 10 seconds, and then put them back in place.

OVERLOADING INDICATOR

If the symbol appears on the LCD screen, it means that the maximum weight or measurement range accepted by your scale is exceeded, please step off in order not to damage your scale.

LOW BATTERY INDICATOR

If the symbol is displayed on the LCD screen, it means that the batteries of your scale should be replaced (see paragraph "Before the first use").

BATTERY

If your appliance does not work properly, it is probably because the batteries are discharged. In that case, replace them by new ones of the same type (see paragraph “Before the first use”). Please dispose of the old batteries in an environmentally friendly way.

CLEANING AND MAINTENANCE

• The surface of the scale might be slippery when wet. Keep it and your feet dry!
• Be careful when manipulating the scale because it is a precision device.
• Clean the outside parts only with a lightly damp cloth. Never use abrasive products to clean your scale.

• NEVER USE THIS APPLIANCE NEAR WATER; NEVER IMMERSE IT IN WATER OR ANY LIQUID WHATSOEVER.

• Keep the scale in a cool and dry place. Always keep your scale in a horizontal position. Do not step on the scale with shoes to avoid scratching the surface.

• No liability will be taken for damages caused by an inappropriate use. The warranty becomes null and void if the appliance was open or damaged.
• When using the scale for the first time, or changing its location, it should be restarted twice to ensure accurate measurements. This is for calibrating the scale on a firm, flat surface.
• Please remove the batteries if the scale is not used for a long period.

PROTECTION OF THE ENVIRONMENT

To preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers

and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user should bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives

can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.
