USER MANUAL EKS 42428 S KALORIK

1. Glass platform
2. Unit
3. LCD display
4. Maximum capacity: 10kg / 22 lb.
5. ON / OFF / TARE

ESPAÑOL:

When using electrical appliances, basic safety precautions should always be followed, including the following:

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

• Never leave the appliance unsupervised when in use.
• From time to time check the appliance for damages. Never use the appliance if it shows any signs of damage. All repairs should be made by a qualified electrician.

- Only use the appliance for domestic purposes and in the way indicated in these instructions.

- Never immerse the appliance in water or any other liquid for any reason whatsoever.

- Before cleaning, always remove the battery.

- If the battery leaks, remove it, clean the contacts of the appliance and wash your hands.

- If you do not use the appliance for a long time, remove the battery so that it does not leak.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY NOT SUITABLE FOR TRADE

• Glass platform with special brushed silver finish
• Tare / Auto-zero function
- Manual and automatic switch-off
- Large LCD display
- Two weight unit systems: convertible g + ml / lb:oz. or Oz. (1 ounce = 28.35 g)
• Minimum weight: 5g / 0.2 oz.
• Maximum weight (for normal weighing) = 10,000 g (10 kg) / 22 lb.
- Graduation of the measurement = 1 g / 1ml / 0.1 Oz. / 0.05 Oz.
- Unstable weight, low battery and overload indicators

BEFORE THE FIRST USE

This appliance works with 1 lithium battery (3 V, type CR2032, included). If battery is not pre-installed, remove the lid of the battery housing on the rear part of the scale. Place the battery, the positive pole facing outwards, and then put back the lid. You can now use your scale.

PARTS DESCRIPTION

See page 2-3.

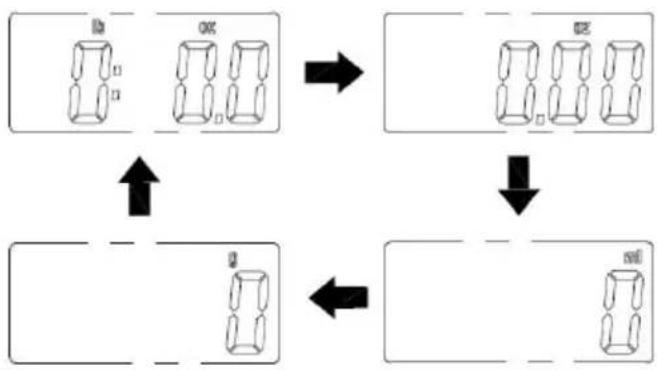

WEIGHT UNIT

Your scale allows you to use the metric measurement system (grams) OR the imperial system (pounds, ounces). Choose the measurement system at any time by pressing the "Unit" touch button (lb:oz...g), depending on the measurement system you wish to use. This button is situated on the glass platform. The scale uses the following sequence: lb:oz => Oz => ml (for water only) => g => lb:oz ...

USE

Put the scale on an even and hard surface, for instance a table or countertop. Avoid soft surfaces.

Weighing

1. Switch scale on using the "On/Tare" switch situated on the glass platform. The LCD screen will initialize.
2. The scale will turn on and the LCD display will show "0 g" or "0:0.0 lb:oz." . Change the weight unit as needed, by pressing the "Unit" touch button.
3. Put the object you want to weigh on the glass plate. The stabilized weight is displayed.
4. Remove the object from the platform.
5. The scale turns off automatically after 60 seconds. You can also switch the scale off anytime by keeping pressing on the "On/Tare" button for 2 seconds.
6. If scale goes off automatically, press on the "ON/TARE" touch button to switch on again.

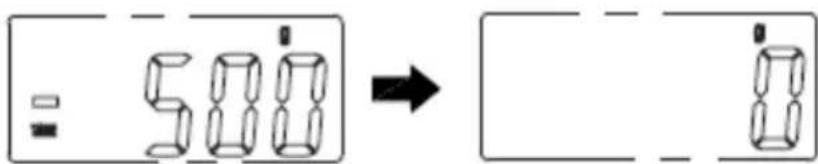

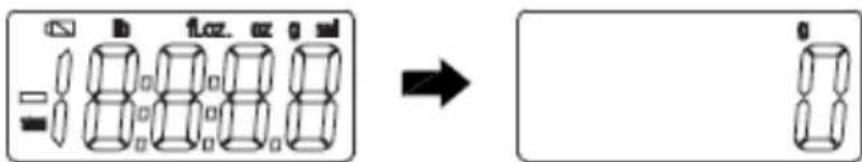

Tare function (auto-zero)

The zero/tare function is extremely useful to calculate the weight of ingredients that cannot be put directly on the platform. For example, flour, or liquids, which require a container before weighing.

In order to use this function, place the empty container or object on the scale, and then press the "On/Tare" touch button near the LCD display. The scale will switch on and indicate 0g or 0:0.0 lb:oz.

8 b 1oz. oz g sd 8 8 8 8 8 → 8

In case that the scale was already switched on, simply press “On/Tare” with the object or empty container on it, so that the display will show “0” or “0:0.0”. The “TARE” symbol is displayed.

500 → - 8

Add the ingredient to weigh. The weight indicated on the display is only the weight of the ingredient added inside the container!

3000

Note: When you remove the container from the platform, the LCD display will show the weight as negative (“-” will appear on the left-hand side). To reset, simply press “On/Tare” again.

= 500 → [ ] [ ]

OVERLOADING INDICATOR

If the "EEEE" symbol appears on the LCD screen, it means that the maximum weight accepted by your scale is exceeded. Please remove the object from the platform in order not to damage your scale.

EEEE

LOW BATTERY INDICATOR

If the “LO” symbol is displayed on the LCD screen, it means that the battery of your scale is low in voltage (less than 2.5V), and should be replaced soon. Please dispose of the old batteries in an environmentally friendly way. An advance warning indicator is also supplied, when the symbol is displayed (if battery voltage is lower than 2.6V).

Two simple line drawings: a rectangular box with a small square and dashed lines, and a 3D cube with an open lid (no text or symbols)

UNSTABLE WEIGHT INDICATOR

If the “unSt” symbol is displayed on the LCD screen, it means that the weight on the scale is not stabilized, or that the scale is not placed on a hard, level and flat surface. Place the scale on a flat stable surface and try again.

un58

ERROR INDICATION

If the display shows symbols randomly or if the scale doesn't turn off automatically, it means that your scale has a problem (wrong initialization or weighing error).

Remove any object from the scale and wait for it to turn off. Then start again. If the problem persists, remove the battery for 10 seconds, and then put it back in place.

If your appliance does not work properly, it is probably because the battery is discharged. In that case, replace it by a new one of the same type (see paragraph “Before the first use”). Please dispose of the old batteries in an environmentally friendly way.

TIPS FOR USE AND MAINTENANCE

• Be careful when manipulating the scale because it is a precision device.
• Clean the outside parts only with a lightly damp cloth.
• Never use abrasive products or chemicals to clean your scale.
• NEVER USE THIS APPLIANCE NEAR WATER; NEVER IMMERSE IT IN WATER OR ANY LIQUID WHATSOEVER.
• Keep the scale in a cool and dry place.
  • Always keep your scale in a horizontal position.
• No liability will be taken for damages caused by an inappropriate use. The warranty becomes null and void if the appliance has been opened or damaged.

PROTECTION OF THE ENVIRONMENT

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers

and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user should bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directives.

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If

servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

500 → - 8

= 508 → 8

INDICACION DE SOBRECARGA

Two simple line drawings: one rectangular with a small square and dashed lines, the other with two small geometric shapes (labeled 'L') inside a rectangle.

INDICADOR DE PESO INESTABLE

Team International Group of America Inc. 16175 NW 49th Avenue Miami Gardens, FL 33014 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

FONCTIONNEMENT

508 → - 8

= 500 → 8

INDICATION DE SURCHARGE

Simple line drawings of a rectangular object and two separate geometric shapes (no text or symbols)

INDICATEUR DE PESÉE INSTABLE

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

For questions please contact:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

1 AÑO GARANTIA • GARANTIE 7 AÑO • 1 YEAR WARRANTY

Model EKS 42428

www.KALORIK.com

User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.

KALORIK®

Since 1930
