USER MANUAL FDFS55C1A Furrion

PERSONNEL. This ‘bolt of lightning’ indicates uninsulated material within your unit which may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation mark’ calls attention to features within the enclosed literature to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or

electric shock, this apparatus should not be exposed to rain, moisture or objects filled with liquids (such as vases). CAUTION: To prevent electric shock, fully insert the plug. For regions with polarized plugs: Please match wide blade to wide slot. Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation

openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked

on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket

or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Apparatus should not be exposed to

dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.4 Safety Warnings English

16. An outside antenna system should not be

located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to eliminate touching power lines or circuits as contact might be fatal.

17. Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

18. Never push objects of any kind into this

product through openings as they may touch short-out parts or dangerous voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.

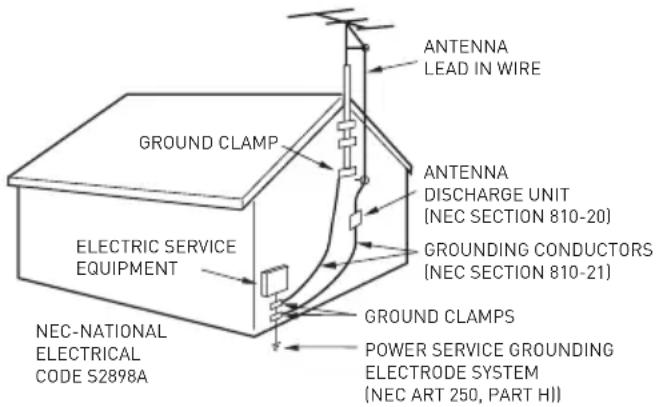

19. If an outside antenna or cable system is

connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. NEC-NATIONAL ELECTRICAL

20. When replacement parts are required,

be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Upon completion of any service or repairs

to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22. When you connect the product to other

equipment, turn off the power and unplug from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.

23. Sudden high volume may cause hearing

or speaker damage. When you use headphones (if the unit is equipped with a headphone jack), keep the volume at a moderate level. If you use headphones continuously with high volume, you may suffer hearing damage.

24. Do not allow the product to output

distorted sound for extended periods of time. This may cause speaker overheating and fire.

25. This reminder is provided to call the

cable TV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

26. The socket-outlet must be installed near

the unit and easily accessible.

27. The main plug is used as the disconnect

and shall remain readily operable.5 Safety Warnings English CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens the unit’s performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching on, or make sure the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.

HOW TO HANDLE THE LCD PANEL

● Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. ● If the LCD panel is broken, make absolutely sure you do not touch the liquid in the panel. This may cause skin inflammation. ● If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult your doctor after rinsing for at least 15 minutes in clean water. Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD panel for long periods of time, the image can become permanently engrained and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD panel on for long periods of time while it is displaying the following formats or images: ● Fixed images, such as stock tickers, video game patterns, TV station logos and websites. ● Special formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a wide screen (16:9) display (black bars on left and right sides of screen). The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms. ● LCD panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. ● Do not install the LCD panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference. ● Effect on infrared devices – there may be interference while using infrared devices such as infrared cordless headphones. Power source: This LED TV is designed to operate on 100~240 volt 50/60 Hz, AC current. Insert the power cord into a 100~240 volt 50/60 Hz outlet. To prevent electric shock, do not use the LED TV’s (polarized) plug with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

Warning: To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.6 Safety Warnings English Caution: Never remove the back cover of the LED TV as this can expose you to very high voltages and other hazards. If the TV does not operate properly, unplug the LED TV and call your authorized dealer or service center. Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Furrion could void the user’s warranty. Declaration of Conformity

WARNING: This equipment has been

tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment. Safety Precautions

WARNING: Never place a television set in an

unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: – Using cabinets or stands recommended by the manufacturer of the television set. – Only using furniture that can safely support the television set. – Ensuring the television set is not overhanging the edge of the supporting furniture. – Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. – Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. – Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space around the entire unit, leave 1.5 inches (4 cm) of free space behind the entire device. 4 inches YES !!NO !!WireClampScrew4 inchesWireWireScrewClampWireWireWire1.5 inches

Safety Warnings Function Overview English Notes when mounting the LED TV on the wall If the unit is to be mounted on the wall, contact the retailer where you purchased the LED TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you and/or damage to the LED TV. Please refer to the table below to ensure the correct size VESA mount is used with the TV VESA MOUNTING PATTERNModelWidth Height Screw Size QuantityFDFS55C1A200 300Top: PM6*20mm Bottom: PM6x12mm

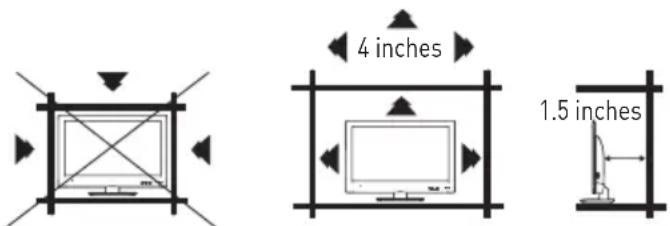

Notice for TV Cabinet If the unit is to be mounted on a cabinet smaller than the length of the unit, it could result in an unstable location. The unit may tumble over, making a risk of personal, possibly fatal injury. This would also damage the product seriously. Accordingly, Furrion accepts no responsibility or liability for any injuries or property damage resulting from the improper installation. 4 inches YES !!NO !! WireClampScrew 4 inches Wire Wire Screw Clamp Wire Wire Wire

● Do not use this TV with wall mounts that allow the TV to tilt vertically. Vertical tilting wall mounts may cause structural damage to the TV. ● Use ONLY fixed or horizontal swiveling wall mounts with this TV. Control Panel

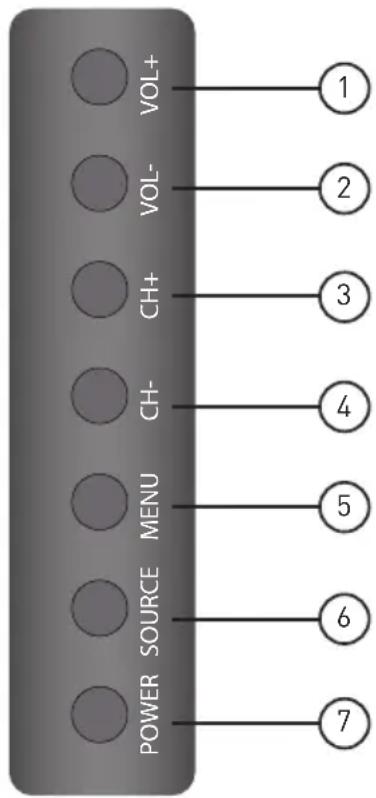

*Please note that the button layout of the controls may vary from model to model. Item Button Function VOL+ Press to increase the volume. VOL- Press to decrease the volume. CH+ Press to skip to the next channel.

CH- Press to skip to the previous channel. MENU Press to enter the main menu. SOURCE Press to select the input source. POWER Press to switch the TV on/off.8 Function Overview English *The configuration of the connection ports may vary from model to model. EARPHONE OUT USB AUDIO OUT R- -L

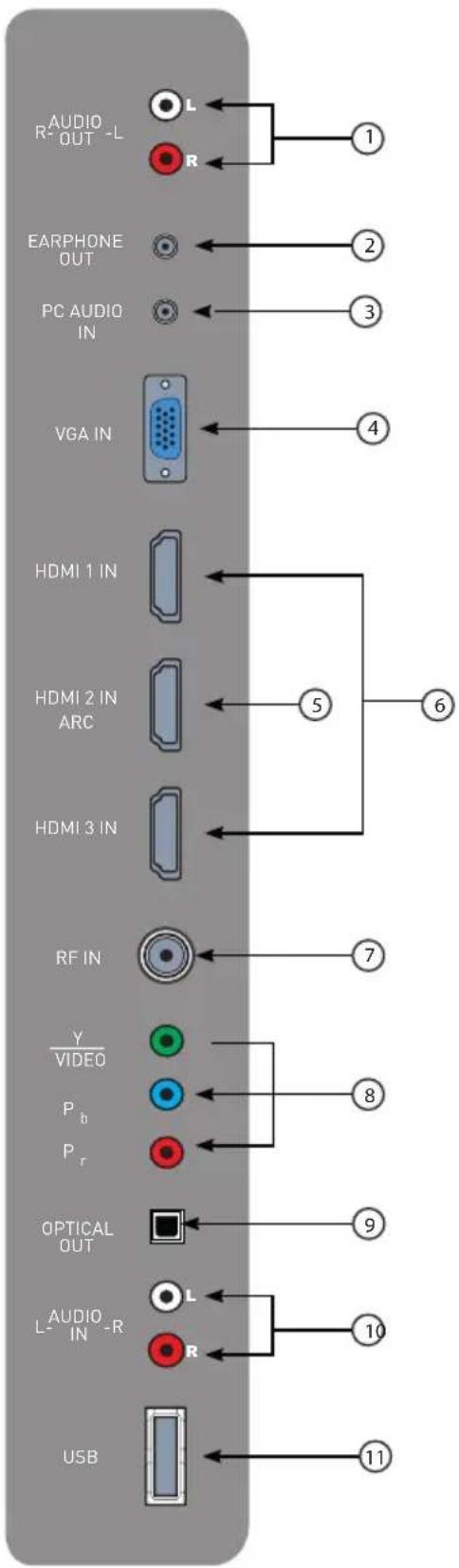

Rear Panel Item Connection Function

RAUDIO OUTL Connects to the AUDIO IN ports of an audio device.

EARPHONE OUT Connects to 3-conductor(TRS) phone connector of earphone, compatibility of earphone with 4-conductor(TRRS)phone connector is not guaranteed.

Connects to the AUDIO OUT port of a PC.

VGA IN Connects to the VGA OUT port of a PC to use the TV as a monitor.

HDMI 2 IN ARC Connects to the HDMI OUT port of a DVD Player, Games Console, CABLE BOX or other HDMI device. ARC Audio Return Channel. When connected with a HDMI

1.4 cable to an ARC compatible

audio system, the TV links with the device to give extra audio functionality. Please see page 15.

HDMI 1 IN Connects to the HDMI OUT port of a DVD Player, Games Console, CABLE BOX or other HDMI device. CEC Consumer Electronics Control. When connected to the CEC compatible Furrion Entertainment Systems or other CEC Compatible devices, the TV links with the system to give extra functionality. Please see page 15. HDMI 3 IN

RF IN Connects to the ANTENNA, CABLE, or CABLE BOX.

VIDEO Connect to the COMPONENT VIDEO OUT ports of a DVD Player, Cable Box or other compatible device.

OPTICAL OUT Connects to the OPTICAL AUDIO IN port of an audio device.

L-AUDIO IN-R Connects to the AUDIO OUT ports of an audio device.

USB USB Port, view pictures and listen to MP3s via a compatible USB stick.9 Function Overview English Unimote

Item Button Function TV Switches to TV mode. TV/ FIREPLACESelects Furrion fireplace remote control functions.*Please refer to your Furrion fireplace manual for more information. Turn the TV/Entertainment System on/off. NUMBER BUTTONSEnter numbers or select channels. Toggle between single and double digit input. S.MODE Cycle through sound modes. P.MODE Cycle through picture modes. INFO/OSDIn TV mode, press to display information on the selected TV channel.In Stereo mode, press to display DVD playback status. F.LIST Displays favorites list. EPG Displays the program guide. SOURCE Cycle through input sources. NAVIGATION BUTTONSConfirm selections. VOL+/- Increase/decrease volume. Eject DVD/CD. During playback, press to select the previous track/chapter. Press and hold to rewind. Automatic or manual tuning in radio mode.

STEP Press to forward frame by frame during DVD/VCD playback.Dial or accept a call (when the system is connected to a cell phone).10 Function Overview English Item Button Function

MTS/AUDIO Cycles through MTS sound modes.

RDM Toggles random playback mode on and off.

ZOOM Press to enlarge screen images.

SEL Toggles between Volume, Bass, Treble and Balance; Adjust Hours and Minutes.

LOC*/SLOW Toggles radio reception strength. Presses to start slow motion playback.

SUBT Press to display subtitles on compatible media. Repeatedly press to cycle through subtitle options.

PBC/TITLE Displays DVD/VCD Title lists. Toggles Play Back Control (PBC) on and off.

PROG Uses to start the programmed playback function.

A-B Press to start the A-B repeat function (playback loop of a segment of track).

SETUP Enters the Setup menu for the entertainment system. Item Button Function

Toggles Closed Captions On and Off.

APS Press to scan radio stations: A brief press searches through each stored station. Press and hold to scan and store the 6 strongest stations. End or reject a call (when the system is connected to a cell phone).

During playback, press to select the next track/ chapter. Press and hold to fast forward. Automatic or Manual tuning in radio mode.

CH+/- Channel Up/Down.

FAV Displays the channel list.

AUTO Automatically adjusts the picture in PC mode.

DISPLAY Toggles on screen on the selected source On and Off.

Toggles between the current and previous channel.

Starts, Pauses or restarts playback.

MENU Enters the main menu.11 About Your FHD LED TV English Features Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of brightness, contrast, color, tint and sharpness. Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 240 minutes to turn off automatically. On-Screen 3 Language Display - You can select one of 3 languages: English, Spanish or French for on-screen programming. HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component can be connected to this unit. Power Source NOTE: ● Please make sure to insert the cord securely at both the LED TV and the wall outlet. ● The AC Cord has a polarized type AC line plug. If the supplied AC cord does not match your AC outlet, contact a qualified electrician.

CAUSE FIRE, ELECTRICAL SHOCK OR

DAMAGE. ● DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED.

THIS COULD CAUSE FIRE, ELECTRICAL

NEED TO REPLACE THE AC ADAPTER

OR AC CORD. IT IS RECOMMENDED YOU

REPLACE WITH THE ITEM OUTLINE IN

THIS INSTRUCTION MANUAL.12

Before Operation English What’s in the box Thanks for purchasing this Furrion FHD LED TV. This manual will help you set up and begin using your TV. Please read this manual thoroughly and keep this manual in a safe place for future reference. First, check the contents of your box with the parts checklist below:

● Unimote ● AAA battery × 2 ● Instruction Manual ● Warranty Card ● Wall-mount screws x 4 (PM6x20mm x 2 on the top, PM6x12mm x 2 on the bottom) ● TV Stand ● Screws for TV stand x 4 (PM 5X17 mm) Now you can get started! Preparation of your Remote Control BATTERY INSTALLATION

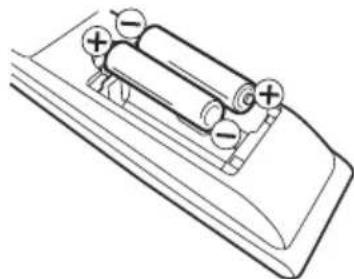

1. Open battery compartment cover.

2. Install two AAA batteries.

3. Close the cover of the battery compartment.

NOTE: Use two “AAA” size batteries. The batteries may last approximately one year depending on usage. For best performance, it is recommended the batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types. BATTERY PRECAUTIONS These precautions should be followed when using batteries in this device: ● Use only the size and type of batteries specified. ● Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device. ● Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones. ● If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. ● Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.) ● Please use caution when inserting batteries to avoid battery damage. If the spring terminal in the remote control remains in contact with a side of a damaged battery it can cause a short circuit. Never use damaged batteries as they can become very hot and are dangerous.13 Getting Started English The Setup Wizard window appears the first time you turned on the TV. It will assist you to configure the TV and scan for available channels. IMPORTANT: Make sure the antenna or cable TV system connection is made.

1. Press POWER button on the TV control

panel or button on the remote control to switch on the TV. The power indicator will change to green. The Setup Wizard window appears on the screen. NOTE: It may take a few seconds before the Setup Wizard window appears on the screen.

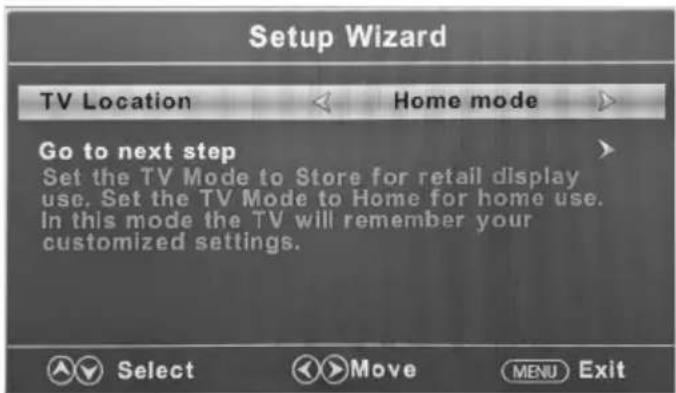

2. Use or key to highlight TV Location,

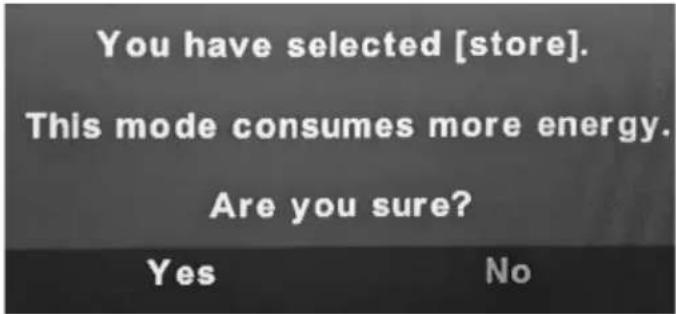

then press or to select Home Mode or Store Mode. NOTE: When you select Store Mode it will remind you Store Mode consumes more energy. Select Yes to enter or No to cancel. Press or to highlight Go to next step, press OK or to go to the next step.

3. Use or key to highlight Menu

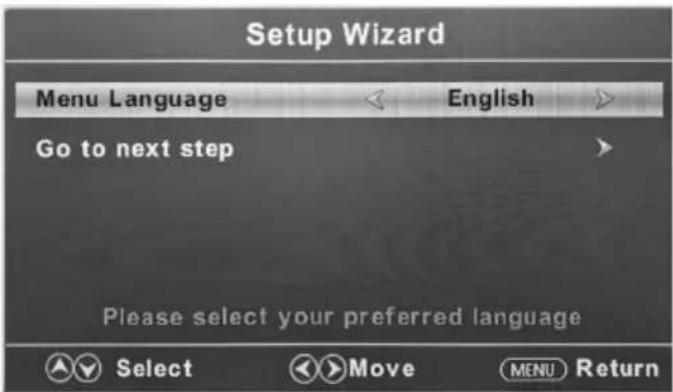

Language, then press or to select the desired language. Press or to highlight Go to next step, press OK or to go to the next step.

4. Use or key to highlight Time Zone, then

press or to select desired time zone. Use or key to highlight Daylight Saving Time, then press or to select On or Off. Use or key to highlight Time Format, then press or to select 12-hour or 24-hour. Press or to highlight Go to next step, press OK or to go to the next step.

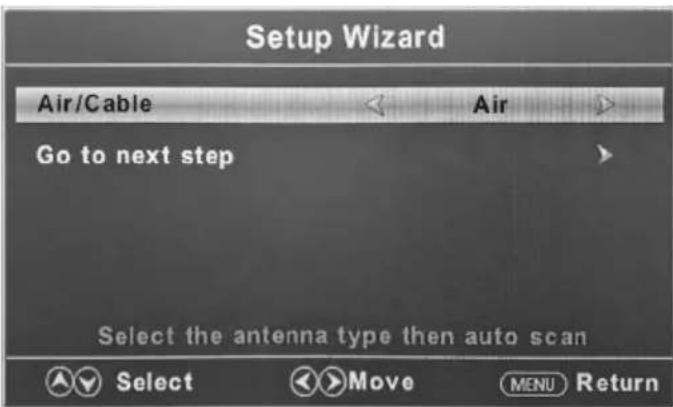

5. Use or key to highlight Air/Cable,

then press or to select Air or Cable base on your connection. Press or to highlight Go to next step, press OK or to start the auto scan. The Setup Wizard will scan for available channels automatically. The scanning may take some time.14 Change Settings English Setup Settings

1. Press MENU button, the setup window will

appear on the screen.

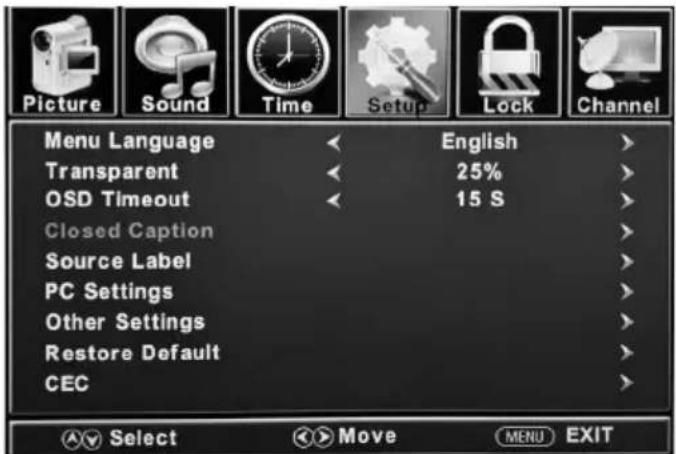

2. Use or key to highlight Setup mode.

3. Use or to highlight the item you would

like to reset, then press or to select the settings.

4. Press MENU to return to the previous menu

Press or to select Custom, Default, Antenna, Cable, Satellite, DTV, DVD, Blu-ray, HD-DVD, XBOX, Wii, PS3, Game, Computer, VCR or DVa *The configuration of the connection ports may vary from model to model.

Media Other Settings Blue Screen Press or to select On or Off. Audio Only Press or to select On or Off. Restore Default Resets settings to factory defaults Press or to select Yes or No. Setup Wizard Starts the Setup Wizard See Page 13. CEC Configure CEC functions CEC Control Press or to select Off or On. Device Auto Power Off Press or to select Off or On. *If On, when the TV is turned off, all HDMI CEC connected devices will go into standby. TV Auto Power On Press or to select Off or On. *If On, when a HDMI CEC connected device is turned, the TV will turn on and switch to the source the device is connected to. Audio Receiver (ARC) Press or to select Off or On. *If On, the TV will output audio to an ARC compatible connected device. Device Lists Lists all connected CEC devices. Connect Connects to devices on the CEC devices. Root Menu Shows the root menu of connected devices.16 Change Settings English Picture Settings

1. Press MENU button, the setup window will

appear on the screen.

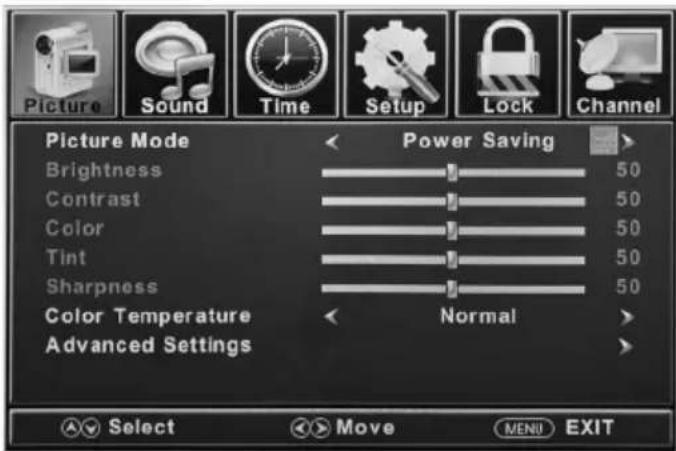

2. Use or key to highlight Picture mode.

3. Use or to highlight the item you would

like to reset, then press or to select the settings.

4. Press MENU to return to the previous menu

or press EXIT at any time to exit the setting. Picture Menu Picture Mode Selects the display mode Press or to select Power Saving / Standard / Dynamic, Soft or User display modes.BrightnessControls the brightness level of the picturePress or to change the brightness to desired level. *Only adjustable after set “Picture Mode” as “User“ mode. ContrastControls the contrast level of the picturePress or to change the contrast to desired level. *Only adjustable after set “Picture Mode” as “User“ mode. ColorControls the color level of the picturePress or to change the color to desired level. *Only adjustable after set “Picture Mode” as “User“ mode. Tint Controls picture tintPress or to change the tint to desired level.*Only available under NTSC mode.SharpnessControls the sharpness of the picturePress or to change the sharpness to desired level. *Only adjustable after set “Picture Mode” as “User“ mode. Color TemperatureSelects the color modePress or to select Normal, Warm or Cool.Advanced SettingsAdvanced picture settingsAspect Press or to select Wide, Zoom, Cinema or Normal. Noise Reduction Press or to select Middle, High, Off or Low. Dynamic Contrast Press or to select On or Off.17 Change Settings English Sound Settings

1. Press MENU button, the setup window

will appear on the screen.

would like to reset, then press or to select the settings.

4. Press MENU to return to the previous

menu or press EXIT at any time to exit the setting. NOTE: The display menu may be vary while different input source was selected. Sound Menu EqualizerControls the levels of various sound frequencies Press or to select Standard, Music, Movie, Sports or User mode User Press or to select 200 Hz, 500 Hz, 1.5K Hz, 5K Hz, 10K Hz or Balance. MTS Controls the Multi Channel TV Sound (Analog broadcasts only)Press or to select Stereo, SAP (Secondary Audio when available) or Mono MTS settingsAudio LanguagesIf available on digital broadcast , this selects the audio language Press or to select English, French or Spanish language Digital Audio OutputSelects the Digital Audio Output mode Press or to select RAW, PCM or Off digital audio output mode AVL Automatic Volume Level - increases or decreases the TV volume to a set levelPress or to select On or OffVoice GuidanceControl the Voice Guide functionsVoice GuideVoice GuidancePress or to set as On or OffVolume Press or to select Low, Middle or High *Only available after Voice Guidance was set as On mode Speed Press or to select Slow, Normal or Fast *Only available after Voice Guidance was set as On mode Pitch Press or to select Low, Middle or High *Only available after Voice Guidance was set as On mode Video DescriptionControls the video description functionPress or to set as On or Off18 Change Settings English Time Setting

1. Press MENU button, the setup window will

appear on the screen.

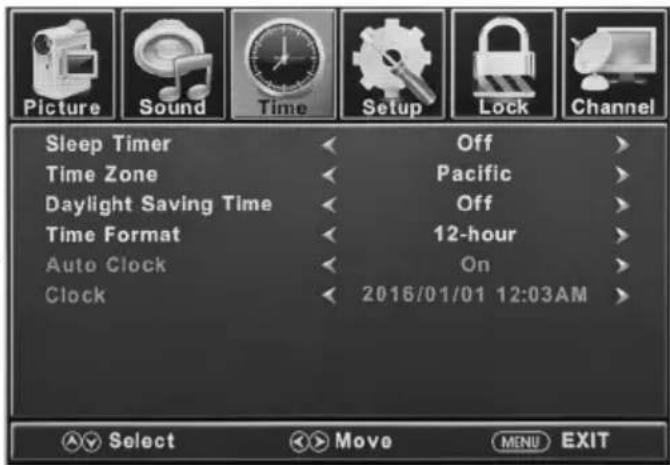

2. Use or key to highlight Time mode.

3. Use or to highlight the item you would

like to reset, then press or to select the settings.

4. Press MENU to return to the previous menu or

press EXIT at any time to exit the setting. Time Menu Sleep TimerSet a period of time of auto switch off the TVPress or to select Off, 5min, 10min, 15min, 30min, 60min, 90min, 120min, 180min or 240minTime Zone Set the time zonePress or to select Pacific, Alaska,Hawaii, Samoa, Newfoundland, Atlantic, Eastern, Central or Mountain Daylight Saving Time Toggle daylight savingPress or to set as On or Off*Only available under TV channelTime FormatSelect the time display formatPress or to set as 12-hour or 24-hourAuto ClockSets automatic time adjustmentPress or to set as On or OffClock Displays the current date and time19 Change Settings English Lock Settings

1. Press MENU button, the setup window will appear on the screen.

2. Use or key to highlight Lock mode.

3. Use or key to highlight “Enter Password” and input “0000” to enter the setup window.

4. Use or to highlight the item you would like to reset, then press or to select the

5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Lock Menu Change PasswordChanges the User Password Press to highlight Enter Password, Use the Number Buttons (0~9) to enter the password, the Lock setup window will appear*Default password is 0000*If you forgot the password, use 8888 to enter any locked menuSystem Lock Password locks the systemPress or to set as On or OffInput BlockPassword locks inputsPress or to Block or Unblock Press or to set as Block or Unblock Press or to set as Block or UnblockComponentPress or to set as Block or UnblockHDMI 1Press or to set as Block or UnblockHDMI 2Press or to set as Block or UnblockHDMI 3Press or to set as Block or Unblock Press or to set as Block or UnblockMediaPress or to set as Block or UnblockUS RatingSet parental locks based on US rating system*Only available after System Lock was set as On mode Set the rating using age level and genre. Refer to Age and Genre table for definitionMPAA See US Rating System tableCanada RatingSet parental locks based on Canadian rating system*Only available after System Lock was set as On modeCanada English See Canadian Rating System tableCanada French See Canadian Rating System table20 Change Settings English Lock Menu RRT SettingSet parental locks based on Canadian rating system*Only available when the DTV code RRT traffic detected by the systemHumor Level See Canadian Rating System tableIntelligence level See Canadian Rating System tableErotic level 20CHARS See Canadian Rating System tableReset RRT Restore to default RRT settingsPress OK or to enter the sub menu, then press or to select Yes or No Genre ALL AllFV Fantasy ViolenceV ViolenceS SexL LanguageD Dialogue Age TV-Y All ChildrenTV-Y7 7 Years old or aboveTV-G General AudienceTV-PG Parental GuidanceTV-14 14 Years old or aboveTV-MA 17 Years old or above US Rating System Off All ChildrenG All AgesPG Parental GuidancePG-13 Parental Guidance below 13R Parental Guidance below 17NC-17 17 Years old or aboveX Adults Only Canadian Rating System Off All ChildrenC All AgesC8+ Children below 8G General AudiencePG Parental Guidance 14+ Programming contains themes or content which may not be suitable for viewers under the age of 1418+ Adult21 Change Settings English Channel Settings

1. Press MENU button, the setup window will

appear on the screen.

2. Use or key to highlight Channel mode.

3. Use or to highlight the item you would

like to reset, then press or to select the settings.

4. Press OK to confirm your selections or

settings and enter the sub menus.

5. Press MENU to return to the previous menu

or press EXIT at any time to exit the setting. Channel Menu Air/Cable Set the reception typePress or to select Air or CableAuto ScanAutomatically scans for available channelsPress or to select Yes to start Automatically scanning channels or No to cancel.FavoriteAdds Channels to the Favorite listPress or to select a channel, then press OK to select or deselect as a favoriteChannel List List available channelsPress OK or to list available channelsShow/HideSelects the channel number for labelingPress or to select a channel, then press OK to show or hide the channelChannel NumberSelects the channel number for labelingPress or to select a channelChannel LabelAllows to define the name of channelsPress or to select a character, press or to navigate the characters. (Maximum of 7 characters)22 Change Settings English PC Settings The PC menu is only accessible when a PC is connected to the TV via the VGA connection. Note: After connecting a PC, press SOURCE button and select PC. Press OK or to enter.

1. Press MENU button, the setup window will appear on the screen.

4. Use or to highlight the item you would like to reset, then press or to select the settings.

5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

*Please note that on non FHD TVs some functionality may be limited.

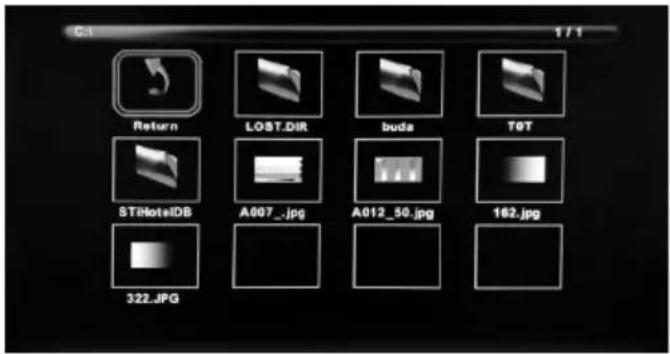

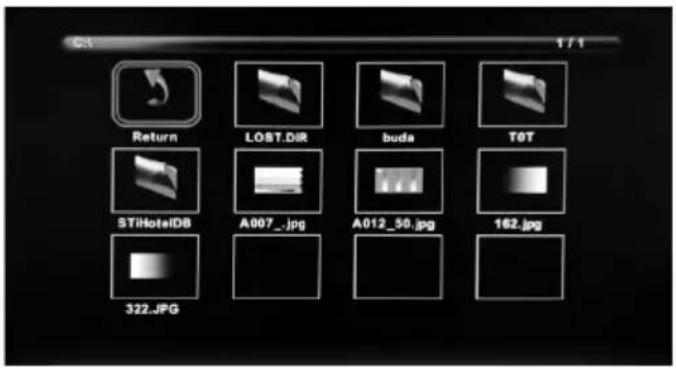

1. After connecting a flash drive, press

SOURCE button and select Media. Press OK or to enter.

2. Use or key to select to view Photo or

Music. Press OK or to enter.

3. Use or to navigate the files or folders

4. Press MENU to return to the previous

menu or press EXIT at any time to exit the setting. When viewing photos, the photo viewer tool will allow control of the slide show, play music and provide information on the file. The photo viewer displays .jpg photo format files. The music player plays MP3 audio format files.24 Troubleshooting English Problem Solution/Issue TV does not operate ● Make sure the power cord is plugged in. ● Try another AC outlet. ● Power is off, check fuse or circuit breaker. ● Unplug unit for an hour, then plug it back in. Normal picture, but no sound ● Check the volume settings. ● Sound muted? Press MUTE button. ● Try another channel. ● Check audio cable connections. The remote control does not work ● Ensure the remote control is in range with no obstructions. ● Check the batteries. ● Correct operating mode set: TV, VCR etc. Poor sound or no sound ● Station or Cable TV experiencing problems, tune to another station. ● Check sound adjustments (Volume or Mute). ● Check for sources of possible interference. Poor picture or no picture ● Station or Cable TV experiencing problems, tune to another station. ● Make sure channels are set into memory. ● Check antenna or Cable TV connections, adjust antenna. ● Check for sources of possible interference. ● Check picture control adjustments. Poor TV reception ● Ensure the antenna amplifier is turned on for Antenna TV. ● Adjust the antenna position to a stronger signal receiving angle. ● Check the Antenna connection is tight to the TV. ● Check there is power supplied to the Antenna distribution box. ● Confirm your incoming cable is connected to the correct cable / antenna wall connection inside the RV. ● Ensure the internal RV coax jump cable is connected to the correct port. Poor Cable / Satellite TV Reception ● Ensure antenna amp is turned off for able signal. ● Check incoming Cable is connected correctly to RV. ● Ensure cable splitter box has power. ● Confirm the incoming cable is connected to the correct cable / Satellite wall connection inside your RV. ● Ensure the internal RV coax jump cable is connected to the correct port. ● Check dish if has obstruction. TV shuts off ● Sleep Timer is set. ● Power interrupted. TV AV input plays black and white ● Check RCA connections on the back of the TV and from the source to ensure they are connected to the correct connections. Ensure the yellow connection is in the correct port.25 Specifications English D W MODEL, DIMENSION and RESOLUTION ModelDimension without Stand(W*H*D)Dimension with Stand(W*H*D)Max ResolutionFDFS55C1A48/” x 28/” x 3/”(1243 x 722 x 82mm)48/” x 30/” x 10”(1243 x 773 x 253mm)1920 x 1080 @ 60Hz FHD INPUT and OUTPUT CONNECTIONS ModelR-AUDIO OUT-LEarphonesOptical Out L-AUDIO IN-R Component Video inComponent

● NE PAS UTILISER AVEC UNE TENSION

and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. ©2007-2018 Furrion Ltd. Furrion
