USER MANUAL KickScooter E45D NINEBOT

Original Instructions

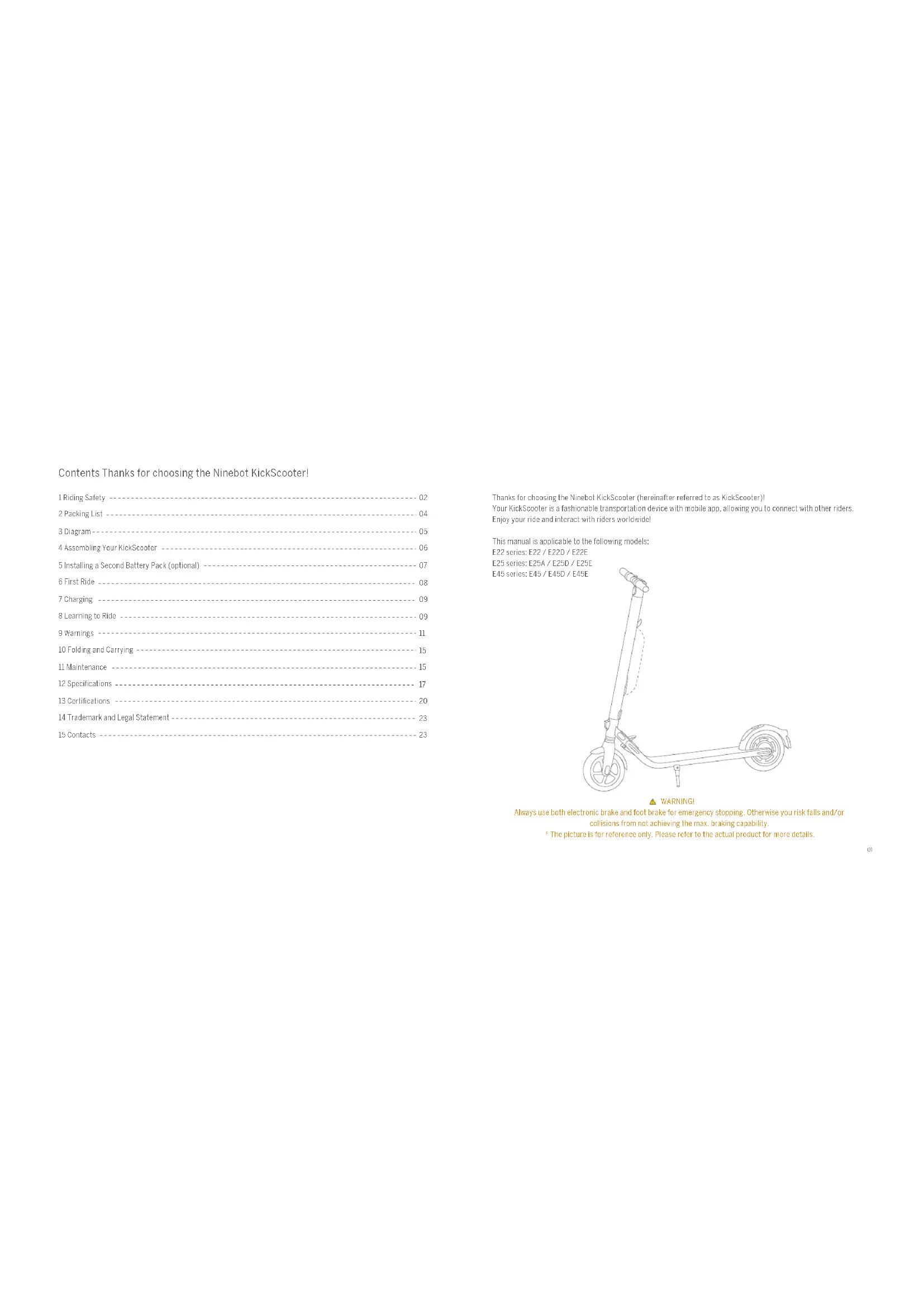

Contents Thanks for choosing the Ninebot KickScooter!

1 Riding Safety 02

2 Packing List 04

3 Diagram 05

4 Assembling Your KickScooter 06

5 Installing a Second Battery Pack (optional) 07

6 First Ride 08

7 Charging 09

8 Learning to Ride 09

9 Warnings 11

10 Folding and Carrying 15

11 Maintenance 15

12 Specifications 17

13 Certifications 20

14 Trademark and Legal Statement 23

15 Contacts 23

Thanks for choosing the Ninebot KickScooter (hereinafter referred to as KickScooter)!

Your KickScooter is a fashionable transportation device with mobile app, allowing you to connect with other riders.

Enjoy your ride and interact with riders worldwide!

This manual is applicable to the following models:

E22 series: E22 / E22D / E22E

E25 series: E25A / E25D / E25E

E45 series: E45 / E45D / E45E

Line drawing of a scooter with wheels and suspension rod (no text or symbols)

WARNING

Always use both electronic brake and fool brake for emergency stopping. Otherwise you risk falls and/or collisions from not achieving the max. braking capability.

The picture is for reference only. Please refer to the actual product for more details.

1 Riding Safety

1. The KickScooter is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc. (means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates) nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the Kick Scooter your risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations, as with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when ordering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.
6. In places without laws, comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
7. Do not allow anyone to ride your KickScooter on his/her own unless they have carefully read this manual and followed the New Rider Tutorial in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the KickScooter. Make sure each new rider wears a helmet and other protective gear.
8. Before each ride check for loose fasteners and damaged components. If the KickScooter makes abnormal sounds or signals an alarm, immediately stop riding. Diagnose your KickScooter via the Segway-Ninetbot App and call your dealer/distributor for service.
9. Be alert! Scan both far ahead and in front of your KickScooter — your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
10. To reduce risk of injury, you must read and follow all "CAUTION" and "WARNING" notices in this document. Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safety instructions:

A. People who should not ride the KickScooter include:
i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
iv. Anyone whose weight is outside the stated limits (see Specifications).
v. Pregnant women.
B. Riders under the age of 18 years old should ride under adult supervision.
C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.

1. Do not attempt to charge your KickScooter if it, the charger, or the power outlet is wet.

2. As with any electronic device, use a surge protector when charging to help protect your KickScooter from damage due to power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other different product models.

3. Use only Ninebot or Segway approved parts and accessories. Do not modify your KickScooter. Modifications to your KickScooter could interfere with the operation of the KickScooter, result in serious injury and/or damage, and void the Limited Warranty.

4. Children should not play with the KickScooter or parts of it nor should cleaning or maintenance be done by children. The use of the machine results in the transmission of vibrations throughout the driver's body.

5. Always place the KickScooter on its stand on a flat and stable surface. The KickScooter must be placed with the stand against the slope to prevent it from tipping over. Never place the KickScooter with the front facing down the slope, as the stand may close and tip the machine. Once the KickScooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park the KickScooter in a busy area, but rather along a wall. It possible, always choose to park your KickScooter on flat ground.

6. For a better driving experience, it is recommended to conduct a regular maintenance of the product.

7. Please read the user manual before charging the battery.

8. Do not touch the brake system, it could cause injuries.

9. The A-weighted emission sound pressure level is less than 70 dB(A). The mechanical vibrations transmitted by the KickScooter are less than 2.5 m/s ^2 .

2 Packing List

User Materials

Second Battery Pack

Line drawing of a scooter with wheels and a vertical rod (no text or symbols)

Accessories

M5 Flathead Screw x 7 (one extra) 3mm Flex Wrench Battery Charger Bell

When unboxing your KickScooter, please verify that the above items are included in the package. If any components are missing, please contact your dealer/distributor or nearest service center (see Contacts in the user manual). After verifying that all components are present and in good condition, you can assemble your new KickScooter.

Please retain the box and packaging materials in case you need to ship your KickScooter in the future.

Remember to power off your KickScoter and anplug the charge cable before assembling, mounting accessories, or cleaning the mainframe.

0405

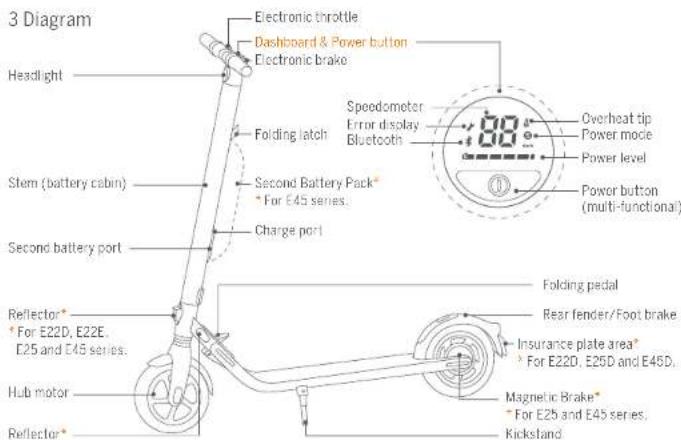

3 Diagram Headlight Electronic throttle Dashboard & Power button Electronic brake Folding latch Speedometer Error display Bluetooth Overheat tip Power mode Power level Power button (multi-functional) Stem (battery cabin) Second Battery Pack* For E45 series. Charge port Second battery port Reflector* For E22D, E22E, E25 and E45 series. Hub motor Reflector* Folding pedal Rear fender/Foot brake Insurance plate area* For E22D, E25D and E45D. Magnetic Brake* For E25 and E45 series. Kickstand

For E22D, E22E, E25 and E45 series.

Dashboard & Power button

Speedometer: Indicates the current speed. Also displays error codes when faults are detected.

Battery level: Indicates the remaining battery level with 5 bars. Each bar equates to approximately 20% power level.

Power mode:

Red "S" can: Spart mode (maximum power/speed).

White "S" icon: Standard mode (moderate power/speed).

- KO 5-60H, speed min; rose 1ml - hamp, pWR 5-speedy.

Bluetooth. A blinding Bluetooth icon indicates that the vehicle is ready to connect. A solid Bluetooth icon indicates that the vehicle is

connected to a mobile device.

Power button: Short press to power on. Long press to power off. When powered on, press to turn on/off the headlight. Double-press to charge power mode.

The following table is in English.

Overheat tip: The thermometer can always on indicates that the battery temperature has reached 12/1 (30°C). At this point, the vehicle cannot accelerate normally and may not be charged. Do not use it until the temperature is restored to normal range.

Error display. The lit wrench icon indicates the scooter error

4 Assembling Your KickScooter

1. Unfold the stem and push it until you hear a click. Flip up the folding pedal. Then unfold the kickstand to support the scooter. Note: Confirm that the latching axis on the folding mechanism is secured correctly.

Latching Axis

1. Install six screws (two on each side) with the included hex wrench.

Line drawing of a scooter with wheels and a magnified inset showing the front wheel assembly (no text or symbols)

1. Firmly connect the wires inside the handlebar and the stem. Slide the handlebar onto the stem. Be aware of the correct orientation.

Headlight facing front

1. Verify that your KickScooter powers on and off.

188:00

5 Installing a Second Battery Pack (optional)

1. Remove the three screws on the stem. Then remove the cover near the charge port and remove the M3 screw.

Diagram of a scooter with directional arrows indicating motion or force vectors, including labels like 'm' and 'd'.

1. Install the external battery on the rail and fix it with the M4 (20mm) screws (2 pcs) and M3 screw (1 pcs), provided with this product. After they are properly installed, block the screw holes with the rubber stopper

Technical diagram of a scooter with labeled components and directional arrow indicating motion or assembly

Warning: please use the screws provided with this product only.

1. Install the rail with the M4 (10mm) screws (3 pcs), provided with this product. Please make sure it is properly fixed.

m m m

1. Verify that your KickScooter powers on and off.

188°

6 First Ride

Segway-Nincbot App

There are safety risks when learning to ride the KickScooter. You must read the Riding Safety via the App before your first ride.

For your safety, your new KickScooter is not activated and will beep occasionally after POWER ON.

Until activated, the KickScooter maintains a very low winding speed, and can not perform with full function. Install the Segway Ninebot App on your mobile device (with Bluetooth 4.0 and above), connect to the KickScooter with Bluetooth, and follow the App instructions to activate your KickScooter and enjoy the full performance.

Scan the QR code to download the App (iOS 9.0 and above, Android™ 4.3 and above).

1 Install the Segway-Ninebot App and register/login.

Line drawing of a scooter connected to a smartphone (no text or symbols present)

3 Click "Vehicle"→"Search vehicle" to connect to your KickScooter.

The KickScooter will beep when it has successfully connected.. The Bluetooth icon will stop blinking and remain illuminated.

4 Follow the App instructions to activate the KickScooter and learn how to ride safely.

You can now start to use your KickScooter, check the status with the App, and interact with other users. Have fun!

Power on the KickScooter. A blinking Bluetooth icon indicates the KickScooter is ready to connect.

Diagram showing a scooter with digital clock display and three circular icons below indicating devices, signals, and wireless symbols.

Diagram showing a scooter with digital clock display and three circular icons below indicating devices, signals, and wireless symbols.

7 Charging

Charging steps:

Open the charge port cover.

Insert the charge plug.

Close the charge port cover when finished.

WARNING

Do not connect the charger if the charge port or charge cable is wet. Do not charge or use your battery if it is damaged or see trace of water.

Your KickScooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge). Close the charge port cover when not charging.

8 Learning to Ride

Wear an approved helmet and other protective gear to minimize any possible injury.

188° ON/OFF/ON/ON

1. Power on the scooter and check the power level. Charge the scooter if the battery level is low.

2. Stand on the foot deck with one foot and push off with another foot to start gliding.

Illustration of a person using a scooter with a magnified inset showing the hand gesture (no text or symbols)

1. Put your other foot on the foot deck to keep both feet stable. Press the throttle to speed up when you are balanced. Note: For your safety, the motor will not engage until the scooter reaches 2.5 mph (4 km/h).

Illustration of a person riding a scooter with motion lines indicating speed (no text or symbols)

1. Slow down by releasing the throttle. Squeeze the electronic brake and stamp the rear fender with foot at the same time for a sudden brake.

Three identical line drawings of a person standing in a row, with arrows indicating motion or movement direction (no text or symbols)

1. To turn, shift your body and turn the handlebar slightly.

WARNING

When braking rapidly, you risk serious injury due to loss of traction and falls. Maintain a moderate speed and lock out for potential hazards.

9 Warnings

Simple line drawing of a person standing in the rain with falling raindrops (no text or symbols)

DO NOT ride the scooter in the rain.

WARNING

Failure to follow these instructions could lead to serious injury.

Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.

Line drawing of a person standing in front of a door, viewed from the side (no text or symbols)

Watch your head when passing through doorways.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Watch your speed when traveling downhill. Use both brakes together when traveling at high speed.

Illustration of a person using a scooter with a hand crossed out, accompanied by an orange prohibition symbol (no text or symbols present)

[Non-Text]
DO NOT press the throttle when walking with the scooter.

Line drawing of a person standing with legs elevated, showing motion lines (no text or symbols)

!
Avoid contacting obstacles with the tire/wheel.

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

!
DO NOT ride on public roads, motorways, or highways.

Three identical line drawings of a human figure in standing pose with curved arrows indicating motion or movement (no text or symbols)

[Non-Text]
DO NOT rotate the handlebar violently while driving at high speed.

Simple line drawing of a person riding a motorcycle (no text or symbols)

!
DO NOT carry heavy objects on the handlebar.

Line drawing of a person riding a scooter with a helmet and motion bar (no text or symbols)

!
DO NOT ride the scooter with only one foot.

Line drawing of a person using a scooter on a flat surface (no text or symbols)

!
Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacle.

Line drawing of two people using a scooter, one standing and one in profile view (no text or symbols)

!
The KickScooter is for one rider only. Do not ride with another person. Do not carry a child.

Line drawing of a person riding a scooter with a headband (no text or symbols)

DO NOT step on the folding pedal while riding.

Illustration of a motorcyclist with a circular diagram overlay showing a wheel (no text or symbols)

DO NOT touch the hub motor after riding because it can get hot.

Line drawing of a person riding a scooter while holding a smartphone (no text or symbols)

DO NOT take your hands off the handlebar while riding. Do not ride with one hand only.

Two line drawings of a person riding a scooter, one performing a jump and the other on a ramp (no text or symbols)

DO NOT ride up and down stairs or jump over obstacles.

WARNING

Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls.

10 Folding and Carrying

Step on the folding pedal while pushing the handlebar forward slightly.

Then fold the handlebar down until it locks into the rear fender.

When your KickScooter is folded up, simply lift it by the stem to carry.

11 Maintenance

Cleaning and Storage

Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE

Do not wash your KickScooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your KickScooter. Do not wash your KickScooter with a power washer or hose.

WARNING

Make sure the KickScooter is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components.

Store your KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Maintenance and removal of the battery

Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine. You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed you can contact any specialised repairer of your choice, you can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any further question, you can contact the customer service available at www.segway.com.

Do not stare or charge the battery at temperatures outs de the stated limits (see Specifications), Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining; the battery completely. When used at room temperature (20°F - (22°C)) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -14°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App.

Replace the Tires

Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions.

- Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.seaway.com.

- If the product is no longer under guaranteed you can contact any specialized repairer of your choice.

- Should you have questions, you can contact customer service available at www.sogway.com.

NO E

Typically, a fully charged battery should retain charge for 120 180 days in Stanley Mode. A low power battery should retain charge for 30-60 days in Stanley Mode. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-discharge or under-discharge will not be covered by the Limited Warranty.

WARNING

Do not charge or use your battery if it is damaged or see trace of water. Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.

WARNING

Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.

C106

The external flexible cable of this transformer cannot be replaced; if the card is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com.

In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee. If not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com.

Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he is advised to contact an authorized or a specialized repairer or customer service.

12 Specifications

	Item	E22E/E22D E22
Dimensions	Length x Width x Height	43.7 × 16.5 × 44.1 in (111 × 42 × 112 cm)	42.9 × 16.5 × 44.1 in (109 × 42 × 112 cm)
	folded Length x Width x Height		44.5 × 16.5 × 14.2 in (113 × 42 × 36 cm)44
Weight	Net Weight	Approx. 20.8 lbs (13.5kg)
Rider	Payload	55-220 lbs (25-100 kg)
	Recommended Age	14+ years
	Required Height	3'11"–6'6" (120-200 cm)
Parameters	Max. Speed	12.4 mph (20 km/h)
	Typical Range ^1	13.7 miles (22 km)
	Max. Slope	15%
	Traversable Terrain	asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14 - 104°F (10 - 40°C)
	Storage Temperature	-4 - 122°F (20 - 30°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 3.5 h
Battery	Nominal Voltage	36 V =
	Max. Charging Voltage	42 V =
	Charging Temperature 32-104°F (0-10°C)
	Nominal Capacity	184 Wh
	Battery Management System	Over-healing, short circuit, over-current, over-discharge and over-charge protection
	Number of Batteries (F)	1
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100-740 V
	Output Voltage	42 V =
	Output Current	1.7 A
Features	Brake Light	LED rear Light
	Riding Modes	Speed limit mode, Standard mode and Sport mode
Tire	Tires	Material: non pneumatic tires, synthetic rubber, Size: 9 inches

[2] Typical Range tested while rising under full power 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, sea
(2) All K-ClScatter models cause install the second battery. Some of the parameters would change in this case.

	Item	E25D	E25E	E25A
Dimensions	Length x Width x Height	45.7 × 16.5 × 46.1 in (116 × 42 × 117 cm)
	folded Length x Width x Height	46.9 × 16.5 × 14.2 in (118 × 42 × 36 cm)
Weight	Net Weight	31.5 lbs (14.3 kg)
Rider	Payload	35-220 lbs (25-100 kg)
	Recommended Age	14+ years
	Required Height	3'11"-6'6" (120-200 cm)
Parameters	Max. Speed	12.4 mph (20 km/h)	15.5 mph (25 km/h)	17.4 mph (28 km/h)
	Typical Range(1)	15.5 miles (25 km)
	Max. Slope	15%
	Transversible Terrain	asphalt/lat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	-4-122°F (-20-50°C)
	IP Rating	IPM
	Duration of Charging	Aprior 4 h
Battery	Nominal Voltage	36 V = =
	Max. Charging Voltage	42 V = =
	Charging Temperature 32-104°F	(0-40°C)
	Nominal Energy	213 Wh
	Nominal Capacity	596.0 mAh
	Battery Management System	Over-leaching, sound circuit, over current over-discharge and over-charge protection
	Number of Batteries in	1
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100-240 V
	Output Voltage	42 V = =
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber Front
	Riding Modes	Speed limit mode, Standard mode and Start mode
	Ambient Light /		Customizable colour	Customizable colour
Tire	Tires	Material, non-permagnetic tires, synthetic rubber. Size: 3 inches

[1] Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77° (25°C), 60% of max. speed or average on movement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.
[2] A1 KickScaler models could install the second battery. Some at the parameters would change in this case.

	Item	E45	E450	E45E
Dimensions	Length x Width x Height	45.7 × 16.5 × 46.1 in (116 × 43 × 117 cm2)
	folded: Length x Width x Height	46.9 × 16.5 × 14.2 in (113 × 42 × 36 cm)
Weight	Net Weight	33.1 lbs (15.0 kg)
Rider	Payload	55-220 lbs (23-100 kg)
	Recommended Age	14+ years
	Required Height	3'11"-6" (120-200 cm2)
Parameters	Max. Speed	18.6 mph (30 km/h)	12.4 mph (20 km/h)	15.5 mph (25 km/h)
	Typical Range ^12	28.0 miles (45 km)
	Max. Slope	20%
	Traversable Terrain	asphalt/lat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	-4-122°F (-20-50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	36 V =
	Max Charging Voltage	42 V =
	Charging Temperature 32-104° (0-40°C)
	Nominal Energy	368 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Over-healing short circuit, over current over-discharge and over-charge protection
	Number of Batteries	?
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 5.071 kW
	Input Voltage	100-240 V
	Output Voltage	42 V =
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber Front
	Riding Modes	Speed limit mode, Standard mode and Sport mode
	Ambient light Customizable colour		/	Customizable colour
Tire	Tires	Material, non-permatic tires, synthetic rubber, Size: 9 inches

[1] Typical Range testes were rising under full power, 146 Lbs (25 kg) load, 72°F (25°C), 51% of max speed on average on savement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.

13 Certifications

For Model: E22, E25A, E45

This product is certified to ANSI/CAN/UL-2272 by CSA.

The battery complies with UN/DOT 38.3.

Federal Communications Commission (FCC) Compliance Statement for USA

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part. 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Industry Canada (IC) Compliance Statement for Canada

This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3 (B)/NMB-3(B)

Neither Segway Inc. nor Ninebot is responsible for any changes or modifications not expressly approved by Segway Inc. or Ninebot. Such modifications could void the user's authority to operate the equipment.

E22	FCC ID: 2ALS8-NT9529
	IC: 22636-NT9529

E25A	FCC ID: 2ALS8-KS0003
	IC: 22636-KS0003

E45	FCC ID: 2ALS8-KS0001
	IC: 22636-KS0001

For Model: E22D, E22E, E25D, E25E, E45D, E45E

This product is certified to ANSI/CAN/UL-2272 by CSA.

The battery complies with UN/DOT 38.3.

European Union Compliance Statement

Important WEEE information

WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment tal safe recycling.

Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

In accordance with the European Directive 2006/66/EC and amendment 2013/36/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.

Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Restriction of Hazardous Substances (RoHS) Directive

This Ninebat (Changzhou) Tech Co., Ltd. product, with included parts (cables, cords, and so on) meets the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment ('RoHS recast' or 'RoHS 2').

Radio Equipment Directive

The company "Segway Europe BV" hereby declares that this device complies with the essential requirements and other relevant provisions of the RED directive 2014/53/EU, the machine directive 2006/42/EC and the RohIS directive 2011/65/EU. The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions

Segway Europe B.V.

EU Contact Address for regulatory topics only. Hopchilweg 8. 1101CC Amsterdam, The Netherlands

Hereby, Ninebot (Changzhou) Tech Co., Ltd. declares that the wireless equipment listed in this section are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Bluetooth	Frequency Band(s)	2.4000-2.4835GHz
	Max. RF Power	100mW

14 Trademark and Legal Statement

Ninebot is the registered trademark of Ninebot (Tianjin) Tech. Co., Ltd; Segway and the Ricer Design are the registered trademarks of Segway Inc., Android, Google Play are trademarks of Google Inc. Apa Store is a service mark of Apple Inc., The respective owners reserve the rights of their trademarks referred to in this manual.

The Kick Scooter is covered by relevant patents. For patent information go to http://www.segway.com

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and charges of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the Apps.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScoter product and documentation without prior notice

© 2020 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.

15 Contacts

Contact us if you experience issues relating to riding, maintenance and safety or errors/faults with your KickScooter.

Americas:

Segway Inc.

14 Technology Drive, Bedford, NH 03110, USA

Tel: [phone]

Fax: [phone]

Toll Freq: 1-866-473-4929

E-mail Sales: [e-mail]

E-mail: Service: [e-mail]

Website: www.segway.com

Europe, Middle East and Africa;

Segway Europe B.V.

Hogebilweg 8. 1101CC Amsterdam, The Netherlands

Website: www.segway.com

Have your KickScoter serial number or hand when contacting Segway

You can find your serial number on the underside of your KickScooter or Basic Information in the Segway-Ninebot App.

Ninebot KickScooter

Manuel utilisateur

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the App to download the latest user materials. You must install the App, activate your KickScooter, and obtain the latest updates and safety instructions.

www.segway.com

ninebot®

12 Specifications 17

13 Certifications 20

Line drawing of a scooter with wheels and suspension (no text or symbols)

AVERTISSEMENT

Manche Cadro central Contenus utilisateur 100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100 EUXO/2456 (EUXO/2456) EUXO/2456 (EUXO/2456)

Seconde batterie

Line drawing of a scooter with wheels and a vertical rod (no text or symbols)

Accessoires

Vis. M5 Flathead x 7 (une do rochange) Clé hexagonale 3mm Chargeur de Malterie Cloche

Line drawing of a scooter with an inset showing a vertical guide mechanism (no text or symbols)

Diagram illustrating the right-hand rule for using a scooter, showing how to lift force on the side of the wheel.

Diagram of a scooter with labeled parts and directional arrow, showing front, side, and rear views with Chinese annotations.

Diagram of a scooter with an LCD display showing 88°C reading and a hand pointing to it, alongside a magnified view.

Line drawing of a scooter connected to a smartphone (no text or symbols present)

Diagram showing a scooter with a digital display and three circular insets illustrating devices, wireless signals, and a Bluetooth symbol.

Illustration of a person using a walking scooter with a hand gesture and magnified detail (no text or symbols)

Illustration of a person riding a scooter with motion lines indicating speed (no text or symbols)

Three identical line drawings of a person in uniform with arrows indicating motion or movement (no text or symbols)

Simple line drawing of a person standing in the rain with falling water (no text or symbols)

Line drawing of a person standing next to an open door, with a separate side view showing a person in the background (no text or symbols)

Safety warning illustration showing a hand holding a scooter with no stopper and a pictogram of the person using it.

Simple line drawing of a person standing with legs and feet, no text or symbols present

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of human figures in a row, each with an arrow indicating direction (no text or symbols)

Simple line drawing of a person riding a motorcycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

Line drawing of a person using a mobility scooter (no text or symbols)

Line drawing of two people using a scooter, viewed from the side (no text or symbols)

Line drawing of a person riding a scooter with a circular diagram highlighting a wheel (no text or symbols)

Two line drawings of a person performing a high kick on a scooter, with no text or symbols present.

Line drawing of a scooter with wheels and suspension rod (no text or symbols)

WARNING!

Line drawing of a scooter with wheels and a vertical post (no text or symbols)

Zubehör

Line drawing of a scooter with wheels and a close-up inset showing the front wheel (no text or symbols)

Diagram of a scooter with labeled directional arrows indicating motion or force vectors, including 'atq', 'atb', and 'atc'.

Line drawing of a scooter with wheels and a vertical rod, showing front view and seat details (no text or symbols)

H 2.5 H ↑ ↑ ↑

Diagram of an electric scooter with a digital display showing 88 degrees and a hand pointing to it, indicating speed or status.

6 Erste Fahrt

Segway-Ninebot App

Line drawing of a scooter connected to a smartphone (no text or symbols present)

Diagram showing a scooter with a digital display and three circular insets illustrating devices, signals, and wireless connectivity.

7 Laden

Illustration of a person using a scooter with a hand gesture and magnified detail (no text or symbols)

Illustration of a person riding a scooter with motion lines indicating speed (no text or symbols)

Three identical line drawings of a person in safety gear with motion arrows indicating direction (no text or symbols)

Simple line drawing of a person standing in the rain with falling water (no text or symbols)

Line drawing of a person standing at the door with a hand gesture, next to a smaller human figure (no text or symbols)

Illustration of a person using a scooter with a hand crossed out, no text or symbols present.

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of a person standing in a row, each with a horizontal arm and directional arrows indicating motion (no text or symbols)

Line drawings of two people using strollers, one holding a child, the other with a backpack (no text or symbols)

Line drawing of a person riding a scooter with a headband, no text or symbols present

Illustration of a person riding a scooter with a circular diagram overlay (no text or symbols)

Line drawing of a person using a scooter with a hand gesture (no text or symbols)

Two line drawings of a person riding a scooter, one jumping and the other sitting on a platform (no text or symbols)

Line drawing of a scooter with wheels and suspension (no text or symbols)

AVVERTENZA!

Line drawing of a single electric scooter with wheels and a vertical post (no text or symbols)

Accessori

M5 Vite a testa platta x 7 (unna extra) 3mm Chisive esagonale Canica batikia Campana

Line drawing of a scooter with wheels and a highlighted seat assembly (no text or symbols)

Diagram illustrating the right-hand rule for using a scooter, showing force vectors on the side of the wheel.

Diagram of a scooter with labeled parts and an arrow indicating direction, accompanied by a magnified view of the wheel.

88

6 Prima corsa

Segway-Nincbot App

Line drawing of a scooter connected to a smartphone (no text or symbols)

Diagram showing a scooter with a digital display showing 80, alongside three circular icons depicting devices and wireless signals.

Illustration of a person using a scooter with a hand gesture and magnified detail (no text or symbols)

Illustration of a person riding a scooter with motion lines indicating speed (no text or symbols)

Three identical figures in hard hats standing side by side with curved arrows indicating motion or movement (no text or symbols)

Simple line drawing of a person standing in rain with falling water (no text or symbols)

Line drawing of a person standing next to an open door, with no text or symbols present

Illustration of a person using a scooter with a hand gesture and no text or symbols present

Line drawing of a person standing with legs elevated, showing a small object near the ground (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of human figures in a row, each with an arrow indicating direction (no text or symbols)

Simple line drawing of a person riding a motorcycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet in the top-left corner (no text or symbols)

NON guidare lo scooler con un solo piede.

Line drawing of a person using a scooter on a flat surface (no text or symbols)

Line drawing of two people using a scooter, shown from front and side views (no text or symbols)

Line drawing of a person using a scooter with a head-mounted device (no text or symbols)

Illustration of a person riding a scooter with a circular diagram overlay (no text or symbols)

Line drawing of a person riding a scooter with a smartphone (no text or symbols)

Two cartoon figures on scooter tracks, one performing a jump and the other on a block (no text or symbols)

CAN ICES-3(B)/NMB-3(E)

Line drawing of a scooter with wheels and suspension (no text or symbols)

ADVERTENCIA!

Line drawing of a scooter with wheels and a vertical rod (no text or symbols)

Accesories

7 x tornillos de caboza plana MS (uno extra) Lleve hexagonal 3mm Cargador da materia Campana

Line drawing of a scooter with wheels and a close-up inset showing the handle mechanism (no text or symbols)

Diagram of a scooter with directional arrows indicating motion or force vectors, including labels like 'H', 'F', and 'O'.

Line drawing of a scooter with wheels and a side panel, no text or symbols present

Line drawing of a scooter connected to a smartphone (no text or symbols present)

Diagram showing a scooter with a digital clock displaying '89' and a battery icon, alongside three circular insets illustrating wireless signals.

Illustration of a person using a scooter with a hand gesture and magnified detail (no text or symbols)

Illustration of a person riding a scooter with a magnified inset showing the wheel and seat (no text or symbols)

Three identical line drawings of a person in a standing position with motion arrows indicating direction (no text or symbols)

Simple line drawing of a person standing in the rain with falling raindrops (no text or symbols)

Line drawing of a person standing at the door with a hand gesture, next to a smaller human figure (no text or symbols)

Illustration of a person using a scooter with a hand crossed out, alongside a circular symbol indicating no hand (no text or symbols present)

Line drawing of a person standing with legs elevated, showing a lightning bolt symbol (no text or labels)

Line drawing of a person walking on a road with a car nearby (no text or symbols)

Three identical line drawings of human figures in standing pose with curved arrows indicating motion or movement (no text or symbols)

Simple line drawing of a person riding a motorcycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet and backpack (no text or symbols)

Line drawing of a person using a scooter to clean or manage equipment (no text or symbols)

Line drawing of a person using a walking stick to push a small object, with no text or symbols present.

Line drawing of two people using a scooter, one standing and one in profile view (no text or symbols)

Line drawing of a person riding a scooter with a headband (no text or symbols)

Illustration of a person riding a scooter with a circular diagram highlighting a wheel (no text or symbols)

Line drawing of a person riding a scooter with a backpack (no text or symbols)

Two line drawings of a person performing a jump on a scooter, one standing and one seated (no text or symbols)

CAN ICES-3(B)/NMB-3(E)

Line drawing of a scooter with wheels and suspension rod (no text or symbols)

OSTRZEŻENIE

Line drawing of a scooter with wheels and a vertical rod (no text or symbols)

Wyposażenie

Line drawing of a scooter with wheels and a close-up inset showing a vertical component labeled '1' (no text or symbols on the diagram itself)

Diagram of a scooter with an analog clock showing 88 degrees and a pointer indicating the speed.

Diagram illustrating the right-hand rule for scooter speed control with labeled arrows and a hand pointing to the motion.

r = 0 r = f r = g r = h

Line drawing of a scooter with wheels and a magnified inset showing front view (no text or symbols)

88:00

6 Pierwsza jazda

Segway-Ninebot App

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a scooter with a digital display showing 80, alongside three circular icons depicting devices and signals.

7 Ladowania

Illustration of a person using a scooter with a magnified inset showing the hand holding a device (no text or symbols present)

Illustration of a person riding a scooter with motion lines indicating speed (no text or symbols)

Three identical line drawings of a person in a standing position with directional arrows indicating motion (no text or symbols)

Simple line drawing of a person standing in the rain with legs raised, no text or symbols present

Line drawing of a person standing in front of a door, with a separate side view showing a person standing beside (no text or symbols)

Safety warning sign showing no hand gesture and a person using a scooter

Line drawing of a person in a walking or athletic stance with legs and arms, no text or symbols present

Line drawing of a person riding a scooter on a road with a car in the background (no text or symbols)

Three identical line drawings of human figures standing vertically with curved arrows indicating motion or movement (no text or symbols)

Simple line drawing of a person riding a bicycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet and backpack (no text or symbols)

Line drawing of a person using a scooter to move or push, with motion lines indicating speed (no text or symbols)

Line drawing of two people using a scooter, one standing and one in profile view (no text or symbols)

Line drawing of a person riding a scooter with a backpack, no text or symbols present

Illustration of a person riding a scooter with a circular diagram highlighting a wheel (no text or symbols)

Line drawing of a person riding a scooter with a hand gesture (no text or symbols)

Line drawing of two people riding scooters, one standing and one seated, with motion lines indicating movement (no text or symbols)

Dia modelu [22D, [22E, [25D, [25E, [45D, [45E

Ten product posiada certlylat ANSI / CAN / UL-2272 CSA.

Europe, Middle East and Africa;

Segway Europe B.V.

Hogehilweg 8. 110100, Amsterdam, Poland Website: www.segway.com
