Product type	Brine-water heat pump for indoor installation
Brand	Dimplex
Model	SI 11TU
Dimensions (H x W x D)	840 x 650 x 555 mm
Weight (with packaging)	134 kg
Power supply (power)	3~400V / 50Hz, protection C10A
Control power supply	1~230V / 50Hz, protection C13A
Nominal thermal power (B0/W35)	10.4 kW
COP (B0/W35)	4.9
Max. heating water temperature	62 °C
Refrigerant	R410A, charge 3.3 kg, GWP 2088, CO₂ equivalent 7 t
Sound power level	47 dB(A)
Sound pressure level at 1 m	35 dB(A)
Min. heating water flow rate	0.9 m³/h
Nominal brine flow rate	2.6 m³/h
Max. operating pressure (source / heating)	3.0 bar
Power regulation	Fixed (on/off)
Main functions	Heating and domestic hot water production
Maintenance and cleaning	Cleaning of the source side filter; descaling possible with 5% phosphoric acid
Safety	Integrated frost protection, automatic shutdown in case of fault
Spare parts and repairability	Compressor, circulators, electronic boards; accessible through authorized after-sales service
General information	Ready-to-connect unit, integrated heat pump controller, hermetic refrigerant circuit

Frequently Asked Questions - SI 11TU DIMPLEX

What is the thermal power of the SI 11TU heat pump?

The nominal thermal power is 10.4 kW under B0/W35 conditions (source temperature 0°C, water outlet temperature 35°C), with a COP of 4.9.

What type of refrigerant does it use?

The refrigerant is R410A, a charge of 3.3 kg. Its GWP is 2088 and the CO₂ equivalent is 7 tonnes.

What are the dimensions and weight of the unit?

Dimensions: 840 x 650 x 555 mm (H x W x D). Total weight with packaging: 134 kg.

What electrical supply is required?

Power supply: 3~400V/50Hz, protected by a C10A circuit breaker. Control supply: 1~230V/50Hz, protected by a C13A circuit breaker.

How to install the outdoor temperature sensor?

Place the sensor on an exterior wall, preferably north or northwest, away from direct sunlight and heat sources. Fix it securely and insulate the cable.

What regular maintenance is recommended?

Clean the heat source side filter one day after commissioning, then periodically. Check the pressure and for leaks. The condenser can be descaled with 5% phosphoric acid.

What to do in case of an error code on the display?

Consult the troubleshooting section of the heat pump controller. If you cannot resolve the problem, contact an authorized after-sales service.

What is the maximum heating water temperature?

The maximum outlet temperature is 62 °C.

Can I use the unit with underfloor heating?

Yes, the heat pump is suitable for low-temperature heating. A minimum water flow rate of 0.9 m³/h must be ensured, for example with a differential pressure valve.

How to protect the unit from frost?

The frost protection function is active as long as the controller and circulators are powered. In case of prolonged absence or power failure, drain the system or use appropriate antifreeze (monoethylene glycol at 25% min.).

USER MANUAL SI 11TU DIMPLEX

Line drawing of a 3D box-like structure with a square recess and mounting holes (no text or symbols)

Installation and Operating Instruction

Brine-to-Water Heat Pump for Indoor Installation

1) Verflüssiger
2) Schaltblech
3) Verdampfer
4) Verdichter
5) Filtertrockner
6) Economizer
7) Expansionsventil

4 Z u b e h ö r

4.1 Soleverteiler

Technical line drawing of a mechanical assembly with four cylindrical components and mounting flanges (no text or symbols)

4.2 Fernbedienung

Technical line drawing of two 3D mechanical components with angular annotations (45°), no readable text or symbols present.

ACHTUNG!

Empty white rectangle with black border (no text or symbols)

Table of contents

1 Safety notes......EN-2

1.1 Symbols and markings......EN-2
1.2 Intended Use......EN-2
1.3 Legal Regulations and Directives ....EN-2
1.4 Energy-Efficient Use of the Heat Pump......EN-2

2 Purpose of the Heat Pump......EN-2

2.1 Application ......EN-2
2.2 Operating Principle......EN-2

3 Basic Device......EN-3

4 Accessories......EN-3

4.1 Brine Circuit Manifold....EN-3
4.2 Remote control....EN-3
4.3 Building management technology......EN-3

5 Transport......EN-4

6 Set-up......EN-4

6.1 General Information......EN-4
6.2 Acoustic Emissions....EN-4

7 Installation....EN-4

7.1 General Information......EN-4
7.2 Heating System Connection....EN-5
7.3 Heat Source Connection....EN-5
7.4 Temperature sensor......EN-6
7.5 Electrical connection....EN-7

8 Commissioning......EN-8

8.1 General Information......EN-8
8.2 Preparation......EN-8
8.3 Start-up Procedure......EN-8

9 Maintenance and Cleaning......EN-9

9.1 Maintenance....EN-9
9.2 Cleaning the Heating System......EN-9
9.3 Cleaning the Heat Source System ....EN-9

10 Faults / Trouble-Shooting......EN-9

11 Decommissioning / Disposal......EN-9

12 Device Information......EN-10

13 Product information as per Regulation (EU) No 813/2013, Annex II, Table 2...... EN-12

Anhang / Appendix / Annexes ...... A-I

Maßbilder / Dimension Drawings / Schémas cotés ...... A-II
Diagramme / Diagrams / Diagrammes....A-IV
Stromlaufpläne / Circuit Diagrams / Schémas électriques....A-X
Hydraulisches Einbindungsschema / Hydraulic integration diagram /
Schéma d'intégration hydraulique ....A-XVII
Konformitätserklärung / Declaration of Conformity / Déclaration de conformité ...... A-XIX

1 Safety not

1.1 Symbols and markings

Particularly important information in these instructions is marked with CAUTION! and NOTE.

CAUTION!

Immediate danger to life or danger of severe personal injury or significant damage to property.

NOTE

Risk of damage to property or minor personal injury or important information with no further risk of personal injury or damage to property.

1.2 Intended Use

This device is only intended for use as specified by the manufacturer. Any other use beyond that intended by the manufacturer is prohibited. This requires the user to abide by the relevant project planning documents. Please refrain from tampering with or altering the device.

1.3 Legal Regulations and Directives

This heat pump is designed for use in a domestic environment according to Article 1, Paragraph 2 k) of EU directive 2006/42/EC (machinery directive) and is thus subject to the requirements of EU directive 2014/35/EU (low-voltage directive). It is thus also intended for use by non-professionals for heating shops, offices and other similar working environments, in agricultural establishments and in hotels, guest houses and similar / other residential buildings.

This heat pump conforms to all relevant DIN/VDE regulations and EU directives. Refer to the EC Declaration of Conformity in the appendix for details.

The heat pump must be connected to the power supply in compliance with all relevant VDE, EN and IEC standards. Any further connection requirements stipulated by local utility companies must also be observed.

The heat pump is to be connected to the heat source system and the heating system in accordance with all applicable regulations.

This unit can be used by children aged 8 and over and by persons with limited physical, sensory or mental aptitude or lack of experience and/or knowledge, providing they are supervised or have been instructed in the safe use of the unit and understand the associated potential dangers.

Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.

CAUTION!

When operating or maintaining a heat pump, the legal requirements of the country where the heat pump is operated apply. Depending on the refrigerant quantity, the heat pump must be inspected for leaks at regular intervals by a certified technician, and these inspections must be recorded.

More information can be found in the accompanying log book.

1.4 Energy-Efficient Use of the Heat Pump

By operating this heat pump you are helping to protect our environment. Both the heating system and the heat source must be properly designed and dimensioned to ensure efficient operation. It is particularly important to keep water flow temperatures as low as possible. All connected energy consumers should therefore be suitable for low flow temperatures. Raising the heating water temperature by 1 K corresponds to a crease in energy consumption of approx.

2.5 %. Low-temperature heating systems with flow temperatures between 30 °C and 50 °C are particularly well-suited for energy-efficient operation.

2 Purpose of the Heat Pump

2.1 Application

The brine-to-water heat pump is to be used exclusively for the heating of heating water. It can be used in new or previously existing heating systems. A mixture of water and antifreeze (brine) is used as the heat transfer medium in the heat source system. Borehole heat exchangers, ground heat collectors or similar systems can be used as the heat source system.

2.2 Operating Principle

The heat generated by the sun, wind and rain is stored in the ground. This heat stored in the ground is collected at a low temperature by the brine circulating in the ground collector, ground coil or similar device. A circulating pump then conveys the "heated" brine to the evaporator of the heat pump. There the heat is given off to the refrigerant in the refrigerating cycle. This cools the brine so that it can once again absorb thermal energy in the brine circuit.

The refrigerant is drawn in by the electrically driven compressor, compressed and "pumped" to a higher temperature level. The electrical power needed to run the compressor is not lost in this process. Most of it is absorbed by the refrigerant.

Subsequently, the refrigerant is passed through the condenser where it transfers its heat energy to the heating water. Depending on the set operating point (thermostat setting), the heating water is thus heated up to a max. of 62 °C.

3 Basic Dev i 4 Accessories

The basic device consists of a heat pump for indoor installation wired ready for use with metal casing, switch box and integrated heat pump manager. The refrigeration circuit is "hermetically sealed" and contains the fluorinated refrigerant R410A included in the Kyoto protocol. Information on the GWP value and CO_2 equivalent of the refrigerant can be found in the chapter Device information. The refrigerant is CFC-free, non-ozone depleting and non-combustible.

All components required for the operation of the heat pump are located on the control panel. An external temperature sensor including fixing accessories and a dirt trap are supplied with the heat pump. The supply for the load current and the control voltage must be installed by the customer.

The supply lead of the brine circulating pump (to be provided by the customer) must be connected to the control panel. If required, a motor protection device and/or contactor must be provided here.

The customer must provide both the heat source system and the brine circuit manifold.

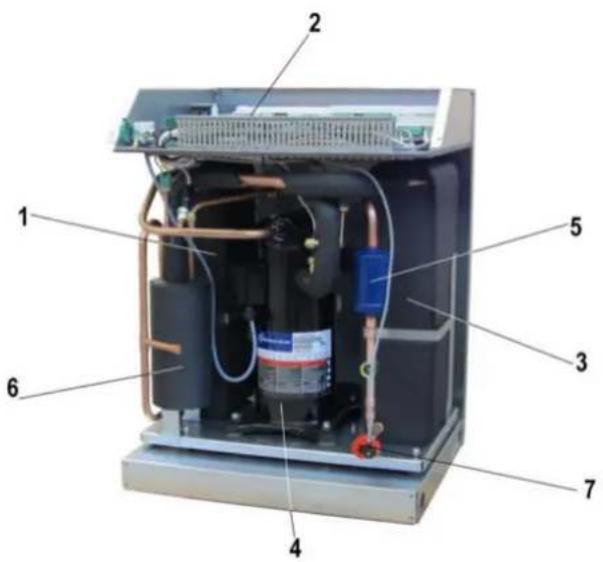

1) Liquifier
2) Control panel
3) Evaporator
4) Compressor
5) Filter dryer
6) Economizer
7) Expansion valve

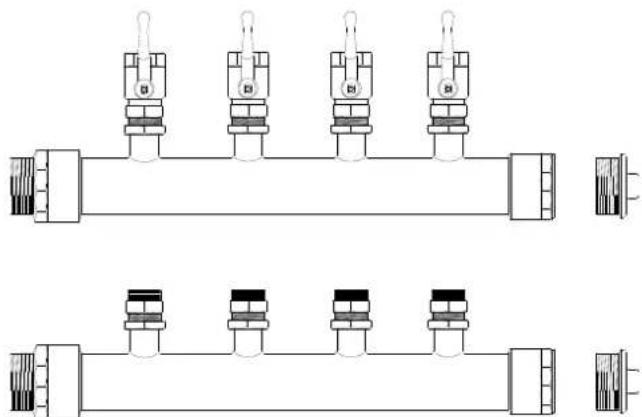

4.1 Brine Circuit Manifold

The brine circuit manifold merges the individual collector loops of the heat source system into a single main pipe which is connected to the heat pump. Integrated ball valves allow the individual brine circuits to be shut off for de-aeration purposes.

Technical line drawing of a mechanical assembly with four cylindrical components and mounting brackets (no text or symbols)

4.2 Remote control

A remote control adds convenience and is available as a special accessory. Operation and menu navigation are identical to those of the heat pump manager. Connection takes place via an interface (special accessories) with RJ 12 Western plug.

NOTE

In the case of heating controllers with a removable operating element, this can also be used directly as a remote control.

4.3 Building management technology

The heat pump manager can be connected to a building management system network via supplementation of the relevant interface plug-in card. The supplementary installation instructions of the interface card must be consulted regarding the exact connection and parameterisation of the interface.

The following network connections can be made on the heat pump manager:

Modbus
EIB, KNX
Ethernet

CAUTION!

If the heat pump or circulating pump is controlled externally, an flow rate switch is required to prevent the compressor from being switched on when there is no volume flow.

5 T r a n s p o r t 6 S e t - u p

A lift truck is suited for transporting the unit on a level surface. Carrying straps may be used if the heat pump needs to be transported on an uneven surface or carried up or down stairs. These straps can be passed directly underneath the wooden pallet.

CAUTION!

The heat pump is not secured to the wooden pallet.

Technical line drawing of two 3D mechanical components with angular annotations (45°), no readable text or symbols present.

CAUTION!

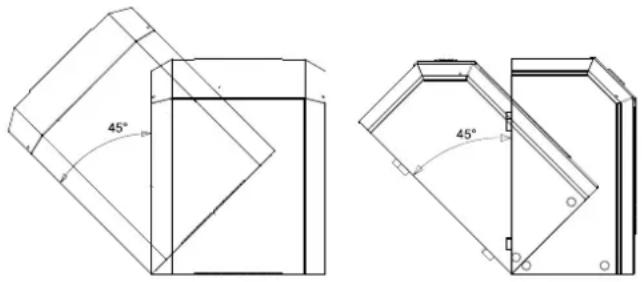

The heat pump must not be tilted more than 45^ direction).

Use the holes provided in the sides of the frame to lift the unit without the pallet. The side panel assemblies must be removed for this purpose. Any commercially available length of pipe can be used as a carrying aid.

CAUTION!

Do not use the holes in the panel assemblies for lifting the device!

6.1 General Information

The brine-to-water heat pump must be installed in a frost-free, dry room on an even, smooth and horizontal surface. The entire frame should lie directly on the floor to ensure an adequate soundproof seal. If supporting feet are used, the heat pump must be installed horizontally. In this case, the specified sound level can be up to 3 dB(A) higher, and additional sound insulation measures may be necessary.

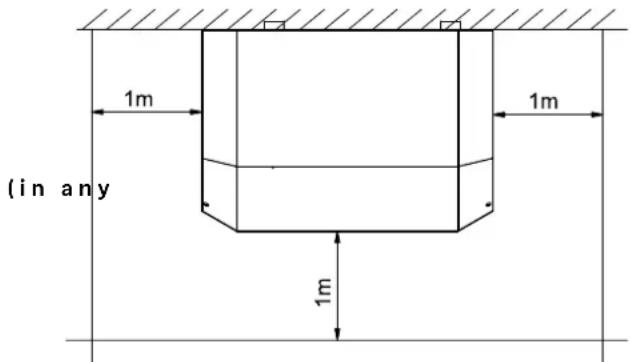

The heat pump must be installed so that maintenance work can be carried out without hindrance. This can be ensured by maintaining a clearance of approx. 1 m in front of and on each side of the heat pump.

Neither frost nor temperatures higher than 35^ C must occur in the installation location at any time of the year.

6.2 Acoustic Emissions

The heat pump operates silently due to efficient sound insulation. Internal insulation measures should be carried out to prevent vibrations from being transmitted to the foundation or to the heating system.

7 Installation

7.1 General Information

The following connections need to be established on the heat pump:

■ Flow and return of the brine (heat source system)
■ Flow and return flow of the heating system
■ Temperature sensor
Voltage supply

7.2 Heating System Connection

CAUTION!

Flush the heating system prior to connecting the heat pump.

Before connecting the heating water system to the heat pump, the heating system must be flushed to remove any impurities, residue from sealants, etc. Any accumulation of deposits in the liquifier could cause the heat pump to completely break down.

Once the heating system has been installed, it must be filled, de-aerated and pressure-tested.

CAUTION!

The maximum test pressure in the heating circuit and the brine circuit is 6.0 bar (ü). This value must not be exceeded.

Consideration must be given to the following when filling the system:

■ Untreated filling water and make-up water must be of drinking water quality (colourless, clear, free from sediments)
■ Filling water and make-up water must be pre-filtered (pore size max. 5 m).

Scale formation in domestic hot water heating systems cannot be avoided, but in systems with flow temperatures below 60 °C, the problem can be disregarded. With high-temperature heat pumps and in particular with bivalent systems in the higher performance range (heat pump + boiler combination), flow temperatures of 60 °C and more can be achieved. The following standard values should therefore be adhered to with regard to the filling and make-up water according to VDI 2035, sheet 1: The total hardness values can be found in the table.

Total heat output in kW	Total alkaline earths in mol/m3 and/or mmol/l	Specific system volume (VDI 2035) in l/kW
		< 20	≥ 20 < 50	≥ 50
		Total hardness in °dH
< 50	≤ 2.0	≤ 16.8	≤ 11.2	< 0.111
50 - 200 ≤ 2.0		≤ 11.2 ≤ 8.4
200 - 600 ≤ 1.5		≤ 8.4	< 0.111
>600 < 0.02		< 0.111

1. This value lies outside the permissible value for heat exchangers in heat pumps.

Fig. 7.1: Guideline values for filling and make-up water in accordance with VDI 2035

For systems with an above-average specific system volume of 50 l/kW, VDI 2035 recommends using fully demineralized water and a pH stabiliser to minimize the risk of corrosion in the heat pump and the heating system.

CAUTION!

With fully demineralized water, it is important to ensure that the minimum permissible pH value of 7.5 (minimum permissible value for copper) is complied with. Failure to comply with this value can result in the heat pump being destroyed.

Minimum heating water flow rate

The minimum heating water flow rate through the heat pump must be assured in all operating states of the heating system. This can be accomplished, for example, by installing either a dual differential pressureless manifold or an overflow valve. The procedure for adjusting an overflow valve is described in the Chapter Start-Up.

NOTE

The use of an overflow valve is only recommended for panel heating and a max. heating water flow of 1.3 m^3/h . System faults may result if this is not observed.

The antifreeze function of the heat pump manager is active whenever the heat pump manager and the heat circulating pumps are ready for operation. If the heat pump is taken out of service or in the event of a power failure, the system has to be drained. The heating circuit should be operated with a suitable antifreeze if heat pump systems are implemented in buildings where a power failure can not be detected (holiday home).

7.3 Heat Source Connection

The following procedure must be observed when connecting the heat source:

Connect the brine pipe to the heat pump flow and return. The hydraulic integration diagram must be adhered to.

CAUTION!

The supplied dirt trap must be inserted in the heat source inlet of the heat pump to protect the evaporator against the ingress of impurities.

The brine liquid must be produced prior to charging the system. The liquid must have an antifreeze concentration of at least 25 % to ensure frost protection down to -14 °C.

Only monoethylene glycol or propylene glycol-based antifreeze may be used.

The heat source system must be de-aerated and checked for leaks.

CAUTION!

The brine solution must contain at least a 25% concentration of a monoethylene glycol or propylene glycol-based antifreeze, which must be mixed before filling.

NOTE

If necessary, the operating range can be extended to a brine inlet temperature of -10 °C. In this case, the minimum brine concentration must be adjusted to 30 %. (Freezing temperature -17 °C)

CAUTION!

The maximum test pressure in the heating circuit and the brine circuit is 6.0 bar (ü). This value must not be exceeded.

NOTE

A suitable de-aerator (micro bubble air separator) must be installed in the heat source circuit by the customer.

7.4 Temperature sensor

The following temperature sensors are already installed or must be installed additionally:

■ External temperature sensor (R1) supplied (NTC-2)
■ Return temperature heating circuit (R2) installed (NTC-10)
■ Return temperature primary circuit (R24) installed (NTC-10)
■ Flow temperature heating circuit (R9) installed (NTC-10)
■ Flow temperature primary circuit (R6) installed) (NTC-10)

7.4.1 Sensor characteristic curves

Temperature in °C			-20	-15	-10	-5	0	5	10
NTC-2 in kΩ			14.6	11.4	8.9	7.1	5.6	4.5	3.7
NTC-10 in kΩ			67.7	53.4	42.3	33.9	27.3	22.1	18.0
15	20	25	30	35	40	45	50	55	60
2.9	2.4	2.0	1.7	1.4	1.1	1.0	0.8	0.7	0.6
14.9	12.1	10.0	8.4	7.0	5.9	5.0	4.2	3.6	3.1

The temperature sensors to be connected to the heat pump manager must correspond to the sensor characteristic curve illustrated in Fig.7.2 on pag. 6. The only exception is the external temperature sensor included in the scope of supply of the heat pump (see Fig.7.3 on pag. 6)

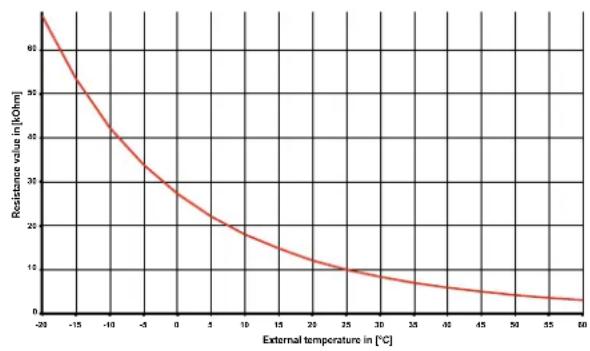

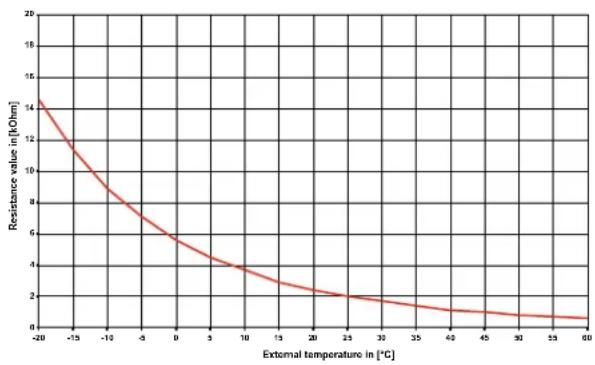

Fig. 7.2: Sensor characteristic curve NTC 10

Fig. 7.3: Sensor characteristic curve, standardised NTC-2 according to DIN 44574 External temperature sensor

7.4.2 Mounting the external temperature sensor

The temperature sensor must be mounted in such a way that all weather conditions are taken into consideration and the measured value is not falsified.

■ Mount on the external wall on the north or north-west side where possible
- Do not install in a “sheltered position” (e.g. in a wall niche or under a balcony)
■ Not in the vicinity of windows, doors, exhaust air vents, external lighting or heat pumps
■ Not to be exposed to direct sunlight at any time of year

Dimensioning parameter sensor lead
Conductor material	Cu
Cable-length	50 m
Ambient temperature	35 °C
Laying system	B2 (DIN VDE 0298-4 / IEC 60364-5-52)
External diameter	4-8 mm

7.4.3 Installing the strap-on sensor

It is only necessary to mount the strap-on sensors if they are included in the scope of supply of the heat pump but have not yet been installed.

The strap-on sensors can be fitted as pipe-mounted sensors or installed in the immersion sleeve of the compact manifold.

Mounting as a pipe-mounted sensor

■ Remove paint, rust and scale from heating pipe.
- Coat the cleaned surface with heat transfer compound (apply sparingly).
- Attach the sensor with a hose clip (tighten firmly, as loose sensors can cause malfunctions) and thermally insulate.

7.4.4 Hydraulic distribution system

The compact manifold and the dual differential pressureless manifold function as an interface between the heat pump, the heating distribution system, the buffer tank and, in some cases, even the hot water cylinder. A compact system is used to simplify the installation process, so that a lot of different components do not have to be installed individually. Further information can be found in the relevant installation instructions.

Compact manifold

The return sensor can remain in the heat pump, or should be installed in the immersion sleeve. The remaining empty space between the sensor and the immersion sleeve must be filled completely with heat transfer compound.

dual differential pressureless manifold

In order for the heating circuit pumps of the generator and consumer circuits to supply the flow to the return sensor, this must be installed in the immersion sleeve of the dual differential pressureless manifold.

7.5 Electrical connection

7.5.1 General

All electrical connection work must be carried out by a trained electrician or a specialist for the specified tasks in accordance with the

■ installation and operating instructions,
■ country-specific installation regulations (e.g. VDE 0100),
■ technical connection conditions of the energy suppliers and supply grid operators (e.g. TAB) and
■ local conditions.

To ensure that the frost protection function of the heat pump works properly, the heat pump manager must remain connected to the power supply and the flow must be maintained through the heat pump at all times.

The switching contacts of the output relay are interference-suppressed. Therefore, depending on the internal resistance of the measuring instrument, a voltage can also be measured when the contacts are open. However, this will be much lower than the line voltage.

Extra-low voltage is connected to controller terminals N1-J1 to N1-J11; N1-J19; N1-J20; N1-J23 to N1-J26 and terminal strip X3; X5.1. If, due to a wiring error, the line voltage is mistakenly connected to these terminals, the heat pump manager will be destroyed

7.5.2 Electrical installation

1) The supply electric cable for the output section of the heat pump (up to 4-core) is fed from the electricity meter of the heat pump via the utility blocking contactor (if required) into the heat pump Connection of the mains cable to the control panel of the heat pump via terminal X1: L1/L2/L3/PE.

An all-pole disconnecting device with a contact gap of at least 3 mm (e.g. utility blocking contactor or power contactor) and an all-pole circuit breaker with common tripping for all external conductors must be installed in the power supply for the heat pump (tripping current and characteristic in compliance with the device information).

CAUTION!

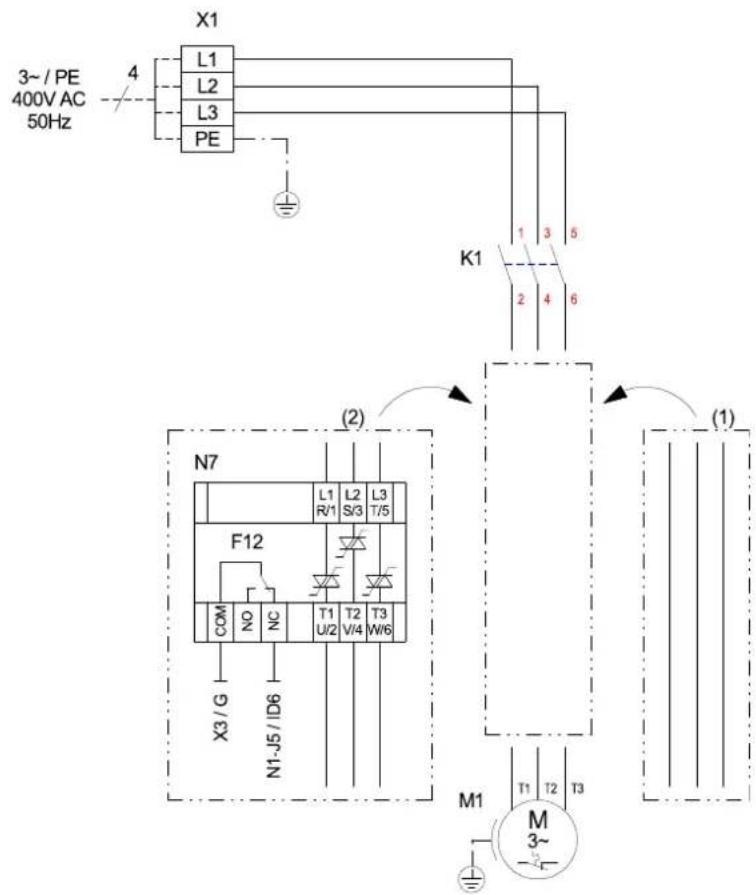

Ensure that there is a clockwise rotating field: With incorrect wiring the starting of the heat pump is prevented. A corresponding warning is indicated on the display of the heat pump manager (adjust wiring).

2) The three-core electric supply cable for the heat pump manager (heating controller N1) is fed into the heat pump. Connection of the control line to the control panel of the heat pump via terminal X2: L/N/PE.
Details on the power consumption of the heat pump are listed on both the product information sheet and the type plate.
The (L/N/PE\~230 V, 50 Hz) supply cable for the heat pump manager must have a constant voltage. For this reason, it should be tapped upstream from the utility blocking contactor or be connected to the household current, as important protection functions could otherwise be lost during a utility block.

3) The utility blocking contactor (K22) with 3 main contacts (1/3/5 // 2/4/6) and an auxiliary contact (NO contact 13/14) should be dimensioned according to the heat pump output and must be supplied by the customer. The NO contact of the utility blocking contactor (13/14) is looped from terminal strip X3/G to connector terminal X3/A1. CAUTION! Extra-low voltage!

4) The contactor (K20) for the immersion heater (E10) of mono energy systems (HG2) should be dimensioned according to the radiator output and must be supplied by the customer. It is controlled (230 V AC) by the heat pump manager via terminals X2/N and X2/K20.

5) The contactor (K21) for the flange heater (E9) in the hot water cylinder should be dimensioned according to the radiator output and must be supplied by the customer. It is controlled (230 V AC) by the heat pump manager via terminals X2/N and X2/K21.

6) The contactors mentioned above in points 3, 4 and 5 are installed in the electrical distribution system. The mains cable for the installed pipe heater must be laid and secured in accordance with the valid standards and regulations.

7) All installed electric cables must have permanent wiring.

8) The heat circulating pump (M13) is connected to terminals X2/N and X2/M13.

9) The DHW loading pump (M18) is connected to terminals X2/N and X2/M18.

10) The brine or well pump (M11) is connected to terminalsX2/N and X2/M11 and PE.

11) The return flow sensor is integrated into the heat pumps and is connected to the heat pump manager via the control line. The return flow sensor must be installed in the immersion sleeve in the manifold only when a dual differential pressureless manifold is used. The single-core wires are then connected to terminals X3/GND and X3/R2.1. Bridge A-R2 (situated between X3/B2 and X3/1 when delivered) must then be moved to terminals X3/1 and X3/2.

12) The external sensor (R1) is connected to terminals X3/GND and X3/R1.

13) The domestic hot water sensor (R3) is included with the domestic hot water cylinder and is connected to terminals X3/GND and X3/R3.

7.5.3 Connecting an electronically regulated circulating pump

Electronically regulated circulating pumps have high starting currents, which may shorten the service life of the heat pump manager. For this reason, a coupling relay is installed or must be installed between the output of the heat pump manager and the electronically regulated circulating pump. This is not necessary if the permissible operating current of 2 A and a maximum starting current of 12 A are not exceeded in the electronically regulated circulating pump or if express approval has been issued by the pump manufacturer.

CAUTION!

It is not permitted to connect more than one electronically regulated circulating pump via a relay output.

8 Commissioning

8.1 General Information

To ensure that start-up is performed correctly, it should only be carried out by an after-sales service technician authorised by the manufacturer. These measures can also include an additional warranty under certain conditions (see Warranty).

8.2 Preparation

The following items need to be checked prior to start-up:

■ The heat pump must be fully connected, as described in Chapter 7.
- The heat source system and the heating circuit must have been filled and checked.
- The dirt trap must be inserted in the brine inlet of the heat pump.
All valves that could impair proper flow in the brine and heating circuits must be open.
The heat pump manager must be adapted to the heating system in accordance with the controller's operating instructions.

8.3 Start-up Procedure

The heat pump is started up via the heat pump manager.

CAUTION!

The heat pump must be started up in accordance with the installation and operating instructions of the heat pump manager.

If an overflow valve is fitted to assure the minimum heating water flow rate, the valve must be set in accordance with the requirements of the respective heating system. Incorrect adjustment can lead to faulty operation and increased energy consumption. We recommend carrying out the following procedure to correctly adjust the overflow valve:

Close all of the heating circuits that may also be closed during operation (depending on the type of heat pump usage) so that the most unfavourable operating state - with respect to the water flow rate - is achieved. This normally means the heating circuits of the rooms on the south and west sides of the building. At least one heating circuit must remain open (e.g. bathroom).

The overflow valve should be opened far enough to produce the maximum temperature spread between the heating flow and return flow listed in the table below for the current heat source temperature. The temperature spread should be measured as close as possible to the heat pump. The heating element of mono energy systems should be disconnected during start-up.

Heat source temperature		Max. temperature spread between heating flow and return flow
From To
-5 °C 0 °C	10 K
1 °C 5 °C	11 K
6 °C 9 °C	12 K
10 °C 14 °C		13 K
15 °C	20 °C	14 K
21 °C 25 °C		15 K

9 Maintenance and Cleaning

9.1 Maintenance

To prevent faults due to sediment in the heat exchangers, care must be taken to ensure that no impurities can enter either the heat source system or the heating system. In the event that operating malfunctions due to contamination occur nevertheless, the system should be cleaned as described below.

9.2 Cleaning the Heating System

The ingress of oxygen into the heating water circuit may result in the formation of oxidation products (rust), particularly if steel components are used. This oxygen enters the heating system via the valves, the circulating pumps and/or plastic pipes. It is therefore essential - in particular with respect to the piping of underfloor heating systems - that only diffusion-proof materials are used.

NOTE

We recommend the installation of a suitable corrosion protection system to prevent the formation of deposits (e.g. rust) in the condenser of the heat pump.

Residue from lubricants and sealants may also contaminate the heating water.

In the case of severe contamination leading to a reduction in the performance of the liquifier in the heat pump, the system must be cleaned by a heating technician.

Based on current information, we recommend using a 5 % phosphoric acid solution for cleaning purposes. However, if cleaning needs to be performed more frequently, a 5 % formic acid solution should be used.

In either case, the cleaning fluid should be at room temperature. We recommend flushing the heat exchanger in the direction opposite to the normal flow direction.

To prevent acidic cleaning agents from entering the heating system circuit, we recommend connecting the flushing device directly to the flow and return flow of the liquifier. It is important that the system be thoroughly flushed using appropriate neutralising agents to prevent any damage from being caused by cleaning agent residue remaining in the system.

Acids must be used with great care and all relevant regulations of the employers' liability insurance associations must be adhered to.

The manufacturer's instructions regarding cleaning agent must be complied with at all times.

9.3 Cleaning the Heat Source System

CAUTION!

The supplied dirt trap must be inserted in the heat source inlet of the heat pump to protect the evaporator against the ingress of impurities.

The filter sieve of the dirt trap should be cleaned one day after-start-up. Further checks must be set according to the level of dirt. If no more signs of contamination are evident, the filter can be removed to reduce pressure drops.

10 Faults / Trouble-Shooting

This heat pump is a quality product and is designed for trouble-free operation. In the event that a fault should occur, it will be indicated on the heat pump manager display. Simply consult the Faults and Trouble-Shooting page in the operating instructions of the heat pump manager.

If you cannot correct the fault yourself, please contact your after-sales service technician.

CAUTION!

Before opening the device, ensure that all circuits are disconnected from the power supply!

After disconnecting the power supply, always wait for at least 5 minutes to allow stored electric charges to dissipate.

CAUTION!

Any work on the heat pump may only be performed by authorised and qualified after-sales service technicians.

11 Decommissioning / Disposal

Before removing the heat pump, disconnect it from the power source and close all valves. The deinstallation of the heat pump must be performed by technical personnel. Observe all environmentally-relevant requirements regarding the recovery, recycling and disposal of materials and components in accordance with all applicable standards. Particular attention should be paid to the proper disposal of refrigerants and refrigeration oils.

12 Device Information

1 Type and order code			SI 6TU SI 8TU SI	11TU
2 Design
2.1 Model Universal	Universal	Universal
2.2 controller Intern Intern Intern
2.3 Thermal energy metering	Integrated Integrated Integrated Integrated
2.4	Installation location / degree of protection according to EN 60 529		Indoors / IP 21	Indoors / IP 21	Indoors / IP 21
2.5 Performance levels			1	1	1
3 Operating limits
3.1 Heating water flow1	°C		20 to 62 ±	20 to 62 ±2	20 to 62 ±2
3.2 Brine (heat source)	°C		-51to +252Monoethyleneglycol
Antifreeze
Minimum brine concentration (-13 °C freezing temperature)1			25 %1
4 Performance data / flow rate3
4.1 Heating water flow rate at internal pressure differential
	max. (EN14511)	m3/h / Pa	1.05 / 5300	1.4 / 7700	1.9 / 10500
	minimal	m3/h / Pa	0.55 / 1500	0.7 / 1900	0.9 / 2400
4.2 Heat output / COP			EN 14511	EN 14511	EN 14511
	at B-5 / W45	kW / ---	5.0 / 3.1	6.5 / 3.2	9.1 / 3.2
	at B0 / W55	kW / ---	5.5 / 2.8	7.2 / 2.8	10.0 / 2.9
	at B0 / W45	kW / ---	5.8 / 3.6	7.5 / 3,6	10.4 / 3.7
	at B0 / W35	kW / ---	6.1 / 4.7	8.1 / 4.8	10.9 / 4.9
4.3 Sound power level to EN 121024		dB(A)	46	46	47
4.4 Sound pressure level at a distance of 1 m45		dB(A)	34	34	35
4.5 Brine flow with internal pressure differential heat source		m3/h / Pa	1.45 / 8700	1.9 / 11000	2.6 / 14000
5 Dimensions, connections and weight
5.1 Device dimensions without connections6		H x W x L cm	840 x 650 x 555	840 x 650 x 555	840 x 650 x 555
5.2 Device connections for heating system		Inches	G 1 1/4" AG7
5.3 Device connections for heat source		Inches	G 1 1/4" AG7
5.4 Weight of the transportable unit(s) incl. packaging		kg	119	128	134
5.5 Refrigerant; total filling weight		type / kg	R410A / 2.5	R410A / 2.9	R410A / 3.3
5.6 GWP value / CO2equivalent		--- / t	2088 / 5	2088 / 6	2088 / 7
5.7 Refrigeration circuit hermetically sealed			yes	yes	yes
5.8 Lubricant; total filling quantity		type / litres	Polyolester (POE) / 0.7	Polyolester (POE) / 1.2	Polyolester (POE) / 1.2
6 Electrical connection
6.1 Supply voltage / fuse protection		V / A	3~ / PE 400V (50Hz) / C10A
6.2 Control voltage / fuse protection		V / A	1~ / N / PE 230V (50Hz) / C13A
6.3 Nominal power consumption
B0 / W35 / max. power consumption3		kW	1.30 / 2.6	1.67 / 3.2	2.22 / 4.3
6.4 Starting current with soft starter		A	28 (without soft starter)	17	20
6.5 Nominal current B0 / W35 / cos φ		A / ---	2.35 / 0.8	3.01 / 0.8	4.01 / 0.8
7 Complies with the European safety regulations			8	8	8
8 Additional model features
8.1 Heating water in device protected against freezing9			Yes	Yes	Yes
8.2 Max. operating overpressure (heat source/heat sink)		bar	3.0	3.0	3.0

1. If necessary, the operating range can be extended to a brine inlet temperature of -10^ . In this case, the minimum brine concentration must be adjusted to 30% . (Freezing temperature -17^ ). At brine inlet temperatures of -10^ to -5^ , flow temperature rising from 55^ to 62^ .
2. Operation is possible at brine inlet temperatures of up to +35 °C. At brine inlet temperatures of +25 °C to +35 °C, flow temperature falling from 62 °C to 55 °C.
3. These data indicate the size and capacity of the system according to EN 14511. For an analysis of the economic and energy efficiency of the system, the bivalence point and controller should be taken into consideration. The specified values have the following meaning, e.g. B0/W35: Heat source temperature 0 °C and heating water flow temperature 55 °C. These specifications can only be achieved with clean heat exchangers. Information on maintenance, start-up and operation can be found in the respective sections of the installation and operating instructions.
4. The specified sound levels apply if the supporting feet (available as an option) are not used. If the supporting feet are used, the level can increase by up to 3db (A).
5. The specified sound pressure level corresponds to the operating noise of the heat pump in heating operation with a flow temperature of 35^ . The specified sound pressure level represents the free sound area level. The measured value can deviate by up to 16 dB(A), depending on the installation location.
6. Note that additional space is required for pipe connections, operation and maintenance.
7. Flat-sealing
8. See CE declaration of conformity
9. The heat circulating pump and the heat pump manager must always be ready for operation.

1 Type and order code			SI 14TU SI 18TU
2 Design
2.1 Model Universal Universal
2.2 controller Intern Intern
2.3 Thermal energy metering Integrated Integreated
2.4 Installation location / degree of protection according to EN 60 529			Indoors / IP 21	Indoors / IP 21
2.5 Performance levels			1	1
3 Operating limits
3.1 Heating water flow ^1	°C		20 to 62 ±2	20 bis 62 ±2
3.2 Brine (heat source)	°C		-5 ^1 to +25 ^2	-5 ^1 to +25 ^2
Antifreeze			Monoethyleneglycol	Monoethyleneglykol
Minimum brine concentration (-13 °C freezing temperature) ^1			25 % ^1	25 % ^1
4 Performance data / flow rate ^3
4.1 Heating water flow rate at internal pressure differential
	max. (EN14511)	m ^2 /h / Pa	2.4 / 10700	3.0 / 18000
	minimal	m ^3 /h / Pa	1.2 / 2700	1.5 / 4500
4.2 Heat output / COP			EN 14511	EN 14511
	at B-5 / W45	kW / ---	11.5 / 3.3	14.9 / 3.2
	at B0 / W55	kW / ---	12.8 / 3.0	16.5 / 2.9
	at B0 / W45	kW / ---	13.3 / 3.8	17.0 / 3.6
	at B0 / W35	kW / ---	13.9 / 5.0	17.5 / 4.7
4.3 Sound power level to EN 12102 ^4		dB(A)	47	50
4.4 Sound pressure level at a distance of 1 m ^45		dB(A)	35	38
4.5 Brine flow with internal pressure differential heat source		m ^3 /h / Pa	3.4 / 14000	4.3 / 21500
5 Dimensions, connections and weight
5.1 Device dimensions without connections ^6		H x W x L cm	840 x 650 x 555	840 x 650 x 655
5.2 Device connections for heating system		Inches	G 1 1/4" AG ^7	G 1 1/4" AG ^7
5.3 Device connections for heat source		Inches	G 1 1/4" AG ^7	G 1 1/2" AG ^7
5.4 Weight of the transportable unit(s) incl. packaging		kg	140	163
5.5 Refrigerant; total filling weight		type / kg	R410A / 4.4	R410A / 5.2
5.6 GWP value / CO _2 equivalent		--- / t	2088 / 9	2088 / 11
5.7 Refrigeration circuit hermetically sealed			yes	yes
5.8 Lubricant; total filling quantity		type / litres	Polyolester (POE) / 1.2	Polyolester (POE)/ 1.9
6 Electrical connection
6.1 Supply voltage; fuse protection		V / A	3~ / PE 400V (50Hz) / C13A	3~ / PE 400V (50Hz) / C16A
6.2 Control voltage; fuse protection		V / A	1~ / N / PE 230V (50Hz) / C13A	1~ / N / PE 230V (50Hz) / C13A
6.3 Nominal power consumption
	B0 / W35 / max. power consumption ^3	kW	2.78 / 5.4	3.72 / 7.2
6.4 Starting current with soft starter		A	23	28
6.5 Nominal current B0 / W35 / cos φ		A / ---	5.02 / 0.8	6.71 / 0.8
7 Complies with the European safety regulations			8	8
8 Additional model features
8.1 Heating water in device protected against freezing ^9			Yes	ja
8.2 Max. operating overpressure (heat source/heat sink)		bar	3.0	3.0

1. If necessary, the operating range can be extended to a brine inlet temperature of -10^ . In this case, the minimum brine concentration must be adjusted to 30% . (Freezing temperature -17^ ). At brine inlet temperatures of -10^ to -5^ , flow temperature rising from 55^ to 62^ .
2. Operation is possible at brine inlet temperatures of up to +35 °C. At brine inlet temperatures of +25 °C to +35 °C, flow temperature falling from 62 °C to 55 °C.
3. These data indicate the size and capacity of the system according to EN 14511. For an analysis of the economic and energy efficiency of the system, the bivalence point and controller should be taken into consideration. The specified values have the following meaning, e.g. B0/W35: Heat source temperature 0 °C and heating water flow temperature 55 °C. These specifications can only be achieved with clean heat exchangers. Information on maintenance, start-up and operation can be found in the respective sections of the installation and operating instructions.
4. The specified sound levels apply if the supporting feet (available as an option) are not used. If the supporting feet are used, the level can increase by up to 3db (A).
5. The specified sound pressure level corresponds to the operating noise of the heat pump in heating operation with a flow temperature of 35^ C. The specified sound pressure level represents the free sound area level. The measured value can deviate by up to 16 dB(A), depending on the installation location.
6. Note that additional space is required for pipe connections, operation and maintenance.
7. Flat-sealing
8. See CE declaration of conformity
9. The heat circulating pump and the heat pump manager must always be ready for operation.

13 Product information as per

Regulation (EU) No 813/

2013, Annex II, Table 2

Information requirements for heat pump space heaters and heat pump combination heaters
Model SI 6TU
Air-to-water heat pump no
Water-to-water heat pump no
Brine-to-water heat pump yes
Low-temperature heat pump no
Equipped with a supplementary heater no
Heat pump combination heater no
Parameters shall be declared for medium-temperature application, except for low-temperature heat pumps. For low- temperature heat pumps, parameters shall be declared for low-temperature application.
Parameters shall be declared for average climate conditions:
Item Symbol Value Unit Item Symbol Value Unit
Rated heat output (*) Prated 6 kW				Seasonal space heating energy efficiency ηs 134 %
Declared capacity for heating foer part load at indoor temperature 20°C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C Pdh 5,6 kW j = -7°C COPd 2,95 -
Tj = +2°C Pdh 5,8 kW j = +2°C COPd 3,58 -
Tj = +7°C Pdh 6,0 kW j = +7°C COPd 4,09 -
Tj = +12°C Pdh 6,1 kW j = +12°C COPd 4,72 -
Tj = bivalent temperature Pdh 5,5 kW j = bivalent temperature COPd 2,79 -
Tj = operation limit temperature Pdh 5,5 kW j = operation limit temperature COPd 2,79 -
For air-to-water heat pumps				For air-to-water heat pumps:
Tj = -15°C (if TOL < -20°C) Pdh 5,5 kW j = -15°C (if TOL < -20°C) COPd 2,79 -
Bivalent temperature Tbiv -10 °C Operation limit temperature TOL -10 °C
Cycling interval capacity for heating Pcych - kW Cycling interval efficiency COPcyc - -
Degradation co-efficient (**) Cdh 0,90 - Heating water operating limit temperature WTOL 62 °C
Power consumption in modes other than active mode				Supplementary heater
Off mode POFF 0,015 kW Rated heat output (*) Psup 0 kW
Thermostat-off mode PTO 0,020 kW Type of energy input eletrical
Standby mode PSB 0,015 kW
Crankcase heater mode PCK 0,000 kW
Other items
Capacity control fixed				For air-to-water heat pumps: Rated air flow rate, outdoors - - m³/h
Sound power level, indoors/ outdoors LWA 46/- dB For water-/brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger - 1,5 m³/h
Emissions of nitrogen oxides NOx - mg/kWh
For heat pump combination heater:
Declared load profile - Water heating energy efficiency ηwh - %
Daily electricity consumption Qelec - kWh Daily fuel consumption Qfuel - kWh
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach
(*) For heat pump space heaters and heat pump combination heaters, the rated output Prated is equal to the design load for heating Pdesignh , and the rated heat output of a supplementary capacity for heating sup(Tj).
(**) If Cdh is not determined by measurement nthen the default degradation is Cdh = 0,9 (-) not applicable
Model SI 8TU
Air-to-water heat pump no
Water-to-water heat pump no
Brine-to-water heat pump yes
Low-temperature heat pump no
Equipped with a supplementary heater no
Heat pump combination heater no
Parameters shall be declared for medium-temperature application, except for low-temperature heat pumps. For low- temperature heat pumps, parameters shall be declared for low-temperature application.
Parameters shall be declared for average climate conditions:
Item Symbol Value Unit Item Symbol Value Unit
Rated heat output (*) Prated 7 kW				Seasonal space heating energy efficiency ηs 138 %
Declared capacity for heating foer part load at indoor temperature 20°C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C Pdh 7,3 kW j = -7°C COPd 2,99 -
Tj = +2°C Pdh 7,7 kW j = +2°C COPd 3,65 -
Tj = +7°C Pdh 7,9 kW j = +7°C COPd 4,17 -
Tj = +12°C Pdh 8,1 kW j = +12°C COPd 4,81 -
Tj = bivalent temperature Pdh 7,2 kW j = bivalent temperature COPd 2,83 -
Tj = operation limit temperature Pdh 7,2 kW j = operation limit temperature COPd 2,83 -
For air-to-water heat pumps				For air-to-water heat pumps: TOL < -20°C) COPd 2,83 -
Tj = -15°C (if TOL < -20°C) Pdh 7,2 kW j = -15°C (if TOL < -20°C) COPd 2,83 -
Bivalent temperature Tdiv -10 °C Operation limit temperature TOL -10 °C
Cycling interval capacity for heating Pcych - kW Cycling interval efficiency COPcyc -
Degradation co-efficient (**) Cdh 0,90 - Heating water operating limit temperature WTOL 62 °C
Power consumption in modes other than active mode				Supplementary heater
Off mode POFF 0,015 kW Rated heat output (*) Psup 0 kW
Thermostat-off mode PTO 0,020 kW Type of energy input eletrical
Standby mode PSB 0,015 kW
Crankcase heater mode PCK 0,000 kW
Other items
Capacity control fixed				For air-to-water heat pumps: Rated air flow rate, outdoors - - m3/h
Sound power level, indoors/outdoors LWA 46/- dB For water-/brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger - 1,9 m3/h
Emissions of nitrogen oxides NOx - mg/kWh
For heat pump combination heater:
Declared load profile - Water heating energy efficiency ηwh - %
Daily electricity consumption Qelec - kWh Daily fuel consumption Qfuel - kWh
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach
(*) For heat pump space heaters and heat pump combination heaters, the rated output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary capacity for heating sup(Tj).
(**) If Cdh is not determined by measurement nthen the default degradation is Cdh = 0,9 (-) not applicable
Model SI 11TU
Air-to-water heat pump no
Water-to-water heat pump no
Brine-to-water heat pump yes
Low-temperature heat pump no
Equipped with a supplementary heater no
Heat pump combination heater no
Parameters shall be declared for medium-temperature application, except for low-temperature heat pumps. For low- temperature heat pumps, parameters shall be declared for low-temperature application.
Parameters shall be declared for average climate conditions:
Item Symbol Value Unit Item Symbol Value Unit
Rated heat output (*) Prated 10 kW			Seasonal space heating energy efficiency ηs 142 %
Declared capacity for heating foer part load at indoor temperature 20°C and outdoor temperature Tj			Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C Pdh 10,1 kW Tj = -7°C COPd 3,06 -
Tj = +2°C Pdh 10,5 kW Tj = +2°C COPd 3,73 -
Tj = +7°C Pdh 10,7 kW Tj = +7°C COPd 4,27 -
Tj = +12°C Pdh 10,9 kW Tj = +12°C COPd 4,96 -
Tj = bivalent temperature Pdh 10,0 kW Tj = bivalent temperature COPd 2,90 -
Tj = operation limit temperature Pdh 10,0 kW Tj = operation limit temperature COPd 2,90 -
For air-to-water heat pumps			For air-to-water heat pumps: TOL < -20°C) COPd 2,90 -
Tj = -15°C (if TOL < -20°C) Pdh 10,0 kW Tj = -15°C (if TOL < -20°C) COPd 2,90 -
Bivalent temperature Tblv -10 °C Operation limit temperature TOL -10 °C
Cycling interval capacity for heating Pcych - kW Cycling interval efficiency COPcyc -
Degradation co-efficient (**) Cdh 0,90 - Heating water operating limit temperature WTOL 62 °C
Power consumption in modes other than active mode			Supplementary heater heat output (*) Psup 0 kW
Off mode POFF 0,015 kW Rate Type of energy input eletrical
Thermostat-off mode PTO 0,020 kW
Standby mode PSB 0,015 kW
Crankcase heater mode PCK 0,000 kW
Other items			For air-to-water heat pumps: Rated air flow rate, outdoors - - m³/h
Capacity control fixed
Sound power level, indoors/outdoors LWA 47/- dB For water-/brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger - 2,6 m³/h
Emissions of nitrogen oxides NOx - mg/kWh rate, outdoor heat exchanger
For heat pump combination heater:
Declared load profile - Water heating energy efficiency ηwh - %
Daily electricity consumption Qelec - kWh Daily fuel consumption Qfuel - kWh
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach
(*) For heat pump space heaters and heat pump combination heaters, the rated output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary capacity for heating sup(Tj).
(**) If Cdh is not determined by measurement nthen the default degradation is Cdh = 0,9 (-) not applicable
Model SI 14TU
Air-to-water heat pump no
Water-to-water heat pump no
Brine-to-water heat pump yes
Low-temperature heat pump no
Equipped with a supplementary heater no
Heat pump combination heater no
Parameters shall be declared for medium-temperature application, except for low-temperature heat pumps. For low- temperature heat pumps, parameters shall be declared for low-temperature application.
Parameters shall be declared for average climate conditions:
Item Symbol Value Unit Item Symbol Value Unit
Rated heat output (*) Prated 13 kW			Seasonal space heating energy efficiency ηs 150 %
Declared capacity for heating foer part load at indoor temperature 20°C and outdoor temperature Tj			Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20°C and outdoor temperature Tj
Tj = -7°C Pdh 13,1 kW Tj = -7°C COPd 3,29 -
Tj = +2°C Pdh 13,5 kW Tj = +2°C COPd 3,93 -
Tj = +7°C Pdh 13,7 kW Tj = +7°C COPd 4,43 -
Tj = +12°C Pdh 13,9 kW Tj = +12°C COPd 5,06 -
Tj = bivalent temperature Pdh 13,0 kW Tj = bivalent temperature COPd 3,13 -
Tj = operation limit temperature Pdh 13,0 kW Tj = operation limit temperature COPd 3,13 -
For air-to-water heat pumps			For air-to-water heat pumps: TOL < -20°C) COPd 3,13 -
Tj = -15°C (if TOL < -20°C) Pdh 13,0 kW Tj = -15°C (if TOL < -20°C) COPd 3,13 -
Bivalent temperature Tbiv -10 °C Operation limit temperature TOL -10 °C
Cycling interval capacity for heating Pcych - kW Cycling interval efficiency COPcyc -
Degradation co-efficient (**) Cdh 0,90 - Heating water operating limit temperature WTOL 62 °C
Power consumption in modes other than active mode			Supplementary heater
Off mode POFF 0,015 kW Rated heat output (*) Psup 0 kW
Thermostat-off mode PTO 0,020 kW Type of energy input eletrical
Standby mode PSB 0,015 kW
Crankcase heater mode PCK 0,000 kW
Other items
Capacity control fixed			For air-to-water heat pumps: Rated air flow rate, outdoors - - m3/h
Sound power level, indoors/outdoors LWA 47/- dB For water-/brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger - 3,4 m3/h
Emissions of nitrogen oxides NOx - mg/kWh
For heat pump combination heater:
Declared load profile - Water heating energy efficiency ηwh - %
Daily electricity consumption Qelec - kWh Daily fuel consumption Qfuel - kWh
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach
(*) For heat pump space heaters and heat pump combination heaters, the rated output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary capacity for heating sup(Tj).
(**) If Cdh is not determined by measurement nthen the default degradation is Cdh = 0,9 (-) not applicable
Model SI 18TU
Air-to-water heat pump no
Water-to-water heat pump no
Brine-to-water heat pump yes
Low-temperature heat pump no
Equipped with a supplementary heater no
Heat pump combination heater no
Parameters shall be declared for medium-temperature application, except for low-temperature heat pumps. For low- temperature heat pumps, parameters shall be declared for low-temperature application.
Parameters shall be declared for average climate conditions:
Item Symbol Value Unit Item Symbol Value Unit
Rated heat output (*) Prated 17 kW			Seasonal space heating energy efficiency ηs 140 %
Declared capacity for heating foer part load at indoor temperature 20°C and outdoor temperature Tj			Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20°C and outdoor temperature Tj
Tj = -7°C Pdh 16,6 kW Tj = -7°C COPd 3,05 -
Tj = +2°C Pdh 17,0 kW Tj = +2°C COPd 3,66 -
Tj = +7°C Pdh 17,3 kW Tj = +7°C COPd 4,15 -
Tj = +12°C Pdh 17,5 kW Tj = +12°C COPd 4,77 -
Tj = bivalent temperature Pdh 16,5 kW Tj = bivalent temperature COPd 2,90 -
Tj = operation limit temperature Pdh 16,5 kW Tj = operation limit temperature COPd 2,90 -
For air-to-water heat pumps			For air-to-water heat pumps: TOL < -20°C) COPd 2,90 -
Tj = -15°C (if TOL < -20°C) Pdh 16,5 kW Tj = -15°C (if TOL < -20°C)
Bivalent temperature Tdw -10 °C For air-to-water heat pumps: Operation limit temperature TOL -10 °C
Cycling interval capacity for heating Pcych - kW Cyc ing interval efficiency COPcyc -
Degradation co-efficient (**) Cdh 0,90 - Heating water operating limit temperature WTOL 62 °C
Power consumption in modes other than active mode			Supplementary heater
Off mode POFF 0,015 kW Rated heat output (*) Psup 0 kW
Thermostat-off mode PTO 0,020 kW Type of energy input eletrical
Standby mode PSB 0,015 kW
Crankcase heater mode PCK 0,000 kW
Other items
Capacity control fixed			For air-to-water heat pumps: Rated air flow rate, outdoors - - m³/h
Sound power level, indoors/outdoors LWA 50/- dB For water-/brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger - 4,0 m³/h
Emissions of nitrogen oxides NOx - mg/kWh
For heat pump combination heater:
Declared load profile - Water heating energy efficiency ηwh - %
Daily electricity consumption Qelec - kWh Daily fuel consumption Qfuel - kWh
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach
(*) For heat pump space heaters and heat pump combination heaters, the rated output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary capacity for heating sup(Tj).
(**) If Cdh is not determined by measurement nthen the default degradation is Cdh = 0,9 (-) not applicable

Table des matières

Technical line drawing of a mechanical assembly with four cylindrical components and mounting brackets (no text or symbols)

4.2 Télécommande

Technical drawing of two 3D mechanical parts with angular annotations (45°), no readable text or symbols present.

ATTENTION!

Line drawing of a 3D box device with mounting holes and a control panel (no text or symbols)

2 Diagramme / Diagrams / Diagrammes

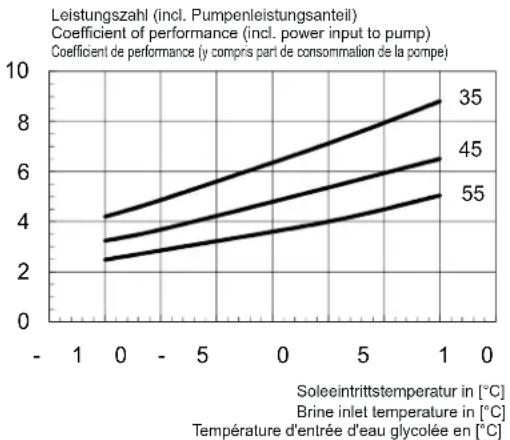

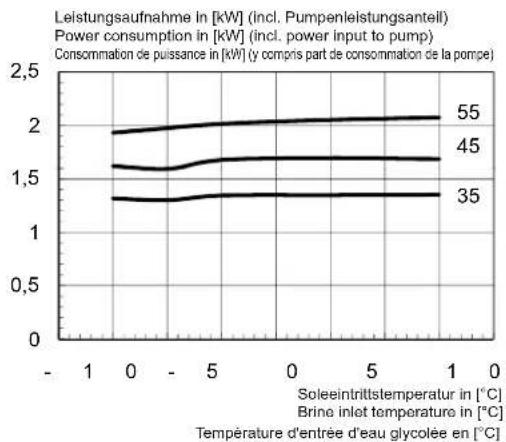

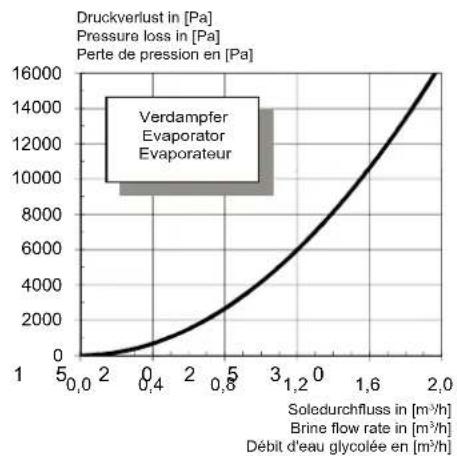

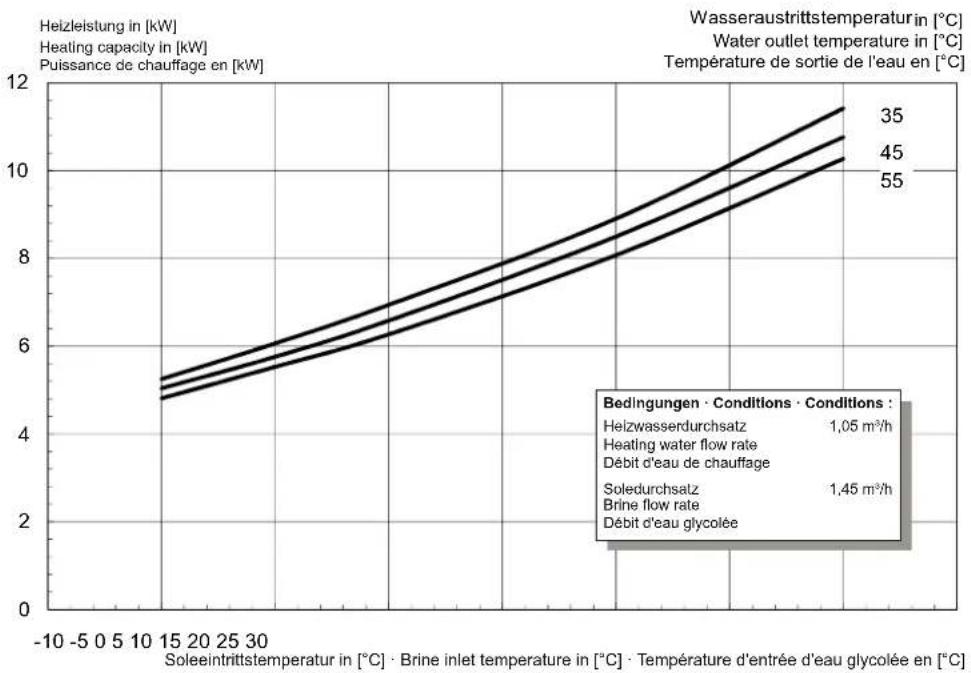

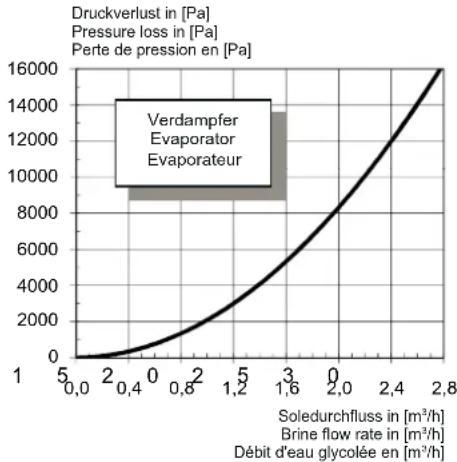

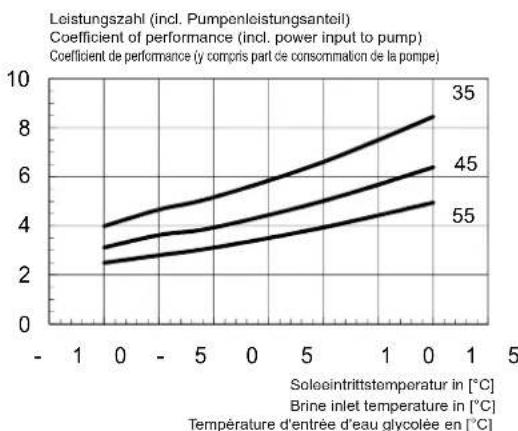

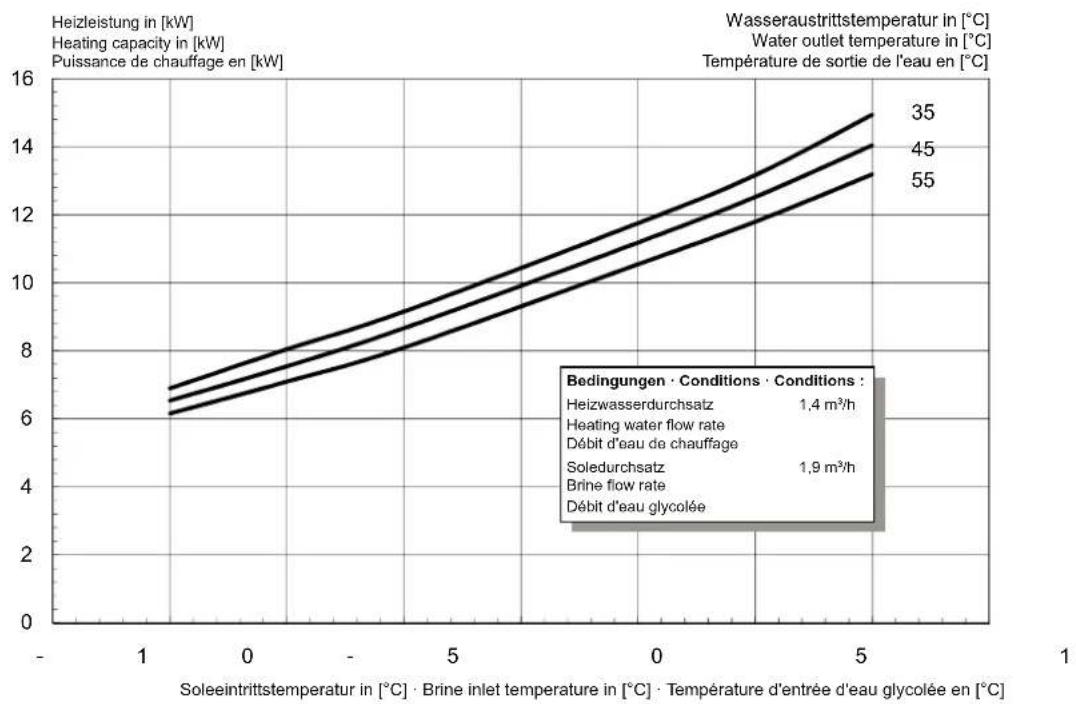

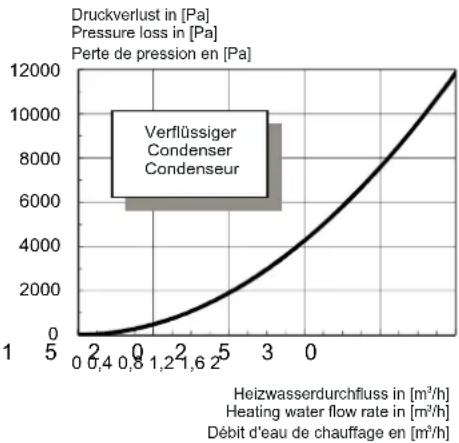

2.1 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 6TU

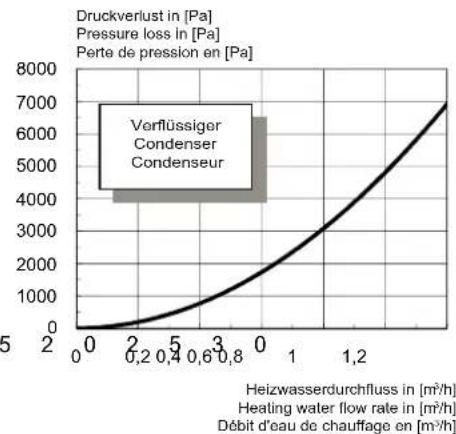

2.2 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 8TU

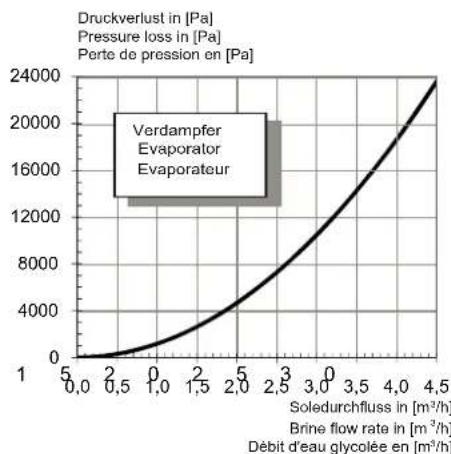

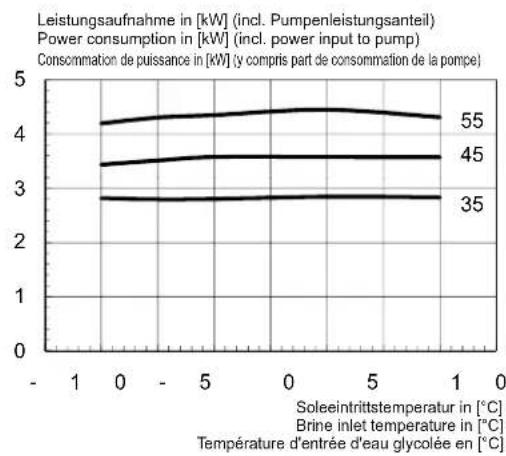

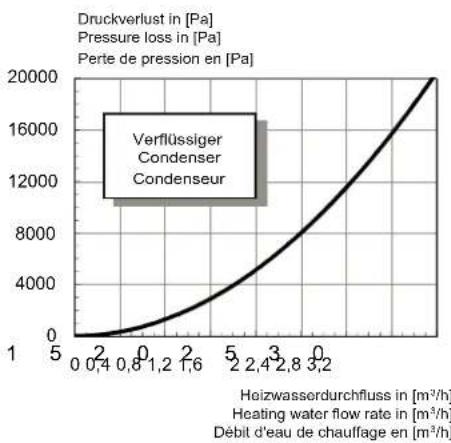

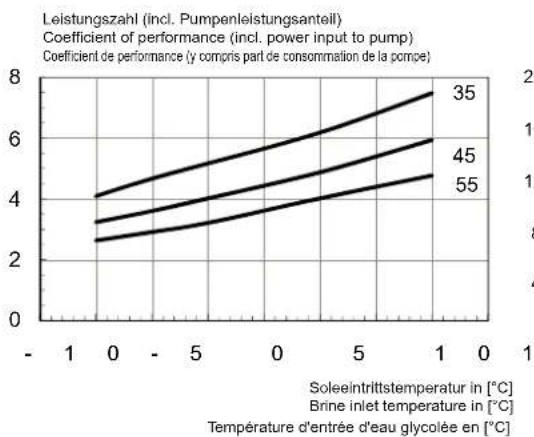

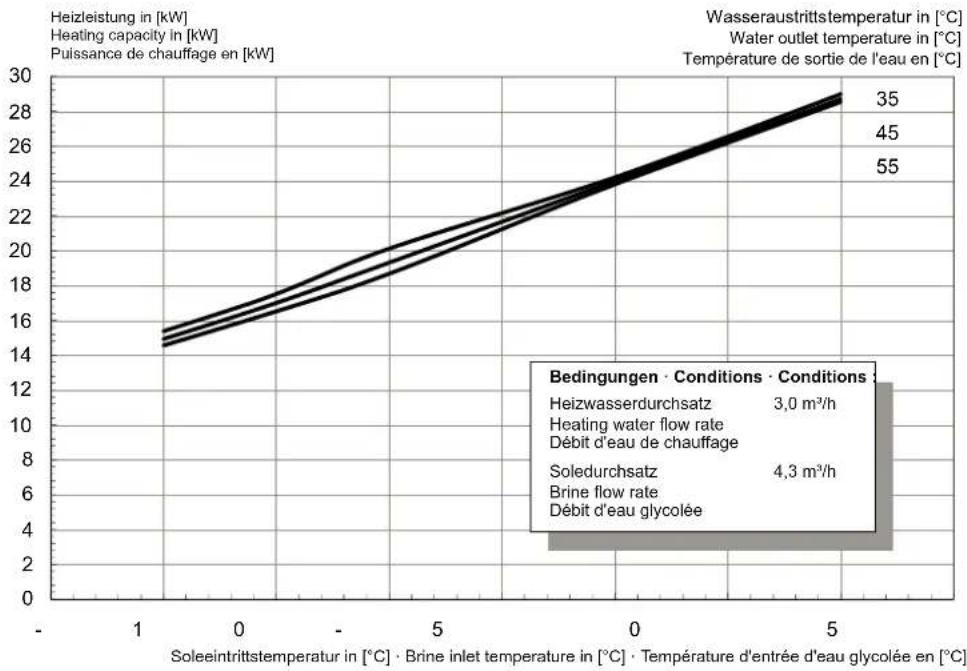

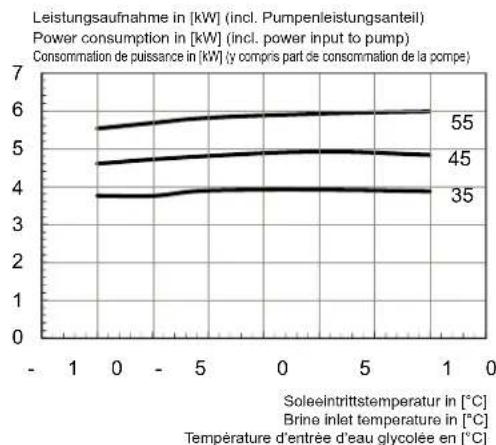

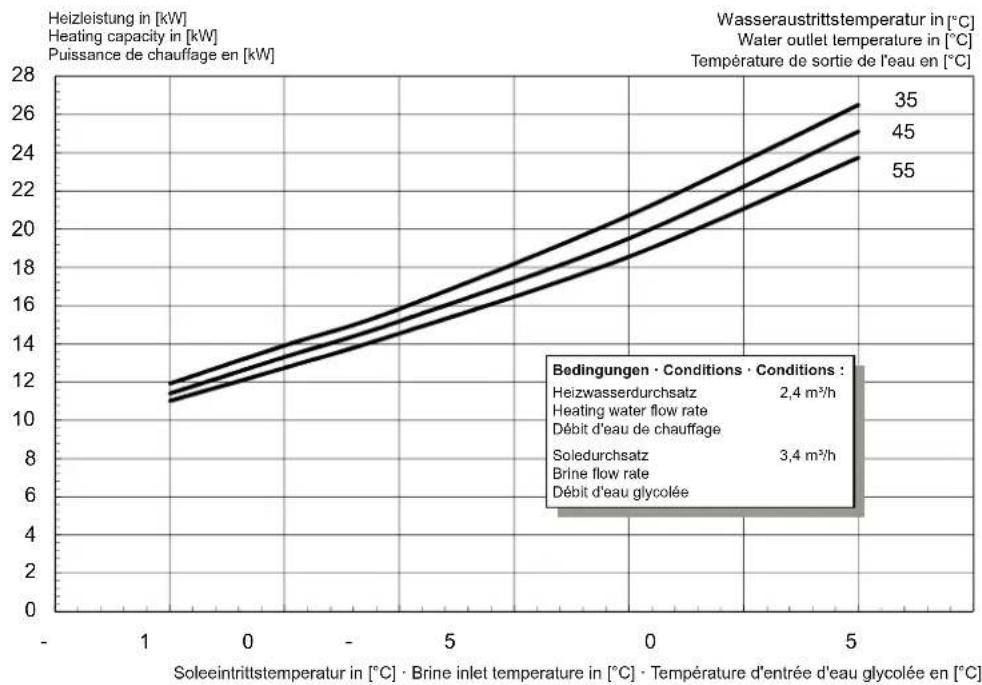

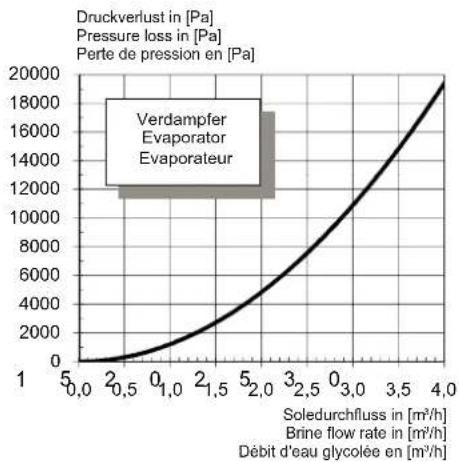

2.4 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 14TU

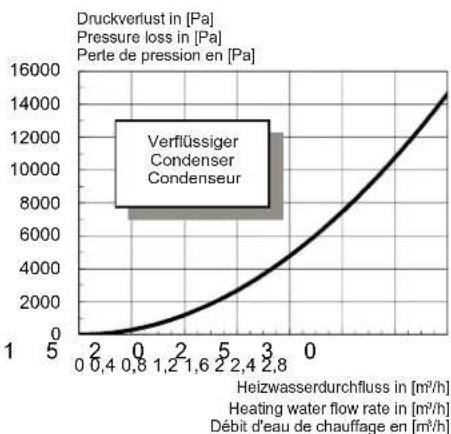

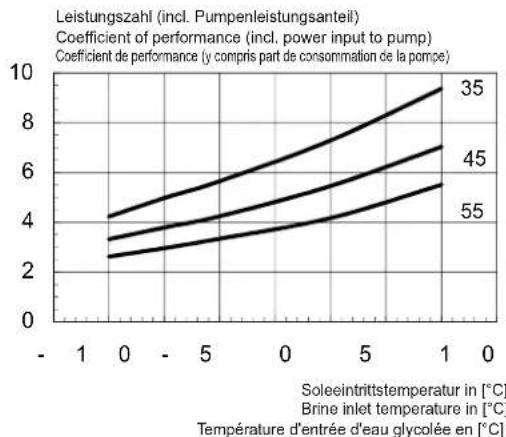

2.5 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 18TU

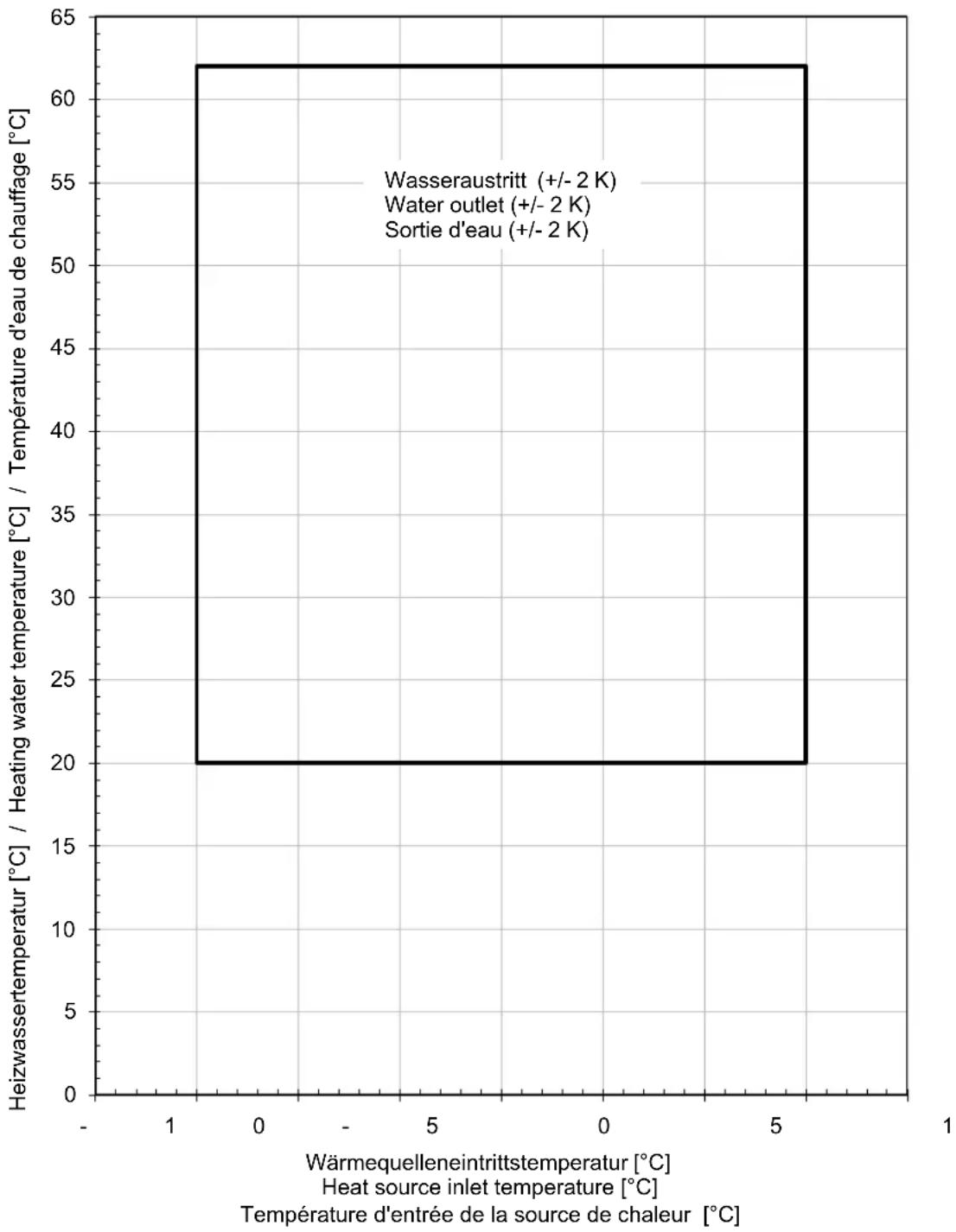

2.6 Einsatzgrenzendiagramm / Operating limits diagram / Diagramme des seuils d'utilisation SI 6TU - SI 18TU

3.3 Last / Load / Charge

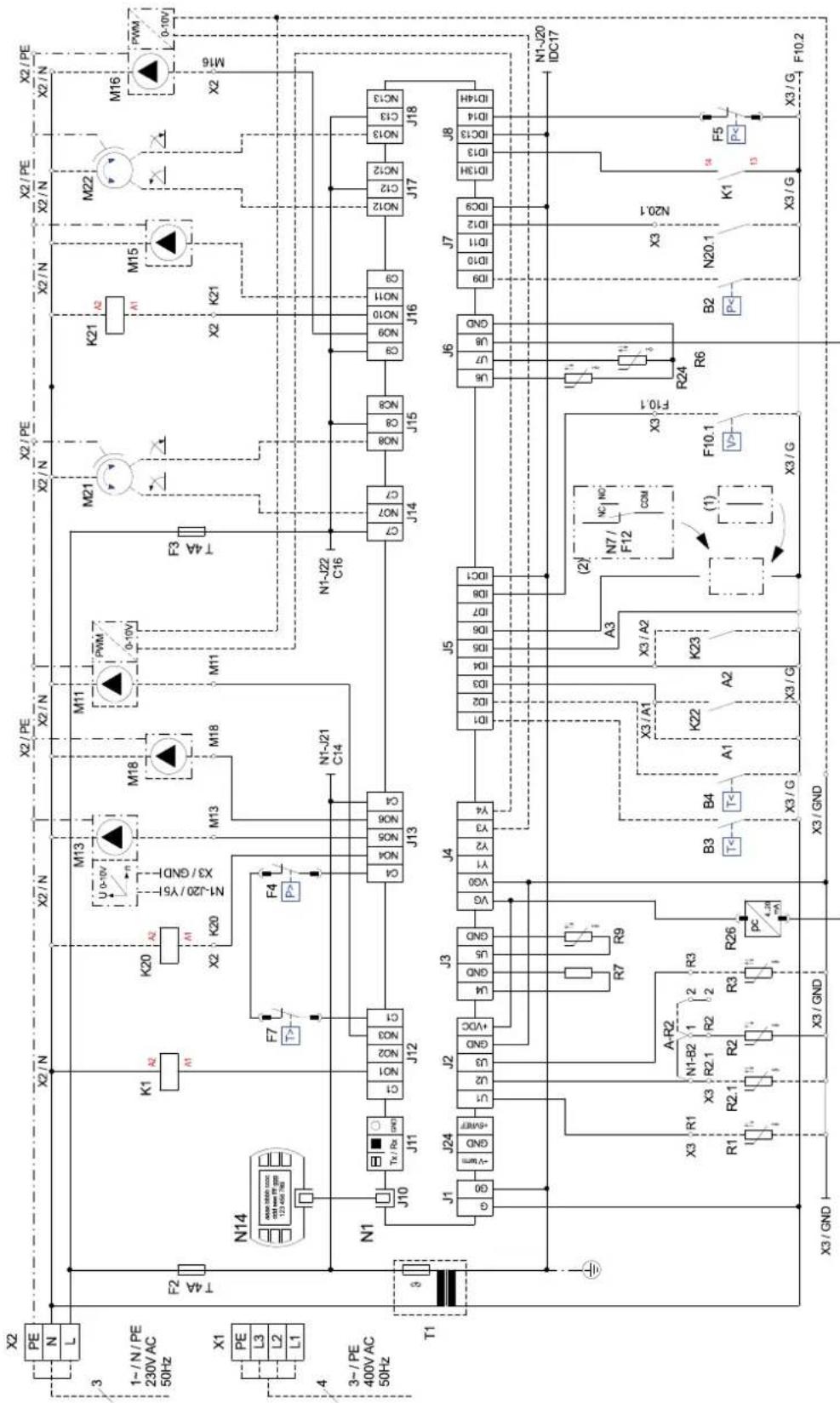

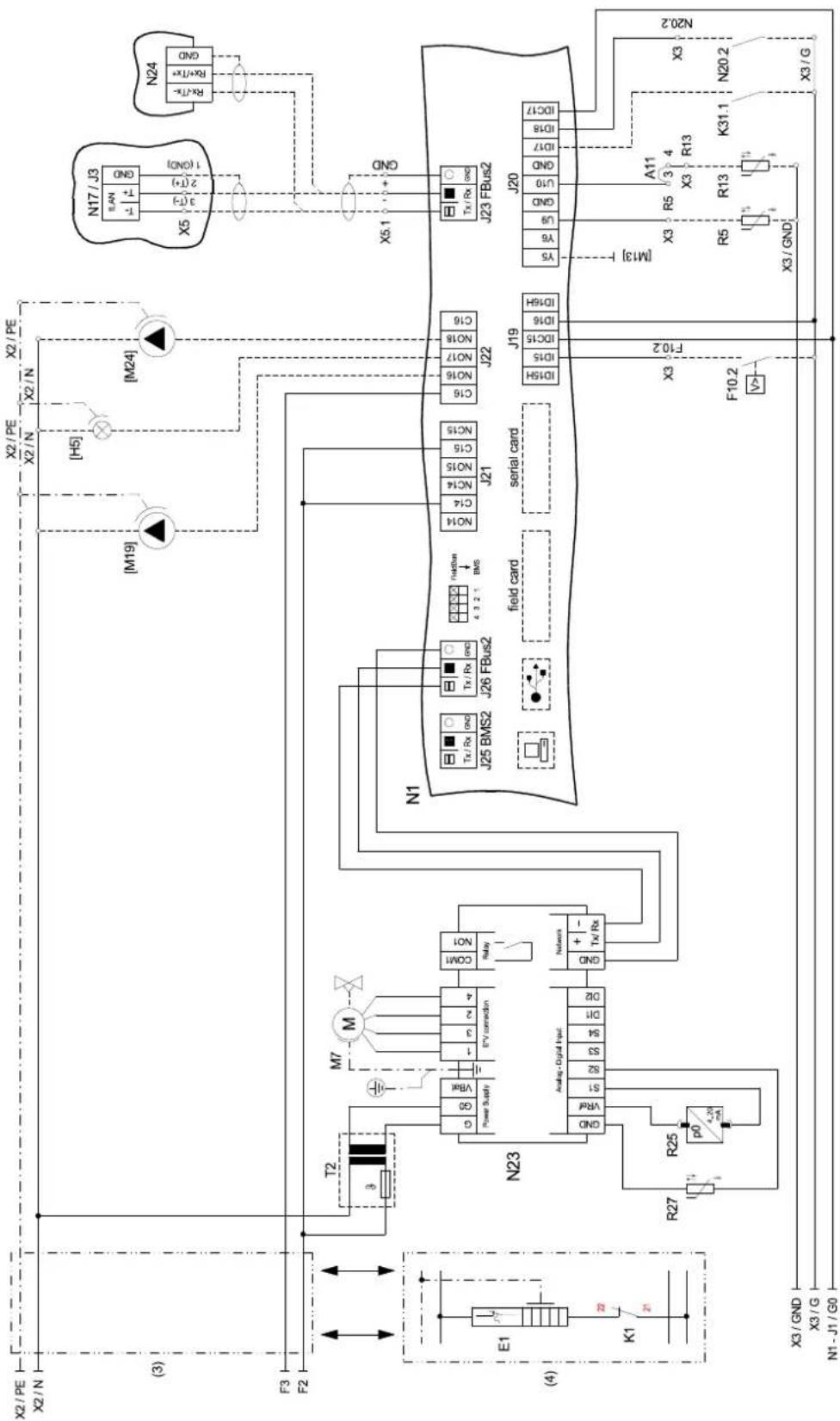

3.4 Anschlussplan / Connection Plan / Schéma de connexion
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
        AA
        AB
    end

    subgraph Control_Circuit
        B
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
    end

    subgraph Power_Circuit
        B
        C
    end

    subgraph Control_Circuit
        D
        E
    end

    subgraph Power_Circuit
        F
    end

    subgraph Control_Circuit
        G
    end

    subgraph Power_Circuit
        H
    end

    subgraph Control_Circuit
        I
    end

    subgraph Power_Circuit
        J
    end

    subgraph Control_Circuit
        K
    end

    subgraph Power_Circuit
        L
    end

    subgraph Control_Circuit
        M
    end

    subgraph Power_Circuit
        N
    end

    subgraph Control_Circuit
        O
    end

    subgraph Power_Circuit
        P
    end

    subgraph Control_Circuit
        Q
    end

    subgraph Power_Circuit
        R
    end

    subgraph Control_Circuit
        S
    end

    subgraph Power_Circuit
        A
    end

    subgraph Control_Circuit
        B
    end

    subgraph Power_Circuit
        C
    end

    subgraph Control_Circuit
        D
    end

    subgraph Power_Circuit
        E
    end

    subgraph Control_Circuit
        F
    end

    subgraph Power_Circuit
        G
    end

    subgraph Control_Circuit
        H
    end

    subgraph Power_Circuit
        I
    end

    subgraph Control_Circuit
        J
    end

    subgraph Power_Circuit
        K
    end

    subgraph Control_Circuit
        L
    end

    subgraph Power_Circuit
        M
    end

    subgraph Control_Circuit
        N
    end

    subgraph Power_Circuit
        O
    end

    subgraph Control_Circuit
        P
    end

    subgraph Power_Circuit
        Q
    end

    subgraph Control_Circuit
        R
    end

    subgraph Power_Circuit
        S
    end

    subgraph Control_Circuit
        T
    end

    subgraph Power_Circuit
        U
    end

    subgraph Control_Circuit
        V
    end

    subgraph Power_Circuit
        W
    end

    subgraph Control_Circuit
        X
    end

    subgraph Power_Circuit
        Y
    end

    subgraph Control_Circuit
        Z
    end

    subgraph Power_Circuit
        AA
    end

    subgraph Control_Circuit

3.5 Anschlussplan / Connection Plan / Schéma de connexion
3.6 Legende / Legend / Légende

A1 Brücke EVU-Sperre, muss eingelegt werden, wenn kein EVU-Sperrschütz vorhanden ist (Kontakt offen = EVU-Sperre		Utility block (EVU) bridge must be inserted if no utility blocking contactor is present(contact open = utility block).	Pont de blocage de la société d'électricité, à insé- rer en absence de contacteur de blocage de la société d'électricité(contact ouvert = blocage de la société d'électri- cité)
A2 Brücke Sperre: muss entfernt werden, wenn der Eingang genutzt wird(Eingang offen = WP gesperrt)		Block bridge: Must be removed when the input is being used(input open = HP blocked).	Pont de blocage : à retirer si l'entrée est utilisée(entrée ouverte = pompe à chaleur bloquée)
A3 Brücke Störung M11: muß entfernt werden, wenn der Eingang gnutzt wird(Eingang offen = Störung M11)		M11 link cable fault: must be removed when the input is being used(input open = M11 fault)	Pont défaut M11 : à retirer si l'entrée est utilisée(entrée ouverte = défaut M11)
A11 Brücke Solar: bei Verwendung eines Solarmoduls muss die Brücke entfernt werden und die Klemmstellen mit dem Solar-Modul verbunden werden.		Solar bridge: When a solar energy module is used, the bridge must be removed and the solar energy module connected to the terminal connections.	Pont solaire : en cas d'utilisation d'un module solaire, retirer le pont et connecter les bornes au module solaire.
A - R2 Brücke Rücklauffühler: - muss versetzt werden, wenn doppelt differenzdruckloser Verteiler und „Heizkreisumkehrventil“ verwendet wird.Neue Klemmstellen: X3 / 1 und X3 / 2		Return sensor bridge: - Must be moved when a dual differential pressureless manifold and a "heating circuit reversing valve" are used.New terminal connections: X3/1 and X3/2	Pont sonde sur circuit de retour : - à déplacer si le distributeur double sans pression différentielle et la « vanne d'inversion du circuit de chauffage » sont utilisés.Nouveaux emplacements de borne : X3 / 1 et X3 / 2
B2*	Pressostat Niederdruck Primärkreis	Low-pressure controller, primary circuit	Pressostat basse pression circuit primaire
B3* Thermostat Warmwasser Hot water thermostat Thermostat eau chaude
B4*	Thermostat Schwimmbadwasser	Swimming pool water thermostat	Thermostat eau de piscine
E1	Ölsumpfheizung	Oil sump heater	Chauffage à carter d'huile
E9*	Tauchheizkörper Warmwasser)	Immersion heater for hot water	Résistance immergée eau chaude sanitaire
E10*	2. Wärmeerzeuger	2ndheat generator	2ème généraut de chaleur
F2	Sicherung für Steckklemmen J12; J13 und J21 5x20 / 4,0AT	Fuse for plug-in terminals J12; J13 and J21 5x20 / 4,0AT	Fusible pour bornes enfichables J12 ; J13 et J21 5x20 / 4,0AT
F3	Sicherung für Steckklemmen J15 bis J18 und J22 5x20 / 4,0AT	Fuse for plug-in terminals J15 to J18 and J22 5x20 / 4,0AT	Fusible pour bornes enfichables J15 à J18 et J22 5x20 / 4,0AT
F4	Hochdruckpressostat	High-pressure switch	Pressostat haute pression
F5	Niederdruckpressestat	Low-pressure switch	Pressostat basse pression
F7	Heißgasthermostat	Hot gas thermostat	Thermostat gaz chaud
F10.1*	Durchflusschalter Primärkreis	Flow rate switch for primary circuit	Commutateur de débit circuit primaire
F10.2*	Durchflusschalter Sekundärkreis	Flow rate switch for secondary circuit	Commutateur de débit circuit secondaire
F12	Störmeledekontakt N7	Fault signaling contact N7	Contact de signalisation de défauts N7
[H5]*	Leuchte Störfernanzeige	Remote fault indicator lamp	Témoin de télédétection de pannes
J1	Spannungsversorgung	Voltage supply	Alimentation en tension
J2-3	Analogeingänge	Analogue inputs	Entrées analogiques
J4	Analogausgänge	Analogue outputs	Sorties analogiques
J5	Digitaleingänge	Digital inputs	Entrées numériques
J6	Analogausgänge	Analogue outputs	Sorties analogiques
J7-8	Digitaleingänge	Digital inputs	Entrées numériques
J10	Bedienteil	Control panel	Unité de commande
J11	frei	free	libre
J12-J18	230 V AC - Ausgänge	230V AC outputs 230 V AC - outputs	Sorties 230 V AC
J19	Digitaleingänge	Digital inputs	Entrées numériques
J20	Analogausgänge; Analogeingänge, Digitaleingänge	Analogue outputs; Analogue inputs, Digital inputs	Sorties analogiques, entrées analogiques, entrées numériques
J21-22	Digitalausgänge	Digital outputs	Sorties numériques
J23	Bus-Verbindung zu Modulen	Bus connection to modules	Raccordement Bus aux modules
J24	Spannungsversorgung für Komponenten	Power supply for components	Alimentation en tension des composants
J25	Schnittstelle	Interface	Interface
J26	Bus - Verbindung intern	Bus connection internal	Raccordement interne au bus
K1 Schütz M1		Contactor M1	Contacteur M1
K20*	Schütz E10	Contactor E10	Contacteur E10
K21*	Schütz E9	Contactor E9	Contacteur E9
K22*	EVU-Sperrschütz	Utility blocking contactor	Contacteur de coupure du fournisseur d'énergie
K23*	Hilfsrelais für Sperreingang	Auxiliary relay for disable contactor	Relais auxiliaire pour entrée du contacteur de blo- cage
K31.1*	Anforderung Zirkulation Warmwasser	Domestic hot water circulation request	Demande circulation ECS
M1	Verdichter	Compressor	Compresseur
M7	Stellmotor für Expansionsventil	Actuator for expansion valve	Servomoteur pour détendeur
M11*	Primärkreispumpe	Primary circuit pump	Pompe circuit primaire
M13*	Heizungsumwälzpumpe	Heat circulating pump	Circulateur de chauffage
M15*	Heizungsumwälzpumpe 2. Heizkreis	Heat circulating pump for heating circuit 2	Circulateur de chauffage pour le 2e circuit de chauffage
M16*	Zusatzumwälzpumpe	Auxiliary circulating pump	Circulateur supplémentaire
M18*	Warmwasserladepumpe	Hot water loading pump	Pompe de charge eau chaude sanitaire
[M19]*	Schwimmbadwasserumwälzpumpe	Swimming pool circulating pump	Circulateur de la piscine
M21*	Mischer Hauptkreis oder 3. Heizkreis	Mixer for main circuit or heating circuit 3	Mélangeur circuit principal ou 3ème circuit de chauffage
M22*	Mischer 2. Heizkreis	Mixer for heating circuit 2	Mélangeur 2e circuit de chauffage
[M24]*	Zirkulationspumpe Warmwasser	Domestic hot water circulating pump	Pompe de circulation eau chaude sanitaire
N1	Regeleinheit	Control unit	Unité de régulation
N7	Sanftanlaufsteuerung M1	Soft start control M1	Commande de démarrage progressif M1
N14	Bedienteil	Control panel	Unité de commande
N17*	pCOe-Modul	pCOe module	Module pCOe
N20	Wärmemengenzähler	Thermal energy meter	Compteur de chaleur
N23	Ansteuerung elektronisches Expansionsventil E*V connection (1 = grün; 2 = gelb; 3 = braun; 4 = weiß)	Control for electronic expansion valve E*V connection (1=green; 2=yellow; 3=brown; 4=white)	Commande détendeur électronique connexion E*V(1=vert ; 2=jaune ; 3=marron ; 4=blanc)
N24*	Smart RTC	Smart RTC	Smart RTC
R1*	Außenfühler	External sensor	Sonde extérieure
R2 Rücklauffühler Heizkreis Return sensor for heating circuit Sonde de retour circuit de chauffage
R2.1* Rücklauffühler Heizkreis im doppelt differenzdrucklosen-Verteiler		Return sensor for heating circuit in dual differential pressureless manifold	Sonde de retour circuit de chauffage dans le distributeur double sans pression différentielle
R3* Warmwasserfühler Hot water sensor Sonde d'eau chaude
R5* Fühler 2. Heizkreis		Sensor for heating circuit 2	Sonde pour 2e circuit de chauffage
R6 Vorlauffühler Primärkreis Flow sensor for primary circuit Sonde aller circuit primaire
R7 Codierwiderstand		Coding resistor	Résistance de codage
R9 Vorlauffühler Heizkreis		Flow sensor for heating circuit	Sonde aller circuit de chauffage
R13* Fühler regenerativ, Raumfühler, Fühler 3. Heizkreis		Renewable sensor, room sensor, sensor for heating circuit 3	Sonde mode régénératif, sonde d'ambiance, sonde 3ème circuit de chauffage
R24 Rücklauffühler Primärkreis		Return sensor, primary circuit	Sonde retour circuit primaire
R25 Drucksensor Kältekreis - Niederdruck pO		Pressure sensor for refrigerating circuit - low pressure pO	Capteur de pression circuit réfrigérant - basse pression pO
R26 Drucksensor Kältekreis - Hochdruck pc		Pressure sensor for refrigerating circuit - high pressure pc	Capteur de pression circuit réfrigérant - haute pression pc
R27 Sauggasfühler		Suction gas sensor	Sonde de gaz d'aspiration
T1 Sicherheitstransformator 230 / 24 V AC - Regelung		Safety transformer 230 / 24 V AC - regulation	Transformateur de sécurité 230 / 24 V AC - Régulation
T2 Sicherheitstransformator 230 / 24 V AC - N23		Safety transformer 230 / 24 V AC - N23	Transformateur de sécurité 230 / 24 V AC - N23
X1 Klemmleiste Einspeisung Last		Terminal strip, infeed	Alimentation bornier
X2 Klemmleiste Spannung = 230 V AC		Terminal strip voltage = 230 V AC	Tension bornier = 230 V AC
X3 Klemmleiste Kleinspannung < 25 V AC		Terminal strip, extra-low voltage < 25 V AC	Faible tension bornier < 25 V AC
X5.1 Busverteilerklemme		Bus distribution board terminal	Réglettes Bus
* Bauteile sind bauseits anzuschließen / beizustellen		Components must be connected / supplied by the customer	Les pièces sont à raccorder / à fournir par le client
[] Flexible Beschaltung - siehe Vorkonfiguration (Änderung nur durch Kundendienst!)		Flexible switching - see pre-configuration (changes by after-sales service only!)	Commande flexible - voir pré-configuration (modification uniquement par le SAV!)
------ werksseitig verdrahtet		Wired ready for use	câblé en usine
------ bauseits bei Bedarf anzuschließen		To be connected by the customer as required	À raccorder par le client au besoin
(1) nur bei SI 6TU		only in case of SI 6TU	uniquement pour SI 6TU
(2) nur bei SI 8TU, SI 11TU, SI 14TU, SI 18TU		only in case of SI 8TU, SI 11TU, SI 14TU, SI 18TU	uniquement pour SI 8TU, SI 11TU, SI 14TU, SI 18TU
(3) nur bei SI 6TU, SI 8TU, SI 11TU, SI 14TU		only in case of SI 6TU, SI 8TU, SI 11TU, SI 14TU	uniquement pour SI 6TU, SI 8TU, SI 11TU, SI 14TU
(4) nur bei SI 18TU		only in case of SI 18TU	uniquement pour SI 18TU
	ACHTUNG!	ATTENTION!	ATTENTION!
	An den Steckklemmen N1-J1 bis J11, J19, J20; J23 bis J26 und den Klemmleisten X3, X5.1 liegt Kleinspannung an. Auf keinen Fall darf hier eine höhere Spannung angelegt werden.	Plug-in terminals N1-J1 to J11, J19, J20, J23 to J26 and terminal strip X3, X5.1 are connected to extra-low voltage. A higher voltage must on no account be connected.	Une faible tension est appliquée aux bornes enfichables N1-J1 à J11, J19, J20, J23 à J24 et au bornier X3, X5.1. Ne jamais appliquer une tension plus élevée.

ACHTUNG!

ATTENTION!

ATTENTION!

F-67590 Schweighouse Sur Moder

T+33 3 88 07 18 00

F [phone]

[e-mail]

www.dimplex.de/fr

Verkauf und Planung

Projektierung
