Product type	Mobile multimedia car radio
Brand and model	Mac Audio VME 9114 TS
Dimensions (chassis)	1.0 DIN (ISO-DIN)
Screen	7 inch motorized TFT LCD, 1440x234 pixels resolution, LED backlight, touchscreen
Power supply	11-16 V DC, negative ground
Fuse	Mini-ATM 15 A
Audio outputs	Preamp 100 Ω, 2 VRMS (all channels)
Auxiliary inputs	USB 1.1 (500 mA max), front AUX, rear camera input
FM radio	87.5-108 MHz, 30 preset stations (18 FM, 12 AM)
AM radio	522-1620 kHz
Playback formats	DVD±R/RW, CD-R/RW, CD-DA, MP3, WMA, VCD, SVCD, AVI, MPEG1/2, XviD, JPEG
Audio functions	3-band equalizer + 7 preset EQ curves, balance/fader, programmable volume
Additional functions	RDS, remote control included, screen tilt adjustment, antenna output (500 mA)
Safety	Parking brake cable for video, warning against use while driving
Maintenance	Clean with silicone cloth and neutral detergent; avoid water and alcohol
Operating temperature	Normal room temperature; avoid extremes

Frequently Asked Questions - VME 9114 TS MAC AUDIO

The device does not power on, what to do?

Check the radio fuse (15A) and the vehicle battery fuse. Replace them if necessary. If the problem persists, press the RESET button located on the lower right corner of the front panel.

The remote control does not work

Replace the battery of the remote control. Make sure it is inserted in the correct orientation (polarity). Point the remote control toward the device's sensor.

No sound or very low sound

Check the speaker wiring, volume setting (0-40), and mute status (rotary encoder button). Check balance and fader. The MUTE wire must not be short-circuited.

The screen remains black or does not open

If the screen does not open automatically, activate the 'TFT Auto Open' option in the Hardware menu. Make sure the parking brake is engaged (if the PRK SW cable is connected). Press the OPEN button to open manually.

How to tune the radio?

Select the FM/AM band with the BAND button. Use the << and >> keys for automatic search or the arrow keys for manual tuning. To store a station, press MEM then a preset number (P1-P6).

The disc is not read (Bad Disc or Unknown Disc)

Clean the disc with a soft cloth. Insert it with the label facing up. Verify that the format is compatible (DVD, CD, MP3, etc.). If the region code is incorrect, a 'Region Error' message appears. Use an appropriate disc.

How to connect a rear view camera?

Connect the video cable from the camera to the 'CAMERA IN' input of the car radio. Connect the 'PINK' wire (PRK SW) to the parking brake. In the Hardware menu, you can reverse the image if necessary.

How to play MP3 files from a USB stick?

Insert the USB stick into the USB port on the front panel (500 mA max). Select USB source via the SRC menu. Use navigation keys to browse folders and files. Up to 1500 files are supported.

The video image is blurry or distorted

Check the image format setting (WIDE, NORMAL). Ensure the video signal (NTSC/PAL) is correctly configured in the Hardware menu. A poor quality disc can also cause issues.

How to reset the device to factory settings?

Go to the SETUP menu -> 'Factory Settings' and select 'Initialize'. You can also press the RESET button with a pen tip. Note: passwords and parental settings are retained except via physical reset.

USER MANUAL VME 9114 TS MAC AUDIO

Technical line drawing of an electronic device with a screwdriver inserted, showing internal components and mounting bracket (no text or symbols)

Technical line drawing of a device with an inset showing a close-up of a device (no text or symbols present)

Wiring Diagram

D

Diagram showing a mechanical assembly with two views of a component, no text or symbols present.

CINEMA

Setting	Options	Function
Clock Mode	12Hr	Clock displays 12 hour time using AM and PM.
	24Hr	Clock displays 24 hour time up to 23:59.
Clock	(HH:MM)	Clock appears in the top right corner of the screen during certain operations. NOTE: The AM/PM indication will change as you continue to adjust the hour past 12.
Tuner Region	Europe	• AM Frequency Spacing - 9kHz• AM Frequency Band - 522kHz~1620kHz• FM Frequency Spacing - 50kHz• FM Frequency Band - 87.5MHz~108.0MHz
Beep	Off	No beep sounds
	On	When turned on, an audible beep tone confirms each function selection.

Table 5: Disc Symbols

Symbol	Meaning
	Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).
	Number of sublittle languages available on the disc (maximum of 32).
	Number of angles provided (maximum of 9)
	Aspect ratios available. "LB" stands for Letter Box and "PS" stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

DVD/CD AUDIO-BETRIEB

Thank you for choosing a Audiovox product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to use all the features of your new Audiovox VME 9114TS Mobile Multimedia Receiver for maximum enjoyment.

Preparation 3

Optional Equipment 3

Warning 4

Installation 5

Wiring Diagram 7

Controls and Indicators 8

Using the TFT Monitor 10

Operating Instructions 11

Setup Menu 12

Tuner Operation 15

DVD/CD Video/Audio-Operation 18

MP3/USB/WMA 23

Troubleshooting 33

Care and Maintenance 28

Specifications 28

Warranty Card

PREPARATION

Congratulations on your purchase of the Audiovox VME 9114TS Mobile Multimedia Receiver.

It's a good idea to read all of the instructions before beginning the installation. We recommend having your Audiovox VME 9114TS installed by a reputable installation shop.

Features

DVD

• Aspect Ratio - Cinema, Normal and OFF (Standby)
• Fast Forward, Fast Reverse - 2X, 4X, 8x and 20X
• Slow Forward, Slow Reverse - 2X, 4X, 8x and 20X
• Play, Pause, Stop, Next Chapter and Previous Chapter
• ESP-2MB Buffer

CD / MP3 / WMA

• CD-Text Compatible
• ID3 Tag Compatible
- Directory Search (MP3 / WMA Only)
- Burn Up To 1500 MP3 and WMA Files onto a DVD+R /RW
• Random, Repeat and Intro
- Play, Pause, Stop, Next Track and Previous Track
- ESP-2MB Buffer

AM-FM-RDS

• Europe Frequency Spacing

• 30 Station Presets (18 FM, 12 AM)

• Auto Stereo/Mono

- Local/Distance

• Auto Store/Preview Scan

• RDS (Radio Data System)

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)
- 17,8cm / (7") TFT Active Matrix LCD with LED Backlight
• 336,960 sub pixels, 1440 (W) X 234 (H)
- Heat Management System - Forced Air Cooling to keep the chip sets operating at nominal temperatures
- Front Audio/Video Input (3,5 mm jack)
• USB 1.1 (500 mA max.)

General

• Three-Band Tone control (Bass, Mid and Treble) w/ seven Preset EQ Curves
• Rear Line Output
  • Programmable Volume Control
• Rear Camera Input (Normal and Mirror Image View)
• Touch Screen Calibration Mode
  • 100-Ohm Preamp Line Output - Rear Audio Channels
  • 2VRMS Line Output - Rear Channels
  • Rotary Encoder Audio Control

WARNING! Only connect the unit to a12-volt power supply with proper grounding.

WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.

WARNING! Using an improper fuse may cause damage to the unit and result in a fire.

WARNING! The monitor employs an automatic motorized mechanism. To prevent damage to the core mechanism, please do not push, pull or swivel the monitor manually.

MONTAGE

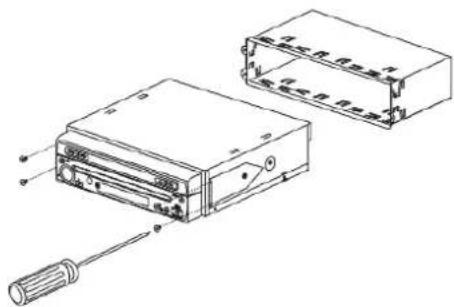

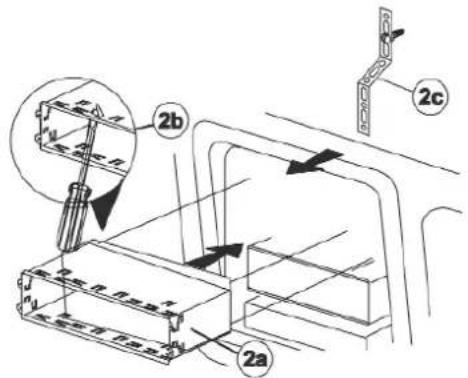

1. INSTALLATION

Remove the four screws that attach the mounting sleeve to the radio and remove the sleeve.

Technical line drawing of an electronic device showing internal components and a screwdriver inserted (no text or symbols)

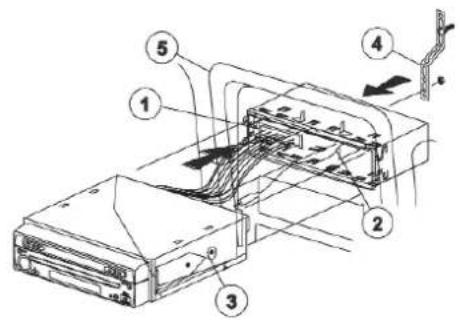

1. Install the half-sleeve.
   a. Install adapter if necessary (optional).
   b. Install half-sleeve into adapter or dashboard (use only the supplied screws). Do not force the sleeve into the opening or cause it to bend or bow.
   c. Locate the series of bend-tabs along the top, bottom and sides of the mounting sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary so that the sleeve is firmly secured to the dashboard.
   d. Install support strap to make the unit more stable.

CAUTION! Be careful not to damage the car wiring.

1. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve.

Wiring

Complete wiring as illustrated in the wiring diagram on page 8. Once the wiring is complete, reconnect the battery negative terminal. If there is no ACC available, connect the ACC lead to the power supply with a switch.

NOTE:

When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VME 9309TSB uses one 15 amp mini-ATM fuse, located in the black filter box in-line with the main wire harness.

Final Installation

After completing the wiring connections, turn the unit on to confirm operation (ignition switch must be on). If unit does not operate, recheck all wiring until problem is corrected. Once proper operation is achieved, turn off the ignition switch and proceed with final mounting of the chassis.

1. Connect wiring adapter to existing wiring harness.
2. Connect antenna lead.
3. Carefully slide the radio into the half-sleeve, making sure it is right-side-up, until it is fully seated and the spring clips lock it into place.

NOTE:

For proper operation of the CD/DVD player, the chassis must be mounted within 20^ of horizontal. Make sure the unit is mounted within this limitation.

1. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and hex nut provided. Bend the strap to position it as necessary.

CAUTION! The rear of the radio must be supported with he strap to prevent damage to the dashboard from the weight of the radio or improper operation due to vibration.

1. Replace any items you removed from the dashboard.

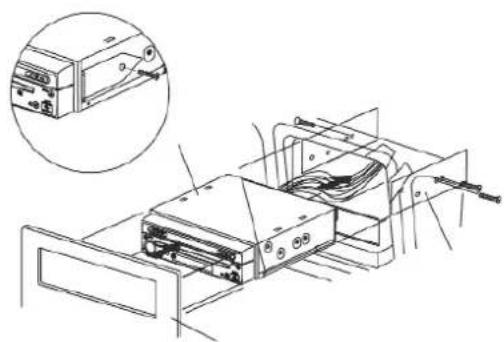

Final ISO-DIN Installation

1. Remove trim ring.
2. Mount factory brackets on new radio using existing screws from old radio.
3. Slide radio chassis into dash opening and secure.
4. Reinstall dash panel.

Technical line drawing of an electronic device with a zoomed-in inset showing internal components (no text or symbols)

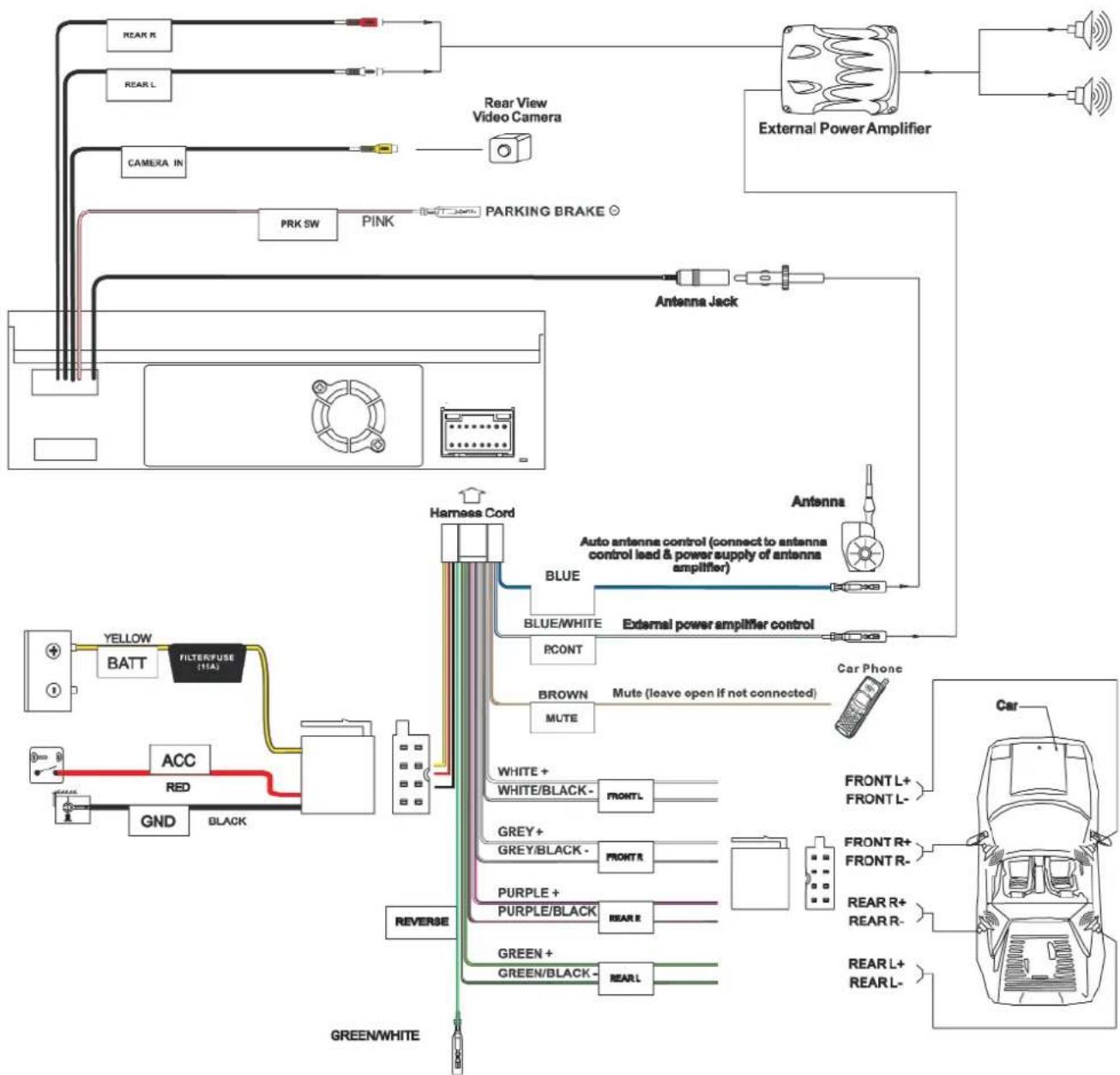

Wiring Diagram

IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully or have the installation handled by an experienced technician.

Subject to technical changes

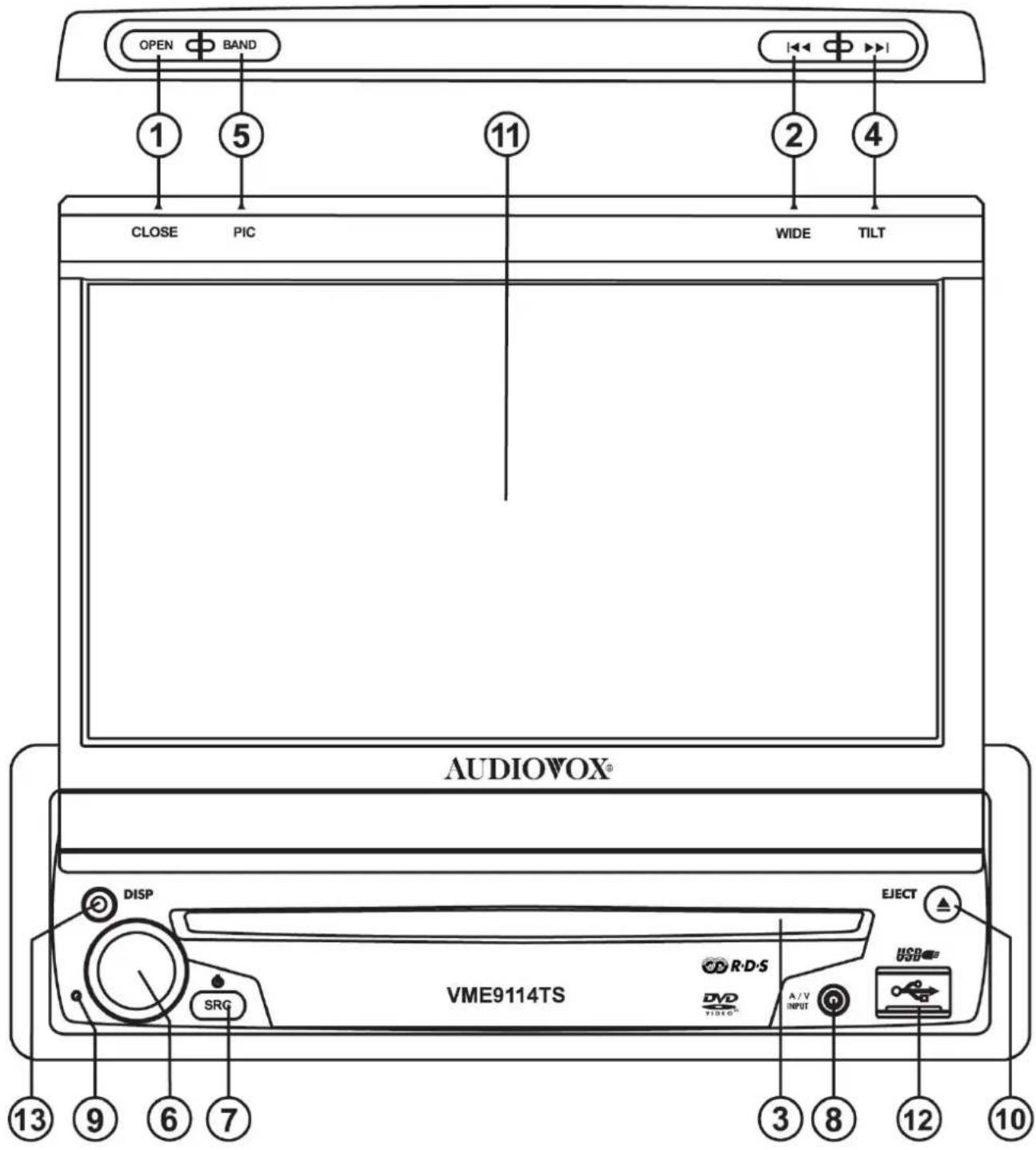

CONTROLS AND INDICATORS

Button Operation

1. OPEN/CLOSE

Press to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to close the TFT.

2. WIDE

When the monitor is retracted the station search function is started in the direction of lower frequencies by pressing button . If button is pressed briefly when the monitor is extended, the image switches between Full and Standby mode for the monitor.

3. DISC SLOT

4. ▶ | / TILT

When the monitor is retracted the station search function is started in the direction of higher frequencies by pressing ▶.

Pressing the TILT button when the monitor is extended activates the angular adjustment function of the monitor, which can be adapted to requirements by using the volume controller.

5. BAND/PIC

When the monitor is retracted you can switch between FM 1/2/3 and AM1/2 by pressing the BAND button.

When the monitor is extended the brightness and contrast settings can be adjusted by pressing the PIC button.

6. ROTARY ENCODER

Rotate to adjust the volume. Press and release to enter and/or confirm audio settings. Press and hold to activate the Local (LOC) setting.

7. SRC

Briefly pressing the SRC button switches on the device. The device is switched off by pressing and holding the SRC button. Briefly pressing the SRC button while the device is switched on and the monitor is retracted activates the source selection function, which appears on the small display. Select your desired source on the display.

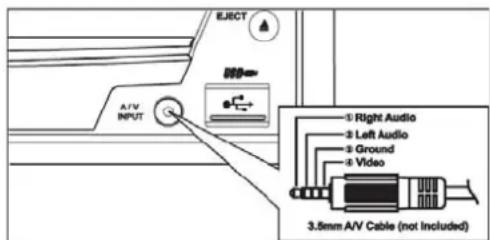

8. FRONT AV INPUT

The front audio/video input function can be selected via the source selection menu (AUX1).

You can connect portable media devices to this input.

9. RESET

Press to reset system settings to factory default (except the password and parental lock setting).

10. ()

Press once for disc insertion/ejection. Press and hold to reset core mechanism position.

11. TFT Display

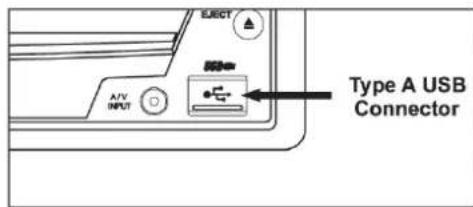

12. USB connection

Front USB input including "slidable" cover. The USB input can accommodate standard USB media devices that do not exceed a maximum amperage of 500 mA. Audio and video formats can be played back via this input.

Connectable media include e.g. MP3 players, USB sticks and cameras (provided that these cameras save images in JPEG format).

13. DISP

In the CD/DVD mode the DISP (Display) button activates the upper status line which includes additional information relating to the disc, such as the track number and running time.

Subject to technical changes

USING THE TFT MONITOR

Open/Close TFT Monitor

Open TFT Monitor

Press the OPEN button (1) on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button (1) on the front panel to load the display panel back into the compartment.

TFT Monitor Auto Open

If "TFT Auto Open" is "on" when the unit is turned on, the monitor automatically moves to the viewing position.

If "TFT Auto Open" is "off" when the unit is turned on, press the OPEN button (1) to move the monitor into the viewing position.

If "TFT Auto Open" is set to "Manual", the TFT will not close when the key is turned off.

Monitor Tilt Angle Adjustment

A known characteristic of LCD panels is the quality of the display in relationship to the viewing angle. The monitor angle can be adjusted for optimum viewing using one of the following methods:

Step by Step Angle Adjustment

Press the (4) to adjust the tilt angle of the screen one step at a time.

Press the TILT button (5) on the unit. While the blue tilt icon is flashing, turn the rotary encoder to adjust the screen angle.

Aspect Ratio

Press the WIDE button (2) on the monitor to adjust the aspect ratio as follows:

Diagram showing a mechanical assembly with two stages of a rotating component (no text or symbols)

FULL

The entire screen is extended horizontally to the aspect ratio of

16 to 9. The extension ratio is the same at any point.

NORMAL

The conventional display image has a 4 to 3 ratio of horizontal to vertical,

leaving a blank area on the right and left sides of the display.

STANDBY

Screen becomes black. Touch screen to resume.

Playing Source Video Output Modes
Radio RGB-Modus
Disc RGB-Modus
USB CVBS-Modus
AUX CVBS-Modus
CAMERA CVBS-Modus

Parameter Adjustment Procedure

1. Enter Picture Quality Setting Mode:

Press the PIC button control panel.

1. Select Item to Set:

Press the PIC button (2) on the control panel to select

"BRIGHT" or "CONTRAST".

1. Turn the rotary encoder on the control panel.

2. Exit Picture Quality Setting Mode:

Press the button PIC (2) on the monitor.

* CVBS - Composite Video Baseband Signal

Parking Brake Inhibit

• When the "PRK SW" cable is connected to the brake switch, the display on the TFT monitor will display video only when the vehicle is applied.
• Parking brake function is overridden when the video source is set to CAMERA.

Mute

Press the rotary encoder to mute the volume from the unit. Press the rotary encoder again to restore the volume. "MUTE" is displayed on the LCD.

OPERATING INSTRUCTIONS

Power On / Off

Press the ⏻ /SRC button (7) on the unit to turn the unit on. The buttons on the front of the unit light up. Press and hold the ⏻ button to power off the unit. The monitor is drawn back into the main compartment.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.

Playing Source Selection

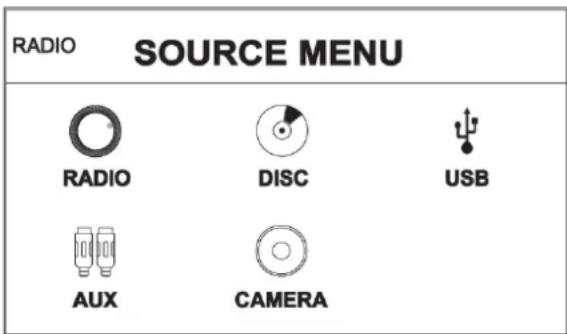

To access the SOURCE MENU, touch the top left corner of the screen or press the SRC button on the front panel (7). Use the touch screen to change the source through the SOURCE MENU.

Volume Adjustment

To increase or decrease the volume level, turn the rotary encoder (6) on the front panel. When the volume level reaches "0" or "40", a beep sounds, indicating that the adjustment limit has been reached. The volume ranges from "0" to "40". The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unitoff. To program a specific turn-on volume level, turn the rotary encoder (6) to adjust the volume to the desired turn-onvolume. Push and hold the AUDIO button while the yellow speaker icon and level indication is displayed on the screen. The unit will beep two times to confirm your turn-on volume setting.

Audio Control Menu

The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer. Press the EQ button on the touchscreen once to display the audio menu. To adjust an audio feature:

Function Adjustment option
EQ User		Adjustment of Bass/Mid/Treble separately available
	Rock	By push at the “EQ”-field you can choose between the pre adjusted EQ’s
	Hip Hop
	Dance
	Latin
	Rave
	Urban
	Acoustic
FAD-BAL By push at the gridfield you can adjust the Fader/Balance accordingly.

SETUP MENU

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the reset button (9) located on the front bottom-left corner of the unit. After a system reset, the unit restores all factory default settings.

NOTE: If the unit is reset while a DVD is playing, the DVD resumes play once the reset is complete.

SETUP MENU

To access system settings, touch the button

on the screen to enter the "SETUP" menu. The "GENERAL" sub-menu appears highlighted in blue

Accessing Menu Items

Touch the sub-menu name to select a sub-menu (Language, Audio, RDS, etc.).

Adjusting a Feature

1. Use the touchscreen to select the feature to be adjusted.
2. Enter the option field for the feature you want to adjust by using the touchscreen. A submenu appears in a second row with the selected option highlighted in blue.
3. Select a new value by using the touchscreen. remote control.
4. Use the touchscreen to confirm setup.

GENERAL Sub-menu Features

Setting	Options	Function
Clock Mode	12Hr	Clock displays 12 hour time using AM and PM.
	24Hr	Clock displays 24 hour time up to 23:59.
Clock	(HH:MM)	Clock appears in the top right corner of the screen during certain operations. NOTE: The AM/PM indication will change as you continue to adjust the hour past 12.
Tuner Region	Europe	• AM Frequency Spacing - 9kHz• AM Frequency Band - 522kHz~1620kHz• FM Frequency Spacing - 50kHz• FM Frequency Band - 87.5MHz~108.0MHz
Beep	Off	No beep sounds
	On	When turned on, an audible beep tone confirms each function selection.

Language Sub-menu Features

If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.

Setting Options Function
Language English	FrancaisDeutsch	On Screen Display appears in English.On Screen Display appears in French.On Screen Display appears in German.
Audio English	FrancaisDeutsch	DVD Audio is heard in English when the option is available.DVD Audio is heard in French when the option is available.DVD Audio is heard in German when the option is available.
Subtitle English	FrancaisDeutschOffAuto	DVD subtitles automatically appear in English when available.DVD subtitles automatically appear in Francais when available.DVD subtitles automatically appear in German when available.DVD subtitles do not appear automatically.
DVD Menu English	FrancaisDeutsch	DVD menu (if applicable) is displayed in English.DVD menu (if applicable) is displayed in Francais.DVD menu (if applicable) is displayed in German.

Audio Sub-menu Features

Setting Options Function
Loudness ON	OFF	Function
DRC ON	OFF	Employ the Dynamic Range Control for better playback for low volumes.

RDS Sub-menu Features

Setting Options Function
RDS ON	OFF	Unit will display Radio Data System information when available.
CT ON	OFF	Clock timesupported by RDS
		Manual Clocktime adjustment
TA/Vol		Volumen increasement for traffic announcements.

Misc Sub-menu Features

Load Factory Reset

Select RESET to restore the factory settings.

Hardware Sub-menu Features

Setting Options Function
Camera In Normal	Mirror	Images, the camera around as you would look in a mirror.
TFT Auto Open On	Off	The TFT panel automatically opens when the unit is turned on.You must press the OPEN button (1) to open the TFT panel.When the ignition is turned OFF, the TFT panel DOES NOT retract if it was previously out.
	Manual
Video Input (Input circuitry autodetects the video signal from the Aux In source).	NTSC	The color signals are output in the standard NTSC format.The color signals are output in the standard PAL format.The color signal output is switched automatically based on the current video input signal - NTSC or PAL.
	PAL
	AUTO

Setting Options Function
Source Radio		Choose a sourcefor which you would like to increase the relative volume (LEVEL).Use the +/- buttons to increase relative volume for specified source up to 6 decibels.
	Disc
	USB
	AUX

TS Cal (Screen Calibration)

To access the "Screen Calibration" function from the SETUP menu, select the "TS CAL" option.

After entering calibration mode, a crosshair appears in a corner quadrant of the screen. To begin calibration, press and hold the crosshair for one second until it moves to the next quadrant. Continue for each quadrant until the calibration is completed.

Demo Sub-Menu Features

You can stop/run demonstration mode or turn Demo Auto Run on/off by choosing the "Demo" option from the SETUP MENU. When Demo "Auto Run" is Off, you can select "Demo > Run" to start Demo Mode. Demo scrolls through the various source screens, simulating activity on the display. "Demo" is discreetly displayed in blue text (below the clock), to indicate the unit is in Demo Mode. To stop Demo Mode, touch the upper-left quadrant of the TFT (Source select). When Demo "Auto Run" is On, the unit will automatically display Demo Mode when powered on.

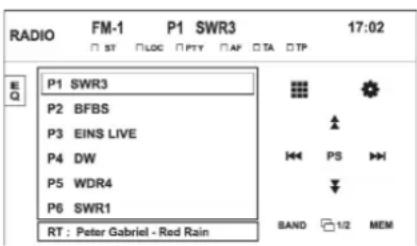

1. Current radio band indicator
2. Radio frequency indicator
3. Clock
4. Stereo broadcasting indicator
5. Strong Local signal broadcasting indicator
6. Preset radio stations: Touch to recall preset stations
7. RDS Information: PS (Program Service), PTY (Program Type), RT (Radio Text)
8. Touch for quick access to Equalizer level settings
9. Touch to access the direct entry screen
10. Current preset station indicator
11. |<<: Touch to seek backward

12. |: Touch to seek forward

13. 🔊 Touch to tune backward one step
14. √ Touch to tune forward one step
15. BAND: Touch to change between AM/FM bands
16. AS: Touch to automatically store stations
17. Touch to view the SOURCE MENU and select a new playback source
18. MEM: View screen used to enter current channel into preset memory
19. 1/2 or 2/2: Touch this page button to view a second page of on-screen buttons
20. :Touch to view the SETUP menu
21. PS (Preview Scan): Touch to scan all stations available, stopping for 5 seconds at each and continuing until a station is selected
22. LOC: Touch to tune to strong local stations
23. PTY: When PTY is pressed, the Program Type categories are listed, allowing listeners to find similar programming by genre. When a PTY category is selected from the touch screen menu, the radio will start scanning for the selected category.
24. Indicates the PTY function is activated
25. Indicates the RDS function is activated
26. TA: (Traffic Announcement) indicator
27. TP: (Traffice Program) indicator
28. Broadcaster information stored at the preset

Switch to Radio Tuner source

- Touch the top left corner of the screen (the RADIO circle) to view the SOURCE MENU. Touch "Radio".

Select FM/AM Band

Touch the BAND button (11) on the screen, or press the BAND button on the unit (5) to change between the following bands: FM1, FM2, FM3, AM1, and AM2

NOTE: The BAND button on the unit only works when the TFT is closed.

Seek Tuning

To seek the next higher station:

- Touch the >>| button on screen.

To seek the next lower station:

- Touch the |<<| button on screen.

Manual Tuning

To increase or decrease the tuning frequency one step:

- Touch the ∧ or ∨ buttons on screen.

Direct Tuning

To enter a radio station directly, touch the button.

Enter the desired radio station using the on-screen numberpad. Press the enter button (arrow) to tune to the selected station. To exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

Using Preset Stations

Six numbered preset buttons store and recall stations for each band. All six stored stations (P1-P6) for the current band appear on the screen.

Storing a Station

1. Select a band (if needed), then select a station.
2. Touch the on-screen MEM button (18) to open the preset screen.
3. Touch the preset number in which you would like to store the current station (or press EXIT to cancel and closethe menu). The preset number and station appears highlighted.

Recalling broadcaster using the presets and the Automatic Storing (AS) Function:

Recalling a preset station

1. Select a band (if needed), then select a station.
2. Touch the on-screen preset button (P1-P6) to open the preset screen.
3. Touch the preset number in which you would like to store the current station (or press EXIT to cancel and close the menu). The preset number and station appears highlighted.

Manual Storing of a Station

1. Please manual tune to the desired broadcaster (Frequency)
2. Push the MEM on-screen button and then select the desired preset (P1-P6)
3. The broadcaster will be stored at the selected one
4. Instead of the frequency the Program Service ID (i.e. BBC) will be stored

Automatic Storing (AS) of the strongest Stations

1. Push the Automatic Storing (AS) on-screen button for 2 seconds
2. The VME start scanning the available broadcasters (which take a while)
3. Once scanning is finished the 6 strongest ones will be stored at P1-P6
4. During Automatic Storing (AS) only the frequencies will be stored at P1-P6 to decrease the scanning/ storing time
5. If you now manually select P1- P6, then the PS information will be finally stored for the selected preset (i.e. P2: BBC)

Radio Text message bar

1. The Radio Text (RT) information is a part of the RDS signal which is supplied by the broadcaster. This information will be shown at the lower bar (i.e. ABCD)
2. Not all broadcaster support this additional information or all the time

Preview Scan (PS)

To scan the AM or FM band for a preview of available stations in your particular area, touch the 1/2 button to access the second screen of menu options touch the PS button (21). Touch again to stop preview scan.

Local Radio Station Seeking (LOC)

When the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in AM/FM tuner mode, touch the 1/2 button to access the second screen of menu options, and then touch the onscreen LOC button. Touch the LOC button again to turn Local off. When the Local function is active, the LOC indicator at the top of the screen is illuminated.

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays "PARKING" with a blue background. Rear video screens, if applicable, will operate normally.

NOTE: DVD-R and DVD-RW will not play unless the recording session is finalized and the DVD is closed.

Ejecting a Disc

Press the button (10) on the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Reset the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the ▲ button (10) on the unit to reset the loading mechanism. Normal operation resumes.

Accessing DVD Mode

Upon inserting a DVD disc, DVD mode is entered and disc play begins.

To switch to DVD mode when a disc is already inserted, press the SRC button (7) on the front panel and press the button DISC.

Controlling Playback

To access the on-screen controls, touch the bottom 1/3 of the screen while a DVD is playing. Touch the 1/2 button to view a second page of controls

Stopping Playback

Touch the stop button (■) on the screen to stop DVD play.

Pausing Playback

Touch the button (▶/||) to suspend disc playback. Press the ▶/|| button on the screen to resume disc playback.

Slow Motion Playback

Press the ▶1/2 button on the screen to play the current title in slow motion. Keep pressing and releasing the button to increase the rate from "2X" to "4X", "8X", and "20X". Press onscreen play button (▶/||) to resume normal play.

Fast Forward Playback

Press the >> button on the screen to fast forward. Keep pressing and releasing the button to increase the rate from "2X" to "4X", "8X", and "20X". Touch the onscreen play button (>) to resume normal play.

Fast Reverse Playback

Press the << button on the screen to fast forward. Keep pressing and releasing the button to increase the rate from "2X" to "4X", "8X", and "20X". Touch the onscreen play button (>) to resume normal play.

Repeat Playback

Press the button on screen to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off
• VCD (PBC Off): Repeat Single, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Press the the A-B button on screen to set the start point (A) of the repeated section.

- Press the A-B button again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.

- Press the A-B button again to cancel the A-B section setting and stop repeat play.

NOTE: When a VCD is playing with PBC turned "On", activating random playback automatically turns PBC off.

Random Playback

With a DVD, VCD, or CD playing to activate random playback and play all chapters/tracks in

random order. Press the button

Press the button again to turn random play off.

NOTE: When a VCD is playing with PBC turned "On", activating random playback automatically turns PBC off.

Moving Through Chapters

Press the >>| button on screen to advance to the next chapter on the DVD. Press the |<< button on screen to move to the previous chapter.

Touch Screen Direct Entry

To select a chapter/track directly, touch the button on screen control to display the direct entry menu.

Enter the desired chapter/track using the on-screen number pad. Press the enter button (arrow) to tune to the selected station. To exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, press the ANGLE button on the remote control to toggle available angles of the on-screen image.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, press the AUDIO button on the screen to choose a language.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, press the SUBTITLE button (9) on the remote control to choose the language in which you would like the subtitles to appear.

PBC (Play Back Control - VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback.

Press the PCB button to toggle the PBC function "On"/"Off". Once PBC is on, playback starts from track one of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

Playback Information

During DVD and VCD playback, press the DISP button on the control panel (8) or remote control (10) to display playback information on the screen, including the media playing and current playback time.

DVD Playback Information

The following information is displayed at the top of the screen during DVD playback:

• Title: 05/08 – "05/08" indicates the fifth of 8 titles on the DVD is currently playing.
• C : 2/16 – "2 / 16" indicates that the second of 16 titles on the DVD is currently playing.
  00:41:28 - "00:41:28" indicates the playback time of the current title.
• 2 / 6 Eng – The language display information indicates the second language out of 6 (English) is currently being used.

VCD Playback Information

The following information is displayed at the top of the screen during VCD playback:

• VCD2.0 – Format of current disc.
• T: 6/18 – “6/18” indicates the sixth of 18 tracks on the VCD is currently playing.
  00:02:18 - "00:02:18" indicates the playback time of the current track.

General Disc Information

Symbol	12cm Disc Properties	Max Play Time
	Single side single layer (DVD-5)Single side double layer (DVD-9)Double side single layer (DVD-10)Double side double layer (DVD-18)	(MPEG 2 Method)133 minutes242 minutes266 minutes484 minutes
	Single side single layer (VCD)	(MPEG 1 Method)74 minutes
	Single side single layer	74 minutes

Table 5: Disc Symbols

Symbol	Meaning
	Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).
	Number of sublittle languages available on the disc (maximum of 32).
	Number of angles provided (maximum of 9).
	Aspect ratios available. "LB" stands for Letter Box and "PS" stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

Instructions for TFT control and Insert/Eject are the same for DVD and CD operation. Please see the DVD/Disc Video Operation section for information about these topics. The VME 9114TS will play music or other audio files from the following disc media:

• CD-DA
• CD-R/RW
  • DVD
• DVD+R/RW
• DVD-R/RW

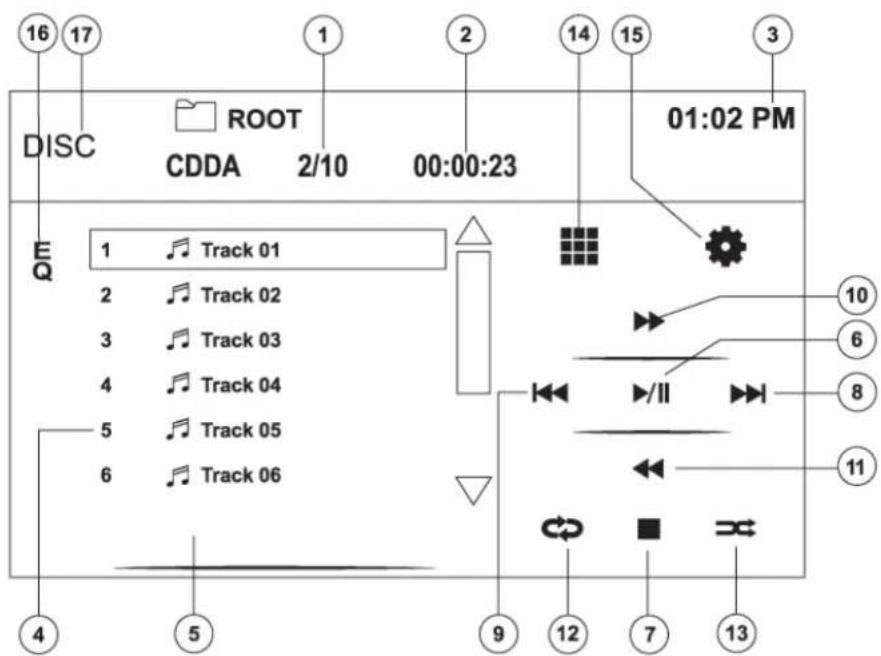

Upon inserting a disc with the TFT screen open, the disc and track title (if available), along with the track number and playing time appear on the screen.

CD Player User Interface

The on-screen indicators and touch key areas for CD playback are outlined below.

1. Current track and total number of tracks on disc
2. Elapsed playing time
3. Current time
4. Track titles
5. Disc title
6. II Touch to play/pause disc playback
7. ■ Touch to stop disc playback

8. |: Touch to move to next track

9. |<<: Touch to move to previous track

10. : Touch to fast forward current track

11. <<: Touch to rewind current track
12. Touch to activate/deactivate Repeat play mode
13. Touch to open sub page
14. Touch to access the direct entry screen
15. : Touch to view the SETUP menu
16. Touch for quick access to Equalizer level settings
17. Touch to view the SOURCE MENU and select a new playback source
18. Touch and slide to show next track or page
19. Clock time

Controlling Playback

Stopping Playback

Touch the ■ button on screen to stop disc play.

To resume playback, touch the ▶ button on screen.

Pausing Playback

Touch the >>| button on screen to suspend or resume disc playback.

Moving Through Tracks

Press the >>| button on screen to advance to the next track on the disc. Press the |<< button on screen to move to the previous track.

Repeat Playback

Touch the ➕ button on screen, to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off
• CD-DA: Repeat One, Repeat All, Repeat Off
• CD-R/RW: Repeat One, Repeat All, Repeat Off
• DVD-R/RW: Repeat One, Repeat All, Repeat Off

Random Play Select

While disc play is stopped, press the RDM button to play the tracks on the disc in a random, shuffled order. Touch the RDM button again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Fast Forward/Fast Rewind

Touch the button on screen >> to fast forward and the button << to fast rewind. Keep pressing and releasing the button to increase the rate from "2X" to "4X", "6X", "8X" and "20X"

Direct Track Entry

To select a track directly, touch the button on screen to display the direct entry menu.

Enter the desired track number using the on-screen number pad, and then press the Enter button. To exit the screen without making a selection, touch Exit. To clear your entry and start over, touch Clear.

MP3/USB/WMA-Operation

Instructions for TFT control and Insert/Eject are the same for DVD and MP3 operation. Please see the DVD/Disc Video Operation section for information about these topics.

MP3/WMA Media and File Requirements

This player allows you to play back MP3 and WMA files recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation. Up to 1500 songs/files can be burned onto a disc for a MEGA DVD music mix. Do not exceed this number of songs/files or disc readability problems may occur.

MP3 Format Compatibility

The file naming formats listed below are compatible with this unit:

• ISO 9660 – file name: 12 characters, file extension: 3 characters
• ISO 9660 – file name: 31 characters, file extension: 3 characters
  • Joliet – 64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128kbps
• Sampling Frequency: 48kHz

When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the "Disc at once" setting.

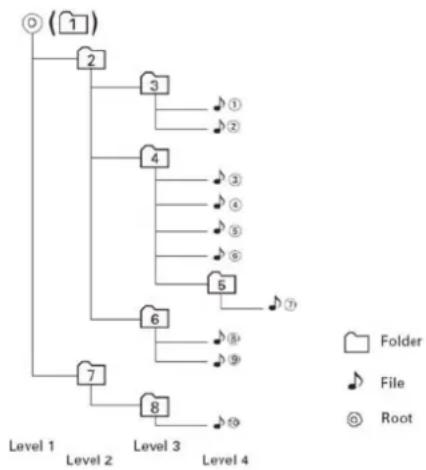

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99". For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below.

The VME 9114TS player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

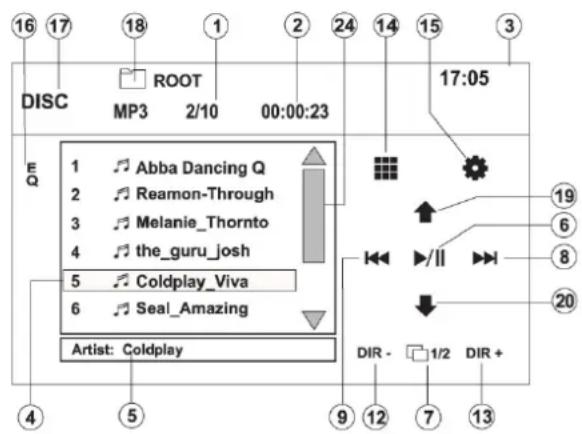

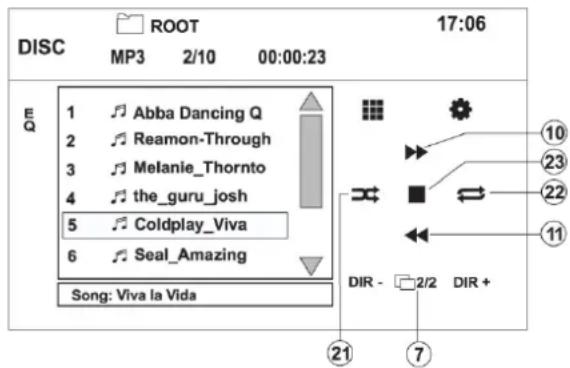

MP3 User Interface

The on-screen indicators and touch key areas for MP3 playback are outlined below

1. Current track and total number of tracks on root of disc

2. Elapsed playing time, track length

3. Current time

4. Track titles

5. ID3 information

6. II : Touch to play/pause disc playback

7. DIR-: to previous directory

8. |: Touch to move to next track

9. |<<: Touch to move to previous track

10. : Touch to navigate playlist

11. <<: Touch to navigate playlist

12. DIR -: Touch to view the previous folder

13. DIR +: Touch to view the next folder

14. Touch to access the direct entry screen

15. Touch to view the SETUP menu

16. Touch for quick access to Equalizer level settings

17. Touch to view the SOURCE MENU and select a new playback source

18. Folder name

19. Page Up

20. Page Down

21. Touch to activate / deactivate Random Playback

22. Touch to activate / deactivate Repeat Playback

23. ■ Touch to stop disc playback

24. Touch and slide to show next track or page

Controlling Playback

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the sequence of the "Root" directory.

NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the "Disc at Once" option and close your disc.

Stopping Playback

Touch the ■ button on screen to stop disc playback.

To resume playback, touch the ▶ IIIbutton on screen.

Pausing Playback

Touch the >/||button on screen to suspend or resume disc playback.

Moving Through Tracks

Press the >>| button on screen to advance to the next track on the disc. Press I<< on screen to move to the previous track.

TROUBLESHOOTING

Problem

Cause

Corrective

Acti

GENERAL

Unit will not power on Radio Fuse blown Install new fuse with correct rating
	Car battery fuse blown Install new fuse with correct rating
	Illegal operation Press the RESET button located in the bottom right corner of the front panel
Remote control does not function Battery depleted Replace battery with new one
	Battery installed incorrectly Remove battery and install correctly
No/low audio output Improper audio output connection Check wiring and correct
	Volume set too low Increase volume level
	Improper “MUTE” connection Review wiring diagram and check “MUTE” connection
	Speakers damaged Replace speakers
	Heavily biased volume balance Adjust the channel balance to the center position
	Speaker wiring is in contact with metal part of car	Insulate all speaker wiring connections
Poor sound quality or distortion	Pirated disc is in use	Use original copy
	Speaker power rating not compatible with unit	Connect proper speakers
	Speaker is shorted	Check speaker contact
Unit resets itself when engine is off	Incorrect connection between ACC and positive battery wire	Check wiring and correct

TFT MONITOR

Monitor does not open automatically	TFT Auto Open is turned off	Turn TFT Auto Open on
No image	Incorrect connection to parking brake wire	Check wiring and correct
	PRK SW is activated, parking brake is not engaged	Stop vehicle in safe place and apply parking brake
Flashing image or interference appears on screen	DVD is not compatible with current TV system settings	Change setup to accommodate disc
	Improper video signal connections	Check wiring and correct
Prolonged image or improper height/width ratio display	Improper aspect ratio setup	Use correct aspect ratio setting

TUNER

Weak station searching Auto antenna is not fully extended Connect the auto antenna control cable properly
	Auto antenna not properly connected Connect the auto antenna control cable properly
	LOCAL function is activated Turn LOCAL function Disc does not play back
Disc is warped or scratched Use disc in good condition
	Disc is dirty or wet Clean disc with soft cloth
	Laser pickup is dirty Clean laser pickup with cleaning disc
	Incompatible disc is used Use compatible disc
	Disc rating exceeds Parental Lock rating limit Change Parental Lock settings to lower restriction
	Disc region code is not compatible with unit Use disc with proper region code
	Disc is inserted upside down Insert disc with label side up
Image blurred, distorted, or dark Disc is illegally copied Use original disc
PCB cannot be used during VCD playback	PCB is not available on the disc
No repeat or searching while playing VCD	PCB is on Turn PCB off

MP3

Interruption occurred during playback	Disc is dirty or scratched	Clean disc or replace
	File is damaged/bad recording	Recreate disc with good files
Incorrect playback message displayed	Message is longer than LCD can display

Message Displayed	Cause	Corrective Action
Loading	Disc is being read
No Disc	Disc is dirty	Clean disc with soft cloth
	Disc is upside down Insert disc with label side up
	Disc not present in loading compartment	Insert disc
Bad Disc	Disc is dirty	Clean disc with soft cloth
	Disc is upside down Insert disc with label side up
Unknown disc	Disc format is not compatible with this unit
Region Error	DVD is not compatible with region code of unit
Error	Illegal mechanism operation Press EJECT key for 5 seconds to reset loading mechanism

Care and Maintenance

1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and nonneutral detergent (such as alcohol) may result in scratching or discoloration.
2. Do not get water or cleaning fluids on the unit.
3. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. If this occurs, allow the unit to cool before operating the player again.
4. Never insert anything other than a 5" (12 cm) compact disc into the player as the mechanism can be damaged by foreign objects.
5. Do not attempt to use a 3" (8 cm) CD-Single disc in this unit, either with or without an adaptor, as damage to the player and/or disc may occur. Such damage is not covered by the Warranty on this product.
6. The CD player may not operate properly in extreme hot or cold. If such conditions occur, allow the interior of the vehicle to reach a normal temperature before using player.
7. When the vehicle warms up during cold weather or under damp conditions, condensation may appear on the LCD panel. Should this occur, the screen will not operate properly until the moisture has evaporated.
8. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle.

SPECIFICATIONS

DVD/CD Player

Compatible Disc Media: DVD + / - R / RW (Single and Dual Layer) and CD-R / RW

Compatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, AVI, MPEG1 / 2, XviD, DivX® and Kodak picture CD (JPEG).

Signal to Noise Ratio: >95dBA

Dynamic Range: >95dB

Frequency Response: 20Hz to 20 kHz, -3dB

Channel Separation: >60dB @ 1 kHz

D/A Converter: High performance 24-bit / 192 kHz sample rate,

Multi-Bit Sigma-Delta Modulator

Video

FM Tuner

RDS (Radio Data System)

Tuning Range: 87.5MHz - 108MHz

30 Station Presets (18 FM / 12 AM)

Auto Stereo / Mono

Local / Distance

Auto Store / Preview Scan

Mono Sensitivity (-30dB): 9dBf

Quieting Sensitivity (-50dB): 15dBf

Alternate Channel Selectivity: 70dB

Signal to Noise Ratio @ 1 kHz: 58dB

Frequency Response: 30Hz - 15 kHz, -3dB

AM Tuner

Tuning Range: 522 kHz - 1620 kHz

Sensitivity (-20dB): 15uV

Signal to Noise Ratio @ 1 kHz: 50dB

Image Rejection: 60dB

Frequency Response: 50Hz - 2 kHz, -3dB

Monitor

Screen Size: 17,8cm / (7") (Measured diagonally), 16:9 Widescreen

6.06" (154.1mm) W X 3.42" (87mm) H

Screen Type: High Definition TFT Liquid Crystal Display (LCD) active matrix with LED backlight

Resolution: 336,960 sub pixels, 1440 (W) X 234 (H)

DIN chassis dimensions: 7" X 7" X 2" (178mm x 178mm x 50mm)

General

Auxiliary Input impedance: 10k

Power Supply: 11 to 16VDC, negative ground

Power Antenna (Blue): 500 mA max, current limited protection

USB 1.1 500 mA max. current

Technical line drawing of an electronic device with a screwdriver inserted, showing internal components and mounting brackets (no text or symbols)

Installation ISO-DIN finale

Technical line drawing of an electronic device with a zoomed-in inset showing internal components (no text or symbols)

Diagram showing a mechanical assembly with two stages of a component, no text or symbols present.

FULL (plein écran)

Arrêter la lecture

Table 5: Disc Symbols

Symbol	Meaning
	Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).
	Number of sublittle languages available on the disc (maximum of 32).
	Number of angles provided (maximum of 9).
	Aspect ratios available. "LB" stands for Letter Box and "PS" stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

UTILISATION AUDIO DVD/CD

Utilisation MP3/USB/WMA

TFT Affichage aux cristaux liquides (LCD), LED backlight

336, 960 Sous-Pixels (1440W X 234H)

Généralités

GB Congratulations! You have made a wise selection in becoming the owner of a AUDIOVOX Mobile Video equipment. Due to high quality AUDIOVOX products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 2-years warranty for AUDIOVOX Mobile Video products.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your AUDIOVOX Mobile Video equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that • the component is packed in original factory packing in good condition • the quality control card has been filled out and enclosed with the component, • your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos félicitations!

No warranty without receipt!

AUDIOVOX®
